  1. Dialogsystem del 2Informationstillstånd, TrindiKit, GoDiS Staffan Larsson Pragmatik VT04

  2. Dialogspel för agenter:Conversational Game Theory (Lewin 2000)

  3. Informationstillstånd och dialogtillstånd • Dialogtillstånd • ett tillstånd i en finit automat; ingen information lagrad i tillståndet • Informationstillstånd • ett ``dialogprotokoll'' som håller reda på gemensamma antaganden, aktuella frågor, skyldigheter, referenter mm. • kan även inkludera privata och sociala attityder • både privat och delad information • kan t o m inkludera dialogtillstånd (t ex ett heltal som refererar till ett tillstånd i en automat)

  4. CGT & dialogspelsbaserade agenter • Teori som tillämpar dialoggrammatik i dialogsystem • Använder också informationstillstånd • Spel representerade som RTNs (Recursive Transition Networks) • d v s bågar i ett spel kan vara associerade med ett annat spel • Kombineras med enkelt informationstillstånd/kontext <Pd, Cm>: • Pd: Propositions under discussion • < P, d(P) >, där d(P) är ett fokuserat element i P • Cm: Commitment slate

  5. Moves & games är funktioner som uppdaterar kontexten • Moves uppdaterar Pd • Games uppdaterar Cm • committments: ej mentala attityder utan ”publika objekt” som man kan bindas till • social attityd • Ej som i t ex Cohen & Perrault! • förvillkor och effekter i termer av mentala tillstånd, privata attityder

  6. Move types (urval) • qw(p): wh-fråga • Pd := < p, 0 > • rw(p): svar på wh-fråga • Pd := < p, 0 > • ack: acknowledgement; Pd oförändrad • cnf(c): confirmation • Pd före = < P, _ > • Pd := < P, c > • Ryes: ja-svar ; Pd oförändrad • Rno: nej-svar ; Pd oförändrad

  7. Games • Att spela dialog involverar ”parsning” av spel m h a dialoggrammatiken • parallell, inkrementell parser • rankar möjliga parsningar m h a en preferensmekanism • detta sköts av en ”monitor” • Men agenten måste också producera egna yttranden • sköts av dialogbidragsgenerator • genererar output om monitorn indikerar att det är systemets tur • vilken output som väljs beror dels av speltillstånd, dels av informationstillstånd

  8. QW(p) qw rw ack 0 1 2 3 Ryes|Rno|Rmod qw-r cnf 4 QW(p) -> {qw | qw-r} rw (cnf {Ryes | Rno | Rmod}) ack ...

  9. Exempeldialog

  10. Uppgifter (2-4 sidor) • 10.1 Vilka egenskaper har en agent? Vilka attityder kan en agent ha, och hur hänger dessa samman med egenskaperna? (Wooldridge & Jennings) • 10.2 Beskriv de olika approacherna till att bygga artificiella dialogagenter (Traum, Lewin) • planbaserad • logikbaserad • tillståndsbaserad • 10.3 Vilken typ av information behöver en dialogagent hålla reda på i de olika approacherna? (Traum, Lewin)

  11. Dialogsystem

  12. Dialogue modelling • Theoretical motivations • find structure of dialogue • explain structure • relate dialogue structure to informational and intentional structure • Practical motivations • build dialogue systems to enable natural human-computer interaction • speech-to-speech translation • ...

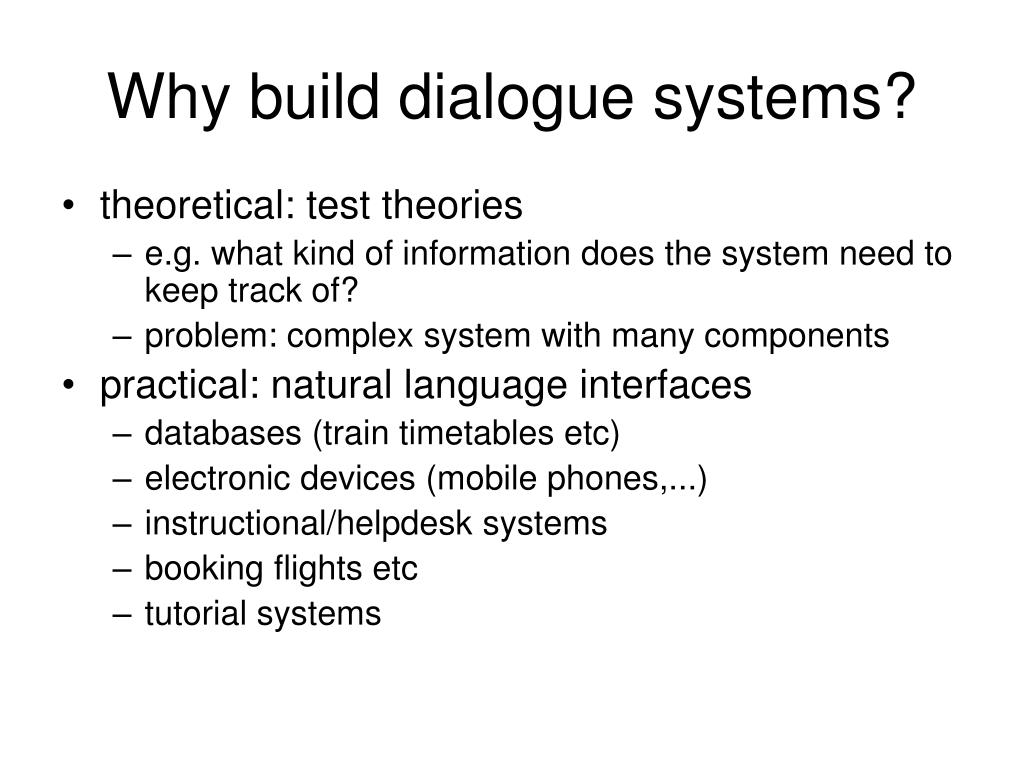

  13. Why build dialogue systems? • theoretical: test theories • e.g. what kind of information does the system need to keep track of? • problem: complex system with many components • practical: natural language interfaces • databases (train timetables etc) • electronic devices (mobile phones,...) • instructional/helpdesk systems • booking flights etc • tutorial systems

  14. What does a system need to be able to do? • speech recognition • parsing, syntactic and semantic interpretation • resolve ambiguities • anaphora and ellipsis resolution, etc... • dialogue management • how does an utterance change the state of the dialogue? • given the current state of the dialogue, what should the system do? • natural language generation • speech synthesis

  15. Why spoken dialogue? • Spoken dialogue is the natural way for people to communicate • computers should adapt to humans rather than the other way around • important to enable system and user to communicate in a natural (human-like) way • mixed initiative • turntaking, feedback, barge-in • handle embedded subdialogues • ...

  16. What’s happening with dialogue systems • Beginning to be used commercially • Limited domains • need to encode domain-specific knowledge; a general system would require general world knowledge • speech recognition is harder with large lexicon • Simple dialogue types • mostly information-seeking • Need to bridge gap between dialogue theory and working systems

  17. Dialogsystemtyper • finite state automata (CLSU toolkit) • Dock ofta med möjlighet att ha tilltåndsvariabler (=informationstillstånd) • Reaktiva agenter??? • frame-based (VoiceXML) • plan-based (TRAINS, Allen, Cohen, Grosz, Sidner, ...) • general reasoning (Sadek, ...) • information states (TRINDI: Traum, Bos, ...)

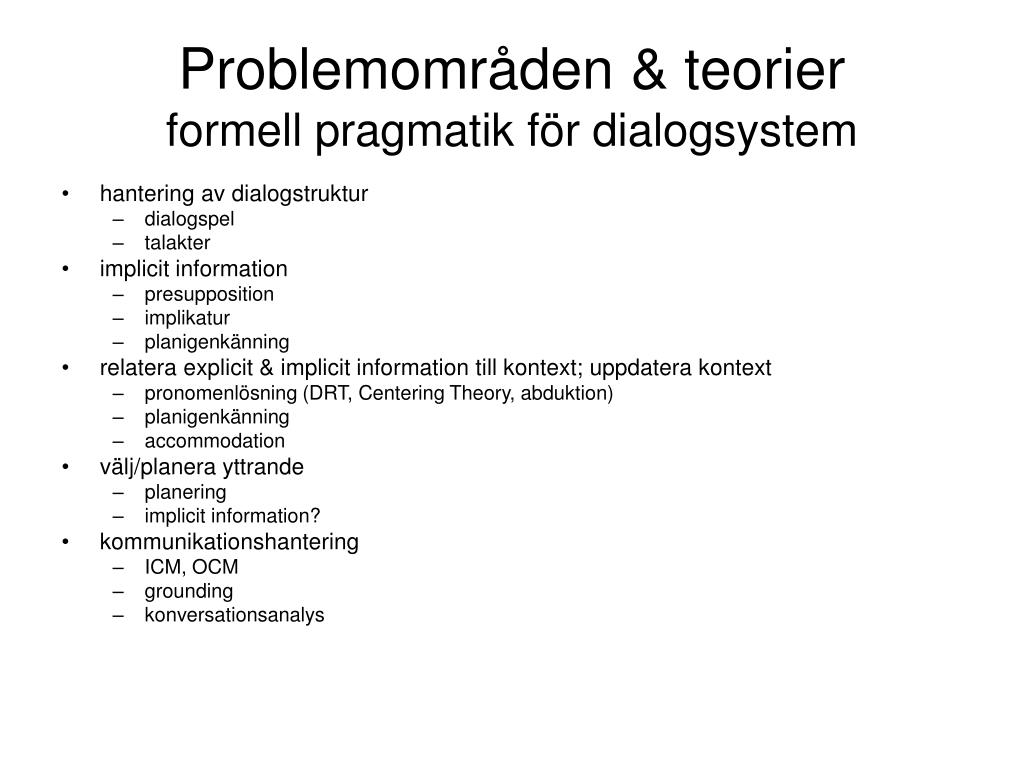

  18. Problemområden & teorierformell pragmatik för dialogsystem • hantering av dialogstruktur • dialogspel • talakter • implicit information • presupposition • implikatur • planigenkänning • relatera explicit & implicit information till kontext; uppdatera kontext • pronomenlösning (DRT, Centering Theory, abduktion) • planigenkänning • accommodation • välj/planera yttrande • planering • implicit information? • kommunikationshantering • ICM, OCM • grounding • konversationsanalys

  19. TrindiKit

  20. What is TrindiKit? a toolkit for building and experimenting with dialogue move engines and systems, based on the information state approach not a dialogue system in itself

  21. Architecture & concepts

  22. control DME module1 module… modulei modulej module… modulen • Total Information State • (TIS) • Information state proper (IS) • Module Interface Variables • Resource Interface Variables resource1 resource… resourcem

  23. Information State (IS) • an abstract data structure (record, DRS, set, stack etc.) • accessed by modules using conditions and operations • the Total Information State (TIS) includes • Information State proper (IS) • Module Interface variables • Resource Interface variables

  24. Dialogue Move Engine (DME) • module or group of modules responsible for • updating the IS based on observed moves • selecting moves to be performed • dialogue moves are associated with IS updates using IS update rules • there are also update rules no directly associated with any move (e.g. for reasoning and planning) • update rules: rules for updating the TIS • rule name and class • preconditon list: conditions on TIS • effect list: operations on TIS • update rules are coordinated by update algorithms

  25. Modules and resources • Modules (dialogue move engine, input, interpretation, generation, output etc.) • access the information state • no direct communication between modules • only via module interface variables in TIS • modules don’t have to know anything about other modules • increases modularity, reusability, reconfigurability • may interact with user or external processes • Resources (device interface, lexicons, domain knowledge etc.) • hooked up to the information state (TIS) • accessed by modules • defined as object of some type (e.g. ”lexicon”)

  26. What’s in TrindiKit?

  27. What does TrindiKit provide? • High-level formalism and interpreter for implementing dialogue systems • promotes transparency, reusability, plug-and-play, etc. • allows implementation and comparison of dialogue theories • hides low-level software engineering issues • GUI, WWW-demo • Ready-made modules and resources • speech • interfaces to databases, devices, etc. • reasoning, planning

  28. TrindiKit contents (1) • alibrary of datatype definitions (records, DRSs, sets, stacks etc.) • user extendible • alanguage for writing information state update rules • GUI: methods and tools for visualising the information state • debugging facilities • typechecking • logs of communication modules-TIS • etc.

  29. TrindiKit contents (2) • A language for defining update algorithms used by TrindiKit modules to coordinate update rule application • A language for defining basic control structure, to coordinate modules • A library of basic ready-made modules for input/output, interpretation, generation etc.; • A library of ready-made resources and resource interfaces, e.g. to hook up databases, domain knowledge, devices etc.

  30. Special modules and resources included with TrindiKit • OAA interface resource • enables interaction with existing software and languages other than Prolog • Speech recognition and synthesis modules • TrindiKit shells for off-the-shelf products, e.g. Nuance • Possible future modules: • planning and reasoning modules • multimodal input and output

  31. Asynchronous TrindiKit • Internal communication uses either • OAA (Open Agent Architecture) from SRI, or • AE (Agent Environment), a stripped-down version of OAA, implemented for TrindiKit • enables asynchronous dialogue management • e.g.: system can listen and interpret, plan the dialogue, and talk at the same time

  32. How to build a system

  33. How to use TrindiKit We start from TrindiKit Implements the information state approach Takes care of low-level programming: dataflow, datastructures etc. TrindiKit information state approach

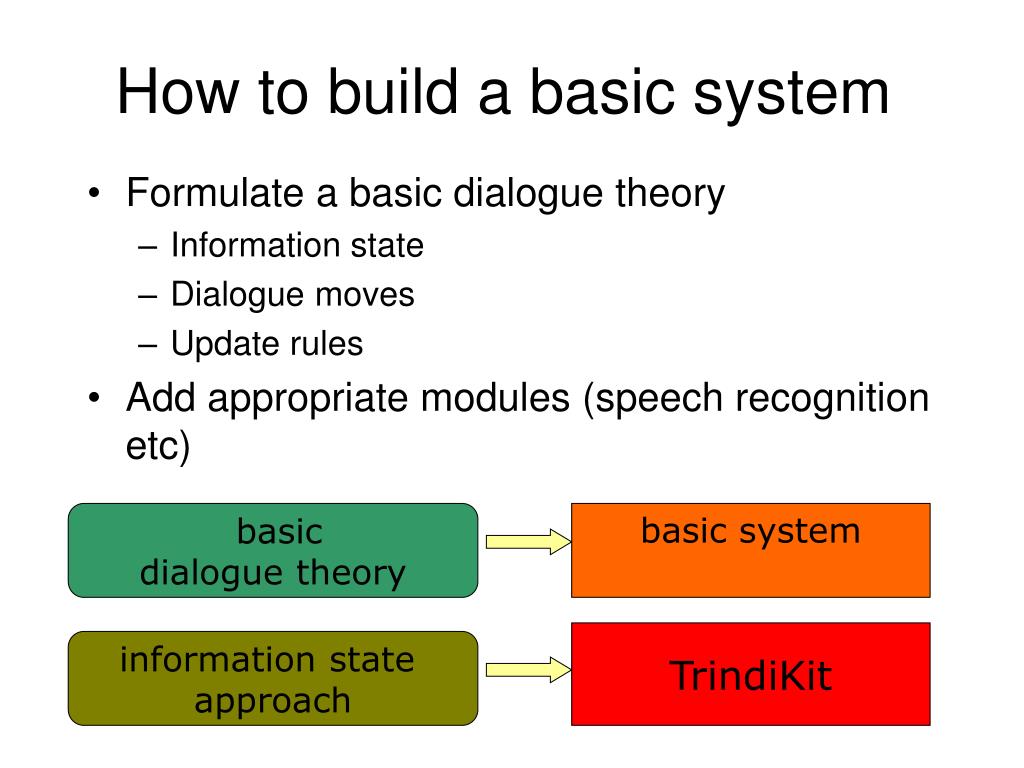

  34. How to build a basic system Formulate a basic dialogue theory Information state Dialogue moves Update rules Add appropriate modules (speech recognition etc) basic dialoguetheory basic system TrindiKit information state approach

  35. How to build a genre-specific system Add genre-dependent IS components, moves and rules genre-specific theory additions genre-specific system basic dialoguetheory basic system TrindiKit information state approach

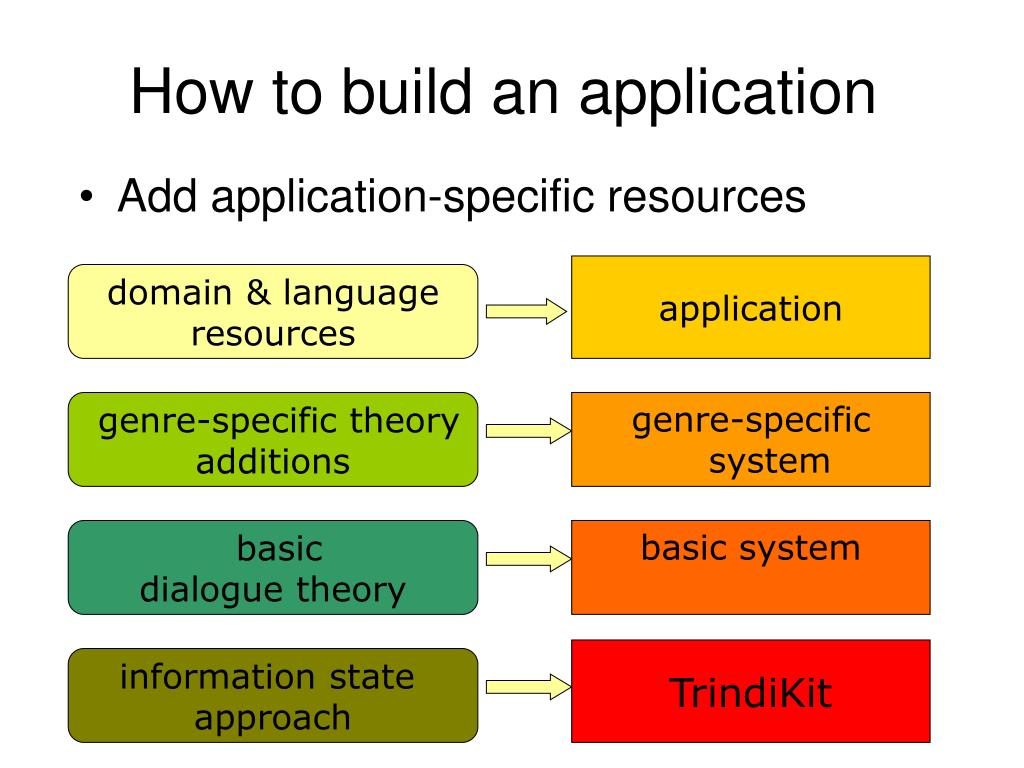

  36. How to build an application Add application-specific resources application domain & language resources genre-specific theory additions genre-specific system basic dialoguetheory basic system TrindiKit information state approach

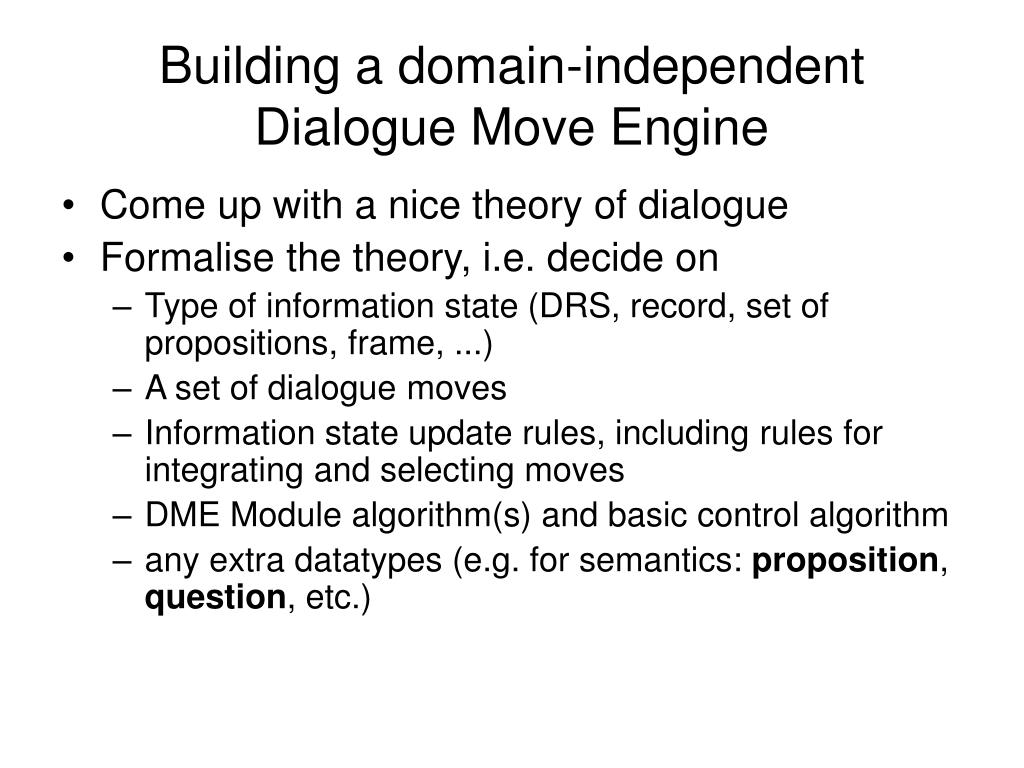

  37. Building a domain-independent Dialogue Move Engine • Come up with a nice theory of dialogue • Formalise the theory, i.e. decide on • Type of information state (DRS, record, set of propositions, frame, ...) • A set of dialogue moves • Information state update rules, including rules for integrating and selecting moves • DME Module algorithm(s) and basic control algorithm • any extra datatypes (e.g. for semantics: proposition, question, etc.)

  38. Specifying Infostate type • the Total Information State contains a number of Information State Variables • IS, the Information State ”proper” • Interface Variables • used for communication between modules • Resource Variables • used for hooking up resources to the TIS, thus making them accessible from to modules • use prespecified or new datatypes

  39. example: BeadieEye IS information state type BEL: Set(Prop) DES: Set(Prop) INT: Set(Action) MBEL: Set(Prop) IS : LM: Set(Move)

  40. Specifying a set of moves • amounts to specifying objects of type move (a reserved type) • there may be type constraints on the arguments of moves • Example: GoDiS dialogue moves • Ask(Q), Q is a question • Answer(A), A is an answer (proposition or fragment) • Request(),  is an action • Confirm() • Greet • Quit

  41. Writing rules • rule = conditions + updates • if the rule is applied to the IS and its conditions are true, the operations will be applied to the IS • conditions may bind variables with scope over the rule (prolog variables, with unification and backtracking)

  42. Example: BeadieEye moves and a rule moves: assert(P), askif(P) rule( integrate_assert, [ in( $lm, assert(P) ) ], add( is/mbel, P ), add( is/bel, P ), del( lm, assert(P) ) ] ).

  43. Example BeadieEye rule application BEL = { happy(sys) } DES = { knowif( happy(usr) ) } INT = { } MBEL = { } IS = LM = { assert( happy(usr) } Rule application: integrate_assert, > add( IS/MBEL, happy(usr) ), > add( IS/BEL, happy(usr) ), > del( LM, assert(happy(usr) ) BEL = { happy(sys), happy(usr) } DES = { knowif( happy(usr) ) } INT = { } MBEL = { happy(usr) } IS = LM = { }

  44. Example: a rule from GoDiS rule( integrateUsrAnswer, [ $/shared/lu/speaker = usr, assoc( $/shared/lu/moves, answer(R), false ), fst( $/shared/qud, Q ), $domain : relevant_answer( Q, R ), $domain : reduce(Q, R, P) ], [ set_assoc( /shared/lu/moves, answer(R),true), shared/qud := $$pop( $/shared/qud ), add( /shared/com, P ) ] ).

  45. Building modules • Algorithm • For DME modules: coordinate update rules • For control modules: coordinate other modules • TrindiKit includes a language for writing algorithms • For DME modules: basic imperative programming constructs • For control module: basic imperative constructs plus asynchronous triggers

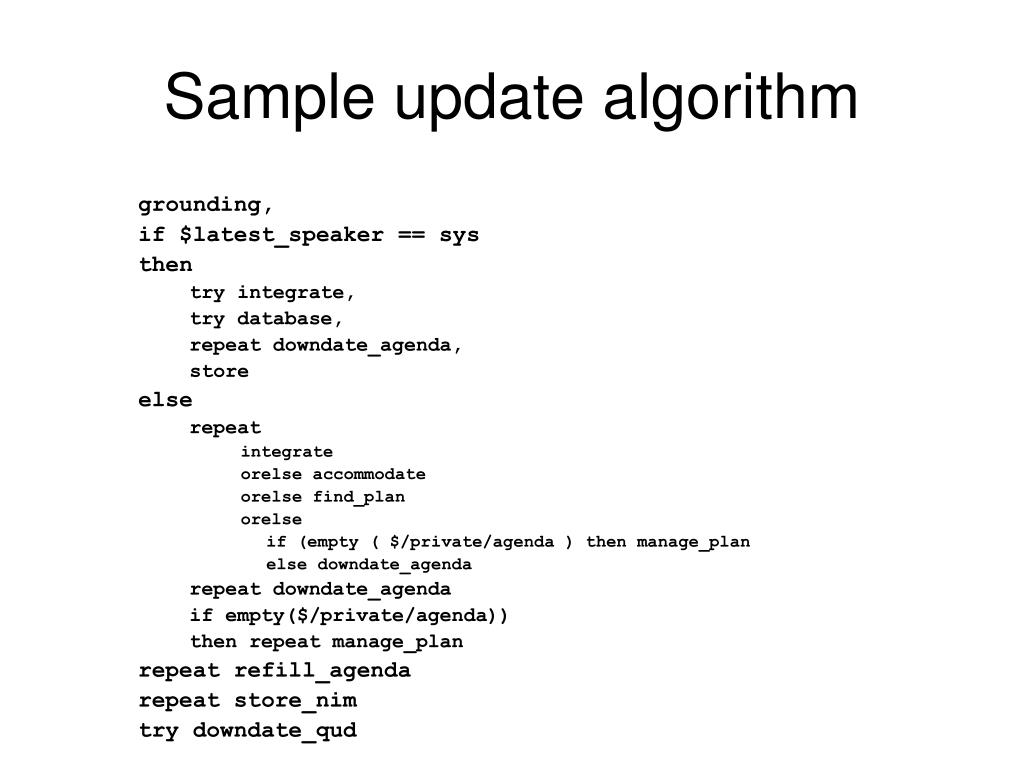

  46. Sample update algorithm grounding, if $latest_speaker == sys then try integrate, try database, repeat downdate_agenda, store else repeat integrate orelse accommodate orelse find_plan orelse if (empty ( $/private/agenda ) then manage_plan else downdate_agenda repeat downdate_agenda if empty($/private/agenda)) then repeat manage_plan repeat refill_agenda repeat store_nim try downdate_qud

  47. Sample control algorithm (2) input: { init => input:display_prompt, new_data(user_input) => input } | interpretation: { import interpret, condition(is_set(input)) => [ interpret, print_state ] } | dme: { import update, import select, init => [ select ], condition(not empty(latest_moves)) => [ update, if $latest_speaker == usr then select ] } | generation: { condition(is_set(next_moves)) => generate } | output: { condition(is_set(output)) => output } )).

  48. From DME to dialogue system Build or select from existing components: • Modules, e.g. • input • interpretation • generation • output • Still domain independent • the choice of modules determines e.g. the format of the grammar and lexicon

  49. Domain-specific system Build or select from existing components: • Resources, e.g. • domain (device/database) interface • dialog-related domain knowledge, e.g. plan libraries etc. • grammars, lexicons • Example resources: GoDiS VCR control • VCR interface • Domain knowledge • Lexicon

  50. Extending TrindiKit
