  1. Equilibrium Modeling of Combined Heat and Power Deployment AnandGovindarajan Seth Blumsack Pennsylvania State University USAEE Conference, Anchorage, 29 July 2013

  2. Problem Statement • Assess the economic potential for Combined Heat and Power (CHP) in electricity-market equilibrium framework, accounting for the impact that CHP adoption will have on electricity prices

  3. Some Motivation • U.S. utilization of CHP is low but technical potential is vast • Utilization pathway for shale-gas supplies Current CHP capacity Technical potential for additional CHP

  4. Basic CHP Economics • Increased efficiency of heat + electricity (adsorptive chiller can add cooling) • Avoided electricity purchases • Other benefits : reduced emissions, reliability benefits

  5. Technical vs Economic potential • CHP investment reduces demand for grid provided power, lowering market price • At some point, incremental CHP units become uneconomical • The economic potential maybe different(less) than the technical potential

  6. Equilibrium CHP Modeling

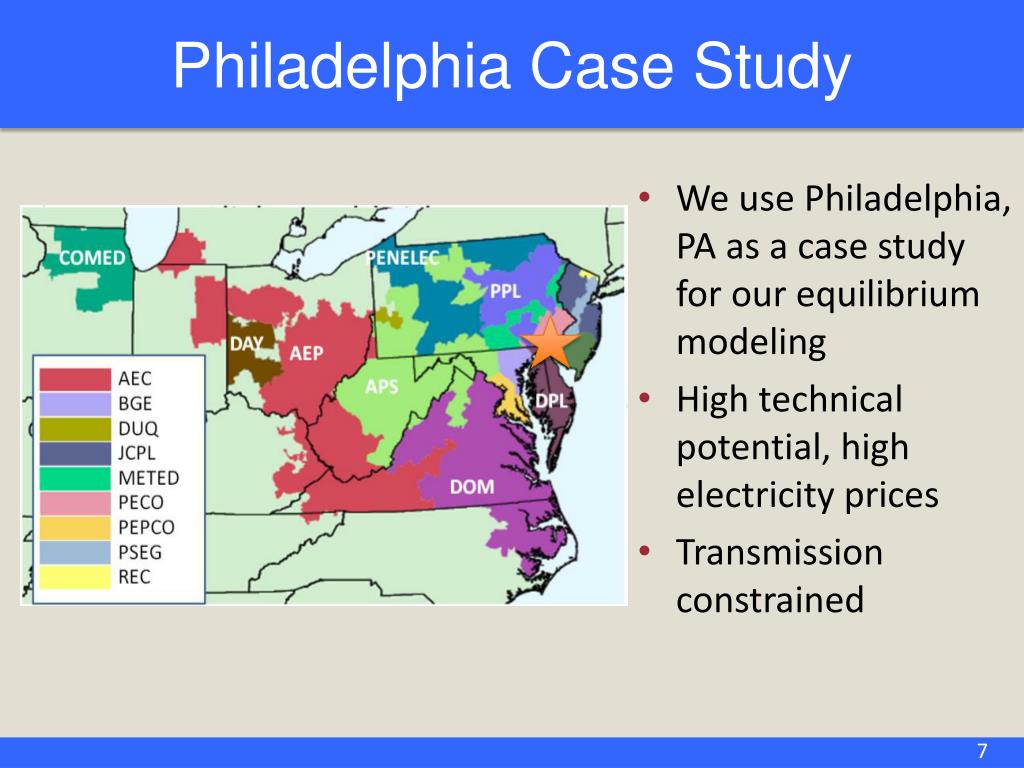

  7. Philadelphia Case Study • We use Philadelphia, PA as a case study for our equilibrium modeling • High technical potential, high electricity prices • Transmission constrained

  8. Supply curve modeling (Sahraei-Ardakani et al 2012) We want to identify: Thresholds where the marginal technology changes; The slope of each portion of the locational dispatch curve.

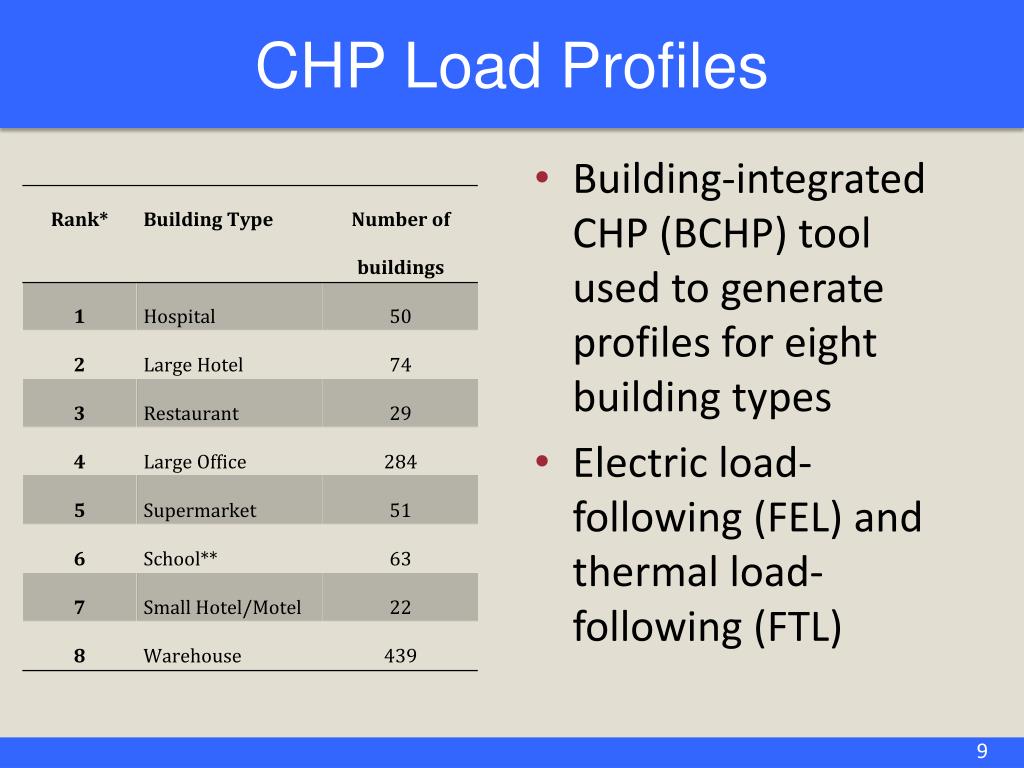

  9. CHP Load Profiles Building-integrated CHP (BCHP) tool used to generate profiles for eight building types Electric load-following (FEL) and thermal load-following (FTL)

  10. Method

  11. Energy Savings from Incremental CHP Investment in Philadelphia Assumes $4/mmBTU natural gas price

  12. Energy Savings from Incremental CHP Investment in Philadelphia Assumes $8/mmBTU natural gas price

  13. NPV of Incremental CHP ($4 gas)

  14. NPV of Incremental CHP ($8 gas)

  15. Conclusion: Are High Gas Prices Good for CHP? • Higher gas prices may mean more economic opportunities for CHP, otherwise economic potential is perhaps 1/3 of technical potential. • Disproportionate impacts on electricity prices relative to operational costs • FTL maybe a more economical operational strategy when fuel prices are low $4/mmBTU Gas $8/mmBTU Gas

  16. Thank You! AnandGovindarajan axg5179@psu.edu

  17. Locational Marginal Cost Curves

  18. Life is Heaven When Gas is $7 Price separation between fuels (on $/MBTU basis) means that thresholds are easy to identify. Note: Other fuel prices – Coal $2/mmBTU; Oil $20/mmBTU

  19. Life Ain’t a Breeze When Gas is $3 When relative fuel price differences are small, a mix of fuels/technologies can effectively be “on the margin.” Note: Other fuel prices – Coal $2/mmBTU; Oil $20/mmBTU

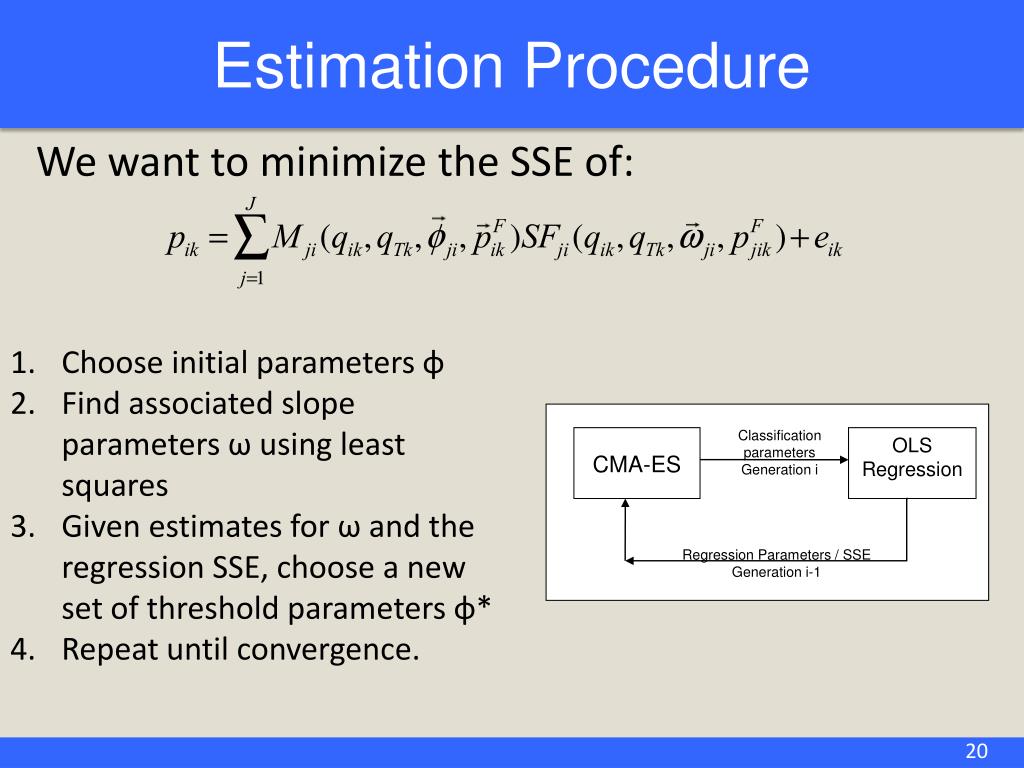

  20. Estimation Procedure Classification parameters Generation i CMA-ES OLS Regression Regression Parameters / SSE Generation i-1 We want to minimize the SSE of: Choose initial parameters φ Find associated slope parameters ω using least squares Given estimates for ω and the regression SSE, choose a new set of threshold parameters φ* Repeat until convergence.

  21. Marginal Fuel Results

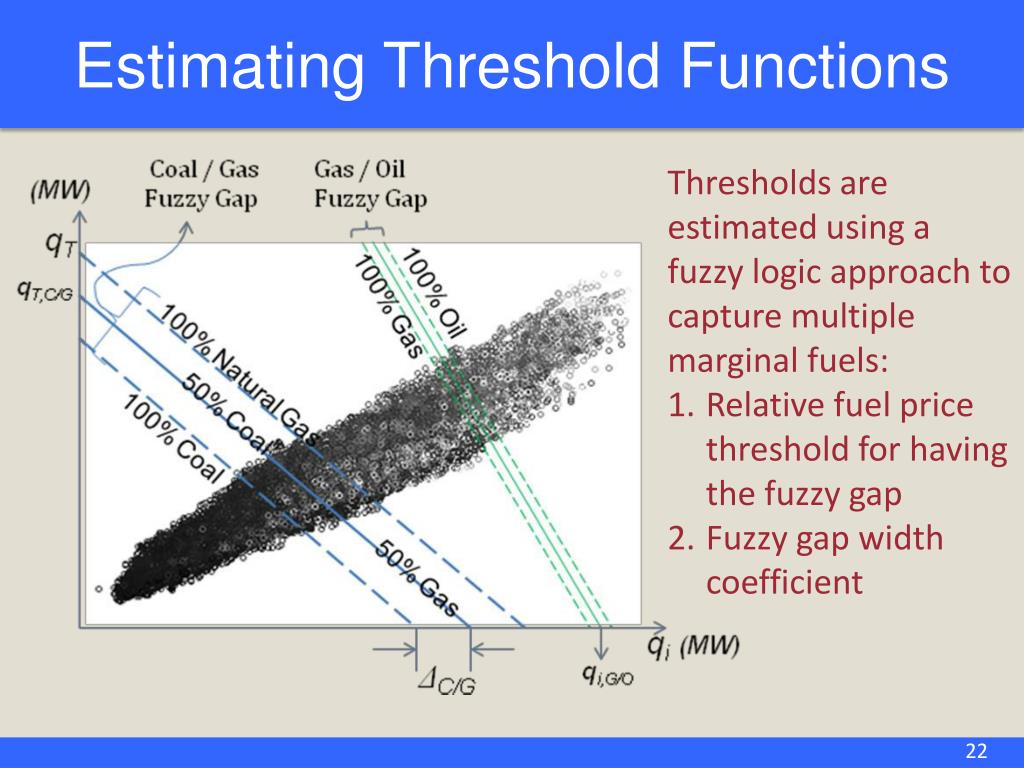

  22. Estimating Threshold Functions Thresholds are estimated using a fuzzy logic approach to capture multiple marginal fuels: Relative fuel price threshold for having the fuzzy gap Fuzzy gap width coefficient

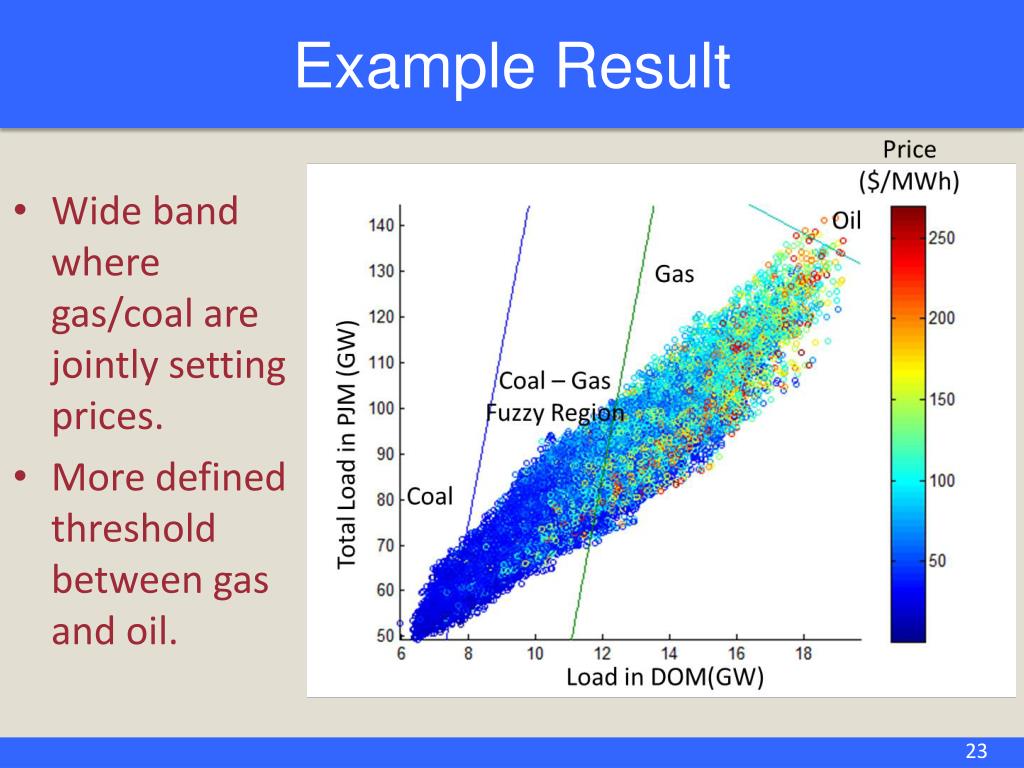

  23. Example Result Wide band where gas/coal are jointly setting prices. More defined threshold between gas and oil.

  24. Supply Curve Modeling • Philadelphia is transmission-constrained, so the available capacity of a generator is not relevant – only the amount of electricity that is deliverable to a location in the network. • Power Transfer Distribution Factor (PTDF): G2 G1 k

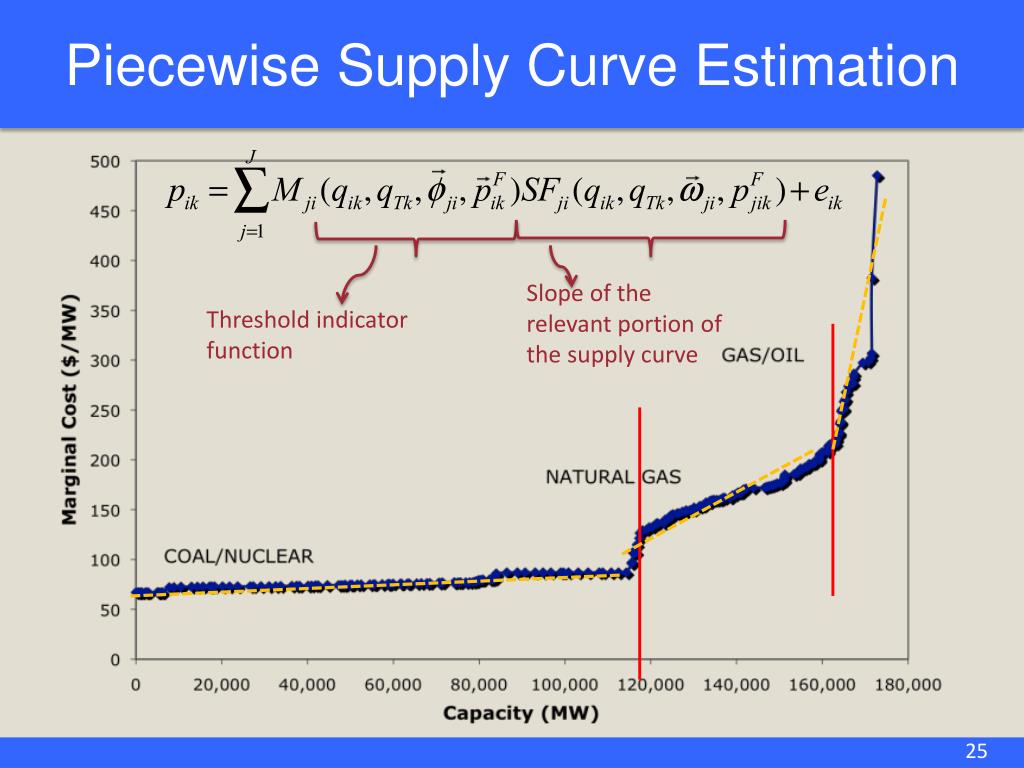

  25. Piecewise Supply Curve Estimation Slope of the relevant portion of the supply curve Threshold indicator function
