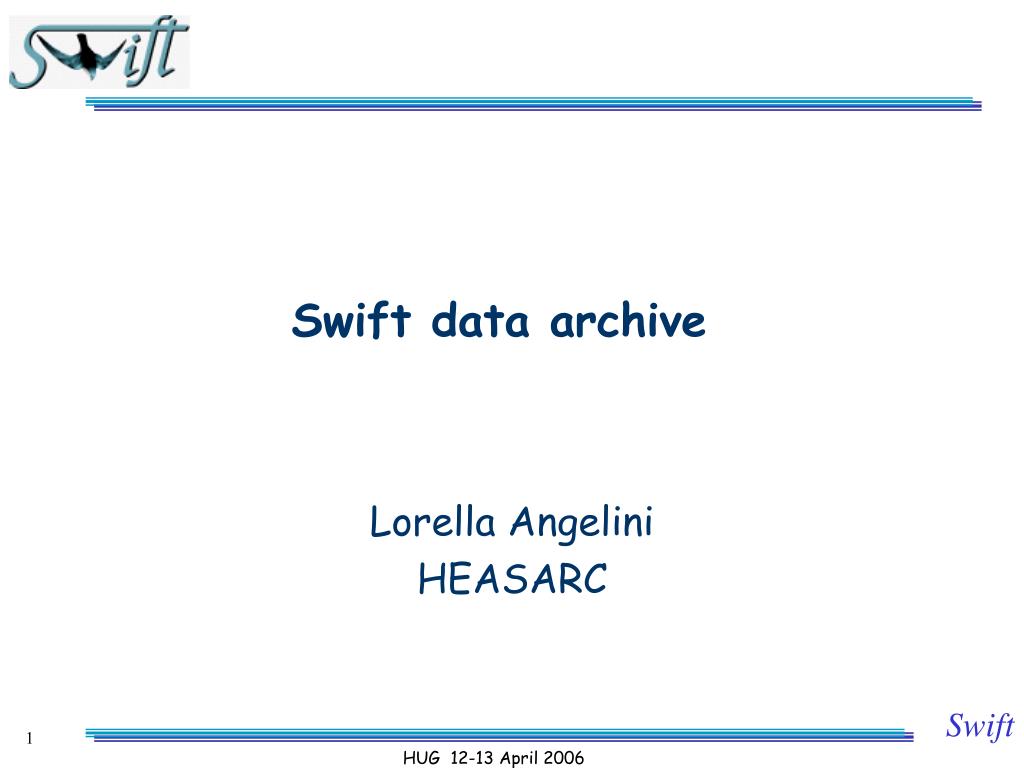

  1. Swift data archive Lorella Angelini HEASARC

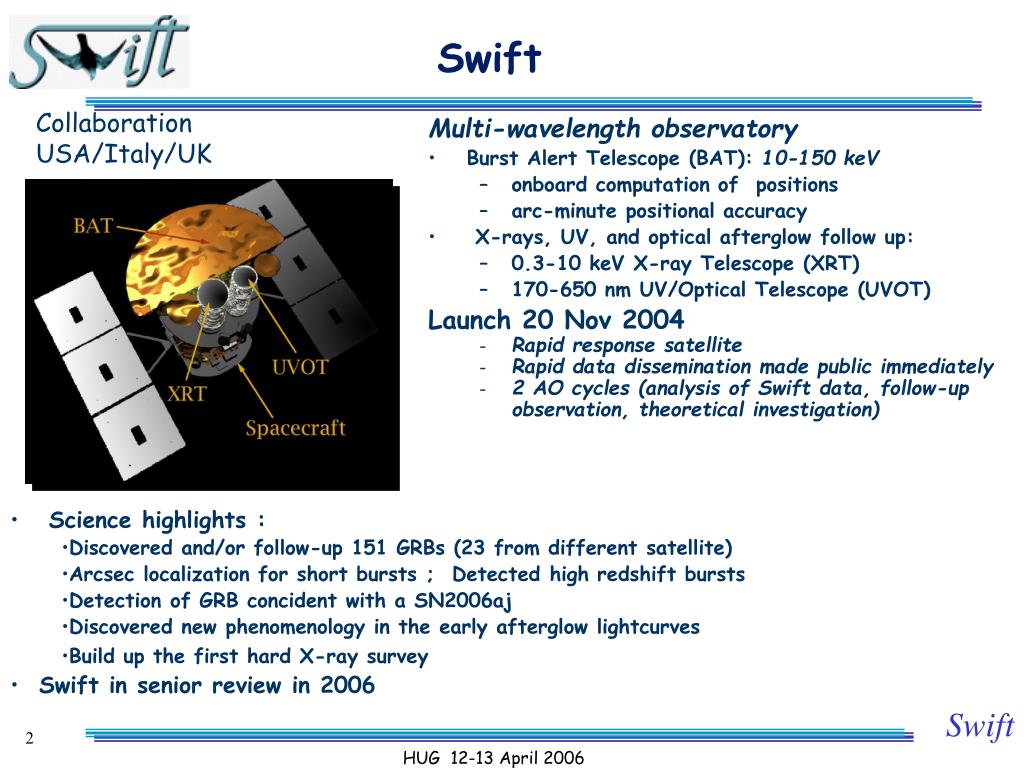

  2. Swift Collaboration USA/Italy/UK Multi-wavelength observatory • Burst Alert Telescope (BAT): 10-150 keV • onboard computation of positions • arc-minute positional accuracy • X-rays, UV, and optical afterglow follow up: • 0.3-10 keV X-ray Telescope (XRT) • 170-650 nm UV/Optical Telescope (UVOT) Launch 20 Nov 2004 • Rapid response satellite • Rapid data dissemination made public immediately • 2 AO cycles (analysis of Swift data, follow-up observation, theoretical investigation) • Science highlights : • Discovered and/or follow-up 151 GRBs (23 from different satellite) • Arcsec localization for short bursts ; Detected high redshift bursts • Detection of GRB concident with a SN2006aj • Discovered new phenomenology in the early afterglow lightcurves • Build up the first hard X-ray survey • Swift in senior review in 2006

  3. HEASARC responsibilities • Populate and maintain the Swift science and calibration data archive • Provide the following services • Public access to the Swift archive • Science data analysis software environment • Web server for the Swift Science Support Center • Database system for the Swift tables • Long-term archive • Generate GRB summary products • These responsibilities are documented in the Swift-HEASARC MOU • Technical agreement via ICD in place with the SDC, ISAC, BAT Team for the catalog delivery

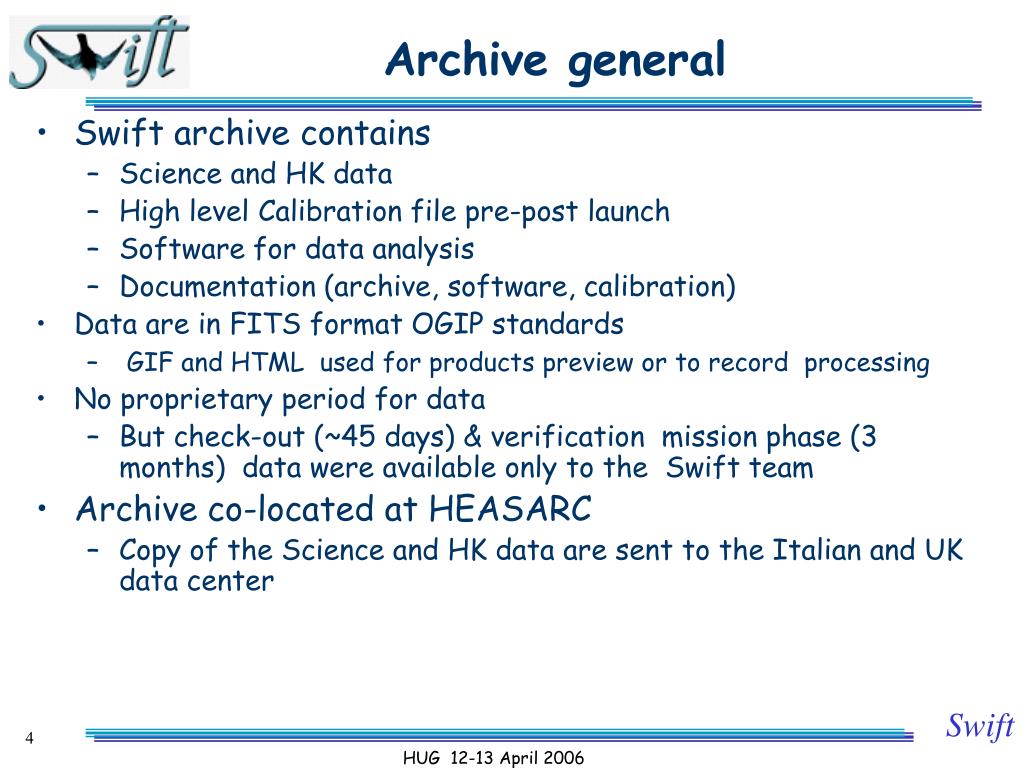

  4. Archive general • Swift archive contains • Science and HK data • High level Calibration file pre-post launch • Software for data analysis • Documentation (archive, software, calibration) • Data are in FITS format OGIP standards • GIF and HTML used for products preview or to record processing • No proprietary period for data • But check-out (~45 days) & verification mission phase (3 months) data were available only to the Swift team • Archive co-located at HEASARC • Copy of the Science and HK data are sent to the Italian and UK data center

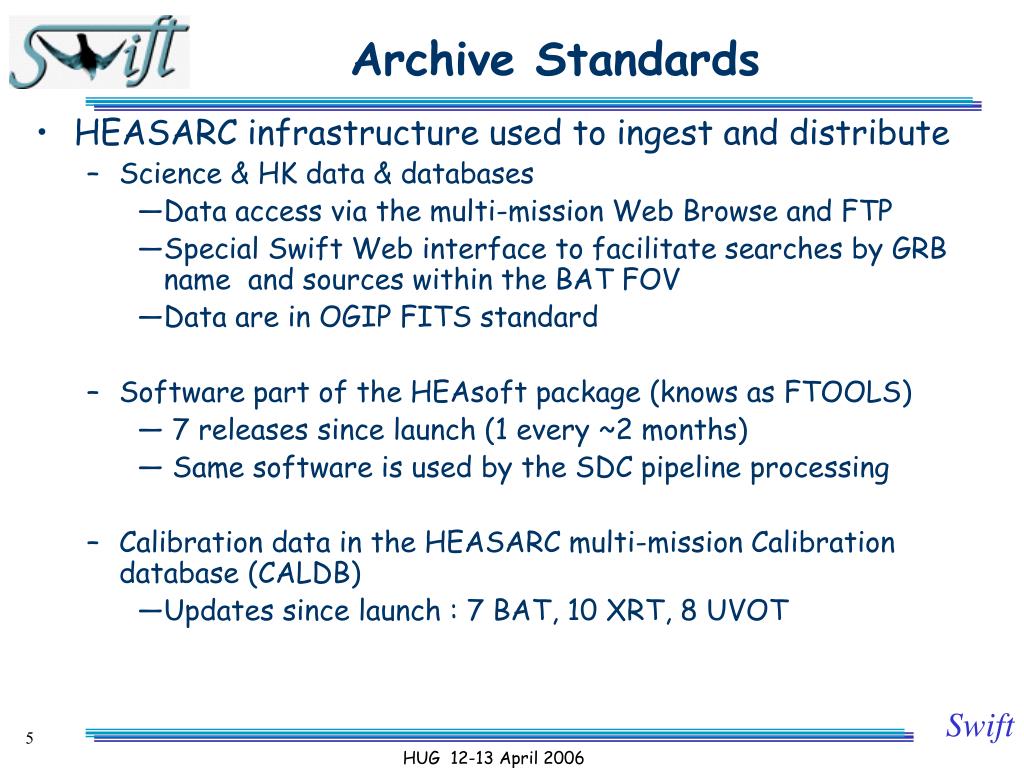

  5. Archive Standards • HEASARC infrastructure used to ingest and distribute • Science & HK data & databases • Data access via the multi-mission Web Browse and FTP • Special Swift Web interface to facilitate searches by GRB name and sources within the BAT FOV • Data are in OGIP FITS standard • Software part of the HEAsoft package (knows as FTOOLS) • 7 releases since launch (1 every ~2 months) • Same software is used by the SDC pipeline processing • Calibration data in the HEASARC multi-mission Calibration database (CALDB) • Updates since launch : 7 BAT, 10 XRT, 8 UVOT

  6. Swift rapid data dissemination plan • Data are downloaded via : • TDRSS. Series of messages after a trigger is detected on board. • broadcast via the GCN (minutes) • later archived as part of the final Swift archive (< a week) • Malindi. All the telemetry. About 6 -7 download per day • Two processing types of the Malindi data (same pipeline software) • Quick look (output data is not part of the final archive): • Data processed every Malindi dump, e.g. the same observation is re-processed when new data arrive. • Data public in 3-6 hours after each dump (from FTP SDC). • Permanent archive: • Final processing after an observation (~ 1 day of data ) • Archived after all telemetry for observation is available ( < a week)

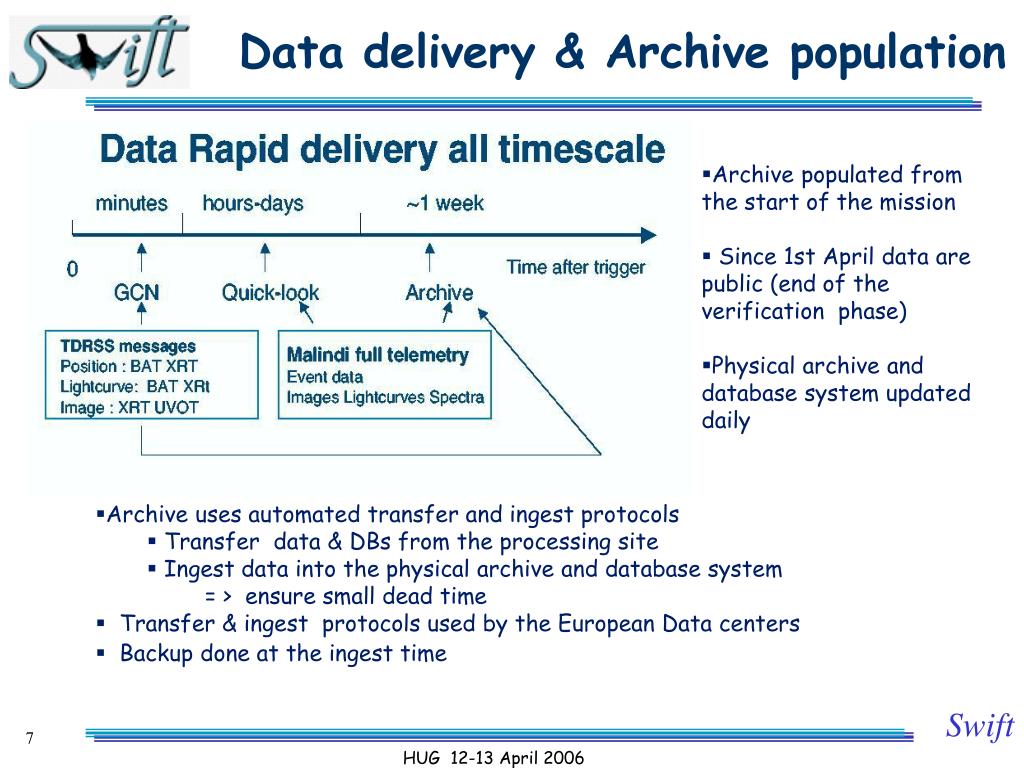

  7. Data delivery & Archive population • Archive populated from the start of the mission • Since 1st April data are public (end of the verification phase) • Physical archive and database system updated daily • Archive uses automated transfer and ingest protocols • Transfer data & DBs from the processing site • Ingest data into the physical archive and database system = > ensure small dead time • Transfer & ingest protocols used by the European Data centers • Backup done at the ingest time

  8. Content of the Physical Archive Archive size Observing Time percentage (April 1 2005 Dec 31 2005) GRB 63% ToO 9% Fill-in Targets 20 % Calibration 8% • Total volume 1146 GB • Average ingest 2.5 GB x day * 1 Jan 2005- 31 Mar 2006 • Production data : • TDRSS messages (SDC) - by trigger number • Level 1,2,3 production data (SDC) - by observation • Monitoring & Calibration data (SDC/SSC) - by type & CALDB

  9. Recent reprocessing • Data reprocessing : • All data taken so far will be reprocessed by the SDC • Latest Pipeline includes improvement implemented in the last year • New databases logging the 3 instrument configurations at the exposure or snapshot level are generated with the reprocessing • Current status : • First 3 months in 2005 used to test the reprocessing • SDC processing delivery at HEASARC for checking • Final version for these 3 months are ready • Instrument tables not quite ready • Other data centers currently copying the data • Plan is to reprocess 1 month at the time

  10. Data downloads • SDC higher download during first trimester compared to normal operation since first trimester was holding more than a week of data • Overall HEASARC download increase with time • Last trimester : 20% of the total HEASARC holdings (24 missions / 7 active) • Swift is among the top 3 popular missions

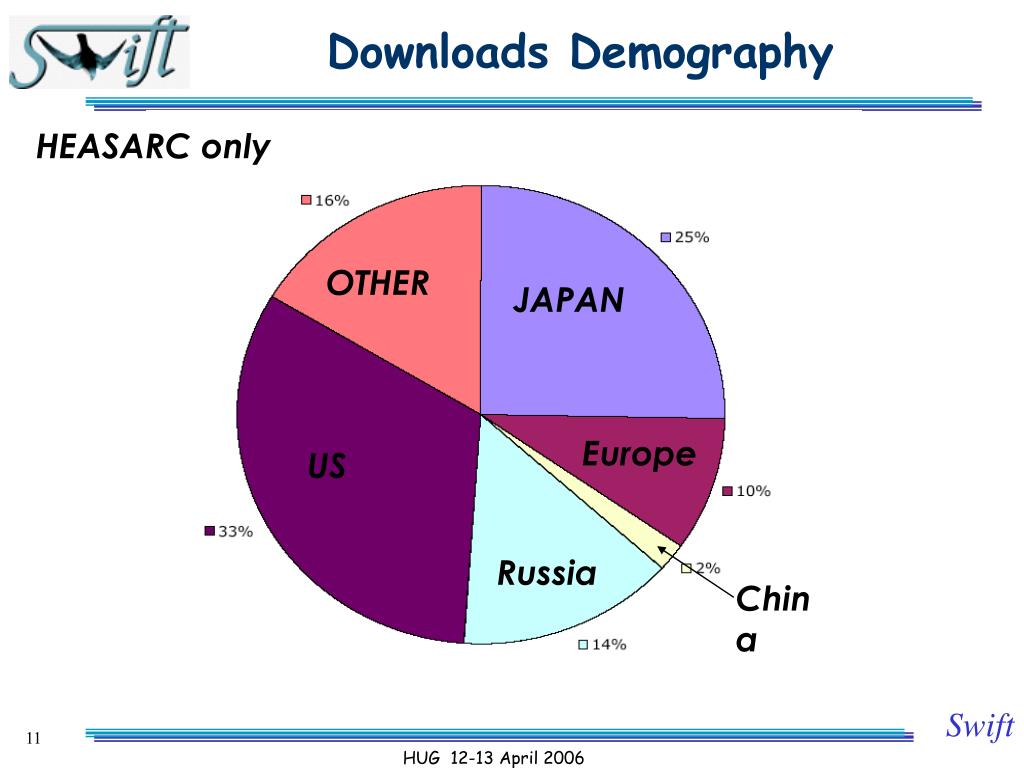

  11. Downloads Demography HEASARC only OTHER JAPAN Europe US Russia China

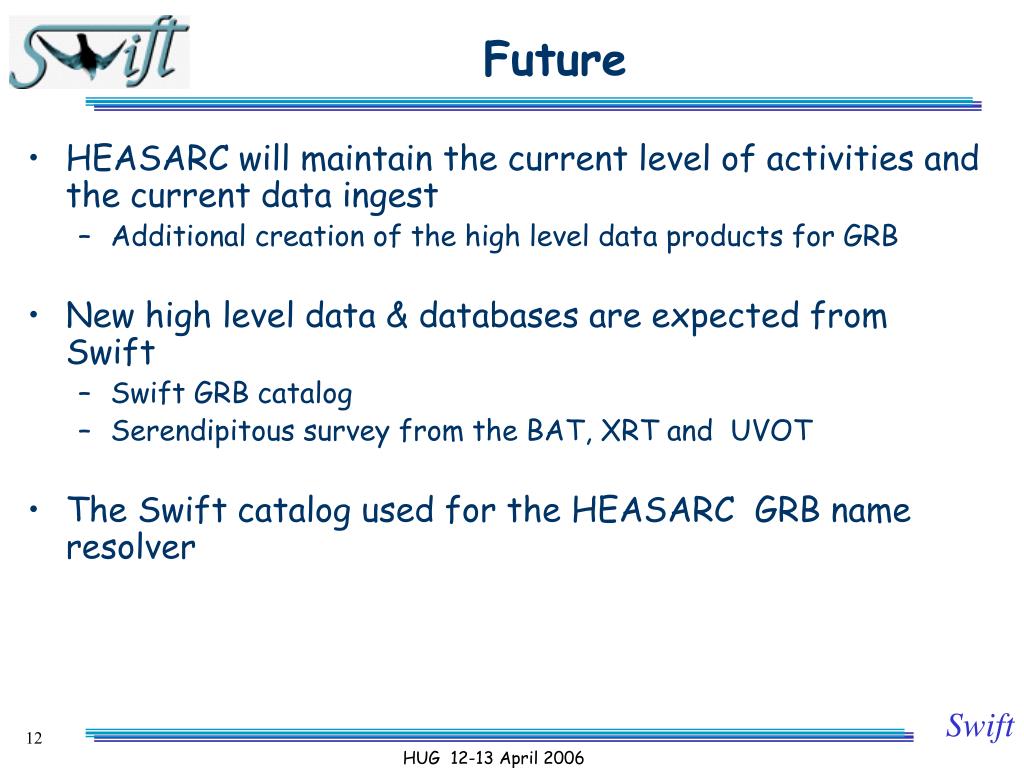

  12. Future • HEASARC will maintain the current level of activities and the current data ingest • Additional creation of the high level data products for GRB • New high level data & databases are expected from Swift • Swift GRB catalog • Serendipitous survey from the BAT, XRT and UVOT • The Swift catalog used for the HEASARC GRB name resolver
