  1. Engineering Economics John Ayers September 17, 2004 .

  2. Engineering Economics • Why is it important? • Value and Interest • Cash Flow Diagrams and Patterns • Equivalence of Cash Flow Patterns • Evaluating Alternatives • Break-Even Analysis • Income Tax and Depreciation • Inflation • Conclusion

  3. Why do we care about Engineering Economics? • Engineering designs are intended to produce good results. • They are accompanied by undesirables (costs). • If outcomes are evaluated in dollars, and “good” is defined as profit, then decisions will be guided by engineering economics. • This process maximizes goodness only if all outcomes are anticipated and can be monetized. $

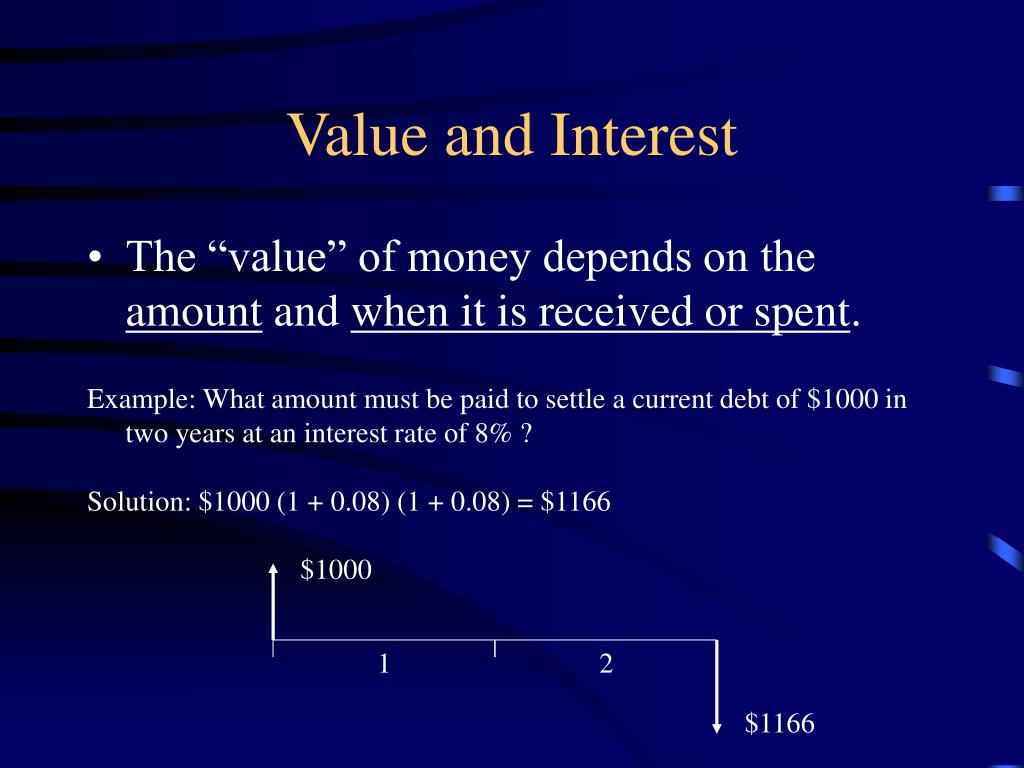

  4. $1000 1 2 $1166 Value and Interest • The “value” of money depends on the amount and when it is received or spent. Example: What amount must be paid to settle a current debt of $1000 in two years at an interest rate of 8% ? Solution: $1000 (1 + 0.08) (1 + 0.08) = $1166

  5. “present” P-Pattern 1 2 3 n “future” F-Pattern 1 2 3 n “annual” A-Pattern 1 2 3 n “gradient” G-Pattern 1 2 3 n Cash Flow Diagrams

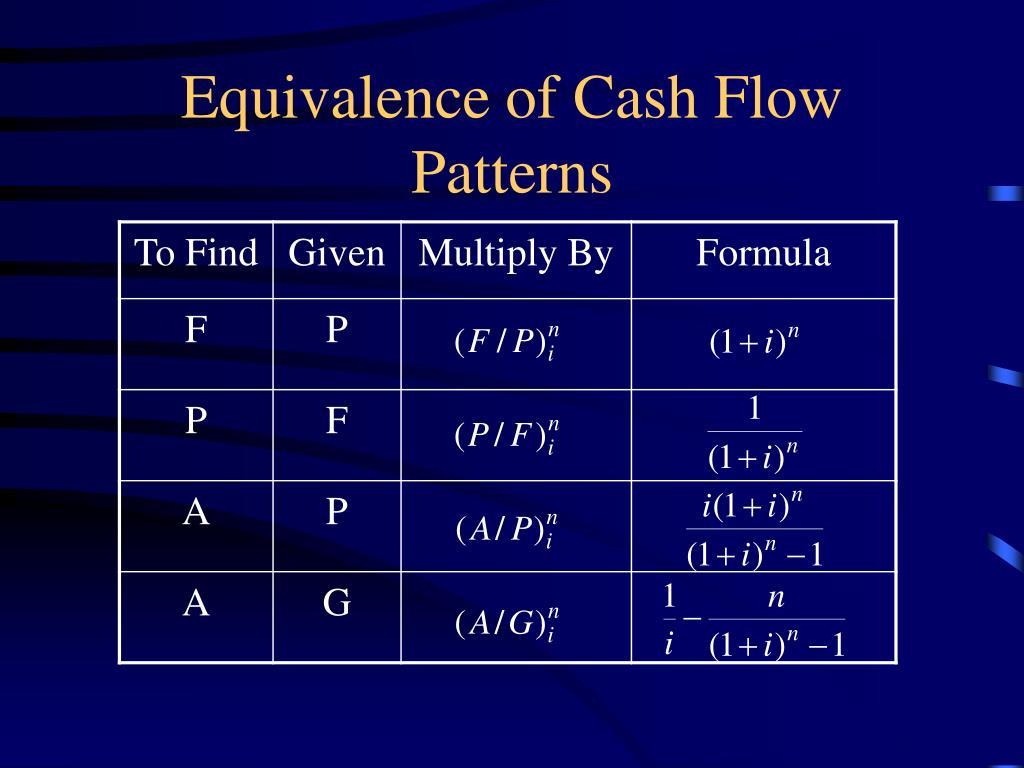

  6. Equivalence of Cash Flow Patterns

  7. 50k 50k 50k 50k 50k 50k 50k 1 2 3 4 5 6 7 P Example: A new circuit board component insertion tool will save $50,000 in production costs each year and will have a life of seven years. What is the highest price that can be justified for the tool using a 12% interest rate? Solution:

  8. Evaluating Alternatives • Annual Equivalent Cost Comparisons • Present Equivalent Cost Comparisons • Incremental Approach • Rate of Return Comparisons • Benefit/Cost Comparisons Minimum Attractive Rate of Return (MARR): The lowest rate of return that the organization will accept.

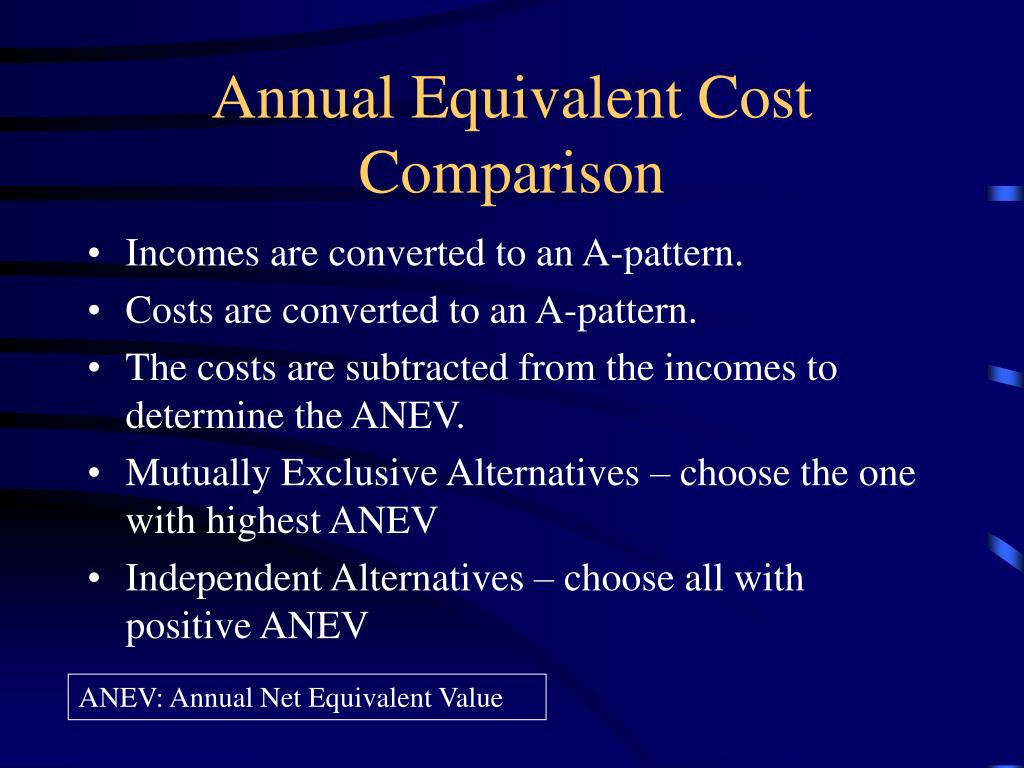

  9. Annual Equivalent Cost Comparison • Incomes are converted to an A-pattern. • Costs are converted to an A-pattern. • The costs are subtracted from the incomes to determine the ANEV. • Mutually Exclusive Alternatives – choose the one with highest ANEV • Independent Alternatives – choose all with positive ANEV ANEV: Annual Net Equivalent Value

  10. Example: A new circuit board component insertion tool is needed. Which should you buy? Solution: The ANEV is calculated for each: JACO: Cheepo: JACO

  11. Present Equivalent Cost Comparison • Incomes and costs are converted to P-patterns. • The costs are subtracted from the incomes to determine the PNEV. • Mutually Exclusive Alternatives – choose the one with highest PNEV • Independent Alternatives – choose all with positive PNEV PNEV: Present Net Equivalent Value, also called “life cycle cost,” “present worth,” “capital cost,” and “venture worth.”

  12. Incremental Approach • For a set of mutually exclusive alternatives, only the differences in amounts need to be considered. JACO- Cheepo: JACO

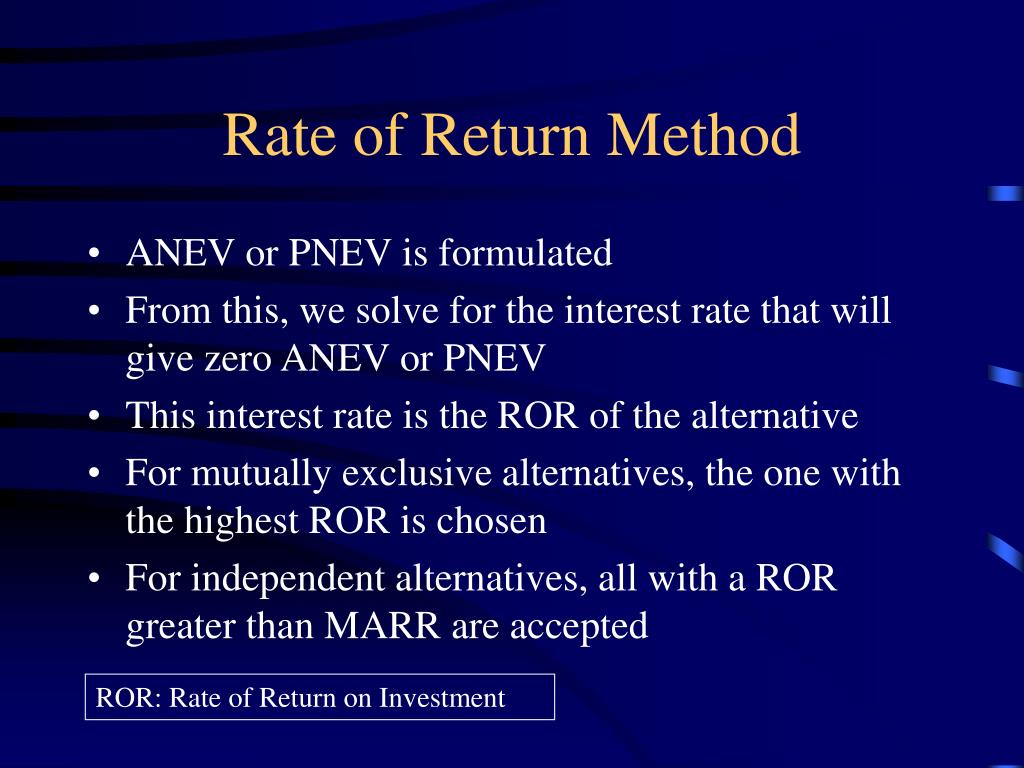

  13. Rate of Return Method • ANEV or PNEV is formulated • From this, we solve for the interest rate that will give zero ANEV or PNEV • This interest rate is the ROR of the alternative • For mutually exclusive alternatives, the one with the highest ROR is chosen • For independent alternatives, all with a ROR greater than MARR are accepted ROR: Rate of Return on Investment

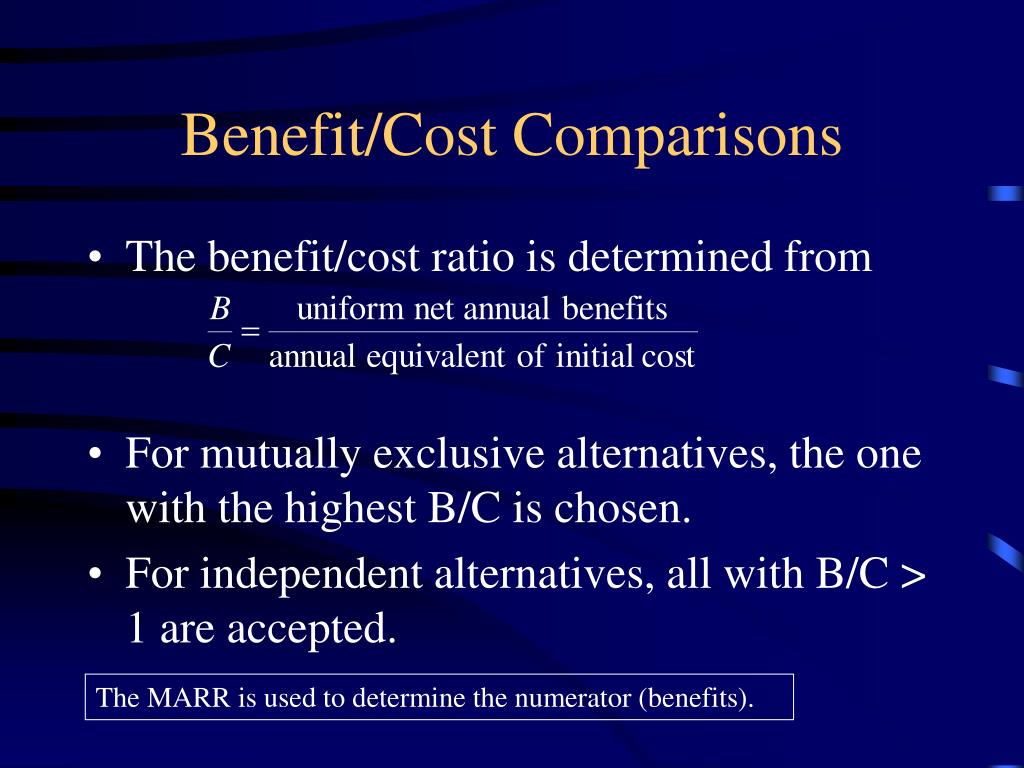

  14. Benefit/Cost Comparisons • The benefit/cost ratio is determined from • For mutually exclusive alternatives, the one with the highest B/C is chosen. • For independent alternatives, all with B/C > 1 are accepted. The MARR is used to determine the numerator (benefits).

  15. Break-Even Analysis • Break-even point: the value of an independent variable such that two alternatives are equally attractive. • For values above the break-even point, one alternative is preferred. • For values below the break-even point, the other is preferred. • Break-even analysis is useful when dealing with a changing variable (such as MARR).

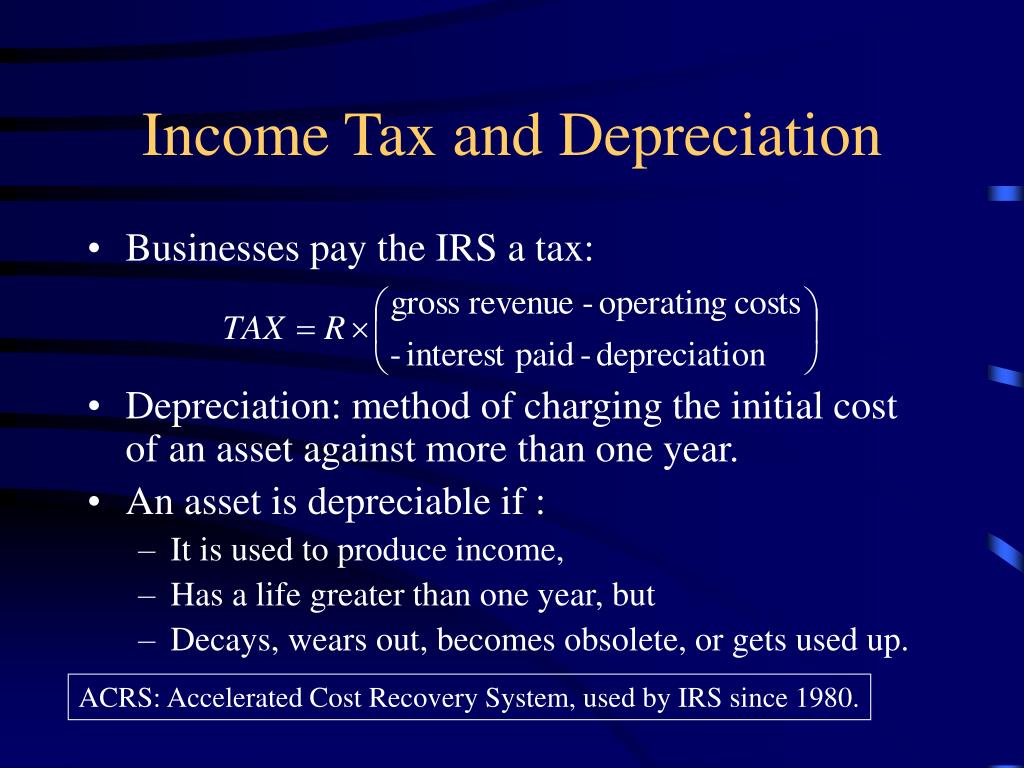

  16. Income Tax and Depreciation • Businesses pay the IRS a tax: • Depreciation: method of charging the initial cost of an asset against more than one year. • An asset is depreciable if : • It is used to produce income, • Has a life greater than one year, but • Decays, wears out, becomes obsolete, or gets used up. ACRS: Accelerated Cost Recovery System, used by IRS since 1980.

  17. Inflation • The buying power of money changes with time. • Inflation, if anticipated, can be put to good use by fixing costs and allowing income to rise by • Entering long-term contracts for materials or wages • Purchasing materials long before they are needed • Stockpiling product for sale later.

  18. Conclusion • For-profit enterprises exist to make money. • Non-profit entities also make decisions to maximize the goodness of outcomes by assigning dollar values. • Your engineering decisions will be shaped by economics. $
