Photosynthesis vs cellular respiration

Photosynthesis vs. Cellular Respiration

Cellular Energy & Biochemistry

Chapter 5


Photosynthesis vs cellular respiration

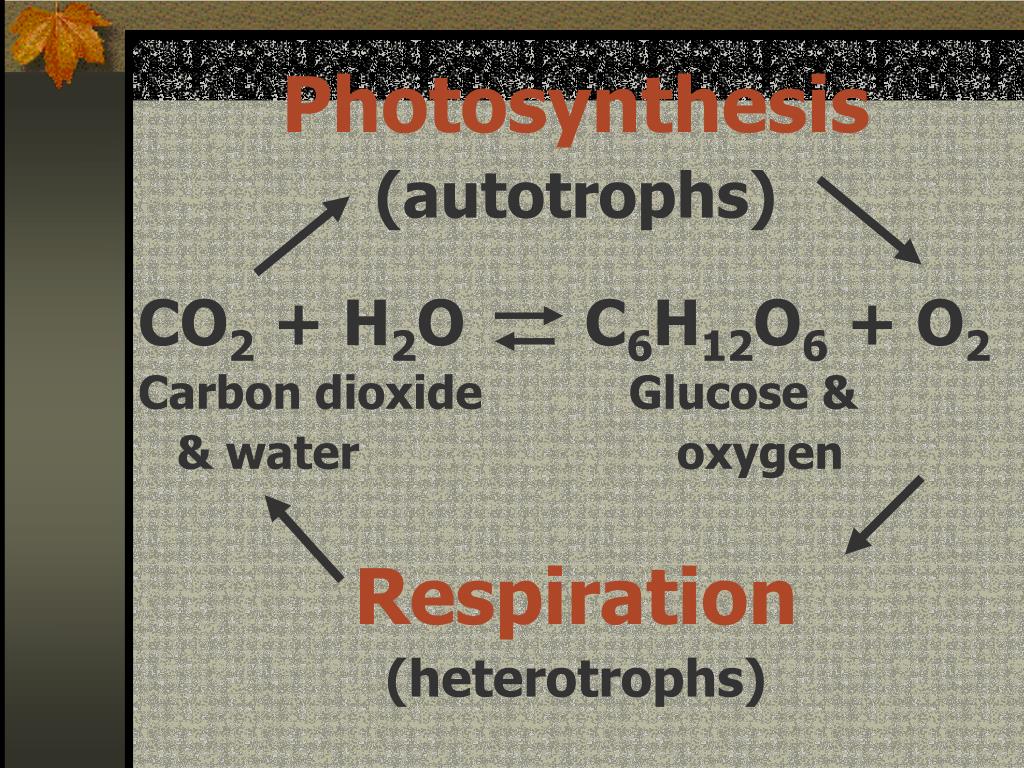

Photosynthesis

(autotrophs)

CO2 + H2O C6H12O6 + O2

Carbon dioxide Glucose &

& water oxygen

Respiration

(heterotrophs)


Energy cycle

Energy Cycle

Photosynthesis

Respiration

Autotrophs

Herbivores

Carnivores


Releasing energy from foods

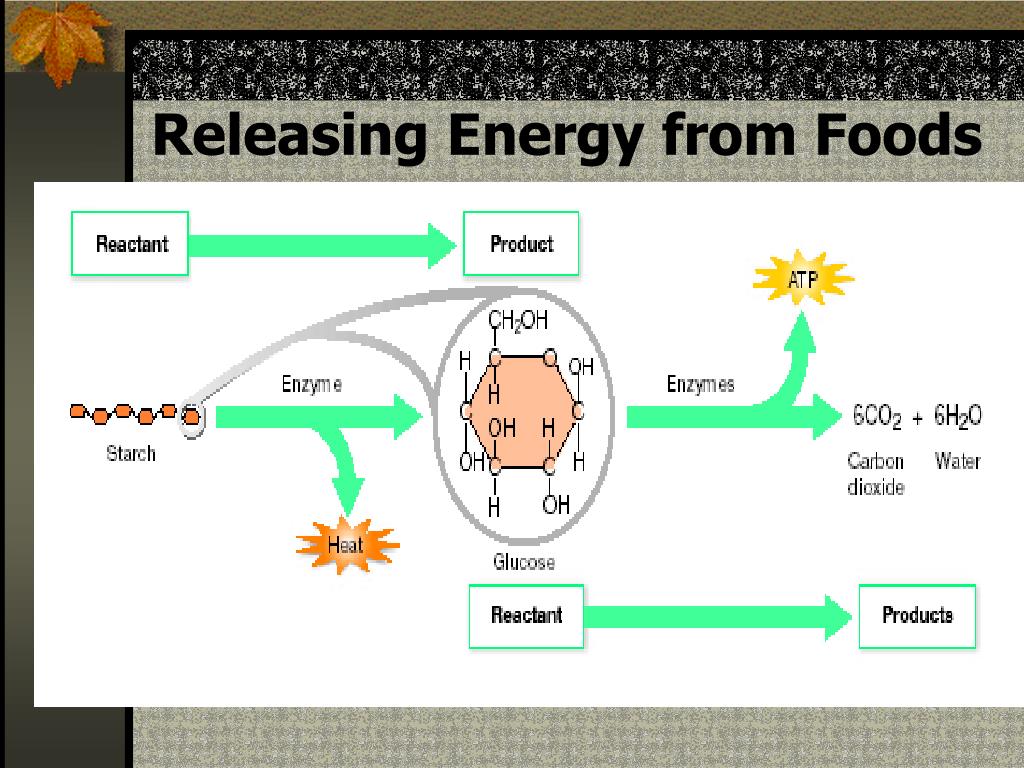

Releasing Energy from Foods


What is the function of photosynthesis

What is the function of photosynthesis?

  • Energy storage

    Converts light energy to chemical energy in the form of glucose.


What are the two stages of photosynthesis

What are the two stages of photosynthesis?

Light Calvin

Reactions Cycle

requires light

light independent


What is the formula for glucose

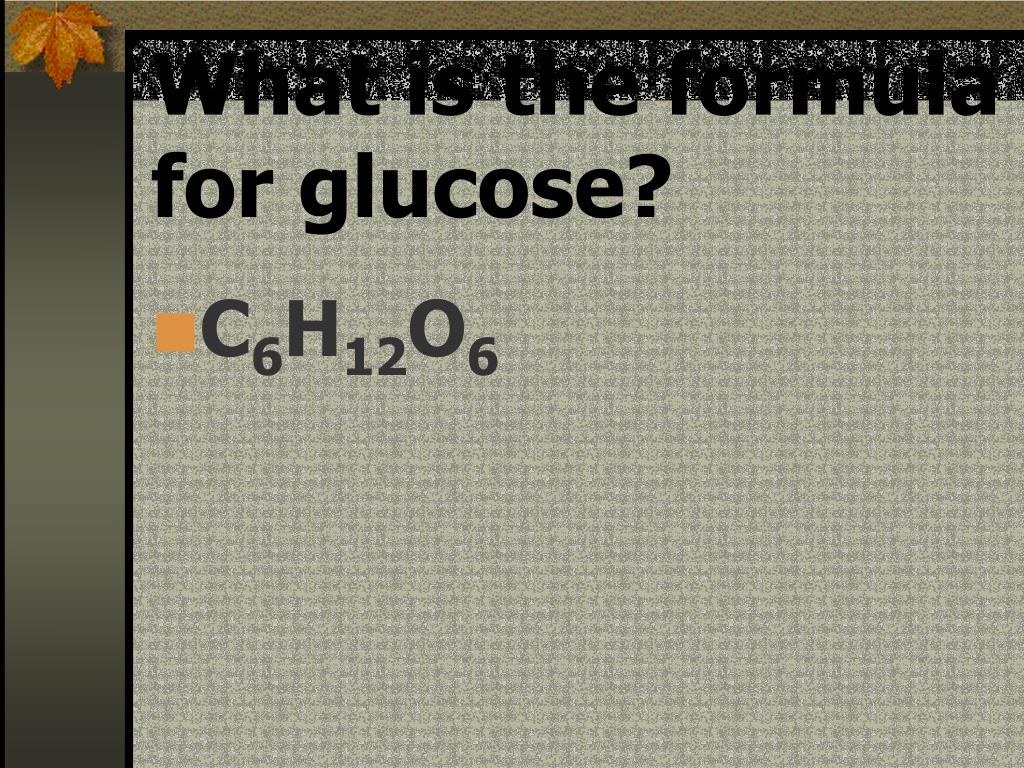

What is the formula for glucose?

  • C6H12O6


Where in the cell does photosynthesis take place

Where in the cell does photosynthesis take place?

  • Thylakoid membranes ofchloroplasts.


Where in the chloroplast does the calvin cycle take place

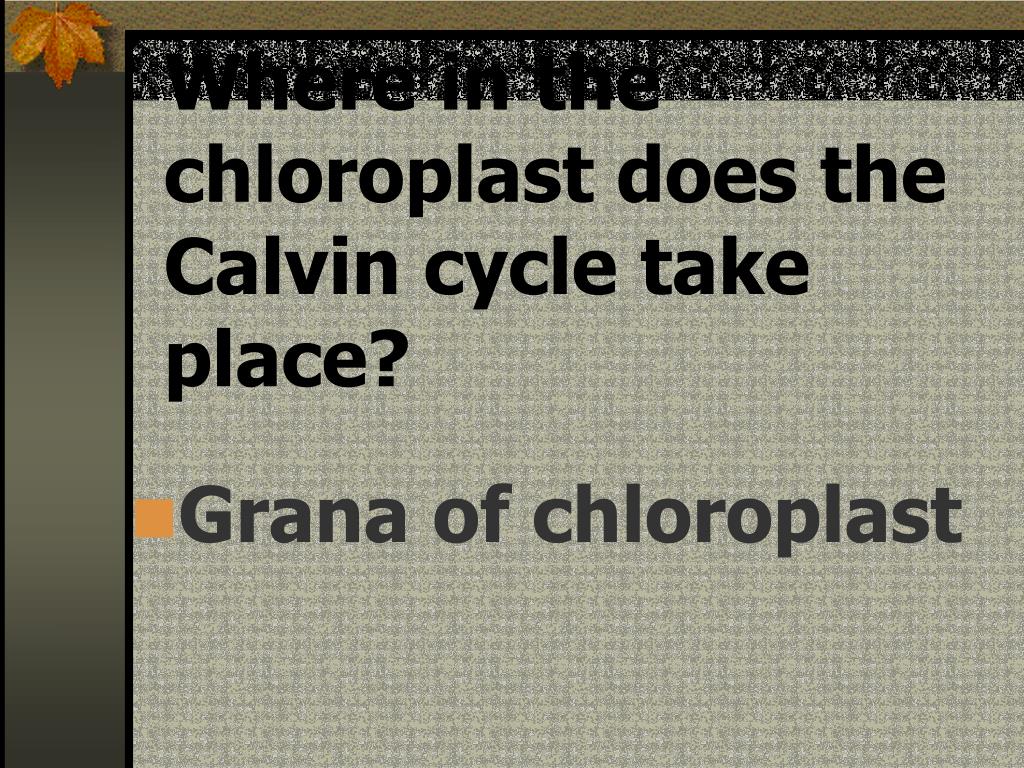

Where in the chloroplast does the Calvin cycle take place?

  • Grana of chloroplast


What is the equation for photosynthesis

What is the equation for Photosynthesis?

  • 6CO2 + 6H2O → C6H12O6 + 6O2


What are the reactants of photosynthesis

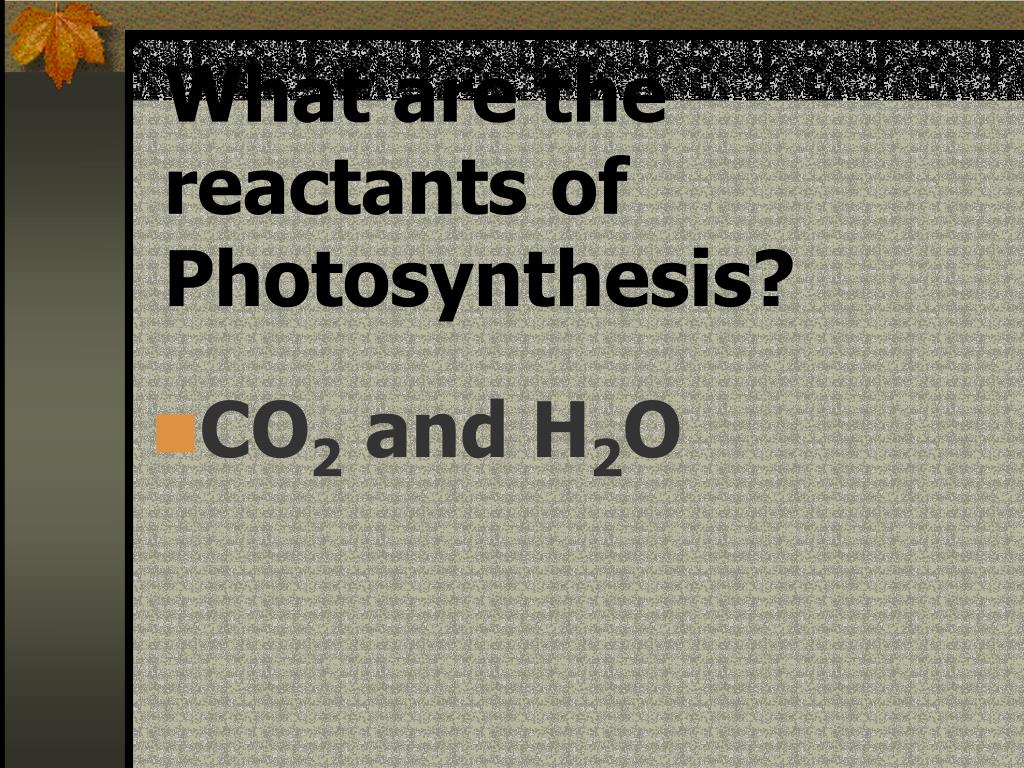

What are the reactants of Photosynthesis?

  • CO2 and H2O


What are the products of photosynthesis

What are the products of Photosynthesis?

  • C6H12O6 and O2


What is the function of cellular respiration

What is the function of Cellular Respiration?

  • Energy release

    Breaks down glucose to form ATP for cellular activities


Cellular respiration

Cellular Respiration

Glycolysis (yields ATP)

AerobicAnaerobic

(oxygen)(w/o oxygen)

fermentation

Yields 21- 36 Yields 2 ATP

ATP


Anaerobic respiration

Anaerobic Respiration

Alcohol Lactic Acid

Fermentation Fermentation

Alcohol & CO2 Lactic acid + CO2

baking, sours milk,

brewing muscle fatigue


What is glycolysis and where does it take place

What is glycolysis and where does it take place?

Glycolysis breaks down glucose into pyruvic acid in the cytoplasm


How many molecules of atp does glycolysis produce

How many molecules of ATP does glycolysis produce?

  • 2 molecules of ATP


How many molecules of atp does cellular respiration produce

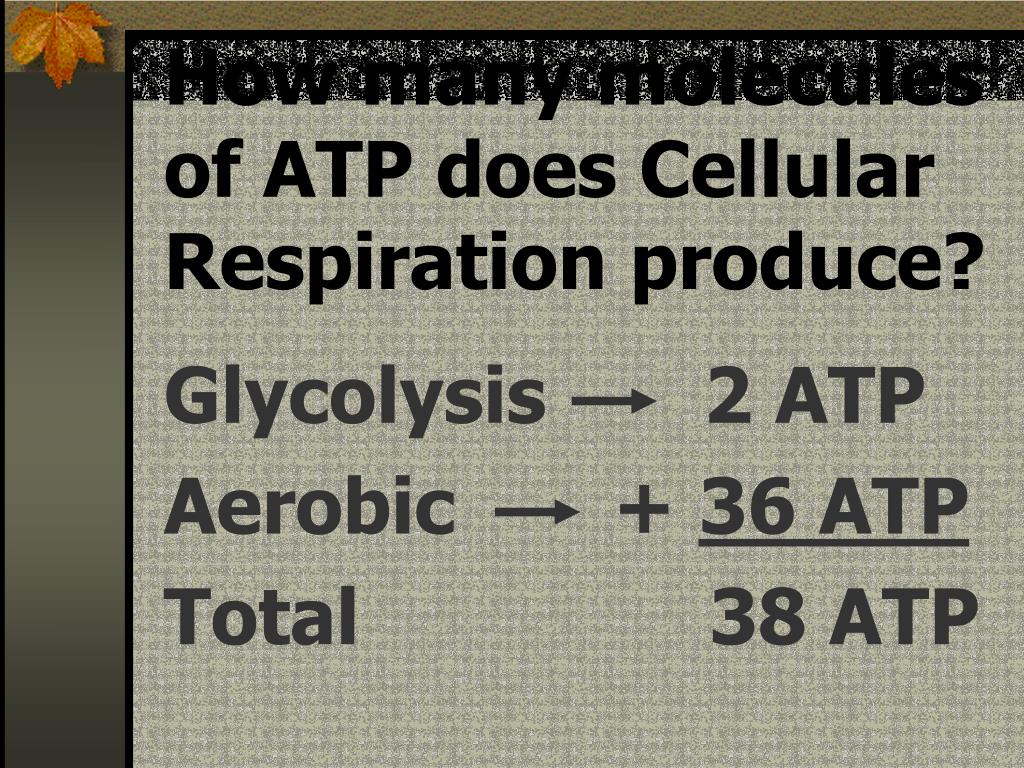

How many molecules of ATP does Cellular Respiration produce?

Glycolysis 2 ATP

Aerobic + 36 ATP

Total 38 ATP


Where in the cell does cellular respiration take place

Where in the cell does Cellular Respiration take place?

  • Mitochondria – 2 membrane (outer and inner folds cristae)


Energy release storage cycle

Energy Release/Storage Cycle

ATP= Adenosine Tri Phosphate (A-P-P-P)

ADP = Adenosine Di Phospate (A-P-P)

A-P-P - P

energy energy

storage release

A-P-P + P


What is the equation for cellular respiration

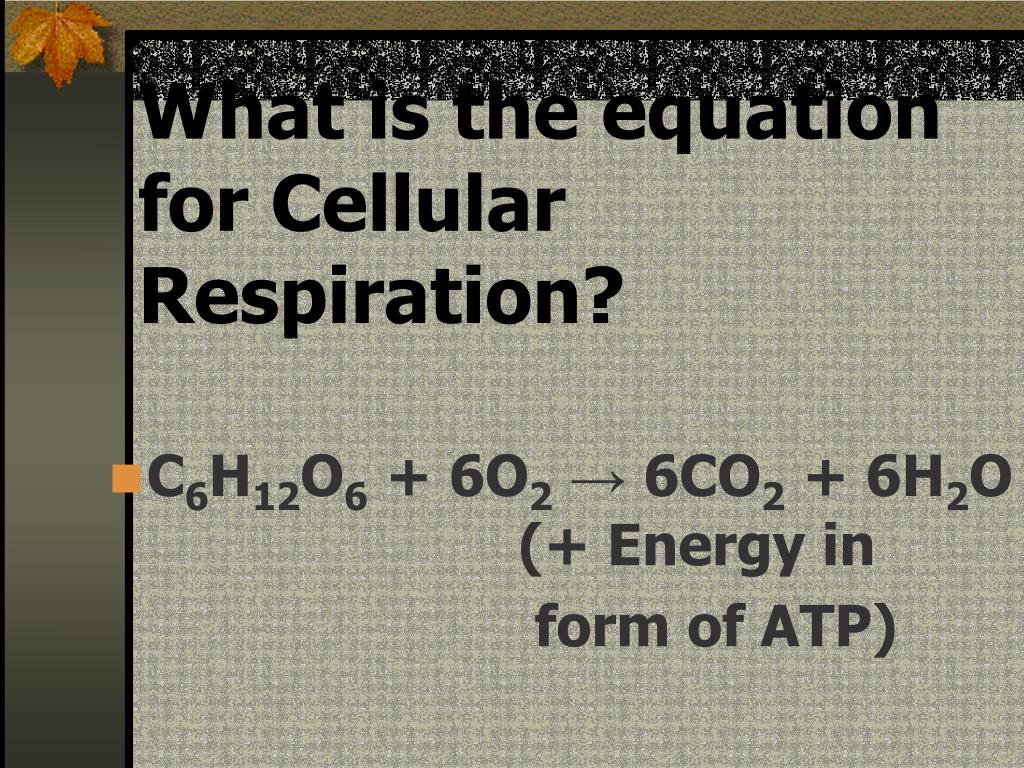

What is the equation for Cellular Respiration?

  • C6H12O6 + 6O2 → 6CO2 + 6H2O (+ Energy in

    form of ATP)


What are the reactants of cellular respiration

What are the reactants of Cellular Respiration?

  • C6H12O6 and O2


What are the products of cellular respiration

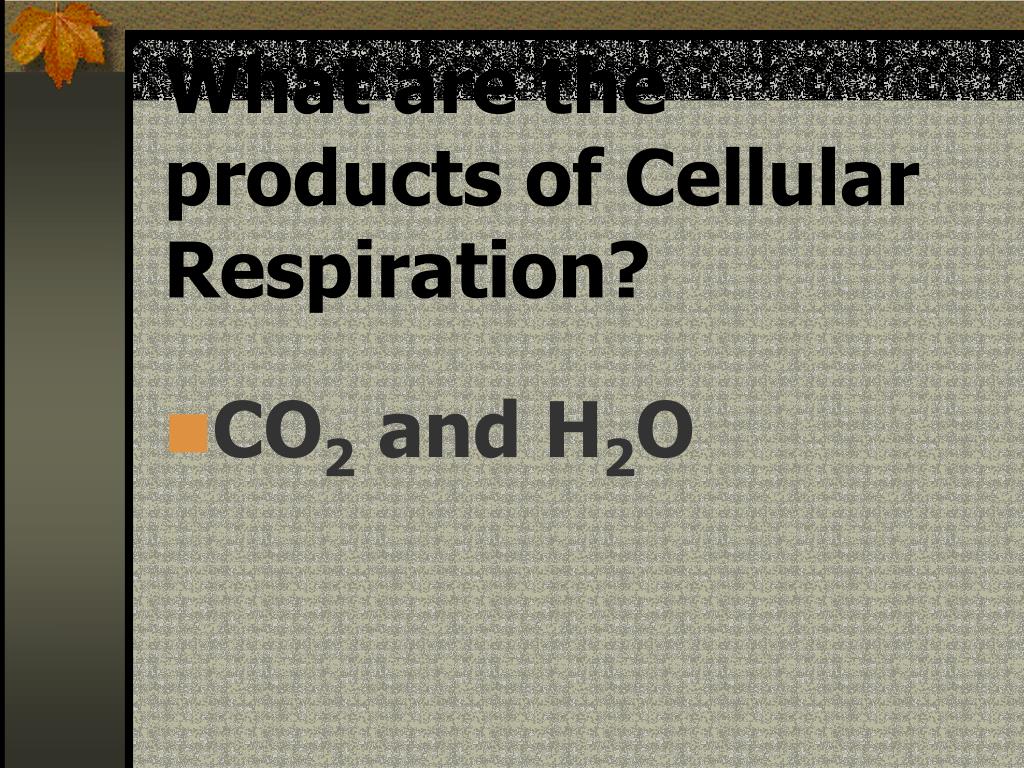

What are the products of Cellular Respiration?

  • CO2 and H2O
