ステーキホルダーの非機能要求を充足するための振る舞い仕様の段階的改訂法ステーキホルダーの非機能要求を充足するための振る舞い仕様の段階的改訂法

海谷 治彦

信州大学

2001年9月 宇和島にて


Outline
Outlineステーキホルダーの非機能要求を充足するための振る舞い仕様の段階的改訂法

  • Goal of our Work.

    • Constructing a Requirements Elicitation Method.

  • Basic idea for our Goal.

  • Sub goals and their solutions.

    • Notation for evaluating spec. by multiple stakeholders.

    • Method for causing a chain of spec. change.

    • Method for merging several chains.

  • Example


Goal of our work

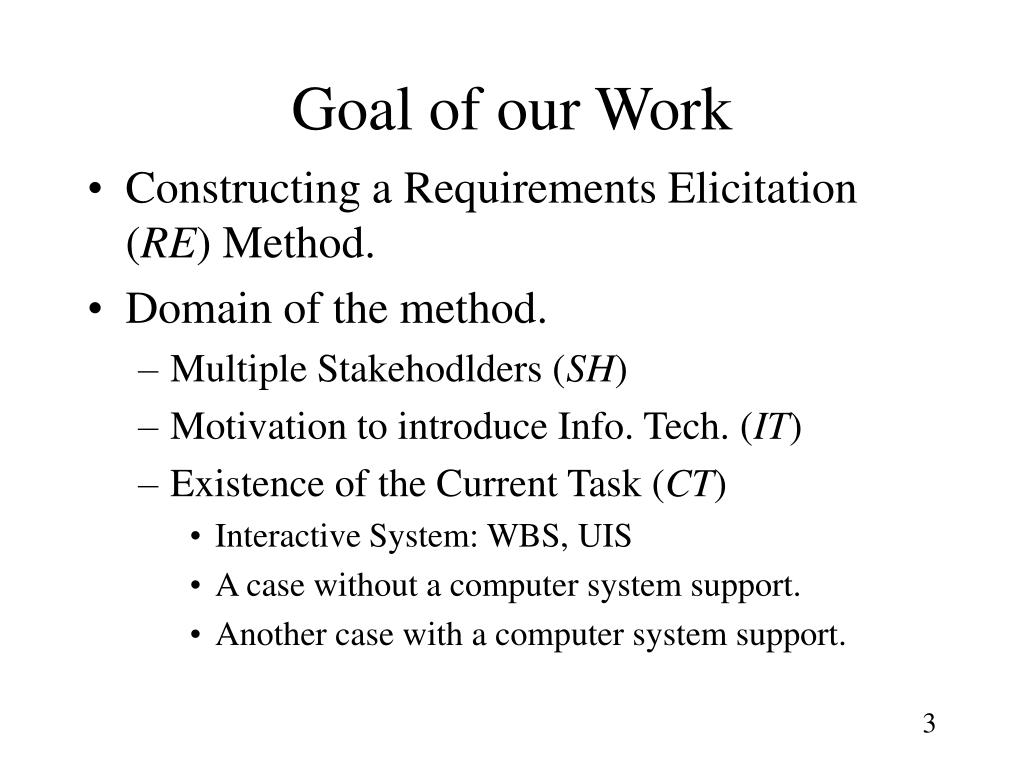

Goal of our Workステーキホルダーの非機能要求を充足するための振る舞い仕様の段階的改訂法

  • Constructing a Requirements Elicitation (RE) Method.

  • Domain of the method.

    • Multiple Stakehodlders (SH)

    • Motivation to introduce Info. Tech. (IT)

    • Existence of the Current Task (CT)

      • Interactive System: WBS, UIS

      • A case without a computer system support.

      • Another case with a computer system support.


Basic idea
Basic Ideaステーキホルダーの非機能要求を充足するための振る舞い仕様の段階的改訂法

  • Stepwise Introduction of IT(=Change) to CT.

    • SH’s Evaluation of the Change.

    • Such Eval. triggers the other Changes.

  • Reasonable Trade-off among the SH’s.

    • Shared Criteria for SHs to Change Evaluation.

  • Concurrent RE for Efficiency.


Sub goals of our work
Sub goals of our Workステーキホルダーの非機能要求を充足するための振る舞い仕様の段階的改訂法

  • Develop a notationforSH’s Evaluation.

  • Develop a procedurefor causing a chain of IT introduction.

    • IT introduction => CT change

      => SH eval. change = >Specification refinement

  • Develop a procedure for merging such chains safely for concurrent RE.


Notation of spec

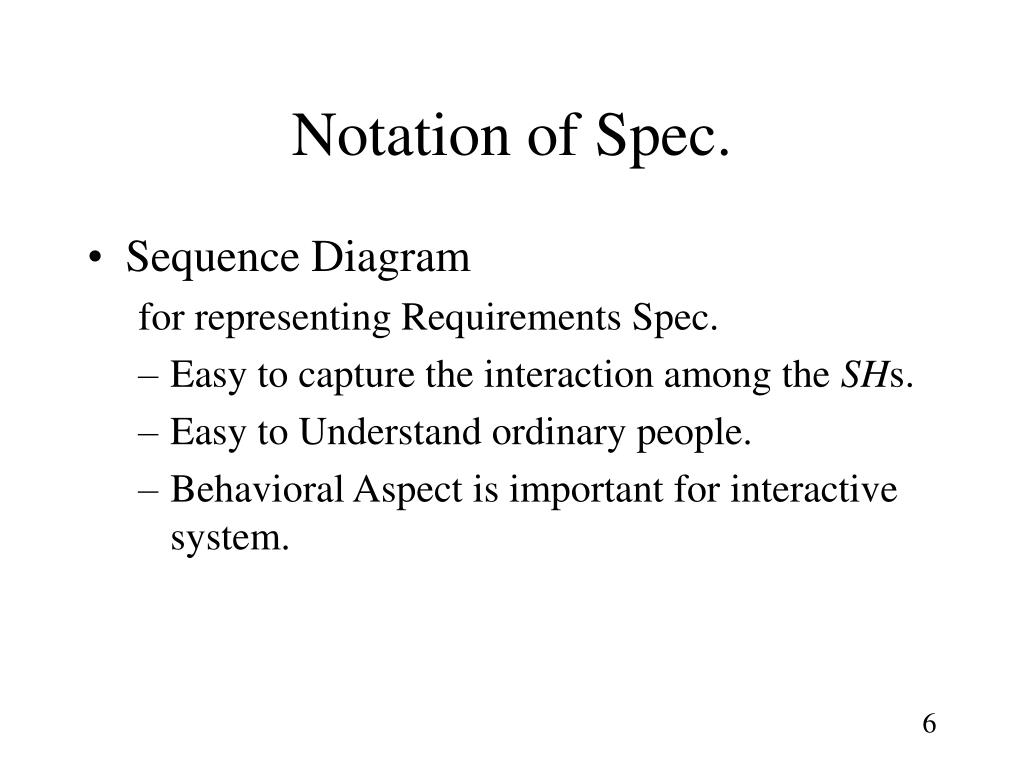

Notation of Spec.ステーキホルダーの非機能要求を充足するための振る舞い仕様の段階的改訂法

  • Sequence Diagram

    for representing Requirements Spec.

    • Easy to capture the interaction among the SHs.

    • Easy to Understand ordinary people.

    • Behavioral Aspect is important for interactive system.


Nfr for shared criteria
NFR for shared Criteriaステーキホルダーの非機能要求を充足するための振る舞い仕様の段階的改訂法

  • Non-Functional Requirements (NFR)

    • shared by stakeholders to evaluate a change of CT.

  • Type of NFR

    • Performance: Time and Space

    • Cost.

    • User-Friendliness.

    • Security: Confidentiality, Integrity, Availability.

  • And additional criteria.

    • Ease: delegation of a task to systems.


Stakeholders
Stakeholdersステーキホルダーの非機能要求を充足するための振る舞い仕様の段階的改訂法

  • Have a stake in the change being considered, those who stand to gain from it, and to lose.

  • Categories of SH in computer systems.

    • Those who are responsible for its design and development.

    • ... for its sales or for its purchase.

    • ... for its introduction and maintenance.

    • Those who have an interest in its use.

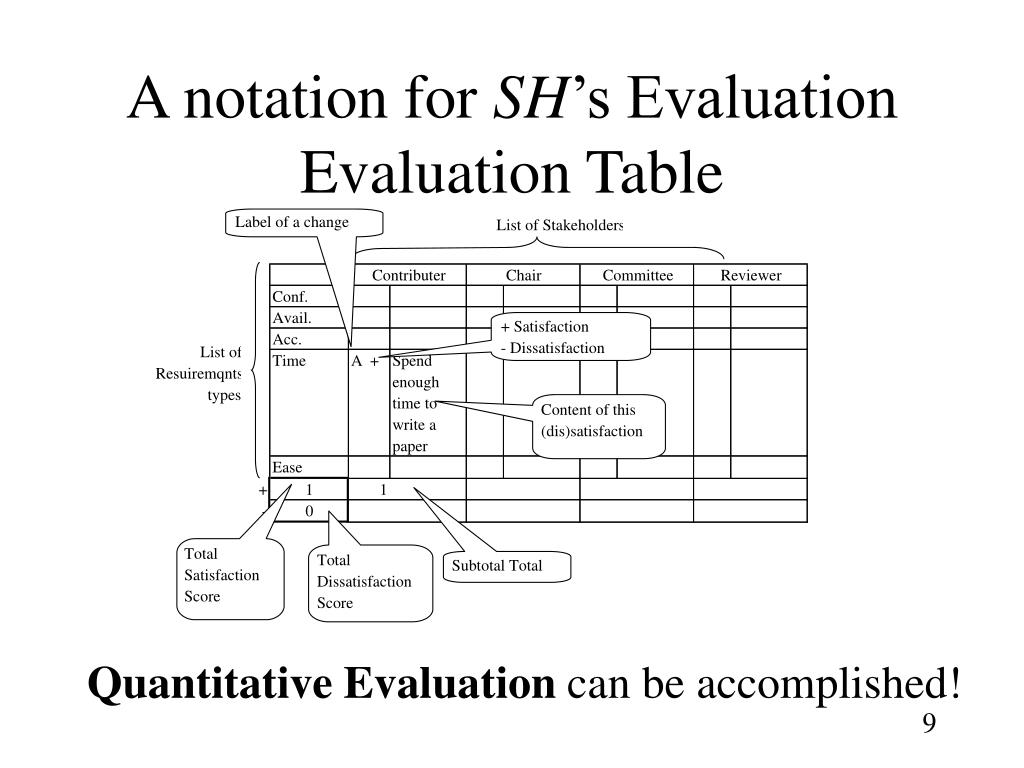

A notation for sh s evaluation evaluation table
A notation for ステーキホルダーの非機能要求を充足するための振る舞い仕様の段階的改訂法SH’s EvaluationEvaluation Table

Quantitative Evaluation can be accomplished!


Chain of requirements change crc

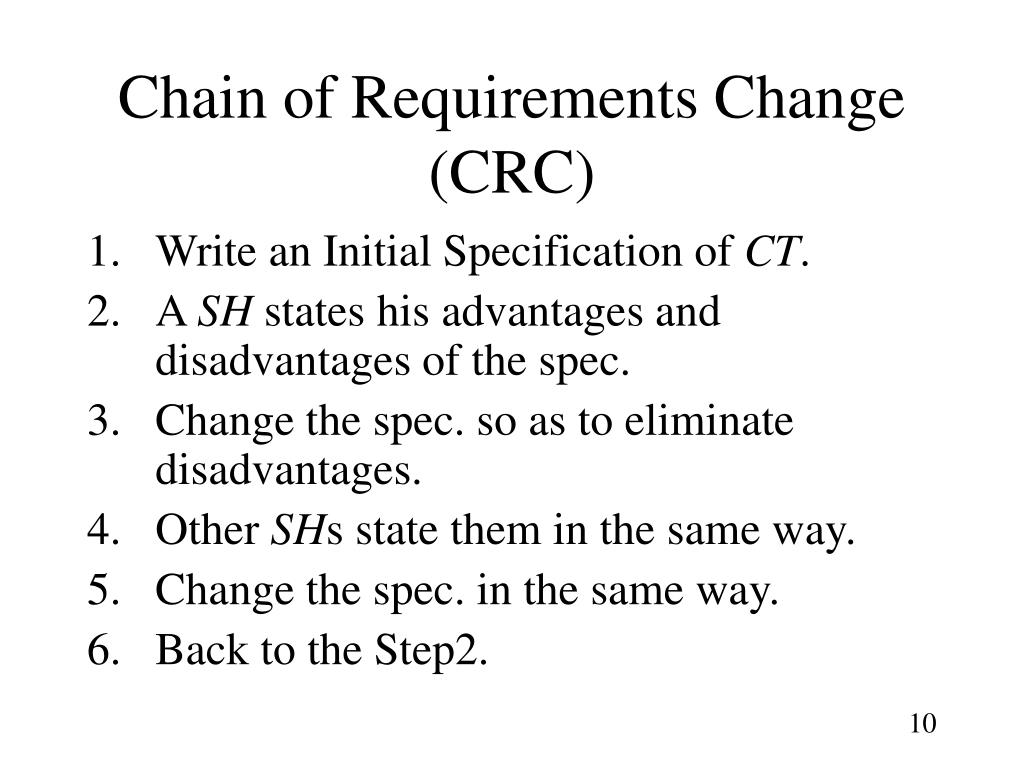

Chain of Requirements Change (CRC)ステーキホルダーの非機能要求を充足するための振る舞い仕様の段階的改訂法

  • Write an Initial Specification of CT.

  • A SH states his advantages and disadvantages of the spec.

  • Change the spec. so as to eliminate disadvantages.

  • Other SHs state them in the same way.

  • Change the spec. in the same way.

  • Back to the Step2.

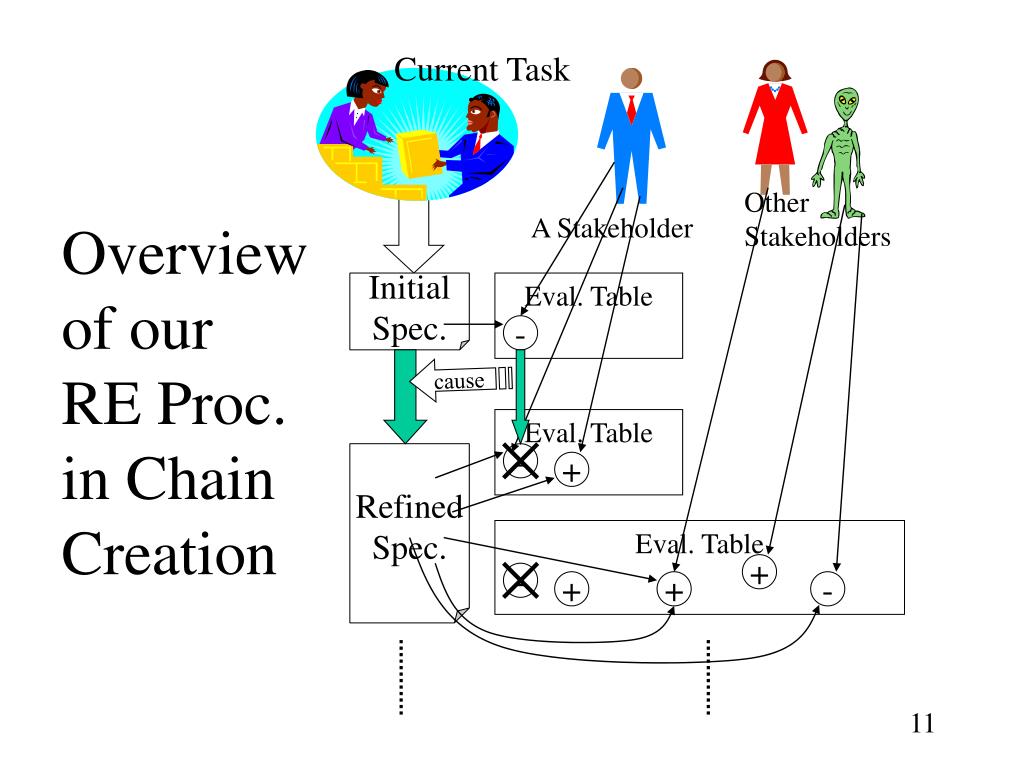

Overview of our re proc in chain creation

Current Taskステーキホルダーの非機能要求を充足するための振る舞い仕様の段階的改訂法

Overview of our RE Proc. in Chain Creation

Other

Stakeholders

A Stakeholder

Initial

Spec.

Eval. Table

-

cause

Eval. Table

Refined

Spec.

-

+

Eval. Table

+

-

+

+

-

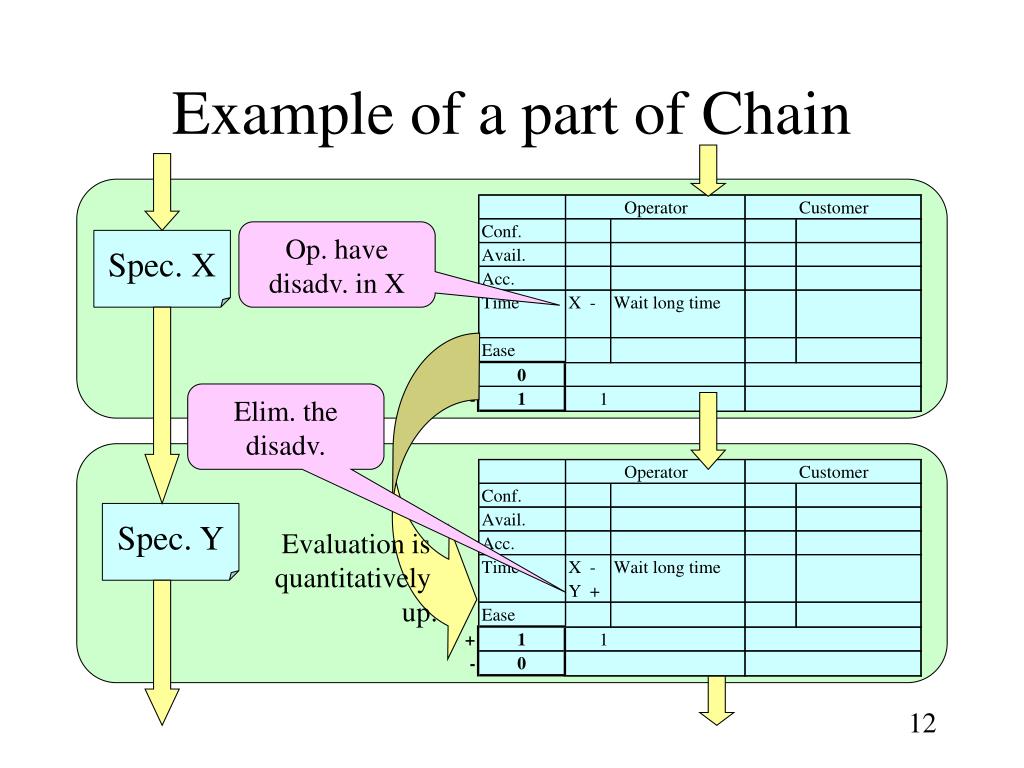

Example of a part of chain
Example of a part of Chainステーキホルダーの非機能要求を充足するための振る舞い仕様の段階的改訂法

Op. have disadv. in X

Spec. X

Elim. the disadv.

Spec. Y

Evaluation is

quantitatively

up.


Merge chains for concurrent re
Merge Chains for Concurrent ステーキホルダーの非機能要求を充足するための振る舞い仕様の段階的改訂法RE

  • Multiple SHs: Concurrent RE is efficient.

  • We should safely merge the results of RE.

  • Precondition of our merge procedure.

    • Sequence Diagram: notation for spec.

    • The inputs are two chains.

    • Two chains share the same initial Spec.

  • Postcondition

    • Merged Spec. and Evaluation Table.

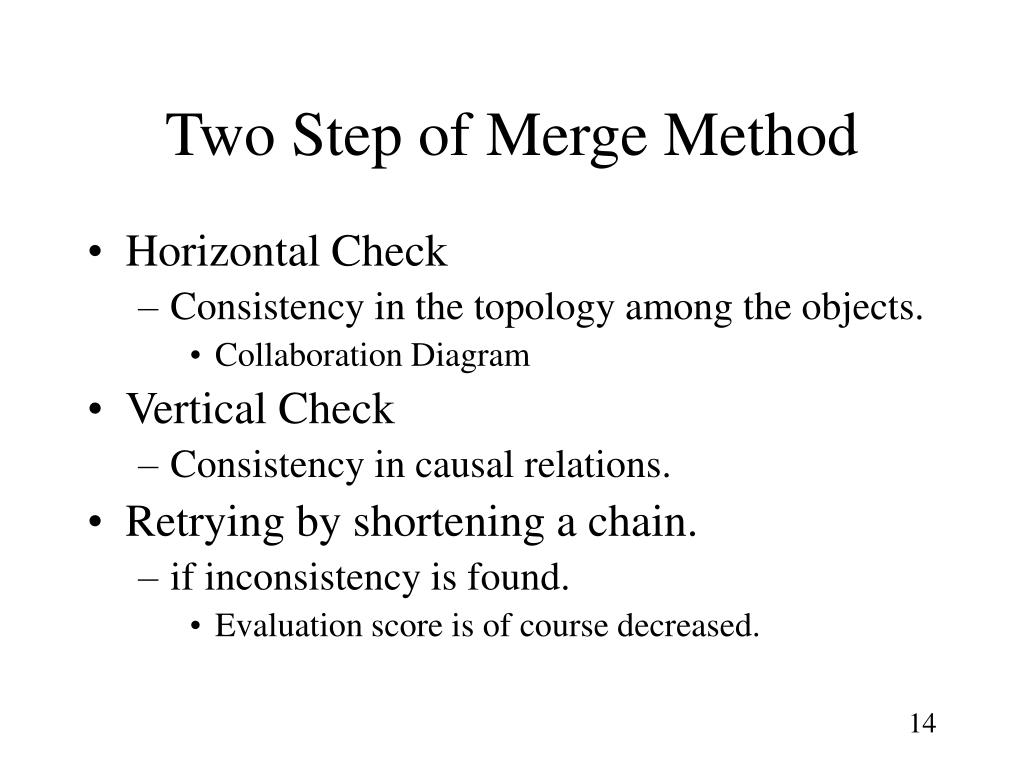

Two step of merge method
Two Step of Merge Methodステーキホルダーの非機能要求を充足するための振る舞い仕様の段階的改訂法

  • Horizontal Check

    • Consistency in the topology among the objects.

      • Collaboration Diagram

  • Vertical Check

    • Consistency in causal relations.

  • Retrying by shortening a chain.

    • if inconsistency is found.

      • Evaluation score is of course decreased.

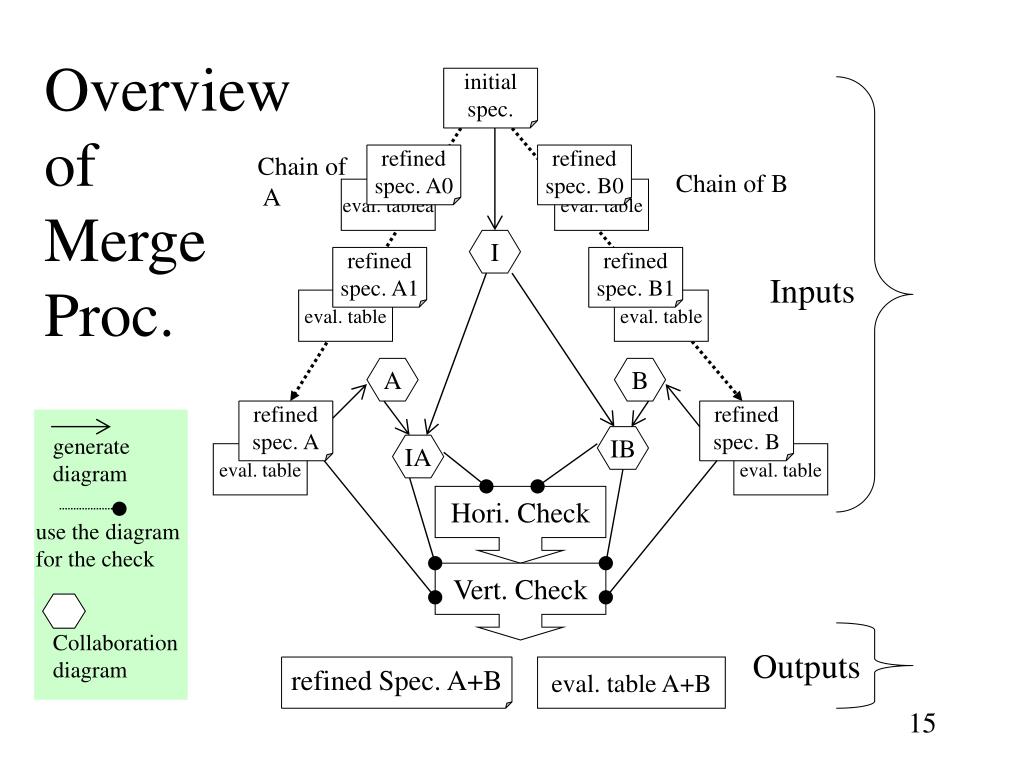

Overview of merge proc
Overview ステーキホルダーの非機能要求を充足するための振る舞い仕様の段階的改訂法of Merge Proc.

initial

spec.

Chain of

A

refined

spec. A0

refined

spec. B0

Chain of B

eval. tablea

eval. table

I

refined

spec. A1

refined

spec. B1

Inputs

eval. table

eval. table

A

B

refined

spec. A

refined

spec. B

generate

diagram

IB

IA

eval. table

eval. table

Hori. Check

use the diagram

for the check

Vert. Check

Collaboration

diagram

Outputs

refined Spec. A+B

eval. table A+B

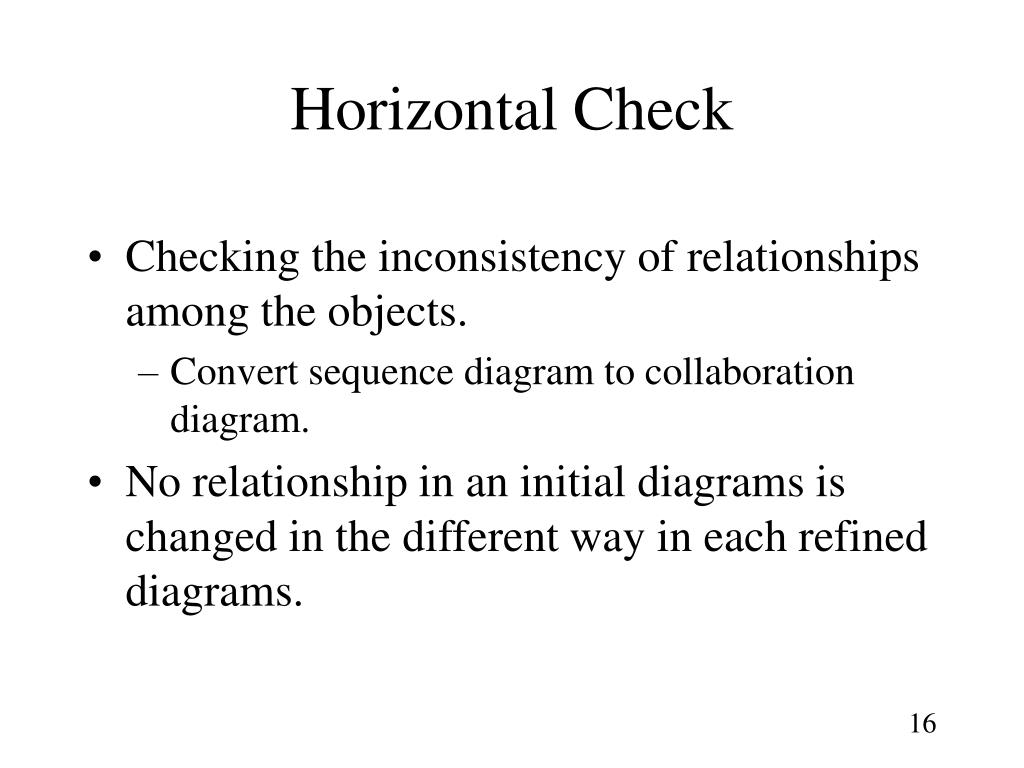

Horizontal check
Horizontal Checkステーキホルダーの非機能要求を充足するための振る舞い仕様の段階的改訂法

  • Checking the inconsistency of relationships among the objects.

    • Convert sequence diagram to collaboration diagram.

  • No relationship in an initial diagrams is changed in the different way in each refined diagrams.


Example of horizontal check

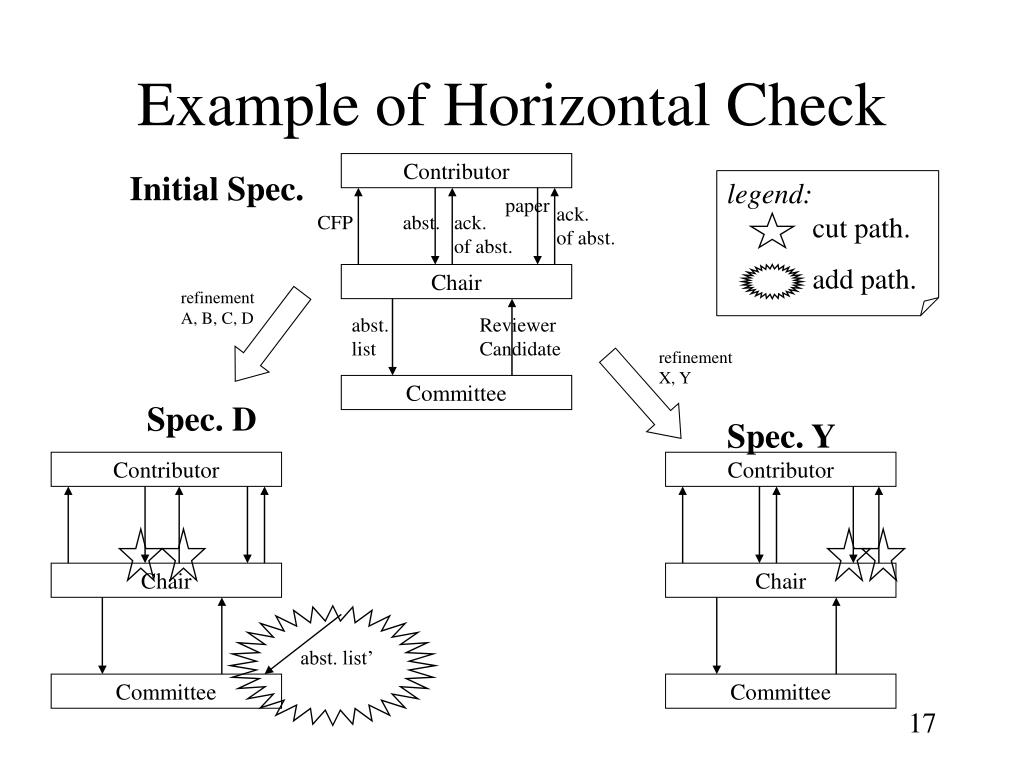

Example of Horizontal Checkステーキホルダーの非機能要求を充足するための振る舞い仕様の段階的改訂法

Contributor

Initial Spec.

legend:

paper

ack.

of abst.

CFP

abst.

ack.

of abst.

cut path.

add path.

Chair

refinement

A, B, C, D

abst.

list

Reviewer

Candidate

refinement

X, Y

Committee

Spec. D

Spec. Y

Contributor

Contributor

Chair

Chair

abst. list’

Committee

Committee


Vertical check

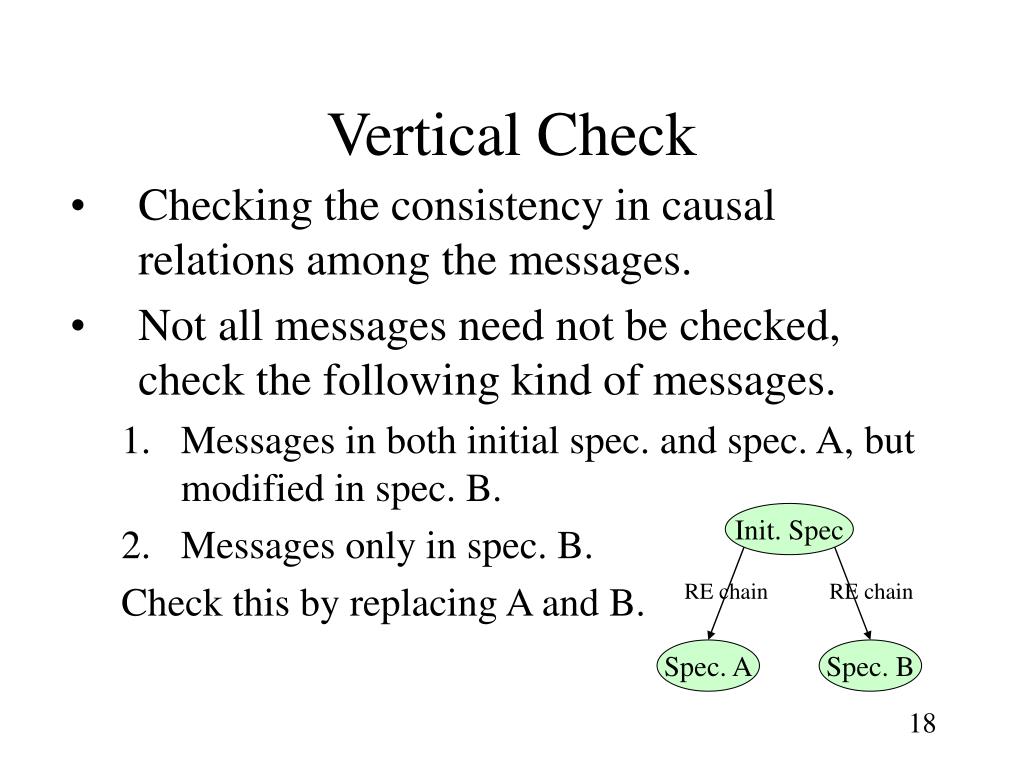

Vertical Checkステーキホルダーの非機能要求を充足するための振る舞い仕様の段階的改訂法

  • Checking the consistency in causal relations among the messages.

  • Not all messages need not be checked, check the following kind of messages.

    • Messages in both initial spec. and spec. A, but modified in spec. B.

    • Messages only in spec. B.

      Check this by replacing A and B.

Init. Spec

RE chain

RE chain

Spec. A

Spec. B

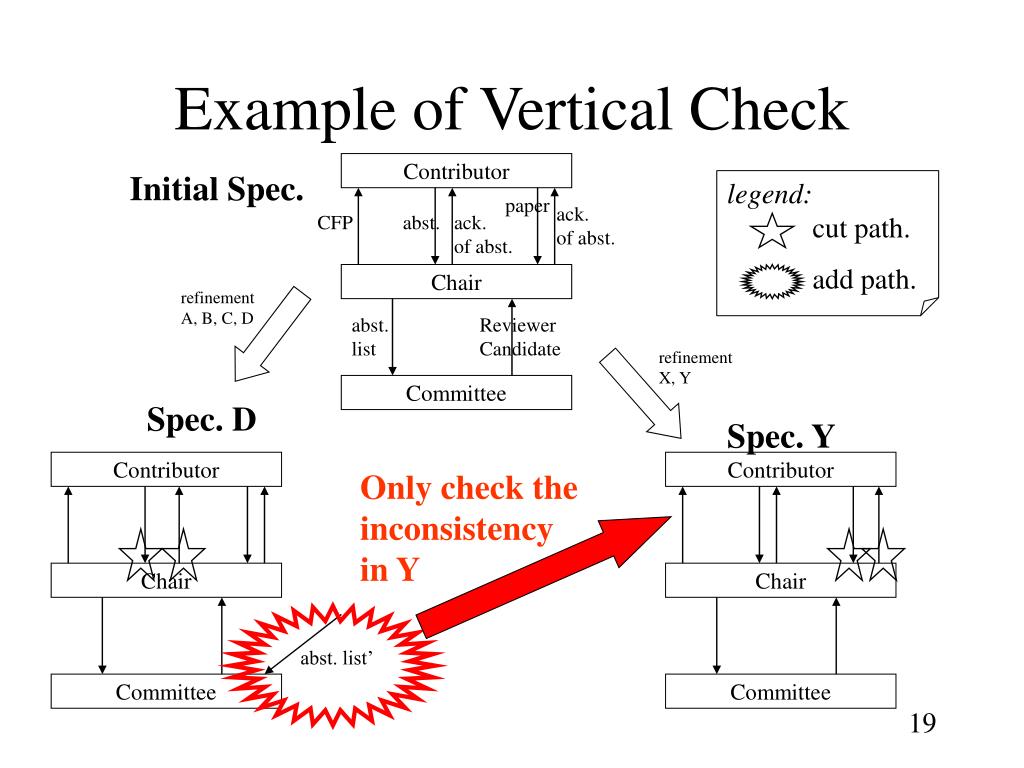

Example of vertical check
Example of Vertical Checkステーキホルダーの非機能要求を充足するための振る舞い仕様の段階的改訂法

Contributor

Initial Spec.

legend:

paper

ack.

of abst.

CFP

abst.

ack.

of abst.

cut path.

add path.

Chair

refinement

A, B, C, D

abst.

list

Reviewer

Candidate

refinement

X, Y

Committee

Spec. D

Spec. Y

Contributor

Contributor

Only check the

inconsistency

in Y

Chair

Chair

abst. list’

Committee

Committee


Conclusion
Conclusionステーキホルダーの非機能要求を充足するための振る舞い仕様の段階的改訂法

  • Stepwise refine the Spec.

  • Quantitative Evaluation of each step based on the stakeholders’ intention.

  • Enable the Concurrent Elicitation by merge step.


Q & Aステーキホルダーの非機能要求を充足するための振る舞い仕様の段階的改訂法

  • 何故,横チェックを先にやるか?

    • 横チェックの方が楽なため。

    • 横チェックを基に縦チェックをする個所を絞れる。

  • シーケンス図にはSHでないものも出てくるがどうするか?

    • シーケンス図のオブジェクトと評価表の列側は一応別個と考え,オブジェクトはSHに限らず自由に選んでよいことにする。

    • 仕様の変化とステーキホルダの評価の関係が曖昧となるが,そもそも主観的評価に基づくので問題ない。


Future work
Future Workステーキホルダーの非機能要求を充足するための振る舞い仕様の段階的改訂法

  • Prioritize stakeholders and/or NFR for evaluation.

  • Quantitative comparison for selecting the reasonable chain of specification change.

  • Building an Estimation Method: estimating the introducing effort.

  • Applying a realistic problem and/or development.


Appendix

Appendixステーキホルダーの非機能要求を充足するための振る舞い仕様の段階的改訂法

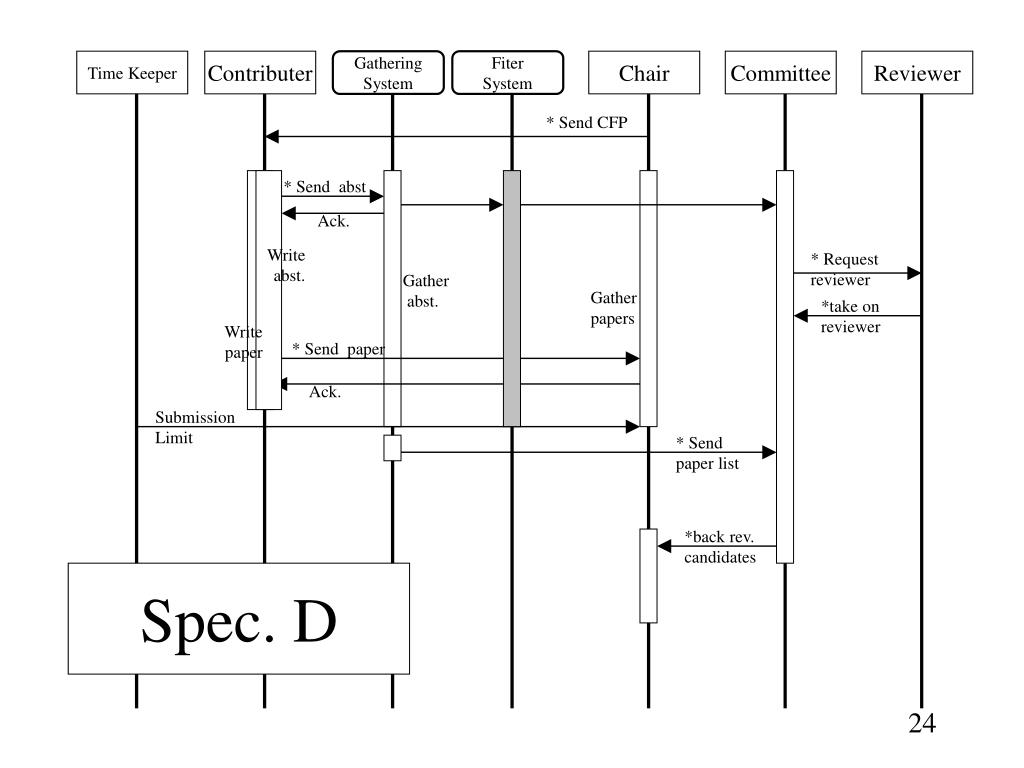

Spec d

Time Keeperステーキホルダーの非機能要求を充足するための振る舞い仕様の段階的改訂法

Contributer

Gathering

System

Fiter

System

Chair

Committee

Reviewer

Spec. D

* Send CFP

* Send abst

Ack.

Write

abst.

* Request

reviewer

Gather

abst.

Gather

papers

*take on

reviewer

Write

paper

* Send paper

Ack.

Submission

Limit

* Send

paper list

*back rev.

candidates


Spec y

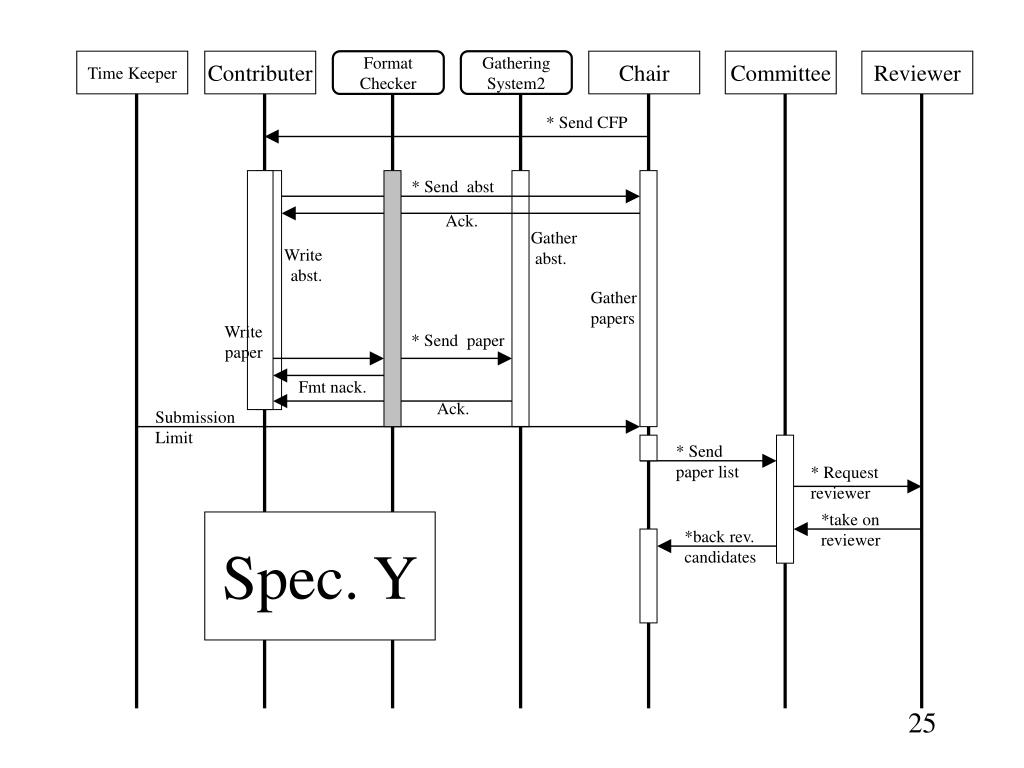

Time Keeperステーキホルダーの非機能要求を充足するための振る舞い仕様の段階的改訂法

Contributer

Format

Checker

Gathering

System2

Chair

Committee

Reviewer

Spec. Y

* Send CFP

* Send abst

Ack.

Gather

abst.

Write

abst.

Gather

papers

Write

paper

* Send paper

Fmt nack.

Ack.

Submission

Limit

* Send

paper list

* Request

reviewer

*take on

reviewer

*back rev.

candidates
