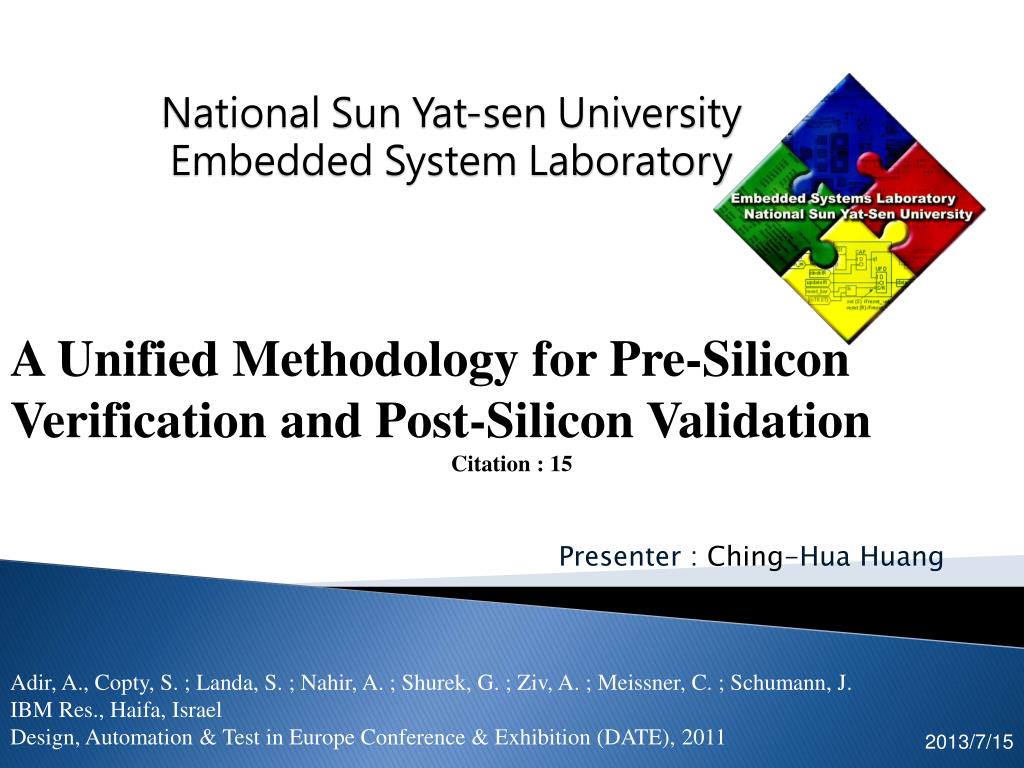

  1. National Sun Yat-sen University Embedded System Laboratory A Unified Methodology for Pre-Silicon Verification and Post-Silicon Validation Citation : 15 Adir, A.,Copty, S. ; Landa, S. ; Nahir, A. ; Shurek, G. ; Ziv, A. ; Meissner, C. ; Schumann, J. IBM Res., Haifa, Israel  Design, Automation & Test in Europe Conference & Exhibition (DATE), 2011 Presenter :Ching-Hua Huang

  2. Abstract 2 The growing importance of post-silicon validation in ensuring functional correctness of high-end designs increases the need for synergy between the pre-silicon verification and post-silicon validation. We propose a unified functional verification methodology for the pre- and post-silicon domains. This methodology is based on a common verification plan and similar languages for test-templates and coverage models. Implementation of the methodology requires a user-directablestimuli generation tool for the post-silicon domain. We analyze the requirements for such a tool and the differences between it and its pre-silicon counterpart. Based on these requirements, we implemented a tool called Threadmill and used it in the verification of the IBM POWER7 processor chip with encouraging results.

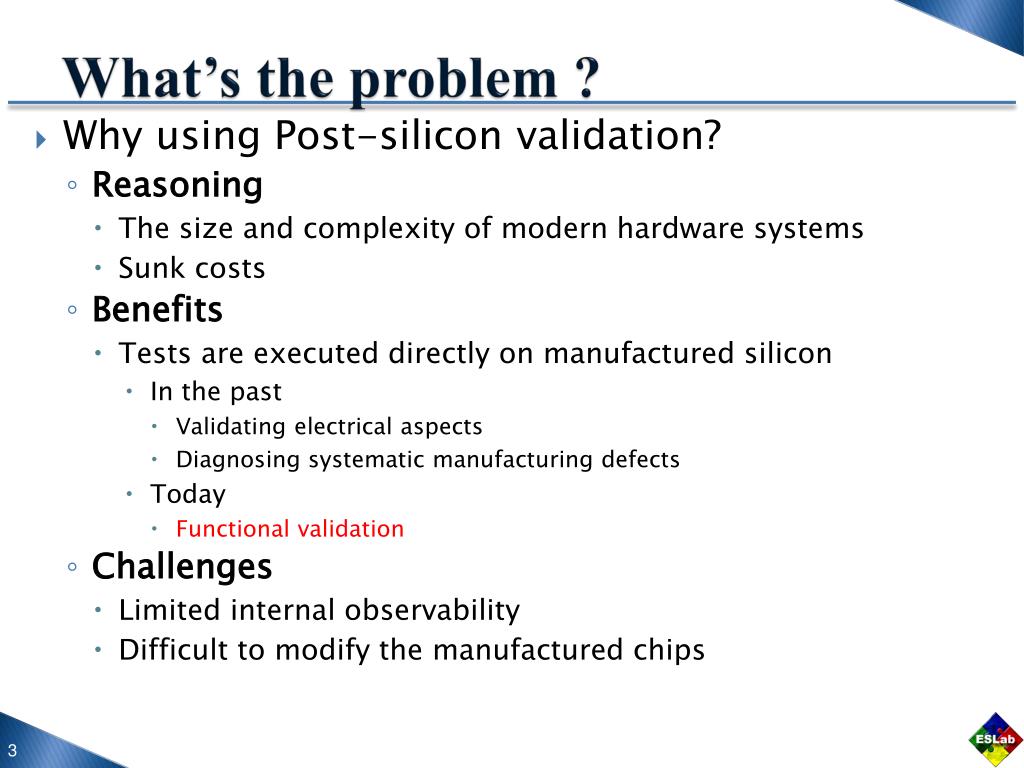

  3. What’s the problem ? • Why using Post-silicon validation? • Reasoning • The size and complexity of modern hardware systems • Sunk costs • Benefits • Tests are executed directly on manufactured silicon • In the past • Validating electrical aspects • Diagnosing systematic manufacturing defects • Today • Functional validation • Challenges • Limited internal observability • Difficult to modify the manufactured chips

  4. What’s the problem? (Cont.) 4 • The growing importance of post-silicon validation • High-end designs increases the need for synergy between the pre-silicon verification and post-silicon validation. • Propose a unified methodology to building a bridge allowing easier integration between the domains. • Difference between Pre- and Post-silicon domains • Pre-silicon platforms • Software simulators and hardware acceleration • Support detailed level of observability • Post-silicon platforms • Provide significantly higher execution speeds • The verification tools need to be adjusted for the best utilization of available speed

  5. Introduction Pre-silicon verification V.S. Post-silicon validation

  6. Related Work [1] Functional verification Implementation on the modern hardware systems is a mammoth task [2] Post-silicon methodology [14] GenesysPro [13] Threadmill Post-silicon validation is not a new idea, but very little is published on post-silicon verification methodologies. The tool that implemented the proposed methodology IBM’s well-established test generation tool for the functional verification [3-7] Most research in post-silicon validation Unified Verification Methodology Checking and debugging capabilities of the silicon platforms [This paper]

  7. Pre-silicon stimuli generation • Motivation • According to the user’s specifications, it can provide • Desired scenarios • High-quality test cases • Scenario specifications – test-templates • Test templatethat defines a scenario (on the left) and a test generated from this template (on the right). • GenesysPro-IBM’s well-established test generation tool • Functional verification of processors • The generated test cases • Must be valid to the processor’s architecture • Be different from each other as much as possible

  8. Pre-silicon stimuli generation(Cont.) Test Template Test case Test Generator Test case Simulation Test case Model of the Architecture Reference Model Testing knowledge • Testing knowledge • Defines the interesting verifications events • Register dependency • Memory collisions • Employs a reference model • Simulating on it every generated instruction

  9. Post-silicon stimuli generation • The first important characteristic • long loadingand Initialization time • Exercisers - Aself-contained solution • Generates the test-cases • Runs test-cases • Checking • It a good post-silicon solution • Only loaded once on the DUV • Problem • Simulation speed • Spend less effort in generating precise interesting scenarios • Increase in number of tests generated • Low observability • Overcome this problem by the acceleration platform

  10. A unified verification methodology • A key ingredient for the success of such methodology • Providing common languagesfor the pre- and post-silicon • Test specification, progress measure, etc. • This verification methodology • Leverages three different platforms: • Simulation, Acceleration and Silicon • Requires three major components: • A verificationplan • Directablestimuli generators suited to each platform • Functional coverage models • Identifies gaps in the implementation of the plan

  11. Threadmill Test Template Builder Accelerator Testing knowledge Silicon Model of the Architecture • Threadmill was developed to enable the unified methodology • To support a verification process by a verification plan • To guide the exerciser through test-templates • Execution process starts with a builder application • Convert the data incorporated in the test-template • The architectural model into data structures that are then embedded into the exerciser image

  12. Threadmill (Cont.) • Exerciser image is composed of three major components • Athin, OS-like layer of basic services • A representation of the test-template, architectural model, and system configuration description • Fixed code that is responsible for the exercising

  13. Before the experiment 13 • I think this paper will show the performance of Threadmill • Because it is the exercise which developed enable the unified methodology

  14. Experimental results 14 • IBM’s POWER7 processor • Implements the 64-bit IBM Power Architecture • POWER7 chip incorporates eight SMT processor cores with three levels of caches, memory and I/O controllers and other support and management logic • POWER7 Coverage results • unit simulation • core simulation • EoA : Exercisers on Accelerators • Fetch unit (IFU) and sequencing unit (ISU) • EoAis almost similar to the core simulation

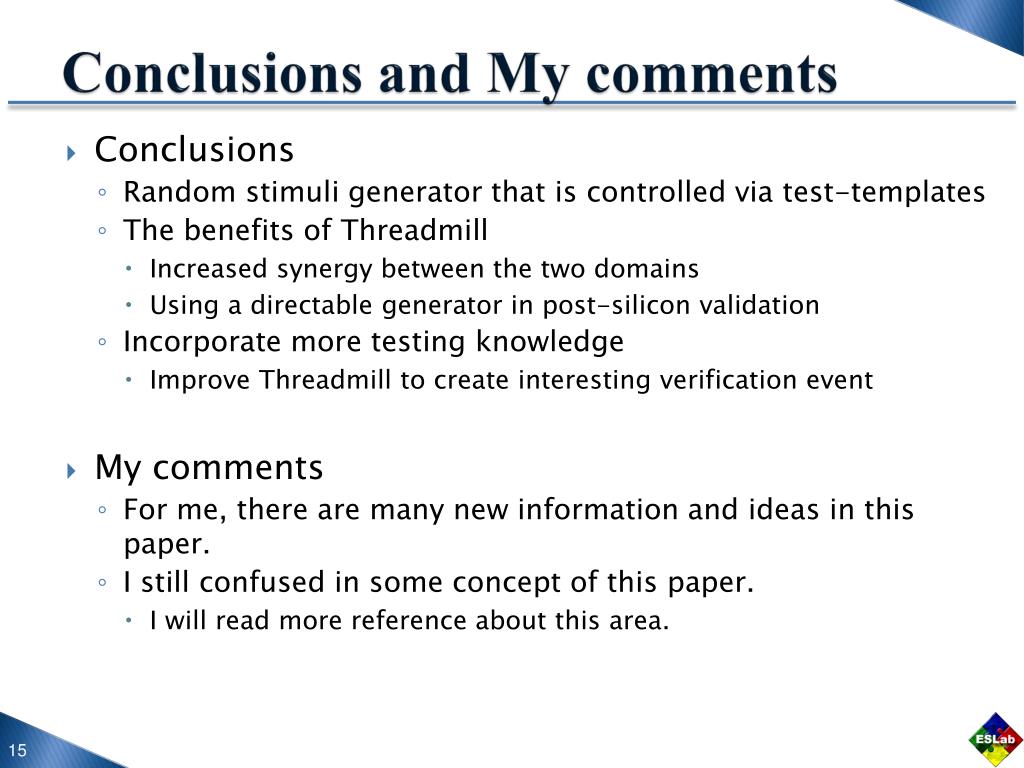

  15. Conclusions and My comments • Conclusions • Random stimuli generator that is controlled via test-templates • The benefits of Threadmill • Increased synergy between the two domains • Using a directablegenerator in post-silicon validation • Incorporate more testing knowledge • Improve Threadmill to create interesting verification event • My comments • For me, there are many new information and ideas in this paper. • I still confused in some concept of this paper. • I will read more reference about this area.
