Parallel Processing – Final Project. Image Processing Using Cilk Tomer Y & Tuval A (pp25). Project Goals. Global Motion Estimation Using Full Search Block Matching Algorithm for motion vector detection Multithreaded parallel programming with Cilk. Cilk Description.

Download Presentation

Parallel Processing – Final Project

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Parallel processing final project

Parallel Processing – Final Project

Image Processing Using Cilk

Tomer Y & Tuval A (pp25)

Image Processing Using Cilk

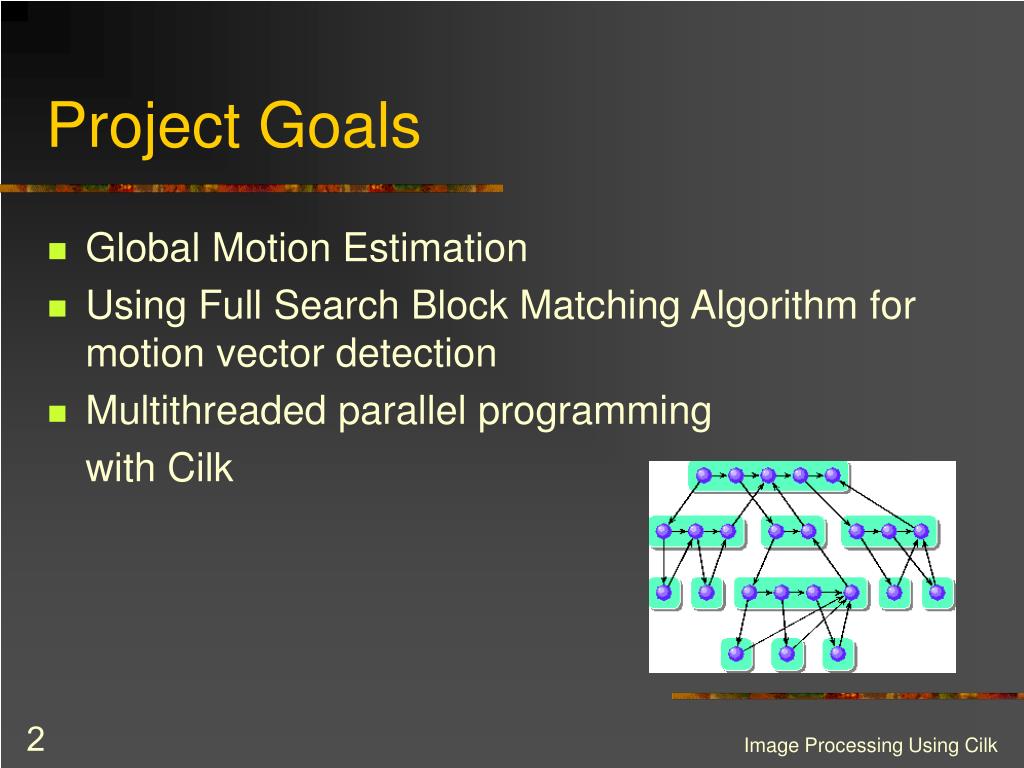

Project goals

Project Goals

  • Global Motion Estimation

  • Using Full Search Block Matching Algorithm for motion vector detection

  • Multithreaded parallel programming

    with Cilk

Image Processing Using Cilk

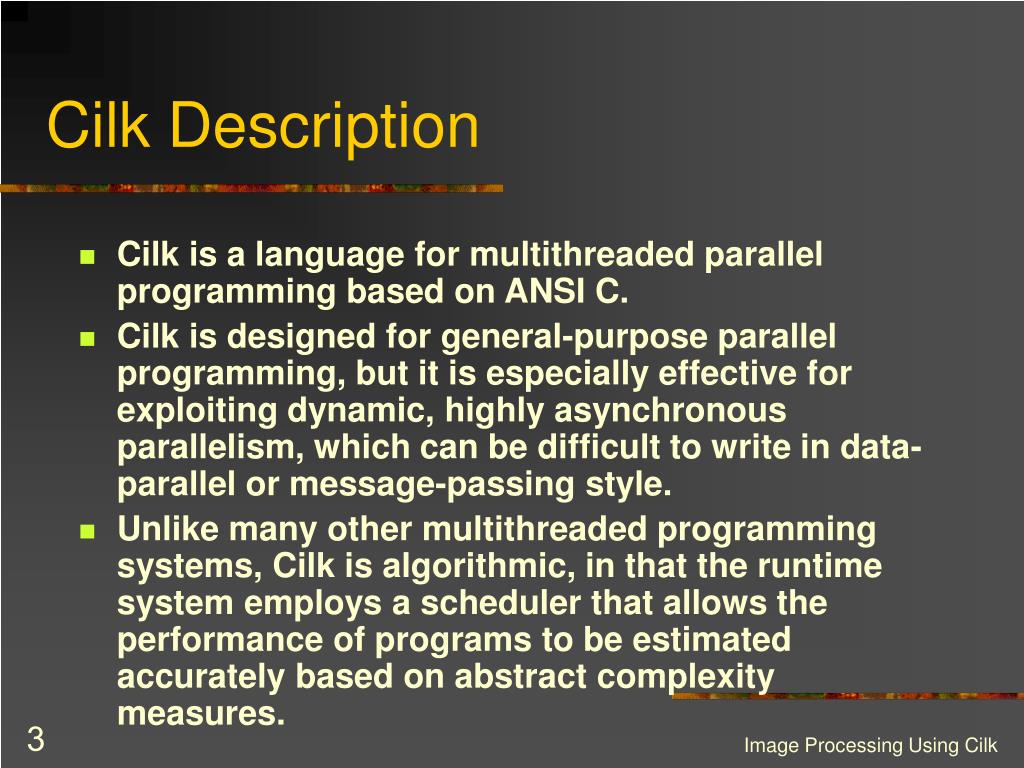

Cilk description

Cilk Description

  • Cilk is a language for multithreaded parallel programming based on ANSI C.

  • Cilk is designed for general-purpose parallel programming, but it is especially effective for exploiting dynamic, highly asynchronous parallelism, which can be difficult to write in data-parallel or message-passing style.

  • Unlike many other multithreaded programming systems, Cilk is algorithmic, in that the runtime system employs a scheduler that allows the performance of programs to be estimated accurately based on abstract complexity measures.

Image Processing Using Cilk

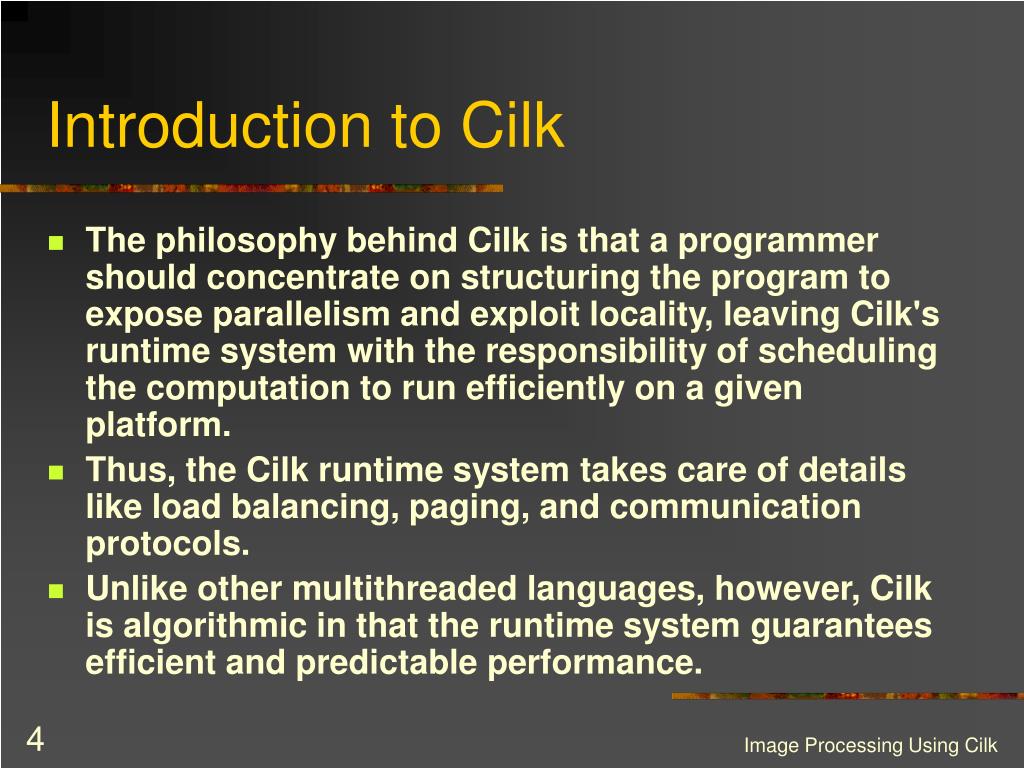

Introduction to cilk

Introduction to Cilk

  • The philosophy behind Cilk is that a programmer should concentrate on structuring the program to expose parallelism and exploit locality, leaving Cilk's runtime system with the responsibility of scheduling the computation to run efficiently on a given platform.

  • Thus, the Cilk runtime system takes care of details like load balancing, paging, and communication protocols.

  • Unlike other multithreaded languages, however, Cilk is algorithmic in that the runtime system guarantees efficient and predictable performance.

Image Processing Using Cilk


Parallel processing final project

A serial C programto compute the nth Fibonacci number

A parallel C programto compute the nth Fibonacci number

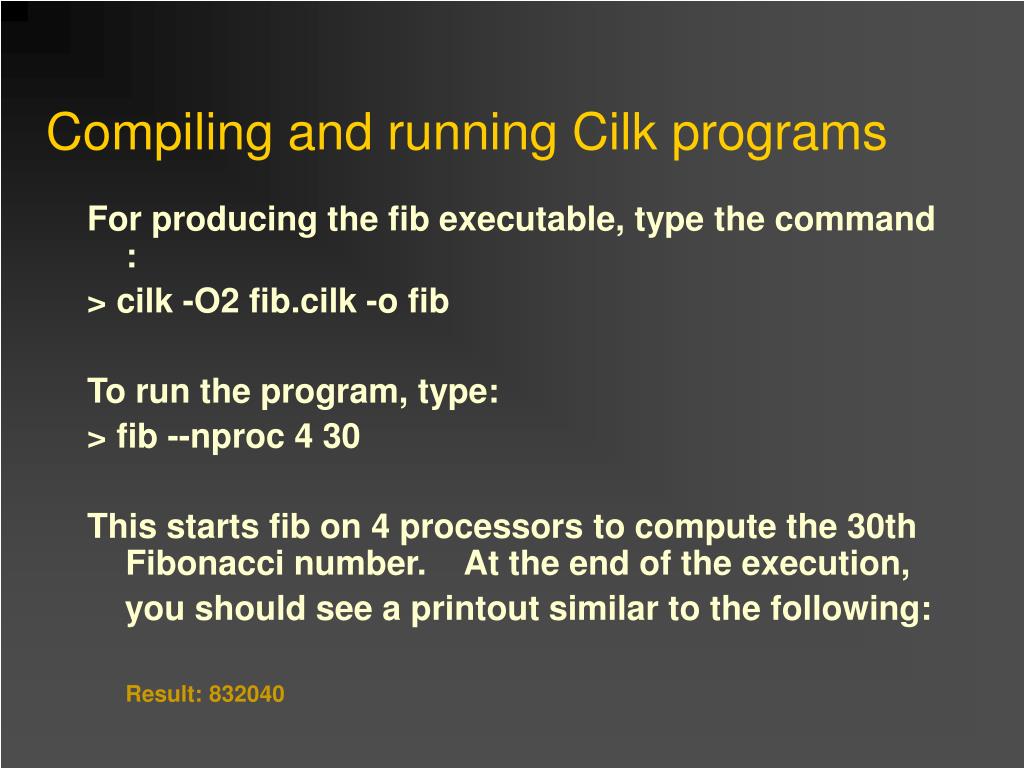

Compiling and running cilk programs

Compiling and running Cilk programs

For producing the fib executable, type the command :

> cilk -O2 fib.cilk -o fib

To run the program, type:

> fib --nproc 4 30

This starts fib on 4 processors to compute the 30th Fibonacci number. At the end of the execution,

you should see a printout similar to the following:

Result: 832040


Compiling and running cilk programs collect performance information

Compiling and running Cilk programs – collect performance information

The Cilk runtime system collects this information when a program is compiled with the flags

-cilk-profile and -cilk-critical-path.

$ cilk -cilk-profile -cilk-critical-path -O2 fib.cilk -o fib

Cilk program compiled with profiling support can be instructed to print performance information by using the --stats option.

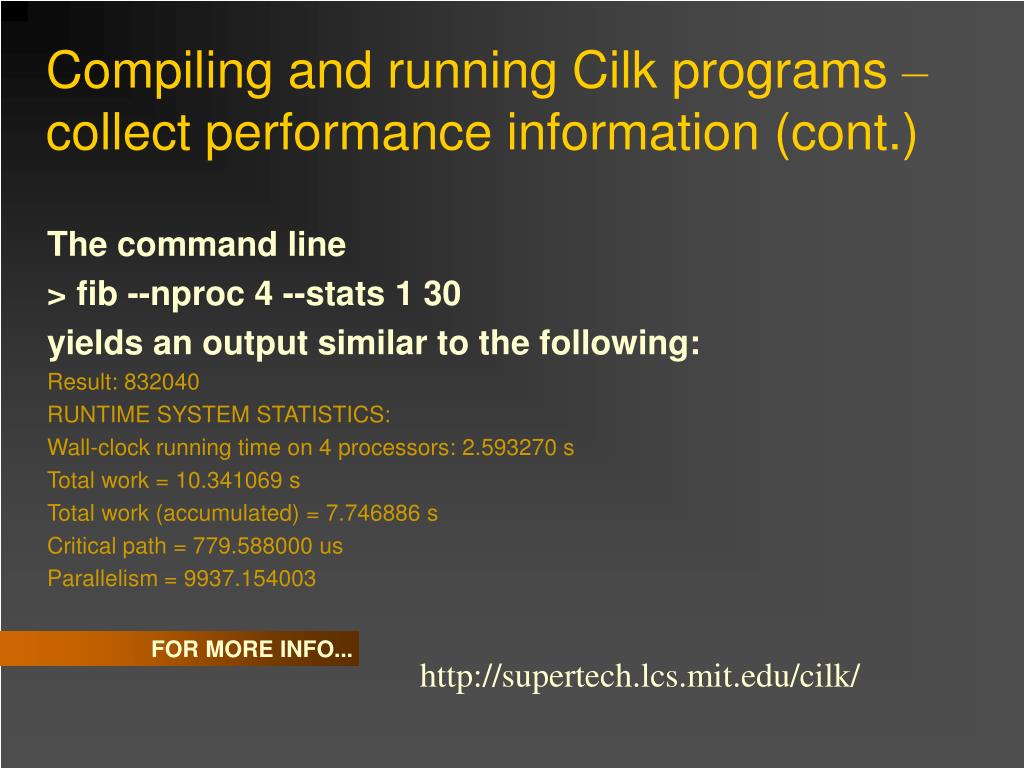

Compiling and running cilk programs collect performance information cont

Compiling and running Cilk programs – collect performance information (cont.)

The command line

> fib --nproc 4 --stats 1 30

yields an output similar to the following:

Result: 832040

RUNTIME SYSTEM STATISTICS:

Wall-clock running time on 4 processors: 2.593270 s

Total work = 10.341069 s

Total work (accumulated) = 7.746886 s

Critical path = 779.588000 us

Parallelism = 9937.154003

FOR MORE INFO...

http://supertech.lcs.mit.edu/cilk/


Motion estimation

Motion Estimation

Motion Estimation Importance :

  • Effective and quick video signal transmission/storage depends on video compression process.

  • In order to get high compression ratio while preserving high image quality motion vectors are transmitted instead of image itself.

Image Processing Using Cilk


Local motion estimation f sa full search block matching algorithm

Local Motion EstimationFSA-Full Search Block Matching Algorithm

In the two pictures (256*256 pixels) below we can see movement of the camera (in this case 30 pixels right and 18 pixels down).

The motion vector (30,18)

Previous frame

Current frame


Our algorithm

Our algorithm

The goals of the program is detecting the movement and returning the motion vector

The steps of the programs are :

1. Read the two BMP files into two matrixes, containing values of every pixel in the frame.

2. Divide the 256*256 image into Macro Blocks, each Macro Block containing 16*16 pixels.

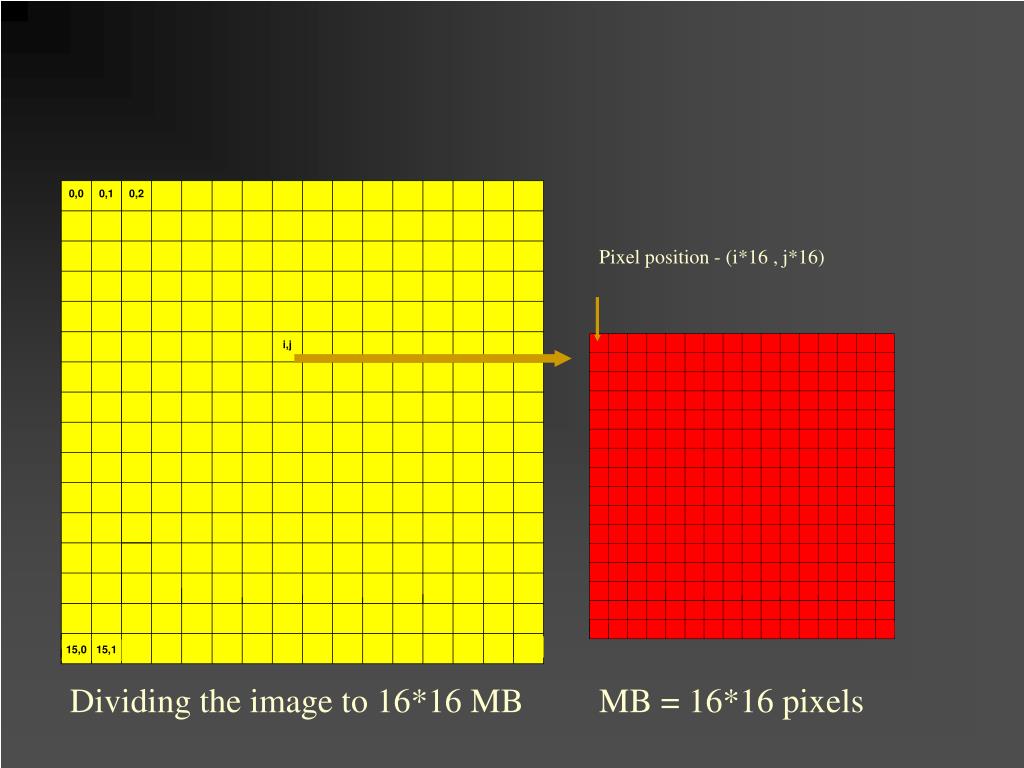

Parallel processing final project

Pixel position - (i*16 , j*16)

Dividing the image to 16*16 MB

MB = 16*16 pixels


Parallel processing final project

The next steps of the programs are :

3. Sending each of the MB( i = 0,2,…,15 , j = 0,2,…,15 ) for local motion vector estimation – generating 16*16 processes.

4. Local motion estimation – assuming movements in the x and y directions (-15 <= x_move,y_move <=15 )

and calculating Mean Absolute Error for each of this movements.

where S is the previous frame and R is the current frame


Parallel processing final project

5. Find the lowest MAE and chose it’s movement offsets (x_move and y_move) as the local motion vector.

6. Calculate the global motion vector by summing all

the local motion vectors together and divide the result by the number of the MB.


Parallel processing final project

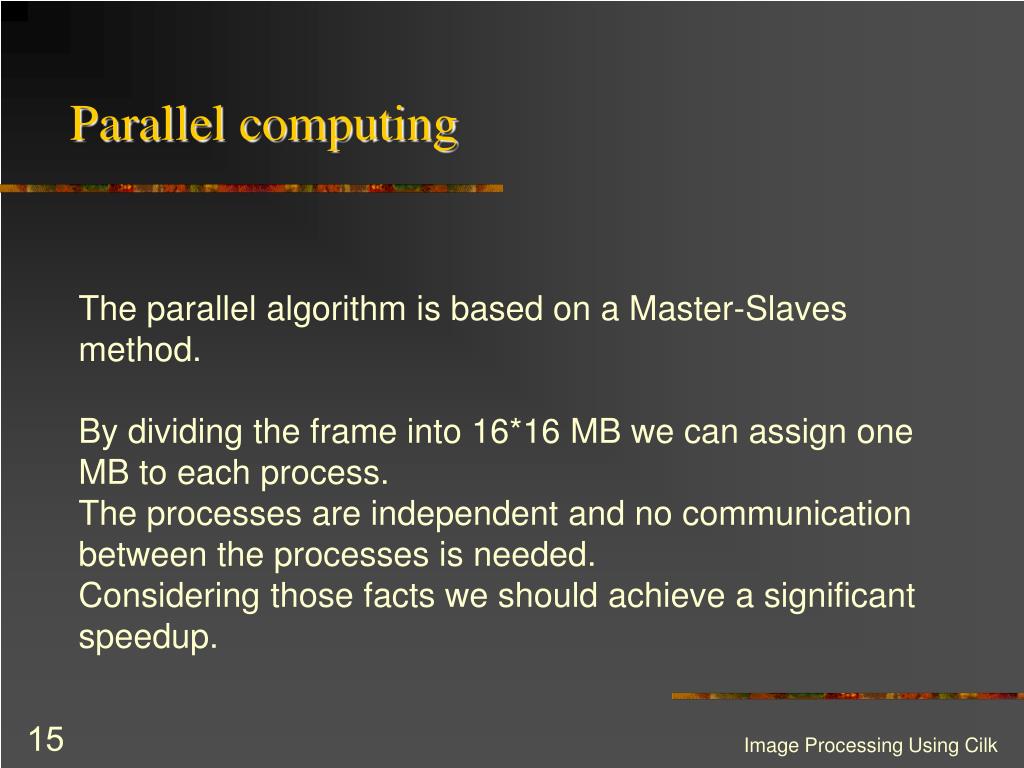

Parallel computing

The parallel algorithm is based on a Master-Slaves method.

By dividing the frame into 16*16 MB we can assign one MB to each process.

The processes are independent and no communication between the processes is needed.

Considering those facts we should achieve a significant speedup.

Image Processing Using Cilk
