Solving multistep equations

Solving Multistep Equations

2x + 4 = 12


Method 1 algebra tiles

Method 1 : Algebra tiles

You should have a basic understanding of Algebra Tiles to use this tutorial.

The Legal Moves are the set of moves allowed. Let’s review the Legal Moves.


Method 1 algebra tiles1

Method 1 : Algebra tiles

Legal Moves

1. Removing Zero Pairs


Removing zero pairs

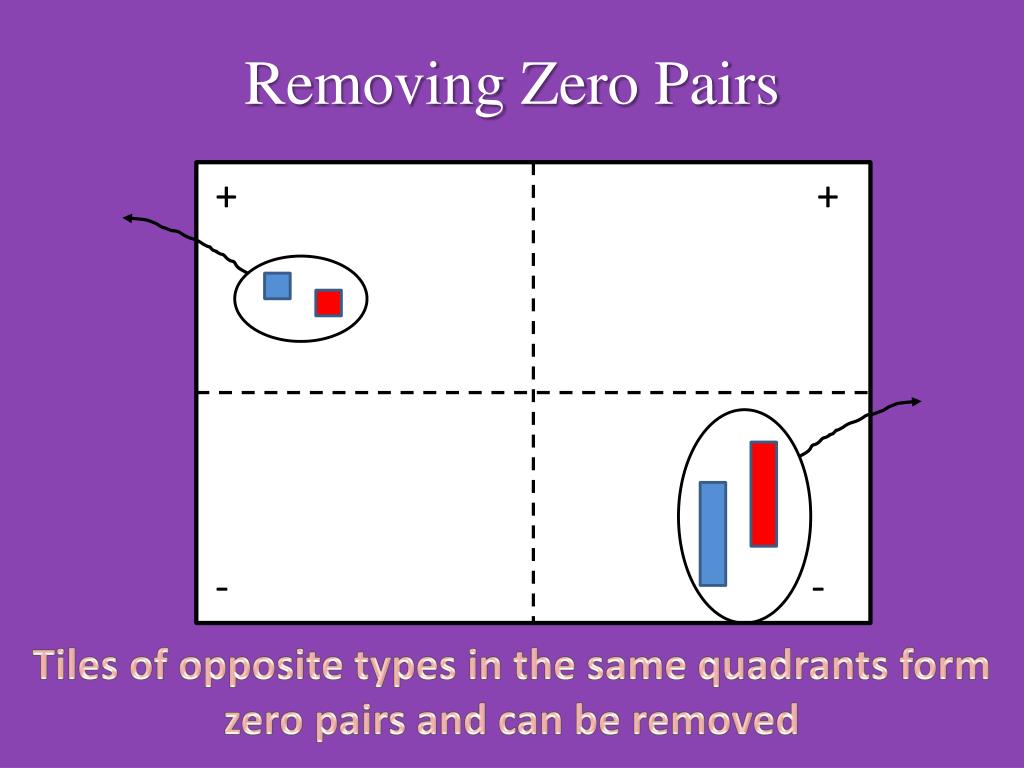

Removing Zero Pairs

+

+

-

-

Tiles of opposite types in the same quadrants form zero pairs and can be removed


Removing zero pairs1

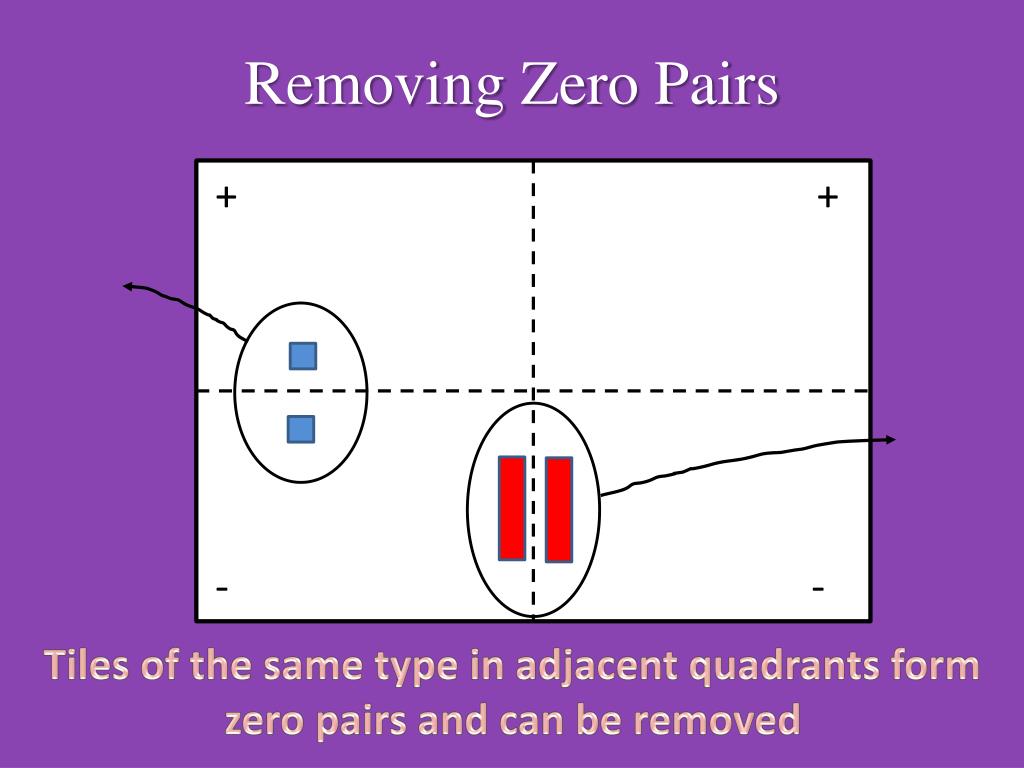

Removing Zero Pairs

+

+

-

-

Tiles of the same type in adjacent quadrants form zero pairs and can be removed


Method 1 algebra tiles2

Method 1 : Algebra tiles

Legal Moves

1. Removing Zero Pairs

2. Flipping Tiles


Flipping tiles

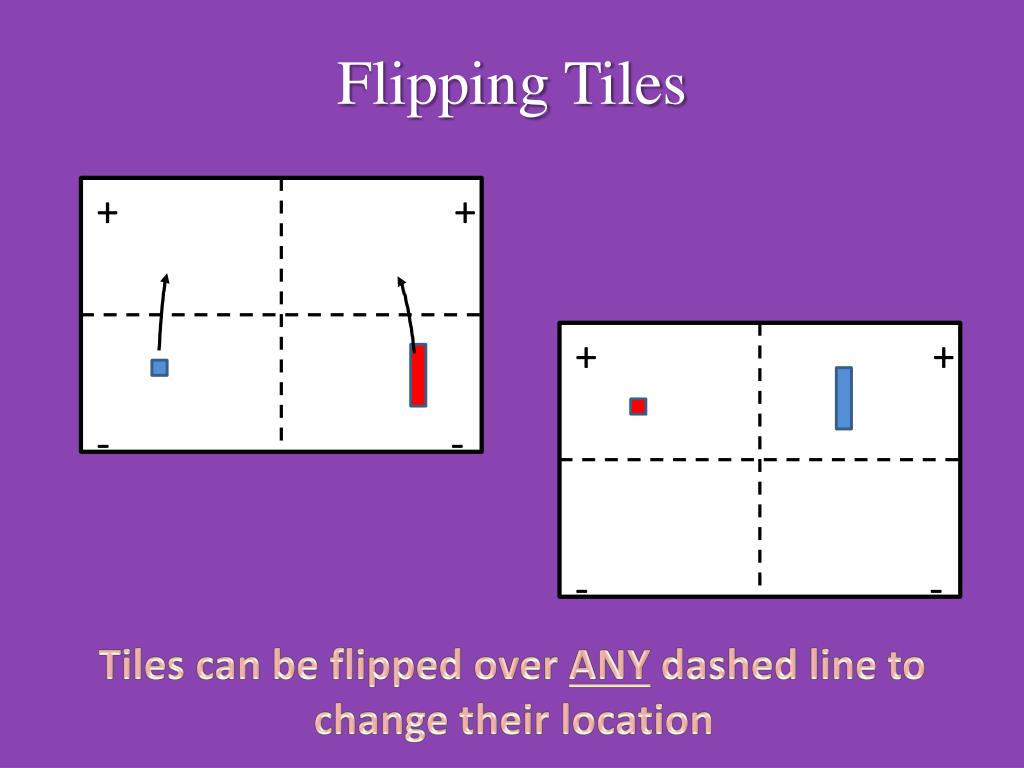

Flipping Tiles

+

+

+

+

-

-

-

-

Tiles can be flipped over ANY dashed line to change their location


Method 1 algebra tiles3

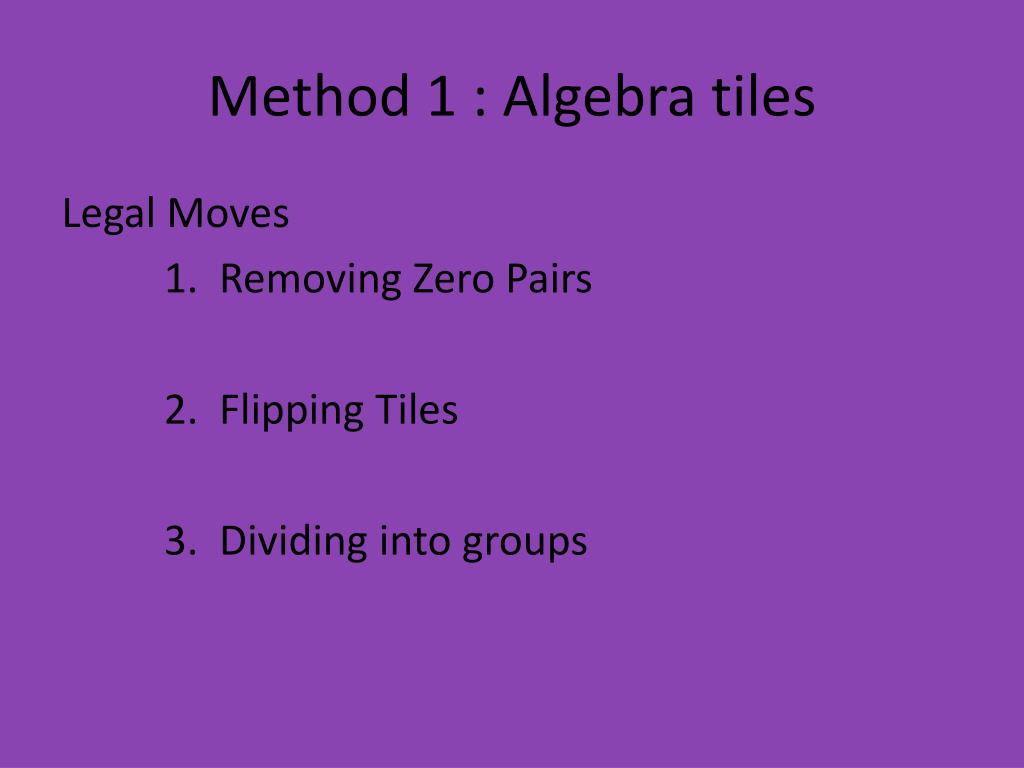

Method 1 : Algebra tiles

Legal Moves

1. Removing Zero Pairs

2. Flipping Tiles

3. Dividing into groups


Dividing into groups

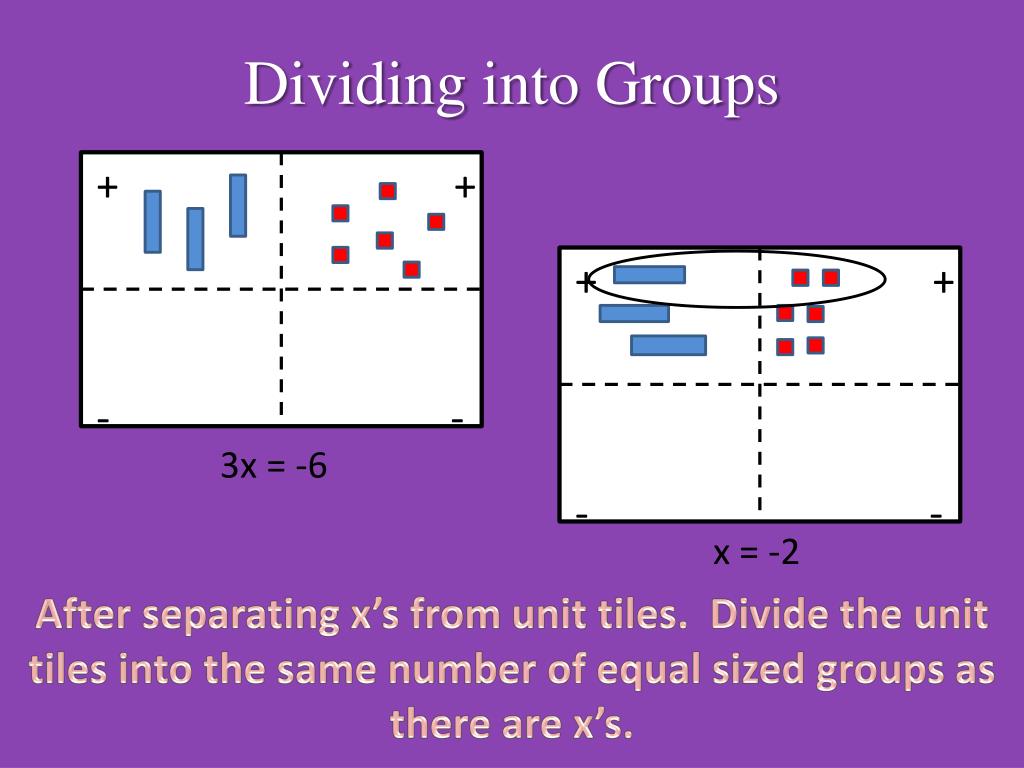

Dividing into Groups

+

+

+

+

-

-

3x = -6

-

-

x = -2

After separating x’s from unit tiles. Divide the unit tiles into the same number of equal sized groups as there are x’s.


Are you ready for an example

Are you ready for an Example?

WARNING!!!

There are many possible methods for solving an equation with algebra tiles. You may see a different move…try it and see if you get the same answer!!!!


Putting it all together

Putting it all Together

Let’s Start with a basic equation:

4x – 7 = 9

+

+

-

-


Putting it all together1

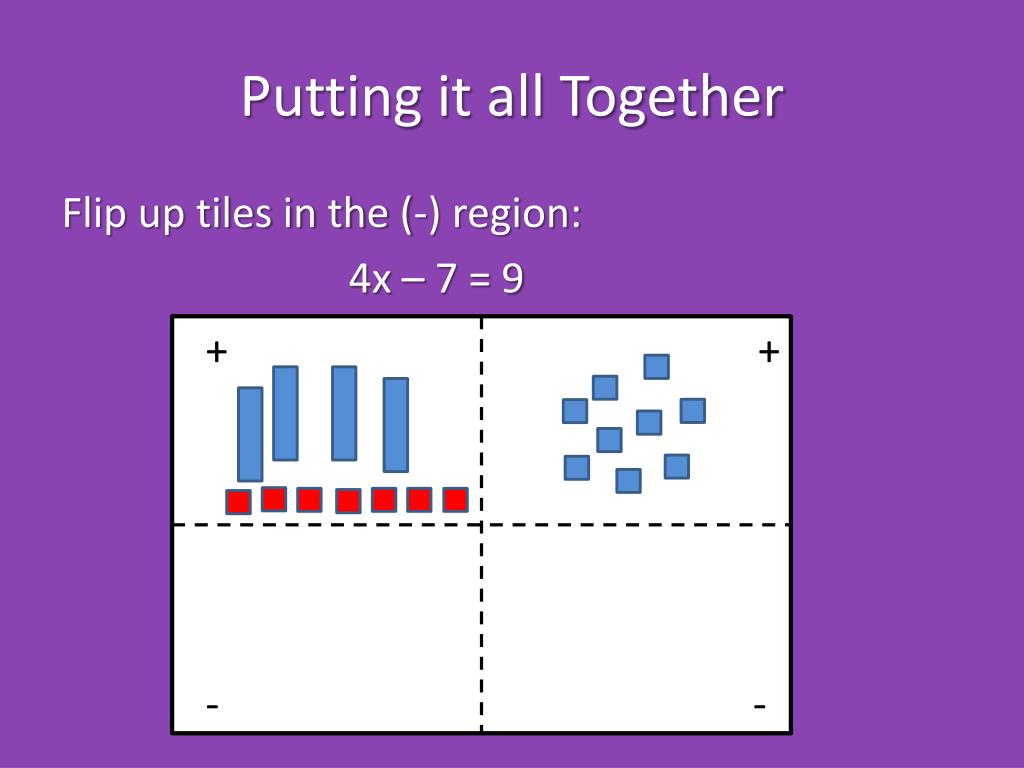

Putting it all Together

Flip up tiles in the (-) region:

4x – 7 = 9

+

+

-

-


Putting it all together2

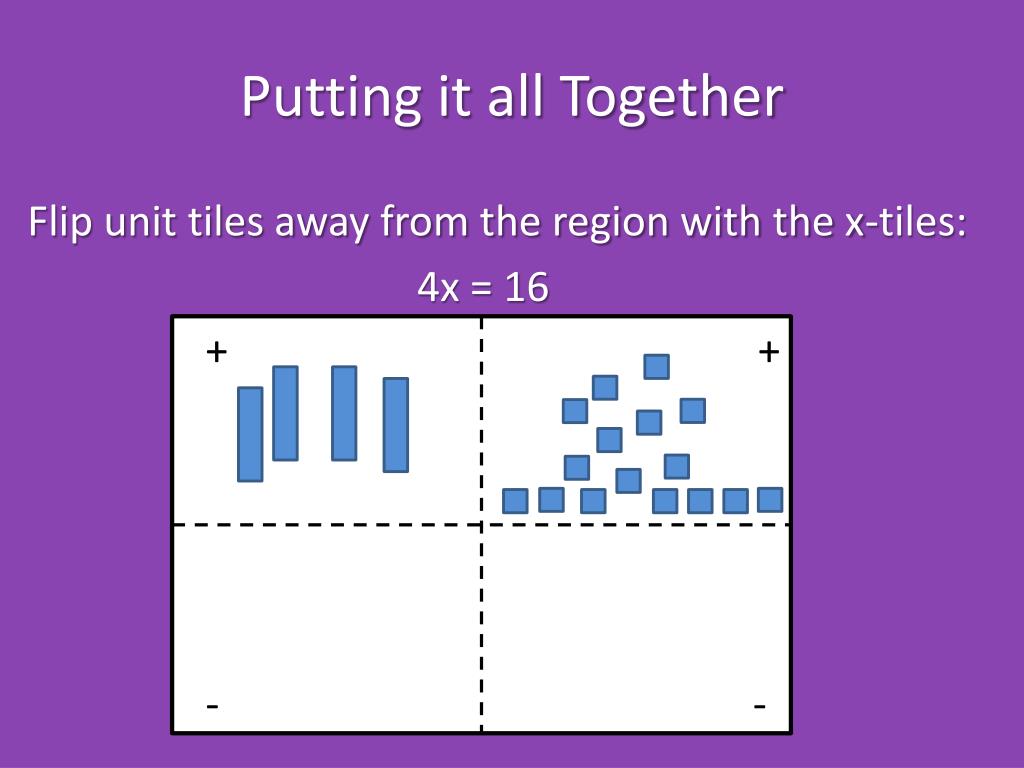

Putting it all Together

Flip unit tiles away from the region with the x-tiles:

4x = 16

+

+

-

-


Putting it all together3

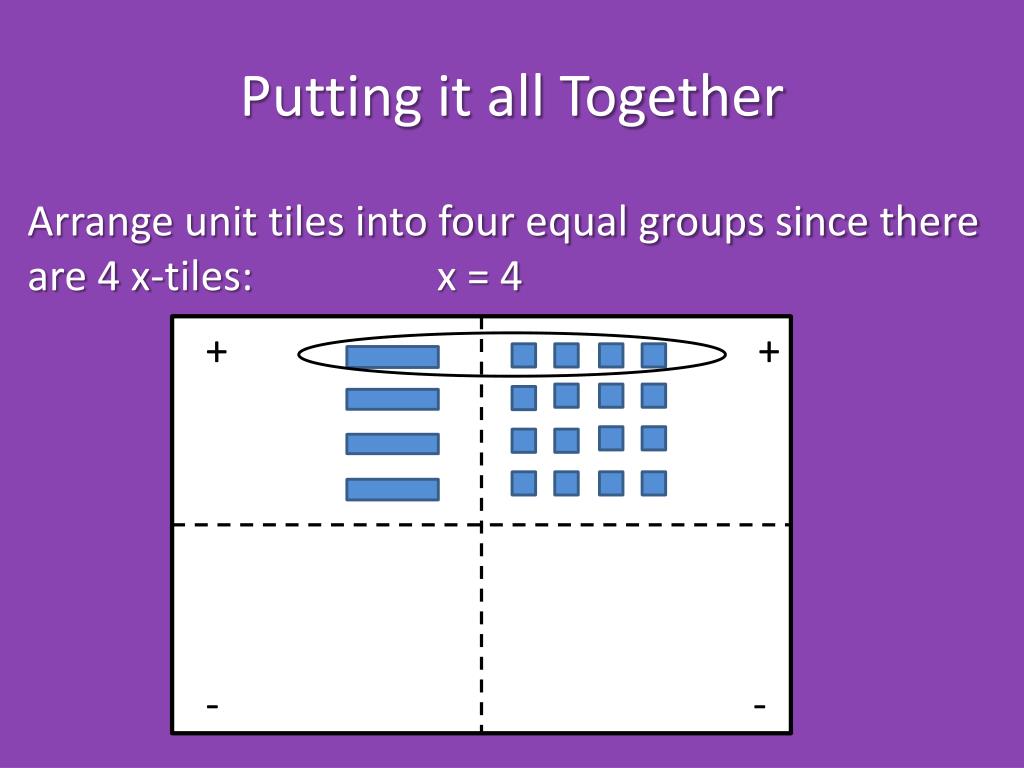

Putting it all Together

Arrange unit tiles into four equal groups since there are 4 x-tiles:x = 4

4x = 16

+

+

-

-

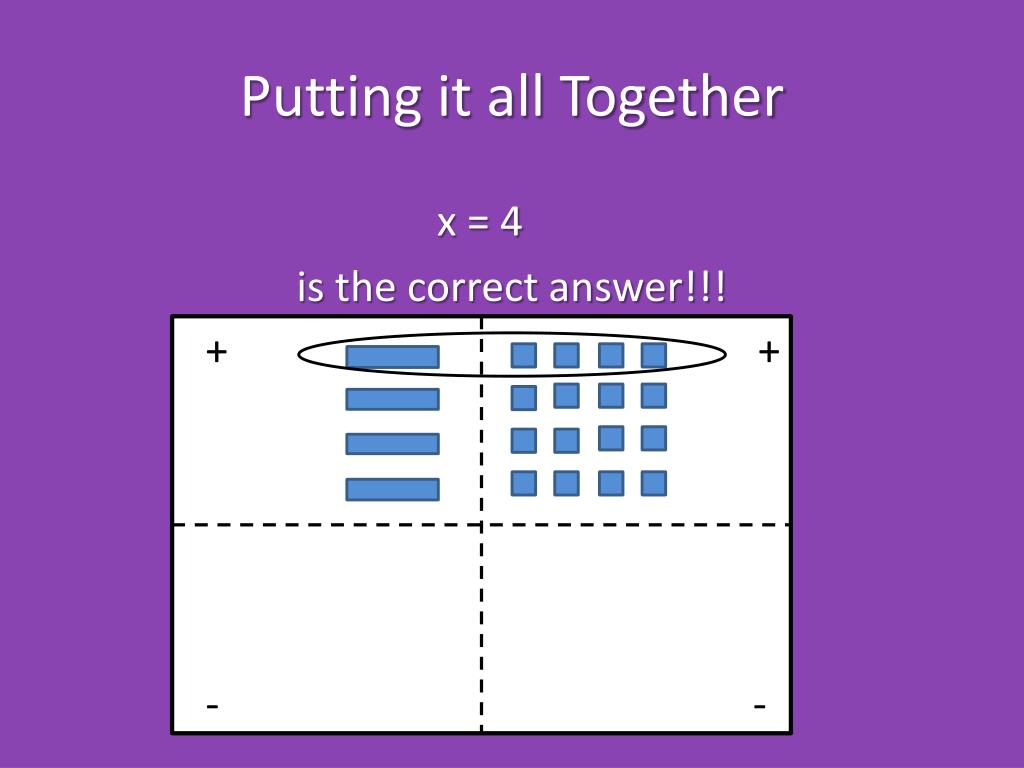

Putting it all together4

Putting it all Together

x = 4

is the correct answer!!!

+

+

-

-


Check your answer

CHECK YOUR ANSWER

Plug x = 4 into the original equation

4x – 7 = 9

4(4) - 7 = 9

16 – 7 = 9

9 = 9

Since the statement is true then 4 is a solution!!!


Another example

Another Example?

WARNING!!!

You may setup your negative items as red tiles on top OR other colored tiles on bottom. Either setup is acceptable.


Example 2

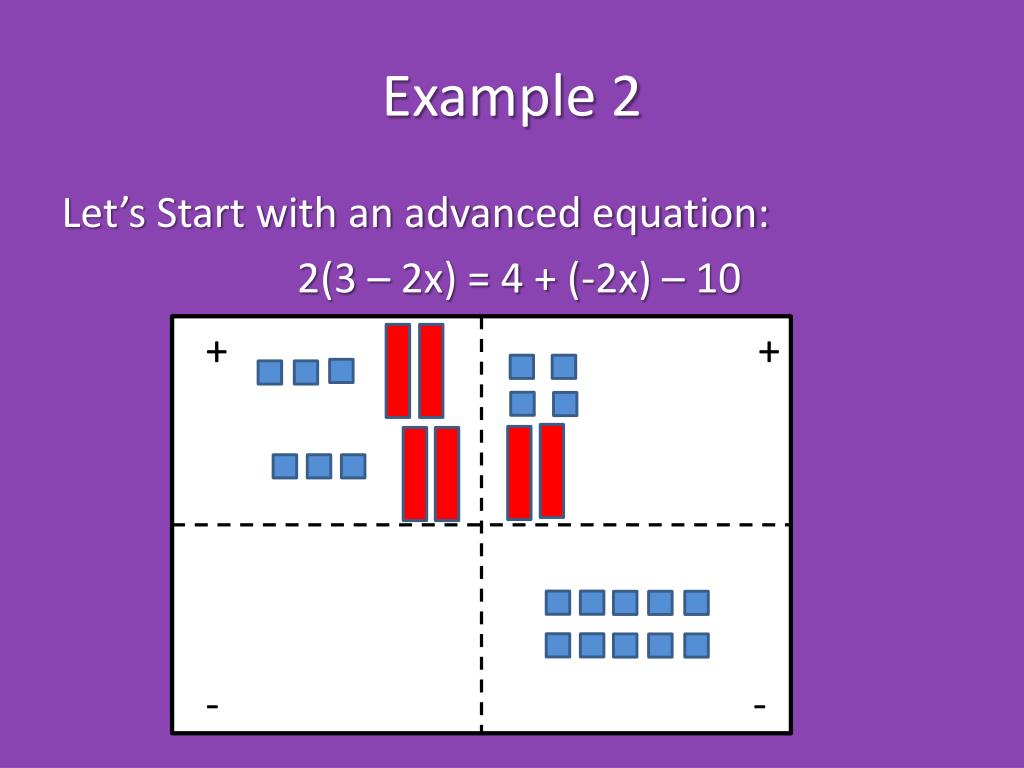

Example 2

Let’s Start with an advanced equation:

2(3 – 2x) = 4 + (-2x) – 10

+

+

-

-


Example 2 2 3 2x 4 2x 10

Example 22(3 – 2x) = 4 + (-2x) – 10

Flip up:

6 – 4x = 4 - 2x – 10

+

+

-

-


Example 2 2 3 2x 4 2x 101

Example 22(3 – 2x) = 4 + (-2x) – 10

Flip up:

6 – 4x = 4 - 2x – 10

+

+

-

-

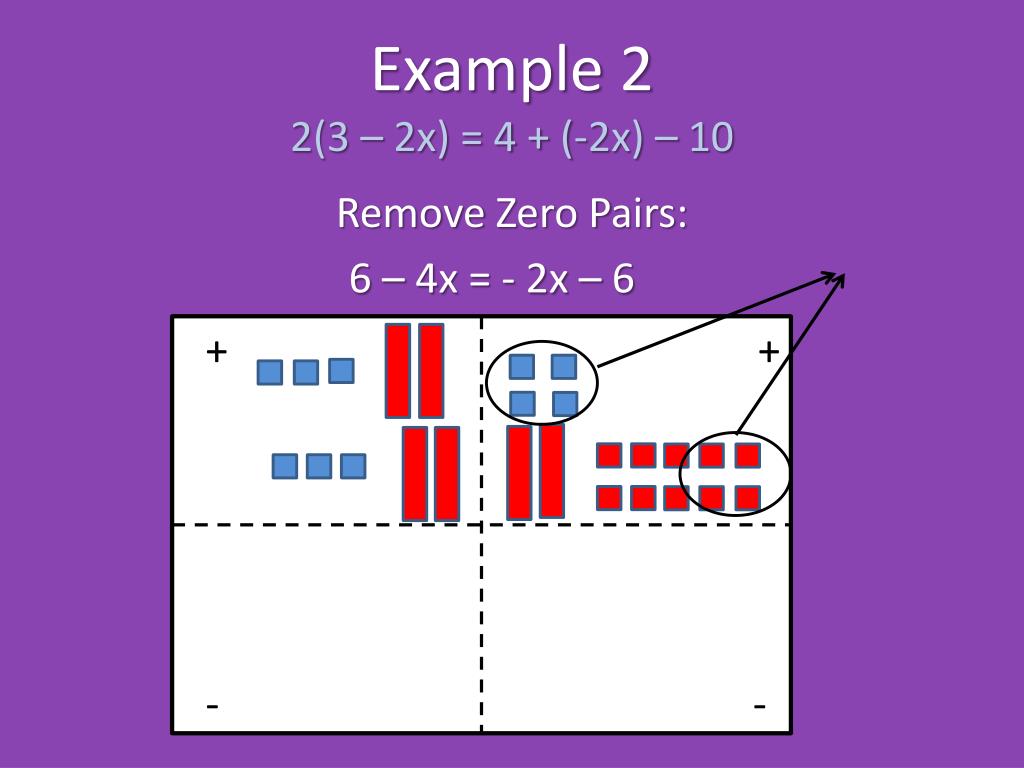

Example 2 2 3 2x 4 2x 102

Example 22(3 – 2x) = 4 + (-2x) – 10

Remove Zero Pairs:

6 – 4x = - 2x – 6

+

+

-

-


Example 2 2 3 2x 4 2x 103

Example 22(3 – 2x) = 4 + (-2x) – 10

Remove more Zero Pairs:

6 – 2x = – 6

+

+

-

-


Example 2 2 3 2x 4 2x 104

Example 22(3 – 2x) = 4 + (-2x) – 10

Flip red x-tiles to the other side:

6 = 2x – 6

+

+

-

-


Example 2 2 3 2x 4 2x 105

Example 22(3 – 2x) = 4 + (-2x) – 10

Flip red x-tiles to the other side:

6 = 2x – 6

+

+

-

-


Example 2 2 3 2x 4 2x 106

Example 22(3 – 2x) = 4 + (-2x) – 10

Flip unit tiles away from the x-tiles:

12 = 2x

+

+

-

-


Example 2 2 3 2x 4 2x 107

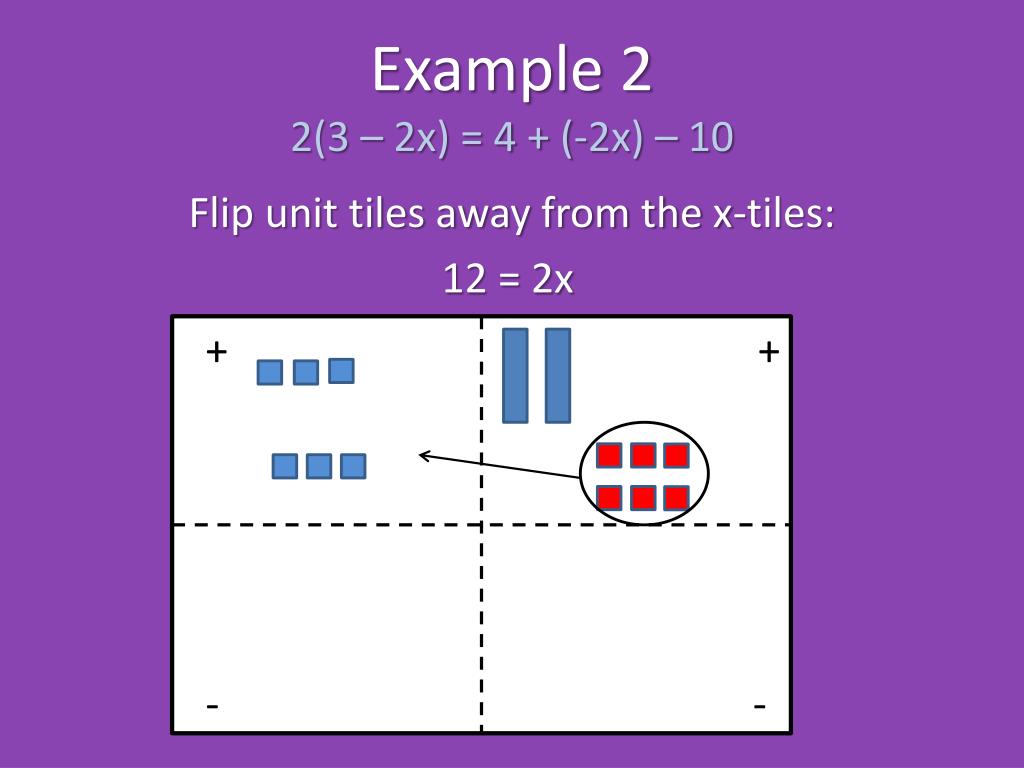

Example 22(3 – 2x) = 4 + (-2x) – 10

Flip unit tiles away from the x-tiles:

12 = 2x

+

+

-

-


Example 2 2 3 2x 4 2x 108

Example 22(3 – 2x) = 4 + (-2x) – 10

Arrange tiles into 2 group since there are 2 x-tiles:

6 = x

+

+

-

-


Example 2 2 3 2x 4 2x 109

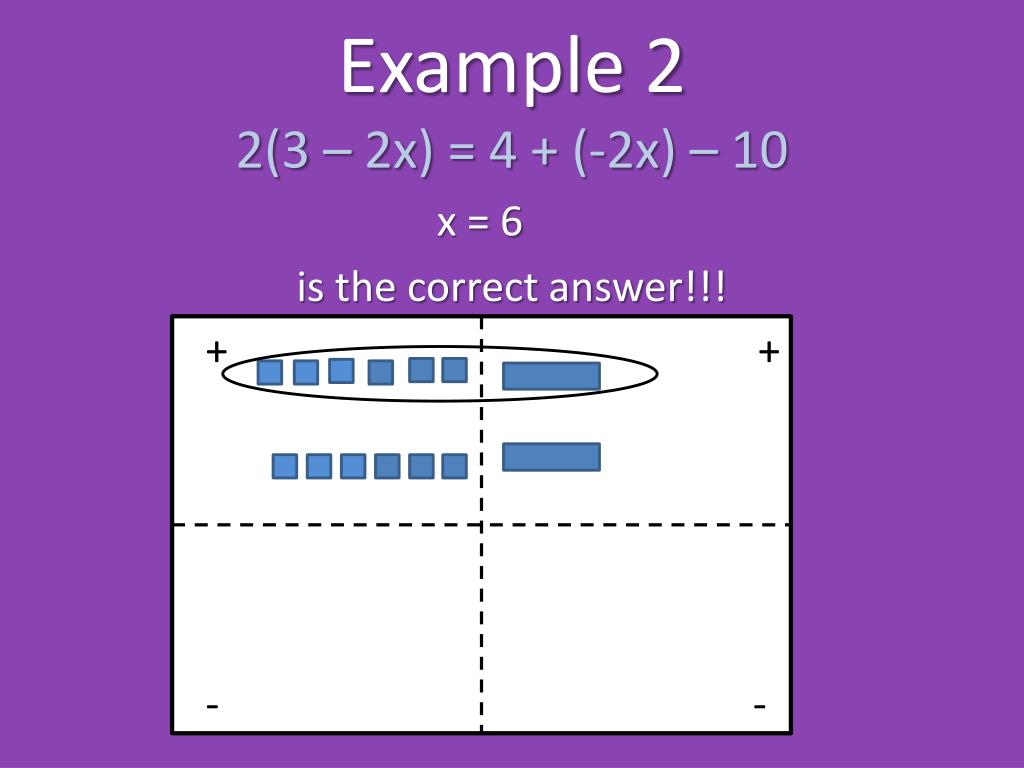

Example 22(3 – 2x) = 4 + (-2x) – 10

x = 6

is the correct answer!!!

+

+

-

-


Check your answer1

CHECK YOUR ANSWER

Plug x = 6 into the original equation

2(3 – 2x) = 4 + (-2x) – 10

2(3 – 2(6)) = 4 + (-2(6)) – 10

2(3 – 12) = 4 + (-12) – 10

2(-9) = - 8 – 10

  • 18 = - 18

    Since the statement is true then 6 is a solution!!!


Method 2 solve using a table

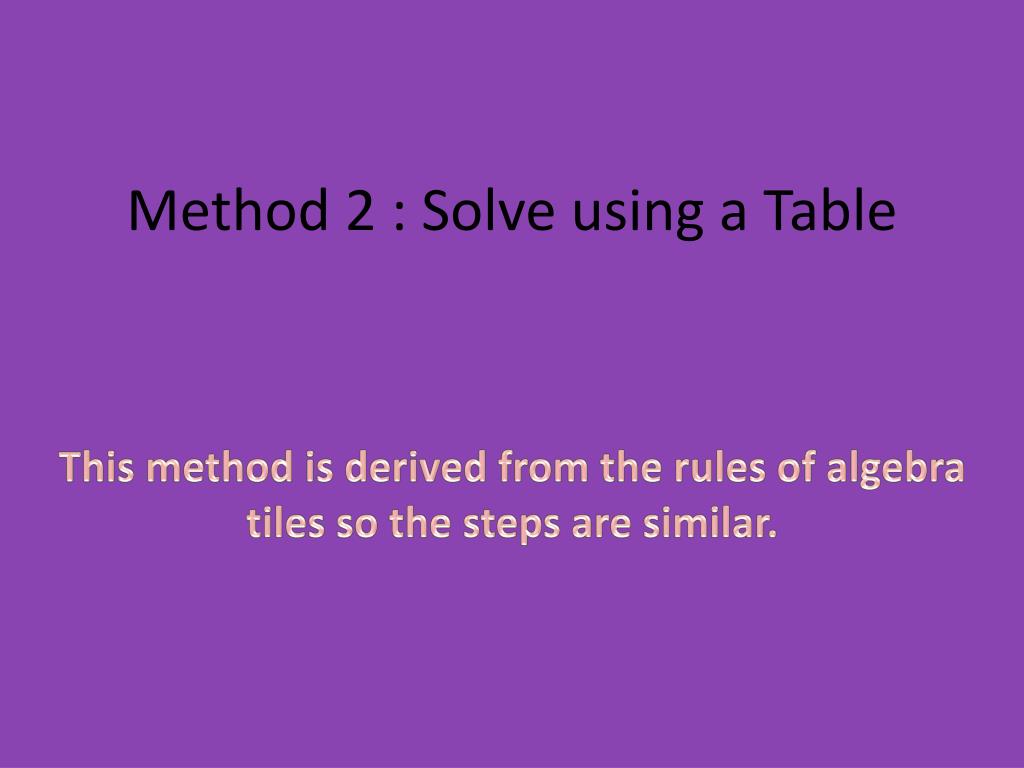

Method 2 : Solve using a Table

This method is derived from the rules of algebra tiles so the steps are similar.


Using a table

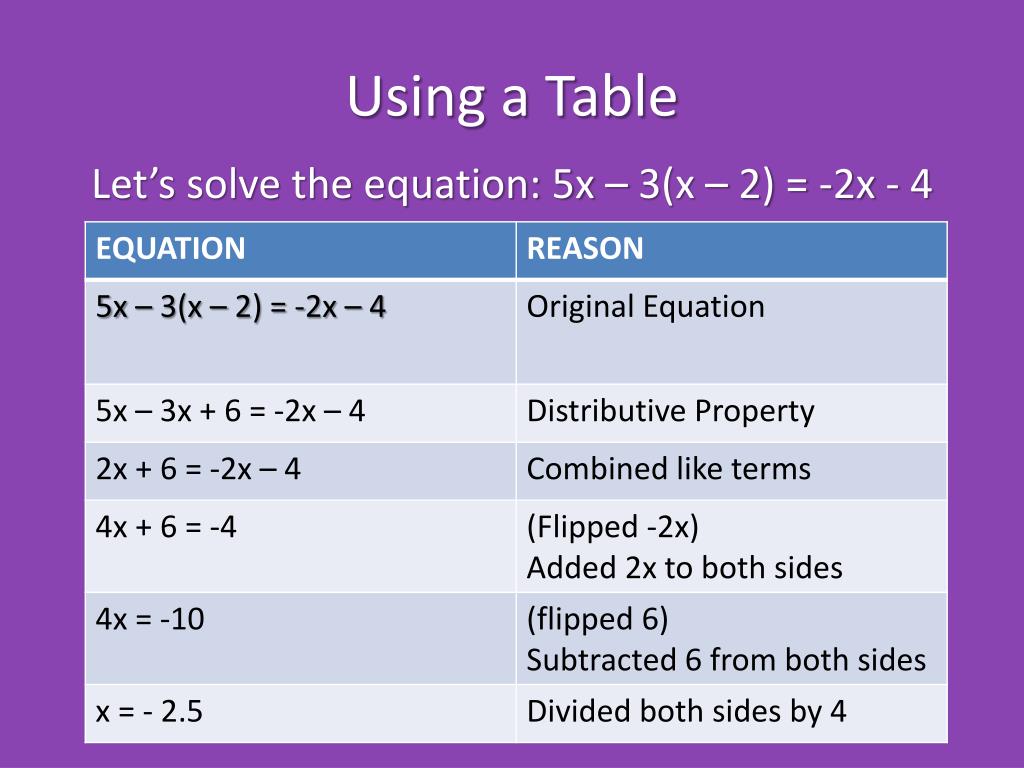

Using a Table

Let’s solve the equation: 5x – 3(x – 2) = -2x - 4


Check your answer2

CHECK YOUR ANSWER

Plug x = -2.5 into the original equation

5x – 3(x – 2) = -2x - 4

5(-2.5) – 3(-2.5 – 2) = -2(-2.5) – 4

-12.5 – 3(-4.5) = 5 – 4

-12.5 + 13.5 = 1

1 = 1

Since the statement is true then -2.5 is a solution!!!


Give it a try

Give it a try!!!

You should be ready to give it a try on your own.

Locate the Checkpoint 1 – Worksheetfrom the Geometry Page on School Fusion, Print it, show all work, and turn it in to your teacher.

Once the worksheet is 100% correct then you will be eligible to retake the Checkpoint 1 – Quiz!!!
