  1. Venus Explorer MissionConcept of Operations Examples Spring 2014 Innovative System Project for the Increased Recruitment of Emerging STEM Students

  2. Outline • ConOps Defined • ConOps Checklist • Explaining ConOps (examples) • Text • Pictures • Wrap-Up

  3. Concept of Operations • A description of how the system will be operated during the mission phases in order to meet stakeholder expectations • Mission Phase: period of time, during which, the circumstances of your payload remain fairly constant (i.e., not much changes for your payload during a “phase” of the mission)

  4. ConOps Checklist • Word document on Downloads page • Asks you many questions about how your payload will operate/function • Divided into main “phases” for typical payloads • Initial Conditions • Deployment • Measurements • Sending Data • “other” • Go through the questions, as best as you know right now.

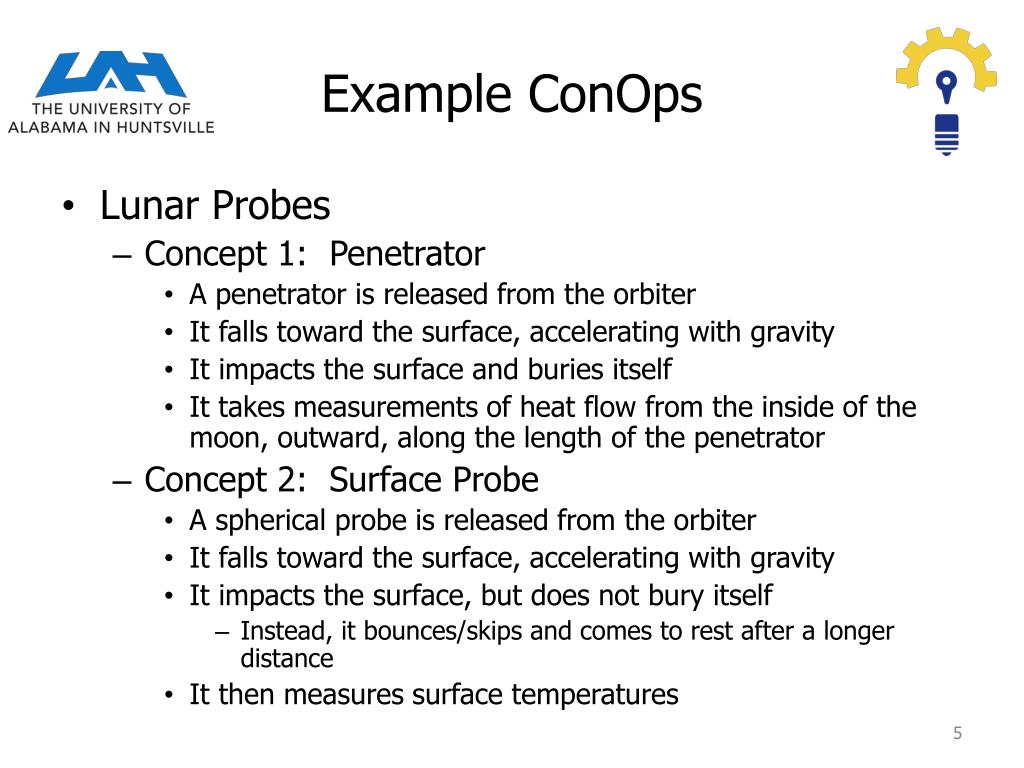

  5. Example ConOps • Lunar Probes • Concept 1: Penetrator • A penetrator is released from the orbiter • It falls toward the surface, accelerating with gravity • It impacts the surface and buries itself • It takes measurements of heat flow from the inside of the moon, outward, along the length of the penetrator • Concept 2: Surface Probe • A spherical probe is released from the orbiter • It falls toward the surface, accelerating with gravity • It impacts the surface, but does not bury itself • Instead, it bounces/skips and comes to rest after a longer distance • It then measures surface temperatures

  6. Example ConOps:Lunar Probes Penetrating the Surface Remaining on the Surface Not to Scale

  7. Example ConOps:Lunar Probe • The penetrator impacts the surface, and buries itself • Temperature measurements are taken along the length of the penetrator • Changes in temperature indicate heat flow T Dy T Dy T Dy D T Dy T Dy T Not to Scale

  8. ConOps: Wrap Up • USE THE CONOPS CHECK LIST!!! • Divide your mission into “phases” based on when things “change” for your payload • Explain what happens before, during, and at the end of each phase • PICTURES PICTURES PICTURES • Practice explaining this to someone not in the class – do they understand it? • Did we mention PICTURES???
