What s new in xslt 2 0

What's New in XSLT 2.0

Jeni Tennison

http://www.jenitennison.com


Overview

Overview

  • Grouping

  • Function Definitions

  • Result Documents

    • Multiple Result Documents

    • Output Serialisation

  • Temporary Trees

  • Sequences

  • Text Parsing

  • Typing

What's New in XSLT 2.0


Grouping

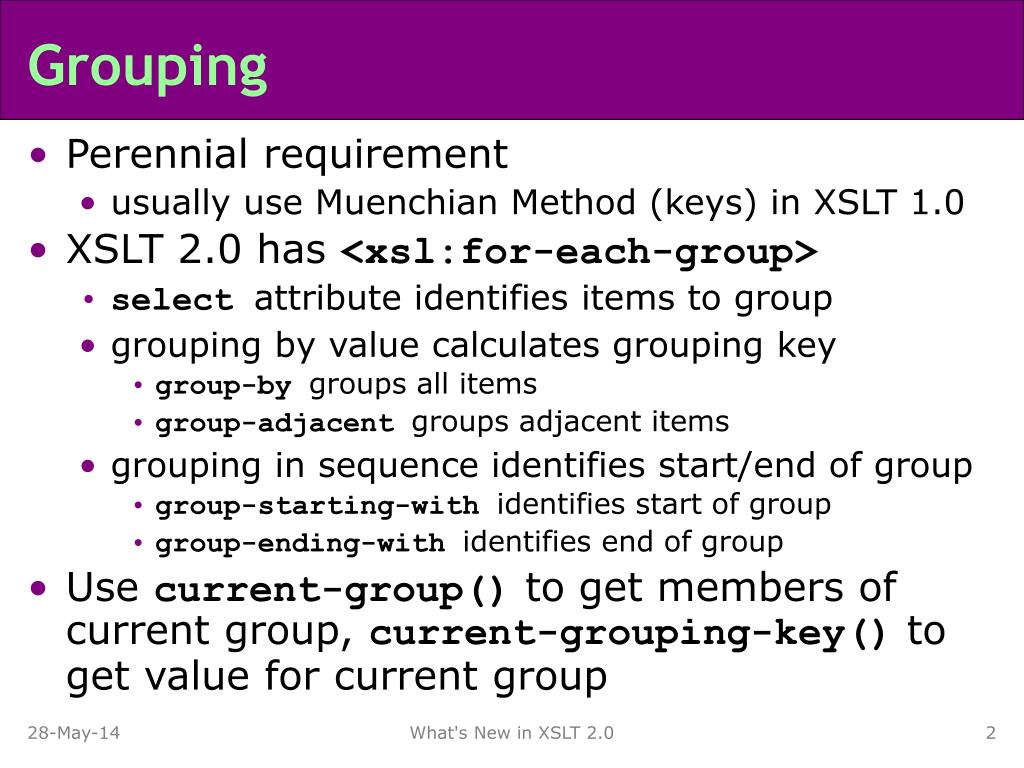

Grouping

  • Perennial requirement

    • usually use Muenchian Method (keys) in XSLT 1.0

  • XSLT 2.0 has <xsl:for-each-group>

    • select attribute identifies items to group

    • grouping by value calculates grouping key

      • group-by groups all items

      • group-adjacent groups adjacent items

    • grouping in sequence identifies start/end of group

      • group-starting-with identifies start of group

      • group-ending-with identifies end of group

  • Use current-group() to get members of current group, current-grouping-key() to get value for current group

What's New in XSLT 2.0


Grouping by value

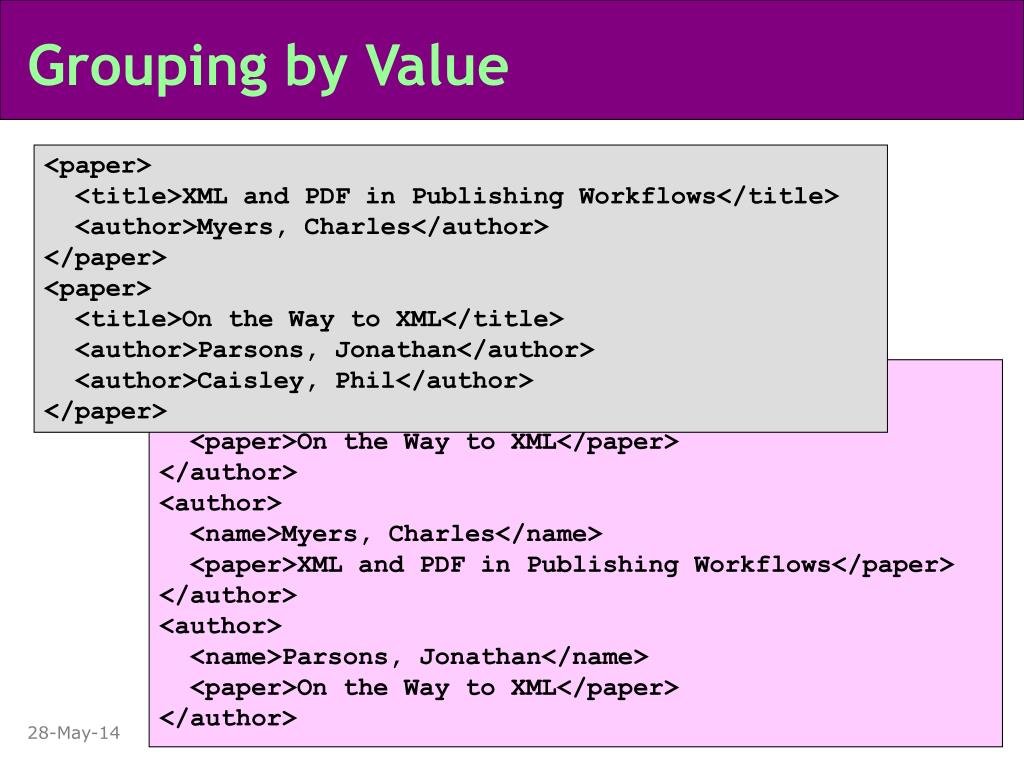

Grouping by Value

<paper>

<title>XML and PDF in Publishing Workflows</title>

<author>Myers, Charles</author>

</paper>

<paper>

<title>On the Way to XML</title>

<author>Parsons, Jonathan</author>

<author>Caisley, Phil</author>

</paper>

<author>

<name>Caisley, Phil</name>

<paper>On the Way to XML</paper>

</author>

<author>

<name>Myers, Charles</name>

<paper>XML and PDF in Publishing Workflows</paper>

</author>

<author>

<name>Parsons, Jonathan</name>

<paper>On the Way to XML</paper>

</author>

What's New in XSLT 2.0


Grouping by value1

Grouping by Value

<xsl:for-each-group select="paper"

group-by="author">

<xsl:sort select="current-grouping-key()" />

<author>

<name>

<xsl:value-of select="current-grouping-key()" />

</name>

<xsl:for-each select="current-group()">

<paper>

<xsl:value-of select="title" />

</paper>

</xsl:for-each>

</author>

</xsl:for-each-group>

What's New in XSLT 2.0


Grouping in sequence

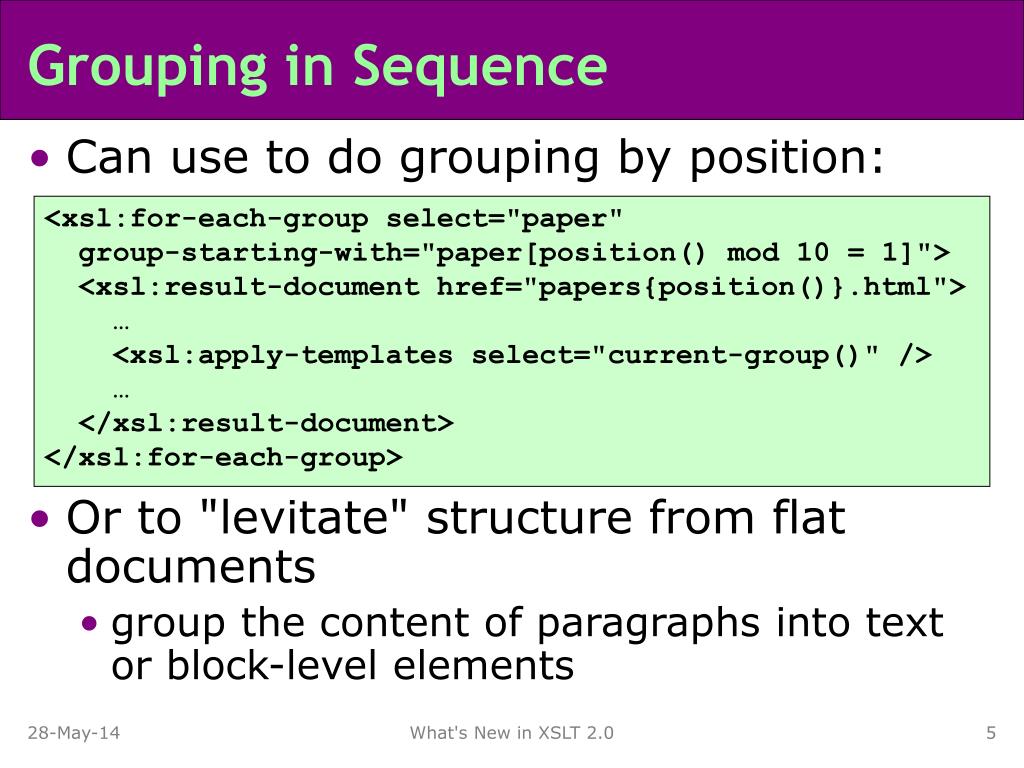

Grouping in Sequence

  • Can use to do grouping by position:

  • Or to "levitate" structure from flat documents

    • group the content of paragraphs into text or block-level elements

<xsl:for-each-group select="paper"

group-starting-with="paper[position() mod 10 = 1]">

<xsl:result-document href="papers{position()}.html">

<xsl:apply-templates select="current-group()" />

</xsl:result-document>

</xsl:for-each-group>

What's New in XSLT 2.0


Implications for xslt 2 0 use

Implications for XSLT 2.0 Use

  • No more Muenchian Grouping!

    • easier to create indexes

    • easier to create summaries/roll-ups

    • easier to create paginated documents

  • Much easier to convert from flat to hierarchical structures

    • processing XHTML to DocBook (or XHTML2.0)

What's New in XSLT 2.0


Function definitions

Function Definitions

  • Use XSLT code to create new functions

    • no facility to use scripting languages such as JavaScript

    • similar to <func:function> from EXSLT

  • Function must be in a namespace

  • All parameters are required

    • but can have multiple definitions with different numbers of arguments

      • supports optional arguments, not polymorphic functions

  • Need parameters for context item, position

    • can't default to using context node as argument

  • Body of function is result of function

    • similar to named templates

    • use <xsl:sequence> instead of <func:result>

What's New in XSLT 2.0


Function definition

Function Definition

<xsl:function name="str:align">

<xsl:param name="string" />

<xsl:param name="padding" />

<xsl:param name="alignment" />

</xsl:function>

<xsl:function name="str:align">

<xsl:param name="string" />

<xsl:param name="padding" />

<xsl:sequence

select="str:align($string, $padding, 'left')" />

</xsl:function>

What's New in XSLT 2.0


Implications for xslt 2 0 use1

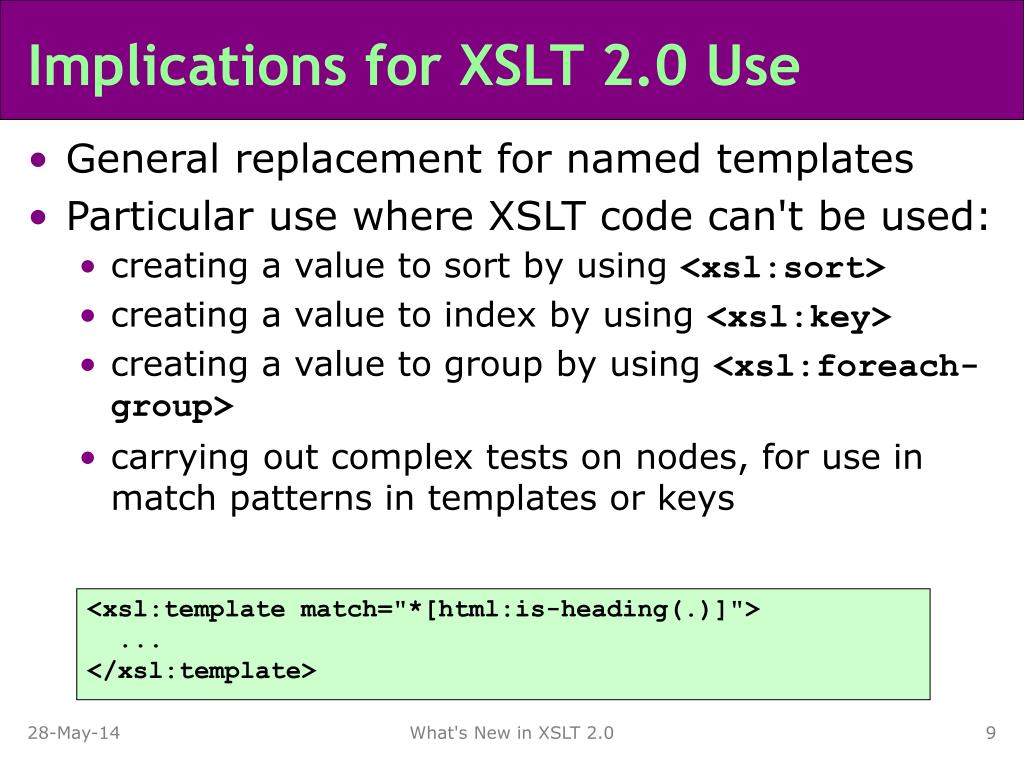

Implications for XSLT 2.0 Use

  • General replacement for named templates

  • Particular use where XSLT code can't be used:

    • creating a value to sort by using <xsl:sort>

    • creating a value to index by using <xsl:key>

    • creating a value to group by using <xsl:for­each-group>

    • carrying out complex tests on nodes, for use in match patterns in templates or keys

<xsl:template match="*[html:is-heading(.)]">

...

</xsl:template>

What's New in XSLT 2.0


Multiple result documents

Multiple Result Documents

  • Many XSLT 1.0 processors have extension elements to create multiple output documents

  • XSLT 2.0 has <xsl:result-document>:

<xsl:for-each select="section">

<xsl:result-document href="[email protected]}.html">

<xsl:apply-templates select="."

mode="html" />

</xsl:result-document>

</xsl:for-each>

What's New in XSLT 2.0


Multiple result documents1

Multiple Result Documents

  • Document is associated with href URI

    • accessible via API

    • should enable client-side support

  • Make it easier to create:

    • paginated output

      • page per chapter

      • page per 20 records

    • pages using HTML frames

    • supplementary files

      • CSS stylesheets

      • SVG graphics

What's New in XSLT 2.0


Output serialisation

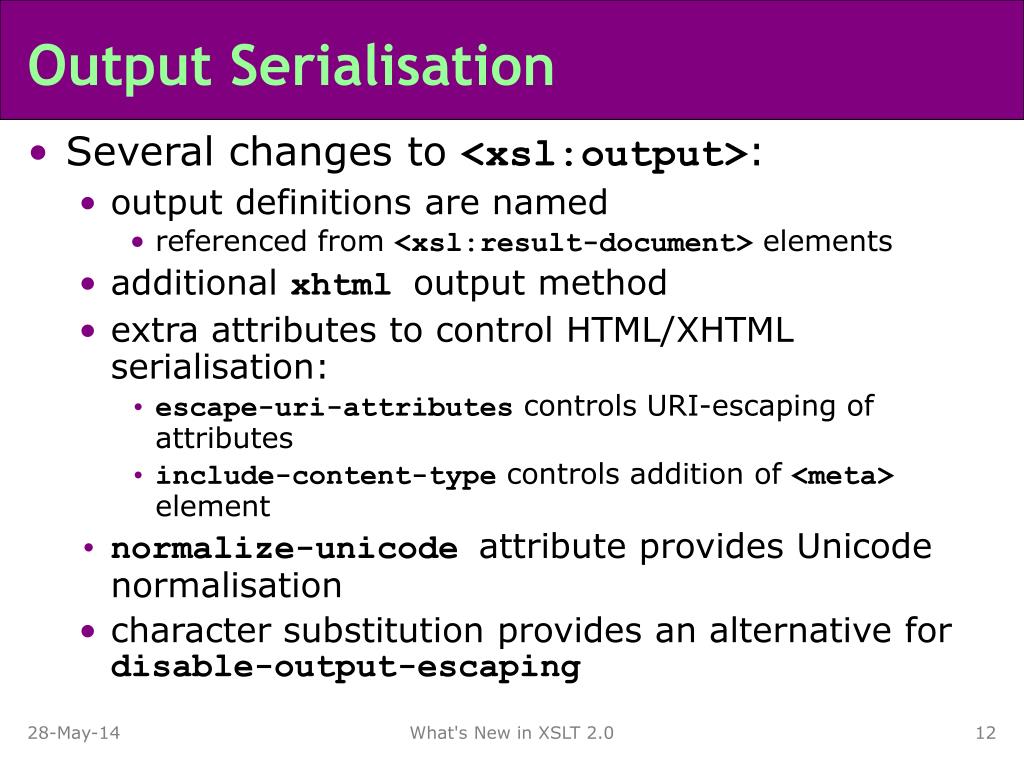

Output Serialisation

  • Several changes to <xsl:output>:

    • output definitions are named

      • referenced from <xsl:result-document> elements

    • additional xhtml output method

    • extra attributes to control HTML/XHTML serialisation:

      • escape-uri-attributes controls URI-escaping of attributes

      • include-content-type controls addition of <meta> element

    • normalize-unicode attribute provides Unicode normalisation

    • character substitution provides an alternative for disable-output-escaping

What's New in XSLT 2.0


Character substitution

Character Substitution

  • Map of characters-to-strings

  • On serialisation, each character in a text node or attribute is substituted for the relevant string

  • Simple use is to force use of entities

<xsl:character-map name="html">

<xsl:output-character character="&#160;"

string="&amp;nbsp;" />

</xsl:character-map>

<xsl:output use-character-maps="html" />

<eg>blah&#160;blah</eg>

<eg>blah&nbsp;blah</eg>

What's New in XSLT 2.0


Character substitution1

Character Substitution

  • Complex use is to create non-well-formed output

    • use characters from private use areas to represent illegal sequences of characters

<xsl:character-map name="jsp">

<!-- JSP start -->

<xsl:output-character character="&#xE001;"

string="&lt;%" />

<!-- JSP end -->

<xsl:output-character character="&#xE002;"

string="%&gt;" />

</xsl:character-map>

&#xE001;@ page language="java" &#xE002;

<%@ page language="java" %>

What's New in XSLT 2.0


Implications for xslt 2 0 use2

Implications for XSLT 2.0 Use

  • Much more control over output

    • control over automatic serialisation

      • addition of <meta> element

      • Unicode normalisation

    • control over character serialisation

      • which entities get used

      • what form of character references

  • No more d-o-e?

    • character substitution is better

      • works in attribute values

      • supported by all (serialising) processors

      • persists through variables

    • d-o-e is still easier to use

What's New in XSLT 2.0


Temporary trees and rtfs

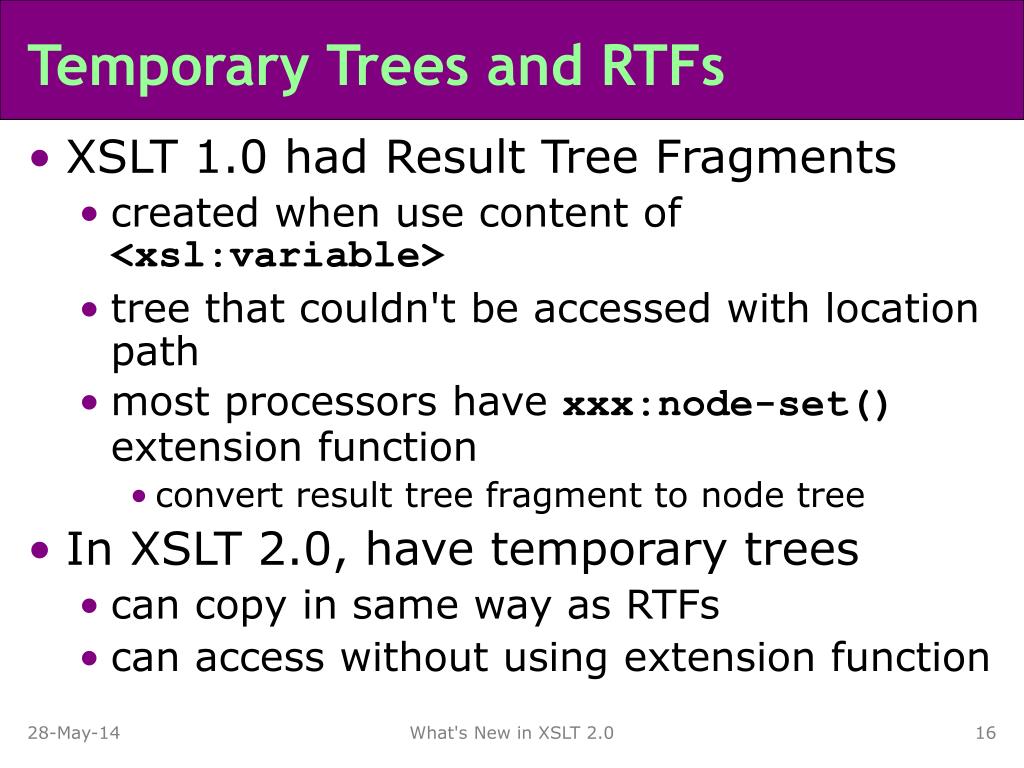

Temporary Trees and RTFs

  • XSLT 1.0 had Result Tree Fragments

    • created when use content of <xsl:variable>

    • tree that couldn't be accessed with location path

    • most processors have xxx:node-set() extension function

      • convert result tree fragment to node tree

  • In XSLT 2.0, have temporary trees

    • can copy in same way as RTFs

    • can access without using extension function

What's New in XSLT 2.0


Example temporary tree

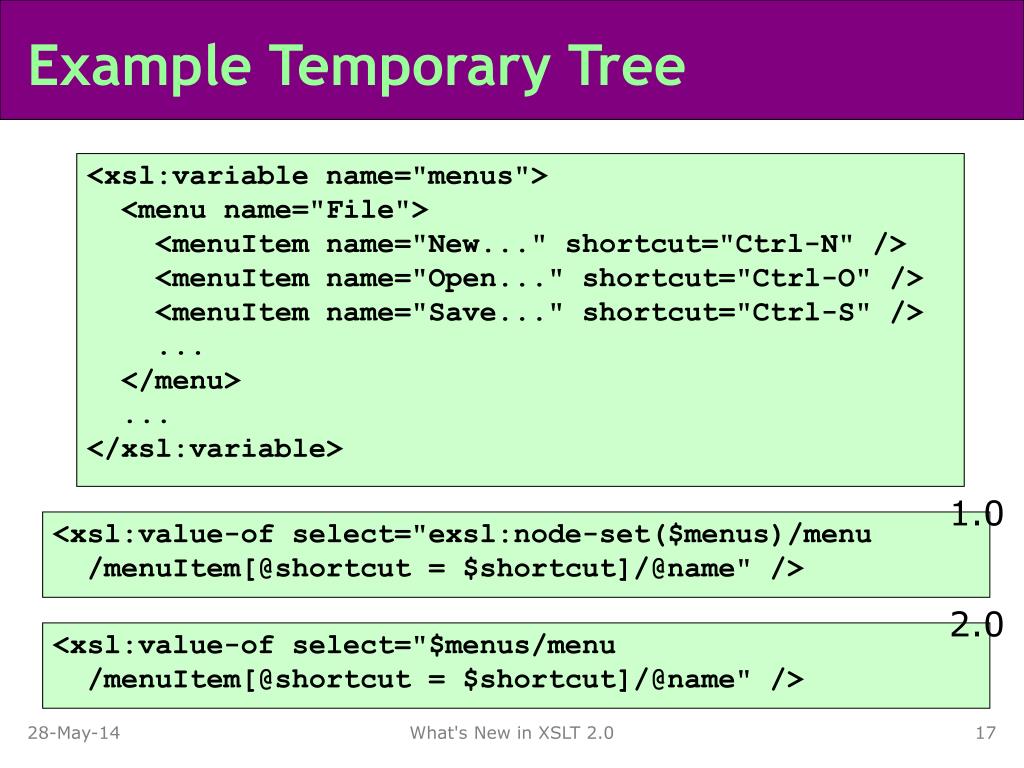

Example Temporary Tree

<xsl:variable name="menus">

<menu name="File">

<menuItem name="New..." shortcut="Ctrl-N" />

<menuItem name="Open..." shortcut="Ctrl-O" />

<menuItem name="Save..." shortcut="Ctrl-S" />

...

</menu>

...

</xsl:variable>

1.0

<xsl:value-of select="exsl:node-set($menus)/menu

/menuItem[@shortcut = $shortcut][email protected]" />

2.0

<xsl:value-of select="$menus/menu

/menuItem[@shortcut = $shortcut][email protected]" />

What's New in XSLT 2.0


Implications for xslt 2 0 use3

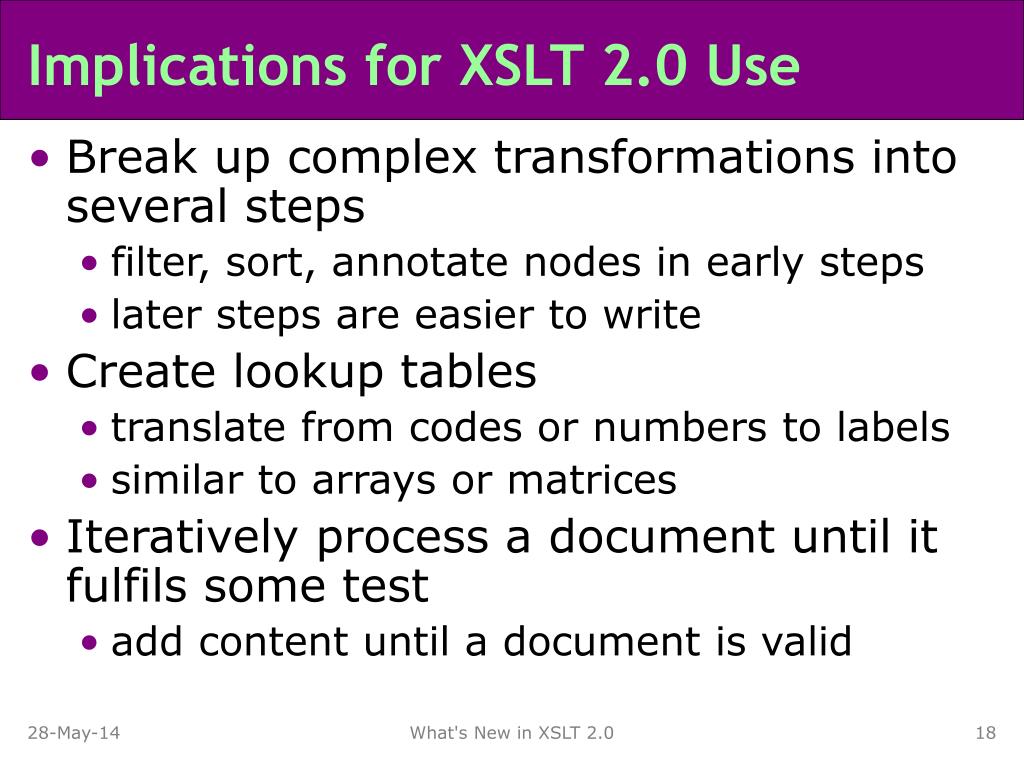

Implications for XSLT 2.0 Use

  • Break up complex transformations into several steps

    • filter, sort, annotate nodes in early steps

    • later steps are easier to write

  • Create lookup tables

    • translate from codes or numbers to labels

    • similar to arrays or matrices

  • Iteratively process a document until it fulfils some test

    • add content until a document is valid

What's New in XSLT 2.0


Sequences in xpath 2 0

Sequences in XPath 2.0

  • New fundamental type in XPath 2.0

    • everything is a sequence

    • similar to node sets, but…

      • ordered

      • allow duplicates

      • can contain atomic values as well as nodes

  • Sequences are flat

    • for structured data, use XML

  • Singleton sequences are the same as the single value they contain

What's New in XSLT 2.0


Using sequences in xslt 2 0

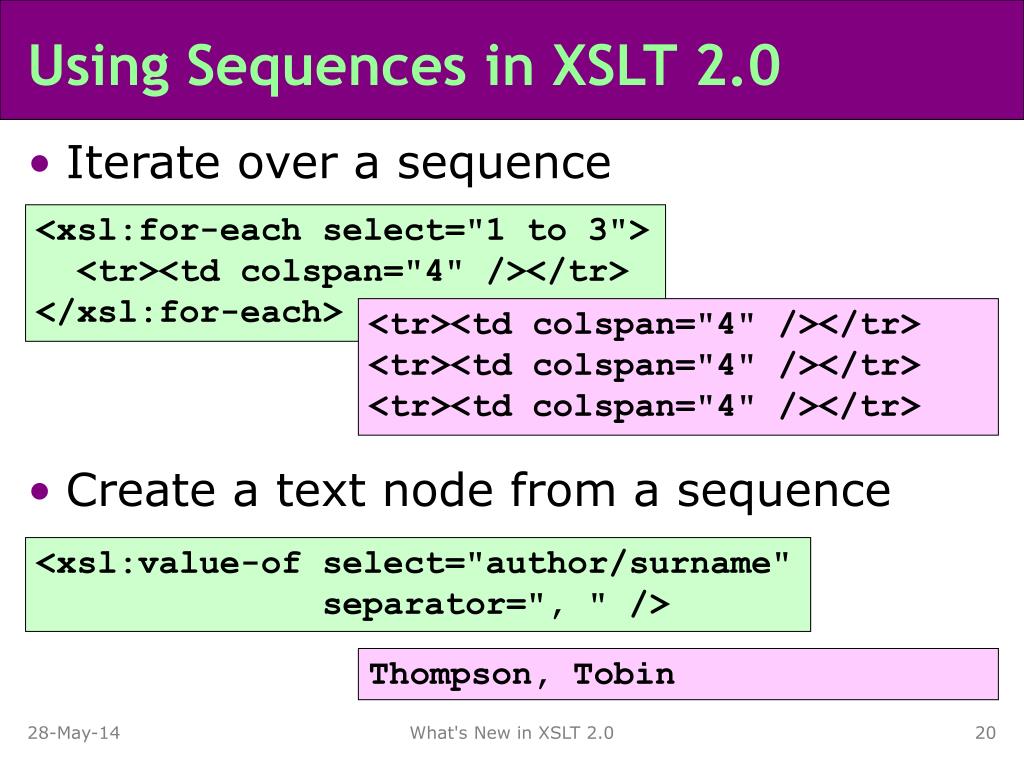

Using Sequences in XSLT 2.0

  • Iterate over a sequence

  • Create a text node from a sequence

<xsl:for-each select="1 to 3">

<tr><td colspan="4" /></tr>

</xsl:for-each>

<tr><td colspan="4" /></tr>

<tr><td colspan="4" /></tr>

<tr><td colspan="4" /></tr>

<xsl:value-of select="author/surname"

separator=", " />

Thompson, Tobin

What's New in XSLT 2.0


Creating sequences in xslt 2 0

Creating Sequences in XSLT 2.0

  • Every sequence of instructions creates a sequence of items

  • When a sequence is added to a node:

    • atomic values are converted to text nodes

      • spaces added between atomic values

    • nodes are copied to create children

sequence of any items

sequence of new nodes

children of node

What's New in XSLT 2.0


Temporary trees

Temporary Trees

  • Variables can be set using select attribute or using content

  • When setting value using content:

    • if as attribute not present, create temporary tree

    • if as attribute present, create sequence

<xsl:variable name="tree">

42

</xsl:variable>

<xsl:variable name="sequence"

as=“xs:integer">

42

</xsl:variable>

What's New in XSLT 2.0


Creating sequences in xslt 2 01

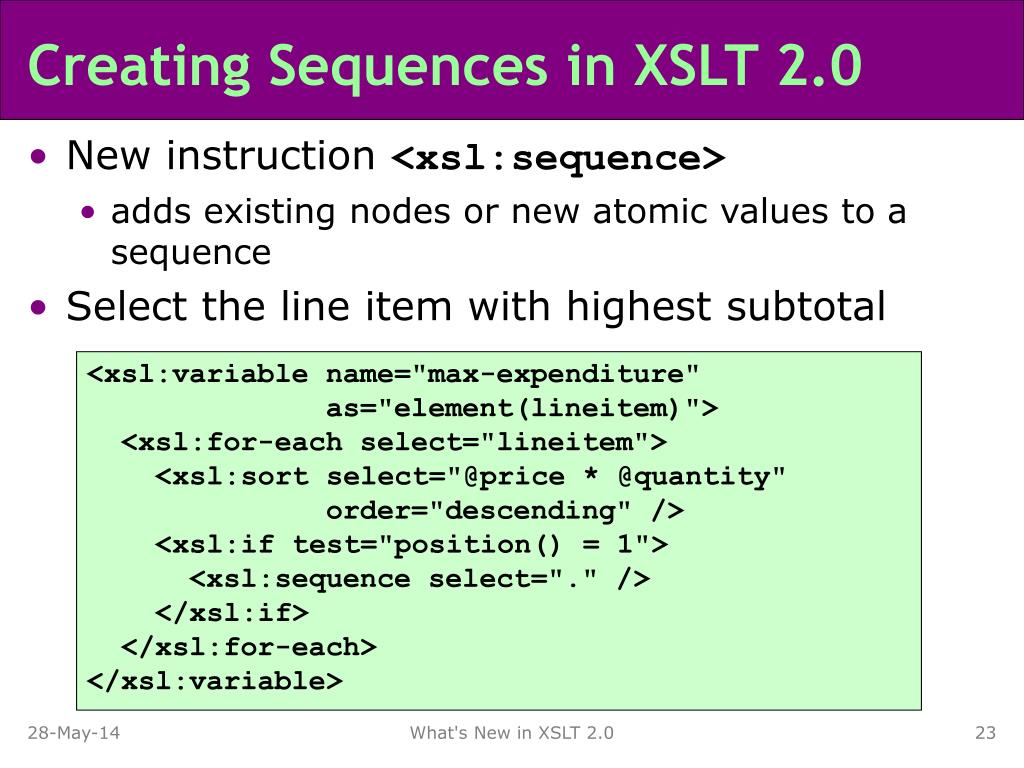

Creating Sequences in XSLT 2.0

  • New instruction <xsl:sequence>

    • adds existing nodes or new atomic values to a sequence

  • Select the line item with highest subtotal

<xsl:variable name="max-expenditure"

as="element(lineitem)">

<xsl:for-each select="lineitem">

<xsl:sort select="@price * @quantity"

order="descending" />

<xsl:if test="position() = 1">

<xsl:sequence select="." />

</xsl:if>

</xsl:for-each>

</xsl:variable>

What's New in XSLT 2.0


Implications for xslt 2 0 use4

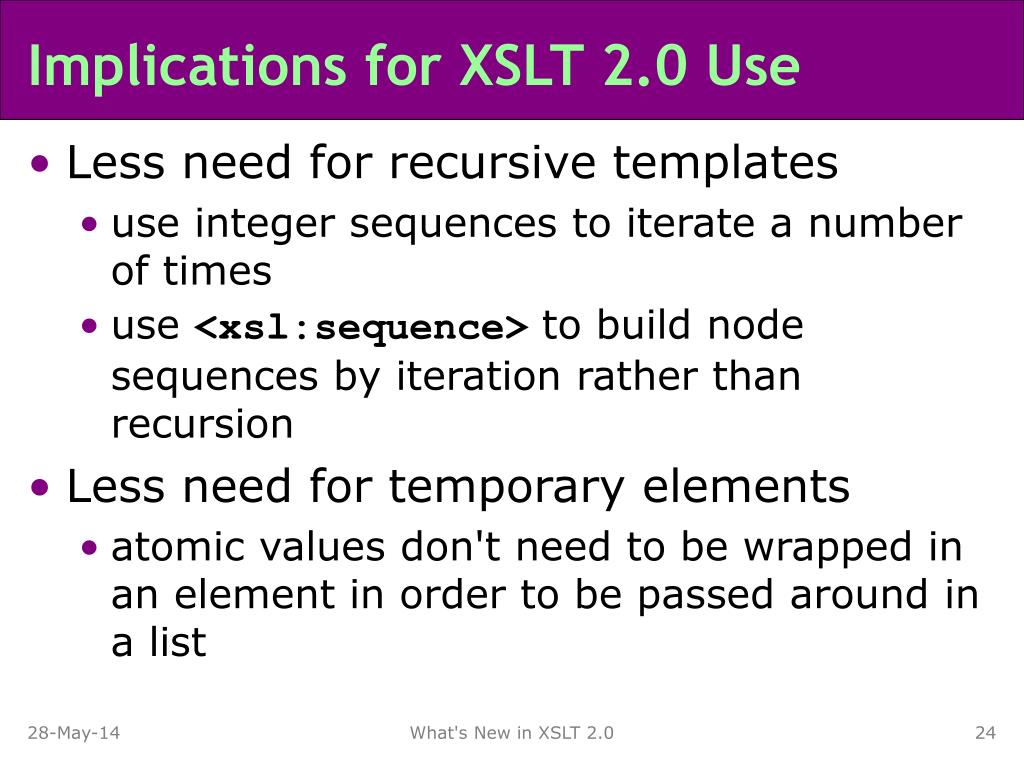

Implications for XSLT 2.0 Use

  • Less need for recursive templates

    • use integer sequences to iterate a number of times

    • use <xsl:sequence> to build node sequences by iteration rather than recursion

  • Less need for temporary elements

    • atomic values don't need to be wrapped in an element in order to be passed around in a list

What's New in XSLT 2.0


Text parsing

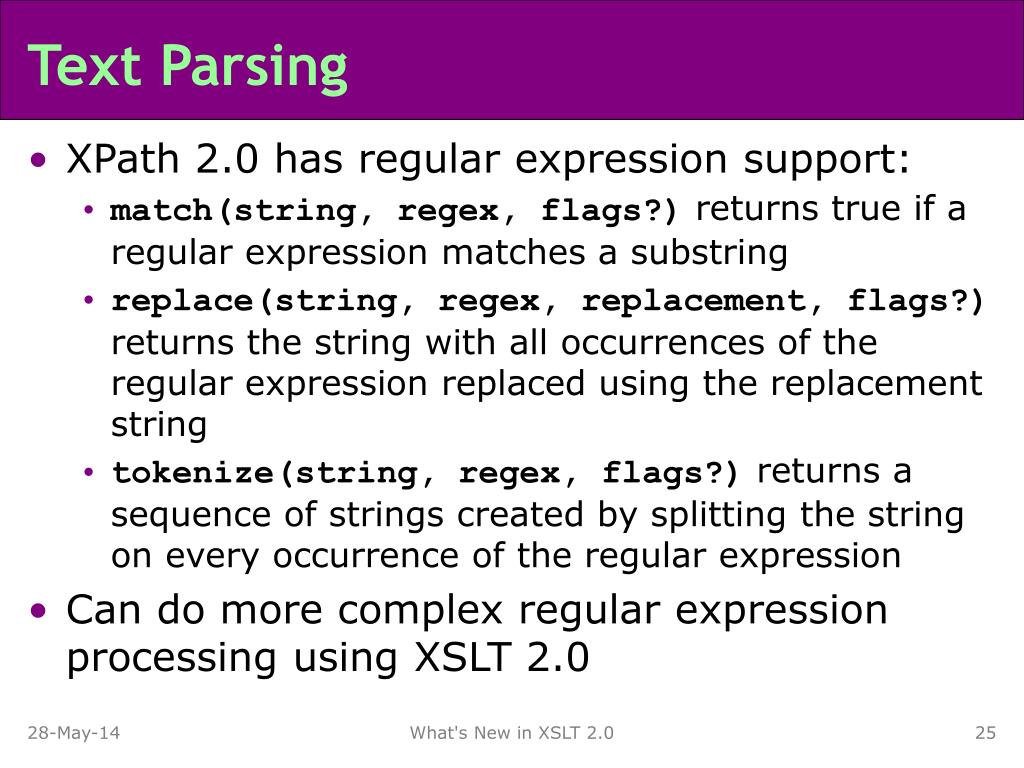

Text Parsing

  • XPath 2.0 has regular expression support:

    • match(string, regex, flags?) returns true if a regular expression matches a substring

    • replace(string, regex, replacement, flags?) returns the string with all occurrences of the regular expression replaced using the replacement string

    • tokenize(string, regex, flags?) returns a sequence of strings created by splitting the string on every occurrence of the regular expression

  • Can do more complex regular expression processing using XSLT 2.0

What's New in XSLT 2.0


Analysing strings

Analysing Strings

  • XSLT 2.0 has <xsl:analyze-string> instruction

    • select attribute selects string

    • regex attribute holds regular expression

    • string split into a sequence of matching and non-matching substrings

    • processed in turn by:

      • <xsl:matching-substring> for matching

      • <xsl:non-matching-substring> for non-matching

What's New in XSLT 2.0


Example string analysis

Example String Analysis

<poem>

Mary had a little lamb,

Its fleece was white as snow;

And everywhere that Mary went

The lamb was sure to go.

</poem>

<xsl:template match="poem">

<poem>

<xsl:analyze-string select="." regex="\S.*" flags="m">

<xsl:matching-substring>

<line><xsl:value-of select="." /></line>

</xsl:matching-substring>

</xsl:analyze-string>

</poem>

</xsl:template>

<poem>

<line>Mary had a little lamb,</line>

<line>Its fleece was white as snow;</line>

<line>And everywhere that Mary went</line>

<line>The lamb was sure to go.</line>

</poem>

What's New in XSLT 2.0


More text parsing

More Text Parsing

  • Within <xsl:analyze-string>, use regex-group() function to get value of matched subexpression

<xsl:template match="@date">

<xsl:attribute name="date">

<xsl:variable name="UK-date-regex"

select="(\d{2})\\(\d{2})\\(\d{2})" />

<xsl:analyze-string select="." regex="{$UK-date-regex}">

<xsl:matching-substring>

<xsl:sequence select="concat('20', regex-group(3),

'-', regex-group(2),

'-', regex-group(1))" />

</xsl:matching-substring>

</xsl:analyze-string>

</xsl:attribute>

</xsl:template>

What's New in XSLT 2.0


Implications for xslt 2 0 use5

Implications for XSLT 2.0 Use

  • XSLT 2.0 also allows access to text files with unparsed-text() function

    • works in a similar way to document()

  • Potential to process any text format

    • comma-delimited and fixed-format files

    • CSS files

    • HTML? Java code?

      • these are hard because of matching tags/braces

  • XSLT could be used for up-conversion to XML

What's New in XSLT 2.0


Strong typing in xslt 2 0

Strong Typing in XSLT 2.0

  • XPath 2.0 is strongly typed

    • the type of a value determines how it is treated by some operators (e.g. +, =)

    • if the wrong type of value is passed to a function, you will get an error

  • Similarly, in XSLT 2.0:

    • the type of a sort key determines how values are sorted

    • if the wrong type of value is passed as a parameter to a template, you will get an error

What's New in XSLT 2.0

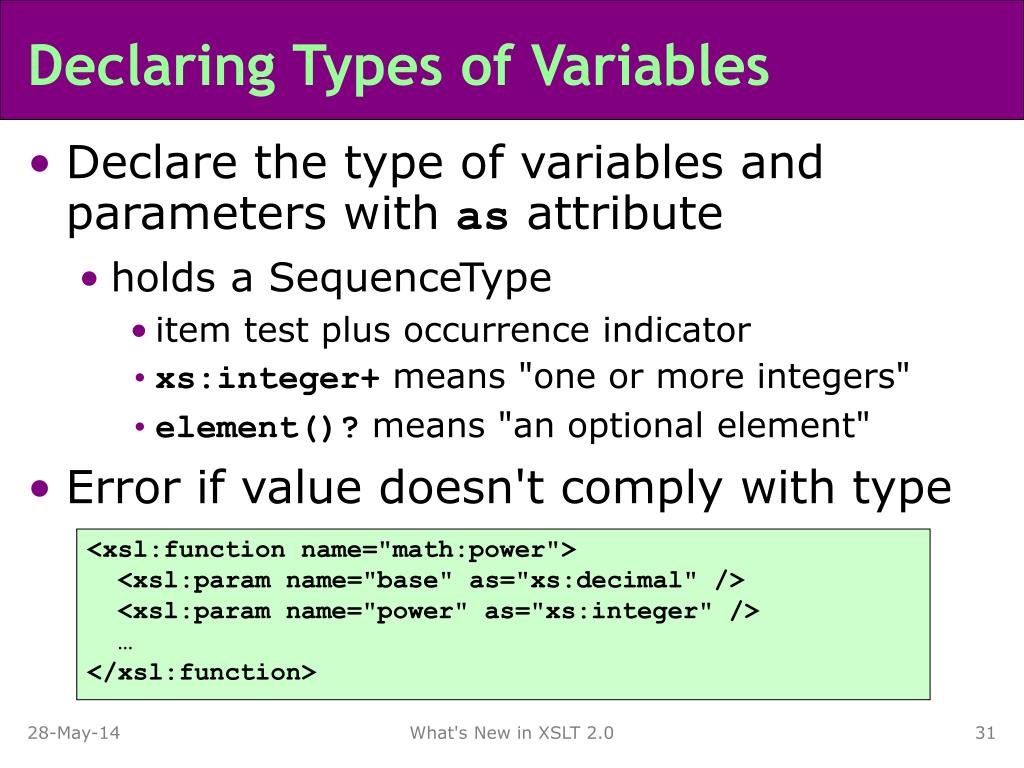

Declaring types of variables

Declaring Types of Variables

  • Declare the type of variables and parameters with as attribute

    • holds a SequenceType

      • item test plus occurrence indicator

      • xs:integer+ means "one or more integers"

      • element()? means "an optional element"

  • Error if value doesn't comply with type

<xsl:function name="math:power">

<xsl:param name="base" as="xs:decimal" />

<xsl:param name="power" as="xs:integer" />

</xsl:function>

What's New in XSLT 2.0

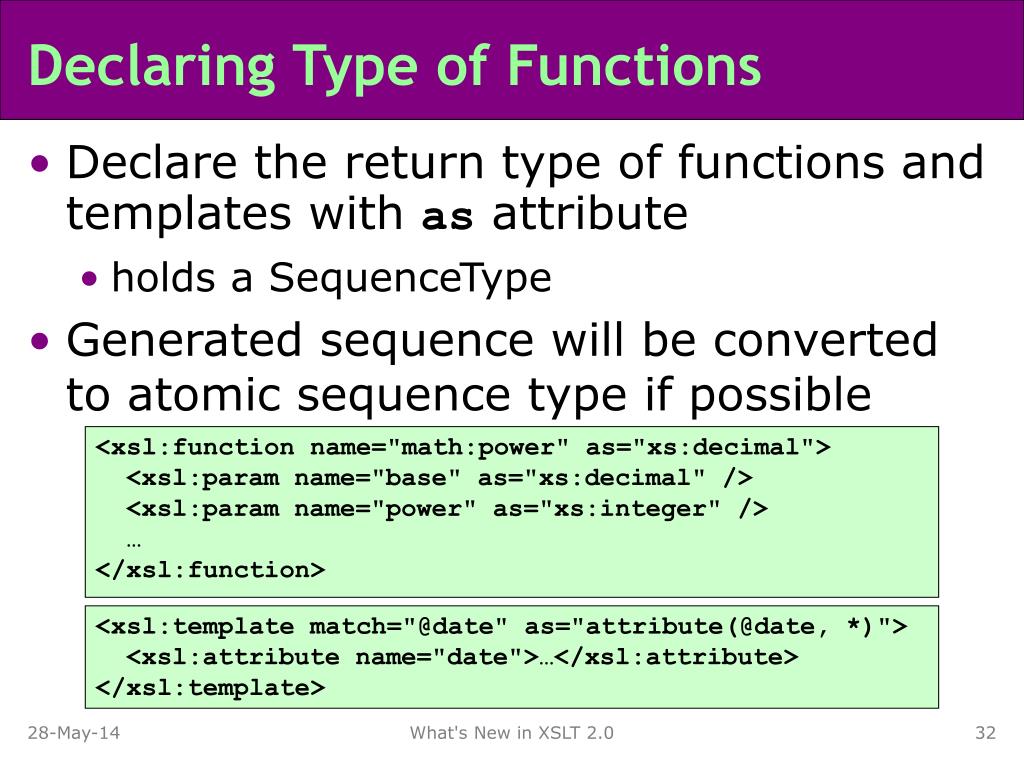

Declaring type of functions

Declaring Type of Functions

  • Declare the return type of functions and templates with as attribute

    • holds a SequenceType

  • Generated sequence will be converted to atomic sequence type if possible

<xsl:function name="math:power" as="xs:decimal">

<xsl:param name="base" as="xs:decimal" />

<xsl:param name="power" as="xs:integer" />

</xsl:function>

<xsl:template match="@date" as="attribute(@date, *)">

<xsl:attribute name="date">…</xsl:attribute>

</xsl:template>

What's New in XSLT 2.0


Node typing in xslt 2 0

Node Typing in XSLT 2.0

  • In XPath 2.0, every element and attribute has a type

    • can select nodes based on their type

    • //attribute(@*, xs:date) selects all the attributes in the document that hold dates

  • Similarly, in XSLT 2.0:

    • can match nodes based on their type

      • attribute(@*, xs:date) matches all attributes that hold dates

    • can create elements and attributes of particular types

What's New in XSLT 2.0

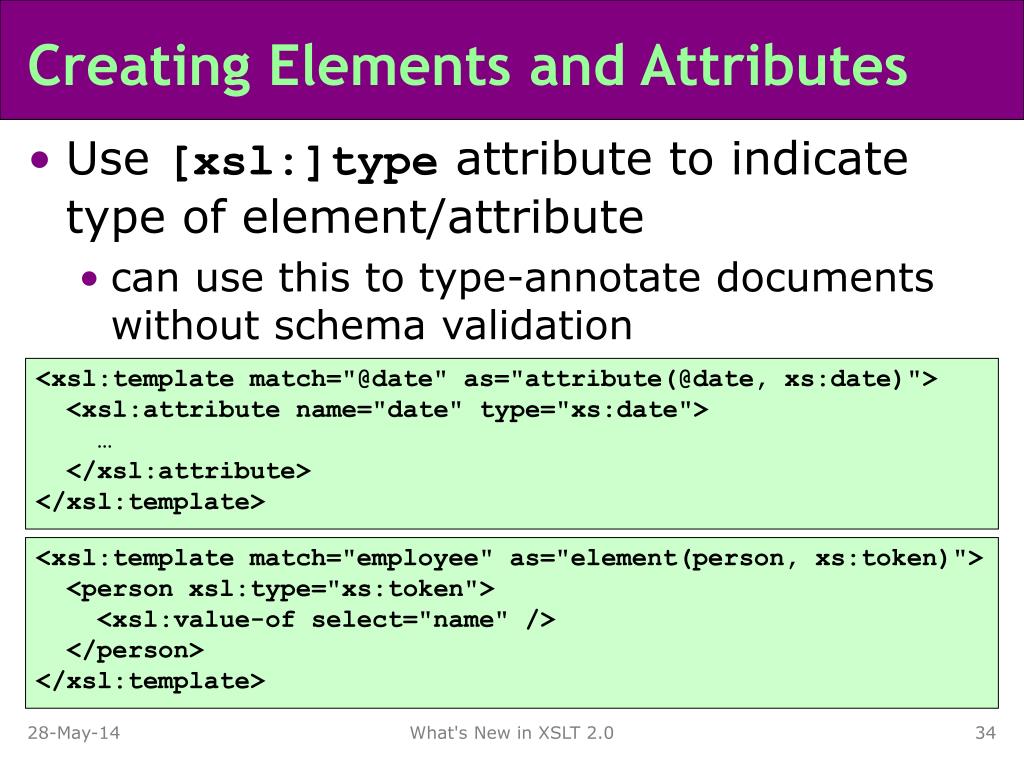

Creating elements and attributes

Creating Elements and Attributes

  • Use [xsl:]type attribute to indicate type of element/attribute

    • can use this to type-annotate documents without schema validation

<xsl:template match="@date" as="attribute(@date, xs:date)">

<xsl:attribute name="date" type="xs:date">

</xsl:attribute>

</xsl:template>

<xsl:template match="employee" as="element(person, xs:token)">

<person xsl:type="xs:token">

<xsl:value-of select="name" />

</person>

</xsl:template>

What's New in XSLT 2.0


Importing schemas

Importing Schemas

  • Need to import schemas to use:

    • user-defined types

    • substitution groups

  • Import with <xsl:import-schema>

    • namespace identifies target namespace

    • schema-location locates schema

  • Enables validation of result tree

<xsl:import-schema namespace="http://www.w3.org/1999/xhtml"

schema-location="xhtml.xsd" />

<xsl:template match="element(_inline)">

</xsl:template>

What's New in XSLT 2.0

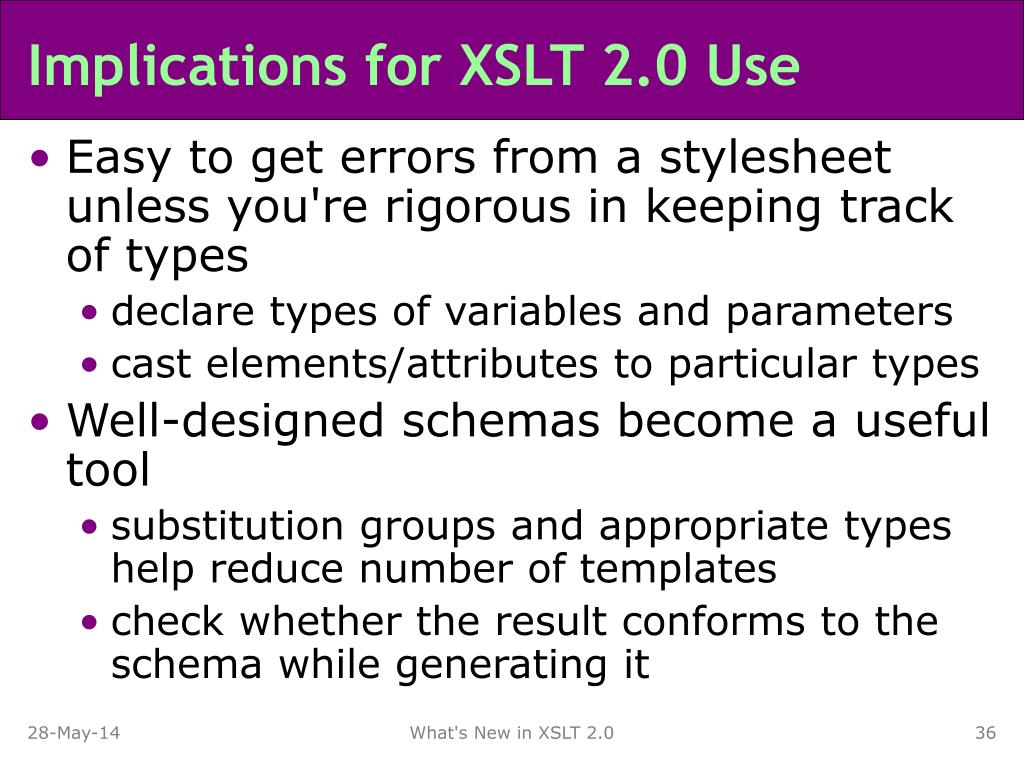

Implications for xslt 2 0 use6

Implications for XSLT 2.0 Use

  • Easy to get errors from a stylesheet unless you're rigorous in keeping track of types

    • declare types of variables and parameters

    • cast elements/attributes to particular types

  • Well-designed schemas become a useful tool

    • substitution groups and appropriate types help reduce number of templates

    • check whether the result conforms to the schema while generating it

What's New in XSLT 2.0

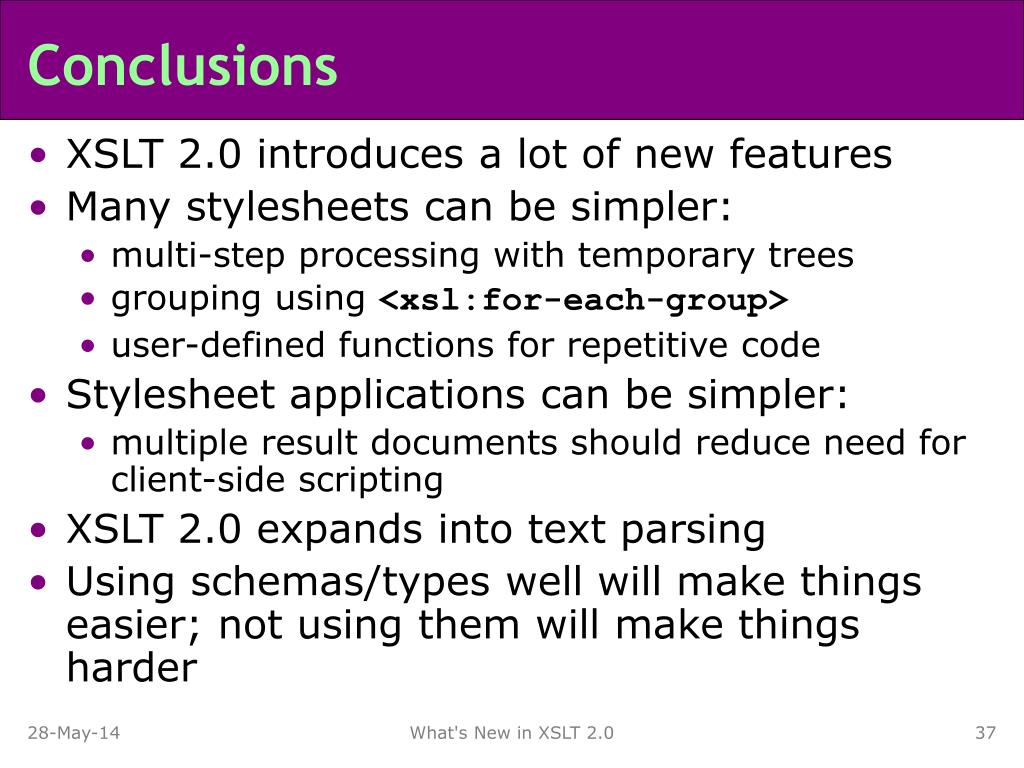

Conclusions

Conclusions

  • XSLT 2.0 introduces a lot of new features

  • Many stylesheets can be simpler:

    • multi-step processing with temporary trees

    • grouping using <xsl:for-each-group>

    • user-defined functions for repetitive code

  • Stylesheet applications can be simpler:

    • multiple result documents should reduce need for client-side scripting

  • XSLT 2.0 expands into text parsing

  • Using schemas/types well will make things easier; not using them will make things harder

What's New in XSLT 2.0


For details

For Details…

  • XPath 2.0 Working Draft:

    • http://www.w3.org/TR/xpath20

  • XSLT 2.0 Working Draft:

    • http://www.w3.org/TR/xslt20

  • Saxon implementation:

    • http://saxon.sourceforge.net

  • Comments please!

    • [email protected]

What's New in XSLT 2.0


  • Login
