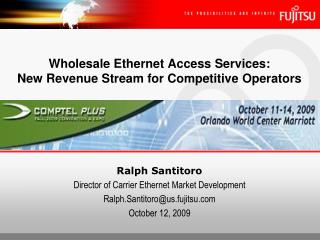

Wholesale Ethernet Access Services: New Revenue Stream for Competitive Operators

Ralph Santitoro

Director of Carrier Ethernet Market Development

[email protected]

October 12, 2009


Speakers l.jpg

Speakers

AamirHussain

Chief Technology Officer

[email protected]

Ralph Santitoro

Director, Carrier Ethernet MarketDev

[email protected]

Scott Sumner

Vice President of Marketing

[email protected]

Randolph C. Nicklas

Chief Technology Officer

[email protected]

© 2009 Fujitsu Network Communications, Inc. All rights reserved.


Slide3 l.jpg

© 2009 Fujitsu Network Communications, Inc. All rights reserved.


Wholesale ethernet access challenges l.jpg

Wholesale Ethernet Access Challenges

Ethernet RUNI

Ethernet ENNI

Service Provider

Partner

Customer Premises

Access Networks

Ethernet rings

Retail Service Provider

Ethernet

Retail Service Provider

WDM

DS-1s

PDH Access Network

Retail Service Provider

SONET

DS-3s

Retail Service Provider

Copper Access Network

Ethernet

Retail Service Provider

SONET

Retail Service Provider

How does one deliver Ethernet with a complex mix of access networks?

© 2009 Fujitsu Network Communications, Inc. All rights reserved.

4


Wholesale access service ethernet uni runi requirements l.jpg

Wholesale Access Service Ethernet UNI / RUNI Requirements

Ethernet RUNI

Customer Premises

  • Deliver UNI on behalf of Partner Service Provider

    • MEF Remote UNI (RUNI)

  • VLAN ID and CoS ID Preservation

  • Protected UNI

  • Bandwidth Policing / Shaping

    • Keep the traffic conformant to the SLA

  • Ethernet Fault Management for RUNI

    • Loopbacks, Link traces

    • Must support for you and your service provider partner

  • Ethernet Service Performance Monitoring

    • Measure Delay, Delay Variation, Loss

    • Required for SLA conformance

  • Connection-oriented Ethernet

    • Simpler to deploy than CLE

    • Closely aligns with existing transport operations

© 2009 Fujitsu Network Communications, Inc. All rights reserved.

5


Wholesale access service ethernet enni requirements l.jpg

Wholesale Access Service Ethernet ENNI Requirements

Ethernet ENNI

Service Provider

Partner

  • Flexible VLAN ID and CoS ID Marking/Mapping

    • Don’t know if partner is delivering Layer 2 or IP service

    • You don’t know your partner’s equipment limitations

    • Ethernet 802.1p  IP DSCP/TOS

    • C-Tag and S-Tag push/pop/swap

  • VLAN ID and CoS ID Preservation

  • Protected N x GbE or N x 10GbE ENNI

  • ENNI Bandwidth Policing / Shaping

    • Keep the traffic conformant to the SLA

  • Ethernet Fault Management

    • Loopbacks, Link traces

    • Must support for you and your service provider partner

  • Ethernet Service Performance Monitoring

    • Measure Delay, Delay Variation, Loss

    • Required for SLA conformance

  • Connection-oriented Ethernet

Retail Service Provider

Retail Service Provider

Retail Service Provider

Retail Service Provider

Retail Service Provider

Retail Service Provider

© 2009 Fujitsu Network Communications, Inc. All rights reserved.

6


Introducing the eox gateway l.jpg

Introducing the EoX Gateway

EoX Aggregation

Service Provider

Partner

Access Networks

  • Adds/removes Layer 1 network encapsulation technologies

    • GFP for bonded DS-1s

    • GFP for Ethernet over SONET

    • X.86 or GFP for bonded DS-3s

  • Provides EoX Aggregation

    • With Connection-oriented Ethernet

    • Over protected Ethernet ENNI

  • Deliver MEF-compliant wholesale Ethernet access services

Ethernet ENNI

FLASHWAVE 9500

EoX Gateway

Ethernet rings

Retail Service Provider

Ethernet

Retail Service Provider

WDM

DS-1s

PDH Access Network

Retail Service Provider

SONET

DS-3s

Retail Service Provider

Copper Access Network

Ethernet

Retail Service Provider

SONET

EoX Gateway accelerates service velocity

© 2009 Fujitsu Network Communications, Inc. All rights reserved.

7


Putting it all together l.jpg

Putting it all together

Customer Premises

EoX Access

EoX Aggregation

Partner Service Provider

Access Network

UNI / RUNI

ENNI

EoF

FLASHWAVE 9500

EoX Gateway

µPONP

Retail Service Provider

Protected GbE/10GbE

Unprotected GbE/10GbE

Ethernet NID

Retail Service Provider

Eoλ

µPONP

GbE/10GbE

Retail Service Provider

EoPDH

EoPDH

NID

NxDS-1

Retail Service Provider

MSPP

  • PONP

PDH Access Network

OC-n

EoPDH

NID

NxDS-3

EoCu

Retail Service Provider

Copper Access Network

xDSL CPE

IP DSLAM

GbE

Retail Service Provider

EoS

µMSPP

  • µPONP

SONET

EoX Gateway Simplifies Wholesale Services over Any Access Network
