  1. In Partnership With JAtech Precision

  2. Agenda PART ONE: The Company PART TWO: The products Materials Couplers Plugs U-joints Manifolds Hoses • SAE Devices • Quality control • Engineering • Manufacturing • Surface finishing • Tool shop

  3. THE COMPANY PART ONE

  4. SAE Global PRINTED CIRCUIT BOARD FABRICATION PRINTED CIRCUIT BOARD ASSEMBLY CUSTOM ENCLOSURES CUSTOM ENGINEERED COMPONENTS

  5. About SAE Devices • SAE Devices is an innovative original design manufacturer (ODM) of: • Hydraulic components, tools, and equipment; • Pneumatic components, tools, and equipment • Products manufactured by business partner JAtech Precision (H.K.) Ltd. • ISO 9001 certified • 500,000 sq. ft facility • 4,000 employees

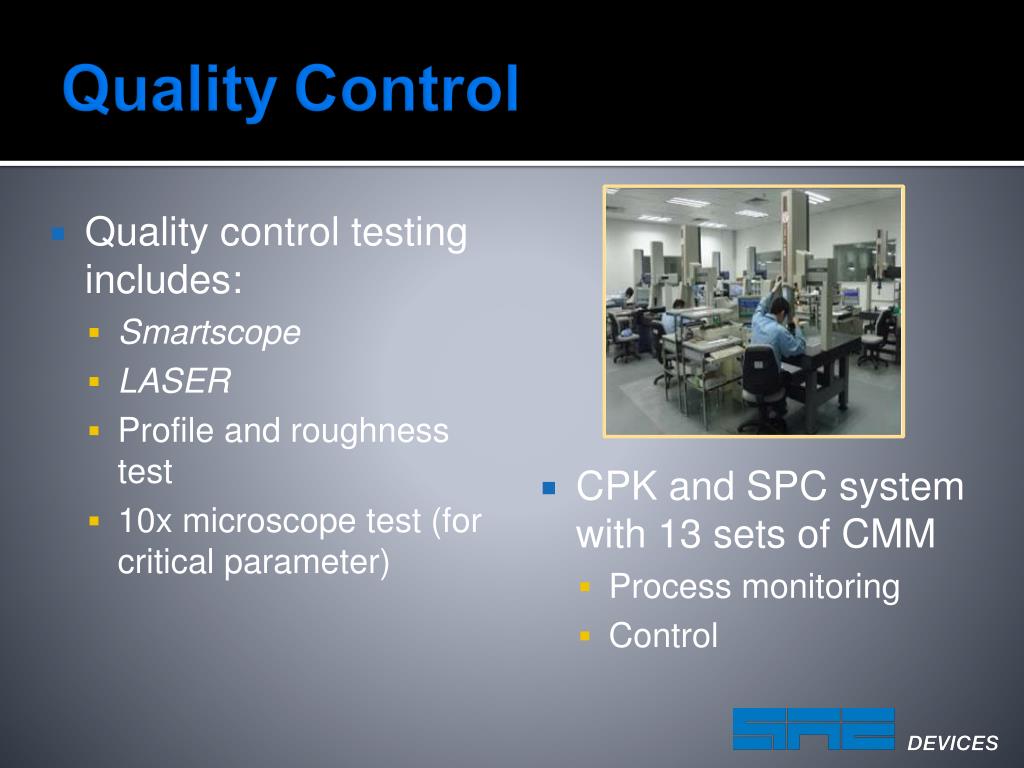

  6. QualityControl • Quality control testing includes: • Smartscope • LASER • Profile and roughness test • 10x microscope test (for critical parameter) • CPK and SPC system with 13 sets of CMM • Process monitoring • Control

  7. Engineering • SAE Devices has over 120 engineers who use the following CAD/CAM systems:

  8. Manufacturing • In-house fabrication of machining and inspection tooling and fixtures • 18 megaohm ultra pure D.I. water plant • 80 gal./min. flow rate • 365 CNC machines: • DMG • Mori Seiki • Seibu • Eguro • Chiron • Citizen • Brother • Cincinnati

  9. Surface Finishing SAE Devices specializes in surface finishing for aluminum parts

  10. Tool Shop SAE Devices provides in-house design and fabrication of tooling and fixtures, which allows for fast turn-around of prototypes • High-precision machines support internal tooling requirement. Machines include: • Agie EDM • Seibu Wire Cut • Hartford High Speed Milling • Ewag Universal Tool Grinding

  11. THE PRODUCTS PART TWO

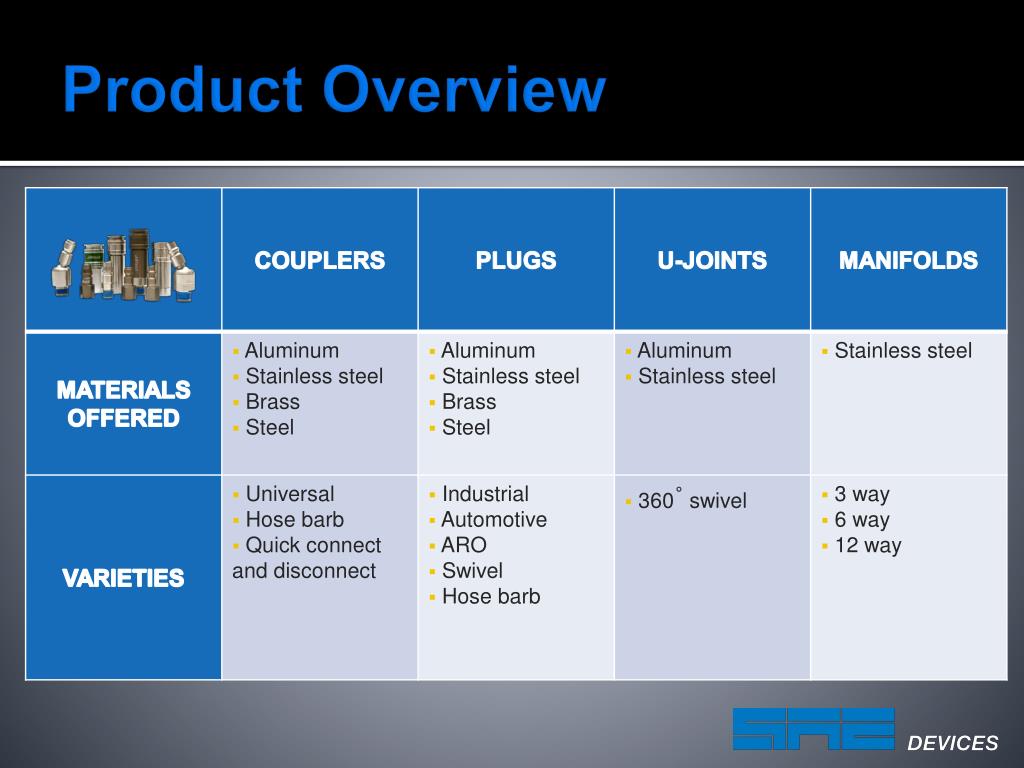

  12. Product Overview

  13. Universal Couplers Universal couplers are designed to fit automotive, industrial, and ARO type fittings

  14. Universal Couplers With JAtech’s x-valve technology Without JAtech’s x-valve technology Without JAtech’s X-valve, an air hammering effect occurs, constricting airflow • JAtech’s X-valve technology allows air to flow without restriction to the air chamber; increasing air density

  15. High Flow Couplers

  16. Automotive Plugs

  17. Industrial Plugs

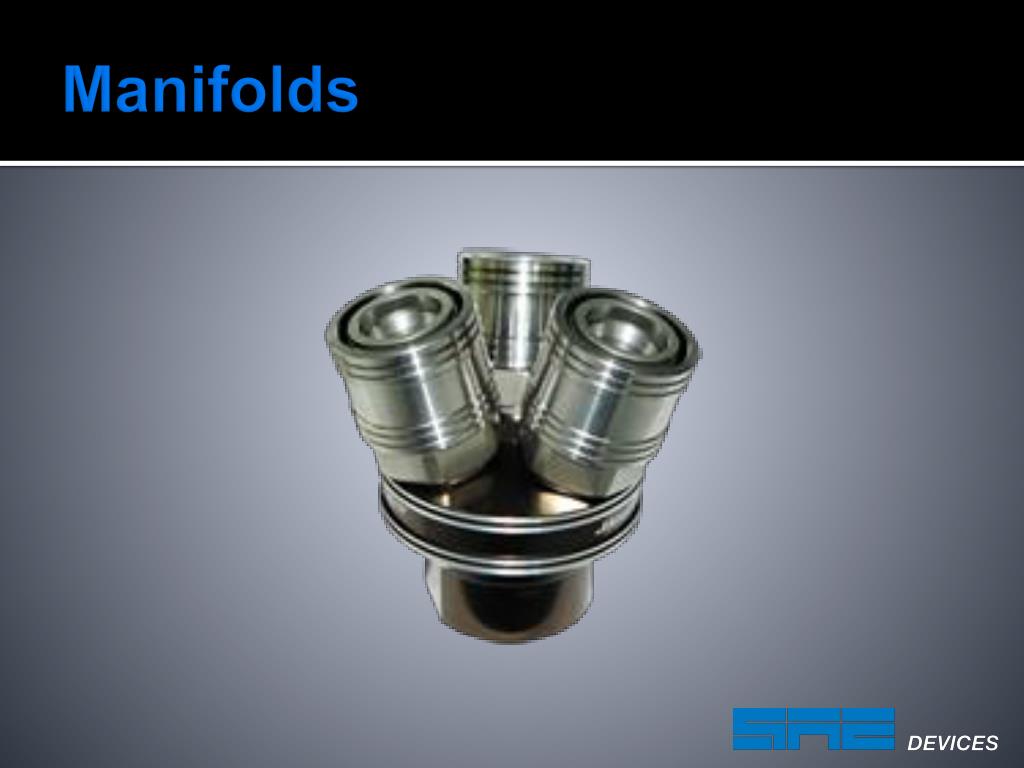

  18. Manifolds

  19. U-Joints

  20. Thank you!
