Pump Affinity Laws

Pump Affinity Laws. Pump Affinity Laws. P. 100 of text – section 4: vary only speed of pump P. 100 of text – section 5: vary only diameter P. 106 of text – vary BOTH speed and diameter of impeller. Power out equations. p. 106. p. 89.

jania
Download Presentation

Pump Affinity Laws

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Pump Affinity Laws

  2. Pump Affinity Laws P. 100 of text – section 4: vary only speed of pump P. 100 of text – section 5: vary only diameter P. 106 of text – vary BOTH speed and diameter of impeller.

  3. Power out equations p. 106 p. 89

  4. A pump is to be selected that is geometrically similar to the pump given in the performance curve below, and the same system. What D and N would give 0.005 m3/s against a head of 19.8 m? W D = 17.8 cm N = 1760 rpm 1400W 900W 9m 0.01 m3/s

  5. What is the operating point of first pump? N1 = 1760 D1 = 17.8 cm Q1 = 0.01 m3/s Q2 = 0.005 m3/s W1 = 9m W2 = 19.8 m

  6. Now we need to “map” to new pump on same system curve. Substitute into Solve for D2

  7. N2 = ?

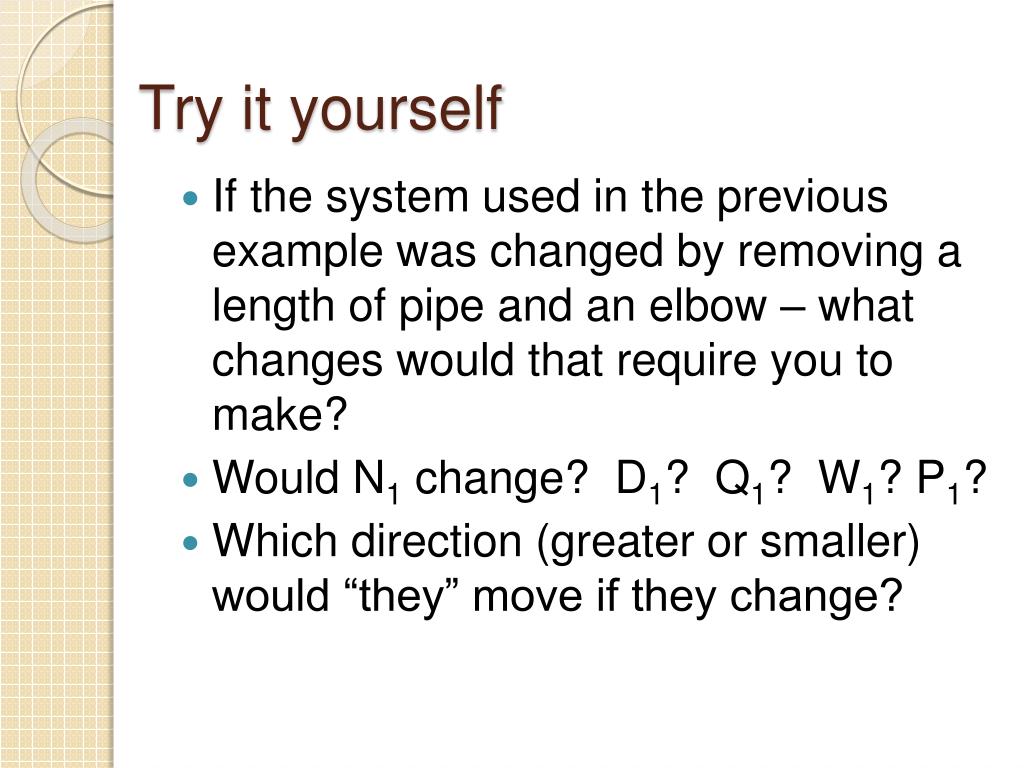

  8. Try it yourself • If the system used in the previous example was changed by removing a length of pipe and an elbow – what changes would that require you to make? • Would N1 change? D1? Q1? W1? P1? • Which direction (greater or smaller) would “they” move if they change?

  9. Moisture and Psychrometrics Core Ag Eng Principles Session IIB

  10. Moisture in biological products can be expressed on a wet basis or dry basis wet basis dry basis (page 273)

  11. Standard bushels • ASAE Standards • Corn weighs 56 lb/bu at 15% moisture wet-basis • Soybeans weigh 60 lb/bu at 13.5% moisture wet-basis

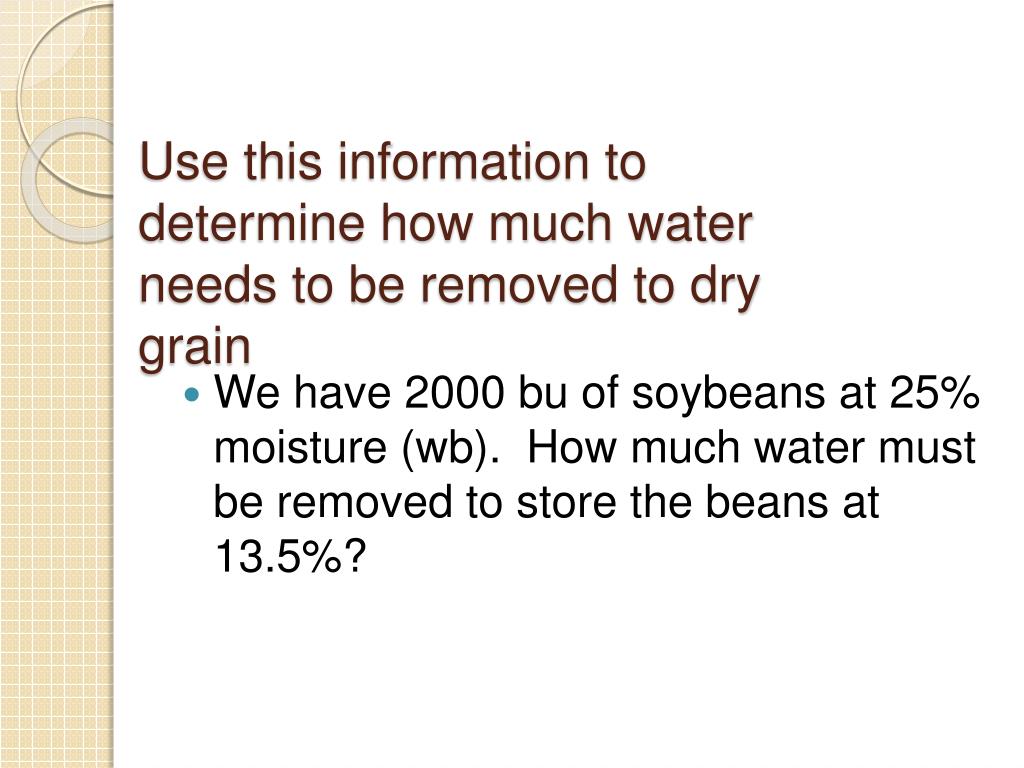

  12. Use this information to determine how much water needs to be removed to dry grain • We have 2000 bu of soybeans at 25% moisture (wb). How much water must be removed to store the beans at 13.5%?

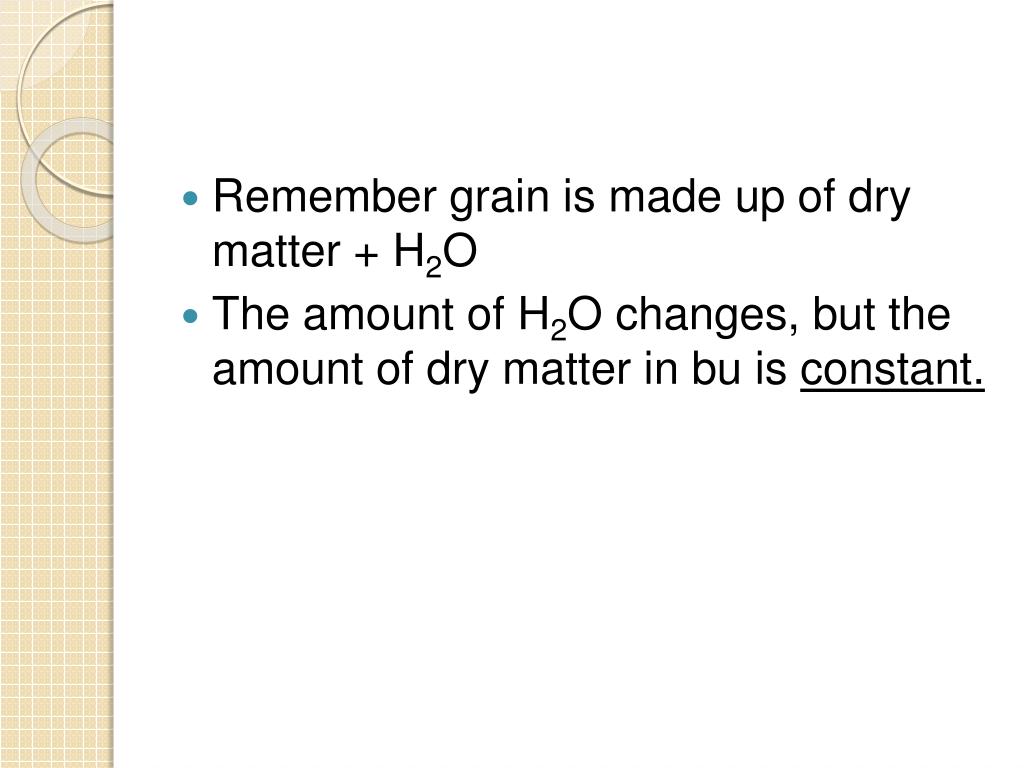

  13. Remember grain is made up of dry matter + H2O • The amount of H2O changes, but the amount of dry matter in bu is constant.

  14. Standard bu

  15. So water removed = H2O @ 25% - H2O @ 13.5%

  16. Your turn: • How much water needs to be removed to dry shelled corn from 23% (wb) to 15% (wb) if we have 1000 bu?

  17. Psychrometrics • If you know two properties of an air/water vapor mixture you know all values because two properties establish a unique point on the psych chart • Vertical lines are dry-bulb temperature

  18. Psychrometrics • Horizontal lines are humidity ratio (right axis) or dew point temp (left axis) • Slanted lines are wet-bulb temp and enthalpy • Specific volume are the “other” slanted lines

  19. Your turn: • List the enthalpy, humidity ratio, specific volume and dew point temperature for a dry bulb temperature of 70F and a wet-bulb temp of 60F

  20. Enthalpy = 26 BTU/lbda • Humidity ratio=0.0088 lbH2O/lbda • Specific volume = 13.55 ft3/lbda • Dew point temp = 54 F

  21. Psychrometric Processes • Sensible heating – horizontally to the right • Sensible cooling – horizontally to the left • Note that RH changes without changing the humidity ratio

  22. Psychrometric Processes • Evaporative cooling = grain drying (p 266)

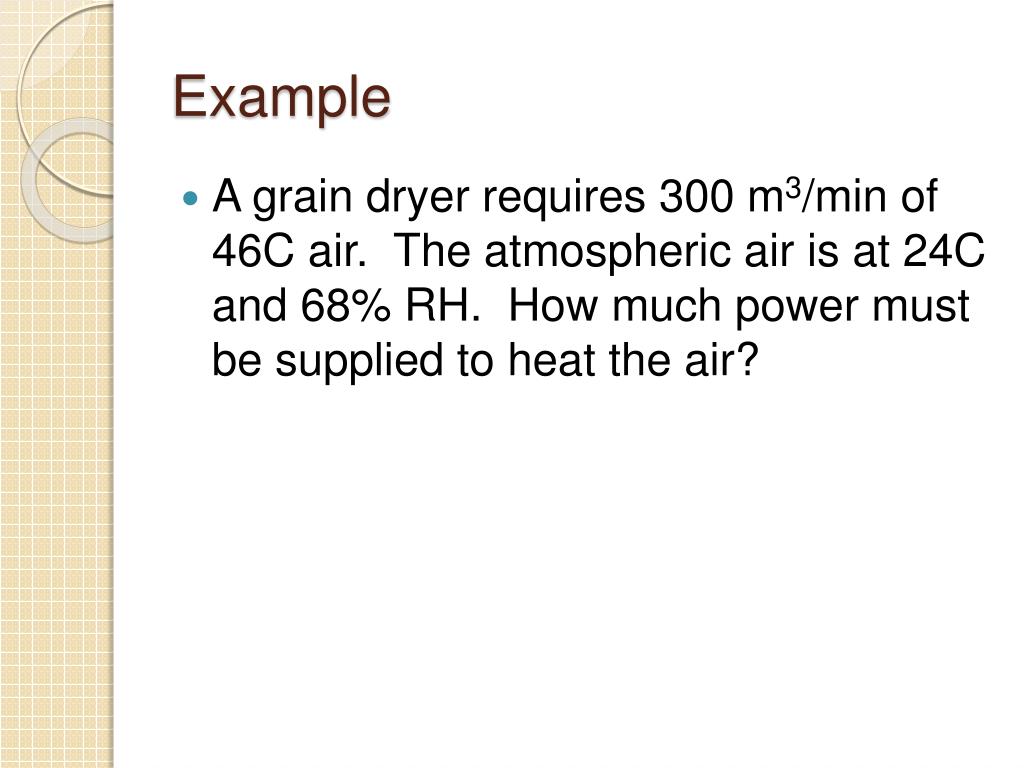

  23. Example • A grain dryer requires 300 m3/min of 46C air. The atmospheric air is at 24C and 68% RH. How much power must be supplied to heat the air?

  24. Solution @ 24C, 68% RH: Enthalpy = 56 kJ/kgda @ 46C: Enthalpy = 78 kJ/kgda V = 0.922 m3/kgda

  25. Equilibrium Moisture Curves • When a biological product is in a moist environment it will exchange water with the atmosphere in a predictable way – depending on the temperature/RH of the moist air surrounding the biological product. • This information is contained in the EMC for each product

  26. Equilibrium Moisture Curves • Establish second point on the evaporative cooling line – i.e. can’t remove enough water from the product to saturate the air under all conditions – sometimes the exhaust air is at a lower RH because the product won’t “release” any more water

  27. Establishing Exhaust Air RH • Select EMC for product of interest • On Y axis – draw horizontal line at the desired final moisture content (wb) of product • Find the four T/RH points from EMCs

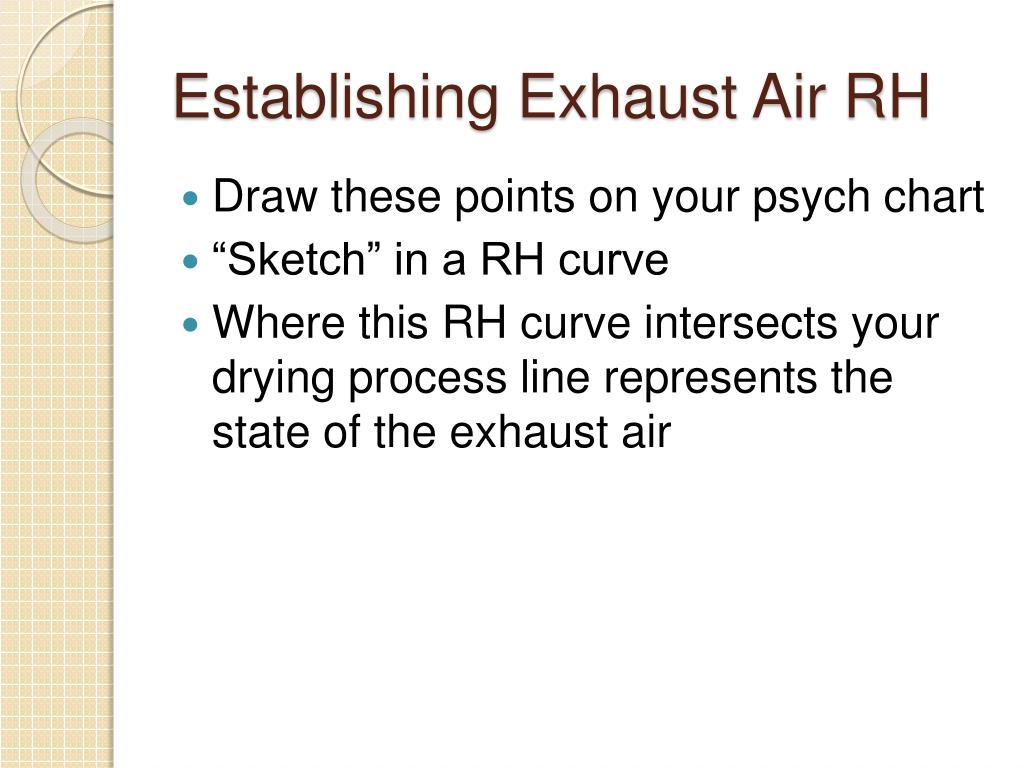

  28. Establishing Exhaust Air RH • Draw these points on your psych chart • “Sketch” in a RH curve • Where this RH curve intersects your drying process line represents the state of the exhaust air

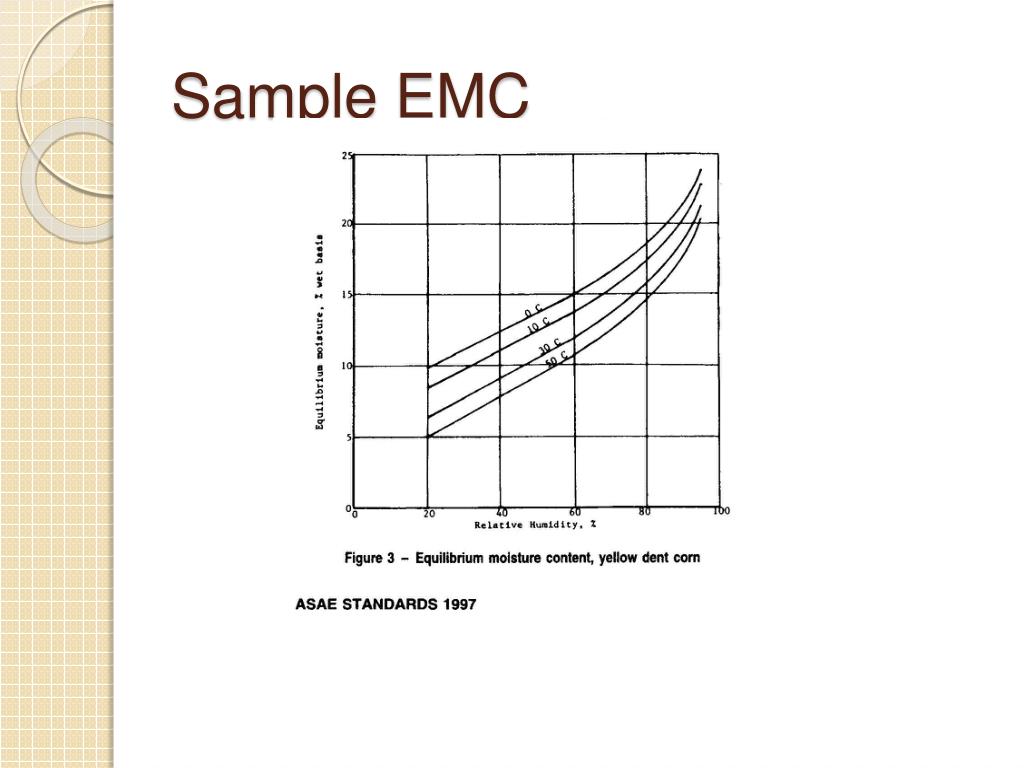

  29. Sample EMC

  30. We are drying corn to 15% wb; with natural ventilation using outside air at 25C and 70% RH. What will be the Tdb and RH of the exhaust air?

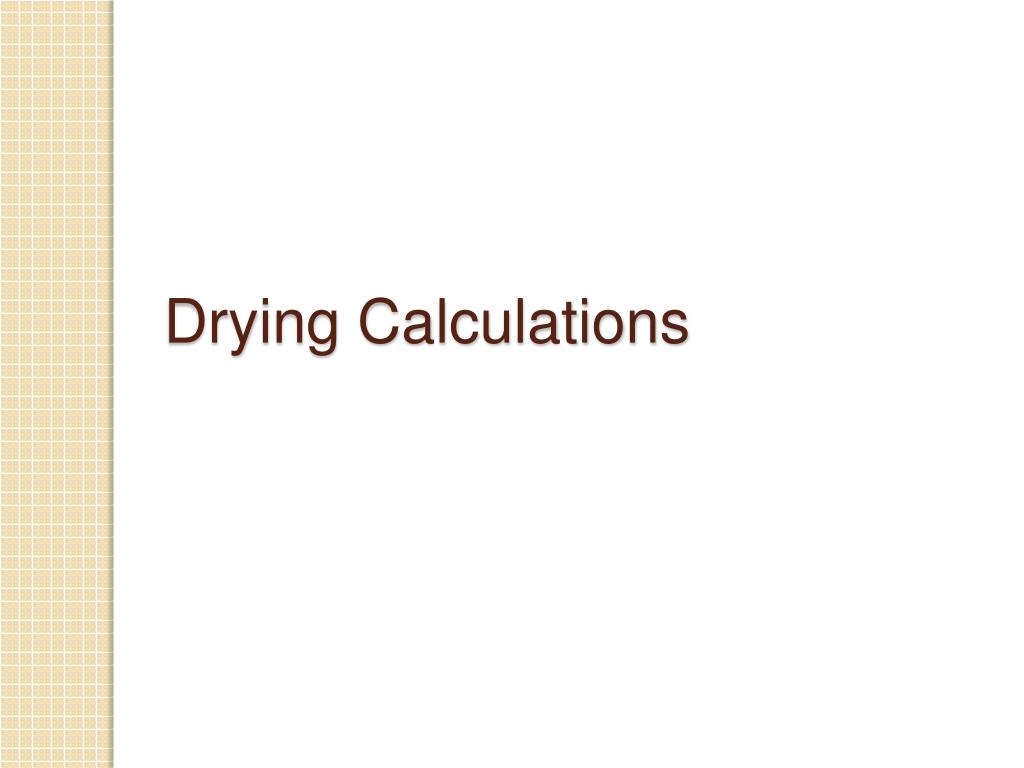

  31. Drying Calculations

  32. Example problem How long will it take to dry 2000 bu of soybeans from 20% mc (wb) to 13% mc (wb) with a fan which delivers 5140-9000 cfm at ½” H2O static pressure. The bin is 26’ in diameter and outside air (60 F, 30% RH) is being blown over the soybeans.

  33. Steps to work drying problem Determine how much water needs to be removed (from moisture content before and after; total amount of product to be dried) Determine how much water each pound of dry air can remove (from psychr chart; outside air – is it heated, etc., and EMC) Calculate how many cubic feet of air is needed Determine fan operating CFM From CFM, determine time needed to dry product

  34. Step 1 How much water must be removed? 2000 bu 20% to 13% Now what?

  35. Step 1 Std bu = 60 lb @ 0.135 mw = 0.135(60 lb) = 8.1 lb H2O md = mt – mw = 60 – 8.1 = 51.9 lbdm @ 13%:

  36. Step 1

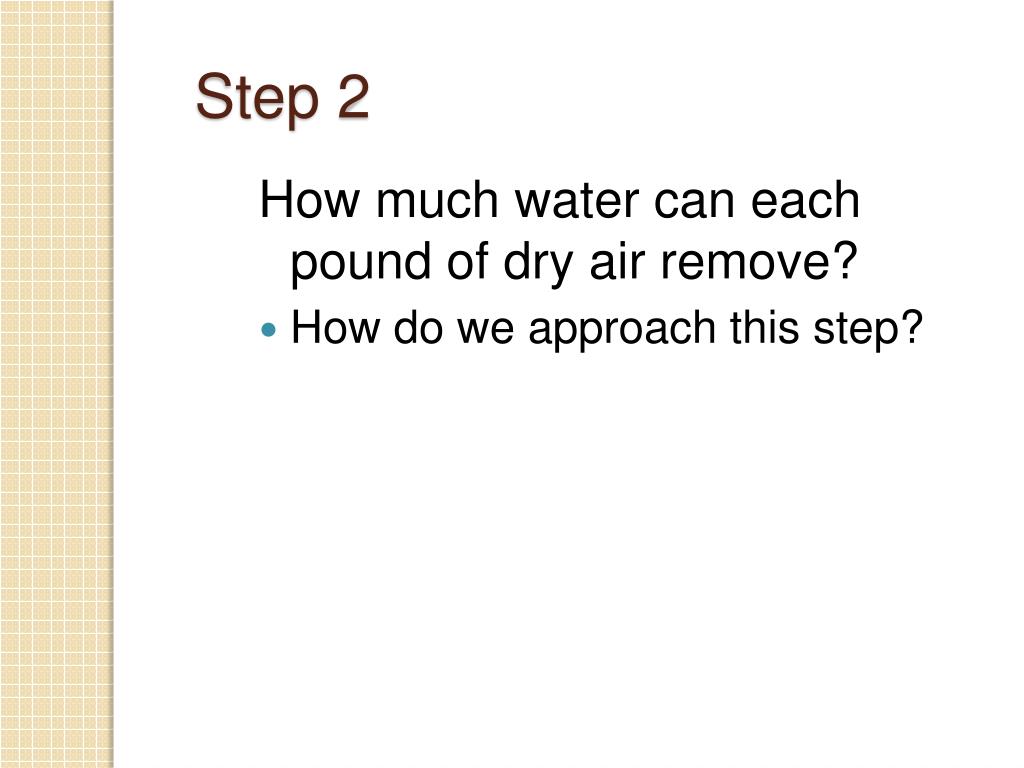

  37. Step 2 How much water can each pound of dry air remove? How do we approach this step?

  38. Step 2 Find exit conditions from EMC. Plot on psych chart. 0C = 32F = 64% 10C = 50F = 67% 30C = 86F = 72%

  39. Step 2 @ 52F – 68% RH

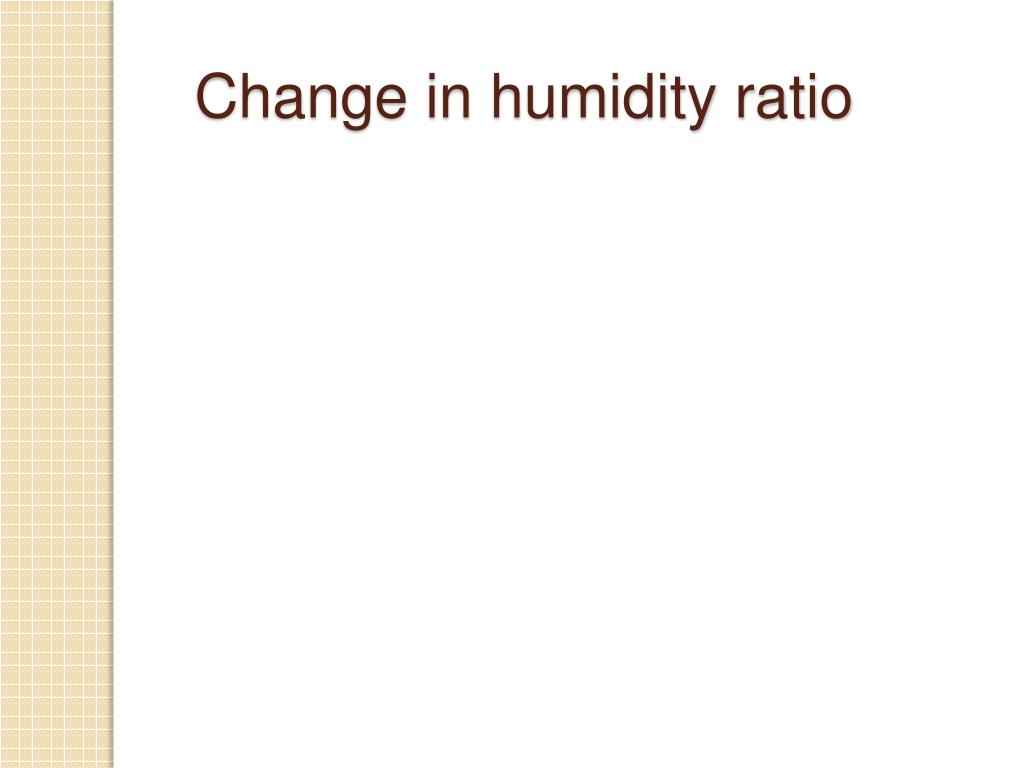

  40. Change in humidity ratio

  41. Each pound of dry air can remove

  42. We need to remove 10500 lbH2O. Each lbda removes 0.0023 lbH2O.

  43. Step 3 Determine the cubic feet of air we need to remove necessary water

  44. Step 3 Calculations

  45. Step 4 Determine the fan operating speed How do we approach this?
