Probing spin and charge on the nanoscale

Craig J. Hawker, University of California-Santa Barbara, DMR 11210523. AFM cantilever. Probing spin and charge on the nanoscale. Focused green laser. Microwaves for ESR. Diamond NV center. Optically detected magnetic resonance of a single NV center. Complex oxide.

jane
Download Presentation

Probing spin and charge on the nanoscale

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

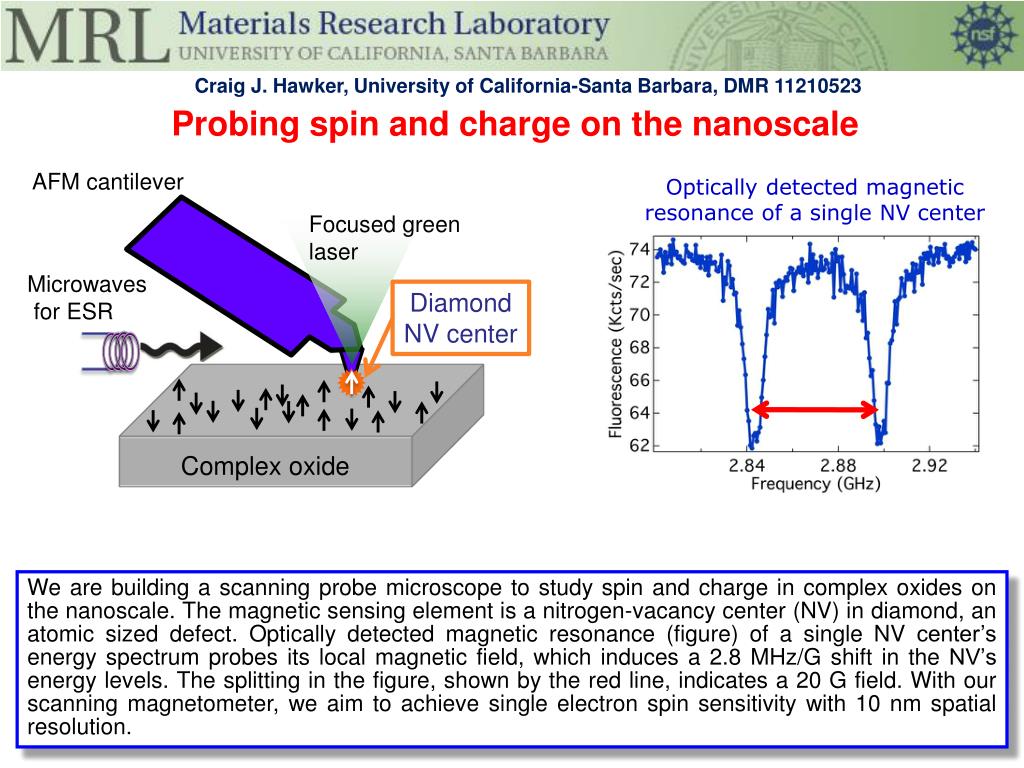

  1. Craig J. Hawker, University of California-Santa Barbara, DMR 11210523 AFM cantilever Probing spin and charge on the nanoscale Focused green laser Microwaves for ESR Diamond NV center Optically detected magnetic resonance of a single NV center Complex oxide We are building a scanning probe microscope to study spin and charge in complex oxides on the nanoscale. The magnetic sensing element is a nitrogen-vacancy center (NV) in diamond, an atomic sized defect. Optically detected magnetic resonance (figure) of a single NV center’s energy spectrum probes its local magnetic field, which induces a 2.8 MHz/G shift in the NV’s energy levels. The splitting in the figure, shown by the red line, indicates a 20 G field. With our scanning magnetometer, we aim to achieve single electron spin sensitivity with 10 nm spatial resolution.
