Presentation Transcript

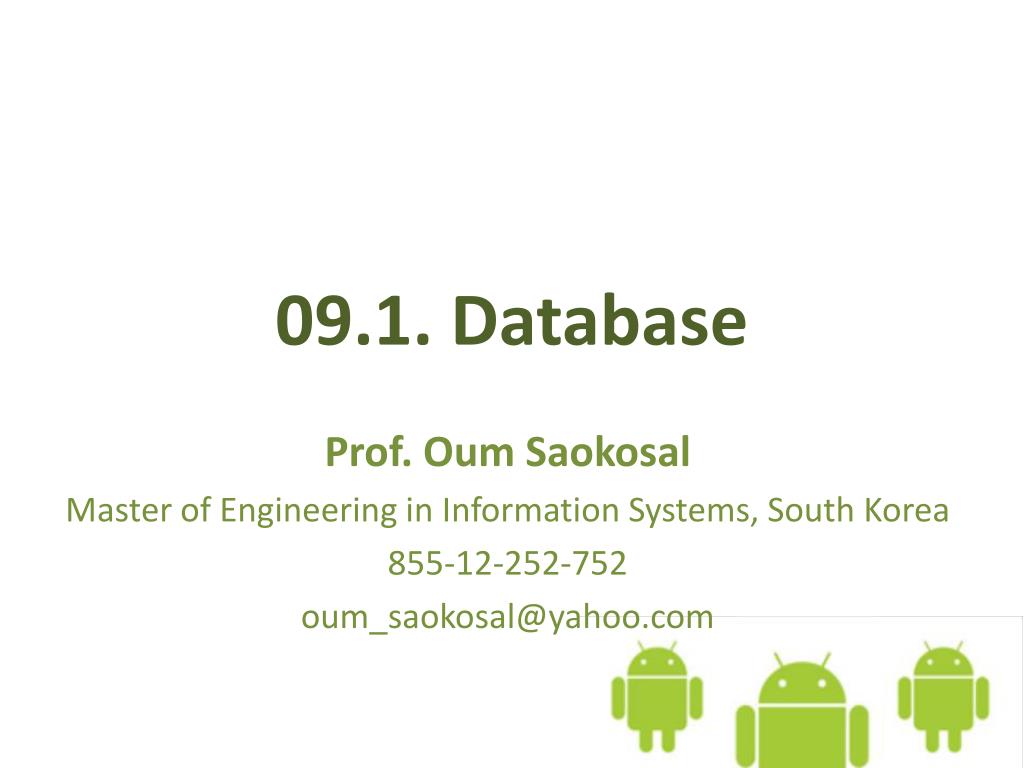

  1. 09.1. Database Prof. Oum Saokosal Master of Engineering in Information Systems, South Korea 855-12-252-752 oum_saokosal@yahoo.com

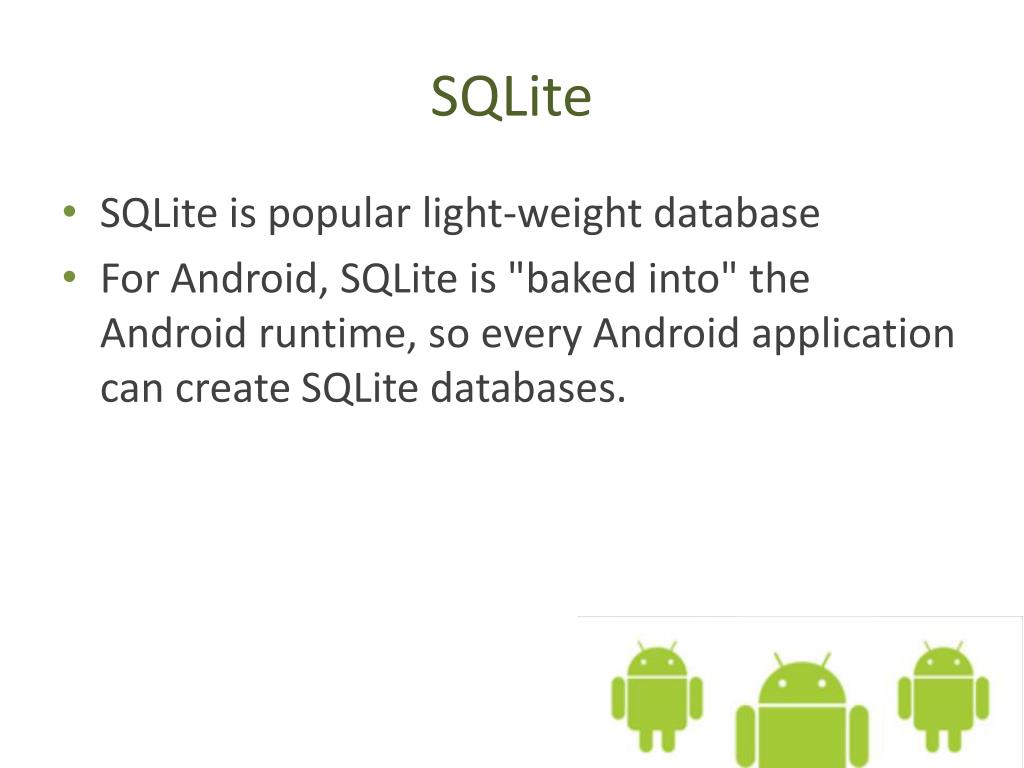

  2. SQLite SQLite is popular light-weight database For Android, SQLite is "baked into" the Android runtime, so every Android application can create SQLite databases.

  3. Fundamental of SQL Create a table: CREATE TABLE IF NOT EXISTS tbl_student ( stu_id VARCHAR PRIMARY KEY, stu_name VARCHAR NOT NULL, stu_add VARCHAR, stu_gpa INT );

  4. Insert a record: INSERT INTO tbl_student VALUES ( '80123', 'SokVisal', 'Phnom Penh', '4.0' );

  5. Select a record: SELECT * FROM tbl_student WHERE stu_id='80123' ORDER BY stu_name ASC; View many records: SELECT * FROM tbl_student WHERE stu_name LIKE '%sok%' ORDER BY stu_name ASC;

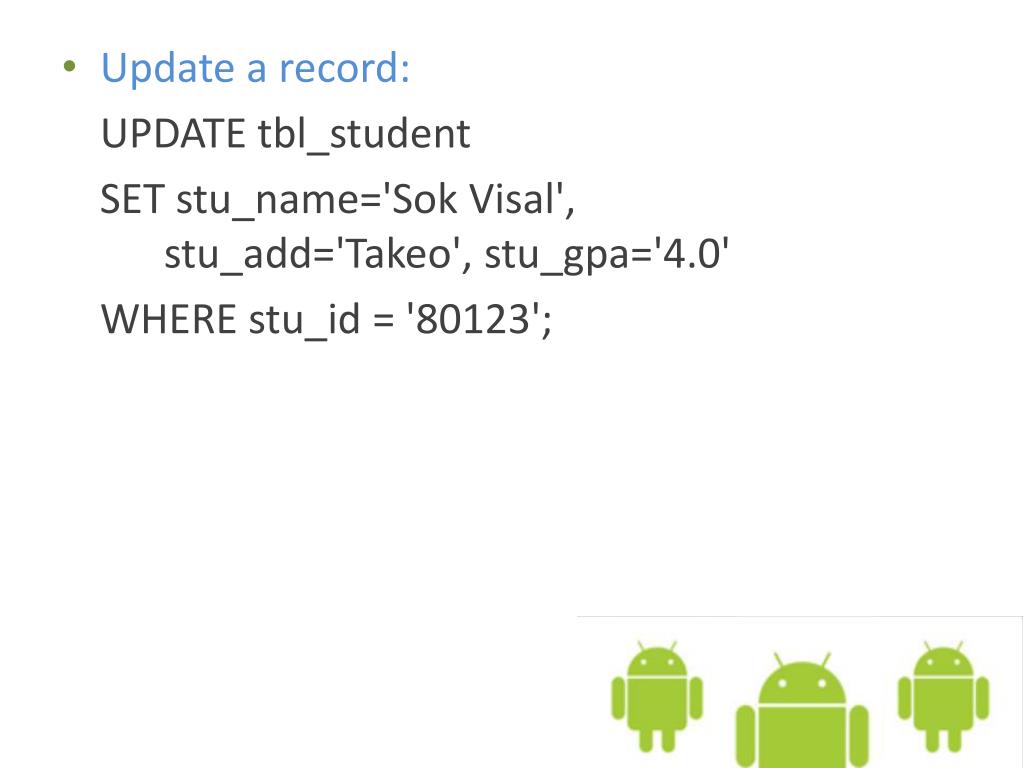

  6. Update a record: UPDATE tbl_student SET stu_name='SokVisal', stu_add='Takeo', stu_gpa='4.0' WHERE stu_id = '80123';

  7. Delete a record: DELETE FROM tbl_student WHERE stu_id='80123';

  8. SQLite Statements To Create a database: SQLiteDatabase db = openOrCreateDatabase( "database_name", MODE_PRIVATE, null); To execute a raw SQL statement: db.execSQL("SELECT * FROM tbl_student;"); To close a database: db.close();

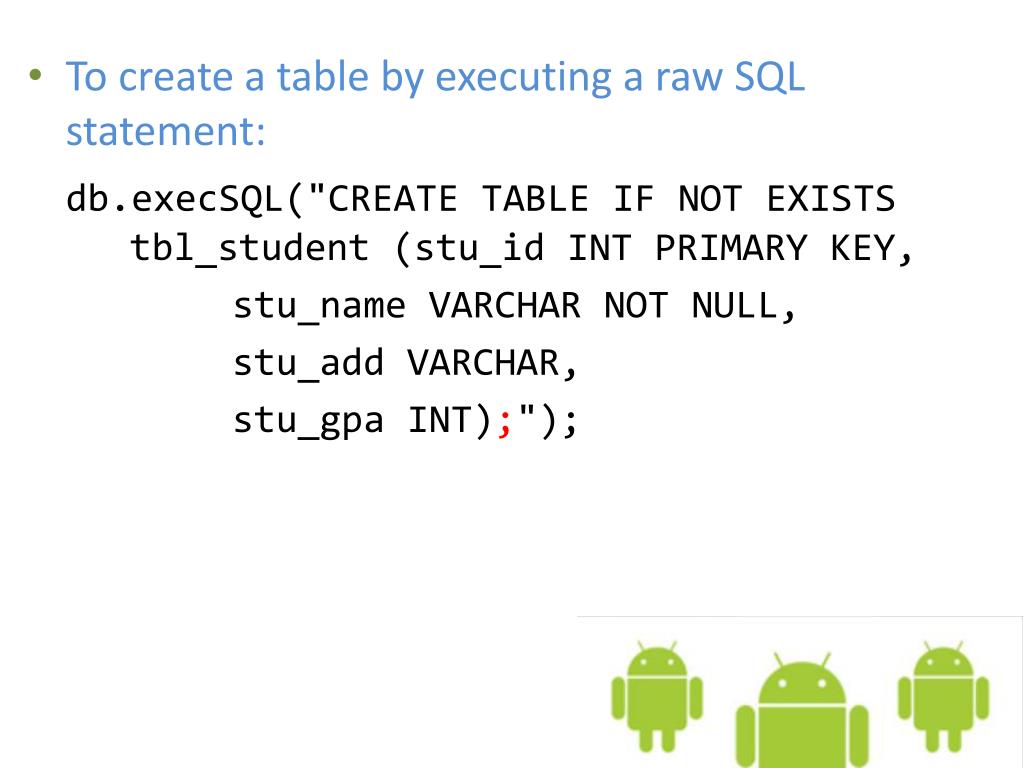

  9. To create a table by executing a raw SQL statement: db.execSQL("CREATE TABLE IF NOT EXISTS tbl_student (stu_id INT PRIMARY KEY, stu_name VARCHAR NOT NULL, stu_add VARCHAR, stu_gpa INT);");

  10. Insert a record: db.execSQL("INSERT INTO tbl_student VALUES ('80123', 'SokVisal', 'Phnom Penh','4.0');");

  11. Update a record: db.execSQL("UPDATE tbl_student SET stu_name='SokVisal', stu_add='Takeo', stu_gpa='4.0' WHERE stu_id = '80123';");

  12. Delete a record: db.execSQL("DELETE FROM tbl_student WHERE stu_id='80123';");

  13. Records Retrieval After you select records using SELECT, you need to display it. In Android, you will use Cursor class to store the records. Cursor result = db.rawQuery("SELECT * FROM tbl_student WHERE stu_id='80123' ORDER BY stu_name ASC", null);

  14. Complete code of records retrieval: Cursor result = db.rawQuery("SELECT * FROM tbl_student WHERE stu_id='80123' ORDER BY stu_name ASC", null); result.moveToFirst(); //Must include this while(result.isAfterLast() != true){ int id = result.getInt(0); String name = result.getString(1); String address = result.getString(2); intgpa = result.getInt(3); //Do something here result.moveToNext(); }

  15. Where is My Database? Please note that to see the database folder, you need to run the emulator first. After created a database, you can find it by going to DDMS -> File Explorer -> Then open the folder: data/data/your.app.package/databases/yourdbname

  16. How to View My Database? There is a plugin that allows you to view SQLite file in Eclipse. Below is the url: http://www.tylerfrankenstein.com/user/4/browse-android-emulator-sqlite-database-eclipse After you download it onto your machine, place it here:

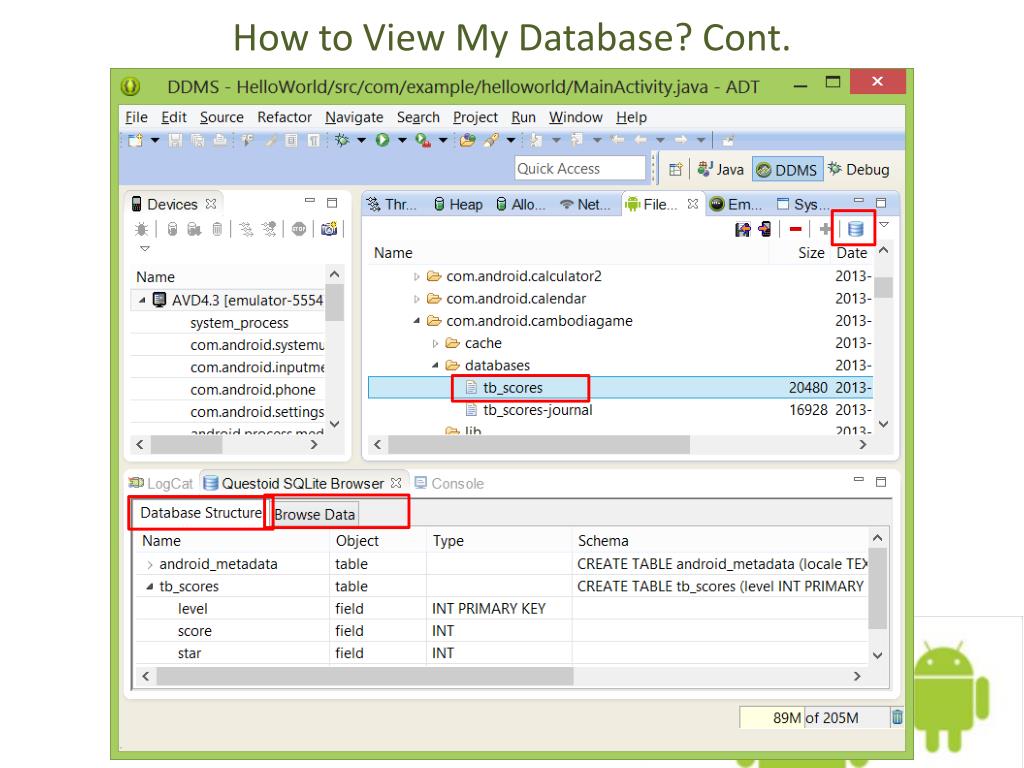

  17. How to View My Database? Cont.

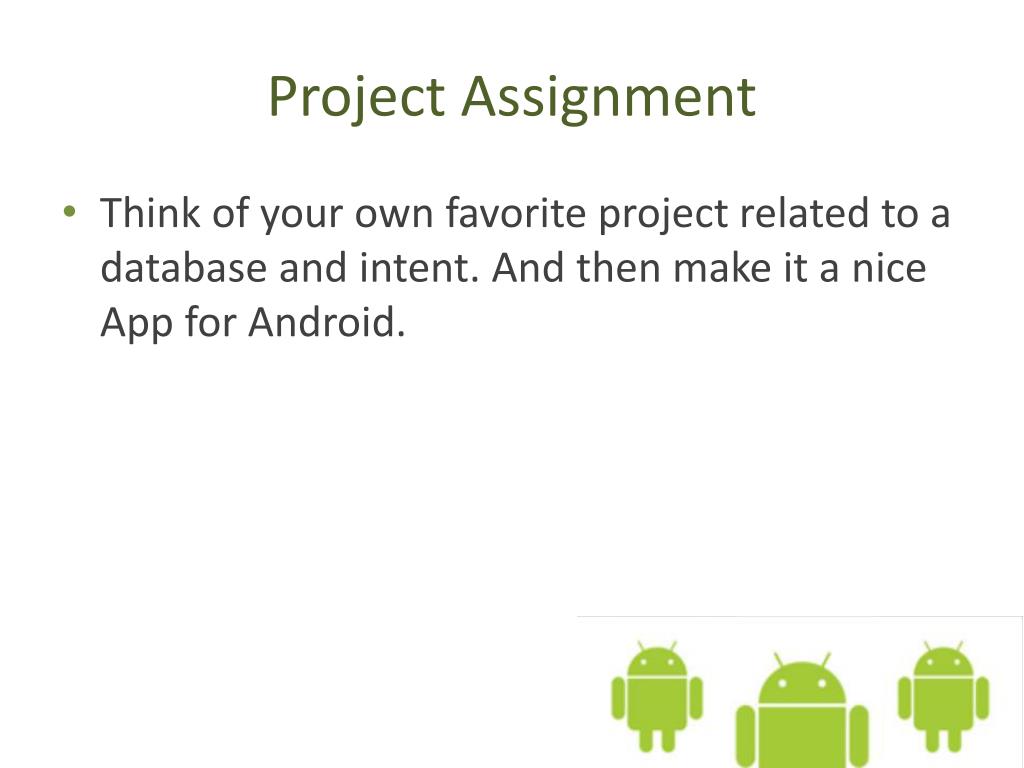

  18. Project Assignment Think of your own favorite project related to a database and intent. And then make it a nice App for Android.

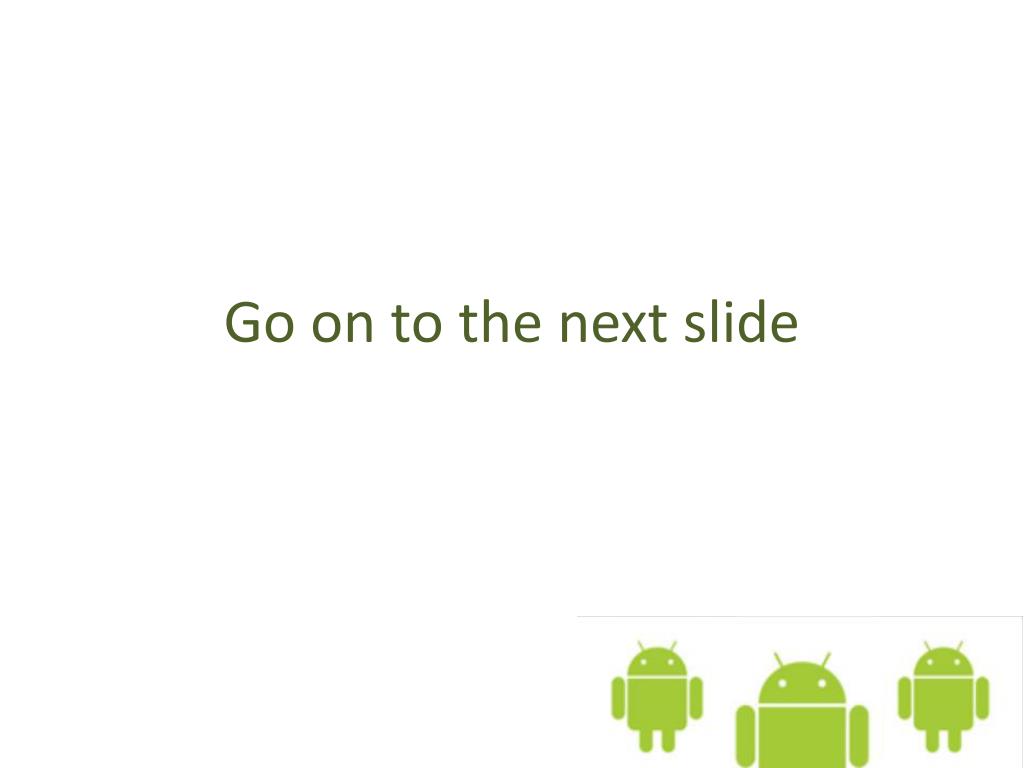

  19. Go on to the next slide
