  1. Sue ProbertSEPIAeb Ltd Co-Chair ISO 7372MA (UNTDED) Lead Editor UN/CEFACT Core Component Library Member of the UN/CEFACT Transport Group CIM/SGMS Information Meeting

  2. The UNTDED/ISO 7372 • TDED is a joint publication of UNECE and ISO • 3 editions 1990, 1990 and 2005 • There is a joint UNECE/ISO Maintenance Agency (MA) which includes international organisations and international convention holders such as WCO, IMO, IRU etc. who are responsible for their respective informative bridge content • The 4 digit ID is shared with EDIFACT and is subject to TDED formatting rules 21st September 2011 CIM/SGMS Information Meeting

  3. UN Trade Data Element DirectoryUNTDED – ISO 7372 CIM/SGMS Information Meeting

  4. CIM Bridges to TDED CIM/SGMS Information Meeting

  5. UNLK – UN/ECE Rec. 1The unsung Global Hero • First published 1973 • Flexible aligned data presentation which has become the de facto standard for the majority of international trade documents • Application methodology for defining national, regional and industry specific document layouts • Foundation for International transport conventions e.g. Maritime B/L (ICS), Airwaybill (IATA), Road CMR (IRU), Rail CIM (UIC) etc. • Foundation of Customs and other Regulatory Procedures e.g SAD, Phyto-Sanitary Certificates, Cert of Origins etc. • Thusands of document formats based on UNLK across trade, transport, finance, customs, insurance, inspection etc. CIM/SGMS Information Meeting

  6. UNLK Form Families Trade Documents – Quotation, Order, Invoice etc. Materials Management Documents – Despatch Advice, Pick List, Packing List etc. Transport Documents – Bill of Lading, Shipping Instructions etc. Customs Documents – Export, Import, Transit Declarations, Cargo Reports etc. Other Regulatory Documents – Cert of Origin, DGN etc. CIM/SGMS Information Meeting

  7. TDED is the base data element dictionary underpinning all UN Layout Paper Forms and UN/EDIFACT and the link also to Core Components CIM/SGMS Information Meeting

  8. UN Layout/TDED Mapping Example UID Name Definition Synonym Repr. Mapping 2280 Transport Means. Actual Departure. Date Time Date and or time of the departure of means of transport Flight Date, Sailing Date an..17 UNLK: L 17, P 16 CIM/SGMS Information Meeting

  9. UN Layout/TDED/CCL Mapping Example TDED: 1140 = UNLK : an..17 L 06, P 63-80 = CCL : Supply Chain_ Consignment. Consignor Assigned. Identifier = EU SAD : Box 7 CIM/SGMS Information Meeting

  10. UNLK CIM Mapping Examples Consignor – TDED 3336 Consignee – TDED 3132 Destination Station Code – TDED 3259 .. Place of Acceptance – TDED 3348 Date/Time of Acceptance – TDED 2037 CIM/SGMS Information Meeting

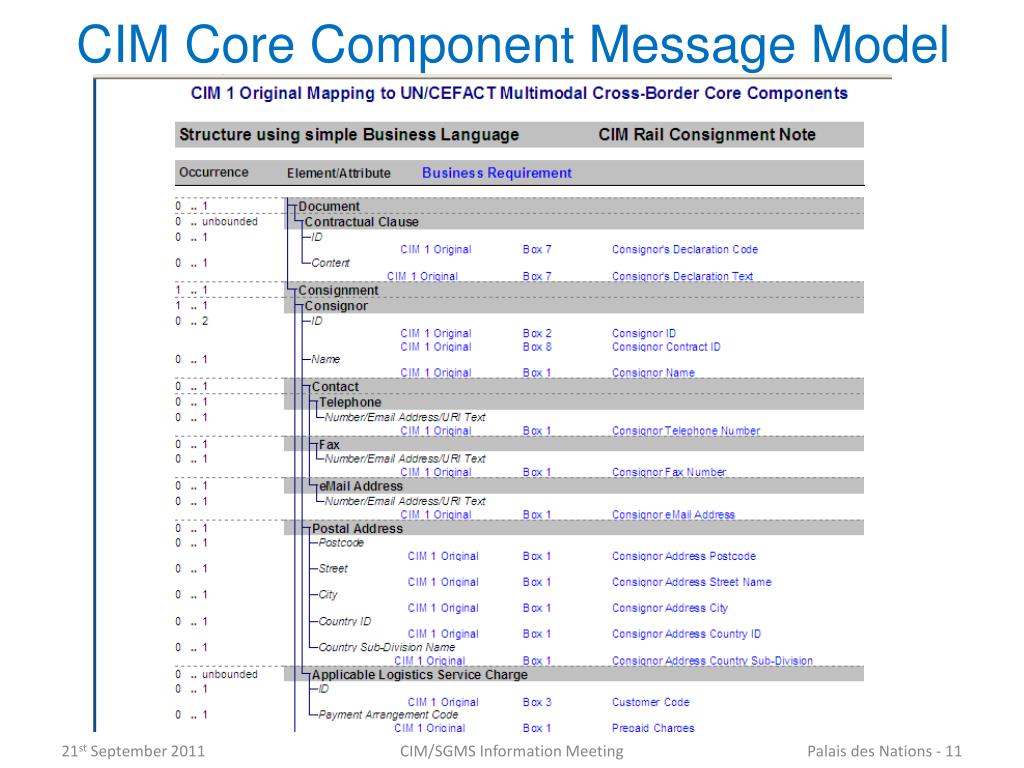

  11. CIM Core Component Message Model CIM/SGMS Information Meeting
