Presentation Transcript

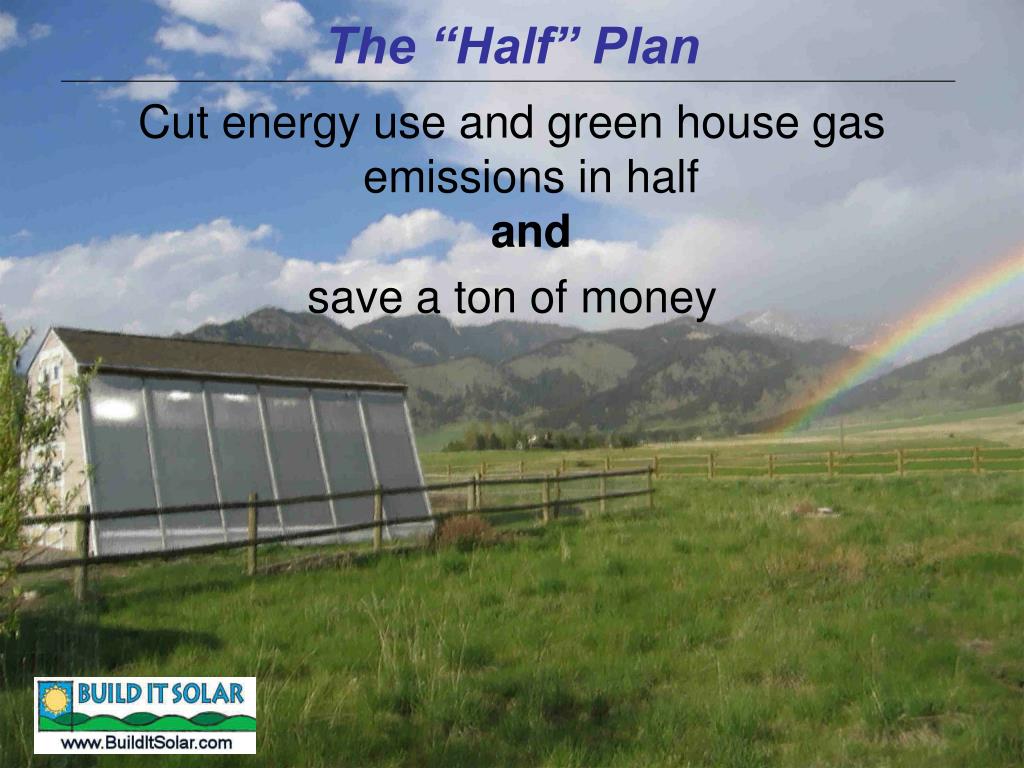

The half plan l.jpg
The “Half” Plan

Cut energy use and green house gas emissions in halfand

save a ton of money


We will cover l.jpg
We Will Cover …

  • What’s a “Half” plan?

  • Energy and CO2 reduction projects

    • Including some 1 year payback solar heating projects

  • Results

  • Making your own “Half” plan


What s the half plan l.jpg
What’s the “Half” Plan?

We wanted to see if we could cut our energy use and green house gas emissions in half.

  • Is it possible?

  • What does it cost?

  • How much money does it save?

  • How hard is it?

  • Lifestyle changes?


Where does the energy go l.jpg
Where Does The Energy Go?

Must address all of these areas to make the goal

Does not include embedded energy in

Products, air transport, …


Where does the energy go5 l.jpg
Where Does The Energy Go?

Target

47,000 KWH/yr

Target

32,000 lbs CO2/yr

Must address all of these areas to make the goal

Does not include embedded energy in

Products, air transport, …


The half plan6 l.jpg
The “Half “ Plan

Our 20 Energy Saving Projects

  • Conservation

  • Solar

  • Transportation

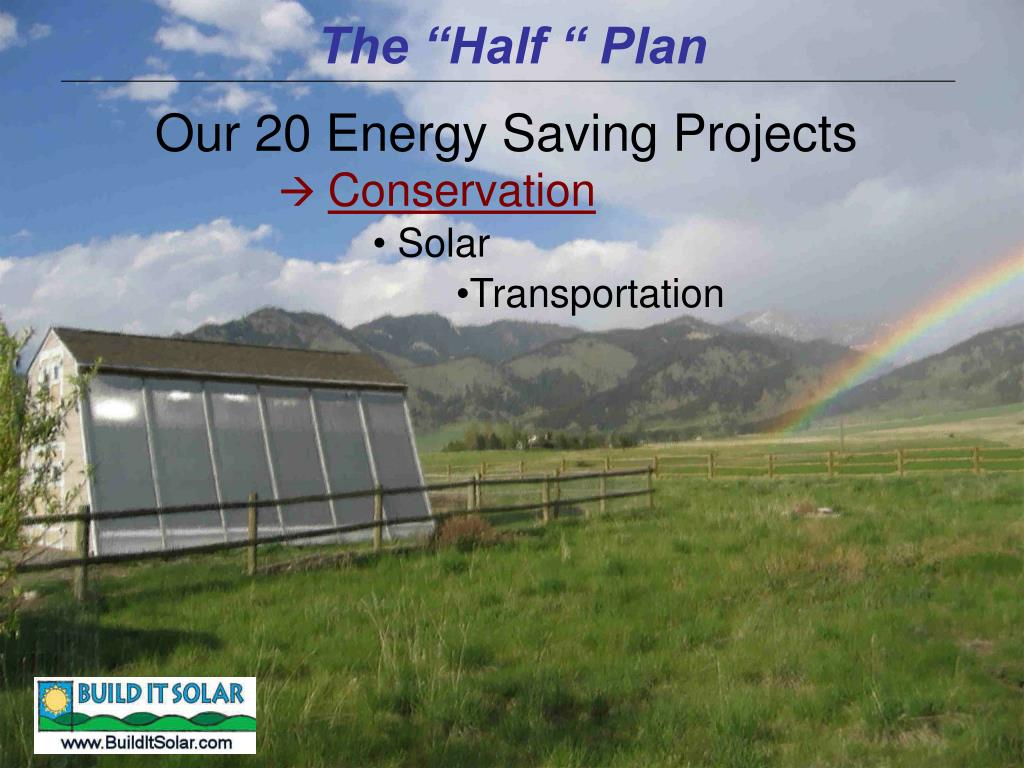

The half plan7 l.jpg
The “Half “ Plan

Our 20 Energy Saving Projects

Conservation

  • Solar

  • Transportation


Make storm windows from bubble wrap l.jpg
Make Storm Windows From Bubble Wrap

A simple, cheap, quick way

to reduce window heat loss

Energy Saving 960 KWH/year * CO2 Saving 490 lb/year

Cost Saving $75 peryear

10 Year Saving $1200

Initial Cost $38 (or nothing)

(2%) * 36 gal propane


Tame the pc s l.jpg
Tame the PC’s

PC, printer, monitor, router … use a lot of power

  • Plug everything into a power strip

  • Daytime: Hibernate when idle for 15 minutes

  • Nighttime: Shut off everything with power strips

Energy Saving 1780 KWH/year * CO2 Saving 3560 lb/year

Cost Saving $178 peryear

10 Year Saving $2840

Initial Cost $20

(4%) * for 2 PC’s and peripherals


Seal insulate heating ducts l.jpg
Seal & Insulate Heating Ducts

We sealed and insulated all accessible attic and crawl space ducts

  • Studies show that losses of 15 to 30%are the norm in homes

conservative estimate

Energy Saving 940 KWH/year * CO2 Saving 480 lb/year

Cost Saving $75 peryear

10 Year Saving $1,195

Initial Cost $20

(2%) * 35 gal propane


Seal heating ducts cont d l.jpg
Seal Heating Ducts (cont’d)

  • Use Duct Mastic

  • Seal every joint you can get to

  • Insulate ducts in attic or crawl space


Efficient lights l.jpg
Efficient Lights

Use efficient lights!

  • Compact fluorescents, regular fluorescents, LED’s, …

  • Less than one year payback

  • Rebates

Energy Saving 1170 KWH/year *CO2 Saving 2340 lb/year

Cost Saving $117 peryear

10 Year Saving $1860

Initial Cost $50

(2%) * for 29 CF’s


Efficient lights cont d l.jpg
Efficient Lights (cont’d)

The savings add up fast 

  • There are CF’s for just about any situation

  • A variety of light “colors” for cool to warm


Eliminate phantom loads l.jpg
Eliminate Phantom Loads

Many electrical appliances use power even when turned “off”

  • Use a Kill-A-Watt to find the phantoms

  • Use power strips to cut all power

  • Or, replace high drain phantoms

Energy Saving 570 KWH/yearCO2 Saving 1140 lb/year

Cost Saving $57 peryear

10 Year Saving $910

Initial Cost $70

(1%)


Replace energy hog appliances l.jpg
Replace Energy Hog Appliances

Old refrigerators, dishwashers, … may use 3 or more times as much power as new the Energy Star equivalents

  • Our new fridge saves 2 KWH per day

  • Energy Star website for ratings

Energy Saving 720 KWH/yearCO2 Saving 1440 lb/year

Cost Saving $72 peryear

10 Year Saving $1147

Initial Cost $800

(2%)


Stop cold air infiltration l.jpg
Stop Cold Air Infiltration

  • Caulk around windows etc.

  • Seal all penetrations from living space to attic

Energy Saving 1980 KWH/year * CO2 Saving 1010 lb/year

Cost Saving $50 peryear

10 Year Saving $2485

Initial Cost $38

(4%) * 73 gal propane


Add insulation l.jpg
Add Insulation

Blow in more attic insulation

  • Increasing our attic insulation from R22 to R47 gave us a 2 year payback*

Energy Saving 1590 KWH/year * CO2 Saving 810 lb/year

Cost Saving $126 peryear **

10 Year Saving $2010

Initial Cost $260

(3%) * 60 gal propane

** Includes lower effective R value of FG insulation under cold conditions.

** Only half of our attic can be done.


Add insulation cont d l.jpg
Add Insulation (cont’d)

  • Free blower loan

  • Easy to do

  • But, do infiltration sealing first


Insulate crawl space l.jpg
Insulate Crawl Space

We Converted our crawl space to an insulated, conditioned space

Energy Saving 1090 KWH/year * CO2 Saving 560 lb/year

Cost Saving $86 peryear **

10 Year Saving $1370

Initial Cost $210

(2%) * 40 gal propane

** For crawl space under ¼ of house


Insulate crawl space cont d l.jpg
Insulate Crawl Space (cont’d)

Conditioned space

  • Seal floor with poly

  • Insulate walls

  • Insulate rim joist

  • Plug vents

    Alternate – insulate thecrawl space ceiling


Inside storm windows l.jpg
Inside Storm Windows

Multi wall polycarbonate storm windows

  • High R value

  • Easy to make

  • Fits any window

  • Lightweight

Energy Saving 2700 KWH/year * CO2 Saving 1100 lb/year

Cost Saving $220 peryear

10 Year Saving $3500

Initial Cost $450

(6%) * 100 gal propane

For 30% of total window area


Inside strom windows cont d l.jpg
Inside Strom Windows (cont’d)

Multi wall polycarbonate storm windows

  • Cuts easily

  • Easy to handle

  • Secure with Velcro or screws

  • Adds R 2.5


Thermal shades l.jpg
Thermal Shades

Reduce night time window heat loss

  • Adds up to R 4

  • Better with some type of edge sealing

Energy Saving 3160 KWH/year * CO2 Saving 1525 lb/year

Cost Saving $258 peryear

10 Year Saving $4,110

Initial Cost $1,086

(7%) * 117 gal propane

For 32% of window area


Electric mattress pad l.jpg
Electric Mattress Pad

A surprisingly large energy saving with a big increase in comfort 

Energy Saving 1270 KWH/year * CO2 Saving 510 lb/year

Cost Saving $103 peryear

10 Year Saving $1640

Initial Cost $125

(3 %) * 47 gal propane


Venting dryer inside l.jpg
Venting Dryer Inside

We vent our dryer to the inside of the house during the

winter to recover the heat

NOT for gas dryers!

Energy Saving 630 KWH/year * CO2 Saving 290 lb/year

Cost Saving $63 peryear

10 Year Saving $1000

Initial Cost $20

(1+%) * 24 gal propane



The half plan27 l.jpg
The “Half “ Plan

Our 20 Energy Saving Projects

  • Conservation

Solar Energy Projects

  • Transportation


Solar space heater l.jpg
Solar Space Heater

Simple solar space heater

Energy Saving 2,527 KWH/year

CO2 Saving 1,320 lb/year

Cost Saving $206 peryear

10 Year Saving $3,280

Initial Cost $350

(5%)

Based on half time use – one year payback with full time use.


Solar space heater cont d l.jpg
Solar Space Heater (cont’d)

How it works

  • Cool air enters bottom vent

  • Screen absorber heats air

  • Heated air rises out top vent

    No fans, no controllers, no

    electricity.




Direct gain solar heater l.jpg
Direct Gain Solar Heater

  • Direct gain heater

  • Free heat and daylighting

  • Night insulation

  • Easy to build

  • Two year payback

Energy Saving 2,912 KWH/year

CO2 Saving 1,525 lb/year

Cost Saving $238 peryear

10 Year Saving $3,785

Initial Cost $380

(6%)

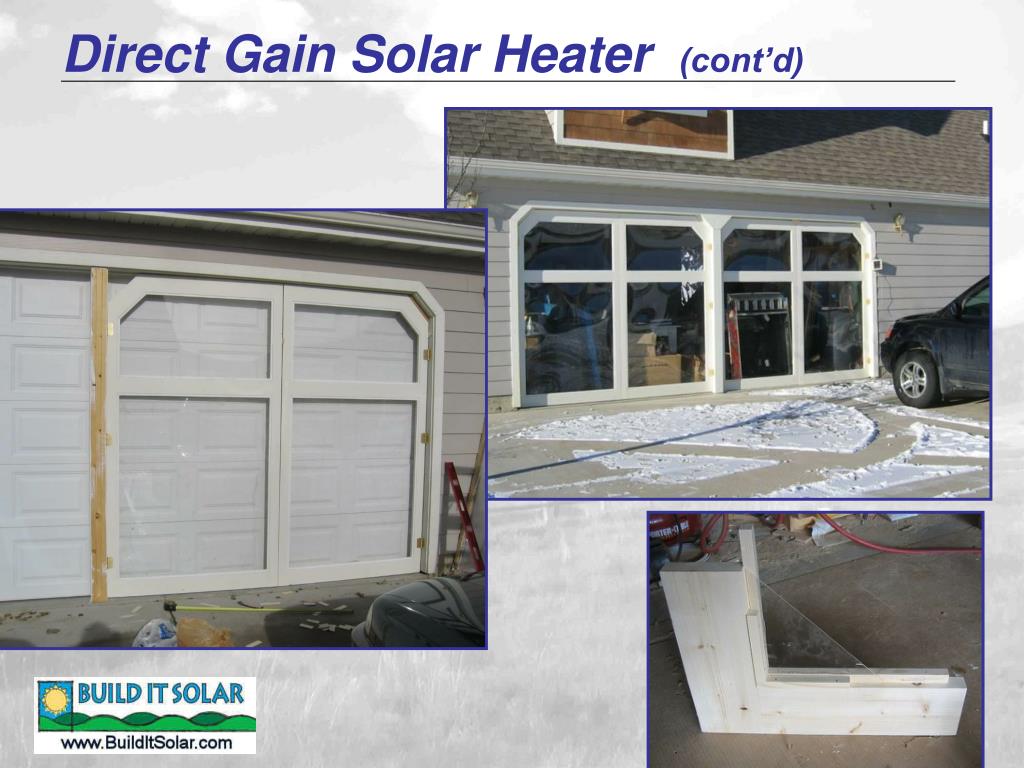

Direct gain heater cont d l.jpg
Direct Gain Heater (cont’d)

How does it do at -20F?

70F

Inside

Outside

-20F


The solar shed collector l.jpg
The “Solar Shed” Collector

A combination garden shed and solar collector that collects and stores heat for use in the house

Energy Saving 6,970 KWH/year * CO2 Saving 3,360 lb/year

Cost Saving $568 peryear

10 Year Saving $9,048

Initial Cost $4,000

(15%) * 260 gal propane

This project is not included in the Halftotals yet, as we just got it up and running in January


Solar shed cont d l.jpg
“Solar Shed” (cont’d)

The “Solar Shed” concept

House

New Garden Shed

Solar Collectors

HydronicHeaters

Heat StorageTank

Heat pipe to house


Solar shed cont d37 l.jpg
“Solar Shed” (cont’d)

Construction


Future solar electric l.jpg
Future Solar Electric

Postponed to last due to lower return

Energy Saving 1,710 KWH/yearCO2 Saving 3,420 lb/year

Cost Saving $170 peryear

10 Year Saving $2,720

Initial Cost $9,000

(4%)

This project will double our total our

investment while providing only 4% of

total energy saving.


The half plan39 l.jpg
The “Half “ Plan

Our 20 Energy Saving Projects

  • Conservation

  • Solar

Transportation Projects


Bought a prius l.jpg
Bought a Prius

Our single most effective energy saving project

  • A terrific car

  • 2 year payback for us

  • Happiness is driving 400 miles and filling up on 8 gallons

Energy Saving 23,900 KWH/year*

CO2 Saving 11,900 lb/year

Cost Saving $1,880 peryear

10 Year Saving $29,960

Initial Cost $3000

(49%) * 650 gal gasoline

49% of Half target!!


The half plan41 l.jpg
The “Half “ Plan

Results to Date


Results l.jpg
Results

Two year payback on projects to date


Results43 l.jpg
Results

Top 7 Projects -- Cheap and Effective

Top Seven: PC’s, Seal Ducts, Bubble Wrap Windows, CF’s,

Phantom Loads, Vent Dryer, Seal Infiltration.


The half plan44 l.jpg
The “Half “ Plan

Planning Your Half Program


Doing your own half plan l.jpg
Doing Your Own “Half” Plan

Making a “Half” Plan

  • Make a BIG list of project ideas

  • Estimate energy and CO2 savings for each project

  • Prioritize Projects

  • Make it Happen!


Doing your own half plan46 l.jpg
Doing Your Own “Half” Plan

1) Make a BIG list of ideas

  • Consider anything

    • Include all of your energy uses

    • Include conservation, solar, …

  • Sources of ideas

    • Attached resources list


Sources of project ideas l.jpg
Sources of Project Ideas

Some good sources for ideas:

  • Build It Solar www.BuildItSolarMy site -- Look at the Projects page and the Half Plan pages.

  • Utility audit program – these can be quite good, and some even include blower door tests to check your house for infiltration.

  • Rocky Mountain Institute www.rmi.orgThe “Energy Briefs” papers are very good.

  • Energy Star www.energystar.gov/Lots of good information on Energy Star rated appliances as well as a wide variety of other energy efficiency subjects.

  • ”The Carbon Buster’s Home Energy Handbook”, Stoyke, 2007

  • The EERE site www.EERE.Energy.gov/Consumer

  • Home Power Magazine, Mother Earth Magazine, …


Doing your own half plan48 l.jpg
Doing Your Own “Half” Plan

2) Evaluate each project for how effective it will be in reducing energy, CO2 emissions, and cost.

  • This is the key to getting the best results for the money you have to spend

  • Projects rates of return will vary over a very large range – this step helps you pick the good ones.


Tools to evaluate projects l.jpg
Tools To Evaluate Projects

  • Insulation Upgrade Calculatorwww.builditsolar.com/References/Calculators/InsulUpgrd/InsulUpgrade.htmThis simple calculator can be used to evaluate insulation upgrades, window improvements, storm windows.

  • The “Half Plan” Exampleshttp://www.builditsolar.com/References/Half/Projects.htmThese example projects each include details the details on how the energy saving was calculated.

  • “The Carbon Buster’s Home Energy Handbook”, Godo Stoyke, 2007Many concrete examples of energy reduction projects.

  • Carbon emissions calculator --Infinite Power http://www.infinitepower.org/calculators.htm

  • Car Carbon emissions -- Hybrid Cars dot Com http://www.hybridcars.com/calculator/

  • If you get stuck – contact [email protected] do my best to help or find someone who can.


Doing your own half plan50 l.jpg
Doing Your Own “Half” Plan

3) Prioritize -- Decide what order to do projects in

  • Cheapest and best payoff first

  • Some may need to go earlier

  • The most interesting ones


Doing your own half plan51 l.jpg
Doing Your Own “Half” Plan

4) Do the projects

The fun part!

Keep track of your bills for rebates and tax credits


Can it make a difference l.jpg
Can it make a difference?

If 100 million families each reduced greenhouse gas emissions by 20 tons, it would reduce total US green house gas emissions by 25%


ad
