Presentation Transcript
Presentation to tetra business solutions group automatic vehicle location l.jpg

Presentation toTETRA Business Solutions GroupAutomatic Vehicle Location

Nick Smye

29th September 1999

Concepts to Reality

e-mail: [email protected] http://www.masoncom.com


Format l.jpg
FORMAT

1. Introduction

2. A Brief History of AVL

3. Overview of Positioning Technologies

4. Business Benefits

5. Global Market Opportunity

6. Summary


Introduction l.jpg
INTRODUCTION

Positioning

System

Bearer Network

  • Central

  • Application

Vehicle Mounted

Positioning Unit

Typical AVL System


Brief history of electronic navigation and location l.jpg
BRIEF HISTORY OF ELECTRONIC NAVIGATION AND LOCATION

  • Radio Navigation and Location

    • Air Navigation

  • Radio Navigation Beacons

    • Aeronautical

    • Maritime (Decca/LoranC)

    • Terrestrial


History of satellite 1 l.jpg
HISTORY OF SATELLITE (1)

  • Sputnik launched in 1957

  • US Navy Transit Satellite Network

    • Operational on Polaris Submarines in 1964

    • Commercially available in 1967

    • Accuracy to 160 metres - measures Doppler Shift

    • Must be nearly Stationary and update only every 40 mins

  • Atomic Clocks


History of satellite 2 l.jpg

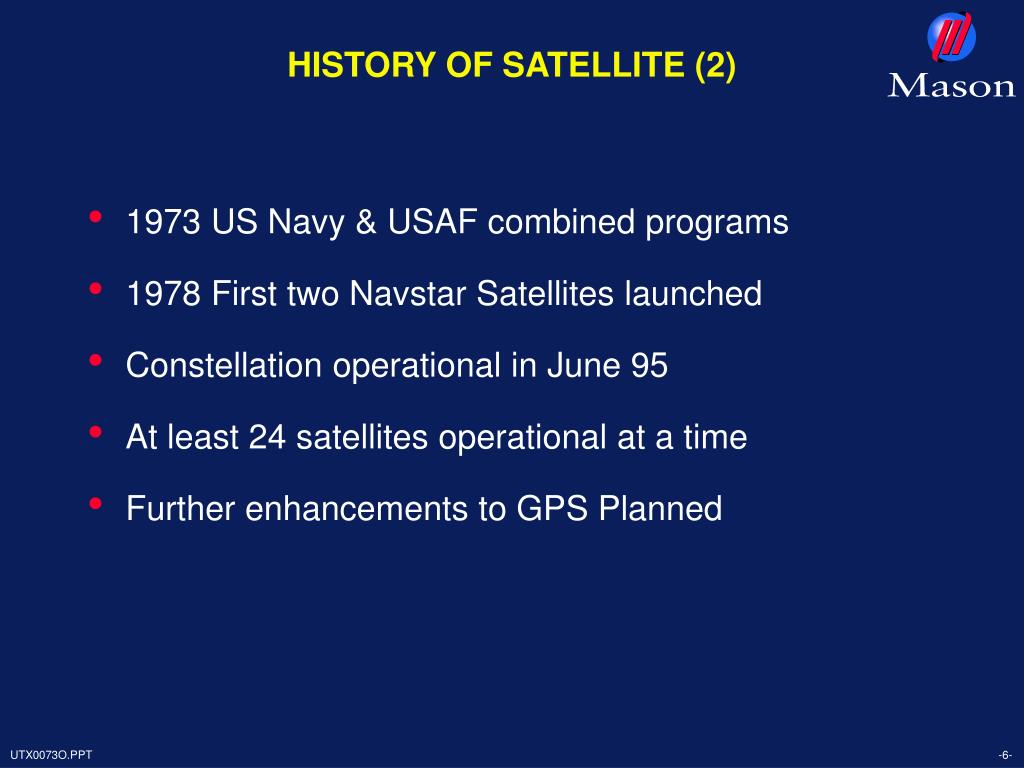

HISTORY OF SATELLITE (2)

  • 1973 US Navy & USAF combined programs

  • 1978 First two Navstar Satellites launched

  • Constellation operational in June 95

  • At least 24 satellites operational at a time

  • Further enhancements to GPS Planned


Satellite developments l.jpg
SATELLITE DEVELOPMENTS

  • EC recommendation to develop Galileo

    • an independent but GPS compatible £2bn Satellite system

  • May 98 US Naval Academy discontinued courses on stellar navigation


Overview of positioning technologies l.jpg
OVERVIEW OF POSITIONING TECHNOLOGIES

  • Terrestrial Radio Beacons

  • GPS

  • GSM

  • Satellite

  • Transponder


Terrestrial radio l.jpg
TERRESTRIAL RADIO

  • Network of fixed basestations

    • LF propagation

    • Number bases

  • Vehicle Unit calculates position and passes data back to control point

    • Requires communications e.g. UHF radio

  • Coverage Issues (Beacon / Bearer)


Securicor datatrack l.jpg
SECURICOR DATATRACK

  • In 1985 Securicor Datatrack looked to increase protection and management of its “Cash in Transit” fleet

    • Location to within 50 metres

    • Protection from Interception and Corruption

  • By 1990 over £19M invested in UK Network

    • 14 LF “Beacons”

    • Dedicated UHF Band Network


Slide11 l.jpg
GPS

  • Global Positioning System

  • Primarily Military System

    • Run by US DOD

    • Selective Availability

  • Civilian accuracy typically 100m

  • Requires view of several satellites

    • Problem in cities


Differential gps l.jpg
DIFFERENTIAL GPS

  • Measures offset at fixed reference location

  • Broadcast to Vehicle to Give Accurate Remote Location

    • corrections broadcast by various carriers

    • use bearer network to send corrections

  • Post-processed at Host

  • Accuracy of about 5 metres


Gps resilence l.jpg
GPS RESILENCE

-------------------------------------------------------------------

APRIL 17, 1998 …13:58 EDT

------------------------------------------------------------------

Russians selling navigational jamming device

BY BOB BREWIN

ALEXANDRIA, Va. -- A recently developed Russian jamming device that can knock out satellite navigation system signals has been sold to numerous countries, opening the possibility that terrorists could seriously disrupt the system that ships and aircraft use to navigate, according to government officials.

-------------------------------------------------------------------

APRIL 13, 1998

------------------------------------------------------------------

AIR FORCE

Rogue transmitter knocks out GPS signals

BY BOB BREWIN

An errant Air Force transmitter in upstate New York jammed Global Positioning System …...


Gps resilence 2 l.jpg
GPS RESILENCE (2)

21st August 1999

Global Positioning Systems Fail Todayby Dave Murphy

Ninety-Five Thousand Japanese drivers may have to leave their cars at home, starting today.

Pioneer Electronic Corp., a vendor of Global Positioning System (GPS) devices, had started to receive hundreds of calls for assistance from owners of its products when the GPS display screens started to go blank or the units froze up.


Slide15 l.jpg
GSM

  • Cell Location

    • Identification of Basestation

    • Accuracy dependent upon Cell Size

  • Cursor

    • Series of fixed GSM receivers

    • Handset software u/g

    • Compares two signals and calculates position

    • Accuracy within 125m


Leo satellites l.jpg
LEO SATELLITES

  • Commercial LEO Services

    • Still building network

  • Low Cost Messaging

    • Containers

    • Remote Metering

  • Subscriber Unit offer location to approx 1Km by measuring Doppler shift




Requirements for bearer network l.jpg

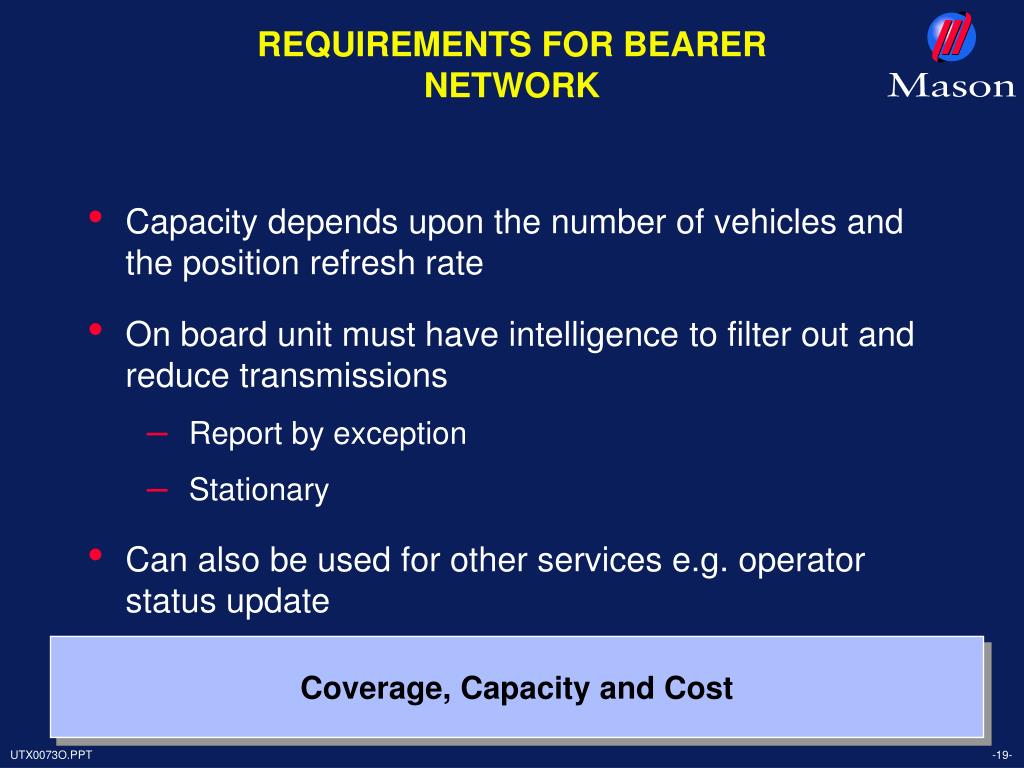

REQUIREMENTS FOR BEARER NETWORK

  • Capacity depends upon the number of vehicles and the position refresh rate

  • On board unit must have intelligence to filter out and reduce transmissions

    • Report by exception

    • Stationary

  • Can also be used for other services e.g. operator status update

Coverage, Capacity and Cost


Examples of bearer l.jpg
EXAMPLES OF BEARER

Coverage, Cost and Capacity

  • RAM Mobile Data

  • Vodafone Value Added and Data Services (PAKNET)

  • GSM SMS

  • Securicor Datatrak

  • PAMR

  • Dolphin

  • Private


Business benefits l.jpg
BUSINESS BENEFITS

  • Little Business Benefit in Location Alone

    • Vehicle location display needs map overlay

    • Can allow GSM Operators to offer Value Added Services

  • Key is the Application

    • At most basic visual tracking - map display overlaid with vehicle locations

    • Advanced systems perform workflow management

Real Benefits come from the application


Emergency services l.jpg
EMERGENCY SERVICES

  • Police Force

    • Blue light/panic button

  • Fire Service

    • Dynamic route assignment

  • Ambulance

    • RBA to cut Emergency response times by 2 mins

    • Response to new Goverment standards

    • Confirmation of message delivery


Transport l.jpg
TRANSPORT

  • £1M contract for 500 installations

    • maximise trailer and load efficiencies

    • reduced fuel consumption

    • internet tracking


Bus services l.jpg
BUS SERVICES

  • Belgian Bus

    • dynamic timetable

    • download location

    • upload pick-up and drop-off points

  • Birmingham Centro

    • real time information display

    • roadside beacons

    • initial results 27% increase in passenger journeys

  • Multi-operator routes


Uk electricity company focus on business drivers l.jpg
UK ELECTRICITY COMPANYFOCUS ON BUSINESS DRIVERS

  • Drive for profit

  • Improved workforce management

  • Competition in energy supply

  • Pressure from Industry Regulator

    • Improvement in customer services

    • Core network reliability


Uk utility company focus on business drivers l.jpg
UK UTILITY COMPANYFOCUS ON BUSINESS DRIVERS

  • Customer Service:

    • Fault restoration times

  • Business Efficiency:

    • Asset management

    • Work management

    • Cost monitoring


Telematics global market l.jpg
TELEMATICS GLOBAL MARKET

  • “Integration of Vehicle Control and Monitoring Systems with Location Tracking Devices and Wireless Telecommunications”

  • Strategis Group estimates that more that 1.2 million vehicles will be fitted Telematics (currently estimated 56,000)

  • Estimate 430,000 commercial vehicles fitted with AVL

  • Growth on consumer market will drive down hardware costs. Market worth $8.4bn by 2011?


Other business drivers l.jpg

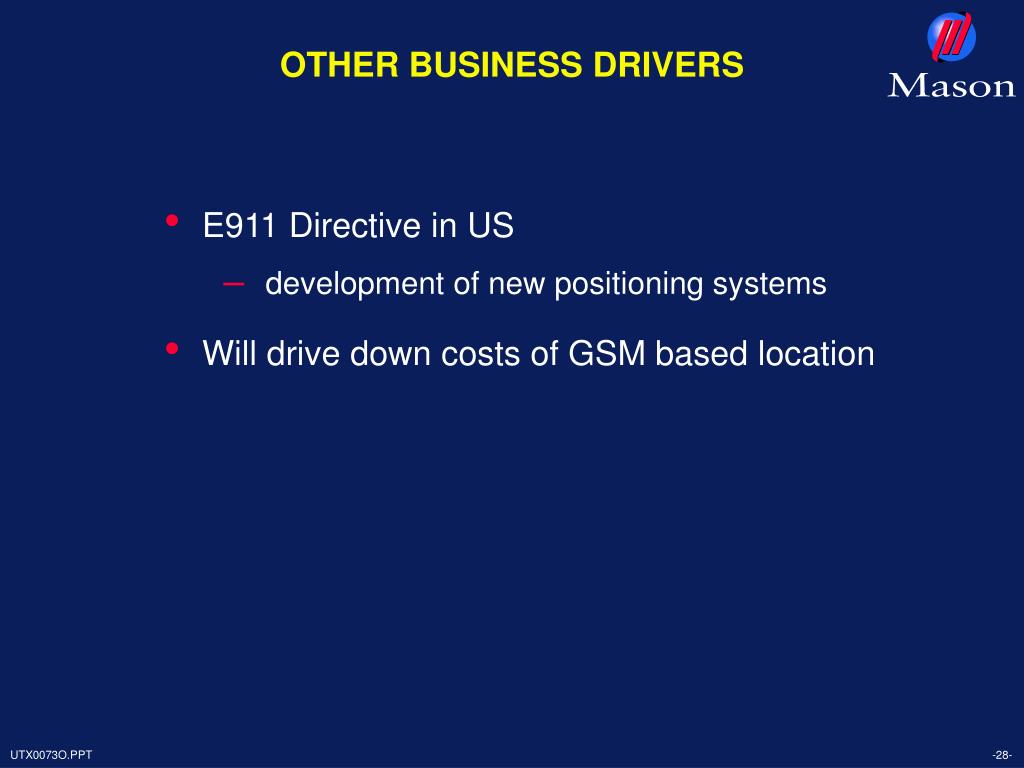

OTHER BUSINESS DRIVERS

  • E911 Directive in US

    • development of new positioning systems

  • Will drive down costs of GSM based location


Slide29 l.jpg

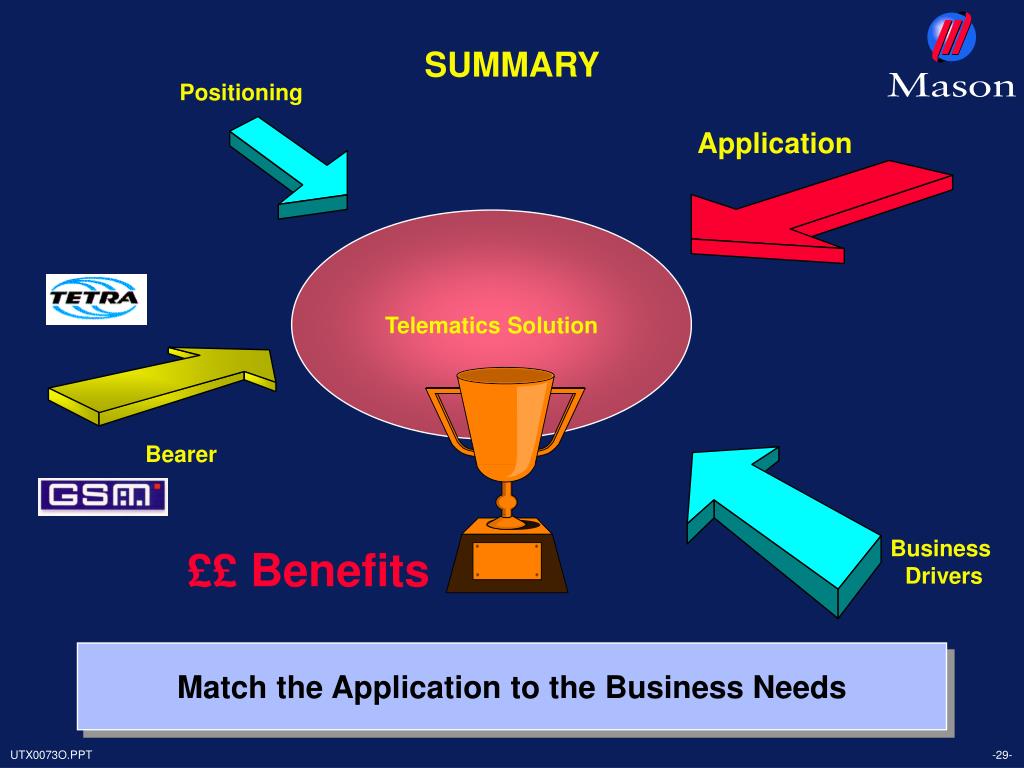

SUMMARY

Positioning

Application

Bearer

££ Benefits

Business

Drivers

Telematics Solution

Match the Application to the Business Needs
