Presentation Transcript

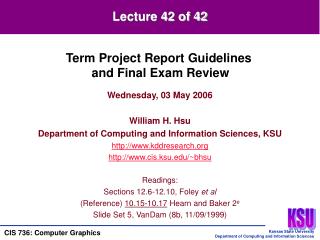

Slide1 l.jpg

Lecture 42 of 42

Term Project Report Guidelines

and Final Exam Review

Wednesday, 03 May 2006

William H. Hsu

Department of Computing and Information Sciences, KSU

http://www.kddresearch.org

http://www.cis.ksu.edu/~bhsu

Readings:

Sections 12.6-12.10, Foley et al

(Reference) 10.15-10.17 Hearn and Baker 2e

Slide Set 5, VanDam (8b, 11/09/1999)


Slide3 l.jpg

Lecture Outline

  • Readings

    • Sections 12.6-12.10, Foley et al

    • Outside reading (optional): 10.15-10.17 Hearn and Baker 2e

    • Outside reading (required): Slide Set 8b, VanDam (11/09/1999)

  • Last Time

    • Overview: data structures

    • Boolean set operations (12.2 FVD), primitive instancing (12.3 FVD), sweeps (12.4 FVD), boundary representations (B-reps, 12.5 FVD)

  • Today

    • Spatial partitioning representations

      • Cell decomposition

      • (Planar and) Spatial occupancy: pixel, voxel

      • Hierarchical spatial occupancy: quadtrees, octrees; algorithms

    • Binary Space Partitioning (BSP) trees

    • Constructive Solid Geometry (CSG)

  • Next Class: Color Models; Visible Surface Determination (Intro)


Slide4 l.jpg

Terminology

  • Modeling Solid Objects

    • Data structures

      • Boundary representations (akaB-reps): describe solid in terms of surfaces

      • Spatial partitioning representations: describe solid in terms of subparts

    • Basic algorithms

      • Construction (aka composition): form new structure by composing primitives

      • Intersection: compute intersection point (if any) with ray, line, other structure

      • Point classification: tell whether query point lies inside or outside

  • Spatial Partitioning

    • Cell decomposition: breaking complex object up into primitive cells

    • Planar and spatial occupancy

      • Voxel: volumetric unit (typically cubic, resulting in cuberille)

      • Hierarchical: variable-granularity decomposition, e.g., quadtrees and octrees

    • Binary Space Partitioning (BSP) tree: break space up into half-spaces

    • Constructive Solid Geometry (CSG): combine primitives using Boolean set operators and modify them using (unary) transformation operations


Slide6 l.jpg

Summary Points

  • Solid Modeling: Overview

    • Data structures

      • Boundary representations (B-reps): last time

      • Spatial partitioning representations: today

    • Algorithms

      • Construction (composition)

      • Intersection, point classification

    • Know: difference between B-reps and spatial partitioning; pros and cons

  • Spatial Partitioning (Review Guide)

    • Cell decomposition – know how to obtain for composite object (simple primitives)

    • Planar and spatial occupancy

      • Simple: uniform subdivision (grid / pixel, volumetric / voxel)

      • Hierarchical: quadtrees and octrees – know how to obtain for 2D, 3D scenes

    • Binary Space Partitioning (BSP) trees – know how to obtain for simple 2D object

    • Constructive Solid Geometry (CSG) – know typical primitives, how to combine

  • Next Class: Color Models; Visible Surface Data Structures


Slide7 l.jpg

Lecture Outline

  • Course Information: Format, Exams, Resources, Assignments, Grading

  • Overview

    • Topics covered

    • What is computer graphics?

    • Applications

  • Brief Tour of Computer Graphics

    • A case study and some demos

    • Survey of rendering and animation systems

    • Applications to computer-aided design (CAD), manufacturing (CAM), and engineering (CAE)

  • Brief Tour of Visualization Systems

    • Information, data, and scientific visualization

    • Focus on informational graphics


Slide8 l.jpg

Course Information and Administrivia

  • Instructor: William H. Hsu

    • E-mail: [email protected]

    • Phone: (785) 532-6350 (office), (785) 539-7180 (home)

    • Office hours: before class; by appointment

  • Grading

    • Assignments (6): 25%, reviews (4): 5%, class participation: 10%, midterm: 15%, final: 25%, project: 25%

    • Lowest homework score and lowest paper review score dropped

  • Homework

    • Six (6) assignments: programming (2), written (2), application (2)

    • Late policy: due on Fridays; -10% credit per day after due date

    • Cheating: don’t do it; see introductory handout for policy

  • Project Option

    • 3-hour project option for graduate students (CIS 690, 798, 890)

    • Term paper or semester research project

    • Sign up by February 11, 2005 if interested (see class web page)


Slide9 l.jpg

Class Resources

  • Web Page (Required)

    • http://www.kddresearch.org/Courses/Spring-2005/CIS736

    • Lecture notes (MS PowerPoint 97/2000/XP, Portable Document Format)

    • Homeworks (MS Word 97/2000/XP, HTML)

    • Exam and homework solutions (MS Word 97/2000/XP, PDF)

    • Class announcements (students responsibility to follow) and grade postings

  • Course Notes at Copy Center (Required)

  • Class Web Board (Required)

    • http://groups.yahoo.com/group/ksu-cis736-spring2005

    • Login: Students; password: announced in class

    • Research announcements (seminars, conferences, calls for papers)

    • Discussions (instructor and other students)

  • Mailing List (Automatic)

    • [email protected]

    • Sign-up sheet (course roster)

    • Reminders, related research, job announcements


Slide10 l.jpg

Course Overview

  • Graphics Systems and Techniques

    • 2-D, 3-D models: curves, surfaces, visible surface identification, illumination

    • Photorealistic rendering and animation: shading models, ray tracing, radiosity

    • Special topics: fractals, information visualization

  • Operations

    • Surface modeling, mapping

    • Pipelines for display, transformation, illumination, animation

  • Computer Graphics (CG): Duality with Computer Vision

  • Visualization and User Interfaces

    • Display optimization: hardware, libraries, GUI design

    • Techniques for quantitative information, objects, processes

    • Survey of statistical, data, information, and scientific visualization

  • Applications

    • CAD/CAM/CAE: object transformations, surface/solid modeling, animation

    • Entertainment: 3-D games, photorealistic animation, etc.

    • Analysis: info visualization, decision support systems, intelligent displays


Slide11 l.jpg

Why Computer Graphics?

  • Developing Computational Capability

    • Rendering: synthesizing realistic-looking, useful, or interesting images

    • Animation: creating visual impression of motion

    • Image processing: analyzing, transforming, displaying images efficiently

  • Better Understanding of Data, Objects, Processes through Visualization

    • Visual summarization, description, manipulation

    • Virtual environments (VR), visual monitoring, interactivity

    • Human-computer intelligent interaction (HCII): training, tutoring, analysis, control systems

  • Time is Right

    • Recent progress in algorithms and theory

    • Rapidly emergence of new I/O (display and data acquisition) technologies

    • Available computational power, improving price-performance-ratio of hardware

    • Growth and interest of graphics industries (e.g., information visualization, entertainment CAD)


Slide12 l.jpg

Front-End

(Geometry Processing)

Graphics

Database

Back-End

(Rasterization)

Display

Traversal

Modeling

Transformation

Viewing

Operation

  • Visible-Surface

  • Determination

  • Scan Conversion

  • Shading /

  • Illumination

Image Synthesis Pipeline

Graphics

Database

Editing



Slide13 l.jpg

HypermediaUser Interfaces

  • Hypermedia

    • Database format (similar to hypertext) that provides display-based access to (internetworked) multimedia (text, image, audio, video, etc.) documents

    • Chimera: http://www.ics.uci.edu/pub/chimera/

  • Virtual Environments

    • Immersion: interactive training, tutoring systems

    • Entertainment hypermedia

  • Visualization and Computer-Aided Design and Engineering (CAD/CAE)

    • Visualization: scientific, data/information, statistics

    • User interfaces for CAD/CAE/CAM/CASE: http://www.isii.com

NCSA D2K:

http://d2k.ncsa.uiuc.edu

Visual programming system for high-performance knowledge discovery in databases (KDD)


Slide14 l.jpg

Relevant Disciplines

  • Analytic Geometry

  • Art and Graphic Design

  • Cognitive Science

  • Computer Engineering

  • Engineering Design

  • Education

  • Film

  • Human Factors

  • Linear Algebra

  • Numerical Analysis

Rendering Hardware

VR Systems

Portable/Embedded CG

CAD

CAE / CASE

CAM

Immersive Training

Tutoring Interfaces

Color/Optical Models

CG/Vision Duality

Interface Design

Computer

Graphics

(CG)

Layout

CG Design

Visualization

Parametric Equations

Conics

Polygon Rendering

Surface Modeling

Physically-Based Modeling

Stat/Info Visualization

Transformations

Change of Coordinate Systems

User Modeling

Ergonomic Interfaces, I/O

Animation

Large-Scale CG


Slide15 l.jpg

1

2

3

4

5

8

7

6

Curve and Surface Modelingin Computer-Aided Design (CAD)

http://www.geocities.com/SiliconValley/Lakes/2057/nurbs.html


Slide16 l.jpg

http://www.aliaswavefront.com

http://www.discreet.com

PhotorealisticIllumination Models

http://www.pixar.com


Slide17 l.jpg

Fractal Systems

http://sprott.physics.wisc.edu/fractals.htm


Slide18 l.jpg

Visible Decisions SeeIT (http://www.vdi.com)

Information Visualization


Slide19 l.jpg

Determine Objectives of

Graphics System

Control

Interface

Decision

Support

Entertainment

Education

Determine

Display Objective

Interactively

Analyze

Data / Documents

Visualize Physical

Objects

Monitor

Process

Determine Representations

In Graphics Database

Solid Geometric

Model

Wireframe /

Polygon Mesh

Fractal

System

NURBS

Determine and Implement

Rendering Pipeline

Radiosity and

Polygon Shading

Shaded-Polygon

Rendering

Ray Tracing

Design Choices and Issuesin Computer Graphics

Completed Design


Slide20 l.jpg

Math Review

  • Overview: First Two Weeks

    • Review of mathematical foundations of CG: analytic geometry, linear algebra

    • Line and polygon rendering

    • Matrix transformations

    • Graphical interfaces

  • Line and Polygon Rendering

    • Basic line drawing and 2-D clipping

    • Bresenham’s algorithm

    • Follow-up: 3-D clipping, z-buffering (painter’s algorithm)

  • Matrix Transformations

    • Application of linear transformations to rendering

    • Basic operations: translation, rotation, scaling, shearing

    • Follow-up: review of standard graphics libraries (e.g., OpenGL)

  • Graphical Interfaces

    • Brief overview

    • Survey of windowing environments (MFC, Java AWT)


Slide21 l.jpg

6500 news stories

from the WWW

in 1997

Cartia ThemeScapes –http://www.cartia.com

iWing – http://www.geocities.com/CapeCanaveral/3925/

Entertainment CGA

Hypermedia and Statistical Visualization

Destroyed

Normal

Extinguished

Ignited

Fire Alarm

Engulfed

Flooding

Virtual Environments for

Immersive Training

DC-ARM – http://www-kbs.ai.uiuc.edu

Interesting Industrial Applications
