The hadoop fair scheduler

The Hadoop Fair Scheduler

Matei Zaharia

Cloudera / Facebook / UC Berkeley

UC Berkeley


Outline

Outline

  • Motivation / Hadoop usage at Facebook

  • Fair scheduler basics

  • Configuring the fair scheduler

  • Future plans


Motivation

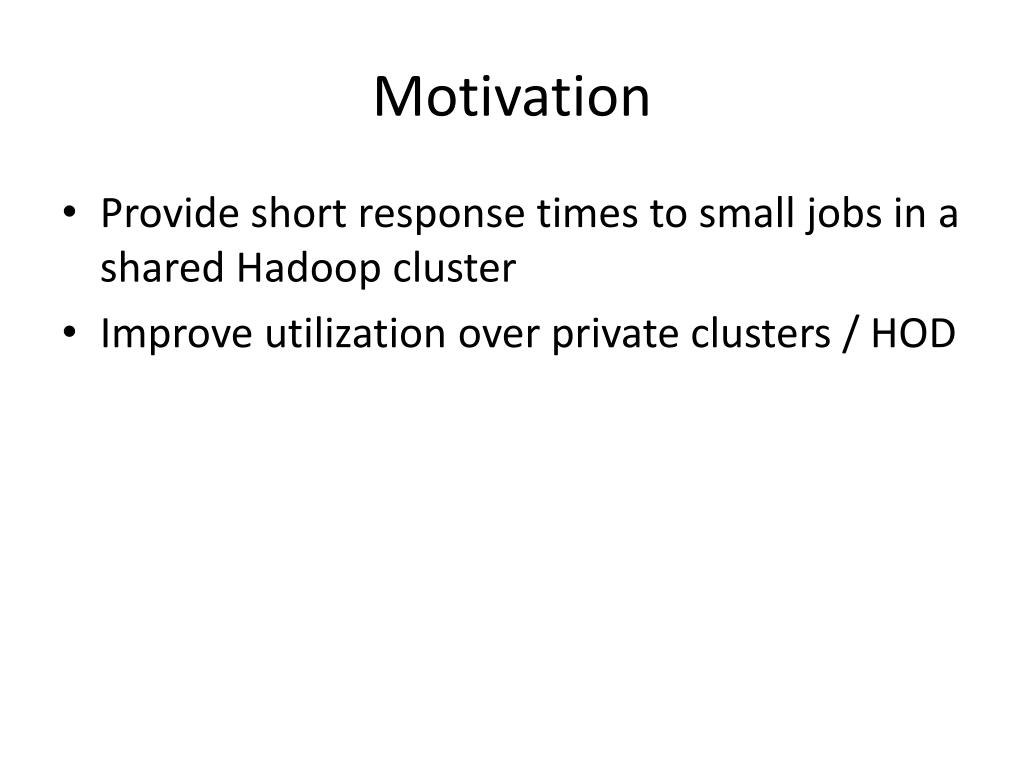

Motivation

  • Provide short response times to small jobs in a shared Hadoop cluster

  • Improve utilization over private clusters / HOD


Hadoop usage at facebook

Hadoop Usage at Facebook

  • Data warehouse running Hive

  • 600 machines, 4800 cores, 2.4 PB disk

  • 3200 jobs per day

  • 50+ engineers have used Hadoop


Facebook data pipeline

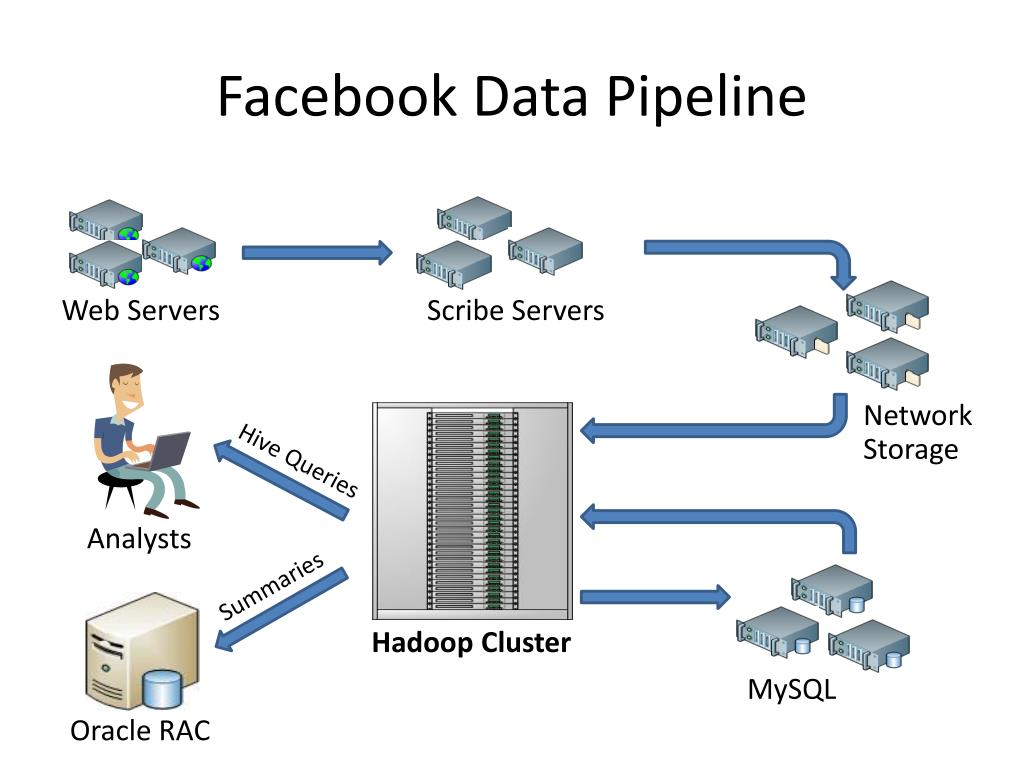

Facebook Data Pipeline

Web Servers

Scribe Servers

Network Storage

Hive Queries

Analysts

Summaries

Hadoop Cluster

MySQL

Oracle RAC


Facebook job types

Facebook Job Types

  • Production jobs: load data, compute statistics, detect spam, etc

  • Long experiments: machine learning, etc

  • Small ad-hoc queries: Hive jobs, sampling

GOAL: Provide fast response times for small jobs and

guaranteed service levels for production jobs


Outline1

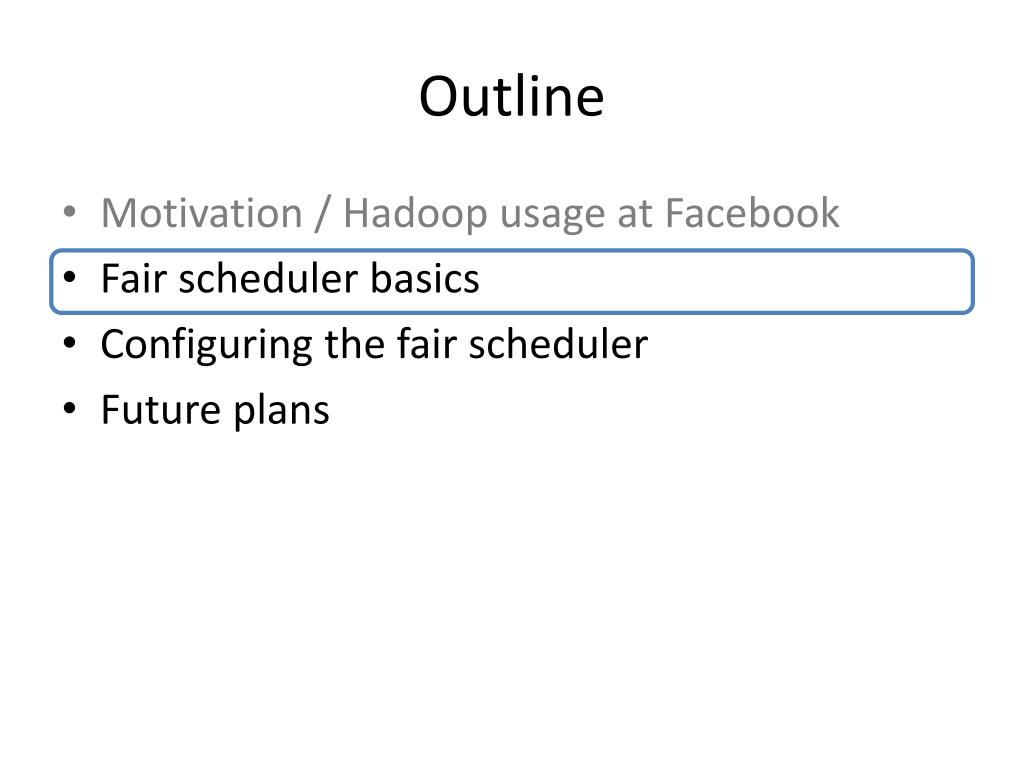

Outline

  • Motivation / Hadoop usage at Facebook

  • Fair scheduler basics

  • Configuring the fair scheduler

  • Future plans


Fair scheduler basics

Fair Scheduler Basics

  • Group jobs into “pools”

  • Assign each pool a guaranteed minimum share (split up among its jobs)

  • Split excess capacity evenly between jobs


Pools

Pools

  • Determined from a configurable job property

    • Default (before 0.20): mapred.queue.name

    • At Facebook: user.name (one pool per user)

  • Unmarked jobs go into a “default pool”

  • Pools have properties:

    • Minimum map slots

    • Minimum reduce slots

    • Limit on # of running jobs


Scheduling algorithm

Scheduling Algorithm

  • Divide each pool’s min share among its jobs

  • Divide excess capacity among all jobs*

  • When a slot needs to be assigned:

    • If there is any job below its min share, schedule it

    • Else schedule the job that we’ve been most unfair to (based on “deficit”)

* Fair schedulers from Hadoop 0.20 on will share equally between pools, not jobs;

patch available at https://issues.apache.org/jira/browse/HADOOP-4789


Scheduler dashboard

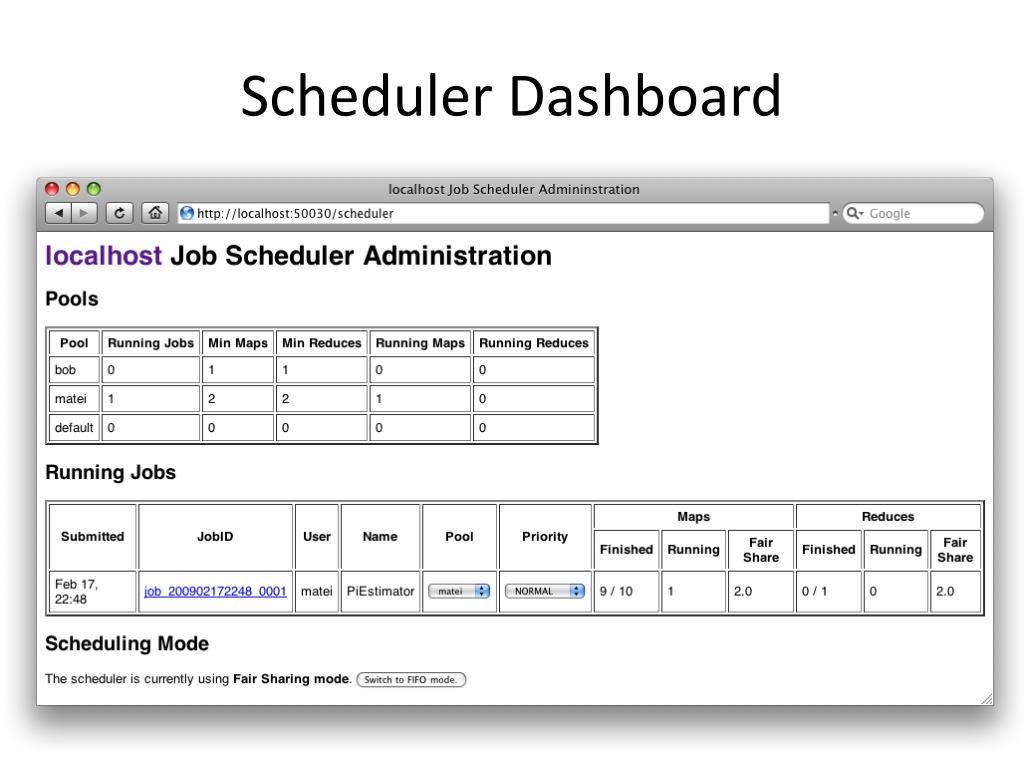

Scheduler Dashboard


Scheduler dashboard1

Scheduler Dashboard


Scheduler dashboard2

Scheduler Dashboard

Reassign pool


Scheduler dashboard3

Scheduler Dashboard

Change priority


Scheduler dashboard4

Scheduler Dashboard

FIFO mode (for testing)


Additional features

Additional Features

  • Job weights for unequal sharing:

    • Based on priority (each level is 2x more)

    • Based on size (mapred.fairscheduler.sizebasedweight)

  • Limits on # of running jobs:

    • Per user

    • Per pool


Outline2

Outline

  • Motivation / Hadoop usage at Facebook

  • Fair scheduler basics

  • Configuring the fair scheduler

  • Future plans


Installing the scheduler

Installing the Scheduler

  • Compile it:

    • ant package

  • Place it on the classpath:

    • cp build/contrib/fairscheduler/*.jar lib

    • Alternatively, add the JAR to HADOOP_CLASSPATH in conf/hadoop-env.sh


Configuration files

Configuration Files

  • Hadoop config (conf/hadoop-site.xml)

    • Contains scheduler options, pointer to pools file

  • Pools file (pools.xml)

    • Contains min share allocations and limits on pools

    • Reloaded every 15 seconds to allow reconfiguring pools at runtime


Minimal hadoop site xml

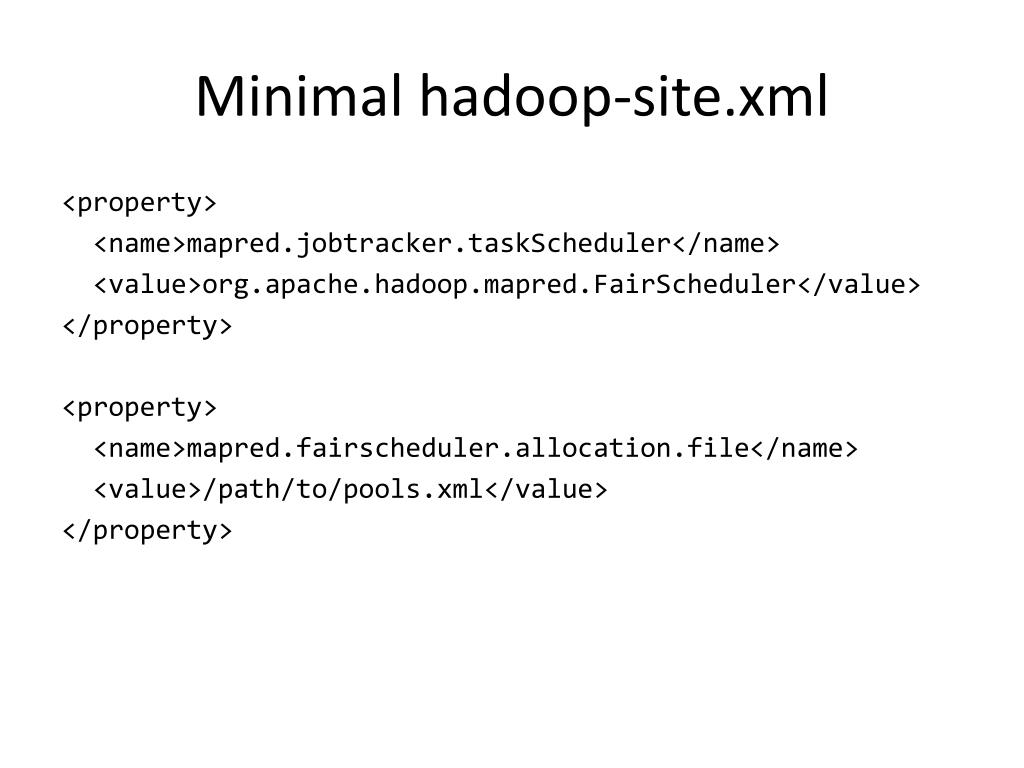

Minimal hadoop-site.xml

<property>

<name>mapred.jobtracker.taskScheduler</name>

<value>org.apache.hadoop.mapred.FairScheduler</value>

</property>

<property>

<name>mapred.fairscheduler.allocation.file</name>

<value>/path/to/pools.xml</value>

</property>


Minimal pools xml

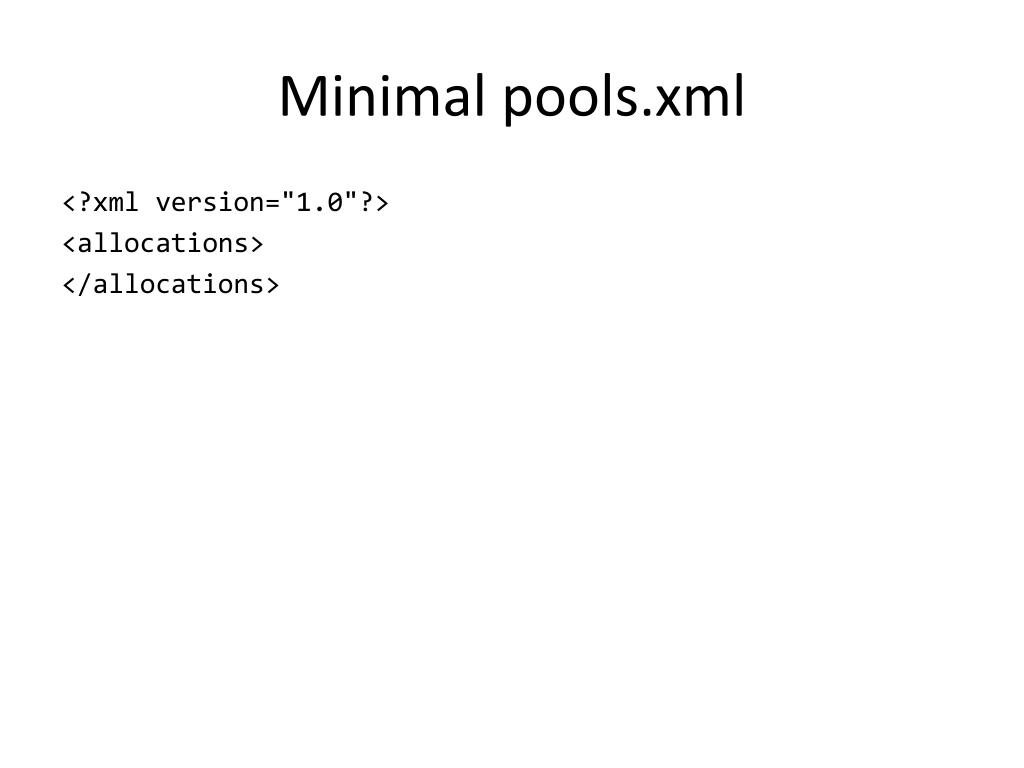

Minimal pools.xml

<?xml version="1.0"?>

<allocations>

</allocations>


Configuring a pool

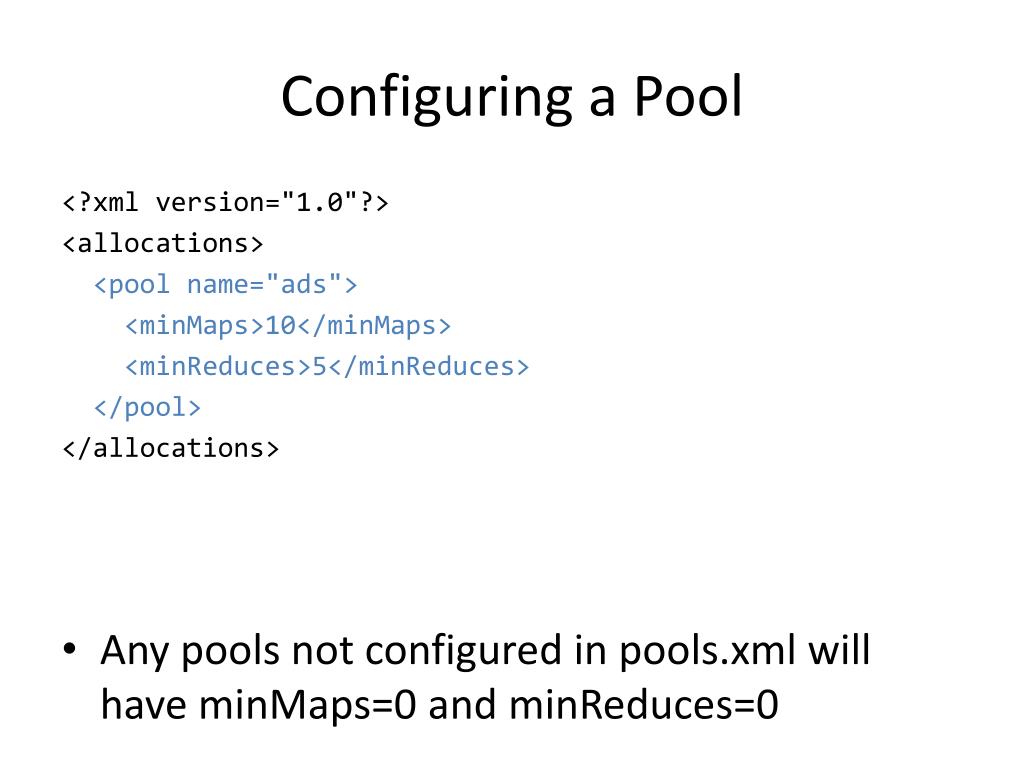

Configuring a Pool

<?xml version="1.0"?>

<allocations>

<pool name="ads">

<minMaps>10</minMaps>

<minReduces>5</minReduces>

</pool>

</allocations>

  • Any pools not configured in pools.xml will have minMaps=0 and minReduces=0


Setting running job limits

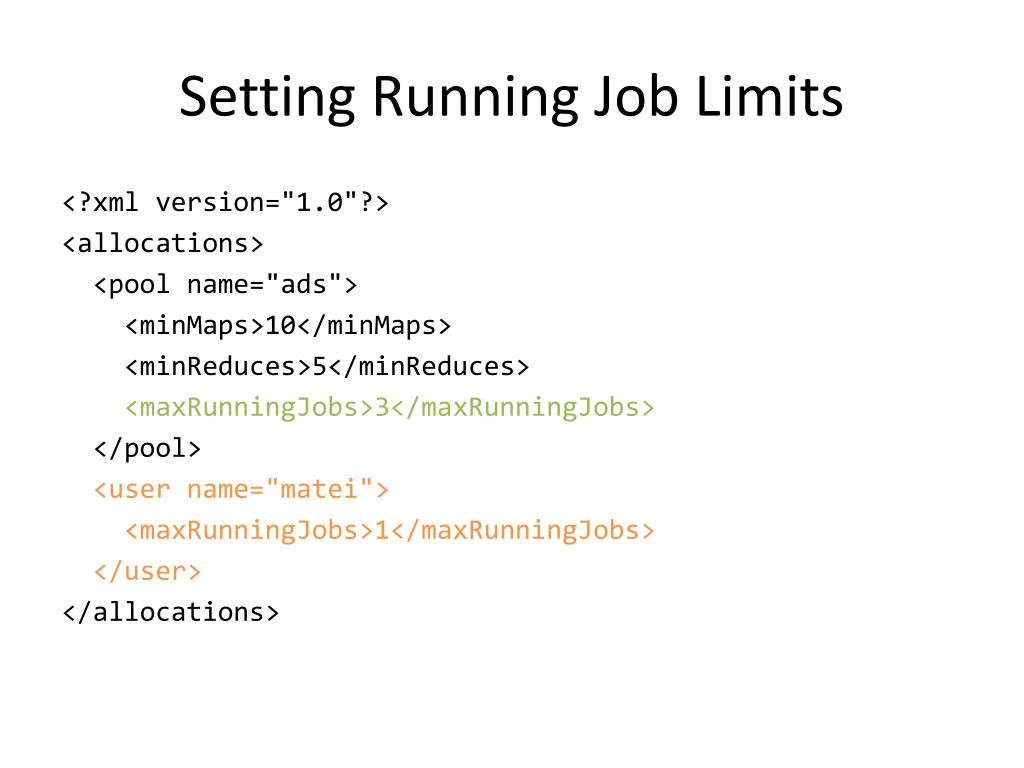

Setting Running Job Limits

<?xml version="1.0"?>

<allocations>

<pool name="ads">

<minMaps>10</minMaps>

<minReduces>5</minReduces>

<maxRunningJobs>3</maxRunningJobs>

</pool>

<user name="matei">

<maxRunningJobs>1</maxRunningJobs>

</user>

</allocations>


Default jobs limit for users

Default Jobs Limit for Users

<?xml version="1.0"?>

<allocations>

<pool name="ads">

<minMaps>10</minMaps>

<minReduces>5</minReduces>

<maxRunningJobs>3</maxRunningJobs>

</pool>

<user name="matei">

<maxRunningJobs>1</maxRunningJobs>

</user>

<userMaxJobsDefault>10</userMaxJobsDefault>

</allocations>


Other hadoop site xml properties

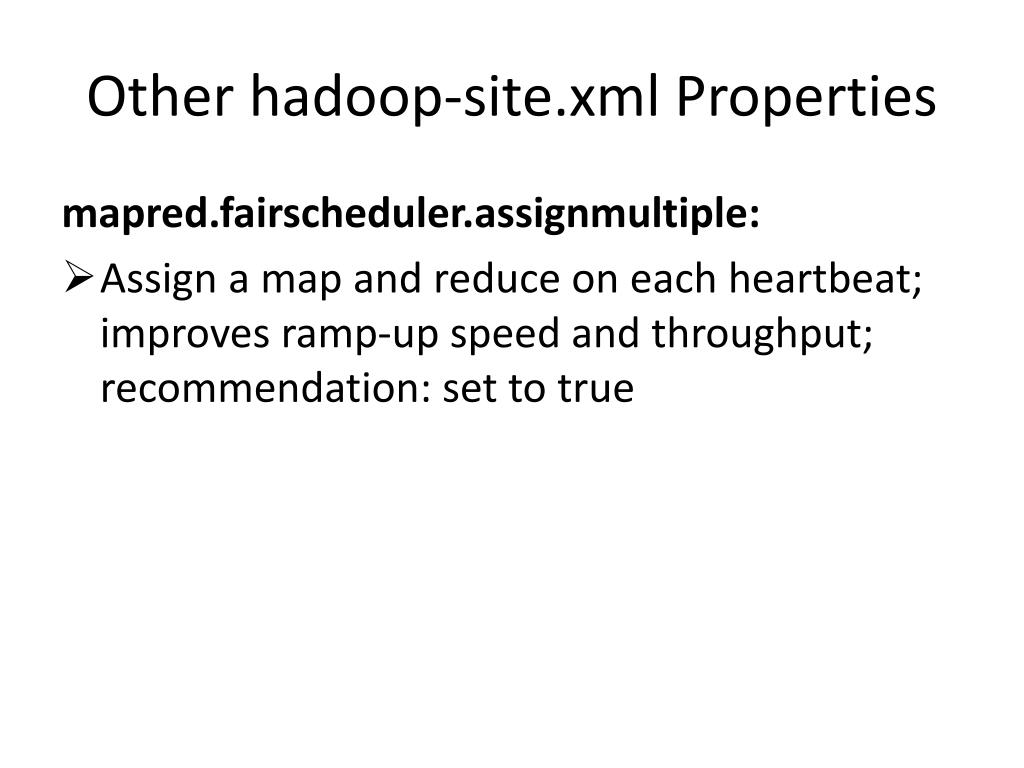

Other hadoop-site.xml Properties

mapred.fairscheduler.assignmultiple:

  • Assign a map and reduce on each heartbeat; improves ramp-up speed and throughput; recommendation: set to true


Other hadoop site xml properties1

Other hadoop-site.xml Properties

mapred.fairscheduler.poolnameproperty:

  • Which jobconf property to use to determine what pool a job is in

    • Default: mapred.queue.name (queue name)

    • Another useful option: user.name

    • Can also make up your own, e.g. “project”


Other hadoop site xml properties2

Other hadoop-site.xml Properties

mapred.fairscheduler.weightadjuster:

  • Allows modifying job weights through a plugin class; one useful example is provided – a new job booster to let short jobs finish faster:

    Please see README for details

<property>

<name>mapred.fairscheduler.weightadjuster</name>

<value>org.apache.hadoop.mapred.NewJobWeightBooster</value>

</property>


Outline3

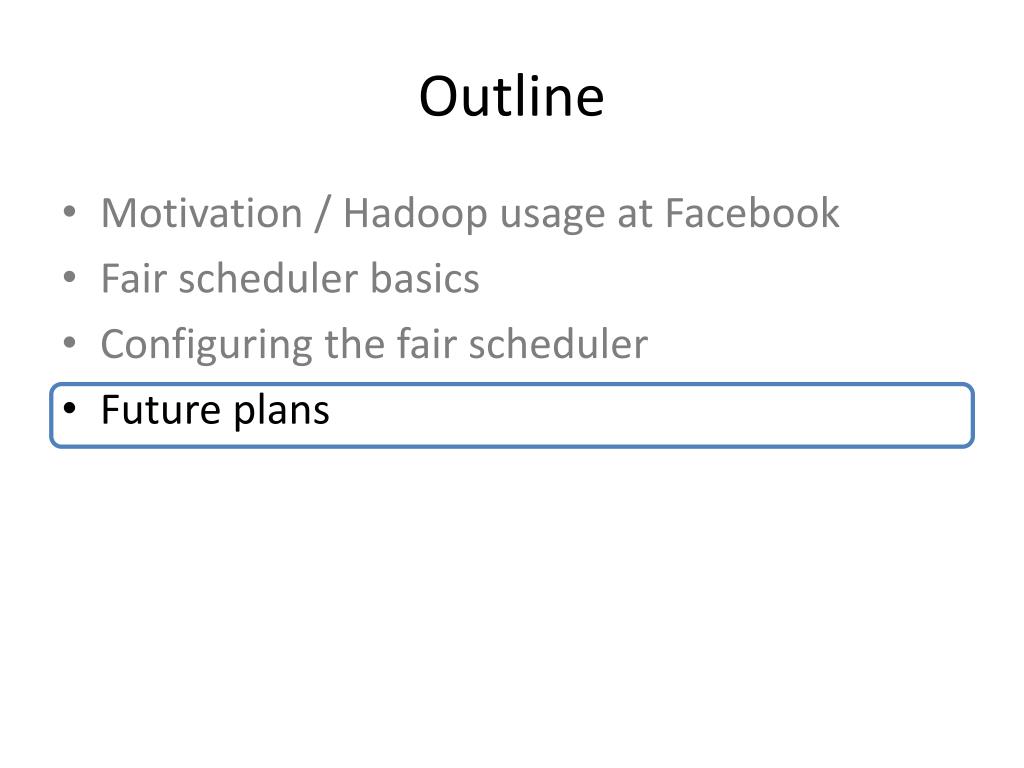

Outline

  • Motivation / Hadoop usage at Facebook

  • Fair scheduler basics

  • Configuring the fair scheduler

  • Future plans


Future plans

Future Plans

  • Share equally between pools, not jobs (Hadoop 0.20 release, HADOOP-4789)

  • Preemption if a job is starved of its min or fair share for some timeout (HADOOP-4665)

  • Locality wait optimization (HADOOP-4667)


Future plans1

Future Plans

  • Simpler scheduling model (HADOOP-4803)

  • FIFO pools (HADOOP-4803, HADOOP-5186)

  • Delayed job initialization (HADOOP-5186)

  • Scalability and operational improvements


Thanks

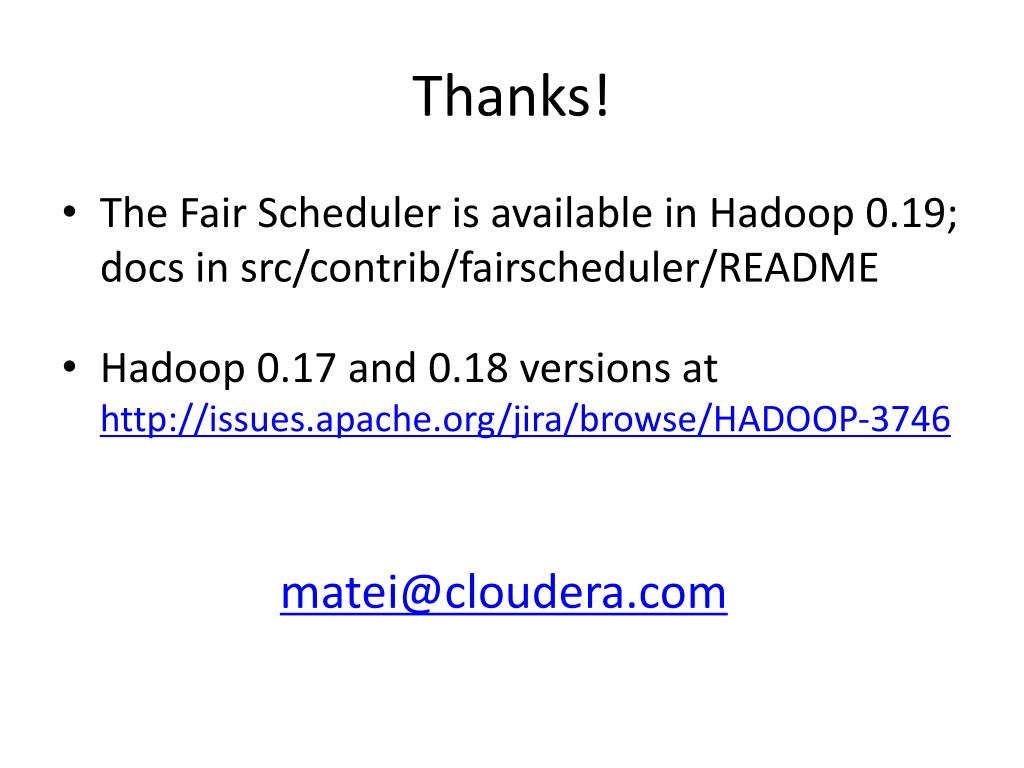

Thanks!

  • The Fair Scheduler is available in Hadoop 0.19; docs in src/contrib/fairscheduler/README

  • Hadoop 0.17 and 0.18 versions at http://issues.apache.org/jira/browse/HADOOP-3746

[email protected]
