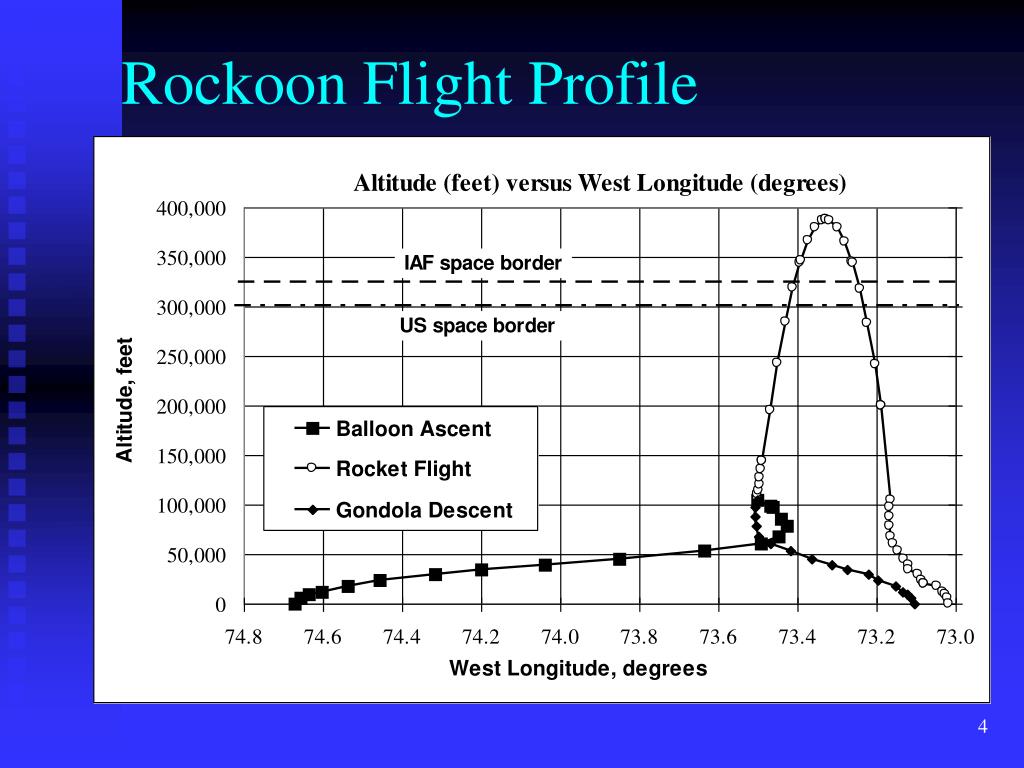

Rockoons Long Duration Flight SL1 Rocket and Avionics Sky Launch 1 Rocket and Avionics Rockoon Mission Rockoon Flight Profile Mobile rocket motor test stand Nitrous Oxide/rubber Hybrid Motor 1500 lbf Thrust Test Balloon Testing High Altitude Subsystem Testing

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Click HERE for GPSL2007 Long Duration Flight Talk' - jana


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
Rockoons long duration flight l.jpg
RockoonsLong Duration Flight


Sl1 rocket and avionics l.jpg

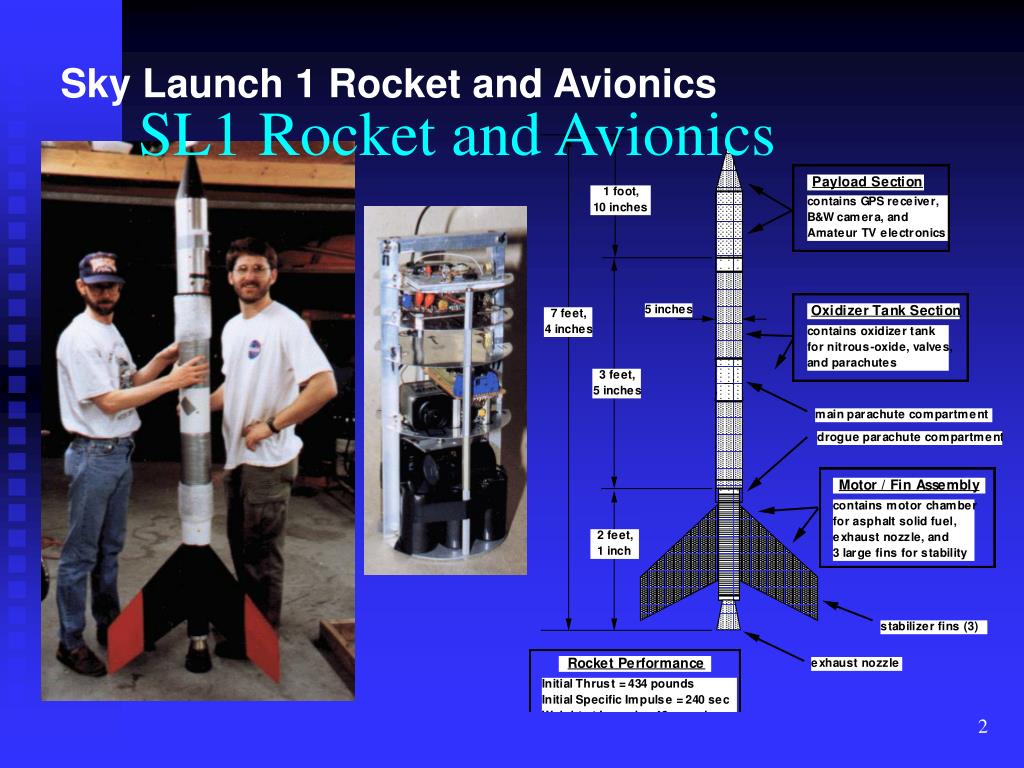

SL1 Rocket and Avionics

Sky Launch 1 Rocket and Avionics






Balloon testing l.jpg
Balloon Testing

High Altitude Subsystem Testing

Telemetry and command/control link testing with latex balloons

Zero pressure plastic balloon tests of igniter electronics and nitrous tank


Rocket ground test l.jpg
Rocket ground test

Ground Launch of Hybrid Rocket

Rocket ascended to over 20,000 feet


Sl1 launch l.jpg
SL1 Launch

Launch of Sky Launch 1 Rockoon

Rocket ascended to over 30 nautical miles


Launched from the north carolina shoreline l.jpg
Launched from the North Carolina Shoreline

Rocket ignited at 70k plus feet while 120 miles out to sea


Sl1 rocket l.jpg
SL1 rocket

Rockoon Rocket That Made Guinness Book of World Records

Apogee: 36 miles; 14 miles short of our goal.

Record stood for 7 years until broken by CSXT rocket in 2004.


Sl2 on deck l.jpg
SL2 on deck

Moving up to larger Sky Launch 2

  • 100 miles from shore in the Gulf of Mexico

  • Sea-launch, like those pioneered by Dr. Van Allen

  • Sea launch greatly reduces risk and liability concerns

  • NASA provided use of ocean-going barge for our first test

  • Ability to reel the balloon straight up vertically out of the box

  • Minimal boat deck area required for medium to large sized balloons

  • Boat speed completely cancelled out surface wind


Blrv rocket glider l.jpg
BLRV Rocket Glider


Oil platform utility boat l.jpg
Oil PlatformUtility Boat


Blrv ground station on boat deck l.jpg
BLRVGround Stationon Boat Deck


Blrv launch l.jpg
BLRV Launch


Cats prize l.jpg
CATS Prize

The Cheap Access To Space (CATS) Competition was established in 1997.

Goal: First non-governmental rocket to put 2 kg to an apogee of 200 km by November 8, 2000.

Our CATS rocket was launched 200 miles out to sea off the Florida coast on October 29, 2000.


Cats rockoon command telemetry and video downlink modules l.jpg
CATS Rockoon Command, Telemetry and Video Downlink Modules


Cats rockoon 200 miles from shore 14 foot rocket 400 pound gondola l.jpg
CATS Rockoon200 miles from shore – 14 foot rocket, 400 pound gondola



Cats rocket on it s way l.jpg
CATS Rocket on it’s way

  • Rocket launched from 75k ft

  • Additional Advantages of Boat Launched balloons:

  • Hazardous Payloads can be flown that would be difficult to fly over land.

  • Greatly increased launch windows due to surface wind cancellation

  • Ability to fly from remote locations without need of land-based ground support


Boat launches also help prevent these ground based launch and recovery issues l.jpg
Boat launches also help prevent theseground-based launch and recovery issues


Come on up the view is great l.jpg
Come on up, the view is great!

  • 100,000 feet high, 400 miles to the horizon


Coverage area of a balloon propagation map prior to liftoff l.jpg
Coverage area of a balloonPropagation map prior to liftoff



Coverage area of a balloon digipeater reception list k5is 11 texas balloon l.jpg
Coverage area of a balloonDigipeater Reception List – (K5IS-11 Texas balloon)


Long duration balloons l.jpg
Long Duration Balloons

  • Polyethylene Zero Pressure

  • If vented, can stay aloft at float altitude for several days with ballast drop each night

  • Expensive to buy

  • - Difficult to make


Long duration balloons28 l.jpg

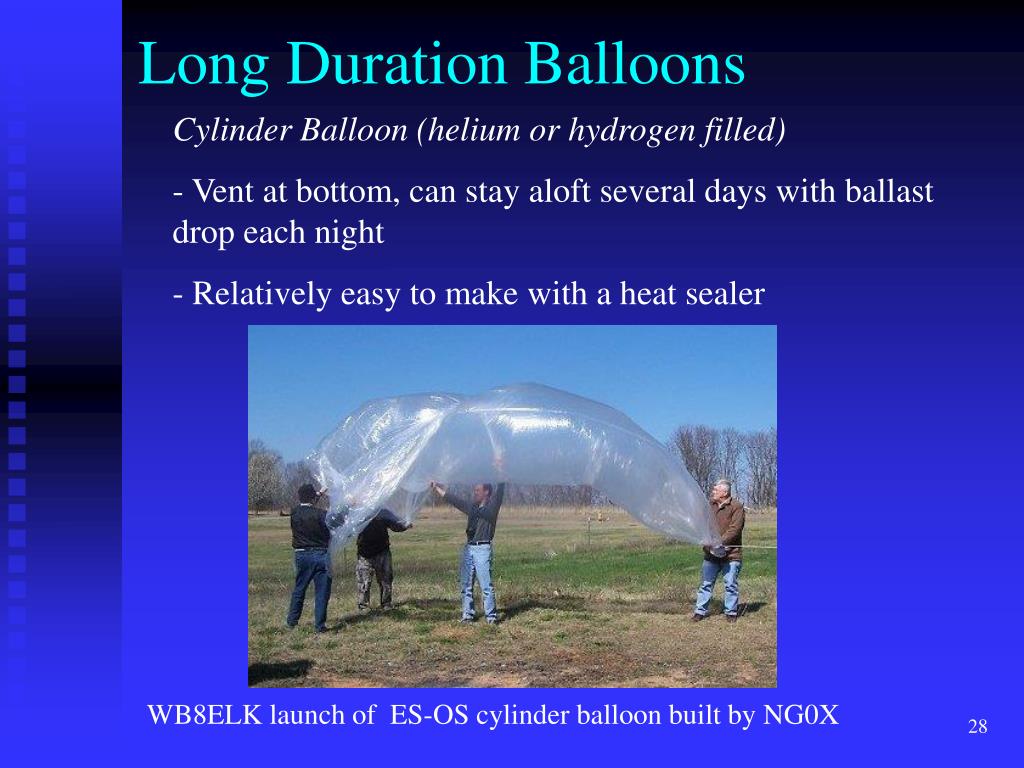

Long Duration Balloons

  • Cylinder Balloon (helium or hydrogen filled)

  • Vent at bottom, can stay aloft several days with ballast drop each night

  • Relatively easy to make with a heat sealer

WB8ELK launch of ES-OS cylinder balloon built by NG0X


Solar balloons only hot air one day flight l.jpg
Solar Balloons– only Hot Air(one day flight)

  • Can be assembled with Scotch Tape

  • - Inflated with a fan

  • Sun does the rest

  • Can stay at float altitude all day long until sunset

  • Tetroon only takes 3 seams and approximates a sphere

KC8UCH

http://mail.gpacademy.org/~rochter/

Solar Tetroon and Cylinder

http://www.solar-balloons.com


Long duration floater flights l.jpg
Long Duration floater flights

  • LATEX Floaters

  • Vent valve in balloon neck

  • Ballast drop

  • - Several hours to 20+ hrs

  • UV degradation of latex will limit time aloft when sunlit

  • Low-tech idea proven out by Dr. Jean Laby:

  • ( tie string to top of balloon to lift ping-pong style valve in balloon neck)


Long duration floater flights31 l.jpg
Long Duration floater flights

  • No vent valve

  • No ballast

  • 20 plus hour flights

  • Standard latex balloons

  • Low free lift

  • Released a few hours before sunset

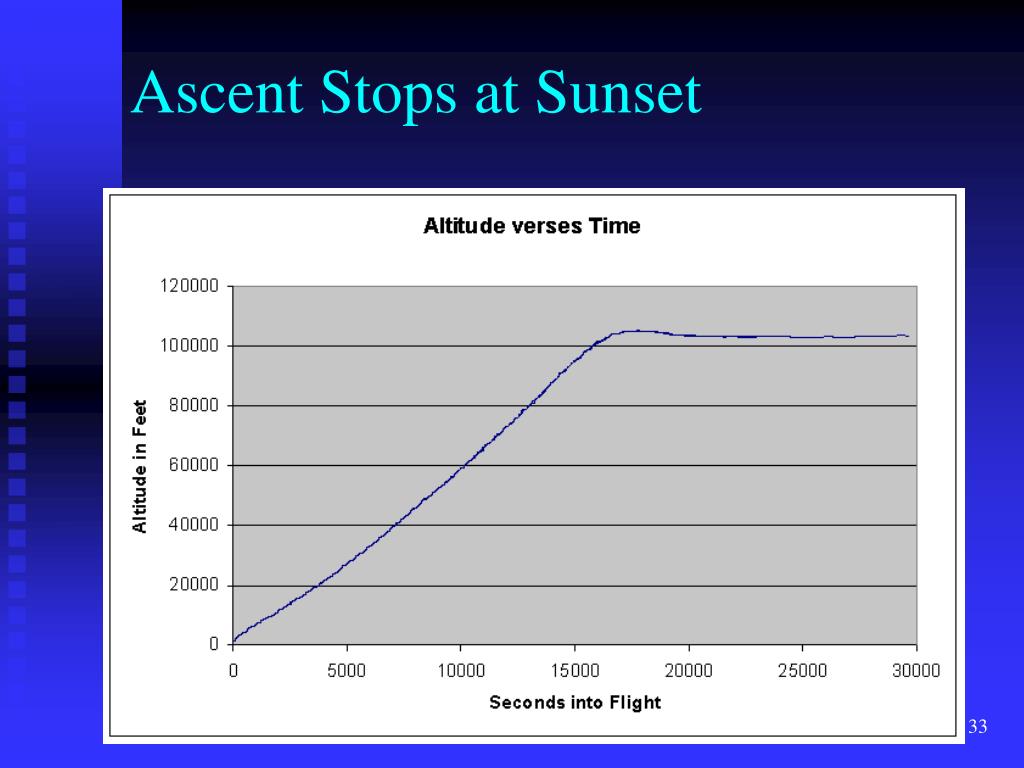

  • Ascent stops at balloon sunset

  • HiBall Launch Video




Launched from huntsville al 1400 miles downrange in 20 hours l.jpg
Launched from Huntsville, AL1400 miles downrange in 20 hours

Green = Daytime portion Violet = Nighttime portion


Long duration floater flights35 l.jpg
Long Duration floater flights

Using READY HYSPLIT to predict flight paths for multi-day missions

- Registration required by FAXing in request on your group’s letterhead

- Once registered, can do long range forecasts at various float altitudes

- Can run archived data without registration


Long duration floater flights36 l.jpg
Long Duration floater flights

JANUARY Flight Paths

(72 hours aloft)

Float altitudes:

Red – 45,000 feet

Blue – 60,000 feet

Green – 75,000 feet


Long duration floater flights37 l.jpg
Long Duration floater flights

MARCH Flight Paths

(72 hours aloft)

Float altitudes:

Red – 45,000 feet

Blue – 60,000 feet

Green – 75,000 feet


Long duration floater flights38 l.jpg
Long Duration floater flights

JULY Flight Paths

(72 hours aloft)

Float altitudes:

Red – 45,000 feet

Blue – 60,000 feet

Green – 75,000 feet


Long duration floater flights39 l.jpg
Long Duration floater flights

OCTOBER Flight Paths

(72 hours aloft)

Float altitudes:

Red – 45,000 feet

Blue – 60,000 feet

Green – 75,000 feet


Long duration floater flights40 l.jpg
Long Duration floater flights

NOVEMBER Flight Paths

(72 hours aloft)

Float altitudes:

Red – 45,000 feet

Blue – 60,000 feet

Green – 75,000 feet


20 th anniversary of arhab amateur radio high altitude ballooning l.jpg
20th Anniversary of ARHAB(Amateur Radio High Altitude Ballooning)

August 11, 2007

Findlay, Ohio

Multiple Launches

http://www.wb8elk.com

Great Plains Superlaunch Conference and Launch

Grand Island, NE

July 6-8, 2007

Conference and Multiple launch

http://www.superlaunch.org


The future of balloon technology l.jpg
The Future of Balloon Technology?

Launch Video

http://www.wb8elk.com
