Presentation Transcript


Chemical and physical properties l.jpg

Chemical and Physical Properties

MFG 355


Ultraviolet uv light degradation l.jpg

Ultraviolet (UV) Light Degradation

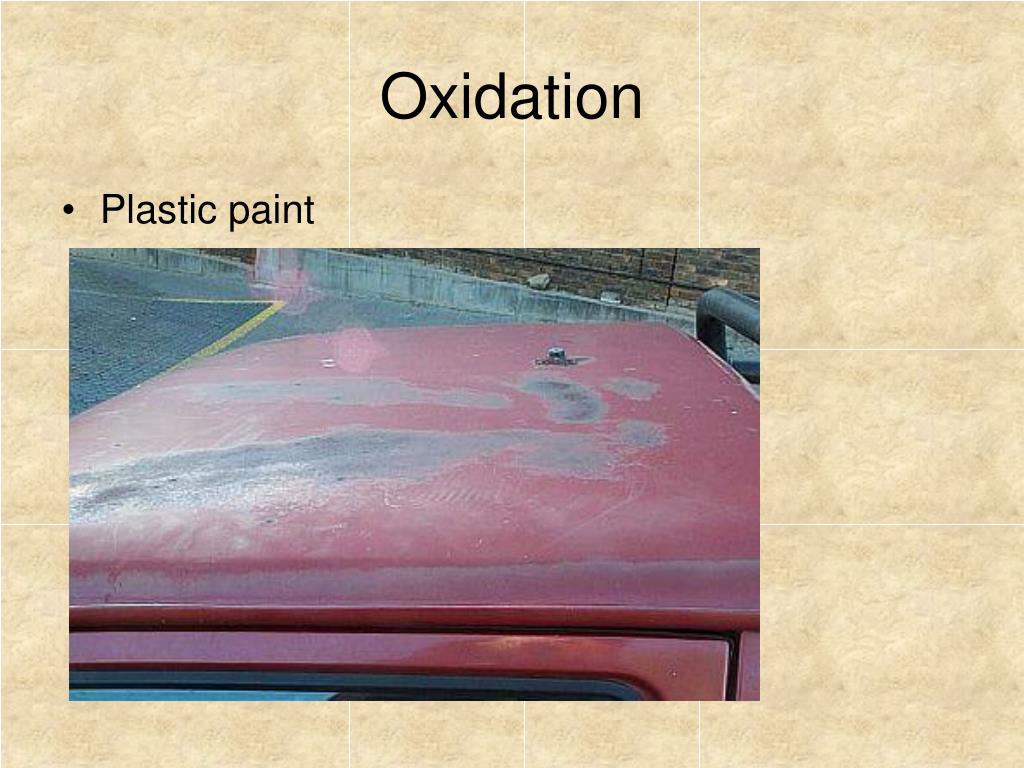

Oxidation l.jpg

Oxidation

  • Plastic paint


Chemical resistivity and solubility l.jpg

Chemical resistivity and solubility

Dissolving

None

Reacting

Swelling/softening

Nylon and H2O

PVC and ketone

PVOH and water

Cellulosics

and acids

PE and H2O

Increasing Chemical Reactivity to Plastic


Chemical resistivity and solubility5 l.jpg

Chemical Resistivity and Solubility

  • PS exposed to gasoline


Chemical nature and solvent solute interactions l.jpg

Chemical Nature and Solvent-solute Interactions

  • Polar effects

    • Like with like

  • Steric effects

    • Crystallinity

  • Physical property effects on solvent-solute interactions

    • Solvent size

    • Swelling


Like to like polar polymer l.jpg

Like to like – polar polymer


Thermodynamics of solvent interactions l.jpg

Thermodynamics of Solvent Interactions

  • Equation

    ΔG = ΔH – TΔS

    • Negative ΔG is favorable

    • Negative ΔH means bonds are forming

    • Positive ΔS is standard (increasing)

  • When does each term dominate to give a negative ΔG?


Plasticizers l.jpg

Plasticizers

  • Increase swelling

    • Randomness

  • Plasticizers can migrate out


Solvent welding l.jpg

Solvent Welding


Water repellent l.jpg

Water Repellent

  • Surface tension must be LOW

    • Silicones = 24 dyne/cm

    • PTFE = 19 dyne/cm

    • PVC = 37 dyne/cm

  • Water wicking


Corrosion resistant l.jpg

Corrosion-Resistant

  • Availability of electrons

  • Polymers are better than metals

  • Fluoropolymers—tightly attached

    • Electron shielded

  • Chlorine attachment (blocks electron availability)


Coatings l.jpg

Coatings

  • Decorative and protective

    • Adhesion

    • Weatherability

    • Water solubility


Environmental resistance and weathering l.jpg

Environmental Resistance and Weathering


Environmental stress cracking l.jpg

Environmental Stress Cracking

  • Hawaii Story

    • Crosslinked, LLDPE

  • Banana Plantation

    • Drawdown


Crazing l.jpg

Crazing

  • Cracks at stress areas


Permeability l.jpg

Permeability

  • Diffusion Coefficient

    • D = Doe-A/RT

  • Fick’s Laws of diffusion

    • J = -D dc/dx

  • Barrier Properties

    • dc/dt = D d2c/dx2


Gas vapor permeation l.jpg

Gas (vapor) Permeation

  • Polar groups (solubility) to solvent or gas

  • Intermolecular size (distance)

  • Crosslinking and crystallinity


Electrical properties l.jpg

Electrical Properties

  • Resistivity (1018 – 10-6)

  • Dielectric Strength

  • Arc Resistance

  • Dielectric Constant

  • Dissipation Factor (heat up)


Conductive polymers l.jpg

Conductive Polymers


Conductive polymers21 l.jpg

Conductive Polymers


Optical properties l.jpg

Optical Properties

  • Light Transmission

    • Clear

    • Translucent

    • Opaque

  • Colorants

    • Dyes

    • Pigments

  • Surface Reflectance


Transparency l.jpg

Transparency

  • Non-crystalline

  • Index of refraction – low

  • Total luminous transmittance – high


Plastic identification l.jpg

Plastic Identification

  • Spectroscopy


Flammability l.jpg

Flammability

  • Self-extinguishing

    • Halogen effects (oxygen)

    • Fillers (Al2O3·3H2O) (heat)

    • Aromatics (fuel)

    • Silicones (fuel)

Heat

Fuel

Oxygen


Flammability tests l.jpg

Flammability Tests

  • Vertical and horizontal burn tests

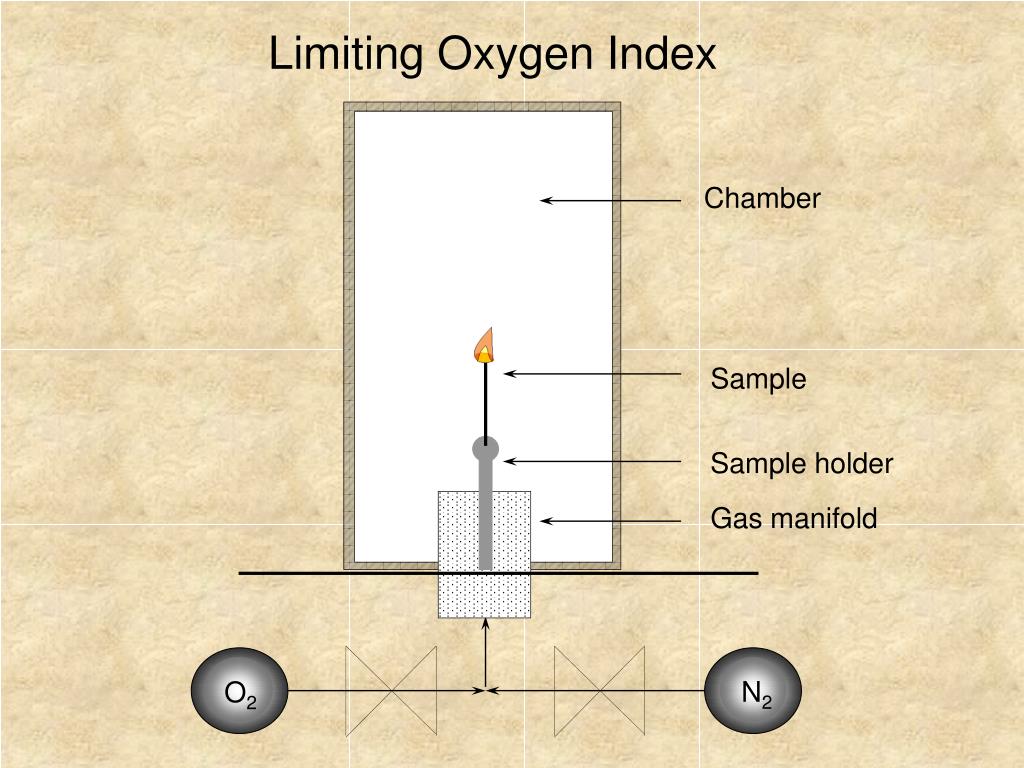

Slide27 l.jpg

Chamber

Sample

Sample holder

Gas manifold

N2

O2

Limiting Oxygen Index


Flammability tests28 l.jpg

Flammability Tests

  • Radiant panel

  • Cone calorimeter


Flexibility l.jpg

Flexibility

  • CH2, O are flexible

    • PE, Polyisoprene, PEO, Siloxanes

  • Polybutylene terephthalate is more flexible than PET

  • Pendant groups

  • Crystallinity – reduces flexibility

  • Copolymers

  • Plasticizers (soluble)


Heat resistance l.jpg

Heat Resistance

  • Stiffening groups along the chain

    • Phenyl groups

    • Tggoes up since it takes more heat to move molecules

  • Strong intermolecular H-Bonding

  • Crystallinity increases heat resistance


Insulating polymers l.jpg

Insulating Polymers

  • Non-polar is better

  • Foams

    • Air is an insulator


Toughness l.jpg

Toughness

  • Backbone Structure

  • Pendant Groups


Thank you l.jpg

Thank You


Flammability tests34 l.jpg

Flammability Tests

  • Limiting oxygen index (LOI)


Adhesives l.jpg

Adhesives

  • Bonding (chemical) between surfaces is best

  • Crosslinking agents (ie siloxanes)

  • Solvent based

  • Latex adhesives – good flow into crevices for mechanical attachment

  • Pressure-sensitive – polymer flow (mechanical)

  • Hot melt – polymer flow

  • Reactive – low molecular weight to get stronger

  • End Groups
