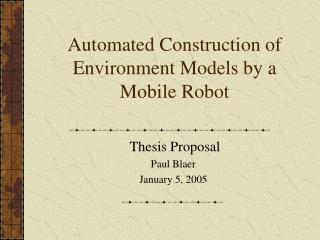

Automated Construction of Environment Models by a Mobile Robot

Thesis Proposal

Paul Blaer

January 5, 2005




Problem manual construction l.jpg
Problem: Manual Construction Robot

Even with sophisticated tools, many tasks are still accomplished manually:

  • Planning of scanning locations

  • Transportation from one scanning location to the next, possibly under adverse conditions

  • Accurately computing the exact location of the sensor


Approach automate the process l.jpg
Approach: Automate the Process Robot

  • Construct a mobile platform that is capable of autonomous localization and navigation. *

  • Given a small amount of initial information about the environment, plan efficient views to model the region. *

  • Use those views to construct a photometrically and geometrically correct model.


Proposed contributions l.jpg
Proposed Contributions: Robot

  • An improved 2-D view planning algorithm used for bootstrapping the construction of a complete scene model

  • A new 3-D voxel-based next-best-view algorithm

  • A topological localization algorithm combining omnidirectional vision and wireless access point signals.

  • Voronoi diagram-based path planner for navigation.

  • A model construction system that fuses the view planning algorithms with the robot’s navigation and control systems.


Large scale 3 d modeling literature l.jpg
Large Scale 3-D Modeling RobotLiterature:

  • 3D City Model Construction at Berkeley – Frueh, et al, 2004, 2002

  • Outdoor Map Building at University of Tsukuba – Ohno, et al 2004

  • MIT City Scanning Project – Teller, 1997

  • Klein and Sequeira, 2004, 2000

  • Nuchter, et al, 2003


View planning literature l.jpg
View Planning Literature: Robot

  • 1. Model Based Methods

    • Cowan and Kovesi, 1988

    • Tarabanis and Tsai, 1992

    • Tarabanis, et al, 1995

    • Tarbox and Gottschlich, 1995

    • Scott, Roth and Rivest, 2001

  • 2. Non-Model Based Methods

    • Volumetric Methods

      • Connolly, 1985

      • Banta et al, 1995

      • Massios and Fisher, 1998

      • Papadopoulos-Organos, 1997

      • Soucey, et al, 1998

    • Surface-Based Methods

      • Maver and Bajcsy, 1993

      • Yuan, 1995

      • Zha, et al, 1997

      • Pito, 1999

      • Reed and Allen, 2000

      • Klein and Sequeira, 2000

    • Whaite and Ferrie, 1997

  • 3. Art Gallery Methods

    • Xie, et al, 1986

    • Gonzalez-Banos, et al, 1997

    • Danner and Kavraki, 2000

  • 4. View Planning for Mobile Robots

    • Gonzalez-Banos, et al, 2000

    • Grabowski, et al, 2003

    • Nuchter, et al, 2003


Overview of our system l.jpg
Overview of Our System Robot

  • Platform

  • Steps in Our Method

    • Initial Modeling Stage

    • Planning the Robot’s Paths

    • Localization and Navigation

    • Acquiring the Scan

    • Final Modeling Stage

  • Testbeds


Overview of our system the platform l.jpg
Overview of Our System: RobotThe Platform

GPS

Scanner

DGPS

Autonomous Vehicle for Exploration and Navigation in Urban Environments

Network

Camera

PTU

Compass

Sonar

PC


Overview of our system the method l.jpg
Overview of Our System RobotThe Method:

  • Initial Modeling Stage

    • Goal is to construct an initial model from which we can bootstrap construction of a complete model.

    • Compute a set of views based entirely on a known 2-D representation of the region to be modeled.

    • Compute an efficient set of paths to tour these view points

  • Final Modeling Stage

    • Voxel-based 3-D method to sequentially choose views that fill in gaps in the initial model.


Initial modeling stage l.jpg
Initial Modeling Stage Robot

  • Given initial 2-D map of the scene.

  • In this stage, assume that if you see all 2-D edges of the map, you’ve seen all 3-D façades.

  • Solve the planning as a variant of the “Art Gallery” problem.


Initial modeling stage13 l.jpg
Initial Modeling Stage Robot

  • Problems with the “Art Gallery” approach:

    • Traditional geometric approaches assume that the guards can see 360o around with unlimited range, ignoring any constraints of the scanner.

    • A view of the 2-D footprint of an obstacle does not necessarily mean that we have seen the entire façade. There may be interesting 3-D structure above.


Initial modeling stage14 l.jpg
Initial Modeling Stage Robot

  • A randomized algorithm for the 2-D problem:

    • First choose a random set of potential views in the free space


Initial modeling stage15 l.jpg
Initial Modeling Stage Robot

100 initial samples


Initial modeling stage16 l.jpg
Initial Modeling Stage Robot

  • A randomized algorithm for the 2-D problem:

    • First choose a random set of potential views in the free space

    • Compute the visibility of each potential view



Initial modeling stage18 l.jpg
Initial Modeling Stage Robot

  • A randomized algorithm for the 2-D problem:

    • First choose a random set of potential views in the free space

    • Compute the visibility of each potential view

    • Clip the visibility of each potential view such that the constraints of our scanning system are satisfied.


Initial modeling stage19 l.jpg
Initial Modeling Stage Robot

  • Constraints we have added to the basic randomized algorithm:

    • Minimum and maximum range

    • Maximum grazing angle

    • Field of view

    • Overlap constraint

Scanner

Minimum Range (in our case 1m).

Maximum Range (in our case 100m).


Initial modeling stage20 l.jpg
Initial Modeling Stage Robot

  • Constraints we have added to the basic randomized algorithm:

    • Minimum and maximum range

    • Maximum grazing angle

    • Field of view

    • Overlap constraint

Grazing Angle


Initial modeling stage21 l.jpg
Initial Modeling Stage Robot

  • Constraints we have added to the basic randomized algorithm:

    • Minimum and maximum range

    • Maximum grazing angle

    • Field of view

    • Overlap constraint


Initial modeling stage22 l.jpg
Initial Modeling Stage Robot

  • Constraints we have added to the basic randomized algorithm:

    • Minimum and maximum range

    • Maximum grazing angle

    • Field of view

    • Overlap constraint


Initial modeling stage23 l.jpg
Initial Modeling Stage Robot

  • A randomized algorithm for the 2-D problem:

    • First choose a random set of potential views in the free space

    • Compute the visibility of each potential view

    • Clip the visibility of each potential view such that the constraints of our scanning system are satisfied.

    • Choose a approximate minimum subset of the potential views to cover the entire set of 2-D obstacles


Initial modeling stage24 l.jpg
Initial Modeling Stage Robot

9 chosen view points


Initial modeling stage25 l.jpg
Initial Modeling Stage Robot

A real world example:


Initial modeling stage26 l.jpg
Initial Modeling Stage Robot

A real world example: (1000 initial samples, 42 chosen views, 96% coverage)


Planning the robot s paths l.jpg
Planning the Robot’s Paths Robot

  • Given a 2-D map of the region, compute “safe” paths for the robot to travel.

  • Keep the robot as far away from the two closest obstacles.

  • Accomplished by generating the generalized Voronoi diagram of the region and traveling along the boundaries of the Voronoi cells.


Planning the robot s paths28 l.jpg
Planning the Robot’s Paths Robot

  • Approximate the Generalized Voronoi Diagram:

    • Approximate the polygonal obstacles with discrete points.

    • Compute the Voronoi diagram.

    • Eliminate the edges that are inside obstacles or intersect obstacles.



Planning the robot s paths30 l.jpg
Planning the Robot’s Paths Robot

  • Approximate the Generalized Voronoi Diagram:

    • Approximate the polygonal obstacles with discrete points.

    • Compute the Voronoi diagram.

    • Eliminate the edges that are inside obstacles or intersect obstacles.

  • Use a shortest path algorithm such as Dijkstra’s algorithm to find paths along the Voronoi graph.



Planning the robot s paths32 l.jpg
Planning the Robot’s Paths Robot

  • Need to generate a tour for the robot to visit all the initially selected view points.

  • This can be treated as a “Traveling Salesman Problem” and solved with any number of approximations.

  • To generate edge weights, we first compute our “safe” Voronoi paths between all viewpoints. We use the lengths of those paths as the edge weights for our graph.



Localization and navigation l.jpg
Localization and Navigation Robot

  • Existing system uses a combination of:

    • GPS

    • Odometry

    • Attitude Sensor

    • Fine grained visual localization (Georgiev and Allen, 2004)

  • Problems:

    • GPS can fail in urban canyons

    • Odometry is unreliable because of slipping and cumulative error

    • Fine grained visual localization system needs an existing position estimate


Coarse localization l.jpg
Coarse Localization Robot

  • Coarse Localization System:

    • Histogram Matching with Omnidirectional Vision:

      • Fast

      • Rotationally-invariant


Coarse localization36 l.jpg
Coarse Localization Robot

  • Coarse Localization System:

    • Histogram Matching with Omnidirectional Vision:

      • Fast

      • Rotationally-invariant

  • Wireless signal strength of Access Points

    • Use existing wireless infrastructure to resolve ambiguities in location.

    • Look at the signal strengths to all visible base stations at a given location and compare against database.



Final modeling stage l.jpg
Final Modeling Stage Robot

  • The initial modeling stage will result in an incomplete model:

    • Undetectable 3-D occlusions

    • Previously unknown obstacles

    • Temporary obstacles

  • Need a second modeling stage to fill in the holes.



Final modeling stage40 l.jpg
Final Modeling Stage Robot

  • We store the world as a voxel grid.

    • For view planning of large scenes the voxels do not need to be small.

    • Initial voxel grid is populated with the scans from the first stage.

      • If a voxel has a data point in it, it is marked as seen-occupied.

      • Unoccupied voxels along the straight line path from that point back to its scanning location that are marked as seen-empty.

      • All other voxels are marked as unseen.


Final modeling stage41 l.jpg
Final Modeling Stage Robot

  • We use the known 2-D footprints of our obstacles to mark the ground plane voxels as occupied or potential scanning locations.


Final modeling stage42 l.jpg
Final Modeling Stage Robot

  • For each unseen voxel that borders on an empty voxel we trace a ray back to all scanning locations.

  • If ray is not occluded by other filled voxels and it satisfies the scanner’s other constraints, that potential viewing location’s counter is incremented.

  • The potential viewing location with the largest count is chosen.

  • A new scan is taken and the process repeats until there are no unseen voxels bordering on empty voxels.


Final modeling stage43 l.jpg
Final Modeling Stage Robot

  • Additional Constraints:

    • Range constraint – the scanner’s minimum and maximum range is considered. If the ray is outside this range, it is not considered.

    • Overlap constraint – for each view we can also keep track of how many known voxels it can view and require a minimum overlap for registration purposes.

    • Traveling distance constraint – weight more heavily views that are closer to the current position.

    • Grazing angle constraint – this constraint is harder to implement since no surface information is stored.





Final modeling stage47 l.jpg
Final Modeling Stage Robot

Initial View

Next Best View




Road map to the thesis l.jpg
Road Map to the Thesis Robot

  • A topological localization algorithm – implemented and tested in complicated outdoor environments (Blaer and Allen, 2002 and 2003).

  • A Voronoi-based path planner – implemented and tested (Allen et al, 2001).

  • An 2-D view planning algorithm for bootstrapping the construction of a complete model – tested on simulated and real world data. Additional constraints and testing are needed.

  • A voxel-based method for choosing next-best views – initial stages of the algorithm have been tested on simulated data.

  • Integrate these algorithms into the robot to build a complete system.
