Simplified Networking

and Troubleshooting

for K-12 Teachers


Aren topology l.jpg

AREN Topology

  • Multiple Star Network

    • Stars originate at the hub sites and hubs are connected by a North-South backbone

  • DS3/Partial OC-3 backbone

  • DS1 (T1) or Multiple T1 to clients

  • Multiple Internet access points (DS3+)


Slide3 l.jpg

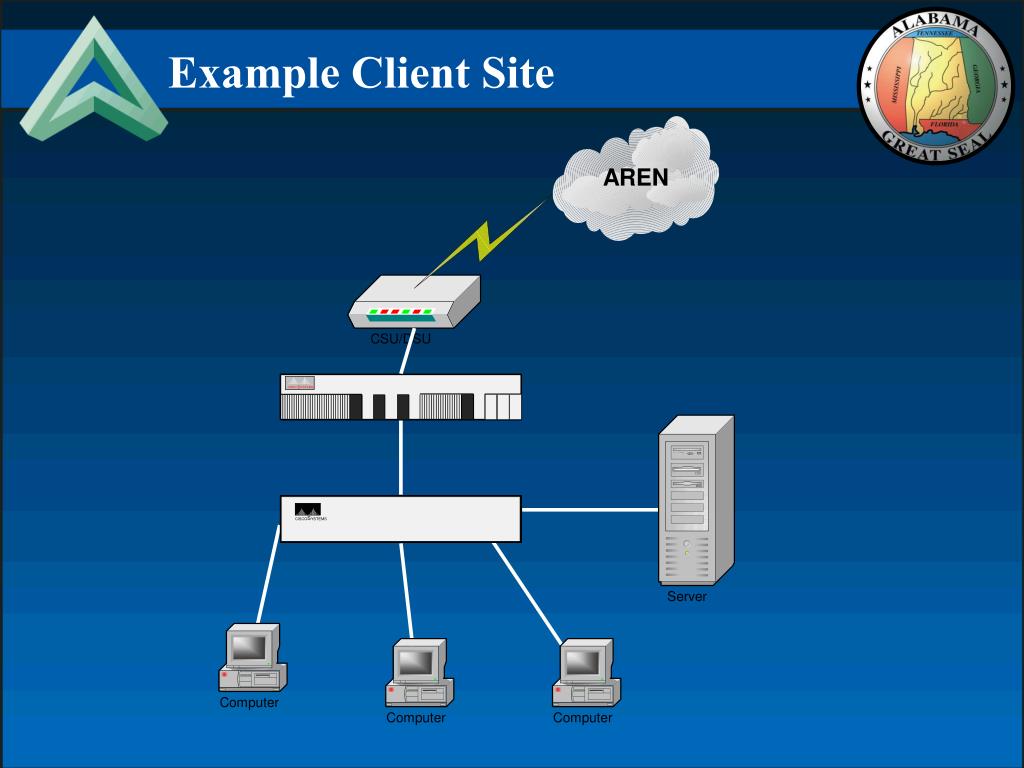

Example Client Site


Network related services l.jpg

Network Related Services

The following services are currently offered by AREN to all clients at low or no cost

- High speed Internet access

- DNS hosting and management

- Web hosting and server management

- Email hosting and server management

- Expert network consulting (LAN and WAN)

- Content filtering

-CIPA “Technology Protection Measure”

- Router management and site monitoring

- In state Quality of Service (QoS) configuration


What is a computer network l.jpg

What is a Computer Network?

  • Group of computers that are connected together and can communicate with each other in some way

  • Connections can be serial, parallel, bus, radio, satellite, phone, etc.

  • Can use Copper, Fiber-optics, Airwaves

  • Can speak many different “protocols”


Component review l.jpg

Component Review

What are they and what are their uses?

  • Computer

  • NIC

  • Printer

  • Hub/Switch

  • Router/CSU

  • Proxy Server

  • Email/Web Server


Simplified k12 network troubleshooting l.jpg

Simplified K12 Network Troubleshooting

  • Day 1 (Theory and equipment)

    • Introduction to Computer Networking (OSI)

    • Review of Common Components (show and tell)

    • Ethernet ins and outs (theory and hands-on)

    • Intro to TCP/IP addressing (don’t worry!)

    • DNS explained

  • Day 2 (It’s broken, what do I do?)

    • Quick review of Day 1 with any questions

    • The Internet is down!

    • My email doesn’t work!

    • I can’t print!

    • Where’s my network drive!?!?

    • I can’t join this domain!

    • Anything else y’all can throw at me  


Osi reference model l.jpg

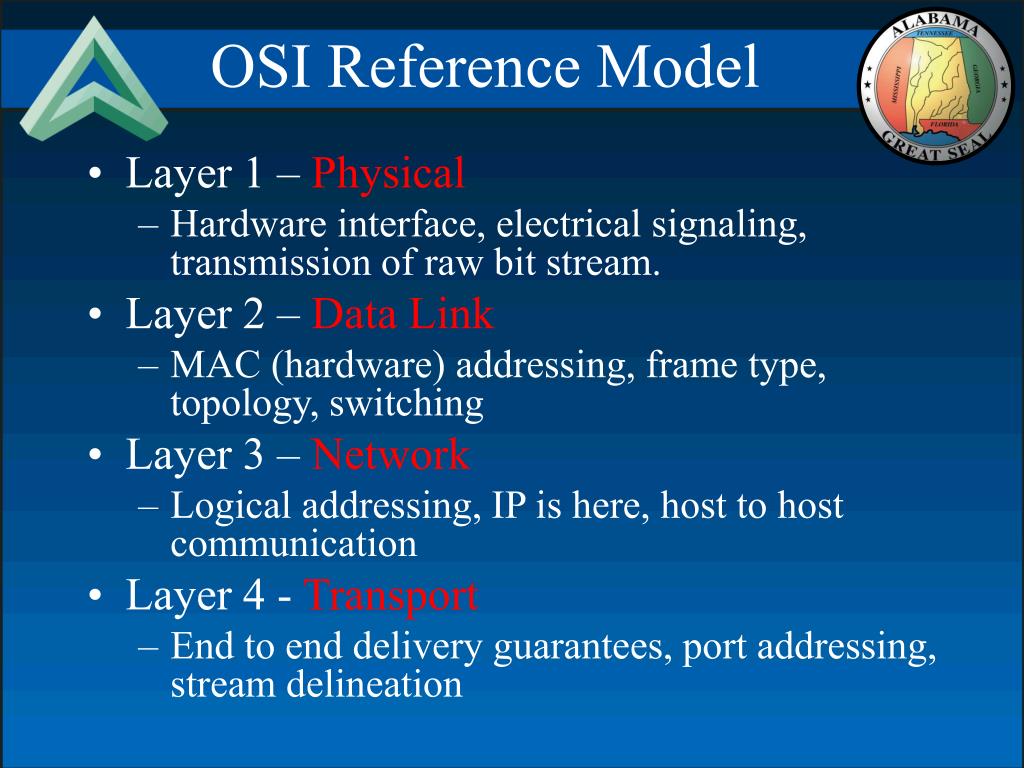

OSI Reference Model

  • Layer 1 – Physical

    • Hardware interface, electrical signaling, transmission of raw bit stream.

  • Layer 2 – Data Link

    • MAC (hardware) addressing, frame type, topology, switching

  • Layer 3 – Network

    • Logical addressing, IP is here, host to host communication

  • Layer 4 - Transport

    • End to end delivery guarantees, port addressing, stream delineation


Physical layer ethernet l.jpg

Physical Layer (Ethernet)

  • The “Big Phone Plug”

  • http://www.rabcomputers.com/resources/cablepinout.htm

  • http://www.aptcommunications.com/ncode.htm


Crimping ethernet cables l.jpg

Crimping Ethernet Cables

  • Show and tell time

  • No clip art available 

  • Practice checking cables by sight


More ethernet hardware l.jpg

More Ethernet Hardware


Ethernet types flavors l.jpg

Ethernet Types (Flavors)

  • Ethernet

    • 10Base-2 (~200m, Coax)

    • 10Base-5 (500m, Coax)

    • 10Base-T (100m, Unshielded Twisted Pair = UTP)

    • 10Base-FL (2000m=2km, Multimode Fiber)

  • Fast Ethernet

    • 100Base-TX (100m over CAT5 UTP)

    • 100Base-FX (2000m=2km over MM Fiber)

  • Gigabit Ethernet

    • 1000Base-SX (300m over MM Fiber)

    • 1000Base-LX (550m over MM Fiber, 3000m over SM Fiber)

  • 10Gig


Ethernet classical data link l.jpg

Ethernet: Classical (Data Link)

  • 10 Mbps

  • CSMA/CD

    • Carrier Sense Multiple Access with Collision Detection

    • Think CB radio (shared media, only used by one at a time)

  • Can be configured with cable, hubs, or switches

  • 1500 Byte Frames

  • MAC addresses

    • 08-00-46-4C-9C-B5

    • 08:00:46:4C:9C:B5

    • 0800:464C:9CB5


Common ethernet topologies l.jpg

Common Ethernet Topologies


Limitations of classical ethernet l.jpg

Limitations of Classical Ethernet

  • Distance limitations of UTP or Fiber

  • Network size limited by the 5-4-3 rule

    • just remember hosts cannot talk to each other if they are connected through more than 4 hubs or repeaters

  • One Broadcast Domain, One Collision Domain

    • collisions likely as number of hosts increases

  • Users generally don’t know about the 5-4-3 rule and just keep on adding hubs at random points


Ethernet current baseline l.jpg

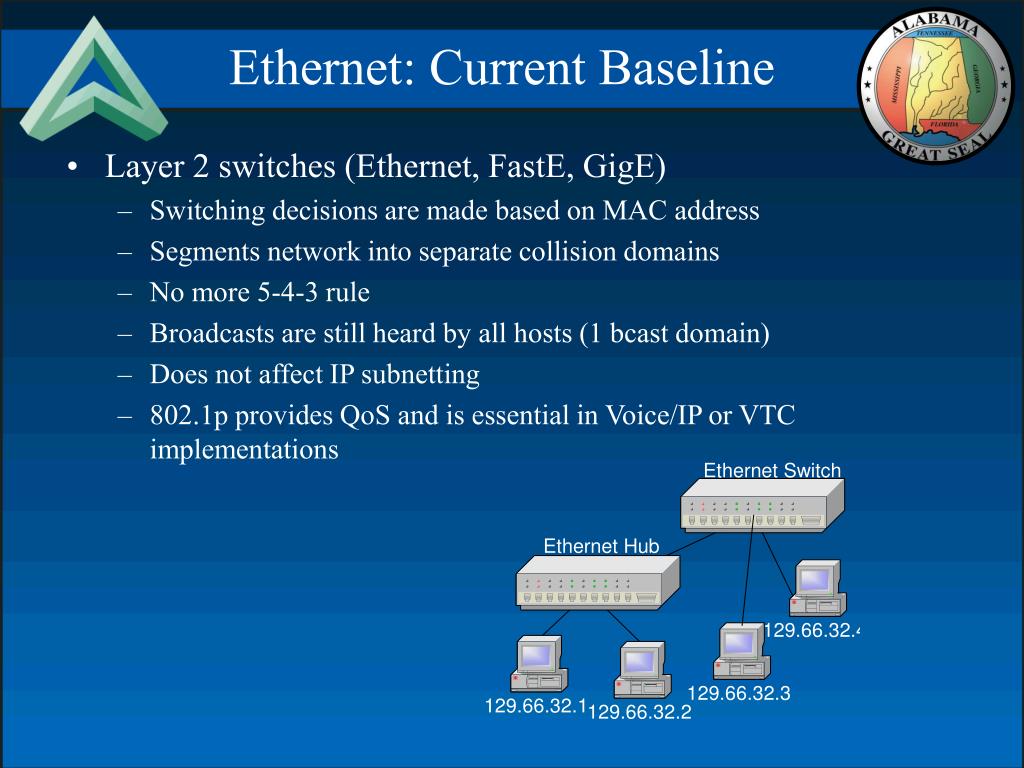

Ethernet: Current Baseline

  • Layer 2 switches (Ethernet, FastE, GigE)

    • Switching decisions are made based on MAC address

    • Segments network into separate collision domains

    • No more 5-4-3 rule

    • Broadcasts are still heard by all hosts (1 bcast domain)

    • Does not affect IP subnetting

    • 802.1p provides QoS and is essential in Voice/IP or VTC implementations


Tcp ip protocol suite don t worry about remembering this now l.jpg

TCP/IP Protocol Suite(don’t worry about remembering this now)

  • IP = Internet Protocol

    • Responsible for core rules: addressing, routing, packet size etc

  • TCP = Transmission Control Protocol

    • Responsible for creating point to point communication over the connectionless Internet

  • UDP = User/Datagram Protocol

    • Provides port address resolution


Ip addresses l.jpg

IP Addresses

  • Each computer also must have an IP address.

  • This address is similar to the street address of a house in that each address is unique.

  • Schools are assigned a group of IP addresses. This similar to a zip code for a street address.

  • Example : 207.157.55.1 - 207.157.55.254

    • IP addresses are written in dotted-decimal notation with the last number designating a particular computer***

207.157.55.78

Points to machine with

“street address” number 78

Points to the School’s “Zip Code”


Ip subnet masking l.jpg

IP Subnet Masking

Network = 207.157.55

Host = 78

Network = 207.157

Host= 55.78

207.157.55.78

255.255.255.0

207.157.55.78

255.255.0.0


Default gateway l.jpg

Default Gateway

The “Default Gateway” refers to the device that provides connectivity to (or towards) the rest of the world


Static vs dhcp l.jpg

Static vs. DHCP

  • Static addressing

    • Each computer is “hard coded” with IP configuration.

    • IP address never changes (Static)

  • DHCP addressing

    • Dynamic Host Configuration Protocol

    • Computer automatically obtains IP address by sending broadcast query to the network


Internet settings l.jpg

Internet Settings


Static dhcp demonstration l.jpg

Static/DHCP Demonstration


Private addressing rfc1918 l.jpg

Private Addressing (RFC1918)

  • Addresses that have no meaning to Internet routers

  • These addresses are often used by school systems instead of public routable addresses

  • Computer’s with these types of addresses must access the Internet through either proxy servers or translation devices

From RFC1918:

The Internet Assigned Numbers Authority (IANA) has reserved the following three blocks of the IP address space for private internets:

10.0.0.0 - 10.255.255.255 (10/8 prefix)

172.16.0.0 - 172.31.255.255 (172.16/12 prefix)

192.168.0.0 - 192.168.255.255 (192.168/16 prefix)


Network address translation nat l.jpg

Network Address Translation (NAT)

  • RFC1918 addresses can be translated into routable public addresses

  • PAT=Port address translation

    • A single “real” address can be used to provide Internet access to thousands of computers using private addresses

  • Exercise for the student: What is our “Real” address?

  • (http://www.avl.lib.al.us/whatweknow.phtml)


Network address translation nat29 l.jpg

Network Address Translation (NAT)


Proxy server instead of nat l.jpg

Proxy Server Instead of NAT

  • Unlike NAT no address translation is used

  • Client computer requests web page

  • Proxy server retrieves web page and then passes page to client

  • Protocols supported can be limited

    • Some proxy servers only allow web access

      • No telnet, ftp, chat, email, etc….


Proxy server l.jpg

Proxy Server


Proxy settings l.jpg

Proxy Settings


Dns making english out of numbers dns domain name service l.jpg

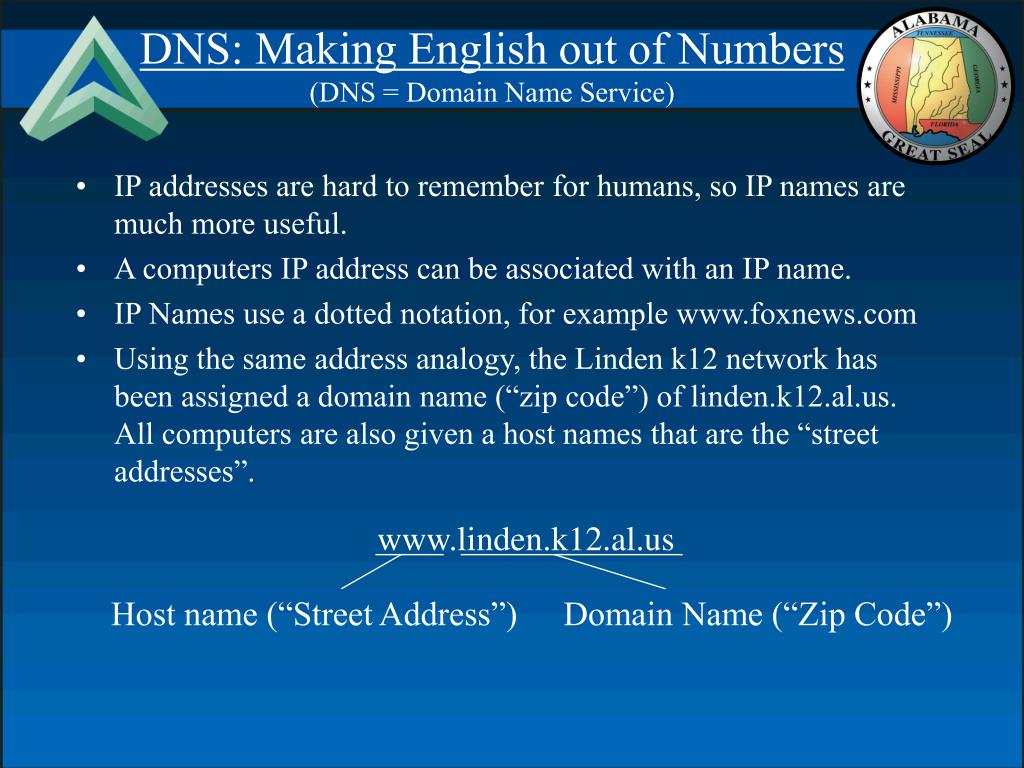

DNS: Making English out of Numbers(DNS = Domain Name Service)

  • IP addresses are hard to remember for humans, so IP names are much more useful.

  • A computers IP address can be associated with an IP name.

  • IP Names use a dotted notation, for example www.foxnews.com

  • Using the same address analogy, the Linden k12 network has been assigned a domain name (“zip code”) of linden.k12.al.us. All computers are also given a host names that are the “street addresses”.

www.linden.k12.al.us

Host name (“Street Address”)

Domain Name (“Zip Code”)


Dns tree l.jpg

DNS Tree


Routing 101 l.jpg

Routing 101


Traceroute tool of the gods l.jpg

Traceroute – Tool of the Gods


Traceroute no dns fast l.jpg

Traceroute – no DNS (fast)


Troubleshooting at last l.jpg

Troubleshooting at last!

Commands you must know and love:

ping (the daddy of them all)

traceroute (tracert in Microsoft land)

ipconfig (ipconfig /all for details)

ipconfig /release (ipconfig /renew)

winipcfg (for Win95)

nslookup (not available in Win9x)


Interactive command review l.jpg

Interactive Command Review


The internet is down l.jpg

The Internet is Down !

This is a very generic statement and generally means that folks can’t get to web sites with their browser (Internet Explorer and/or Netscape).


The internet is down43 l.jpg

The Internet is Down !

Step 1: Check link light and Ethernet cable

- if no link check cable

- check hub/switch lights and power

Step 2: Confirm IP is configured on host and address is valid

- check with ipconfig (or winipcfg)

Step 3: Ping Default Gateway

- find Gateway using ipconfig (or winipcfg)

Step 4: Ping school proxy server and/or NAT device

Step 5: if all of the above is fine ping and trace to 129.66.12.151

Step 6: if all of the above is fine ping and trace to www.asc.edu

Step 7: if all of the above is fine ping and trace to 149.149.11.7

Step 8: if all of the above is fine ping and trace to www.tntech.edu


My email doesn t work l.jpg

My Email Doesn’t work !

Step 1: Confirm that you have access to other Network resources (web, ftp, telnet, etc.)

Step 2: Check email server configuration in email client (method varies by client)

Step 3: Can you receive email from outside school system?

Step 4: Can you receive email from inside school system?

Step 5: Can you send email to addresses outside system?

Step 6: Can you send email to addresses inside system?


I can t print network printer l.jpg

I Can’t print! (Network Printer)

  • Is the printer “online”?

  • Confirm that you have access to other Network resources (web, ftp, telnet, etc.)

  • If IP address of printer or print server is known, try to ping it.

  • If printer attached to a computer, can you print from that computer?


I can t print local printer l.jpg

I Can’t print! (Local Printer)

  • Is the printer “online”?

  • Is the printer out of paper? Ink?

  • What message(s) are you getting from the driver?

  • Is the local driver software still installed?


Can t see anything in network neighborhood no access to network shares l.jpg

Can’t “see” anything in Network Neighborhood (no access to network shares)

Step 1: Confirm that you have access to other Network resources (web, ftp, telnet, etc.)

Step 2: Did you authenticate into the local domain (hitting cancel at login is not a good idea)

Step 3:Is the share reached via Network Neighborhood or a pre-mapped drive letter?

Step 4: Can you ping the share name?

Step 5: Can you ping the IP address of the file server?


I can t get this ing computer to join the domain l.jpg

I can’t get this “&*#ing” computer to join the domain!

New Computer:

1) You must be an administrator to add a computer to a domain.

Existing Computer that worked previously:

1) Confirm that you have access to other Network Resources (web, ftp, telnet, etc.)

2) Do you have a valid domain username/password?


  • Login
