Model based software testing test assessment and enhancement

Model based Software TestingTest Assessment and Enhancement

Aditya P. Mathur

Purdue University

Fall 2005

Last update: August 18, 2005


Learning objectives

Learning Objectives

  • To understand the relevance and importance of test assessment.

  • To learn the fundamental principle underlying test assessment.

  • To learn various methods and tools for test assessment.

  • To understand the relative strengths/weaknesses of test assessment methods.

  • To learn how to improve tests based on a test assessment procedure.

Software Testing and Reliability Aditya P. Mathur 2002


What is test assessment

What is Test Assessment?

  • Once a test set T, a collection of test inputs, has been developed, we ask:

    How good is T?

  • It is the measurement of the goodness of T which is known as test assessment.

  • Test assessment is carried out based on one or more criteria.

Software Testing and Reliability Aditya P. Mathur 2002


Test assessment contd

Test Assessment (contd.)

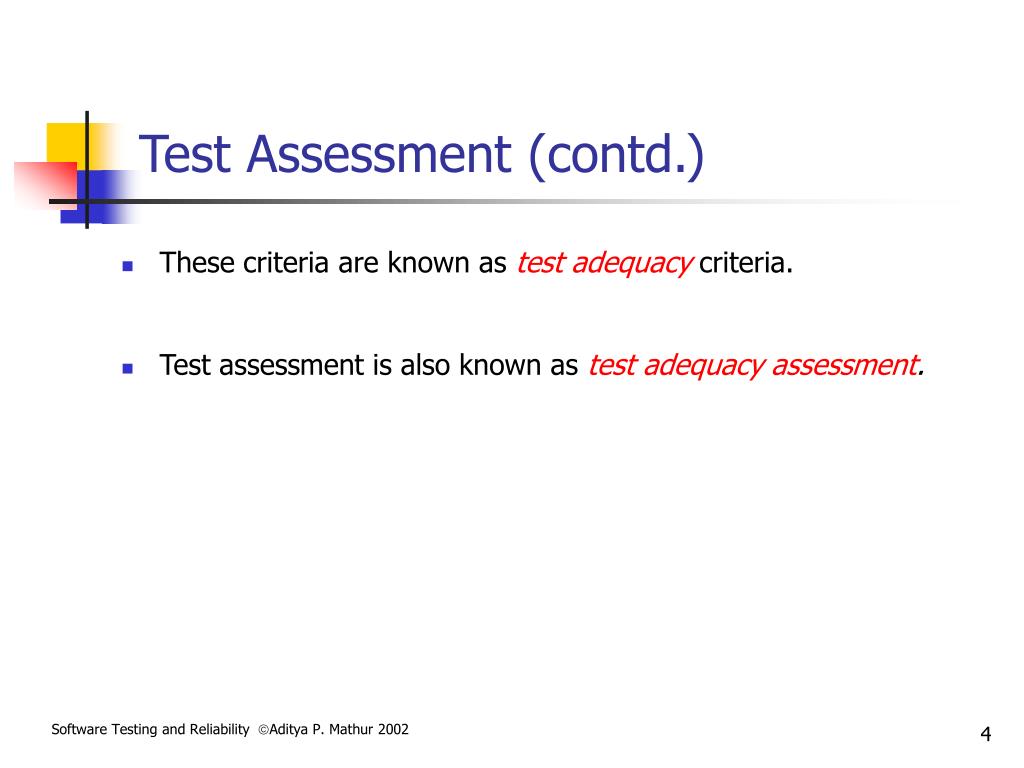

  • These criteria are known as test adequacy criteria.

  • Test assessment is also known as test adequacy assessment.

Software Testing and Reliability Aditya P. Mathur 2002


Test assessment contd1

Test assessment (contd.)

  • Test assessment provides the following information:

  • A metric, also known as the adequacy score or coverage, usually between 0 and 1.

  • A list of all the weaknesses found in T, which when removed, will raise the score to 1.

  • The weaknesses depend on the criteria used for assessment.

Software Testing and Reliability Aditya P. Mathur 2002


Test assessment contd2

Test assessment (contd.)

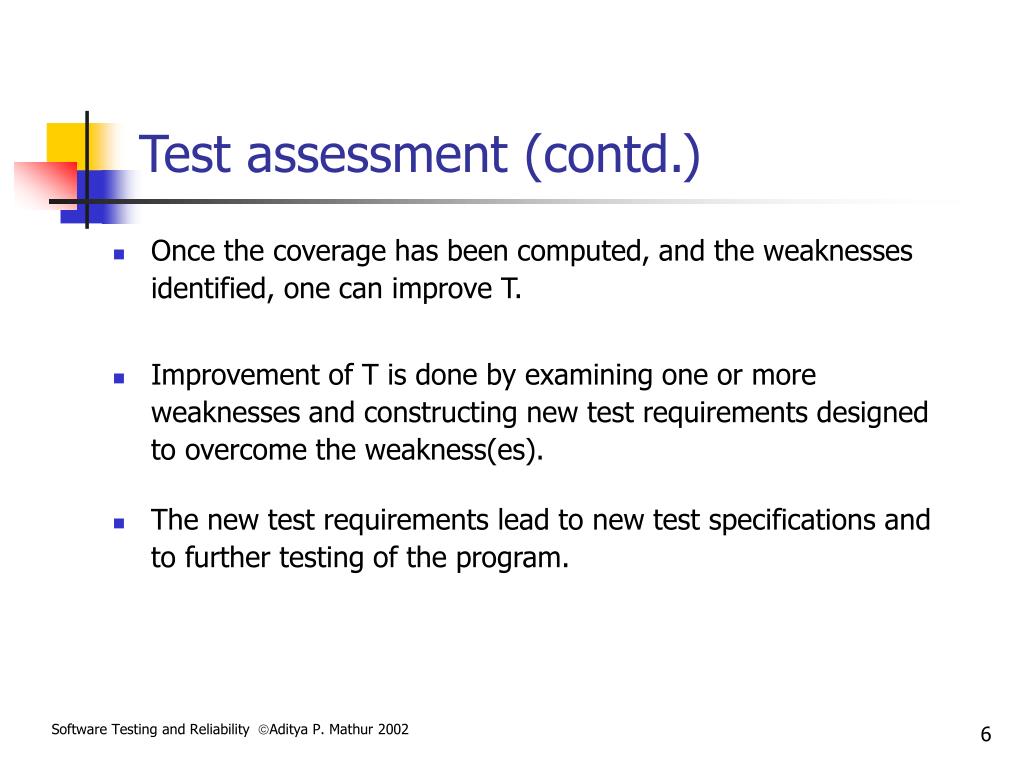

  • Once the coverage has been computed, and the weaknesses identified, one can improve T.

  • Improvement of T is done by examining one or more weaknesses and constructing new test requirements designed to overcome the weakness(es).

  • The new test requirements lead to new test specifications and to further testing of the program.

Software Testing and Reliability Aditya P. Mathur 2002


Test assessment contd3

Test Assessment (contd.)

  • This is continued until all weaknesses are overcome, i.e. the adequacy criterion is satisfied (coverage=1).

  • In some instances it may not be possible to satisfy the adequacy criteria for one or more of the following reasons:

    • Lack of sufficient manpower

  • Weaknesses that cannot be removed because they are infeasible.

Software Testing and Reliability Aditya P. Mathur 2002


Test assessment contd4

Test Assessment (contd.)

  • The cost of removing the weaknesses is not justified.

  • While improving T by removing its weaknesses, one usually tests the program more thoroughly than it has been tested so far.

  • This additional testing is likely to result in the discovery of remaining errors.

Software Testing and Reliability Aditya P. Mathur 2002


Test assessment contd5

Test Assessment (contd.)

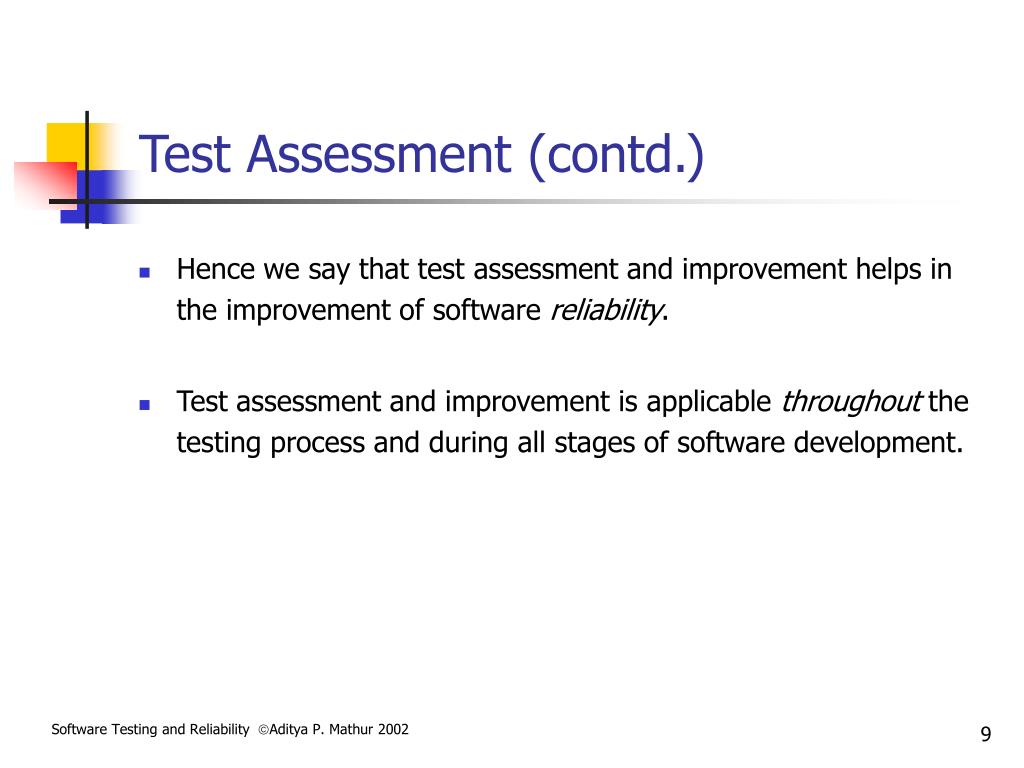

  • Test assessment and improvement is applicable throughout the testing process and during all stages of software development.

  • Hence we say that test assessment and improvement helps in the improvement of software reliability.

Software Testing and Reliability Aditya P. Mathur 2002


Test assessment procedure

0

Develop T

Select an adequacy

criterion C.

1

2

Measure adequacy of T

w.r.t. C.

Yes

3

Is T adequate?

Yes

No

4

Improve T

More testing is warranted ?

5

No

6

Done

Test Assessment Procedure

Software Testing and Reliability Aditya P. Mathur 2002


Principle underlying test assessment

Principle Underlying Test Assessment

  • There is a uniform principle that underlies test assessment throughout the testing process.

  • This principle is referred to as the coverage principle.

  • It has come about as a result of intensive research at Purdue and other research groups in software testing.

Software Testing and Reliability Aditya P. Mathur 2002

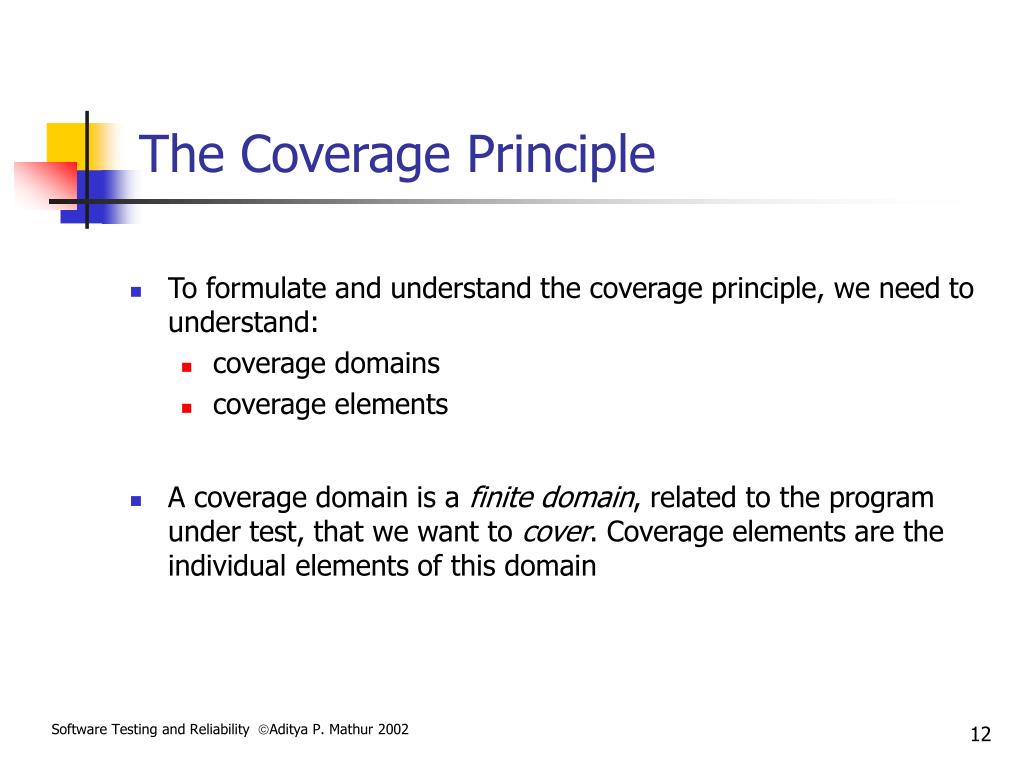

The coverage principle

The Coverage Principle

  • To formulate and understand the coverage principle, we need to understand:

    • coverage domains

    • coverage elements

  • A coverage domain is a finite domain, related to the program under test, that we want to cover. Coverage elements are the individual elements of this domain

Software Testing and Reliability Aditya P. Mathur 2002


The coverage principle contd

Requirements

Classes

Functions

Interface mutations

Exceptions

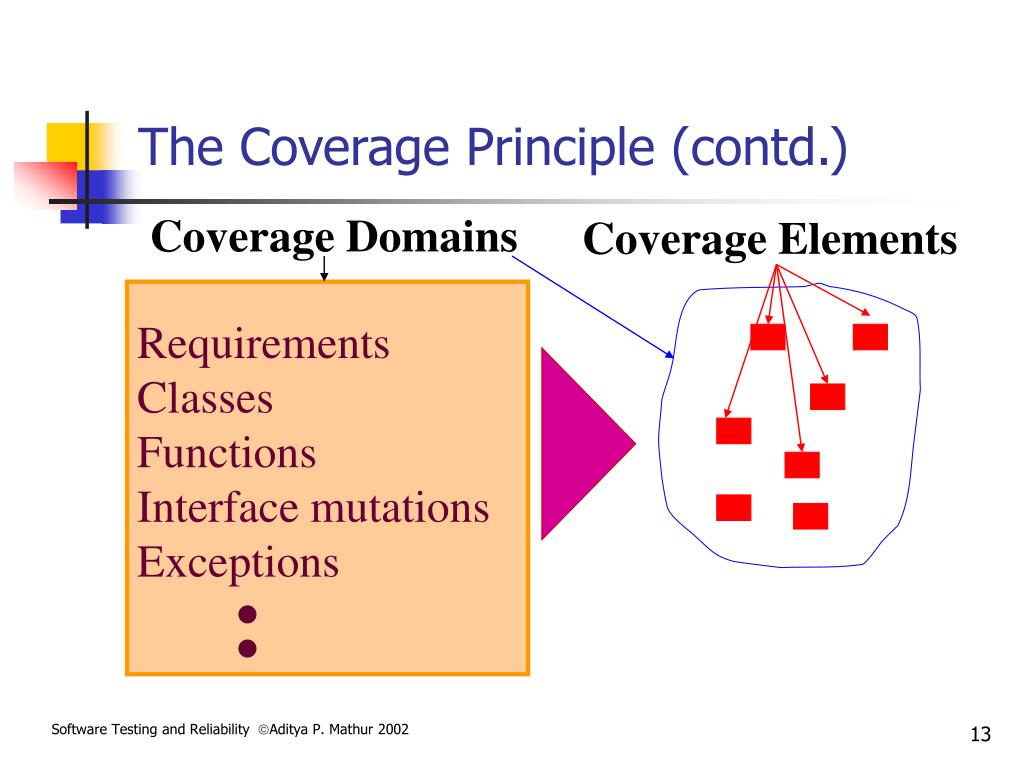

The Coverage Principle (contd.)

Coverage Domains

Coverage Elements

Software Testing and Reliability Aditya P. Mathur 2002


The coverage principle contd1

The Coverage Principle (contd.)

  • Measuring test adequacy and improving a test set against a sequence of well defined, increasingly strong, coverage domains leads to improved confidence in the reliability of the system under test.

Software Testing and Reliability Aditya P. Mathur 2002


The coverage principle contd2

The Coverage Principle (contd.)

  • Note the following properties of a coverage domain:

  • It is related to the program under test.

  • It is finite.

  • It may come from program requirements, related to the inputs and outputs.

Software Testing and Reliability Aditya P. Mathur 2002


The coverage principle contd3

The Coverage Principle (contd.)

  • It may come from program code. Can you think of a coverage domain that comes from the program code?

  • It aids in measuring test adequacy as well as the progress made in testing. How?

Software Testing and Reliability Aditya P. Mathur 2002


The coverage principle contd4

The Coverage Principle (contd.)

  • Example:

    • It is required to write a program that takes in the name of a person as a string and searches for the name in a file of names. The program must output the record ID which matches the given name. In case of no match a -1 is returned.

What coverage domains can be identified from this requirement?

Software Testing and Reliability Aditya P. Mathur 2002


The coverage principle contd5

The Coverage Principle (contd.)

  • As we learned earlier, improving coverage improves our confidence in the correct functioning of the program under test.

  • Given a program P and a test T suppose that T is adequate w.r.t. a coverage criterion C.

  • Does this mean that P is error free?

Obviously……???

Software Testing and Reliability Aditya P. Mathur 2002


Test effort

Test Effort

  • There are several measures of test effort.

  • One measure is the size of T. By this measure a test set with a larger number of test cases corresponds to higher effort than one with a lesser number of test cases.

Software Testing and Reliability Aditya P. Mathur 2002


Error detection effectiveness

Error Detection Effectiveness

  • Each coverage criterion has its error detection ability. This is also known as the error detection effectiveness or simply effectiveness of the criterion.

  • One measure of the effectiveness of criterion C is the fraction of faults guaranteed to be revealed by a test T that satisfies C.

Software Testing and Reliability Aditya P. Mathur 2002


Effectiveness contd

Effectiveness (contd.)

  • Another measure is the probability that at least fraction f of the faults in P will be revealed by test T that satisfies C.

  • Unfortunately there is no absolute measure of the effectiveness of any given coverage criterion for a general class of programs and for arbitrary test sets.

Software Testing and Reliability Aditya P. Mathur 2002


Effectiveness contd1

Effectiveness (contd.)

  • One coverage criterion results in an exception to this rule: What is it?

  • Empirical studies conducted by researchers give us an idea of the relative goodness of various coverage criteria.

  • Thus, for a variety of criteria we can make a statement like: Criterion C1 is definitely better than criterion C2.

Software Testing and Reliability Aditya P. Mathur 2002


Effectiveness continued

Effectiveness-continued

  • In some cases we may be able to say: Criterion C1 is probably better than criterion C2.

  • Such information allows us to construct a hierarchy of coverage criteria.

  • This hierarchy is helpful in organizing and managing testing. How?

Software Testing and Reliability Aditya P. Mathur 2002


Strength of a coverage criterion

Strength of a coverage criterion

  • The effectiveness of a coverage criterion is also referred to as its strength.

  • Strength is a measure of the criterion’s ability to reveal faults in a program.

  • Criterion C1 is considered stronger than criterion C2 if C1 is is capable of revealing more faults than C2.

Software Testing and Reliability Aditya P. Mathur 2002


The saturation effect

0

1

coverage

The Saturation Effect

  • The rate at which new faults are discovered reduces as test adequacy with respect to a finite coverage domain increases; it reduces to zero when the coverage domain has been exhausted.

Software Testing and Reliability Aditya P. Mathur 2002


Saturation effect fault view

N

Remaining

Faults

M

0

tfs

tfe

tds

tdfe

tme

Functional

Testing Effort

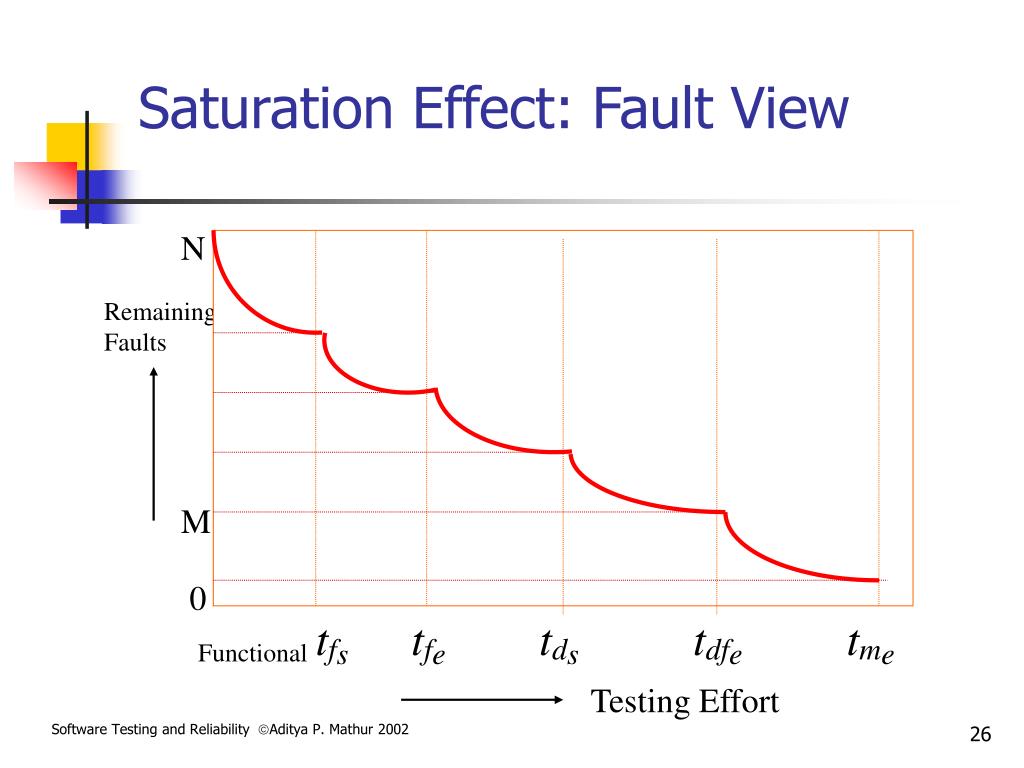

Saturation Effect: Fault View

Software Testing and Reliability Aditya P. Mathur 2002


Saturation effect reliability view

R’m

R’d

R’df

R’f

Reliability

Rm

Rdf

Mutation

Rd

Dataflow

Decision

Rf

Functional

True reliability (R)

Estimated reliability (R’)

Saturation region

tfs

tfe

tds

tde

tdfs

tdfe

tms

tfe

Testing Effort

Saturation Effect: Reliability View

Functional, Decision, Dataflow, and Mutation

tsting provide various test assessment criteria.

Software Testing and Reliability Aditya P. Mathur 2002


Coverage principle discussion

Coverage principle-discussion

  • Discuss:

    How will you use the knowledge of coverage principle and the saturation effect in organizing and managing testing?

Can you think of any other uses of the coverage principle and the saturation effect?

Software Testing and Reliability Aditya P. Mathur 2002


Control flow graph

Control flow graph

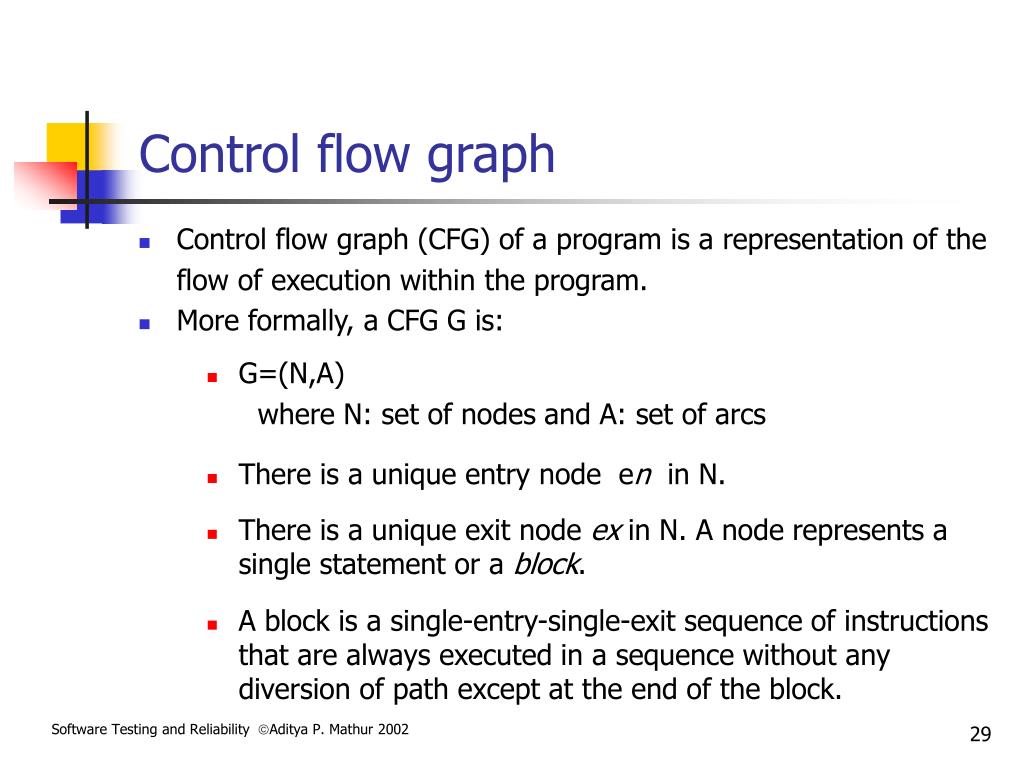

  • Control flow graph (CFG) of a program is a representation of the flow of execution within the program.

  • More formally, a CFG G is:

  • G=(N,A)

    where N: set of nodes and A: set of arcs

  • There is a unique entry node en in N.

  • There is a unique exit node ex in N. A node represents a single statement or a block.

  • A block is a single-entry-single-exit sequence of instructions that are always executed in a sequence without any diversion of path except at the end of the block.

Software Testing and Reliability Aditya P. Mathur 2002


Control flow graph contd

Control flow graph (contd.)

  • Every statement in a block, except possibly the first one, has exactly one predecessor.

  • Similarly, every statement in the block, except possibly the last one, has exactly one successor.

  • An arc a in A is a pair (n,m) of nodes from N which represent transfer of control from node n to node m.

  • A pathof length k in G is an ordered sequence of arcs, from A such that:

Software Testing and Reliability Aditya P. Mathur 2002


Control flow graph contd1

Control flow graph (contd.)

  • The first node a1is en

  • The last node akis ex

  • For any two adjacent arcs ai= (n,m) and aj = (p,q), m=p.

  • A path is considered executable or feasible if there exists a test case which causes this path to be traversed during program execution, otherwise the path is unexecutable or infeasible.

Software Testing and Reliability Aditya P. Mathur 2002


Control flow graph example

Control flow graph-example

Exercise:

Draw a CFG for the following program and identify all paths.:

1.scanf (x,y); if (y<0)

2.pow=0-y;

3.else pow=y;

4.z=1.0;

5.while (pow !=0)

6.{z=z*x; pow=pow-1;}

7.if (y<0)

8.z=1.0/z;

9.printf(z);

What does the above program compute?

Software Testing and Reliability Aditya P. Mathur 2002


Control flow graph1

en

1

scanf (x,y); if (y<0)

pow=0-y;

2

3

else pow=y;

4

z=1.0;

while (pow !=0)

5

7

if (y<0)

{z=z*x; pow=pow-1;}

6

z=1.0/z;

printf(z);

8

9

ex

Control-flow Graph

Software Testing and Reliability Aditya P. Mathur 2002


Structure based test adequacy

Structure-based Test Adequacy

  • Based on the CFG of a program several test adequacy criteria can be defined.

  • Some are:

  • statement coverage criterion

  • branch coverage criterion

  • condition coverage criterion

  • path coverage criterion

Software Testing and Reliability Aditya P. Mathur 2002


Statement coverage

Statement Coverage

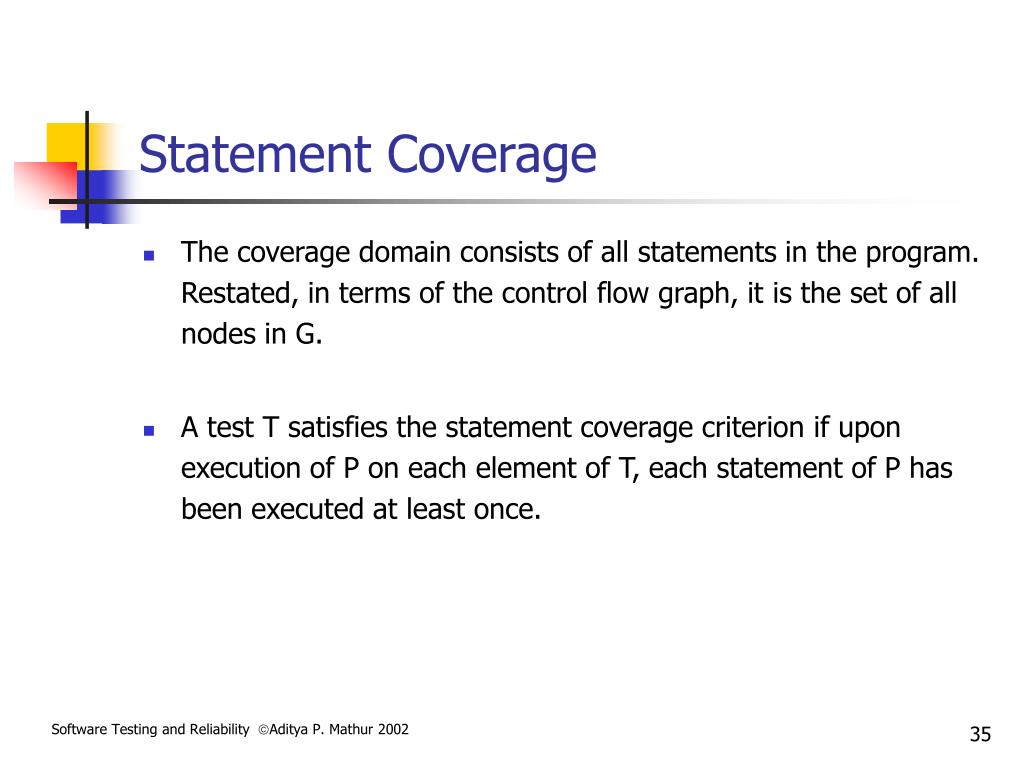

  • The coverage domain consists of all statements in the program. Restated, in terms of the control flow graph, it is the set of all nodes in G.

  • A test T satisfies the statement coverage criterion if upon execution of P on each element of T, each statement of P has been executed at least once.

Software Testing and Reliability Aditya P. Mathur 2002


Statement coverage contd

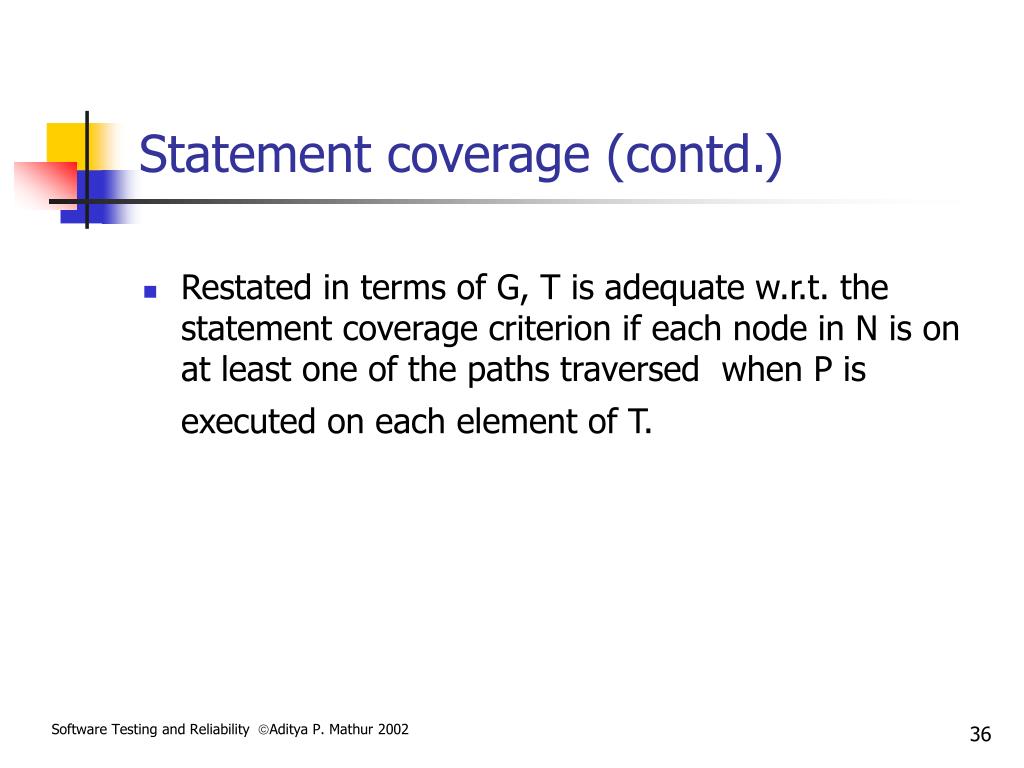

Statement coverage (contd.)

  • Restated in terms of G, T is adequate w.r.t. the statement coverage criterion if each node in N is on at least one of the paths traversed when P is executed on each element of T.

Software Testing and Reliability Aditya P. Mathur 2002


Statement coverage contd1

Statement Coverage (contd.)

  • Class exercise:

    • For the program for which you have drawn the control flow graph, develop a test set that satisfies the statement coverage criterion.

  • Follow the procedure for test assessment and improvement suggested earlier.

Software Testing and Reliability Aditya P. Mathur 2002


Statement coverage weakness

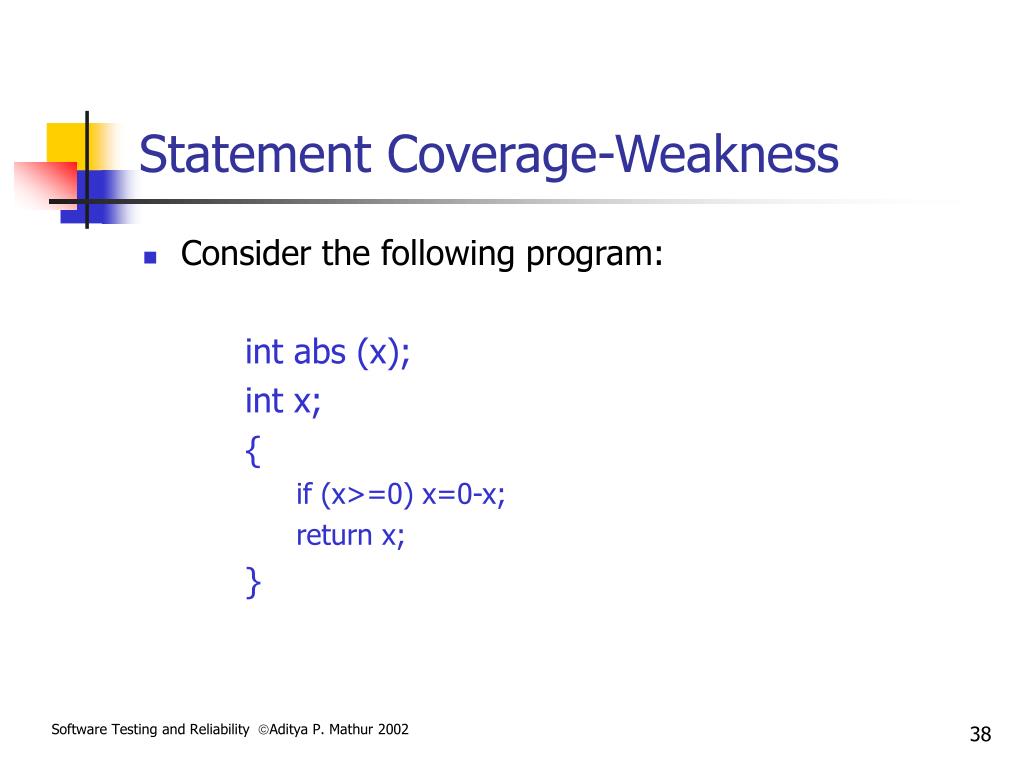

Statement Coverage-Weakness

  • Consider the following program:

    int abs (x);

    int x;

    {

    if (x>=0) x=0-x;

    return x;

    }

Software Testing and Reliability Aditya P. Mathur 2002


Statement coverage weakness1

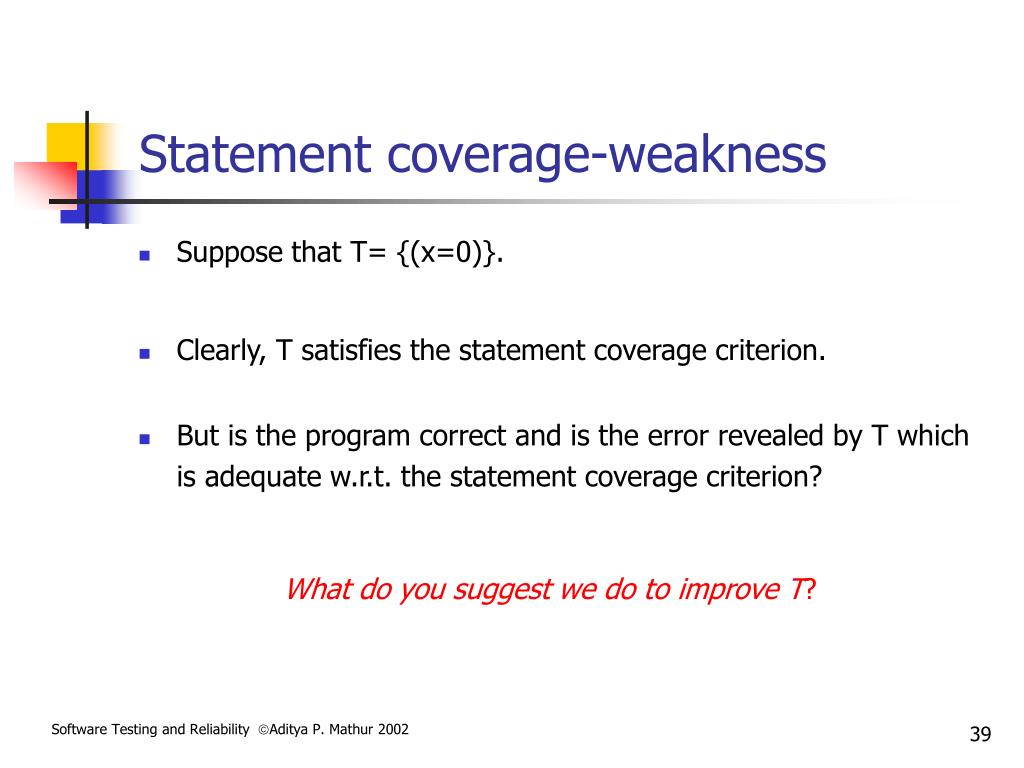

Statement coverage-weakness

  • Suppose that T= {(x=0)}.

  • Clearly, T satisfies the statement coverage criterion.

  • But is the program correct and is the error revealed by T which is adequate w.r.t. the statement coverage criterion?

What do you suggest we do to improve T?

Software Testing and Reliability Aditya P. Mathur 2002


Branch or edge coverage

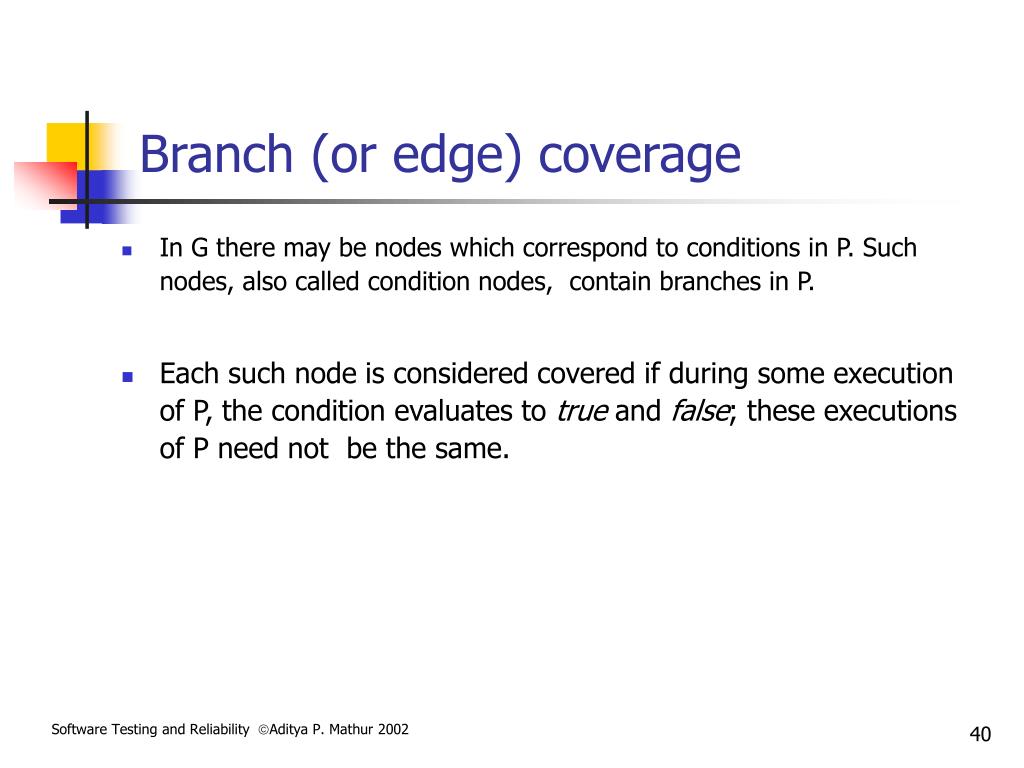

Branch (or edge) coverage

  • In G there may be nodes which correspond to conditions in P. Such nodes, also called condition nodes, contain branches in P.

  • Each such node is considered covered if during some execution of P, the condition evaluates to true and false; these executions of P need not be the same.

Software Testing and Reliability Aditya P. Mathur 2002


Branch coverage

Branch coverage

  • The coverage domain consists of all branches in G. Restated, in terms of the control flow graph, it is the set of all arcs exiting the condition nodes.

  • A test T satisfies the branch coverage criterion if upon execution of P on each element of T, each branch of P has been executed at least once.

Software Testing and Reliability Aditya P. Mathur 2002


Branch coverage1

Branch coverage

  • Class exercise:

    • Identify all condition nodes in the flow graph you have drawn earlier.

    • Does T= {(x=0)} satisfy the branch coverage criterion?

    • If not, then improve it so that it does.

Software Testing and Reliability Aditya P. Mathur 2002


Branch coverage weakness

Branch Coverage-Weakness

  • Consider the following program that is supposed to check if the input data item is in the range 0 to 100, inclusive:

int check(x);

int x;

{

if ((x>=0 )&& (x<=200))

check=true;

else check=false;

}

Software Testing and Reliability Aditya P. Mathur 2002


Branch coverage weakness1

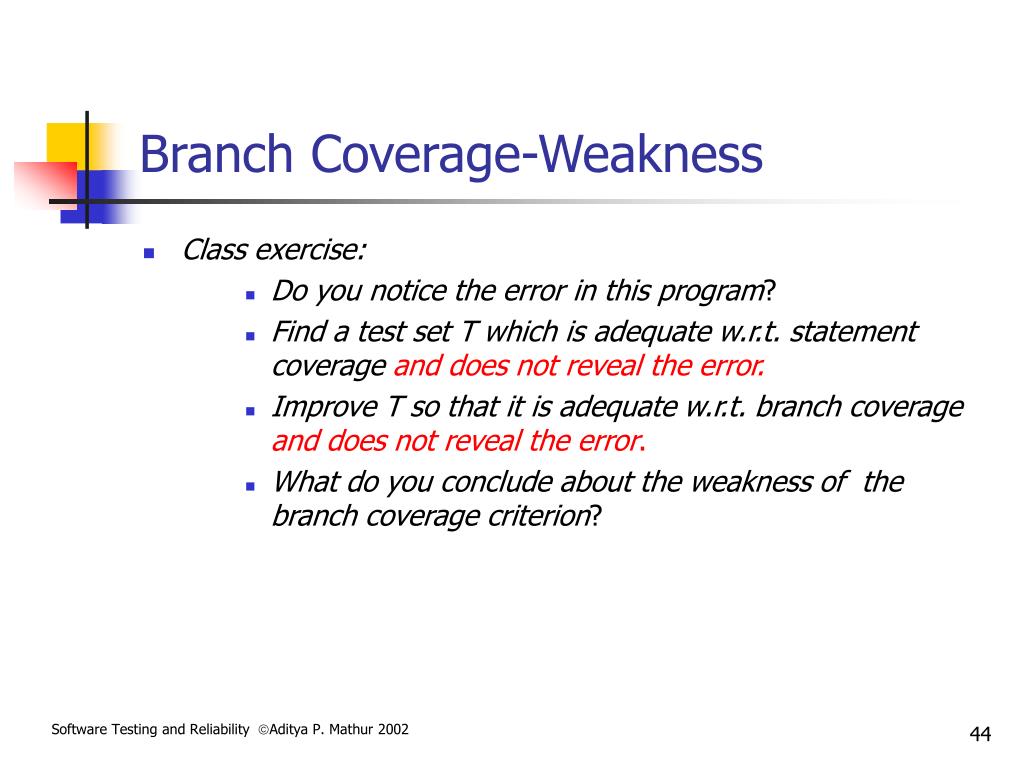

Branch Coverage-Weakness

  • Class exercise:

    • Do you notice the error in this program?

    • Find a test set T which is adequate w.r.t. statement coverage and does not reveal the error.

    • Improve T so that it is adequate w.r.t. branch coverage and does not reveal the error.

    • What do you conclude about the weakness of the branch coverage criterion?

Software Testing and Reliability Aditya P. Mathur 2002


Condition coverage

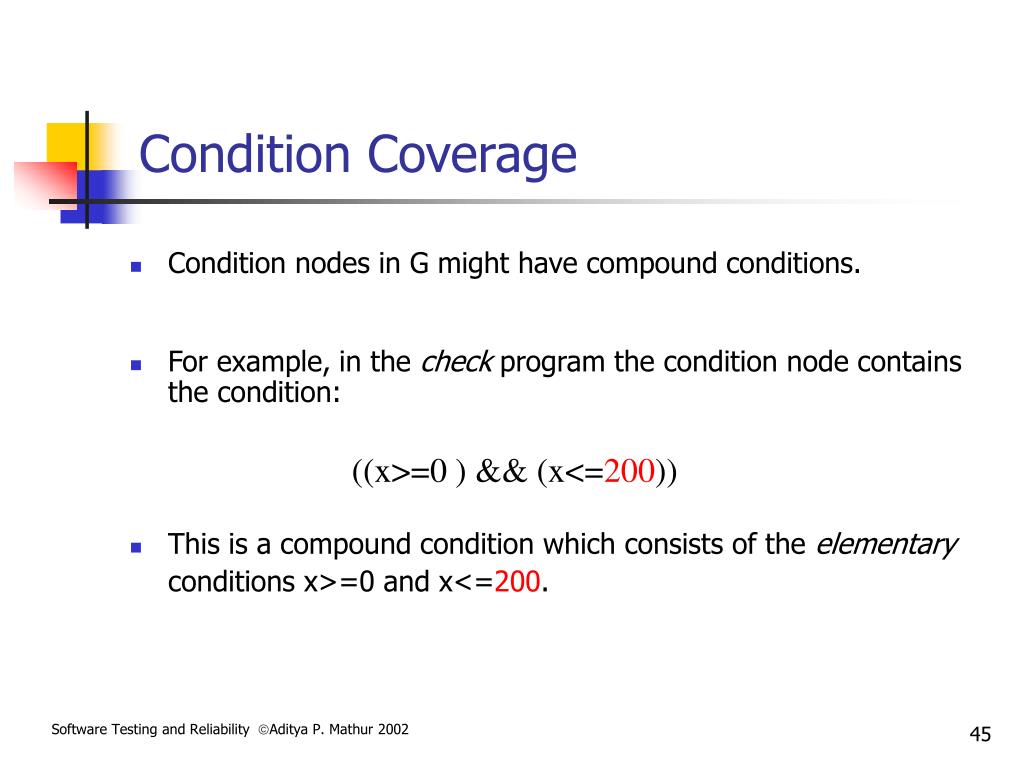

Condition Coverage

  • For example, in the check program the condition node contains the condition:

  • Condition nodes in G might have compound conditions.

((x>=0 ) && (x<=200))

  • This is a compound condition which consists of the elementary conditions x>=0 and x<=200.

Software Testing and Reliability Aditya P. Mathur 2002


Condition coverage contd

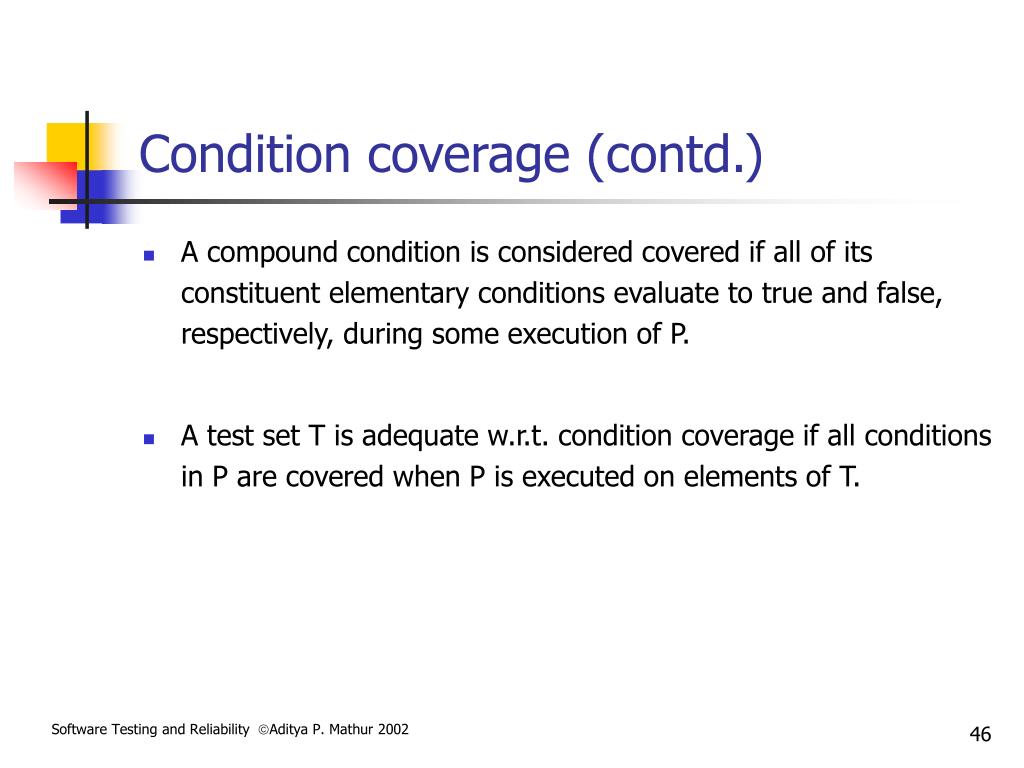

Condition coverage (contd.)

  • A compound condition is considered covered if all of its constituent elementary conditions evaluate to true and false, respectively, during some execution of P.

  • A test set T is adequate w.r.t. condition coverage if all conditions in P are covered when P is executed on elements of T.

Software Testing and Reliability Aditya P. Mathur 2002


Condition coverage contd1

Condition coverage (contd.)

  • Class exercise:

    • Improve T from the previous exercise so that it is adequate w.r.t. the condition coverage criterion for the check functionand does not reveal the error.

    • Do you find the above possible?

Software Testing and Reliability Aditya P. Mathur 2002


Branch coverage weakness contd

What might happen here?

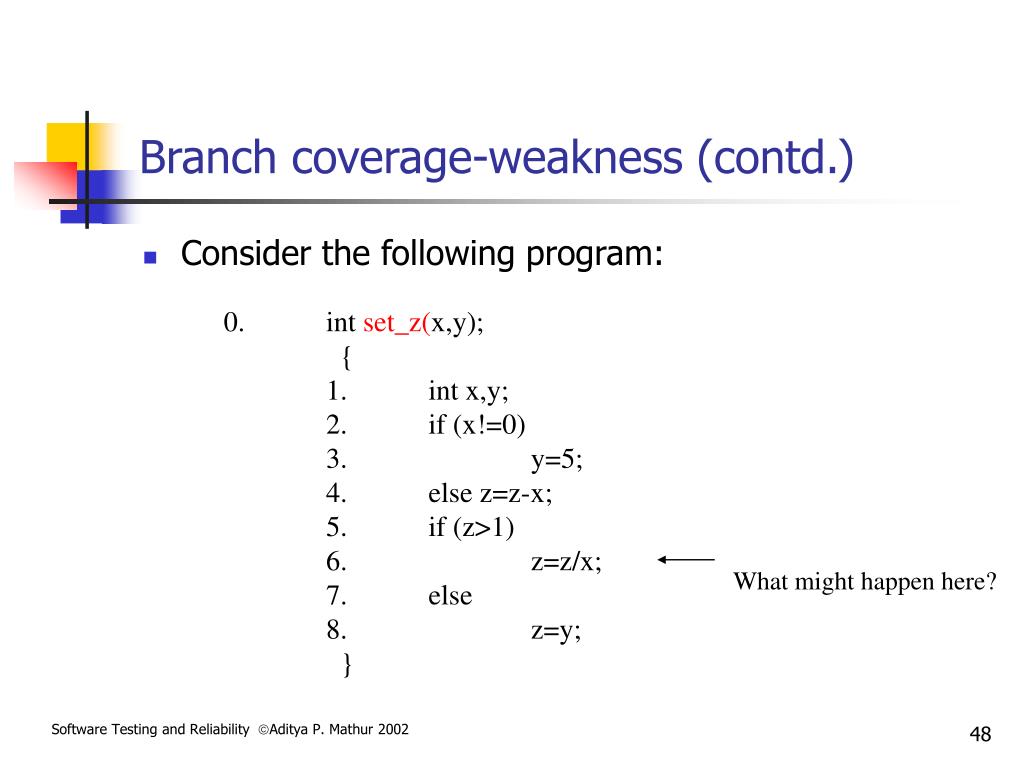

Branch coverage-weakness (contd.)

  • Consider the following program:

0.int set_z(x,y);

{

1.int x,y;

2.if (x!=0)

3.y=5;

4.else z=z-x;

5.if (z>1)

6.z=z/x;

7.else

8.z=y;

}

Software Testing and Reliability Aditya P. Mathur 2002


Branch coverage weakness2

Branch Coverage-Weakness

  • Class exercise:

    • Construct T for set_z such that (a) T is adequate w.r.t. the branch coverage criterion and (b) does not reveal the error.

    • What do you conclude about the effectiveness of the branch and condition coverage criteria?

Software Testing and Reliability Aditya P. Mathur 2002


Path coverage

Path coverage

  • As mentioned before, a path through a program is a sequence of statements such that the entry node of the program CFG is the first node on the path and the exit node is the last one on the path.

Is this definition equivalent to the one given earlier?

Software Testing and Reliability Aditya P. Mathur 2002


Path coverage contd

Path coverage (contd.)

  • A test set T is considered adequate w.r.t. the path coverage criterion if all paths in P are executed at least once upon execution on each element of T.

  • Class exercise:

    • Construct T for set_z such that T is adequate w.r.t. the path coverage criterion and does not reveal the error.

    • Is the above possible?

Software Testing and Reliability Aditya P. Mathur 2002


Path coverage weakness

  • How many in the program that computes

xy ?

Path Coverage-Weakness

  • The number of paths in a program is usually very large.

  • How many paths in set_z ?

  • How many paths in check ?

Software Testing and Reliability Aditya P. Mathur 2002


Path coverage weaknesses

Path Coverage-Weaknesses

  • It is the infinite or a prohibitively large number of paths that prevent the use of this criterion in practice.

  • Suppose that a test set T covers all paths. Will it guarantee that all errors in P are revealed ?

  • Is obtaining 100% path coverage equivalent to exhaustive testing?

Software Testing and Reliability Aditya P. Mathur 2002


Variants of path coverage

Variants of Path Coverage

  • Make sure that each loop is executed 0, 1, and 2 times.

  • As path coverage is usually impossible to attain, other heuristics have been proposed.

  • Loop coverage:

  • Try several combinations of if and switch statements. The combinations must come from requirements.

Software Testing and Reliability Aditya P. Mathur 2002


Hierarchy in control flow criteria

Condition coverage

Branch coverage

Statement coverage

X

X subsumes Y.

Y

Hierarchy in Control flow criteria

Path coverage

Software Testing and Reliability Aditya P. Mathur 2002


Exercise

Exercise

  • Develop a test set T that is adequate w.r.t. the statement, condition, and the loop coverage criteria for the exponentiation program.

Software Testing and Reliability Aditya P. Mathur 2002


Test strategy

Test strategy

  • One can develop a test strategy based on any of the criteria discussed.

  • Example:

    • A test strategy based on the statement coverage criterion will begin by evaluating a test set T against this criterion. Then new tests will be added to T until all the statements are covered, i.e. T satisfies the criterion.

Software Testing and Reliability Aditya P. Mathur 2002


Definitions

Definitions

  • Error-sensitive path: a path whose execution might lead to eventual detection of an error.

  • Error revealing path: a path whose execution will always cause the program to fail and the error to be detected.

Software Testing and Reliability Aditya P. Mathur 2002


Definitions reliable technique

Definitions: Reliable Technique

  • Reliable: A test technique is reliable for an error if it guarantees that the error will always be detected.

  • This implies that a reliable testing technique must lead to the exercising of at least one error-revealing path.

Software Testing and Reliability Aditya P. Mathur 2002


Definitions weakly reliable

Definitions: Weakly Reliable

  • Weakly reliable: A test technique is weakly reliable if it forces the execution of at least one error sensitive path.

Software Testing and Reliability Aditya P. Mathur 2002


Example error detection 1

Example: Error Detection [1]

  • Let us go over the example in Korel and Laski’s paper.

  • It is a sorting program which uses the bubble sort algorithm.

  • It sorts an array a[0:N] in descending order.

  • There are two, nested, loops in the program.

  • The inner loop from i6-i10 finds the largest element of a[R1:N].

Software Testing and Reliability Aditya P. Mathur 2002


Example error detection contd

Example: Error Detection (contd.)

  • The largest element is saved in R0 and R3 points to the location of R0 in a.

  • The outer loop swaps a(R1) with a(R3).

  • The completion of one iteration of the outer loop ensures that the sub-array a[0:R1-1] has been sorted and that a[R1-1] is greater than or equal to any element of a[R1:N].

Software Testing and Reliability Aditya P. Mathur 2002


Example error detection contd1

Example: Error Detection (contd.)

  • There is a missing re-initialization of R3 to R1 at the beginning of the inner loop.

  • In some cases this will cause the program to fail.

    What are these cases?

  • We will get back to this error later!

Software Testing and Reliability Aditya P. Mathur 2002


Data flow graph

Data flow graph

  • The graph is constructed from the control flow graph (CFG) of the program.

  • It represents the flow of data in a program.

  • A statement that occurs within a node of the CFG might contain variables occurrences.

  • Each variable occurrence is classified as a def or a use.

Software Testing and Reliability Aditya P. Mathur 2002


Defs and uses

defs and uses

  • A def represents the definition of a variable. Here are some sample defs of variable x:

    • x=y*x;

    • scanf(&x,&y);

    • int x;

    • x[i-1]=y*x;

All defs of x are italicized.

  • A use represents the use of a variable in a statement. Here a few examples of use of variable x:

Software Testing and Reliability Aditya P. Mathur 2002


Def use contd

def-use (contd.)

All uses of x are italicized.

  • x=x+1;

  • printf (“x is %d, y is %d”, x,y);

  • cout << x << endl << y

  • z=x[i+1]

  • if (x<y)…

  • Uses of a variable in input and assignments are classified as c-uses. Those in conditions are classified as p-uses.

Software Testing and Reliability Aditya P. Mathur 2002


Def use contd1

def-use (contd.)

  • c-use stands for computational use and p-use for predicate-use.

  • Both c- and p-uses affect the flow of control: p-uses directly as their values are used in evaluating conditions and c-uses indirectly as their values are used to compute other variables which in turn affect the outcome of condition evaluation.

Software Testing and Reliability Aditya P. Mathur 2002


Def use contd2

def-use (contd.)

  • A path from node i to node j is said to be def-clear w.r.t. a variable x if there is no def of x in the nodes along the path from node i tonode j. Nodes i and j may have a def of x.

  • A def-clear path from node i to edge (j,k) is one in which no node on the path has a def of x.

Software Testing and Reliability Aditya P. Mathur 2002


Global def

global-def

  • A c-use of x in a block is considered global c-use if there is no def of xpreceding this c-use within this block.

  • A def of a variablex is considered global to its block if it is the last def of x within that block.

Software Testing and Reliability Aditya P. Mathur 2002


Def use graph definitions

def-use graph: definitions

  • def(i): set of all variables for which there is a global definition at node i.

  • c-use(i): set of all variables that have a global c-use at node i.

  • p-use(i,j): set of all variables for which there is a p-use for the edge (i,j).

  • dcu(x,i): set of all nodes such that each node has x in its c-use and x is in def(i).

Software Testing and Reliability Aditya P. Mathur 2002


Def use graph definitions1

def-use graph: definitions

  • dpu(x,i): set of all edges such that each edge has x in its p-use , x is in def(i).

  • The def-use graph of program P is constructed by associating defs, c-use, and p-use sets with nodes of a flow graph.

Software Testing and Reliability Aditya P. Mathur 2002


Def use graph contd

def-use graph (contd.)

Sample program:

1.scanf (x,y); if (y<0)

2.pow=0-y;

3.else pow=y;

4.z=1.0;

5.while (pow !=0)

6.{z=z*x; pow=pow-1;}

7.if (y<0)

8.z=1.0/z;

9.printf(z);

Software Testing and Reliability Aditya P. Mathur 2002


Def use graph contd1

def-use graph (contd.)

Unlabeled edges

imply empty p-use set.

def={x,y}

c-use=

1

y

y

def={pow}

c-use={y}

def={pow}

c-use={y}

2

3

4

def={z}

c-use=

def=

c-use=

5

def=

c-use=

pow

pow

def={z,pow}

c-use={z,x,pow}

7

6

y

y

def=

c-use={z}

def={z}

c-use={z}

8

9

Software Testing and Reliability Aditya P. Mathur 2002


Def use graph exercise

def-use graph exercise

Draw a def-use graph for the following program.

0.int set_z(x,y);

{

1.int x,y;

2.if (x!=0)

3.y=5;

4.else z=z-x;

5.if (z>1)

6.z=z/x;

7.else

8.z=y;

}

Software Testing and Reliability Aditya P. Mathur 2002


Def use graph contd2

(node, var)dcudpu

(1,x){6} 

(1,y){2,3}{(1,2),(1,3),(7,8),(7,9)}

(2,pow){6}{(5,6),(5,7)}

(3,pow){6}{5,6),(5,7)}

(4,z){6,8,9}

(6,z){6,8,9}

(6,pow){6}{(5,6),(5,7)}

(8,z){9} 

def-use graph (contd.)

  • Traverse the graph to determine dcu and dpu sets.

Software Testing and Reliability Aditya P. Mathur 2002


Test generation

Test generation

  • Exercises:

    • For the above graph generate a test set that satisfies

      • the branch coverage criterion

      • the all-defs criterion - for definitions of all variables at least one use (c- or p- use) must be exercised.

      • the all-uses criterion- all p-uses and all c-uses of all variable definitions be covered.

Develop the tests incrementally, i.e. by modifying the previous test set!

Software Testing and Reliability Aditya P. Mathur 2002


Suds processing phase i

Preprocess, compile

and instrument

Test set

generate

input

generate

.atac files

Instrumented version of P (executable)

upon execution

upon execution

.trace file

Program output

SUDS processing: Phase I

P, Program under

test

Software Testing and Reliability Aditya P. Mathur 2002


Atac processing phase ii

.atac files

.trace file

control flow and data flow

coverage values

ATAC processing: phase II

coverage analyzer

Software Testing and Reliability Aditya P. Mathur 2002


Mutation testing

Mutation Testing

  • What is mutation testing?

  • Mutation testing is a code-based test assessment and improvement technique.

  • It relies on the competent programmer hypothesis which is the following assumption:

  • Given a specification a programmer develops a program that is either correct or differs from the correct program by a combination of simple errors.

Software Testing and Reliability Aditya P. Mathur 2002


Mutation testing contd

Mutation testing (contd.)

  • The process of program development is considered as iterative whereby an initial version of the program is refined by making simple, or a combination of simple changes, towards the final version.

Software Testing and Reliability Aditya P. Mathur 2002


Mutant

Program

Mutant

1.int x,y;

2.if (x!=0)

3.y=5;

4.else z=z-x;

5.if (z>1)

6.z=z/x;

7.else

8.z=y;

1.int x,y;

2.if (x!=0)

3.y=5;

4.else z=z-x;

5.if (z>1)

6.z=z/zpush(x);

7.else

8.z=y;

Mutant

  • Given a program P, a mutant of P is obtained by making a simple change in P.

What is zpush?

Software Testing and Reliability Aditya P. Mathur 2002


Another mutant

Program

Mutant

1.int x,y;

2.if (x!=0)

3.y=5;

4.else z=z-x;

5.if (z>1)

6.z=z/x;

7.else

8.z=y;

1.int x,y;

2.if (x!=0)

3.y=5;

4.else z=z-x;

5.if (z<1)

6.z=z/x;

7.else

8.z=y;

Another mutant

Software Testing and Reliability Aditya P. Mathur 2002


Mutant1

Mutant

  • A mutant M is considered distinguishedby a test case t T iff:

    • P(t)M(t)

      where P(t) and M(t) denote, respectively, the observed behavior of P and M when executed on test input t.

  • A mutant M is considered equivalent to P iff:

    • P(t)M(t) t  T.

Software Testing and Reliability Aditya P. Mathur 2002


Mutation score

Mutation score

  • During testing a mutant is considered live if it has not been distinguished or proven equivalent.

  • Suppose that a total of #M mutants are generated for program P.

  • The mutation score of a test set T, designed to test P, is computed as:

    • number of live mutants/(#M-number of equivalent mutants)

Software Testing and Reliability Aditya P. Mathur 2002


Test adequacy criterion

Test adequacy criterion

  • A test T is considered adequate w.r.t. the mutation criterion if its mutation score is 1.

  • The number of mutants generated depends on P and the mutant operators applied on P.

  • A mutant operator is a rule that when applied to the program under test generates zero or more mutants.

Software Testing and Reliability Aditya P. Mathur 2002


Mutant operators

Mutant Operators

  • Consider the following program:

    int abs (x);

    int x;

    {

    if (x>=0) x=0-x;

    return x;

    }

Software Testing and Reliability Aditya P. Mathur 2002


Mutation operator

Mutation operator

  • Consider the following rule:

    • Replace each relational operator in P by all possible relational operators excluding the one that is being replaced.

  • Assuming the set of relational operators to be: {<, >, <=, >=, ==, !=}, the above mutant operator will generate a total of 5 mutants of P.

Software Testing and Reliability Aditya P. Mathur 2002


Mutation operators

Mutation Operators

  • Mutation operators are language dependent.

  • For Fortran a total of 22 operators were proposed.

  • For C a total of 77 operators were proposed. None have been proposed for C++ though most of the operators for C are applicable to C++ programs.

Software Testing and Reliability Aditya P. Mathur 2002


Equivalent mutant

Equivalent mutant

int x,y,z;

scanf(&x,&y);

if (x>0)

x=x+1; z=x*(y-1);

else

x=x-1; z=x*(y-1);

  • Consider the following program P:

  • Here z is considered the output of P.

Software Testing and Reliability Aditya P. Mathur 2002


Equivalent mutant contd

Equivalent mutant (contd.)

  • Now suppose that a mutant of P is obtained by changing x=x+1 to x=abs(x)+1.

  • This mutant is equivalent to P as no test case can distinguish it from P.

Software Testing and Reliability Aditya P. Mathur 2002


Mutation testing procedure

Mutation Testing Procedure

Given P and a test set T:

1. Generate mutants

2. Compile P and the mutants

3. Execute P and the mutants on each test

case.

4. Determine equivalent mutants..

5. Determine mutation score.

6. If mutation score is not 1 then improve

the test set and repeat from step 3.

Software Testing and Reliability Aditya P. Mathur 2002


Mutation testing procedure contd

Mutation Testing Procedure (contd.)

  • In practice the above procedure is implemented incrementally.

  • One applies a few selected mutant operators to P and computes the mutation score w.r.t. to the mutants generated.

  • Once these mutants have been distinguished or proven equivalent, another set of mutant operators is applied.

Software Testing and Reliability Aditya P. Mathur 2002


Mutation testing procedure1

Mutation Testing Procedure

  • This procedure is repeated until either all the mutants have been exhausted or some external condition forces testing to stop.

  • We will not discuss the details of practical application of mutation testing.

Software Testing and Reliability Aditya P. Mathur 2002


Tools for mutation testing

Tools for Mutation Testing

  • Mothra: for Fortran, developed at Purdue, 1990

  • Proteum: for C, developed at the University of Saõ Paulo at Saõ Carlos in Brazil.

Software Testing and Reliability Aditya P. Mathur 2002


Uses of mutation testing

Uses of Mutation Testing

  • Mutation testing is useful during integration testing to check for integration errors.

  • Only the variables that are in the interfaces of the components being integrated are mutated. This reduces the complexity of mutation testing.

Software Testing and Reliability Aditya P. Mathur 2002


Summary

Summary

  • Test adequacy criterion

  • Test improvement

  • Coverage principle

  • Saturation effect

  • Control flow criteria

  • Data flow criteria

    • def, use, p-use, c-use, all-uses

Software Testing and Reliability Aditya P. Mathur 2002


Summary contd

Summary (contd.)

  • xSUDS, data flow testing tool.

  • Mutation testing

    • mutant, distinguishing a mutant, live mutant, mutant score, competent programmer hypothesis.

Software Testing and Reliability Aditya P. Mathur 2002


  • Login
