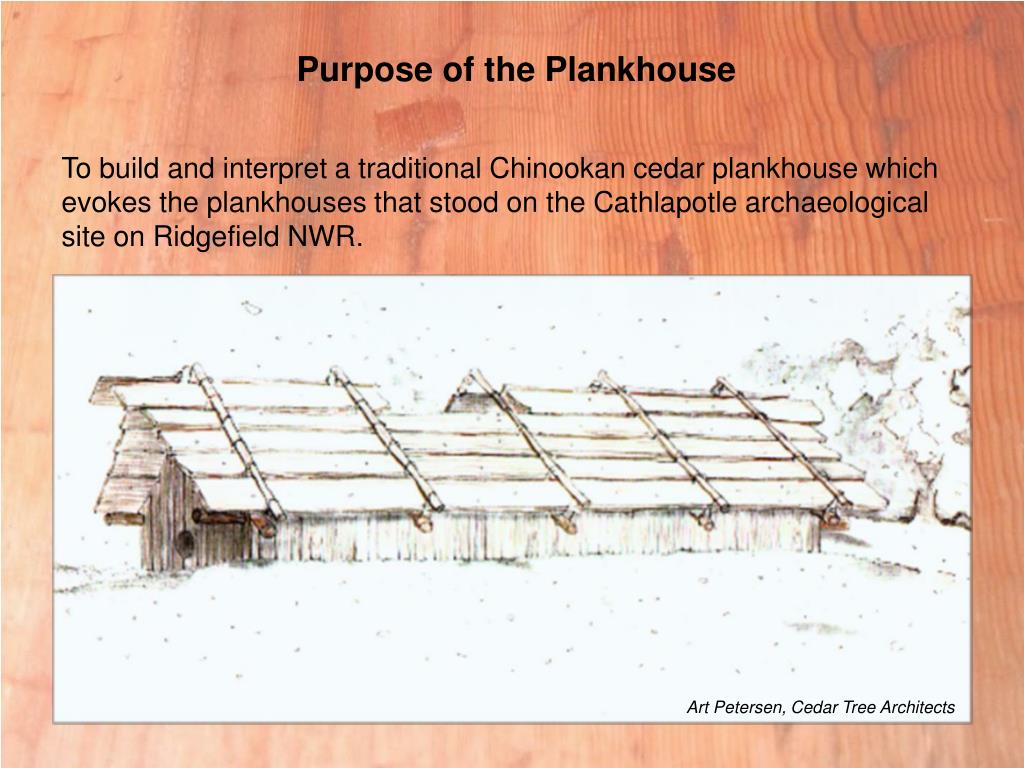

  • To build and interpret a traditional Chinookan cedar plankhouse which evokes the plankhouses that stood on the Cathlapotle archaeological site on Ridgefield NWR.

Art Petersen, Cedar Tree Architects

A gh0123456789

  • Lewis and Clark’s map showing the “Quathlapotle Nation”

1805 -1806

Cathlapotle archaeological site

Cathlapotle Archaeological Site

Occupied from at least A.D. 1450 to about A.D. 1850.

Cathlapotle archaeological site1

Cathlapotle Archaeological Site

  • One of the few large Chinookan villages on the lower Columbia River that has not been lost to development, flooding, or looting.

Cathlapotle archaeological project 1991 present

Cathlapotle Archaeological Project 1991-Present

PublicOutreachandEducation & Archaeological Research

U.S. Fish and Wildlife Service, Portland State University, Chinook Indian Tribe

Archaeological research

Archaeological Research

  • Dr. Kenneth Ames, PSU, Department of Anthropology

  • Archaeological field schools

  • Professional technical reports

  • 11 Master’s theses and PhD. Dissertations

  • Dozens of professional papers and presentations

  • Lab work continues

A gh0123456789

Education and Outreach

  • Virginia Parks, U.S. Fish and Wildlife Service

  • Chinook Indian Tribe

  • Artifact and heritage education kit and curriculum

  • 2500+ Clark County students

  • Events and festivals

Purpose of the plankhouse1

Purpose of the Plankhouse

  • To build and interpret a traditional Chinookan cedar plankhouse which evokes the plankhouses that stood on the Cathlapotle archaeological site. The plankhouse should have cultural value to the Chinook Tribe and the community, and interpretive value to the Fish and Wildlife Service.

Paul Kane 1846

A gh0123456789

Project Partners and Steering Committee

  • U.S. Fish and Wildlife Service

  • Lewis and Clark Bicentennial Committee for Vancouver/Clark County

  • Chinook Tribe

  • Friends of Ridgefield National Wildlife Refuge

  • Community of Ridgefield

Cameron Smith

A gh0123456789

Design Objectives

  • Build a structure that conveys the grandeur of a full-size plankhouse and the atmosphere of Chinookan culture

  • Use proper materials, designs, and building techniques based on archaeological and historical information

  • Minimize modern intrusions

  • Incorporate certain engineering elements to ensure a safe and long lasting structure

Interior of a Chinookan Plankhouse

Paul Kane 1846

A gh0123456789

Functional Objectives

  • Interpret natural and cultural world of the Cathlapotle Chinookans.

  • Make the building accessible to all public.

  • Emphasize educational opportunities for school children.

  • Provide the Chinook Tribe a place to celebrate their cultural heritage.

A gh0123456789

Cathlapotle Plankhouse Project

  • Budget

  • Architecture and design $ 35,000

  • Project Manager $ 60,000

  • Cedar Logs$ 125,000

  • Roof plank fabrication $ 17,000

  • Post Carvings $ 45,000

  • Fasteners and small equipment $ 17,000

  • Interior features $ 26,000

  • Interpretive materials, curriculum, events$ 134,500

  • Landscaping, paths $ 30,000

  • Total$ 486,500

Funding and support

Funding and Support

  • Funds

    • Individuals and community organizations $19,200

    • Ferguson Foundation $7,000

    • Meyer Memorial Trust $60,000

    • M.J. Murdock Charitable Trust $75,000

    • National Park Service$150,000

    • Estate of Gladys Hare (maintenance endowment)$100,000

    • Fish and Wildlife Service $92,175

  • In-Kind Materials and Services

    • Cedar Logs from community members $14,300

    • Cedar Logs: Mt. Hood and Gifford Pinchot N. F. $34,898

    • Other supplies and services $7,800

    • 50+ Volunteers have logged 2,161 hours $32,415


A gh0123456789

Cross section of Cathlapotle Plankhouse

  • Dimensions = 37 feet by 78 feet, semi-subterranean

  • Designed using archaeological and ethnographic data

  • Constructed of western red cedar planks, posts, and beams

  • Cedar plank roof with adjustable smoke hole

  • Traditional oval entry at front and ADA accessible door at rear

Art Petersen, Cedar Tree Architects

A gh0123456789

Interior plan view of Cathlapotle Plankhouse

Art Petersen, Cedar Tree Architects

  • Two fire hearths

  • Benches along walls

  • Storage under benches

A gh0123456789

The ridge beam will be supported by posts carved from massive slabs of old growth western red cedar

Working sketches for ridge posts by Tony Johnson

A gh0123456789

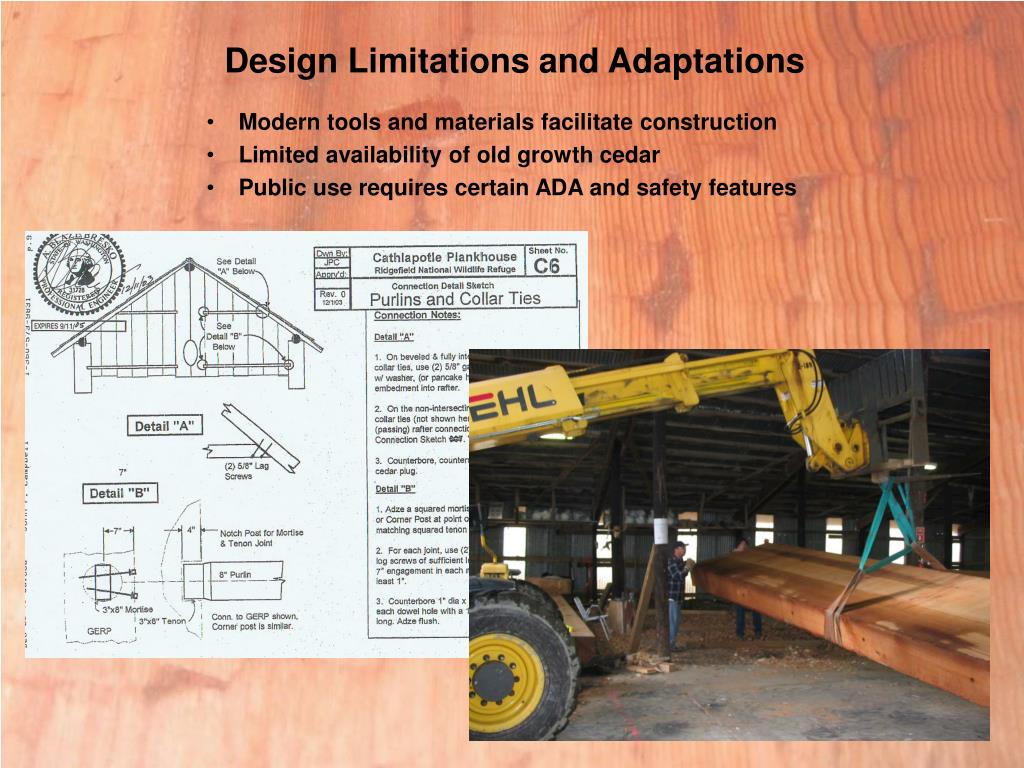

Design Limitations and Adaptations

  • Modern tools and materials facilitate construction

  • Limited availability of old growth cedar

  • Public use requires certain ADA and safety features

A gh0123456789

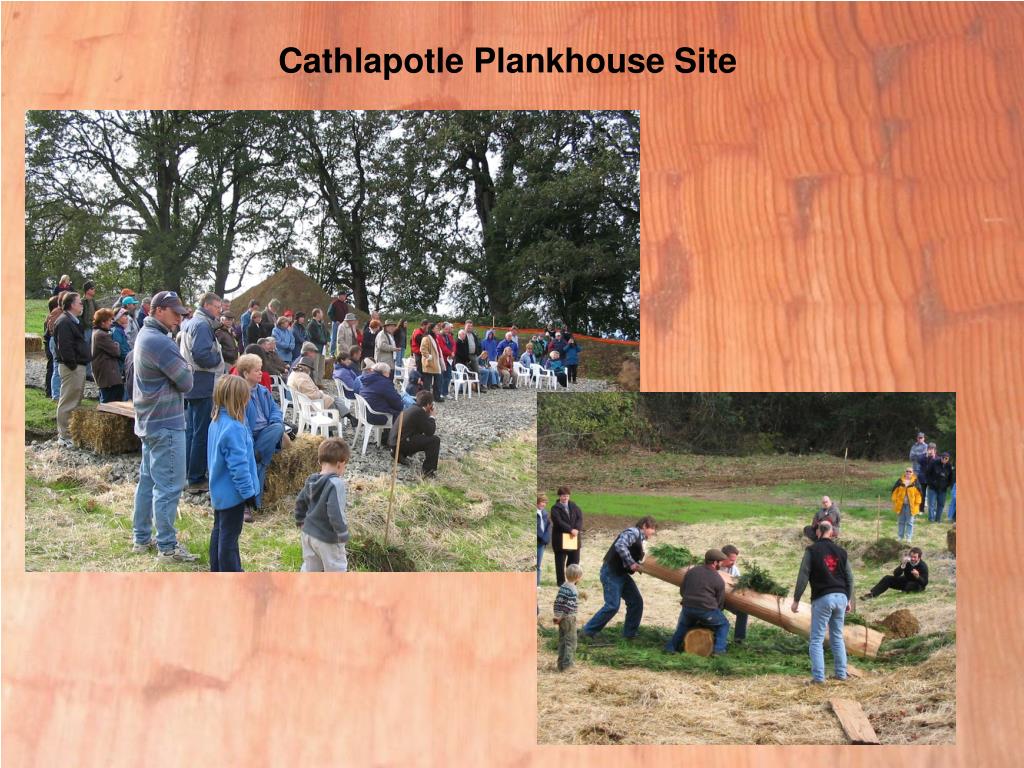

Cathlapotle Plankhouse Site

  • About one mile from Cathlapotle archaeological site, away from the river

  • Secure and easily accessed location

  • Above flood level, next to a pond

Cathlapotle plankhouse site

Cathlapotle Plankhouse Site

A gh0123456789

Log Donations

  • Enough timber has been donated to produce most of the building’s posts, eave beams, and wall planks.

A gh0123456789


  • 50+ volunteers have logged over 2000 cumulative hours

A gh0123456789


  • 450 contacts on mailing list

  • Monthly e-mail updates go to 270 contacts

  • Website displays latest volunteer opportunities at

  • www.plankhouse.org

A gh0123456789

Project Manager:

Greg Robinson

  • Volunteer Log Site Coordinator:

  • Pat Campbell

  • Volunteer Log Jam Committee Chairman:

  • Truman Sturdevant



  • Wood and antler wedges

  • Cordage making

  • Basket making

  • Cedar and withe bark harvest

  • Wapato harvest

  • Adze manufacture

  • Mats and mat creasers

  • Stone tools

Work parties of volunteers are building the plankhouse

Work parties of volunteers are building the plankhouse

  • Moving logs

  • Eave beam and post fabrication

  • Splitting wall planks

  • Notching posts

  • Setting posts

  • Raising beams

  • Attaching wall planks

  • Harvesting and processing raw materials

A gh0123456789

Carving the Ridge Posts

  • Tony Johnson and Adam McIsaac



  • Building a traditional Chinookan structure in the 21st century on a National Wildlife Refuge open to the public.

Tulalip Plankhouse

Open Fires?Traditional Entry, Modern Doors? Air Quality?

A gh0123456789

Siletz Tribe Plankhouse

Yurok Tribe Plankhouse

A gh0123456789

Swinomish Tribe Smokehouse
