  1. Structure and Function of the Eye SPE 516

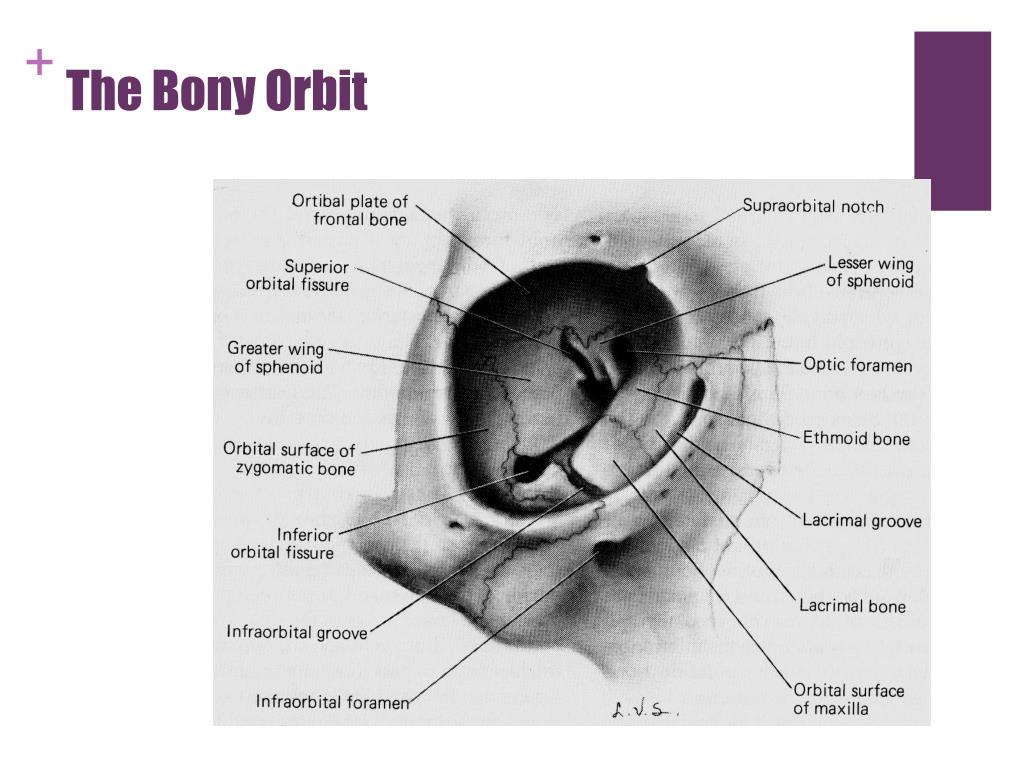

  2. The Bony Orbit

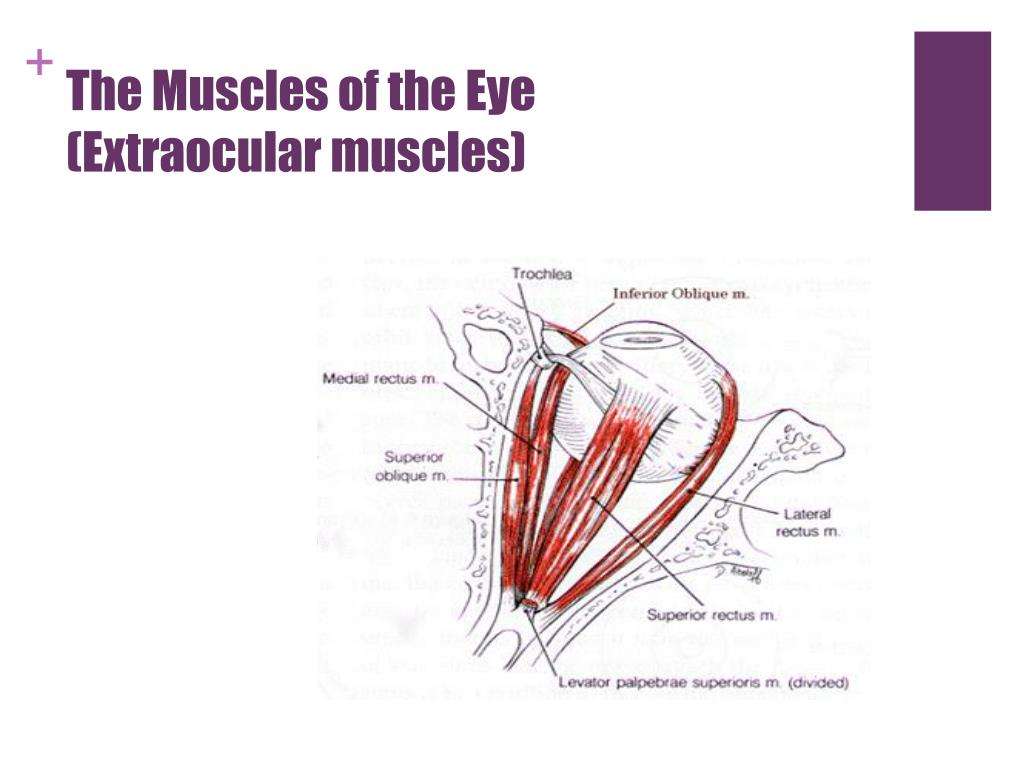

  3. The Muscles of the Eye(Extraocular muscles)

  4. Superior and Inferior rectus • Superior rectus • Attached to the eye at 12 o’clock • Moves the eye up. • Inferior rectus • Attached to the eye at 6 o’clock • Moves the eye down.

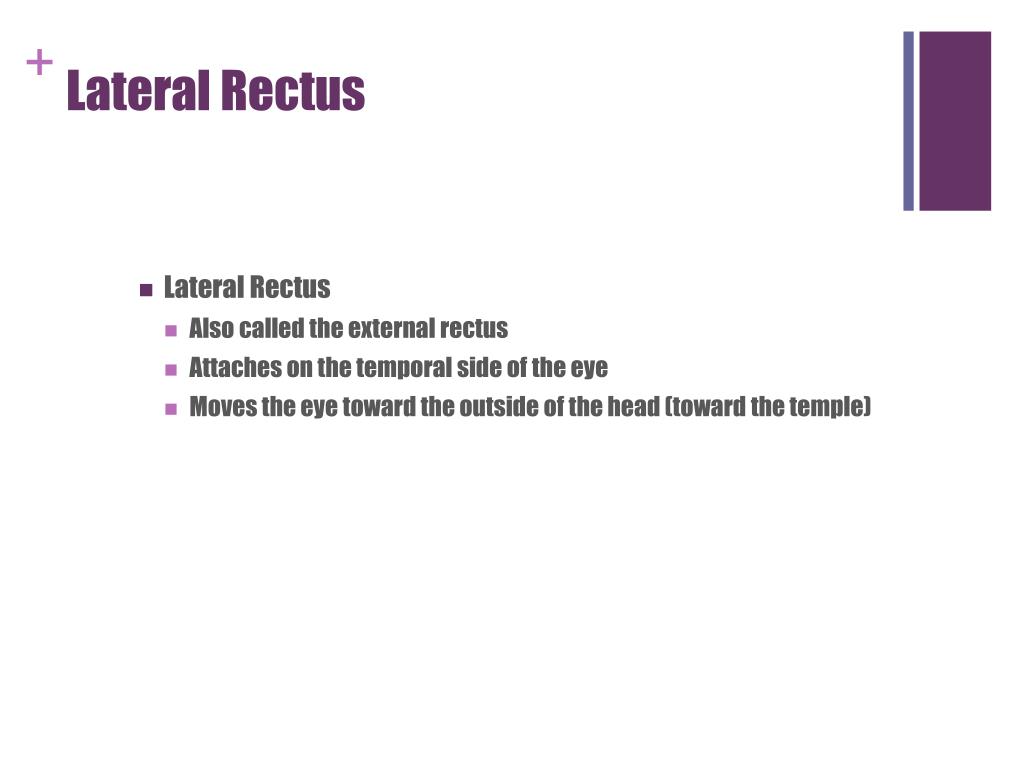

  5. Lateral Rectus • Lateral Rectus • Also called the external rectus • Attaches on the temporal side of the eye • Moves the eye toward the outside of the head (toward the temple)

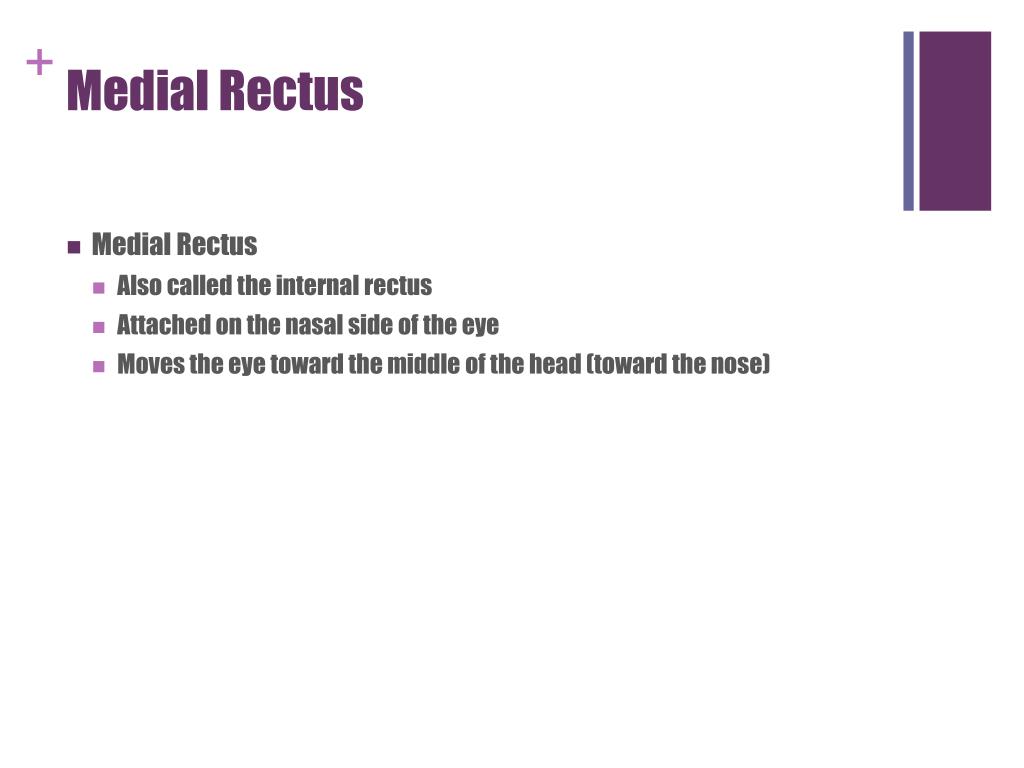

  6. Medial Rectus • Medial Rectus • Also called the internal rectus • Attached on the nasal side of the eye • Moves the eye toward the middle of the head (toward the nose)

  7. Superior Oblique • Attached high on the temporal side of the eye. • Passes under the Superior Rectus. • Moves the eye in a diagonal pattern -- down and in. • Travels through the trochlea

  8. Inferior Oblique • Attached low on the nasal side of the eye. • Passes over the Inferior Rectus. • Moves the eye in a diagonal pattern -- up and out.

  9. The Nerves That Control the Muscles of the Eye • Third Cranial Nerves • Fourth Cranial Nerves • Sixth Cranial Nerves

  10. Lids and Lashes • Main function is the protection of the eye. • They also help to distribute tears which wash and lubricate the eyes.

  11. The Lacrimal System -- Tears

  12. The Refractive Structures • These structures bend the light so that a clear image is produced. • They are: • tears • conjunctiva • cornea • aqueous humor • lens • vitreous humor

  13. Chambers of the Eye 1. Anterior chamber – from cornea to iris 2. Posterior chamber – from iris to zonules and lens – • These two are responsible for the production and drainage of the aqueous which is produced continuously throughout your life. • Aqueous is produced in the posterior chamber by the ciliary body travel through the iris to drain out the anterior chamber (through the Canal of Schlemn) 3. Vitreous – gel like –gives the eye its shape not produced – damage or loss can cause retinas to fall or tear

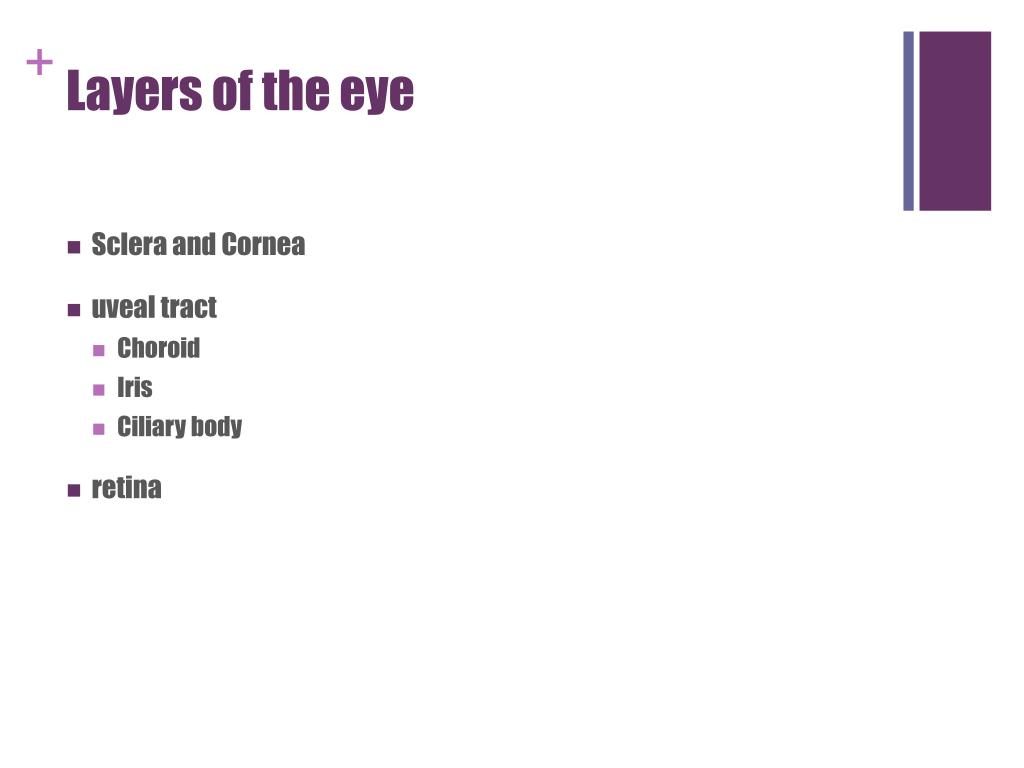

  14. Layers of the eye • Sclera and Cornea • uveal tract • Choroid • Iris • Ciliary body • retina

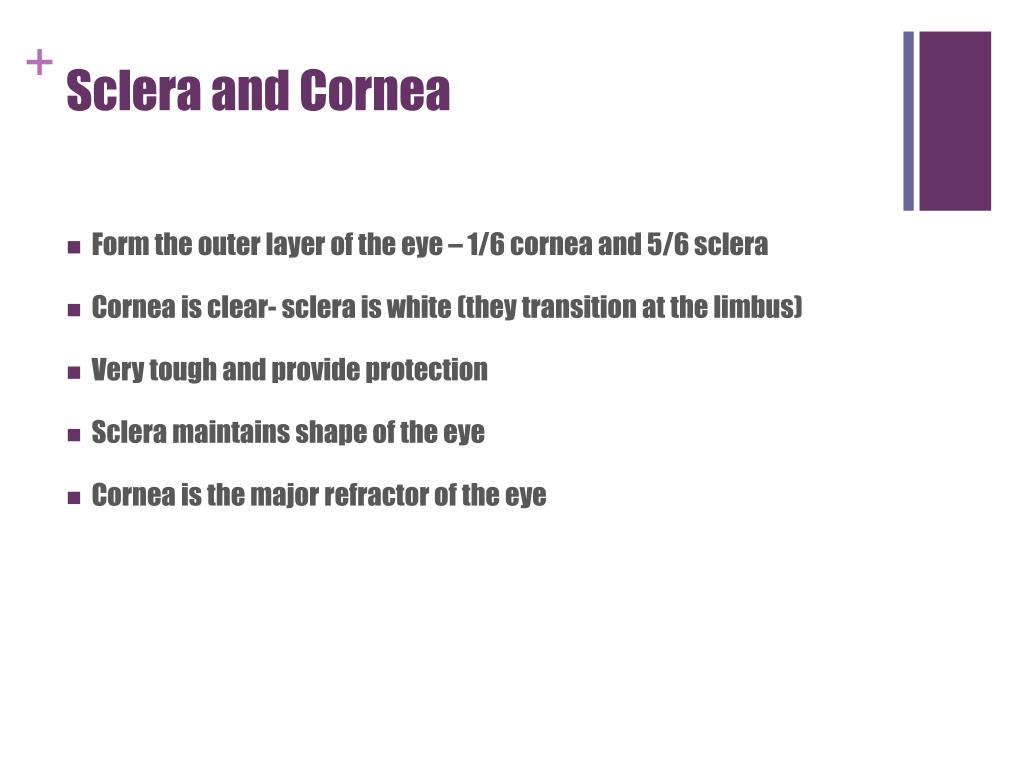

  15. Sclera and Cornea • Form the outer layer of the eye – 1/6 cornea and 5/6 sclera • Cornea is clear- sclera is white (they transition at the limbus) • Very tough and provide protection • Sclera maintains shape of the eye • Cornea is the major refractor of the eye

  16. Uveal Tract • Choroid – vascular layer, major supplier of nutrients and blood supply to the eye • Iris – Controls light that enters eye • Cilliary body- produces aqueous humor to bathe lens and provide nutrients to lens and cornea and provides accommodation.

  17. The Retina The retina is made up of cones and rods • Rods -peripheral retina • Motion, low light, no color • Cones -central retina • Highly centralized in the fovea • Color • Fine detail

  18. The Optic Pathway • Begins at the optic nerve. • Impulses cross and partially split at the optic chiasm. • After the chiasm, it becomes the optic tract. • Lateral geniculate bodies (sensory way stations) • Some fibers go to the colliculus (located in the mid brain)

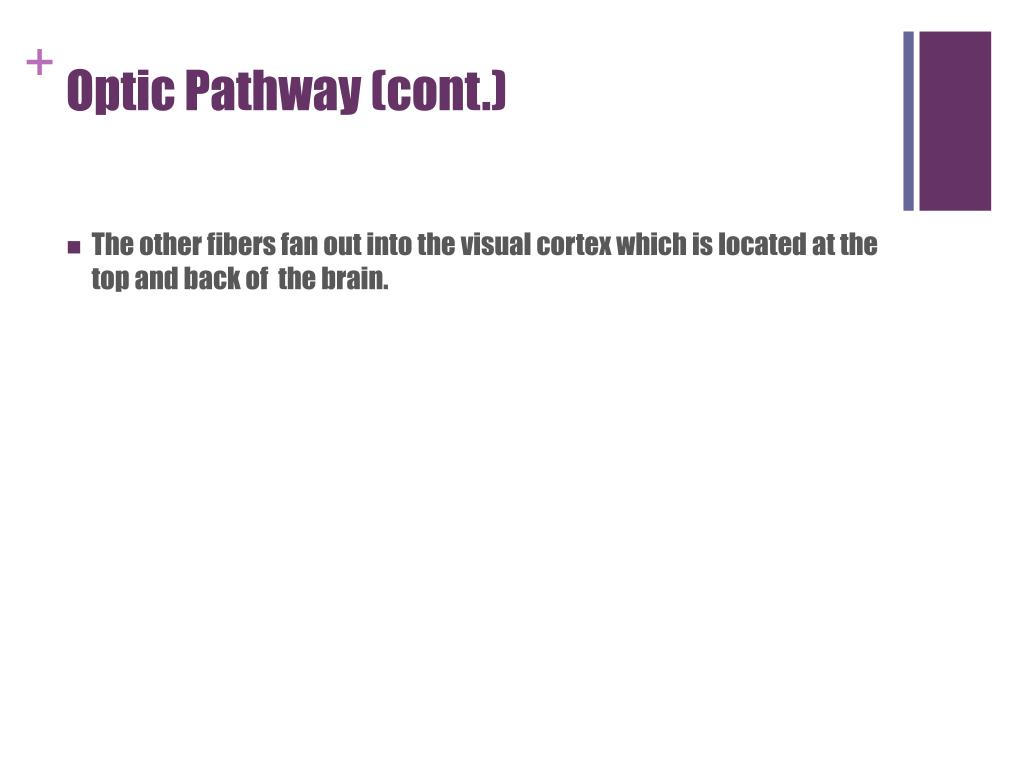

  19. Optic Pathway (cont.) • The other fibers fan out into the visual cortex which is located at the top and back of the brain.

  20. Vision and the Brain • Primary visual cortex (Striated Cortex) -- • spatial organization of a scene • shapes of objects • brightness and shading of parts of objects • Secondary visual cortex (Prestriated Cortex) -- • pattern recognition

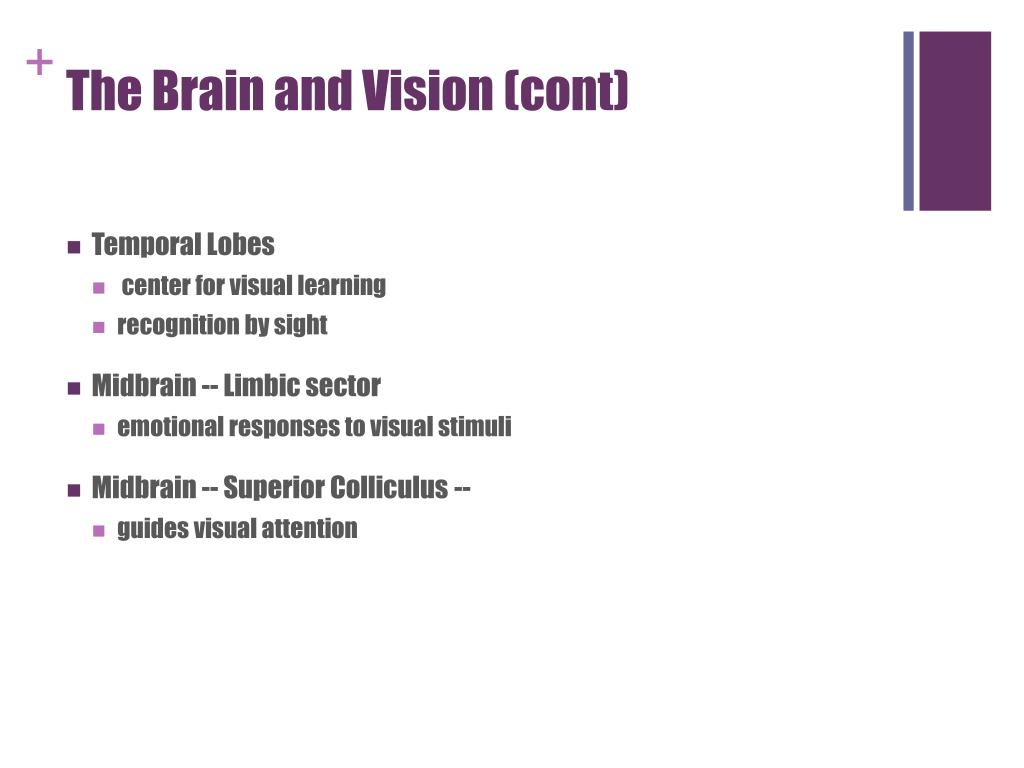

  21. The Brain and Vision (cont) • Temporal Lobes • center for visual learning • recognition by sight • Midbrain -- Limbic sector • emotional responses to visual stimuli • Midbrain -- Superior Colliculus -- • guides visual attention
