  1. Operational Impact Review

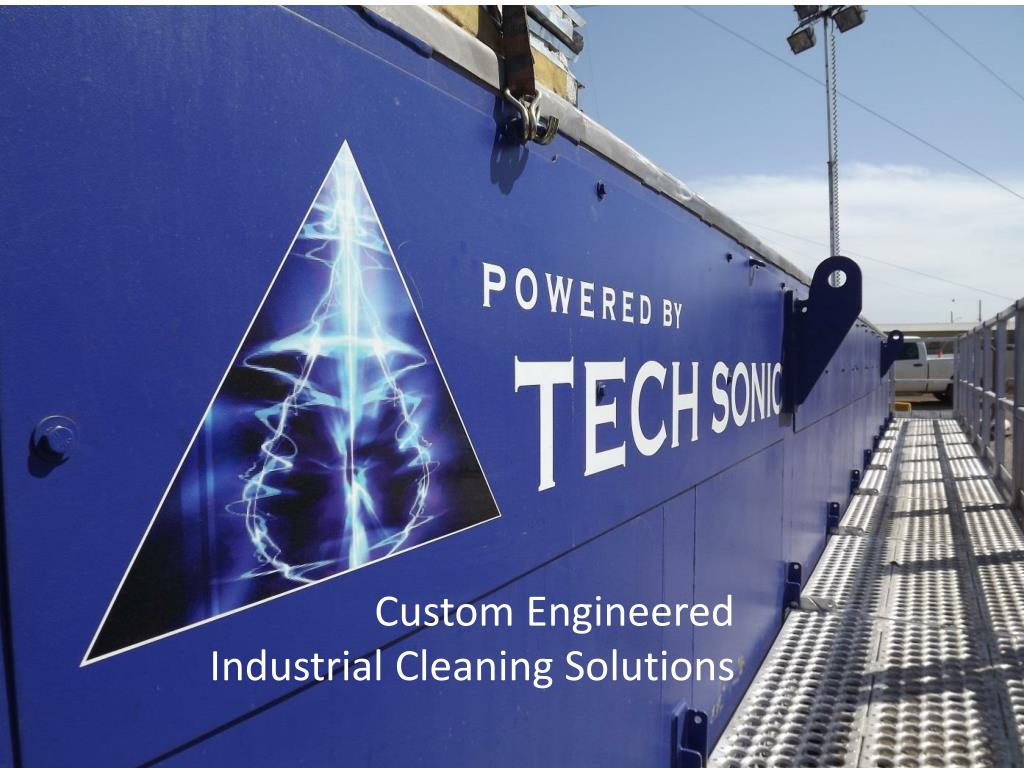

  2. Custom Engineered Industrial Cleaning Solutions

  3. Our Background Tech Sonic Services is the leading developer of engineered solutions that eliminate heavy contaminants from production and process equipment.

  4. Our Background The organization has grown from a conceptual thought, to a decade-old company that affirms its’ applications with industry partners such as Suncor and Syncrude.

  5. Our Background We hold various design and application patents that have stemmed from extensive research & development in the heavy oil industry.

  6. Our Roots Scaffolding, Suncor Fort McMurray

  7. Suncor would give us this… We would give back this…

  8. How it Works

  9. How it Works The process removes contamination in one of two ways, and depends on the type of fouling deposits we are trying to remove. Some deposits are either dissolved or suspended in solution.

  10. How it Works Other types of deposits remain, but no longer adhere to the tubes. The last step in the cleaning process is to rinse the tubes clear.

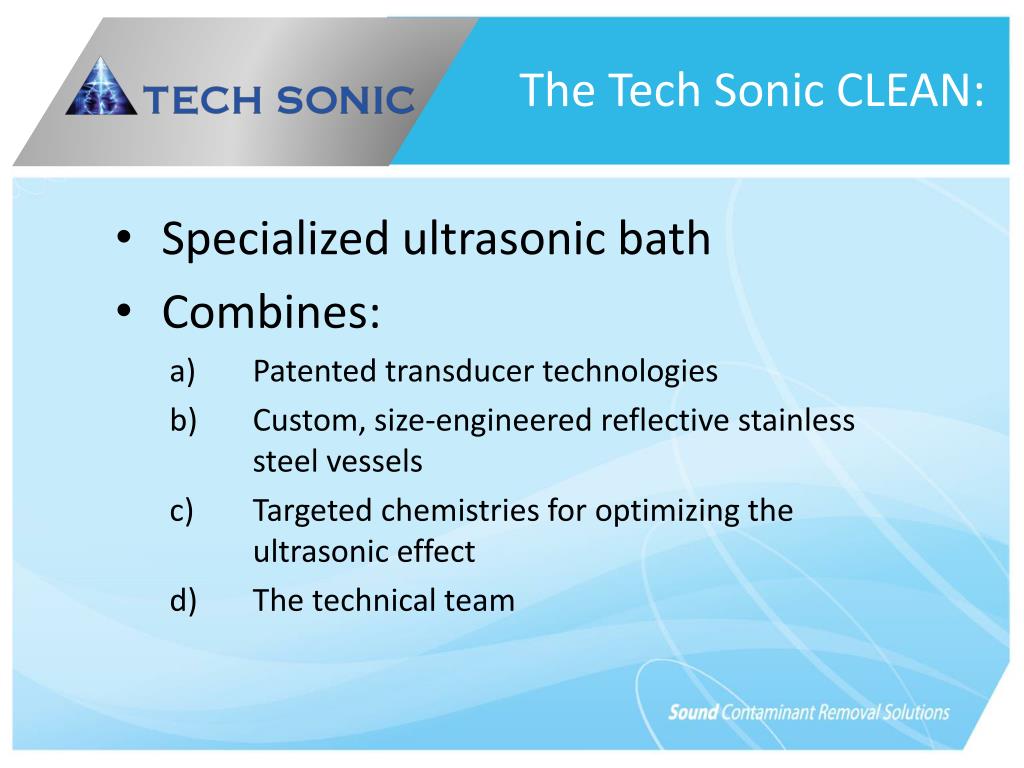

  11. The Tech Sonic CLEAN: • Specialized ultrasonic bath • Combines: • Patented transducer technologies • Custom, size-engineered reflective stainless steel vessels • Targeted chemistries for optimizing the ultrasonic effect • The technical team

  12. Engineered Solutions 28-foot 4-foot Our ‘engineered solutions’ approach means we design and build vessels to customer needs – 2-foot, 4-foot – up to 32-foot currently.

  13. Engineered Solutions 32ft. Heat Exchanger Cleaning Vessel, Neustadt, Germany

  14. Engineered Maintenance Solutions

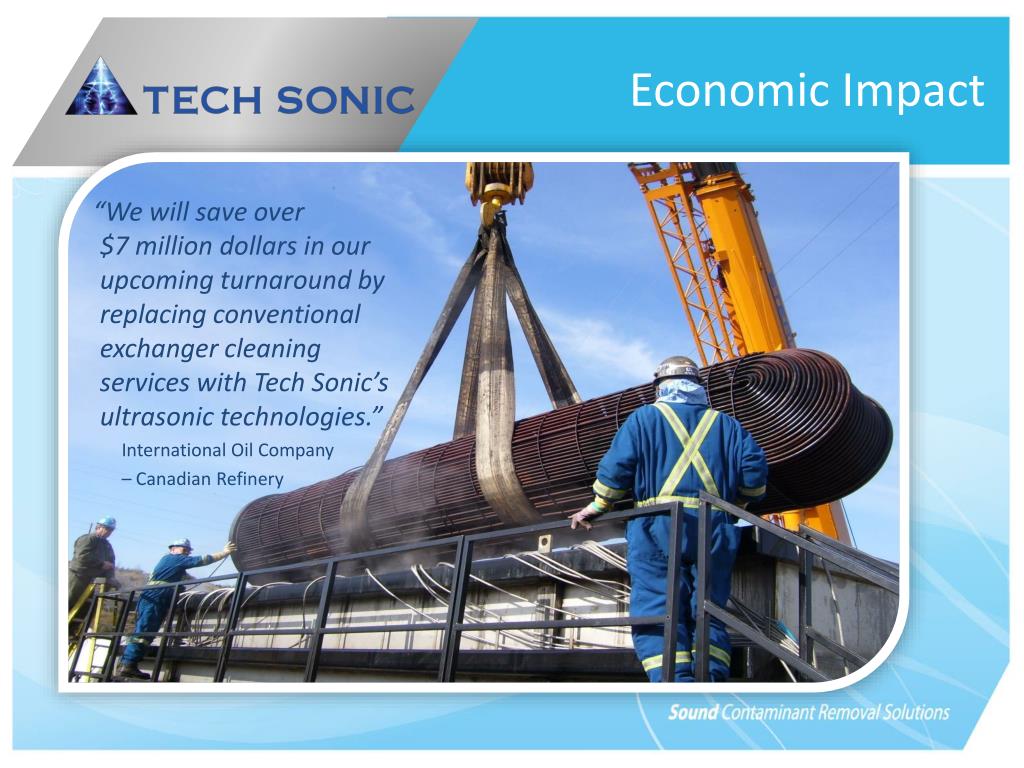

  15. Economic Impact “We will save over $7 million dollars in our upcoming turnaround by replacing conventional exchanger cleaning services with Tech Sonic’s ultrasonic technologies.” International Oil Company – Canadian Refinery

  16. Environmental Impact “Utilizing Tech Sonic Services’ solutions will save us over 11 million gallons of water and waste water in our turnaround.” International Oil Company – Canadian Refinery

  17. Environmental Impact Green, also because of the amount of water we save in comparison to standard hydro-blasting methods. Green, due to our water based degreasers that can easily be reintroduced back into most API water filtration systems.

  18. Shell Oil Scotford, AB TAR, March 2010

  19. Shell Oil Scotford, AB TAR, March 2010

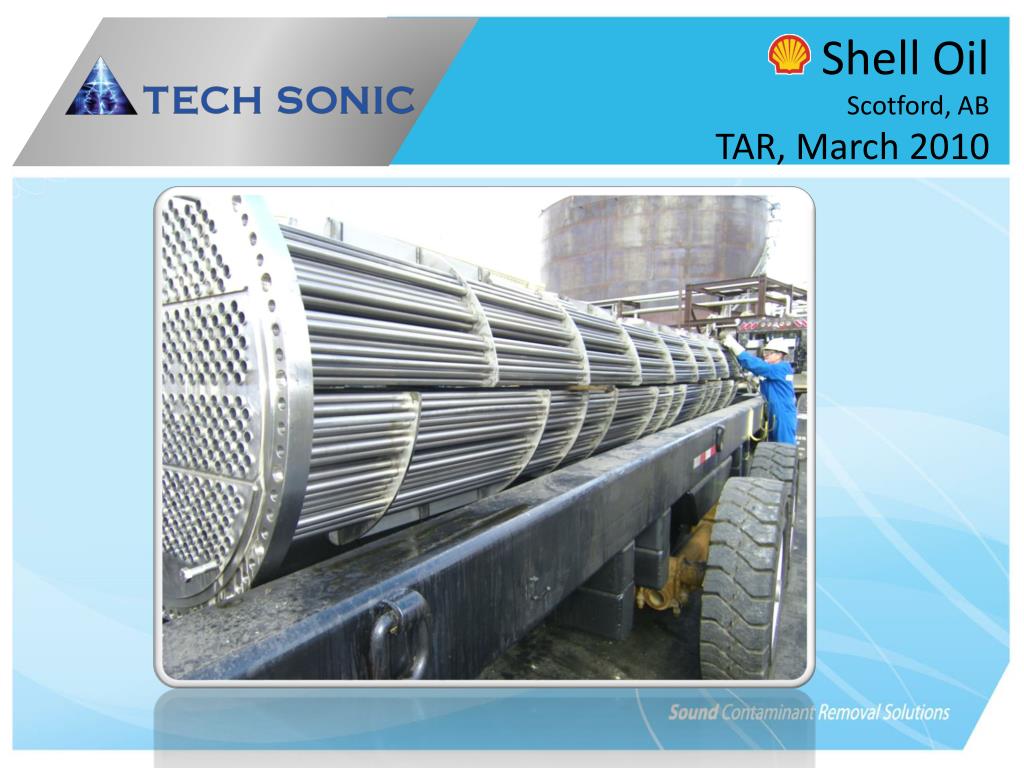

  20. Shell Oil Scotford, AB TAR, March 2010

  21. Shell Oil Sarnia ON Alfa Laval CC-106 Exchangers

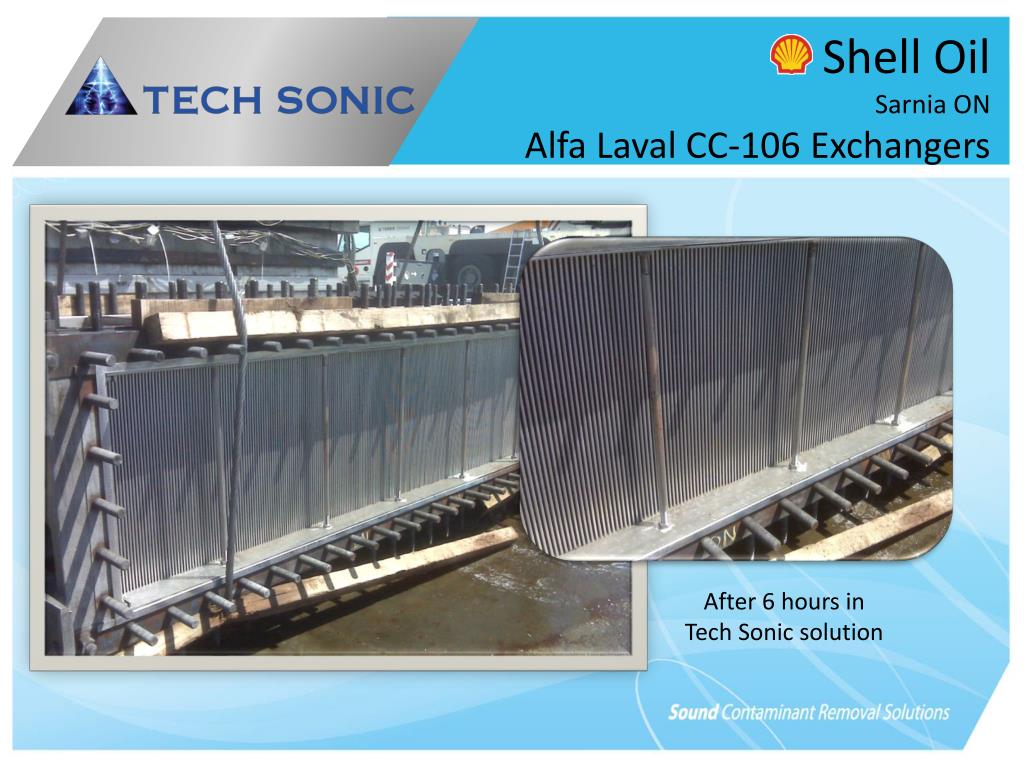

  22. Shell Oil Sarnia ON Alfa Laval CC-106 Exchangers After 6 hours in Tech Sonic solution

  23. Shell Oil Sarnia ON Alfa Laval CC-106 Exchangers After 12 hours in Tech Sonic solution

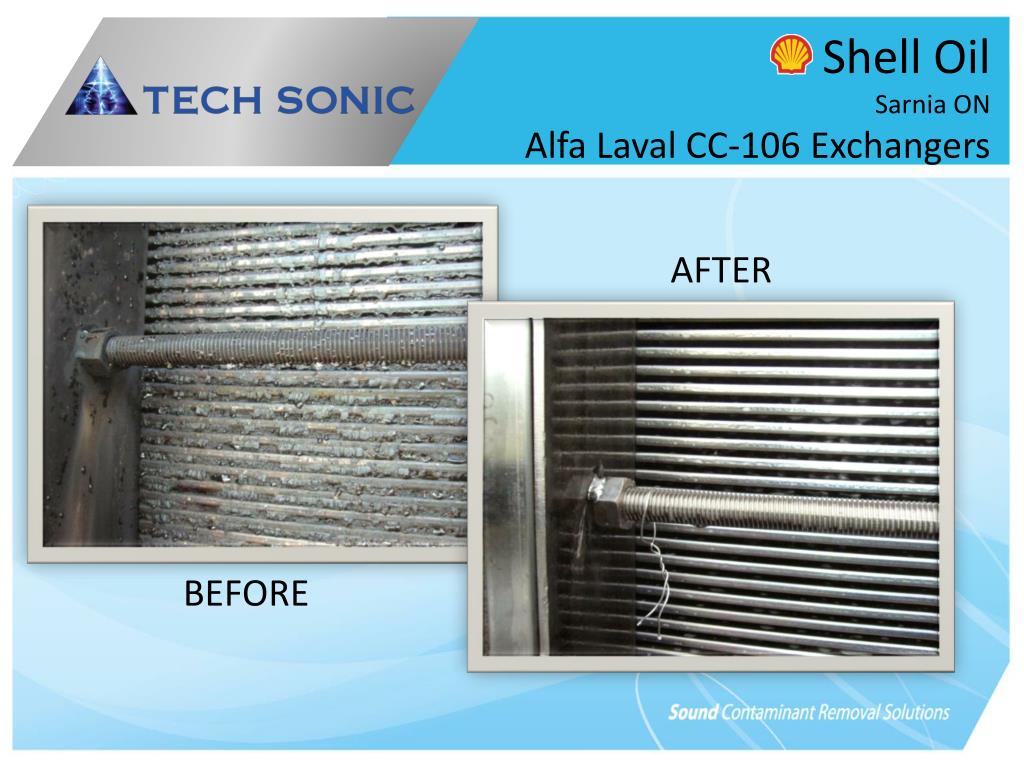

  24. Shell Oil Sarnia ON Alfa Laval CC-106 Exchangers AFTER BEFORE

  25. Shell Oil Sarnia ON Alfa Laval CC-106 Exchangers Approved for service

  26. Valero Energy Benicia, CA Modified Asphalt Service An upset forced this unit off line, where it lay idle for about 6 weeks. When it was time to clean this unit, the bundle could not be removed from the shell, which then needed to be cut off and discarded, for a new one.

  27. Valero Energy Benicia, CA Modified Asphalt Service Hydro-blasting was the first cleaning process attempted. The efforts were unsuccessful.

  28. Valero Energy Benicia, CA Modified Asphalt Service Before cleaning After 4 hours in the Tech Sonic bath

  29. Valero Energy Benicia, CA Modified Asphalt Service After 5 hours Here we demonstrate how the process has loosened the adherence of the asphalt on the tubes. The contaminants can be peeled off …

  30. Valero Energy Benicia, CA Modified Asphalt Service After 7 hours Much of the contamination has fallen off into the bath.

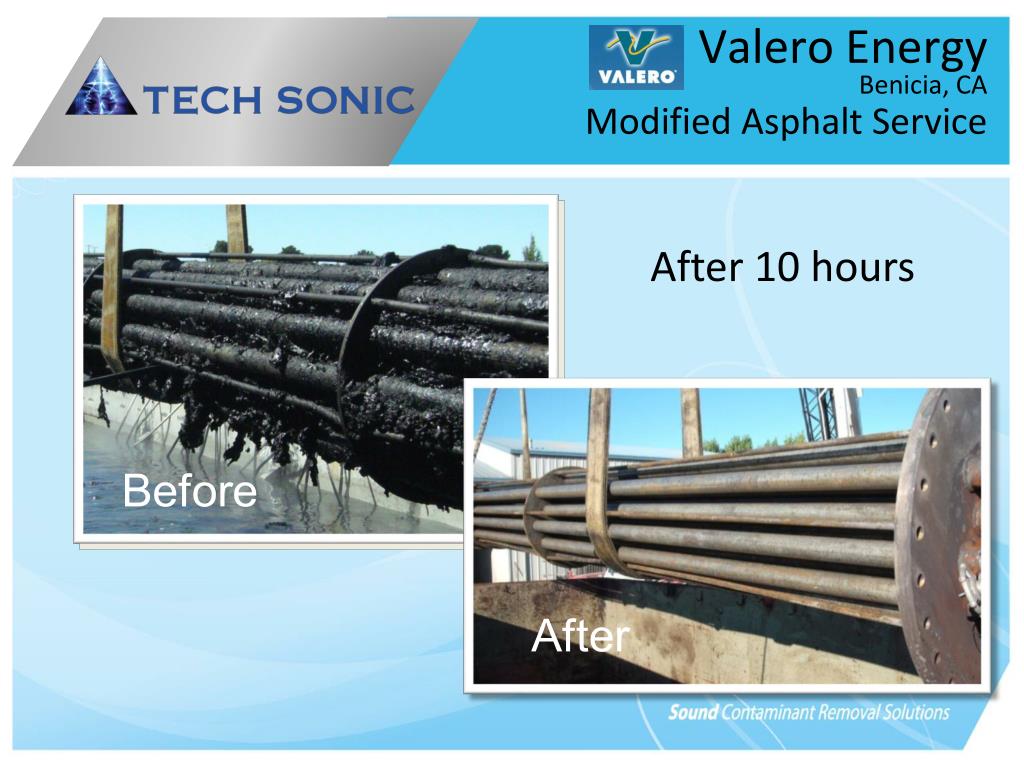

  31. Valero Energy Benicia, CA Modified Asphalt Service After 10 hours The bundle was sprayed down with a 5kpsi water rinse for 30 minutes to remove all remaining, but loosened debris.

  32. Valero Energy Benicia, CA Modified Asphalt Service After 10 hours

  33. Thinking beyond the “Bundle” Process-critical components and equipment that were once deemed uncleanable can now be fully re-purposed back into production!

  34. Our Results Flame Arrestors

  35. Our Results Gas Oil Filters

  36. Our Results Gas Oil Filters

  37. Our Results Valves – 2 hours

  38. Our Results Pipe

  39. Impact Statement “For every dollar we spend with Tech Sonic, we save four dollars in operational and cost efficiencies. We used to have to throw out most of the components as they could not be put back into production. Our capital costs have reduced dramatically.” International Oil Company – Canadian Oil Sands Production Site

  40. Our Commitment The Tech Sonic Process is a major contributor to operational efficiencies and revenue optimization. The singular goal is to return contaminated equipment and components, in “like-new” condition, back into operation faster and more cost effectivelythan any other solution.

  41. techsonic.ca
