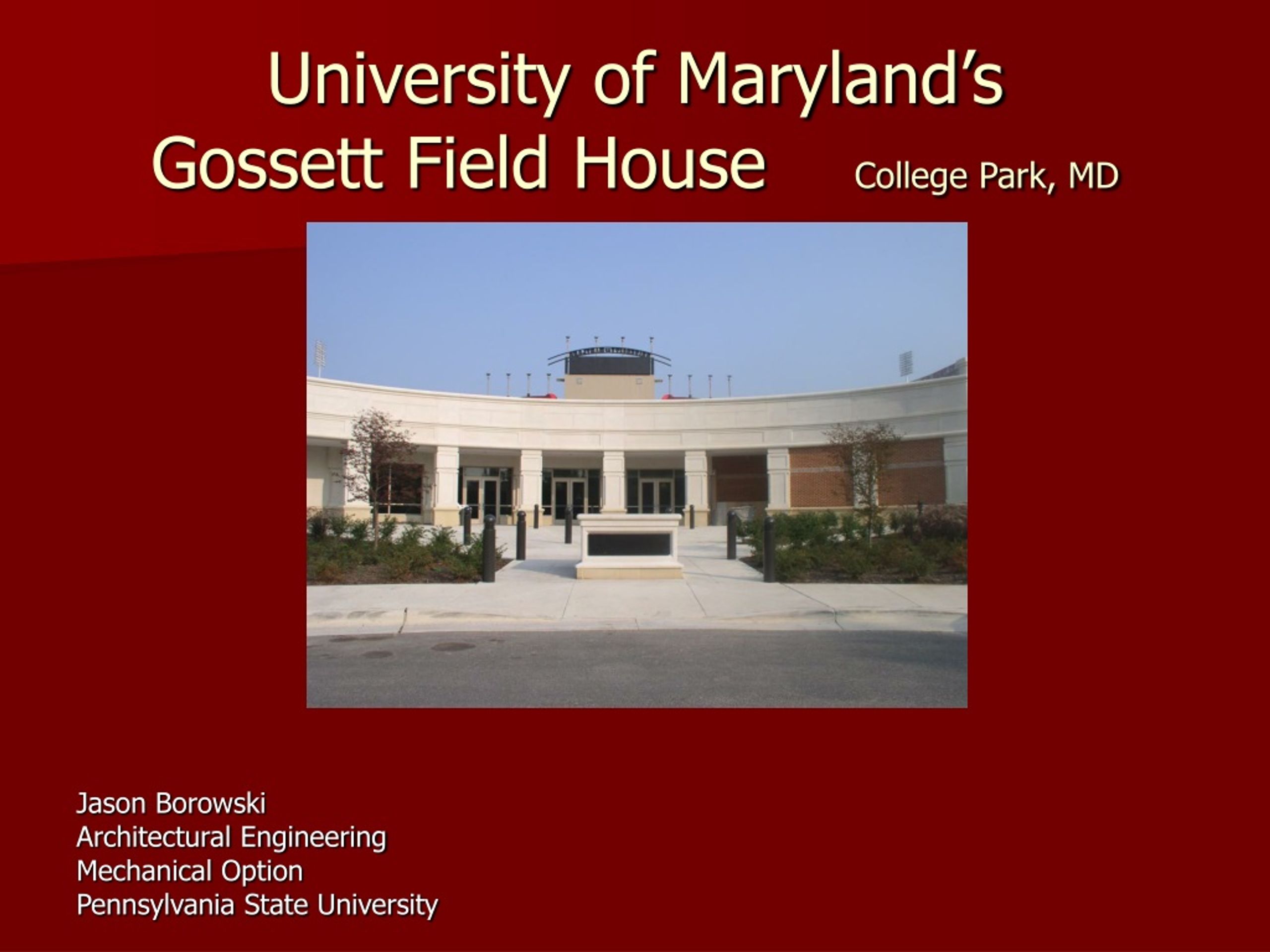

  1. University of Maryland’sGossett Field House College Park, MD Jason Borowski Architectural Engineering Mechanical Option Pennsylvania State University

  2. University of Maryland’sGossett Field House College Park, MD Presentation Outline • Project Background • Existing Mechanical System • Mechanical Redesign • Structural Redesign • Electrical Redesign • Conclusions & Recommendations • Acknowledgements • Questions Jason Borowski Architectural Engineering Mechanical Option Pennsylvania State University

  3. University of Maryland’sGossett Field House College Park, MD Project Team • Owner: University of Maryland • Architect: Bignell, Watkins, & Hasser • MEP: Schlenger/Pitz & Associates • Structural: The Watkins Partnership Jason Borowski Architectural Engineering Mechanical Option Pennsylvania State University

  4. University of Maryland’sGossett Field House College Park, MD Project Information • Square Footage: 65,000 SF • Number of Floors: 2 • Existing 1st Floor: 25,000 SF • Existing 2nd Floor: 15,000 SF • Total Renovated Area: 40,000 SF • 2nd Floor Addition: 25,000 SF Jason Borowski Architectural Engineering Mechanical Option Pennsylvania State University

  5. University of Maryland’sGossett Field House College Park, MD Existing 1st Floor Spaces • Weight Room • Home/Visitor Locker rooms • Coaches Offices • Trainers Room Existing 2nd Floor Spaces • Additional Support Offices Jason Borowski Architectural Engineering Mechanical Option Pennsylvania State University

  6. University of Maryland’sGossett Field House College Park, MD 2nd Floor Addition • Full Service Kitchen • Dining Area with Terrace over looking Byrd Stadium • 250 seat Auditorium • Hall of Fame Corridor • Classroom/Tutor Rooms • Computer Lab Jason Borowski Architectural Engineering Mechanical Option Pennsylvania State University

  7. University of Maryland’sGossett Field House College Park, MD Existing Air Side System Renovation Section: • AHU - 1 – Serves 2nd floor office space • AHU – 2 – Serves 1st floor - 100% OA unit with no energy recovery • Duct mounted hot water booster coils Jason Borowski Architectural Engineering Mechanical Option Pennsylvania State University

  8. University of Maryland’sGossett Field House College Park, MD Existing Air Side System 2nd Floor Addition Section: • Six Packaged Rooftop Units - 3 CAV Units - 3 VAV Units • VAV boxes with hot water reheat coils used as terminal devices • Air flows from 1400 – 10000 cfm Jason Borowski Architectural Engineering Mechanical Option Pennsylvania State University

  9. University of Maryland’sGossett Field House College Park, MD Existing Water Side System • Air Cooled Liquid Chiller – 270 tons • Steam to HW Heat Exchanger – 110 gpm • Two Chilled water pumps – 650 gpm, 15 hp • Four hot water pumps - 80 gpm, 1 ½ hp - 25 gpm, ¾ hp Jason Borowski Architectural Engineering Mechanical Option Pennsylvania State University

  10. University of Maryland’sGossett Field House College Park, MDMechanical Redesign • Convert to Central Plant Operation - Steam/HW Heat - Chilled Water • Use Sensible/Latent Energy Recovery Ventilators to Reduce Load on Central Plant • Use VAV boxes with reheat for all terminal devices Jason Borowski Architectural Engineering Mechanical Option Pennsylvania State University

  11. Minimize First Cost Difference Reduce Annual Operating Costs Create a more Homogeneous System Jason Borowski Architectural Engineering Mechanical Option Pennsylvania State University Eliminate Gas Fired Heat Make use of Resources Available Minimize impact on other Building Systems Minimize impact on Steam Plant University of Maryland’sGossett Field House College Park, MDObjectives of Redesign

  12. University of Maryland’sGossett Field House College Park, MDDesign Load Comparison Jason Borowski Architectural Engineering Mechanical Option Pennsylvania State University

  13. University of Maryland’sGossett Field House College Park, MDFirst Cost Comparison Jason Borowski Architectural Engineering Mechanical Option Pennsylvania State University

  14. University of Maryland’sGossett Field House College Park, MD • Utility Rates Provided by UMD Facility Manager • Annual Cost Data generated through HAP Analysis • Washington, DC used as Simulation City Jason Borowski Architectural Engineering Mechanical Option Pennsylvania State University

  15. University of Maryland’sGossett Field House College Park, MDTotal Cost Comparison • Life Cycle Cost Calculated over 15 years, using a 5% Interest Rate • Proposed System Saves $38,355 Jason Borowski Architectural Engineering Mechanical Option Pennsylvania State University

  16. University of Maryland’sGossett Field House College Park, MDStructural Redesign - AHUs • No Significant Structural Impact from AHUs Jason Borowski Architectural Engineering Mechanical Option Pennsylvania State University

  17. University of Maryland’sGossett Field House College Park, MDStructural Redesign – Cooling Towers • At a cost of $595 per ton, steel for cooling towers would cost approx $500. Jason Borowski Architectural Engineering Mechanical Option Pennsylvania State University

  18. Original Equipment Removed AHUs - 480/277 V - 2 – 400 A Panel Boards Water Side Equipment - 480/277 V - 1 – 600 A Panel Board Total Load Removed: - 670 KVA Jason Borowski Architectural Engineering Mechanical Option Pennsylvania State University Proposed Equipment Added AHUs - 480/277 V - 1 – 600 A Panel Board Water Side Equipment - 480/277 V - 1 – 400 A Panel Board VAV Boxes - 480/277 V - 4 – 150 A Panel Boards Total Load Added: - 645 KVA University of Maryland’sGossett Field House College Park, MDElectrical Redesign

  19. University of Maryland’sGossett Field House College Park, MD Acknowledgements Richard Naldrett – Schlenger/Pitz & Associates Frank Watkins – Bignell, Watkins & Hasser John Vucci – UMD Facilities Manager AE Faculty and Staff Fellow AE Students Family, Siblings & Girlfriend

  20. University of Maryland’sGossett Field House College Park, MD Questions?
