Presentation Transcript


Silverstream software beijing ltd 89315151 89315145

J2EE、Web服务

及开发平台

李渊明

首席技术官

SilverStream Software (Beijing) Ltd.

电话:89315151 传真:89315145

电子信箱:[email protected]


Silverstream software beijing ltd 89315151 89315145

J2EE的概念

李渊明

首席技术官

SilverStream Software (Beijing) Ltd.

电话:89315151 传真:89315145

电子信箱:[email protected]


Evolution of j2ee

Evolution of J2EE


J2ee application server object model

J2EE Application Server( Object Model )

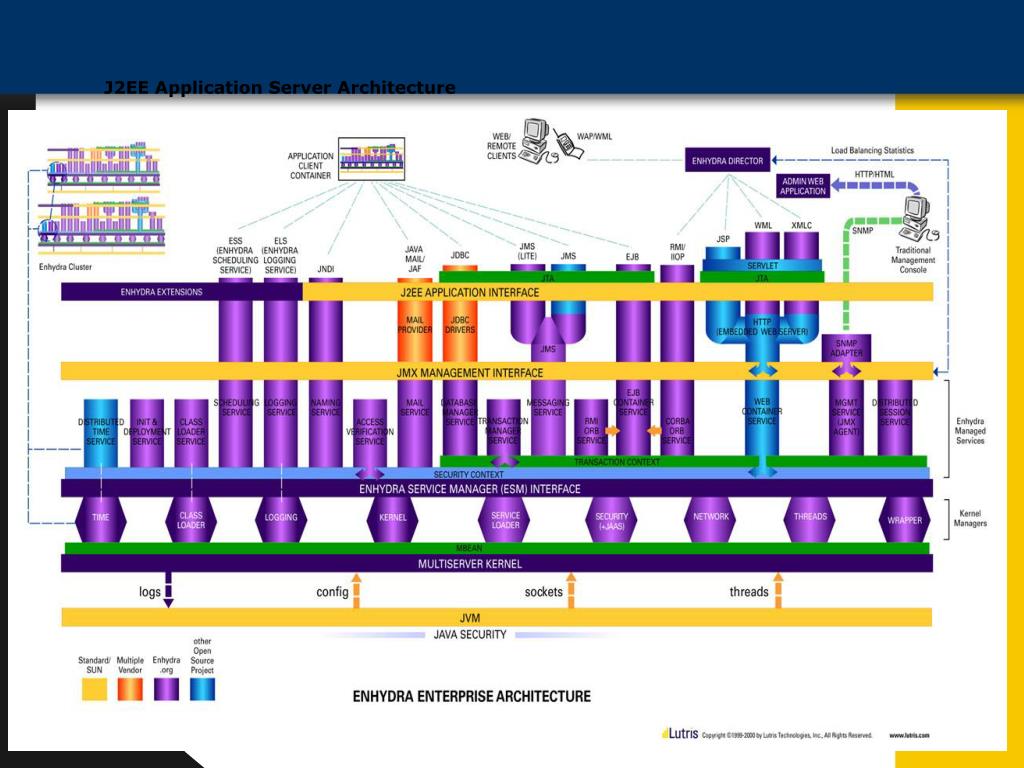

J2ee application server architecture

J2EE Application Server Architecture


Component based system market potential

Component-Based System(Market Potential)


Silverstream software beijing ltd 89315151 89315145

Web服务

李渊明

首席技术官

SilverStream Software (Beijing) Ltd.

电话:89315151 传真:89315145

电子信箱:[email protected]


Silverstream software beijing ltd 89315151 89315145

Web Services Introduction


Web services

Web Services

Web Services are:

  • Shareable business functions

    • Packaged inside of XML requests and responses

    • Executing within an enterprise

    • Combined with extra-enterprise processing

  • Published for use by “consumer” applications

    • Web portals and wireless appliances

    • Public and private trading exchanges

    • Internal systems integrations


Web services can be simple

Check ProductAvailability

Web Services Can Be Simple

Customer

Supplier


Web services can be complex

Send Receipt Notification

Check Product

Availability

Validate Customer

Place Order

Check Price

Send Order Confirmation

Web Services Can Be Complex

Customer

Supplier


Web services can be syndicated

Check Availability and Price

Place Order

Check Credit

Confirm Order

Dun & Bradstreet

Create Shipping

Manifest

UPS

Confirm Shipment

Web Services Can Be Syndicated

3rd Party

Customer

Supplier


Web services can be registered

Registry

Discover Supplier

Publish Supplier Service

UDDI

Check Availability and Price

Place Order

Check Credit

Dun & Bradstreet

Confirm Order

Create Shipping

Manifest

UPS

Confirm Shipment

Web Services Can Be Registered

3rd Party

Customer

Supplier


Xml requests and responses

Response Out

Request In

Web

Service

XML Requests and Responses

B2B

User Interfaces

Internal Systems

Content

Web Sites

RelationalDatabases

PackagedApplications

LegacyApplications

ERP


Silverstream software beijing ltd 89315151 89315145

“We’ve got 18 now and are expecting 50 more by Friday.”

Supplier

“How many widgets do you have on hand?”

Example B2B Web Service

Web Service

  • Receive Request document

  • Evaluate request

  • Transform data

  • Route document

  • Receive document

  • Map data to target

  • Map answer to Response document

  • Return Response document

Customer


Silverstream software beijing ltd 89315151 89315145

XML and Web Services


Why xml

Why XML?

  • Highly customizable way to represent data flowing between information systems

  • Can be processed by everycomputer in existence

  • Was invented to travelthe Internet

  • Has huge support from application vendors like SAP, PeopleSoft, Siebel, Oracle, Ariba, Microsoft

“SAP has enabled all of its major interfaces with XML. SAP will also deliver numerous products and solutions that fully exploit XML capabilities for the extended enterprise.”

SAP AG


Origins of xml

Origins of XML

SGML

  • SGML

    • Defined in 70’s & 80’s in Publishing

    • 500+ pages of spec

      • Very Complex & Very Flexible

    • Used to define Mark-Up Languages

      • Like HTML, Docbook, HL7, etc.

  • HTML

    • Defined using subset SGML

      • An “Application” of SGML

    • 200+ tags (fixed)

  • XML (Simplified SGML)

    • Defined in 90’s

    • 50 pages of spec

      • Very simple, quite flexible

    • Used to define document vocabularies

      • cXML, ebXML, OFX, XML-EDI, etc.

XML

xHTML

HTML


What xml looks like

What XML Looks Like

  • HTML: <color red><b>12577</b></color>

  • XML: <Order><Order No.>12577 </Order No.> <Date> 28/06/2000 </Date> < Line Item> <Qty>2 </Qty> <Part No.>C7115 </Part No.> … </Line Item> </Order>


The complexity of xml

Enterprise Systems

Trading Partners

IBM Mainframe

RosettaNet

AS/400, Unix, VAX

ebXML

Java

xCBL

Packages

ACORD

Databases

cXML

Diverse

Technologies

Diverse

XML Formats

The Complexity of XML

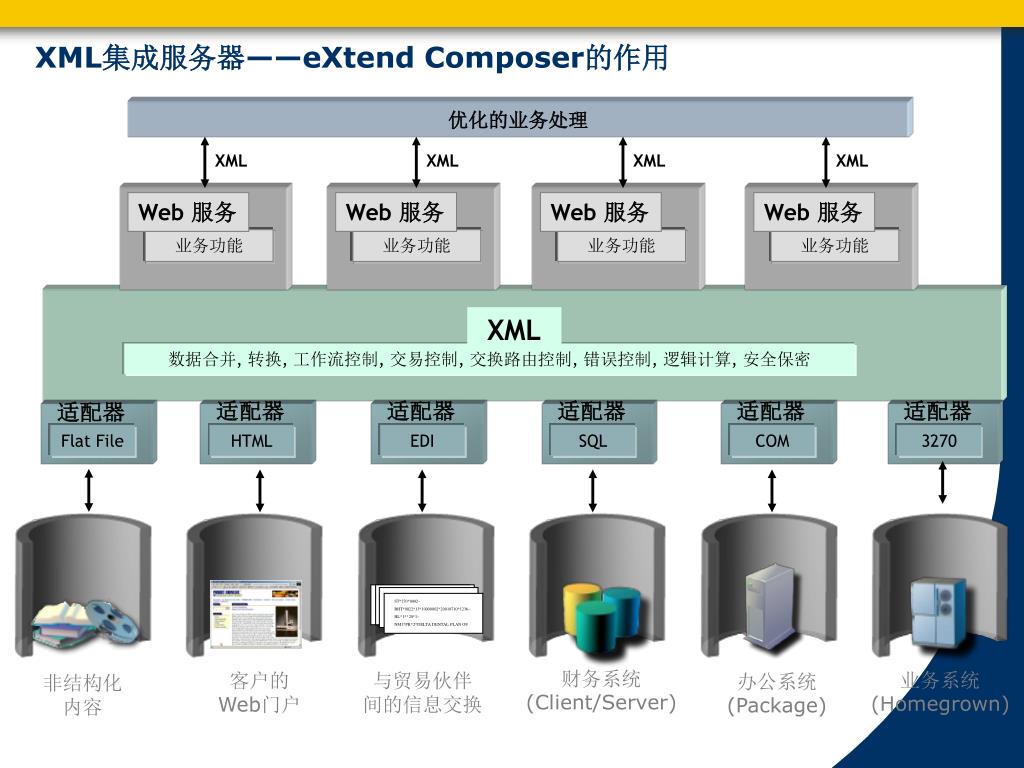

Using an xml integration server

XML

Integration

Server

  • Visual Tools

  • XML Mapping

  • Transformation

  • Routing

  • Workflow

  • Event mgt.

  • Multi-media

Using an XML Integration Server

Enterprise Systems

Trading Partners

IBM Mainframe

RosettaNet

AS/400, Unix, VAX

ebXML

Java

xCBL

Packages

ACORD

Databases

cXML

Diverse

XML Formats

Enterprise XML

Interfaces


Sap s xml diagram

SAP’s XML Diagram

SAP Business Connector exposes key “business APIs” (BAPIs) using XML/HTTP


Peoplesoft s xml diagram

PeopleSoft’s XML Diagram

Message Processor posts XML documents to predefined URLs


Silverstream software beijing ltd 89315151 89315145

基于J2EE的Web服务集成环境

李渊明

首席技术官

SilverStream Software (Beijing) Ltd.

电话:89315151 传真:89315145

电子信箱:[email protected]


Silverstream extend web

非格式化内容

内部系统

浏览器

无线设备

B2B

遗留系统

J2EE 应用服务器

电子商务引擎

工作流, 规则,交易

PackagedApplications

关系数据库

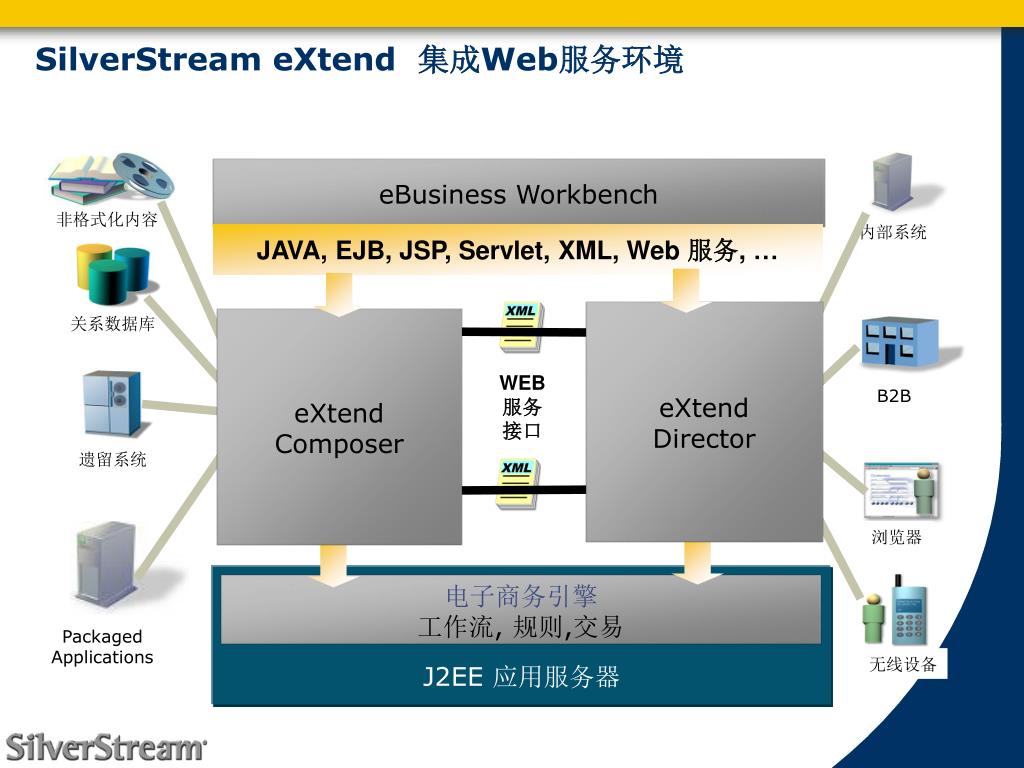

SilverStream eXtend 集成Web服务环境
