  1. Valve Hand Wheel Color Coding Pics NSTM 505-7-1 Color Code Table Part I 24APR13

  2. Valve Hand Wheel Color Coding • Foam Discharge plugs (AFFF) (striped red/green) • AFFF Solution (striped red/dark green)

  3. Valve Hand Wheel Color Coding • AFFF Concentrate (striped light blue/red)

  4. Valve Hand Wheel Color Coding • Fire Main (including root valves (red)

  5. Valve Hand Wheel Color Coding • Halon (striped gray/white) • Watermist (Striped Red/Dark Blue)

  6. Valve Hand Wheel Color Coding • Chilled water (surface ships) (striped light blue/dark green) • Demineralized Electronic Cooling Water (surface ships) (striped light blue/dark purple)

  7. Valve Hand Wheel Color Coding • Potable Water (dark blue)

  8. Valve Hand Wheel Color Coding • Seawater (other than FM and Sprinkling (dark green) • Fresh water, Condensate, Feed and Distillate (surface ships) (light blue)

  9. Valve Hand Wheel Color Coding • Lube Oil (striped black/yellow) • Fuel (yellow)

  10. Valve Hand Wheel Color Coding • JP-5 (light purple) • Hydraulic (orange)

  11. Valve Hand Wheel Color Coding • Oil Pollution Abatement (OPA-surface ships) (black) • Sewage (gold)

  12. Valve Hand Wheel Color Coding • Refrigerant (dark purple) • Steam and Steam Drains (white)

  13. Valve Hand Wheel Color Coding • Deballast Air (stripped tan/black) • LP and Salvage Air (tan)

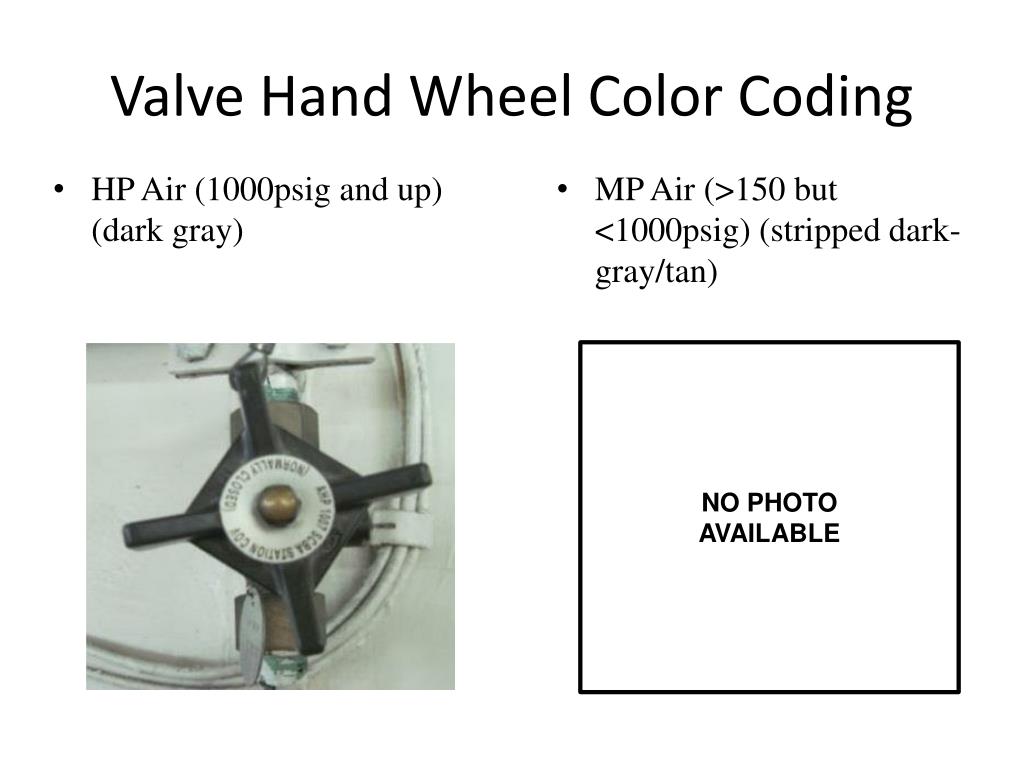

  14. Valve Hand Wheel Color Coding • HP Air (1000psig and up) (dark gray) • MP Air (>150 but <1000psig) (stripped dark-gray/tan) NO PHOTO AVAILABLE

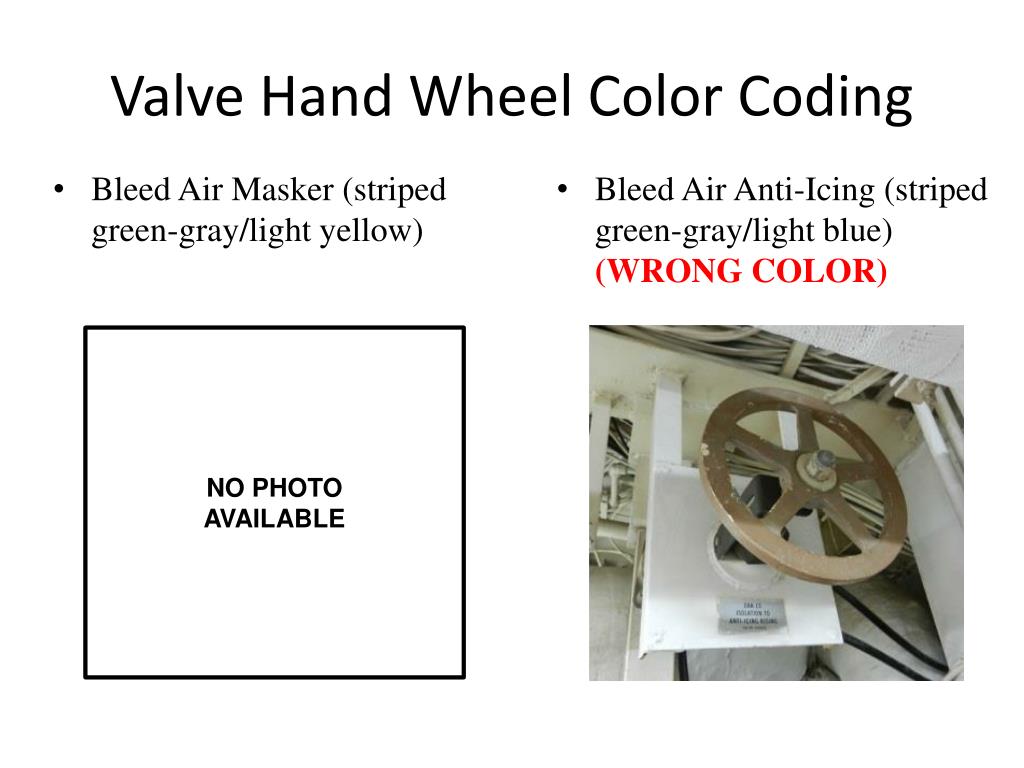

  15. Valve Hand Wheel Color Coding • Bleed Air Anti-Icing (striped green-gray/light blue) (WRONG COLOR) • Bleed Air Masker (striped green-gray/light yellow) NO PHOTO AVAILABLE
