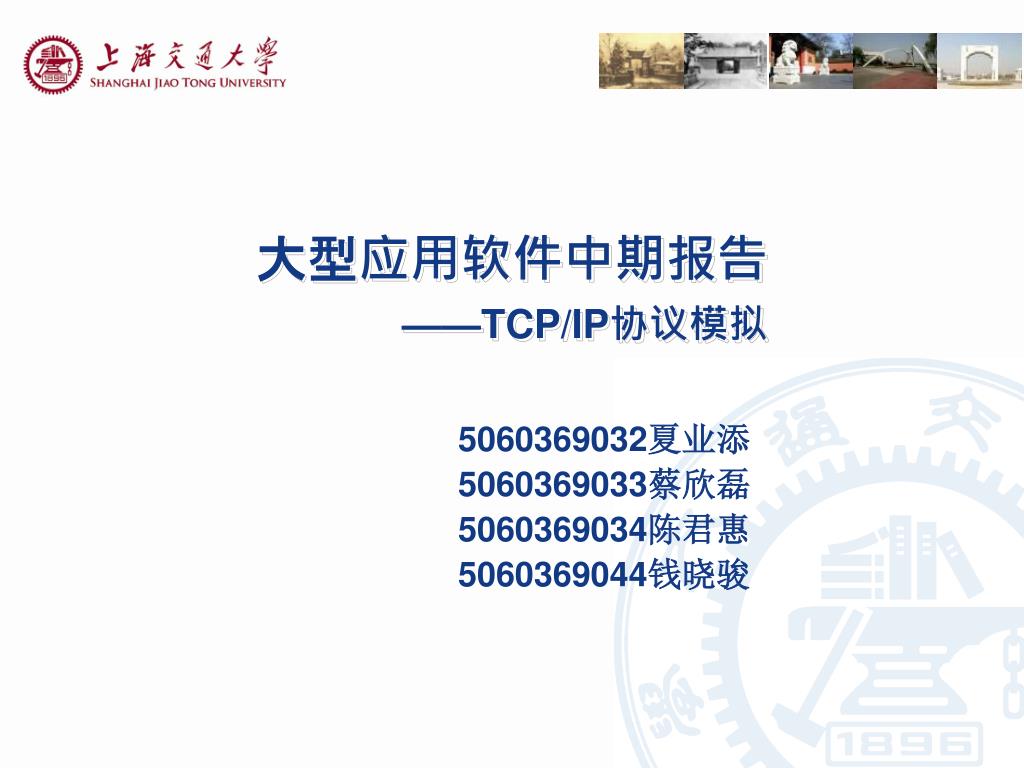

大型应用软件中期报告——TCP/IP协议模拟

5060369032夏业添

5060369033蔡欣磊

5060369034陈君惠

5060369044钱晓骏


当前进度

  • 详细设计阶段

  • 尚未进入编码阶段


IP模块设计


Ipaddr h
ipaddr.h

  • IPv4地址结构

  • struct in_addr{

  • //Temporary ipv4 address,32 bits

  • unsigned char part[4];

  • };

  • 字符串与ip地址转换函数

  • int inet_aton(const char *strptr,struct in_addr *addrptr);

  • char *inet_ntoa(char *strptr,struct in_addr inaddr);


Myip h
myip.h

  • IPv4头部

  • struct iphdr{

  • struct in_addr des;

  • struct in_addr src;

  • struct ip_info{

  • //should be 4-bit version

  • int ip_ver:4;

  • //should be 4-bit length of header

  • int ip_hl:4;

  • };

  • //should be 8-bit type of serve

  • unsigned char ip_tos;

  • //should be 16-bit length of the whole ip packet

  • unsigned short ip_len;

  • //should be 16-bit identification

  • unsigned short ip_id;

  • //should be 8-bit ttl

  • unsigned char ip_ttl;

  • //should be 8-bit protocal

  • unsigned char ip_pro;

  • //should be 8-bit ip header checksum

  • unsigned char ip_sum;

  • };


Myip h1
myip.h

  • /* this function send "ip package" to the virtual ip pipe

  • * Parameter:

  • * pheader:a pointer to the ip header of the package

  • * ptcpheader:a pointer to the tcp header which the packge contains

  • * buf:a buffer which contains data

  • * buflen:the length of buffer

  • * Return Values:

  • * it returns -1 for some error,and 0 is returned if succeed

  • */

  • int ip_output(struct iphdr *pheader,struct tcphdr *ptcpheader,char *buf,int buflen);


Myip h2
myip.h

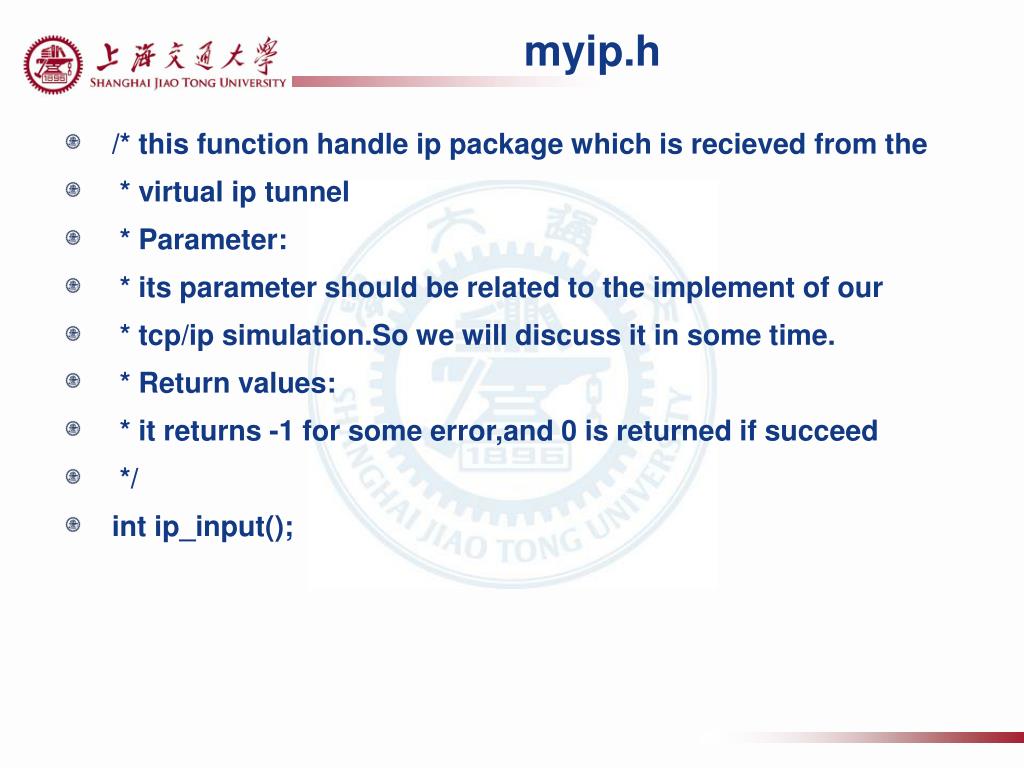

  • /* this function handle ip package which is recieved from the

  • * virtual ip tunnel

  • * Parameter:

  • * its parameter should be related to the implement of our

  • * tcp/ip simulation.So we will discuss it in some time.

  • * Return values:

  • * it returns -1 for some error,and 0 is returned if succeed

  • */

  • int ip_input();


Myip h3
myip.h

  • /* this function calculates the check sum of a ip header

  • * Parameter:

  • * pheader:a pointer to the ip header

  • * Return Values:

  • * it returns the calculated check_sum of a ip header

  • */

  • unsigned ip_cal_sum(struct iphdr *pheader);


Myip h4
myip.h

  • /* this function check the check sum of a ip header

  • * Parameter:

  • * pheader:a pointer to the ip header

  • * Return Values:

  • * it returns -1 if the check sum is wrong,and 0 is returned

  • * if correct.

  • */

  • int ip_check_sum(struct iphdr *pheader);


tcp模块


Mytcpstate h

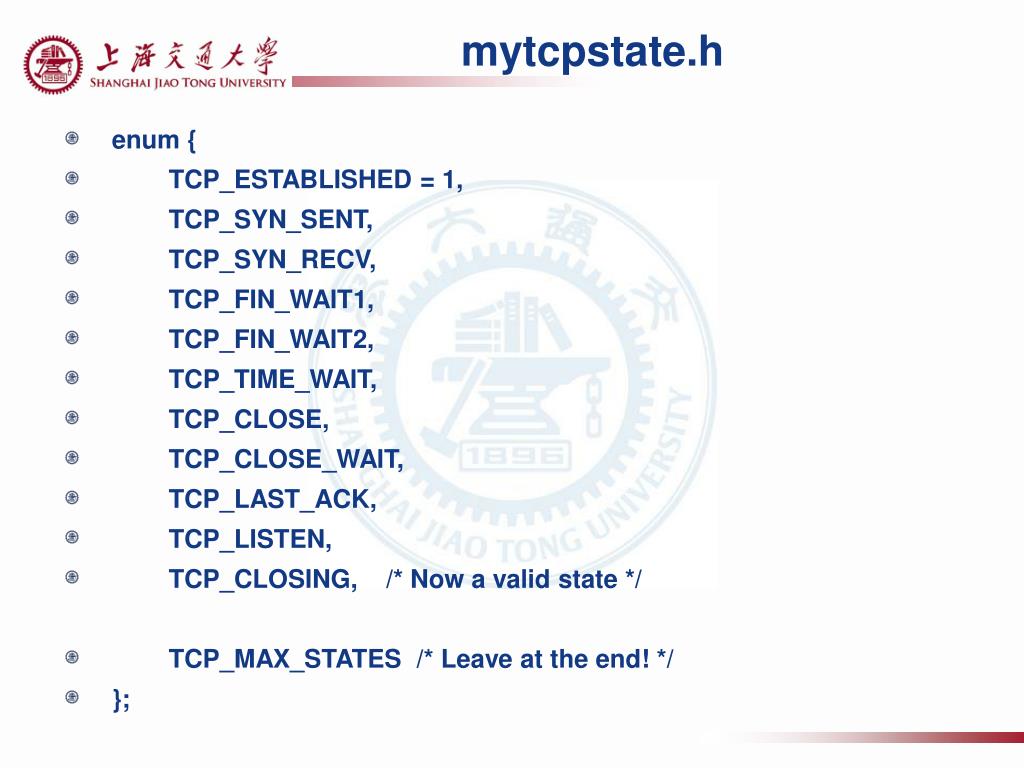

mytcpstate.h

  • enum {

  • TCP_ESTABLISHED = 1,

  • TCP_SYN_SENT,

  • TCP_SYN_RECV,

  • TCP_FIN_WAIT1,

  • TCP_FIN_WAIT2,

  • TCP_TIME_WAIT,

  • TCP_CLOSE,

  • TCP_CLOSE_WAIT,

  • TCP_LAST_ACK,

  • TCP_LISTEN,

  • TCP_CLOSING, /* Now a valid state */

  • TCP_MAX_STATES /* Leave at the end! */

  • };


Mytcp h
mytcp.h

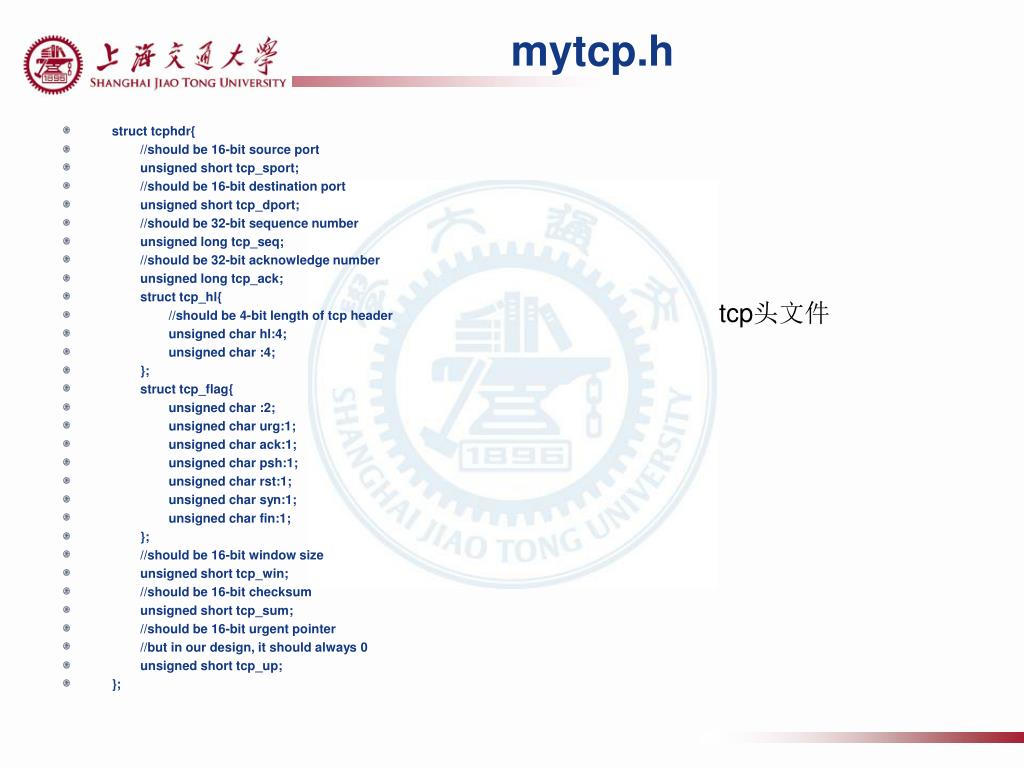

  • struct tcphdr{

  • //should be 16-bit source port

  • unsigned short tcp_sport;

  • //should be 16-bit destination port

  • unsigned short tcp_dport;

  • //should be 32-bit sequence number

  • unsigned long tcp_seq;

  • //should be 32-bit acknowledge number

  • unsigned long tcp_ack;

  • struct tcp_hl{

  • //should be 4-bit length of tcp header

  • unsigned char hl:4;

  • unsigned char :4;

  • };

  • struct tcp_flag{

  • unsigned char :2;

  • unsigned char urg:1;

  • unsigned char ack:1;

  • unsigned char psh:1;

  • unsigned char rst:1;

  • unsigned char syn:1;

  • unsigned char fin:1;

  • };

  • //should be 16-bit window size

  • unsigned short tcp_win;

  • //should be 16-bit checksum

  • unsigned short tcp_sum;

  • //should be 16-bit urgent pointer

  • //but in our design, it should always 0

  • unsigned short tcp_up;

  • };

tcp头文件


Mytcp h1
mytcp.h

  • ip伪头部

  • struct ip_fake_hdr{

  • struct in_addr des; /*destination ip address*/

  • struct in_addr src; /*source ip address*/

  • unsigned char mbz; /*null*/

  • unsigned char pro; /*protocal*/

  • unsigned short tcp_l /*length of tcp package*/

  • };


Mytcp h2
mytcp.h

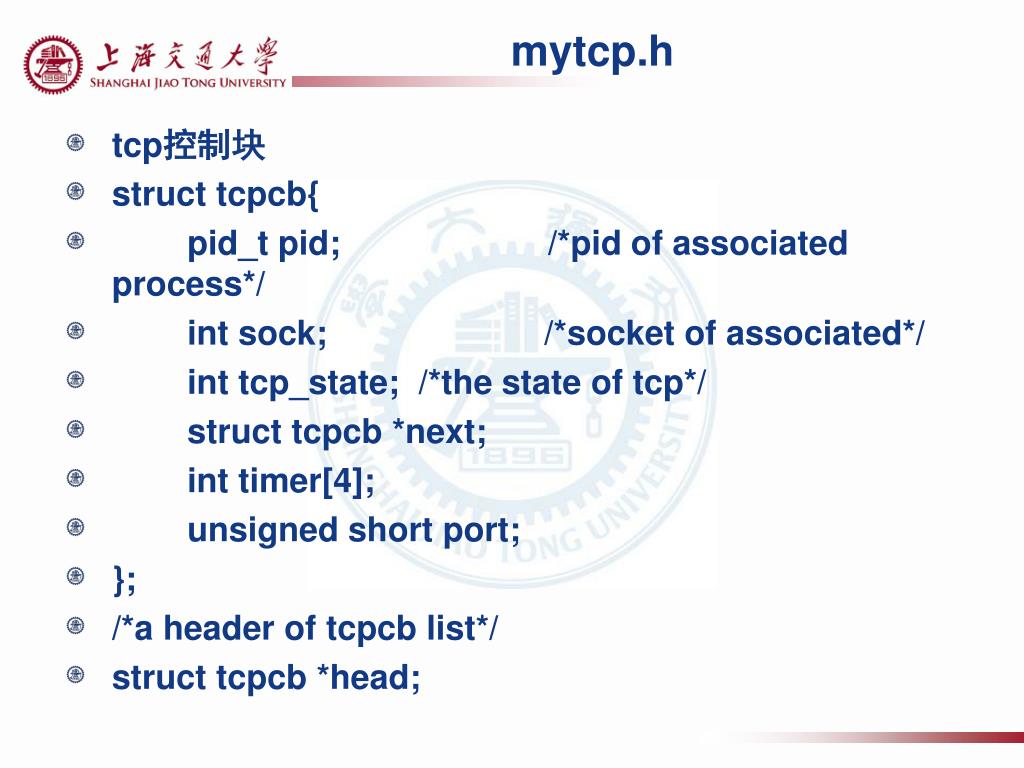

  • tcp控制块

  • struct tcpcb{

  • pid_t pid; /*pid of associated process*/

  • int sock; /*socket of associated*/

  • int tcp_state; /*the state of tcp*/

  • struct tcpcb *next;

  • int timer[4];

  • unsigned short port;

  • };

  • /*a header of tcpcb list*/

  • struct tcpcb *head;


Mytcp h3
mytcp.h

  • /* this function send tcp data to ip layer.it will change

  • * tcp_state in tcpcb if some condition is satisfied.

  • * Parameter:

  • * ptcpheader:a pointer to the tcp header which the packge contains

  • * buf:a buffer which contains data

  • * buflen:the length of buffer

  • * Return Values:

  • * it returns -1 for some error,and 0 is returned if succeed

  • */

  • int tcp_output(struct tcphdr *ptcpheader,char *buf,len buflen);


Mytcp h4
mytcp.h

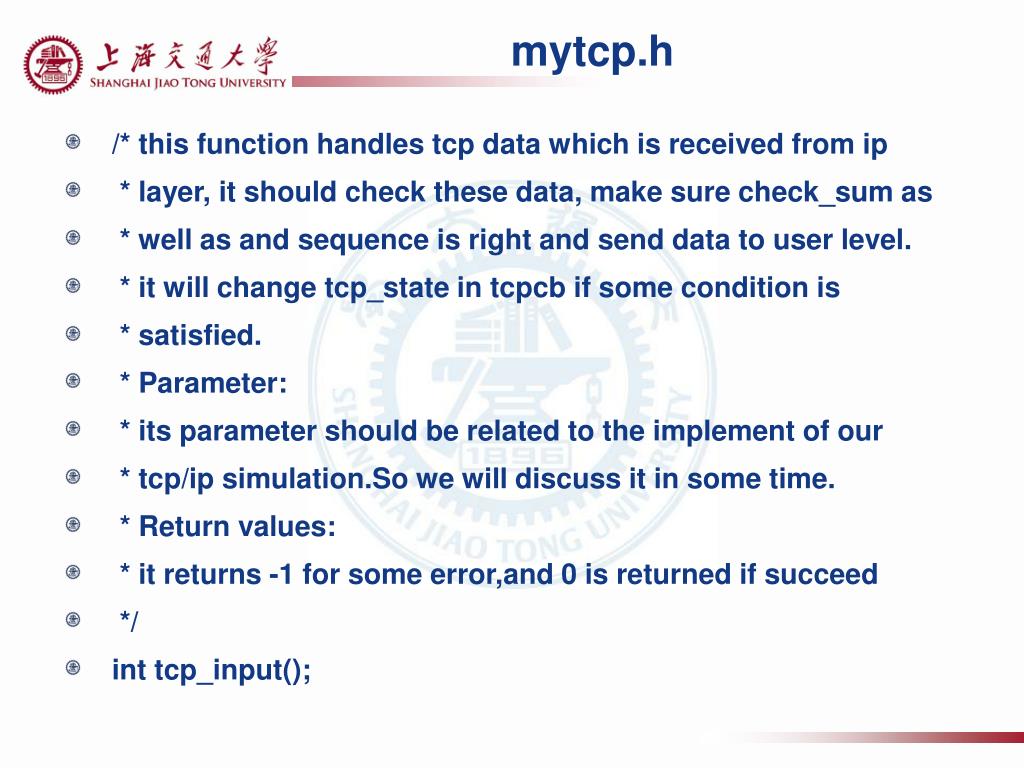

  • /* this function handles tcp data which is received from ip

  • * layer, it should check these data, make sure check_sum as

  • * well as and sequence is right and send data to user level.

  • * it will change tcp_state in tcpcb if some condition is

  • * satisfied.

  • * Parameter:

  • * its parameter should be related to the implement of our

  • * tcp/ip simulation.So we will discuss it in some time.

  • * Return values:

  • * it returns -1 for some error,and 0 is returned if succeed

  • */

  • int tcp_input();


Mytcp h5
mytcp.h

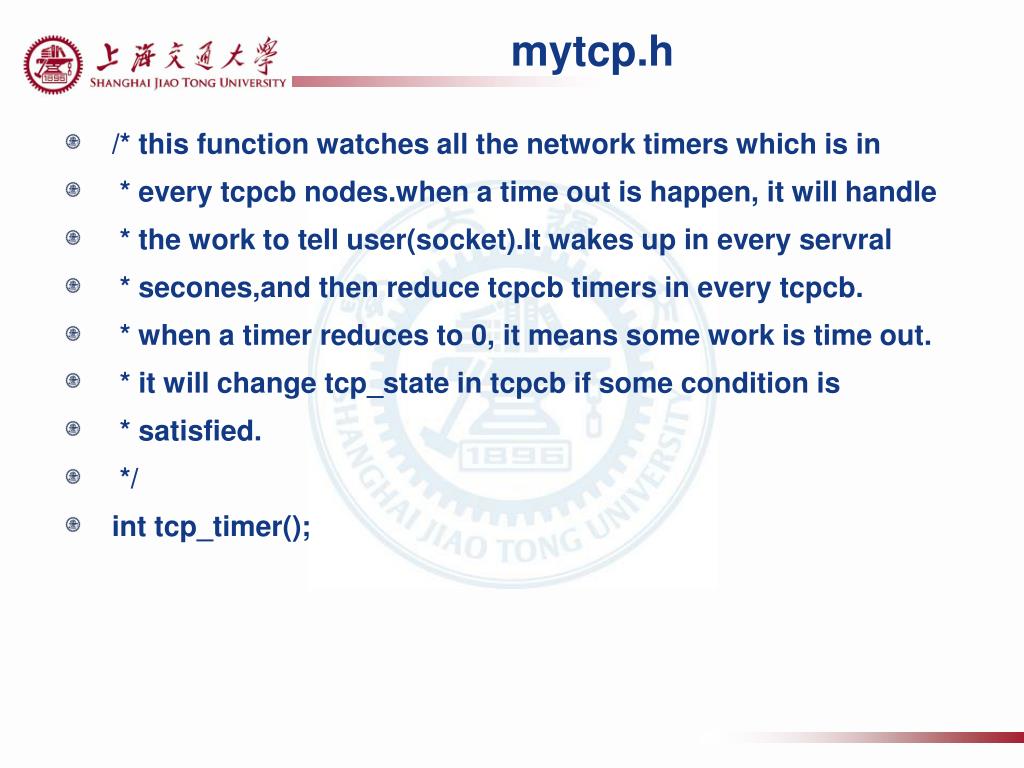

  • /* this function watches all the network timers which is in

  • * every tcpcb nodes.when a time out is happen, it will handle

  • * the work to tell user(socket).It wakes up in every servral

  • * secones,and then reduce tcpcb timers in every tcpcb.

  • * when a timer reduces to 0, it means some work is time out.

  • * it will change tcp_state in tcpcb if some condition is

  • * satisfied.

  • */

  • int tcp_timer();


Mytcp h6
mytcp.h

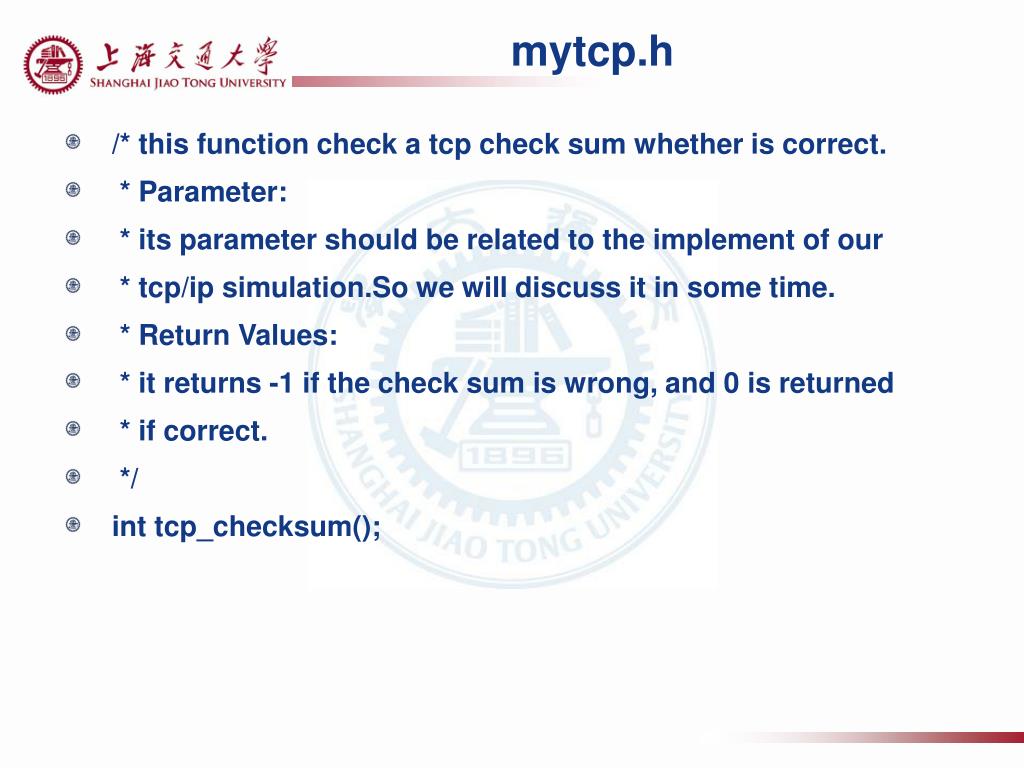

  • /* this function check a tcp check sum whether is correct.

  • * Parameter:

  • * its parameter should be related to the implement of our

  • * tcp/ip simulation.So we will discuss it in some time.

  • * Return Values:

  • * it returns -1 if the check sum is wrong, and 0 is returned

  • * if correct.

  • */

  • int tcp_checksum();


Mytcp h7
mytcp.h

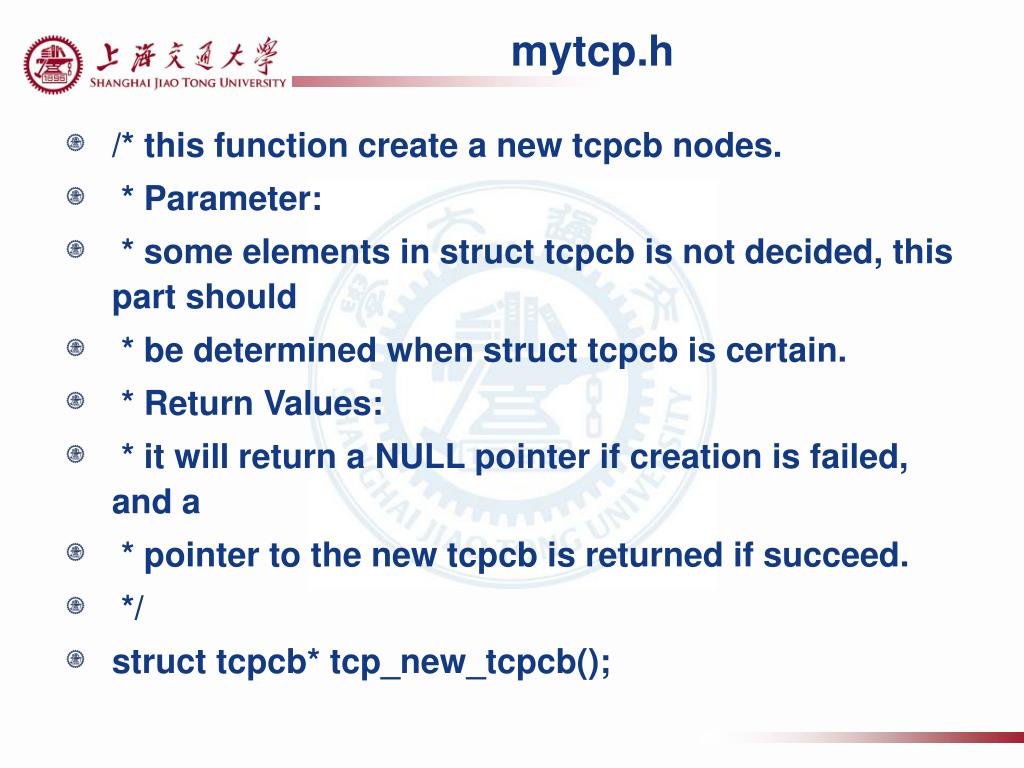

  • /* this function create a new tcpcb nodes.

  • * Parameter:

  • * some elements in struct tcpcb is not decided, this part should

  • * be determined when struct tcpcb is certain.

  • * Return Values:

  • * it will return a NULL pointer if creation is failed, and a

  • * pointer to the new tcpcb is returned if succeed.

  • */

  • struct tcpcb* tcp_new_tcpcb();


Socket

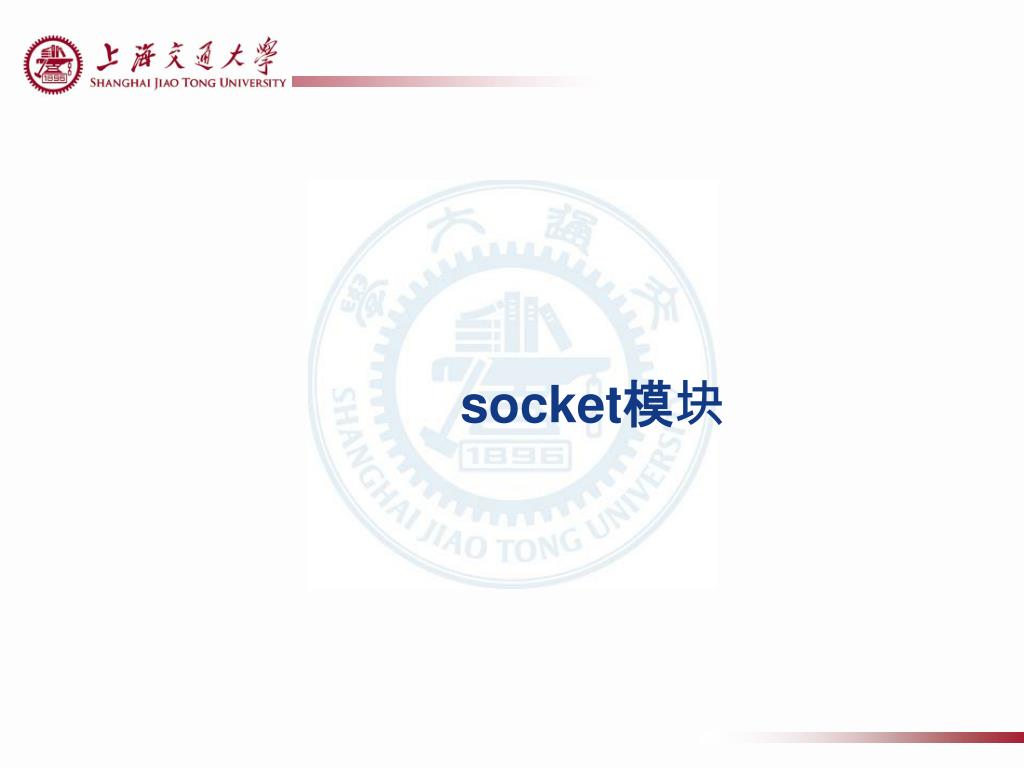

socket模块

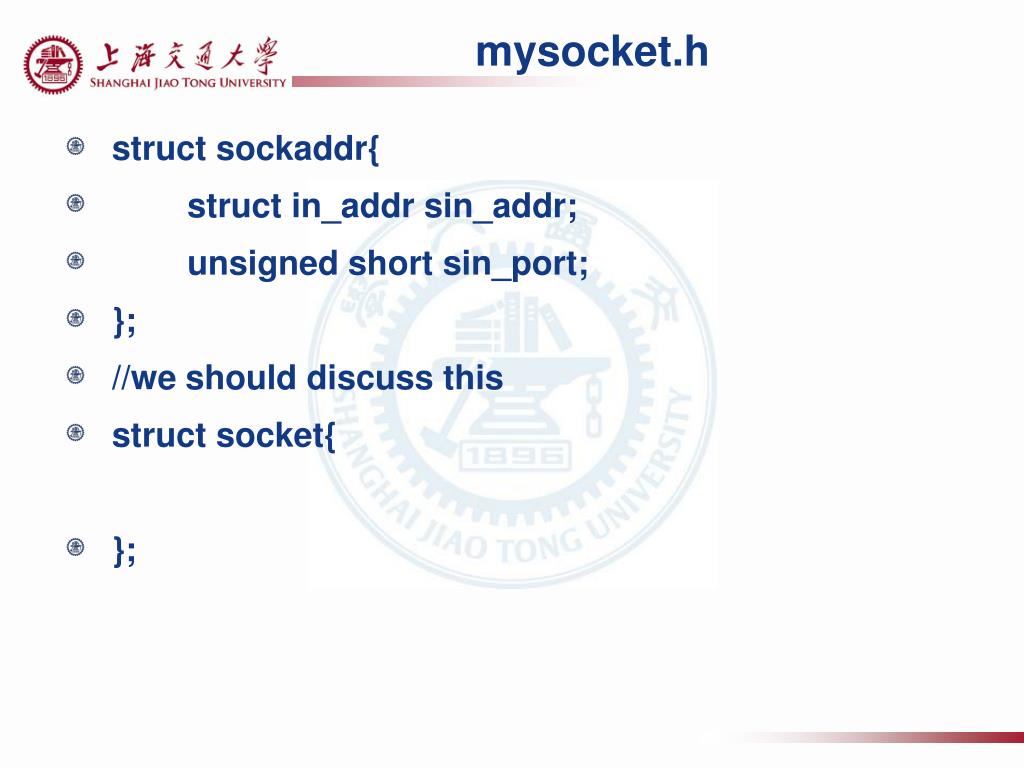

Mysocket h
mysocket.h

  • struct sockaddr{

  • struct in_addr sin_addr;

  • unsigned short sin_port;

  • };

  • //we should discuss this

  • struct socket{

  • };


Mysocket h1
mysocket.h

  • int socket();

  • int close(int sockfd);

  • int read(int sockfd,char *buf,int bufsize);

  • int write(int sockfd,char *buf,int buflen);

  • int bind(int sockfd,const struct sockaddr *myaddr,int addrlen);

  • int connect(int sockfd,const struct sockaddr *servaddr,int addrlen);

  • int listen(int sockfd,int backlog);

  • int accept(int sockfd,struct sockaddr *cliaddr,int *addrlen);

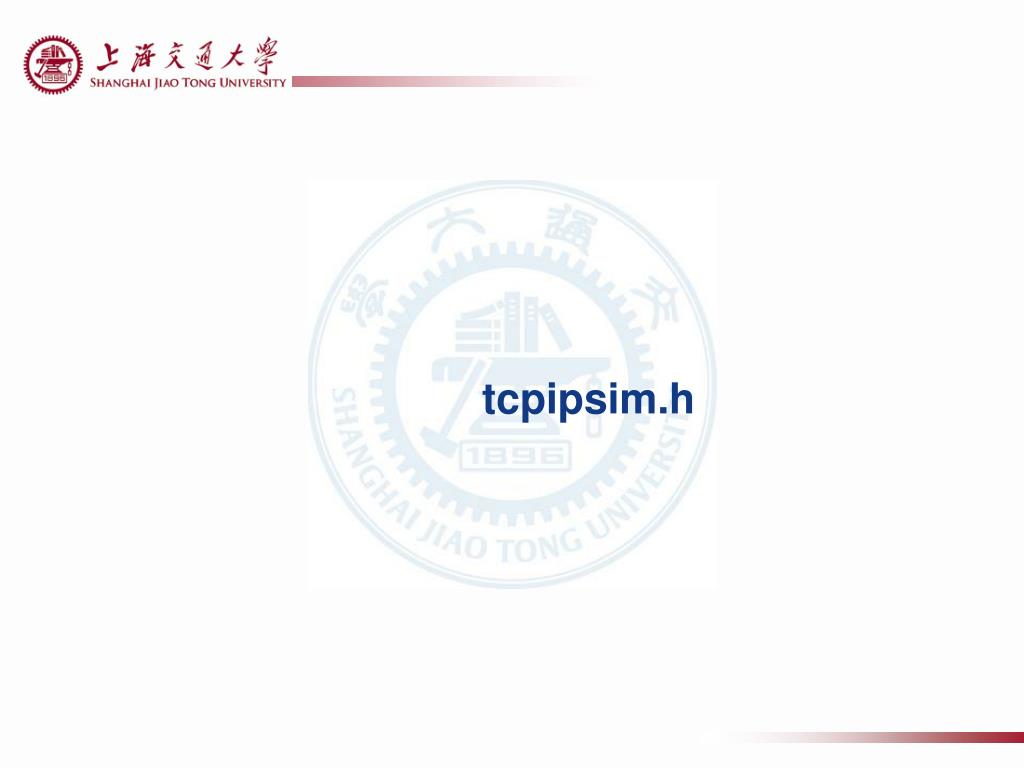

Tcpipsim h1
tcpipsim.h

  • /* this function initialize our tcp/ip stack

  • * at least it should include:

  • * 1.show its pid

  • * 2.set another tcp/ip stack ip-pid pair(ip route)

  • * Return Values:

  • * it returns -1 for some error,and 0 is returned if succeed

  • */

  • int init();


Tcpipsim h2
tcpipsim.h

  • /* this function handle tcp timer.it calls tcp_timer() to

  • * achieve its goals

  • */

  • void timer_thread_handler();

  • /* this function handle network stuff.

  • * All network activities, such as sending/recieving package,

  • * changing tcp state and interactive works with users,should

  • * be under its control.

  • */

  • void network_thread_handler();


Msgtype h

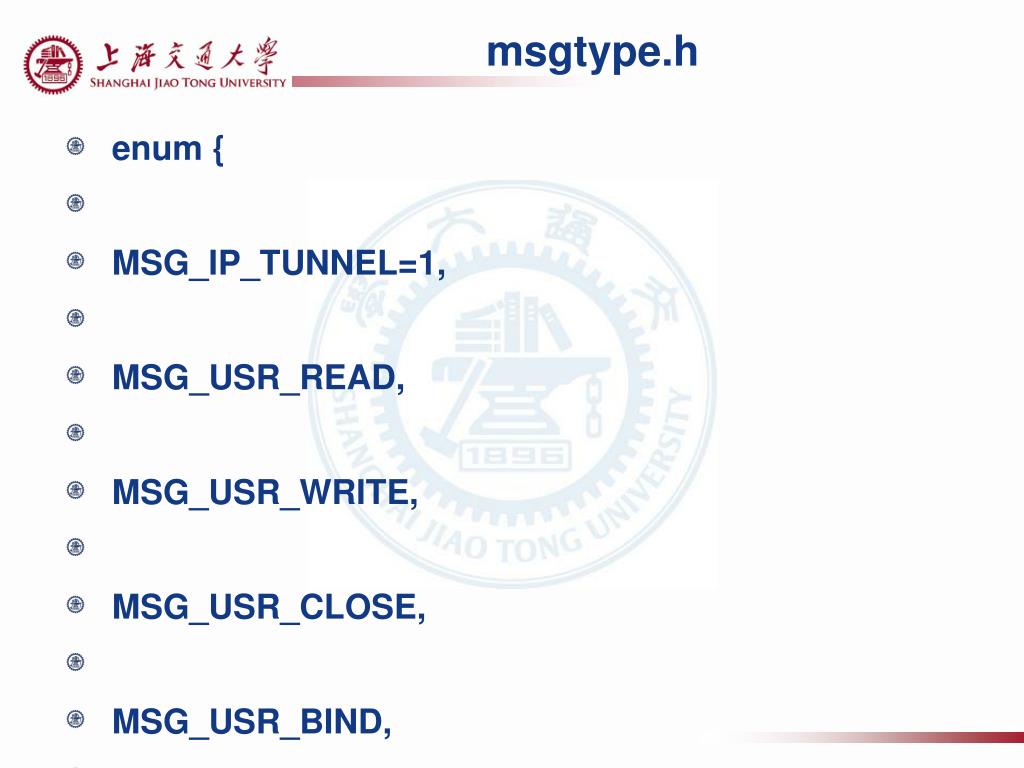

msgtype.h

  • enum {

  • MSG_IP_TUNNEL=1,

  • MSG_USR_READ,

  • MSG_USR_WRITE,

  • MSG_USR_CLOSE,

  • MSG_USR_BIND,

  • MSG_USR_LISTEN,

  • MSG_USR_ACCETP,

  • MSG_USR_CONNECT

  • };


Network thread handler c

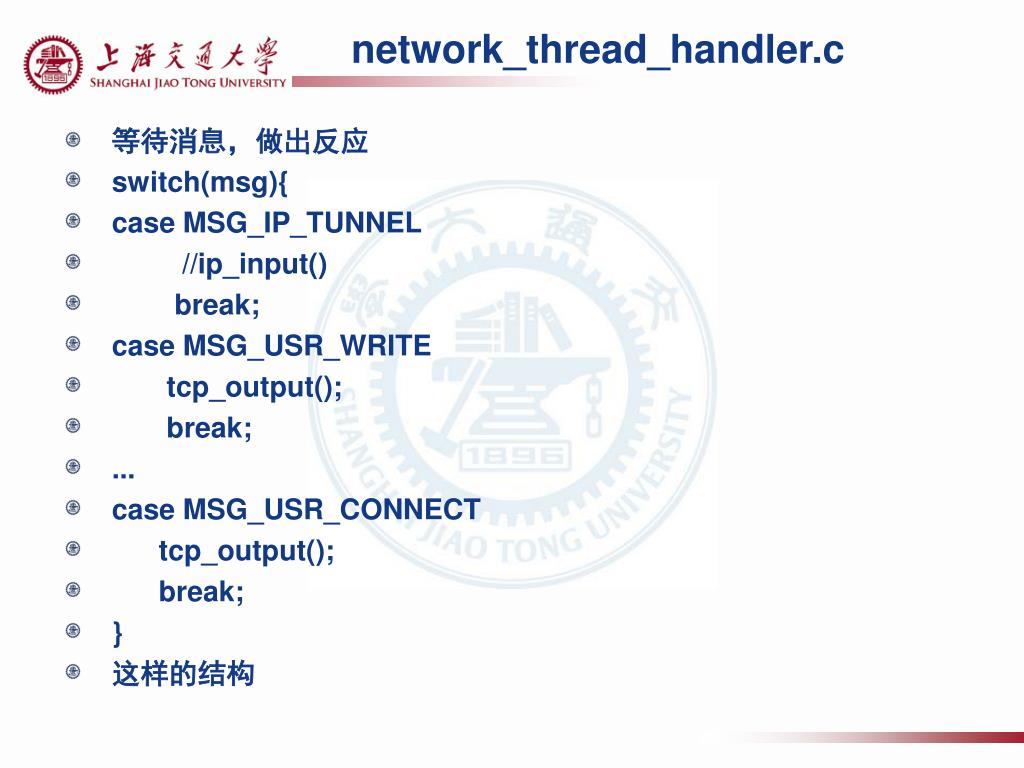

network_thread_handler.c

  • 等待消息,做出反应

  • switch(msg){

  • case MSG_IP_TUNNEL

  • //ip_input()

  • break;

  • case MSG_USR_WRITE

  • tcp_output();

  • break;

  • ...

  • case MSG_USR_CONNECT

  • tcp_output();

  • break;

  • }

  • 这样的结构


Timer handler c

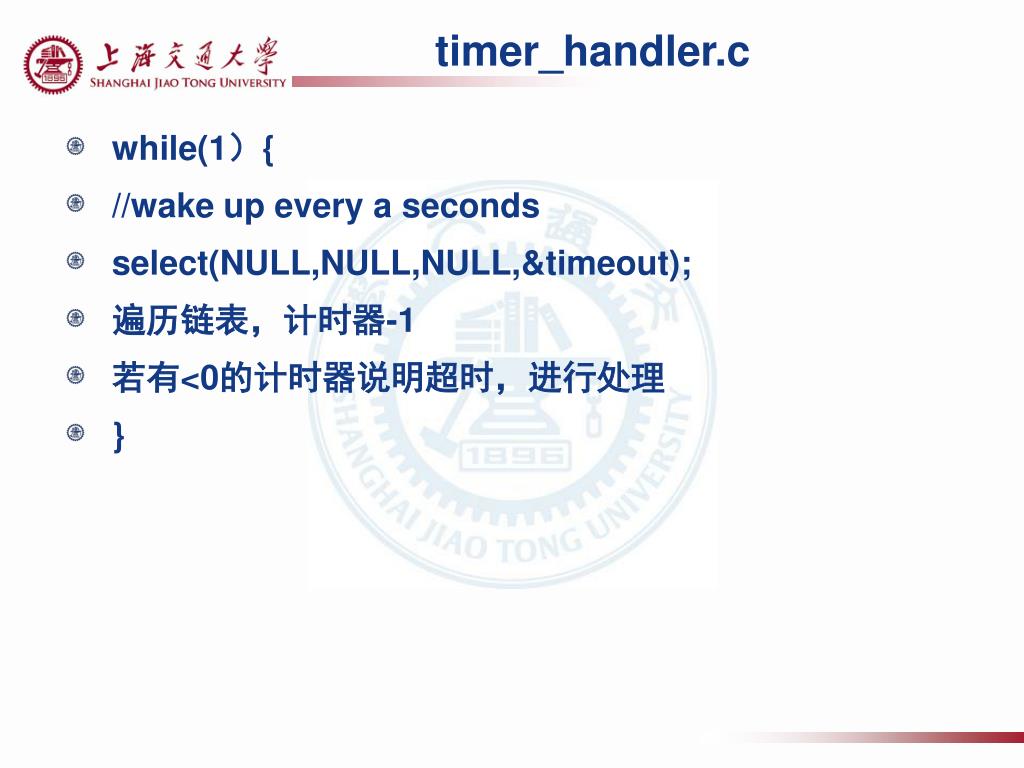

timer_handler.c

  • while(1){

  • //wake up every a seconds

  • select(NULL,NULL,NULL,&timeout);

  • 遍历链表,计时器-1

  • 若有<0的计时器说明超时,进行处理

  • }
