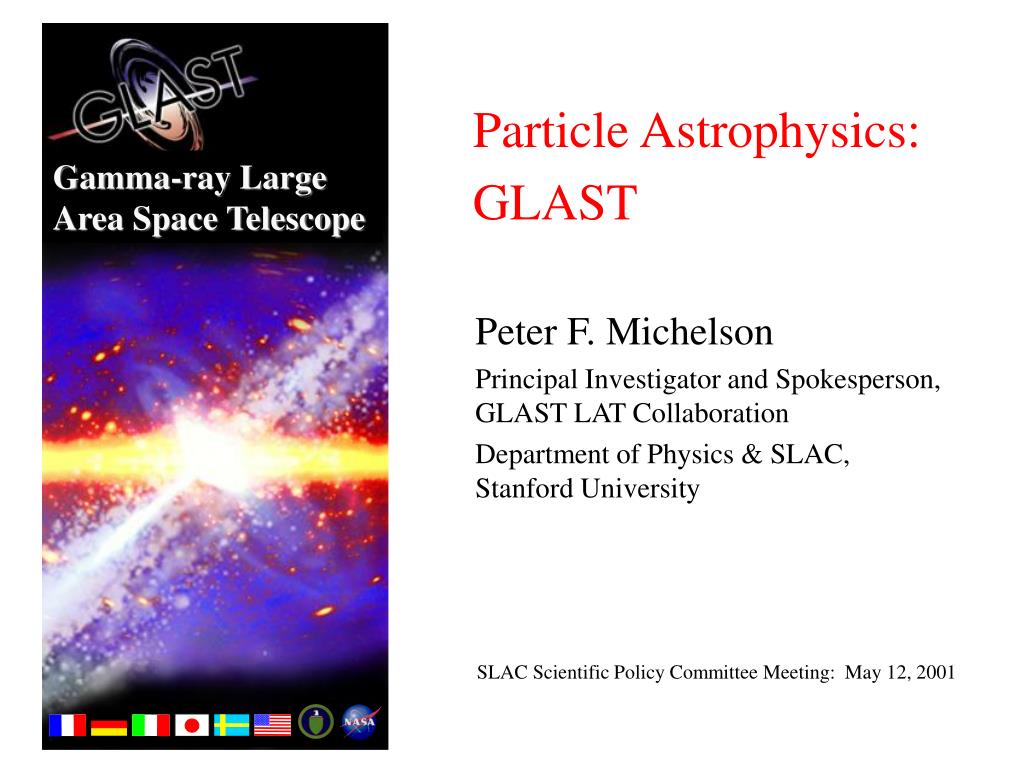

Particle Astrophysics: GLAST. Gamma-ray Large Area Space Telescope. Peter F. Michelson Principal Investigator and Spokesperson, GLAST LAT Collaboration Department of Physics & SLAC, Stanford University. SLAC Scientific Policy Committee Meeting: May 12, 2001. LAT Inst. Ops. Center

jalen
Download Presentation

Particle Astrophysics: GLAST

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Particle Astrophysics: GLAST Gamma-ray Large Area Space Telescope Peter F. Michelson Principal Investigator and Spokesperson, GLAST LAT Collaboration Department of Physics & SLAC, Stanford University SLAC Scientific Policy Committee Meeting: May 12, 2001

  2. LAT Inst. Ops. Center LAT data handling Instrument performance Level 0,1 data processing Routine Data Alerts Large loads TOO commands LAT Data Spacecraft, GBM data Status Command Loads Science Support Center Science scheduling Archiving Guest Observer Support Standard product processing Mission Ops Center Observatory safety Spacecraft health Commanding Mission scheduling GBM data handling Schedules Spacecraft data for archiving Burst and transient Alerts GBM Inst. Ops. Center Instrument performance Standard product processing GRB Coordinates Network Status Command Loads Gamma-ray Large Area Space Telescope • GLAST Observatory • spacecraft • LAT • GBM • GLAST Mission • high-energy gamma-ray • observatory; 2 instruments • - Large Area Telescope • (LAT) • - Gamma-ray Burst • Monitor (GBM) • launch (Sept 2005): • Delta 2 class • mission operations • science - LAT Collaboration - GBM team - Guest Observers • lifetime: 5 years (minimum)

  3. Point Spread Function 0.35o @ 1 GeV 0.1o @ 10 GeV Wide Field of View (2.4 sr) Low dead time: < 20 ms e– e+ Large Effective Area (20 MeV – 1 TeV) Good Energy Resolution (DE/E ~ 10%) Large Area Telescope (LAT) > 40 times the sensitivity of EGRET

  4. GLAST Science: Simulated All Sky Map Virgo Region (E > 1 GeV) => many science objectives One-Year All-Sky Map (E > 100 MeV)

  5. 5 s sources from Simulated All Sky Survey AGN Galactic plane Galactic halo One Year Point Source Catalog 3EG catalog EGRET 3rd Catalog: 271 sources Expected GLAST LAT 1st Catalog: ~10,000 sources

  6. GLAST Science Topics • Active Galactic Nuclei • Isotropic Diffuse Background Radiation • Cosmic Ray Production: • Identify sites and mechanisms • Endpoints of Stellar Evolution • Neutron Stars/Pulsars • Black Holes • Unidentified Gamma-ray Sources • Dark Matter • Solar Physics • Gamma-Ray Bursts • DISCOVERY!

  7. 100 s 1 orbit 1 day 3EG  limit 0.01  0.001 1 yr catalog LAT 1 yr 2.3 10-9 cm-2 s-1 Science capabilities - sensitivity large field-of-view 200  bursts per year  prompt emission sampled to > 20 µs AGN flares > 2 mn  time profile + E/E  physics of jets and acceleration  bursts delayed emission all 3EG sources + 80 new in 2 days  periodicity searches (pulsars & X-ray binaries)  pulsar beam & emission vs. luminosity, age, B 104 sources in 1-yr survey  AGN: logN-logS, duty cycle, emission vs. type, redshift, aspect angle  extragalactic background light ( + IR-opt)  new  sources (µQSO, ext. galaxies, clusters)

  8. Organizations with LAT Hardware Involvement • Stanford University & Stanford Linear Accelerator Center • NASA Goddard Space Flight Center • Naval Research Laboratory • University of California at Santa Cruz • University of Washington • Commissariat a l’Energie Atomique, Departement d’Astrophysique (CEA) • Institut National de Physique Nuclearie et de Physique des Particules (IN2P3): • Ecole Polytechnique, College de France, CENBG (Bordeaux) • Hiroshima University • Institute of Space and Astronautical Science, Tokyo • RIKEN • Tokyo Institute of Technology • Instituto Nazionale di Fisica Nucleare (INFN): Pisa, Trieste, Bari, Udine, Perugia, Roma • Royal Institute of Technology (KTH), Stockholm TKR CAL ACD CAL TKR TKR CAL International Collaboration ~ 100 collaborators from 28 institutions • access to X-ray, MeV, and TeV observatories by collaboration for multi-wavelength observations • ‘mirror’ data site in Europe CAL

  9. GLAST LAT Project: Recent & Upcoming Milestones • NRC Decadal Astronomy & Astrophysics Review ranks GLAST highest priority “moderate-size” space mission for next decade: Sept 2000; • 1st joint DOE-NASA Pre-baseline “Lehman” Review of GLAST LAT Project: Feb 13-15, 2001; • Launch date delayed 6 months due to NASA Mission funding issues, March 19, 2001: launch now March 2006; • NASA Independent Assessment Review of GLAST Mission completed in December 2000; recommended NASA funding augmentation for mission; • NASA Headquarters approves IA-recommended mission funding profile (consistent with March 2006 launch) including contingency funds to procure Delta II-H (“heavy”) launch vehicle if needed: April 10, 2001; • LAT Project preparing for DOE-NASA Baseline/PDR Review this October; • Preparing for Balloon Flight of Engineering Model, Summer 2001; • GLAST LAT Collaboration meeting scheduled for August 1-2, 2001 at Stanford University

  10. Status of International Arrangements • 2 International Agreements and 4 MoAs still being negotiated: complete drafts exist for all agreements; 3 MoAs signed (Japan & Sweden; UCSC); • International Agreements delayed because Implementing Arrangement and MoU between DOE and NASA not in place; • International agreements needed with CNES (French Space Agency) and ASI (Italian Space Agency); • Lack of International Agreement and MoA with France (CNES) has impacted calorimeter schedule; French team from CEA/Saclay and IN2P3, but majority of funding from CNES; working issues night & day;

  11. Collaboration Science Team SSAC N. Gehrels, GSFC Instrument Design Team T. Kamae, SLAC GLAST LAT Organization Collaboration Science Team E/PO L. Cominsky, SSU Principal Investigator P. Michelson, SU SSAC N. Gehrels, GSFC Instrument Scientist S. Ritz, GSFC Project Manager W. Althouse, SLAC Instrument Design Team T. Kamae, SLAC System Engineer T. Thurston, SLAC Project Controls T. Boysen, SLAC Integration & Test M. Nordby, SLAC Electronics & DAQ G. Haller, SLAC Performance & Safety Assurance D. Marsh, SLAC Mech. Systems M. Nordby, SLAC TKR R. Johnson, UCSC SLAC, Italy, Japan CAL N. Johnson, NRL France, Sweden ACD J. Ormes, GSFC IOC S. Williams, SU Sci. Software R. Dubois, SLAC

  12. Collaboration Organization • I. Grenier, France • N. Johnson, U.S. • R. Johnson, U.S. • T. Kamae, Japan • J. Ormes, U.S. • S. Ritz, U.S. • H. Sadrozinski, U.S. • D. Thompson, U.S. • K. Wood, U.S. • Senior Scientist Advisory Committee • N. Gehrels, Chair • P. Michelson, PI/Spokesperson • G. Barbiellini, Italy • R. Bellazzini, Italy • E. Bloom, U.S. • T. Burnett, U.S. • P. Carlson, Sweden • A. Djannati-Atai, France • R. Dubois, U.S. • Advises PI/Spokesperson on science issues and science organization of collaboration • Implements collaboration membership policy and publication policy • Meets quarterly

  13. Collaboration Organization • Instrument Design Team • Chaired by Instrument Technical Manager, T. Kamae • Deputy Chairs: R. Bellazzini (Italy), E. Bloom (US), J. Paul (France) • Reports to Project Manager, W. Althouse • Forum for exchange of information between subsystems to maintain coordinated design; resolve issues or refer to IPO for resolution • Membership includes all subsystem managers & key system engineering personnel • IDT members obliged to attend IDT meetings; meetings open to the Collaboration • Weekly video conference meetings

  14. GLAST Mission Science Working Group • Advises the GLAST Mission Project on matters related to the scientific development of the GLAST mission Jonathan Ormes, Chair, GLAST Mission Project Scientist Guido Barbiellini, Italy Elliott Bloom, USA Patrizia Caraveo, Italy Charles Dermer, (IDS), USA Brenda Dingus, (IDS), USA Neil Gehrels, Deputy Proj. Scientist, USA Isabelle Grenier, France Neil Johnson, USA Tuneyoshi Kamae, Japan Giselher Lichti, (GBM), Germany Charles Meegan, (PI-GBM), USA Peter Michelson, (PI-LAT), USA M. Pohl, (IDS), Germany David Thompson, USA Steve Thorsett, (IDS), USA Steve Ritz, Deputy Project Sci., USA Lynn Cominsky, E/PO Don Kniffen, ex officio, Program Scientist * GLAST LAT Collaboration Members

  15. Pair-Conversion Telescope anticoincidence shield  conversion foil particle tracking detectors • calorimeter • (energy measurement) e– e+ • limitations on angular resolution (PSF): • low E: multiple scattering many thin layers • high E: hit precision & lever arm - g interactions dominated by pair-conversion: determine photon direction clear signature for background rejection Photon cross-section in lead GLAST Large Area Telescope (LAT) Design Instrument Pair-conversion telescope Instrument must measure the direction, energy, and arrival time of high-energy photons (20 MeV - >300 GeV) • energy resolution requires calorimeter depth sufficient to measure buildup of EM shower. • calorimeter segmentation useful for resolution • & background rejection

  16. e– e+ Large Area Telescope (LAT) Design Overview Instrument 16 towers  modularity height/width = 0.4  large field-of-view Si-strip detectors: total of ~106 ch. hodoscopic CsI crystal array  cosmic-ray rejection  shower leakage correction shower max contained < 100 GeV segmented plastic scintillator  minimize self-veto Tracker Calorimeter Anticoincidence Detector Shield 3000 kg, 650 W (allocation) 1.75 m  1.75 m  1.0 m 20 MeV – 300 GeV Flight Hardware & Spares 16 Tracker Flight Modules + 2 spares 16 Calorimeter Modules + 2 spares 1 Flight Anticoincidence Detector Data Acquisition Electronics + Flight Software

  17. Prototype of one of 18 Tracker trays (detectors top & bottom) GLAST Large Area Telescope (LAT) Design Tracker Modules Si-strip detectors: fine pitch: 228 mm, high efficiency 12 front tracking planes (x,y): 3% x 12 = 0.45 Xo reduce multiple scattering 4 back tracking planes (x,y): 18% x 4 = 0.72 Xo increase sensitivity > 1 GeV e+ e–

  18. 8.5 rl GLAST Large Area Telescope (LAT) Design Calorimeter Modules Hodoscopic Imaging Array of CsI crystals: ~ 8.5 rl depth PIN photodiode readout from both ends: 2 ch/xtal x 96 xtals/mod = 2,944 ch segmentation allows pattern recognition (“imaging”) and leakage correction Mechanical Prototype of Carbon Cell Design

  19. GLAST Large Area Telescope (LAT) Design Anticoincidence Shield Segmented, plastic scintillator tile array: high efficiency, low-noise, hermetic; segment ACD sufficiently and only veto event if a track points to hit tile ACD tile readout with Wavelength Shifting Fiber

  20. Experimental setup in ESA for tagged photons: X Projected Angle 3-cm spacing, 4% foils, 100-200 MeV Data Monte Carlo GLAST Data (errors are 2) Monte Carlo Detector Performance Verified in Detailed Beam Tests

  21. Monte Carlo - Back Monte Carlo - Front Data - Back Data - Front PSF measured for “Flight-scale” Prototype Tracker

  22. Correlation method Profile fitting Raw Energy Response measured for “Flight-scale” Prototype Calorimeter Module

  23. The PSF as a function of the reconstructed energy for data and Monte Carlo simulation. The expected 1/E behavior is clearly seen. As the photon energy increases, multiple scattering becomes less important and the PSF decreases. At high energies the point spread function is dominated by the finite spatial resolution of the silicon detectors (60 microns). The thick radiators at the back of the tracker widen the point spread function by slightly more than a factor of 2.

  24. Because of the calorimeter depth, the shower maximum is contained up to ~ 50 GeV at normal incidence. However, above a few GeV, a large amount of energy leaks out the back of the calorimeter, and the total energy measured is systematically less than the incident energy. We have employed two techniques to correct for the shower leakage. We show the raw and reconstructed energy for 20 GeV incident positrons. The resolution of the raw distribution is around 7%, while the reconstructed resolution is less than 4% by the correlation method and about 5% by profile fitting. The reconstruction method applied to Monte Carlo simulated data yields an energy resolution of 3%, suggesting that some uncertainties remain in our calibration of beam test data.

  25. Calendar Years 2000 2001 2002 2003 2004 2005 2006 2011 I-CDR (Joint DOE/NASA Review) BeginLAT-S/C Integration Launch M-CDR SRR PDR NAR Formulation Implementation Ops. Build & Test Engineering Models Build & Test Flight Units Inst. I&T Observatory I&T Schedule Reserve Baseline Review 1st JointDOE/NASA Reviewof GLAST LAT Schedule
