Advoss service management

AdvOSS Service Management

  • AdvOSS Service Management Solution is mainly composed of three products (AAA Server, Policy Server & HSS) and based on AdvOSS SDP which is a Service Execution Engine for AAA Applications:


Advoss service management solution components

AdvOSS Service ManagementSolution Components

  • Radius Server

  • Diameter Server

  • Policy Server

    • PCRF Compliant

  • HSS (Home Subscriber Server)

    • Subscriber & Subscriptions data repository & management

  • SDP

    • AAA Applications

  • Hot-lining / Captive Portal


Advoss service management aaa server

AdvOSS Service Management AAA Server

  • AdvOSS AAA Server is required by any communications service providers such as Telecoms, wired and wireless broadband providers in 3G, 4G, LTE or other technologies. It is needed to provide a real-time interface between service delivery functions and core functions like B/OSS, policy, rating, charging, service management and subscriber management.


Advoss service management aaa server key modules

AdvOSS Service Management AAA Server --> Key Modules

  • Carrier Grade, High Performance & Scalable Server that provides Authentication, Authorization, Accounting and Policy lookup services over both Radius and Diameter Protocols. It can be used by any telecom or other service provider to obtain a real-time interface to policy control, Subscriber Management, Billing and OSS systems.


Advoss service management aaa server key modules contd

AdvOSS Service Management AAA Server --> Key Modules contd

  • Carrier Grade, High Performance & Scalable Server that provides Authentication, Authorization, Accounting and Policy lookup services over both Radius and Diameter Protocols. It can be used by any telecom or other service provider to obtain a real-time interface to policy control, Subscriber Management, Billing and OSS systems.


Aaa server supported protocols standards

AAA Server --> Supported: Protocols/Standards

Basic Authentication

  • PIN based

  • CLI/ANI based

  • Username/Password based

  • HTTP digest/SIP Authentication

  • IP based

    Advanced Authentication

  • - EAP Authentication

    • EAP-TLS

    • EAP-TTLS

    • EAP-TTLS with MS-CHAP, PAP, MS CHAP v2

    • EAP- LEAP

    • EAP-GTC

    • EAP- MD5

      - IMS AKA


  • Aaa server standards supported

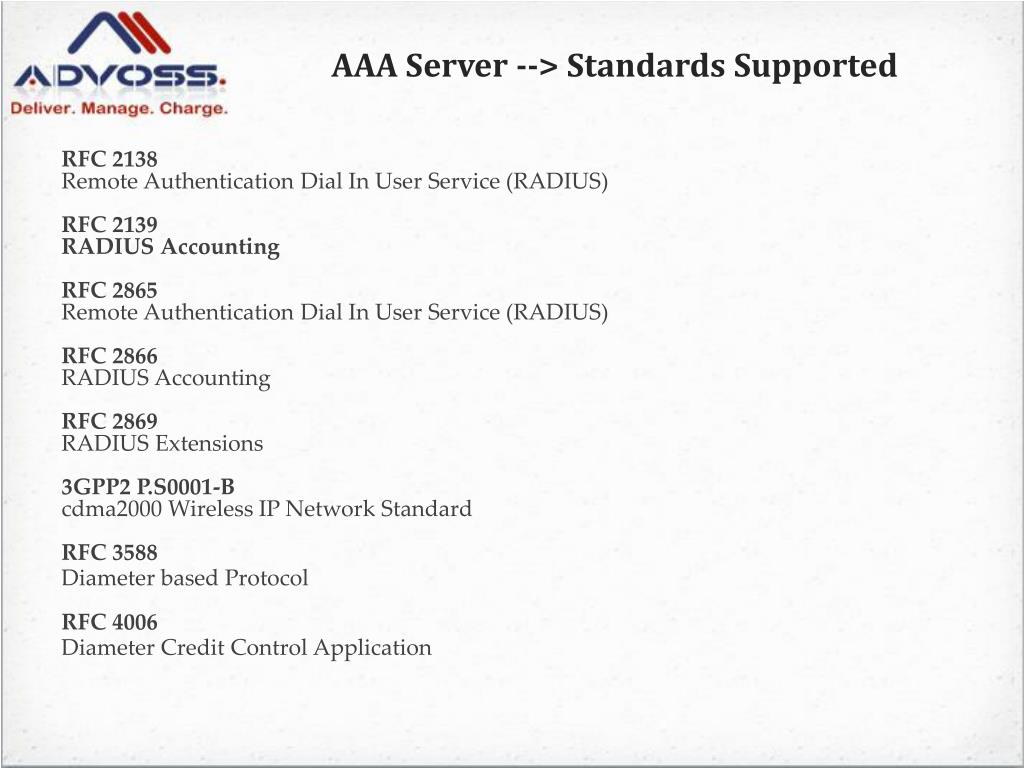

    AAA Server --> Standards Supported

    RFC 2138

    Remote Authentication Dial In User Service (RADIUS)

    RFC 2139

    RADIUS Accounting

    RFC 2865

    Remote Authentication Dial In User Service (RADIUS)

    RFC 2866

    RADIUS Accounting

    RFC 2869

    RADIUS Extensions

    3GPP2 P.S0001-B

    cdma2000 Wireless IP Network Standard

    RFC 3588

    Diameter based Protocol

    RFC 4006

    Diameter Credit Control Application


    Advoss service management aaa server aaa applications

    AdvOSS Service Management AAA Server --> AAA Applications

    AAA Applications: Each AAA request is handled by a respective AAA Application that interfaces with different functions in core network over multiple interfaces.


    Advoss service management policy server

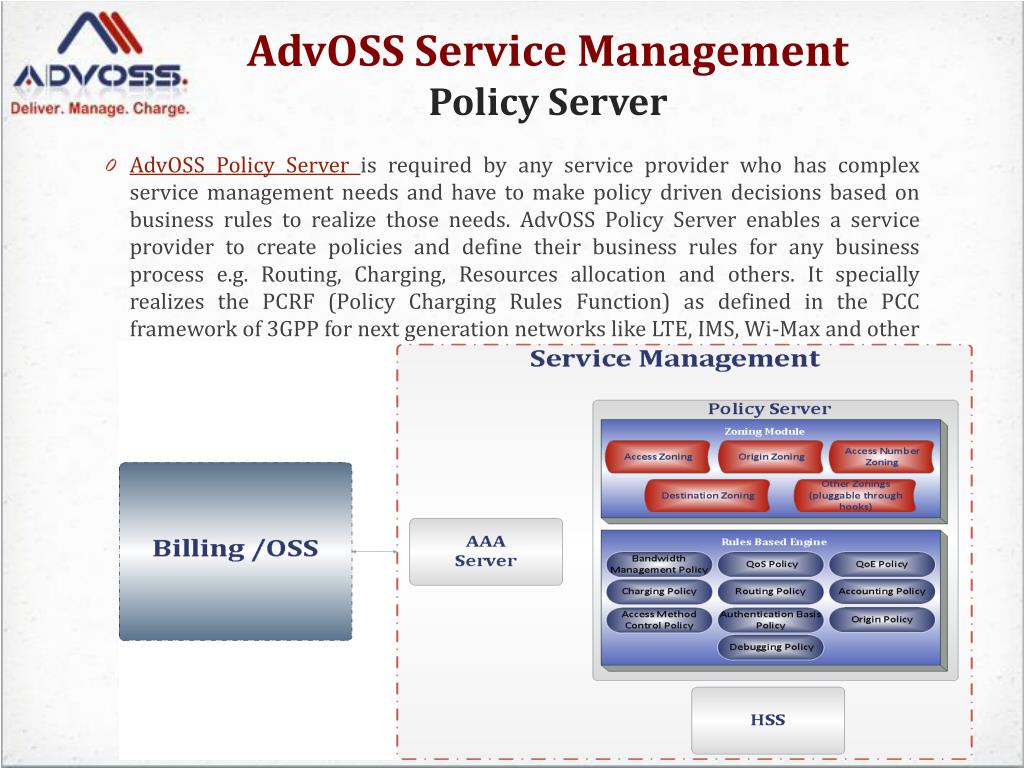

    AdvOSS Service Management Policy Server

    • AdvOSS Policy Server is required by any service provider who has complex service management needs and have to make policy driven decisions based on business rules to realize those needs. AdvOSS Policy Server enables a service provider to create policies and define their business rules for any business process e.g. Routing, Charging, Resources allocation and others. It specially realizes the PCRF (Policy Charging Rules Function) as defined in the PCC framework of 3GPP for next generation networks like LTE, IMS, Wi-Max and other 4G technologies


    Advoss service management policy server key modules

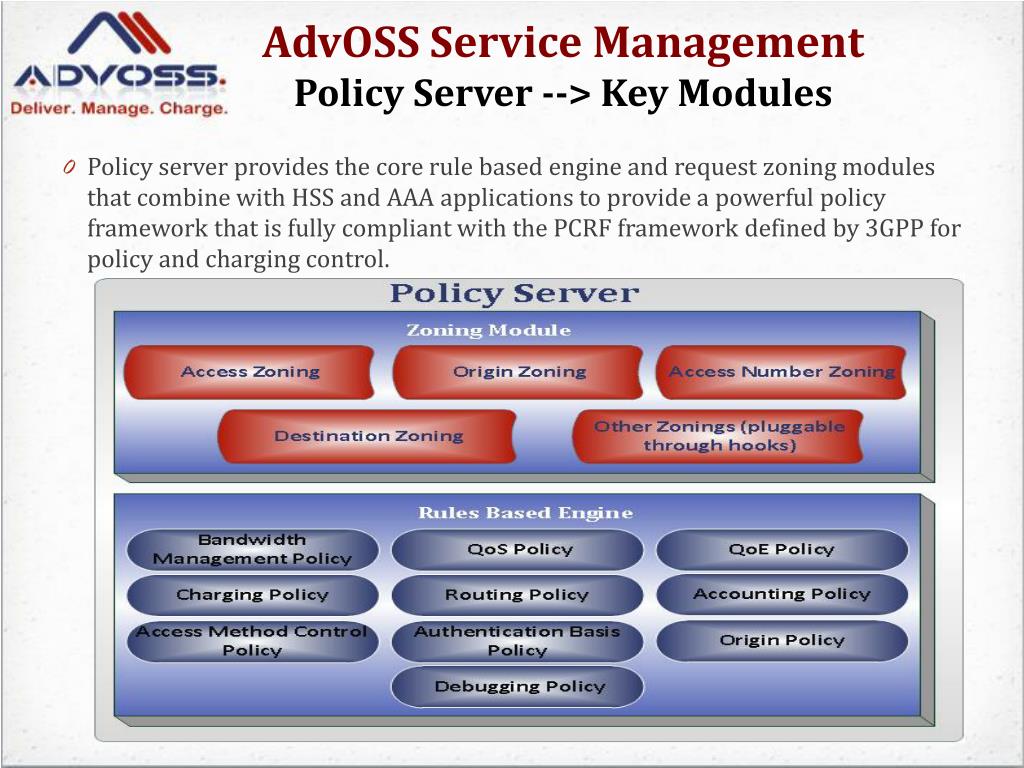

    AdvOSS Service Management Policy Server --> Key Modules

    • Policy server provides the core rule based engine and request zoning modules that combine with HSS and AAA applications to provide a powerful policy framework that is fully compliant with the PCRF framework defined by 3GPP for policy and charging control.


    Advoss service management policy server business use cases

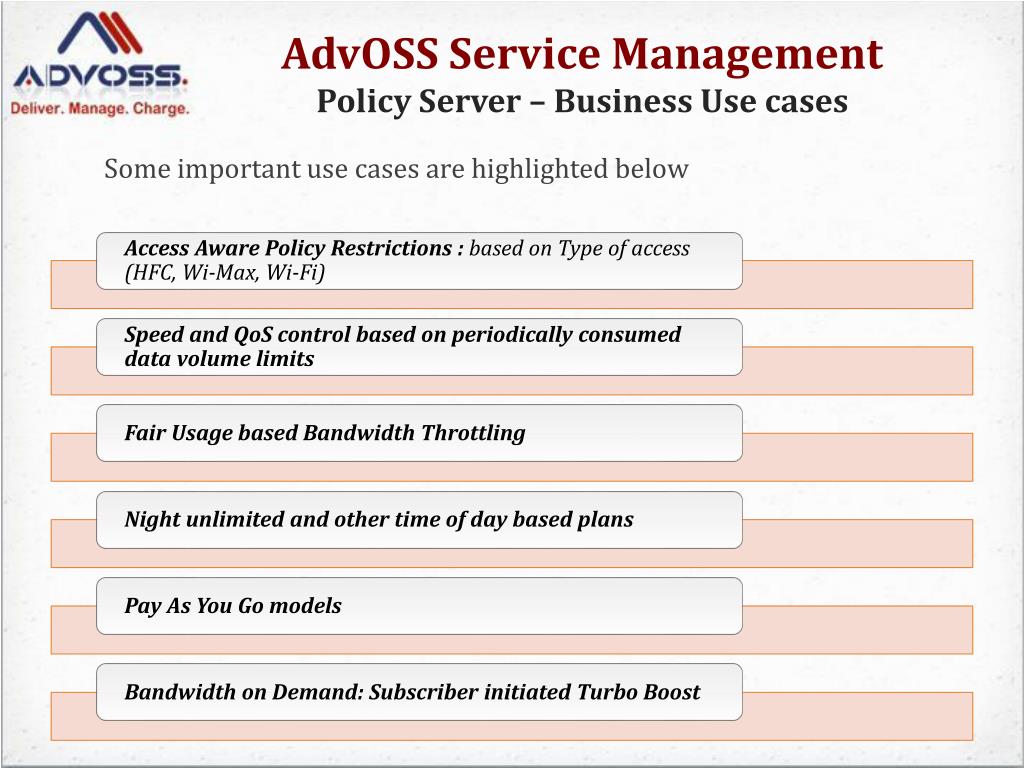

    AdvOSS Service Management Policy Server – Business Use cases

    Some important use cases are highlighted below


    Advoss service management hss home subscriber server

    AdvOSS Service Management HSS (Home Subscriber Server)

    • AdvOSS HSS is required by any communications service providers such as Telecoms, wired and wireless broadband providers in 3G, 4G, LTE or other technologies as the centralized data repository. It stores subscribers identities and subscription data about all subscribers and their service offerings. It is also required to keep track of service add-ons and their subscriptions by individual subscribers. It serves service profiles to Application servers or policy enforcement points.


    Advoss service management1

    AdvOSS Service Management

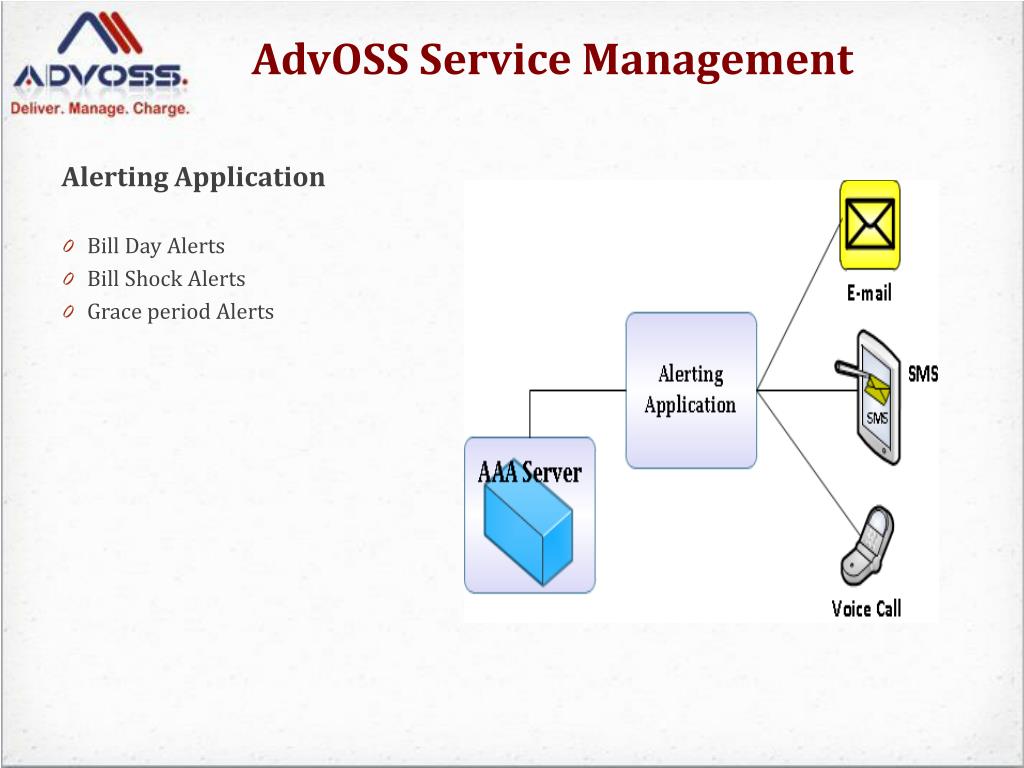

    Alerting Application

    • Bill Day Alerts

    • Bill Shock Alerts

    • Grace period Alerts


    Advoss service management2

    AdvOSS Service Management

    Captive Portal

    AdvOSS supports redirection of the users to a Web based Portal Captive Portal when a user is hot- lined and for sub self care and monitoring.


    Service management products roadmap

    Service Management Products Roadmap

    Q2 2012: support for LTE

    Main Goal is to make products PCC Framework compliance which will automatically make AdvOSS Service Management Products LTE Compliant (Expected to be completed Q2 2012). AdvOSS is in process of implementing the following interfaces.


    Contact us

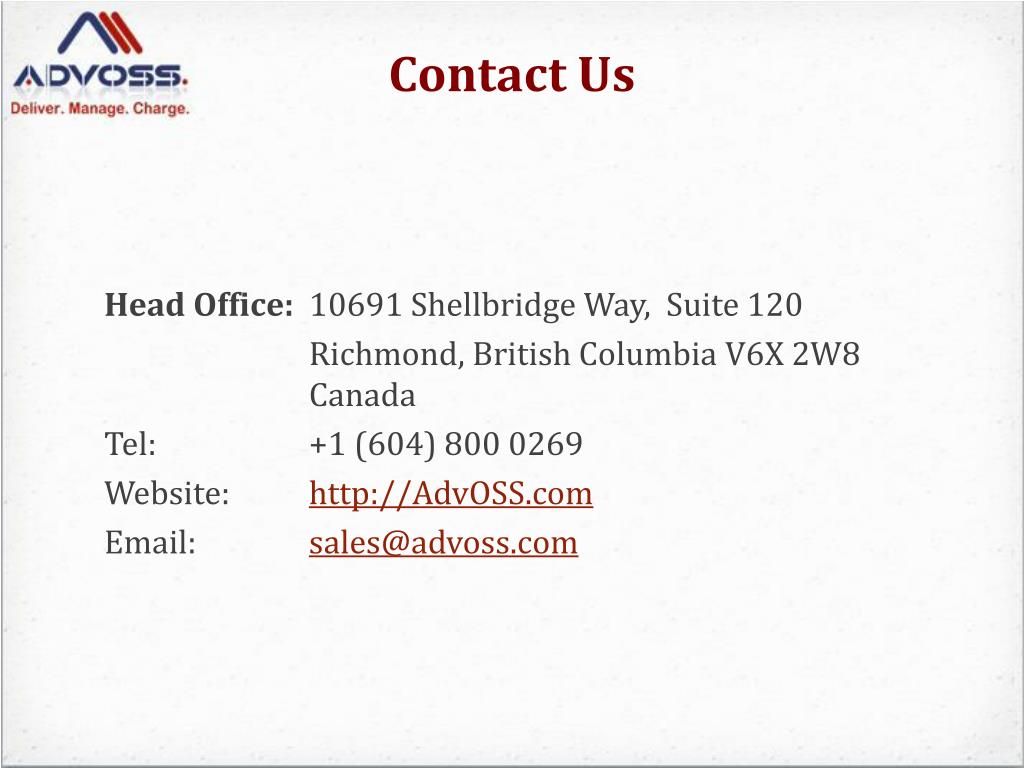

    Contact Us

    Head Office:10691 Shellbridge Way, Suite 120

    Richmond, British Columbia V6X 2W8 Canada

    Tel: +1 (604) 800 0269

    Website: http://AdvOSS.com

    Email:[email protected]
