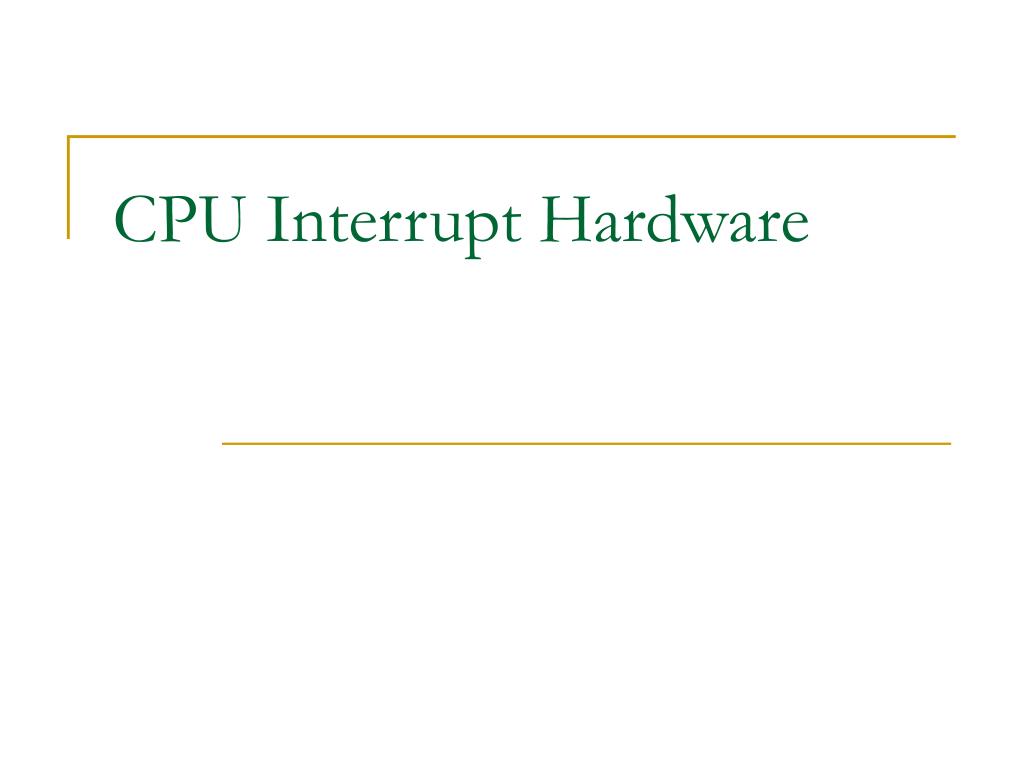

  1. CPU Interrupt Hardware

  2. CPU accepts interrupt request: • 1. Save PC and Flag register • 2. Change mode bit • 3. Push ISR’s starting address to PC

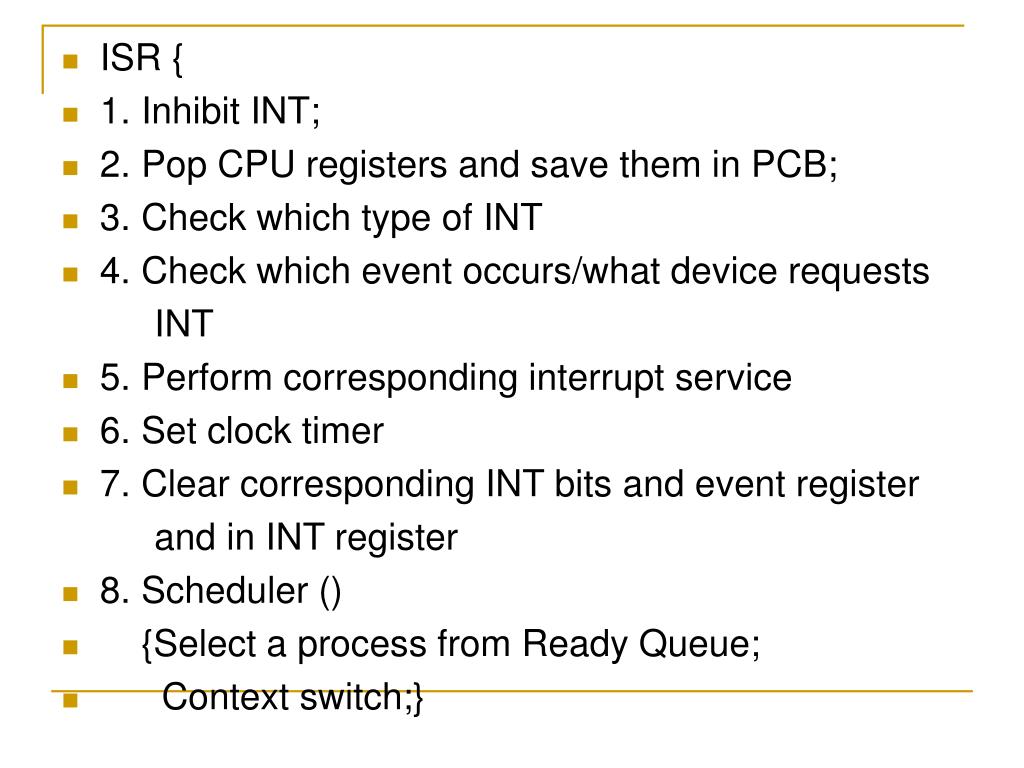

  3. ISR { • 1. Inhibit INT; • 2. Pop CPU registers and save them in PCB; • 3. Check which type of INT • 4. Check which event occurs/what device requests INT • 5. Perform corresponding interrupt service • 6. Set clock timer • 7. Clear corresponding INT bits and event register and in INT register • 8. Scheduler () • {Select a process from Ready Queue; • Context switch;}
