Presentation Transcript


Arrays 1

Is there a better way?

Arrays1

Motivation: to deal with large amounts of data

e.g sorting values:

Input: 10, 15, 4, 15, 17, 3, 12, 36, 48, 32, 9, 21

Want the Output:

3, 4, 9, 10, 12, 15, 17, 21, 25, 32, 36, 48

e.g Compute the average of 7 grades:

Dim dblTotal, dblG1,dblG2, dblG3 As Double

Dim dblG4, dblG5, dblG6, dblG7 As Double

'Initialize the grades

dblTotal = dblG1+dblG2+dblG3+dblG4 + dblG5+dblG6

MessageBox.Show(“Avg” & FormatNumber(dblTotal/7.0))


Arrays 2

Arrays2

  • List or series of values OF THE SAME TYPE all referenced by the same name

  • Similar to list of values for list boxes and combo boxes - without the box

  • Use an array to keep a series of values for later processing such as

    • Reordering

    • Calculating

    • Printing


Array terms

ArrayTerms

  • Element

    • Individual item in the array

  • Index (or subscript)

    • Zero based number used to reference the specific elements in the array

    • Must be an integer

  • Boundaries

    • Lower Subscript, 0 by default

    • Upper Subscript


Simple array example

Janet Baker

George Lee

Sue Li

Samuel Hoosier

Sandra Weeks

William Macy

Andy Harrison

Ken Ford

Denny Franks

Shawn James

(0)

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

Simple Array Example

strName Array


Defining arrays

Defining Arrays

  • Use Dim statement to declare

  • Specify the number of elements in the array as the UpperSubscript

General form:

DimArrayName(UpperSubscript) asDatatype

Example:

Dim dblGrades(7) as Double

  • Each element of the array will be assigned a default value

    • Numeric ==> 0

    • String ==> empty string, 0 characters

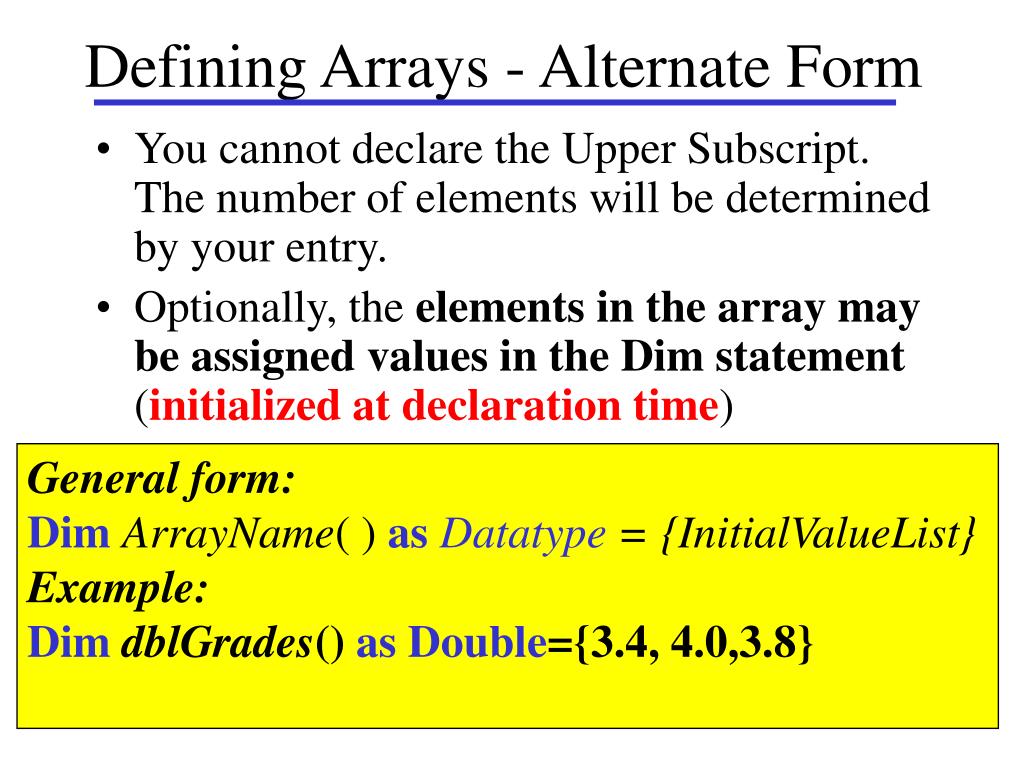

Defining arrays alternate form

Defining Arrays - Alternate Form

  • You cannot declare the Upper Subscript. The number of elements will be determined by your entry.

  • Optionally, the elements in the array may be assigned values in the Dim statement (initialized at declaration time)

General form:

DimArrayName() asDatatype = {InitialValueList}

Example:

Dim dblGrades()as Double={3.4, 4.0,3.8}


Dim statement for arrays examples default values

NOTE:3 is the upper index

Value. 0 is the lower index

Value. There are 4 elements

Dim Statement for Arrays Examples - Default Values

DimstrName(3) asString

Results in an array of 4 elements:strName(0), strName(1),

strName(2), strName(3)

All initialized to an empty string

DimdecBalance(99) as Decimal

Results in an array of 100 elements:decBalance(0), . . . , decBalance(99)

All initialized to an zero


Dim statement for arrays examples assigned values

Dim Statement for Arrays Examples - Assigned Values

DimstrDept( ) as String = {"ACT", "MKT", "HR"}

DimintActCode( ) as Integer = {10, 20, 30, 40}


What does vb do with the array

strName

(0)

(1)

(2)

(3)

What does VB do with the array?

  • When the DIM statement for the array is processed VB sets aside room for it in memory.

  • Ex: DimstrName(3) as String

    • VB sets aside a memory location for 4 strings


Referencing array elements

strName(row)

(0)

(1)

(2)

(3)

Referencing Array Elements

  • Use the Index(s) of the Element

strName(0) : "Sam Smith"

strName(1) : "Jill Creech"

strName(2) : "Paul Fry"

strName(3) : "Rich Wells"

Sam Smith

Jill Creech

Paul Fry

Rich Wells


Arrays 1

Some Rules ! (1)

No Exceptions

OK if 0 iVar1+3+iVar2  7

Index rule:

dblGrade(i)

An array index must evaluate to an

Integerbetween the lower and upper

bounds of the array. If the index is not an

Integer, VB rounds it to an Integer.

Example:

Dim dblGrade(7) As Double

...

dblGrade(intVar1+3+intVar2) = 3.0

Can have complicated expressions:

dblGrade( CInt(3.1*2.71828*Math.Sin(2.*3.14)) )


Arrays 1

Some Rules ! (2)

No Exceptions

Element rule:

dblGrade(i)

An array element can be used wherever

a simple variable of the same type can be used

Example

lblGrade.Text = FormatNumber (dblGrade(i),0)

dblGrade(i)=2^2 *4.5

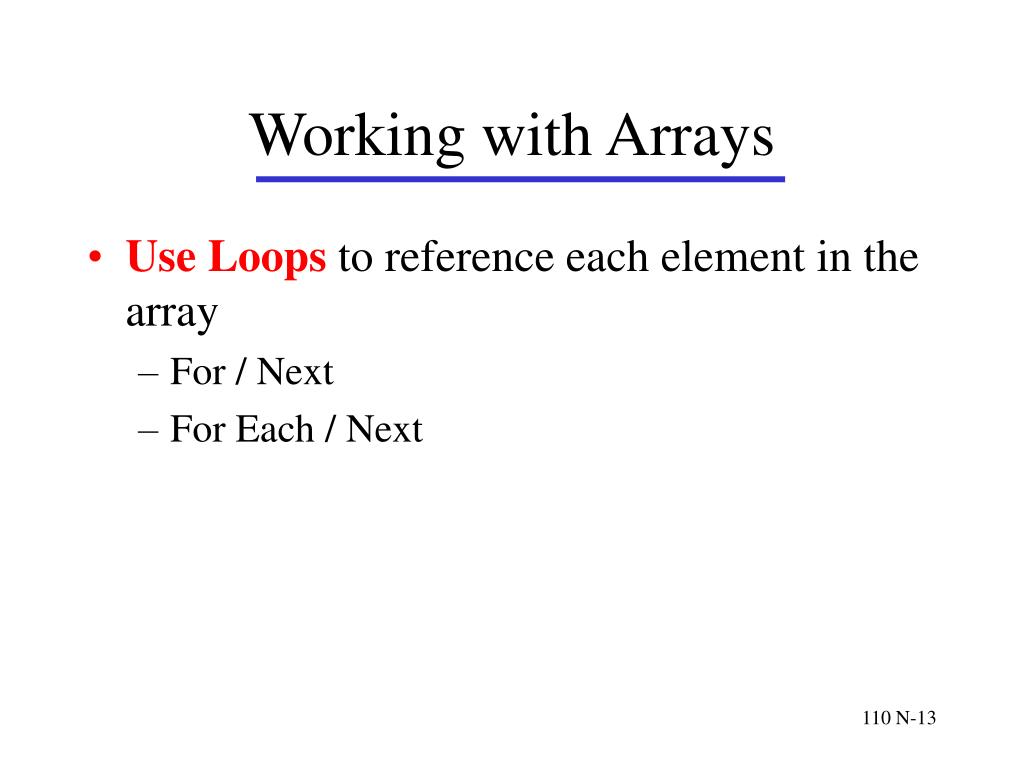

Working with arrays

Working with Arrays

  • Use Loops to reference each element in the array

    • For / Next

    • For Each / Next


For each loop general form

For Each Loop General Form

For EachElementName In ArrayName

Statements to execute

Next [ElementName]


For each next

For Each / Next

  • VB references EACH element of the array

  • VB assigns its value to ElementName

    • The variable used for ElementName must be same datatype as the array elements or an Object datatype

  • Makes one pass through the loop per element

  • Use Exit For statement within loop to exit early

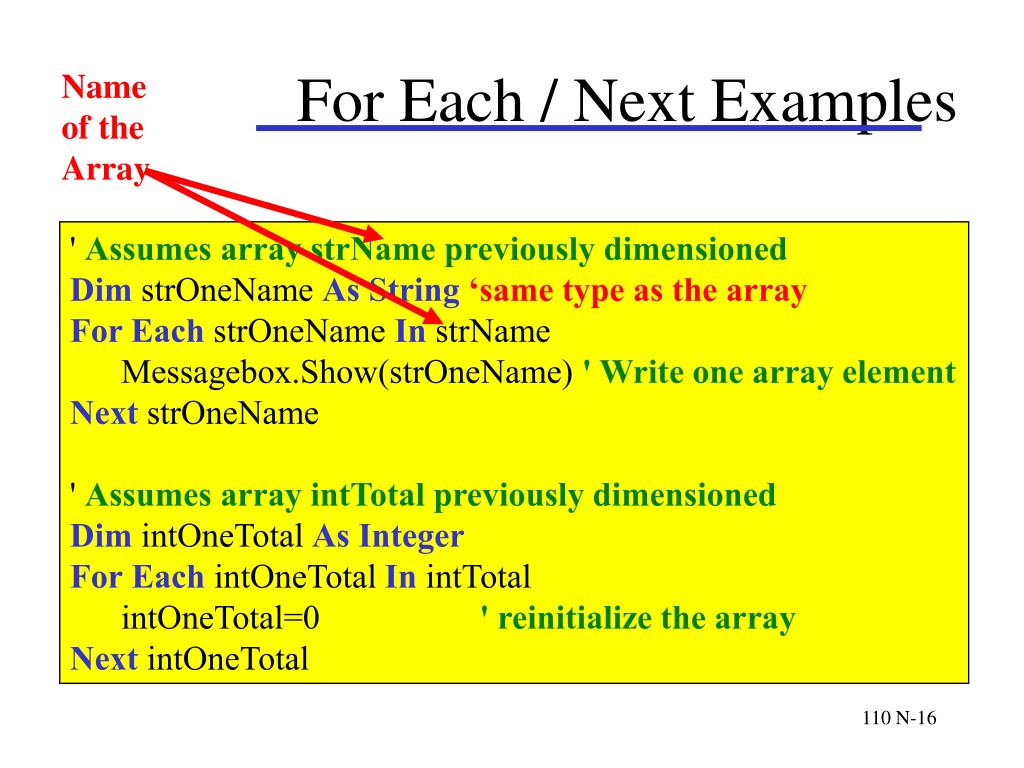

For each next examples

Name of the Array

For Each / Next Examples

' Assumes array strName previously dimensioned

Dim strOneName As String‘same type as the array

For Each strOneName In strName

Messagebox.Show(strOneName) ' Write one array element

Next strOneName

' Assumes array intTotal previously dimensioned

Dim intOneTotal As Integer

ForEach intOneTotal In intTotal

intOneTotal=0' reinitialize the array

Next intOneTotal


Arrays 1

Program Example(1)

Goal:

  • Get the grades of a class

  • (the class size may vary)

  • Display the average grade

How?

  • Have an array

  • Ask for the size of the class: intClass

  • Dimension the Array to be big enough

    • Dim dblGrades(intClass-1) as Double

  • Get the grades (loop)

  • compute the average (loop)


Arrays 1

Program Example(2)-Input Box

strSize contains 110

110

strSize contains ""

Displays a prompt in a dialog box, waits for the user to input text or click a button, and returns a String containing the content of the text box.

strSize = InputBox("Enter class Size","Input")


Code for the example 3

Code for the example(3)

Dim strSize AsString

Dim intCounter AsInteger

Dim intClassSize AsInteger

'ask user size of the class (number of students)

Do

strSize = InputBox("Please Enter Size", "Input")

IfNot IsNumeric(strSize) Then

MessageBox.Show("enter a numeric value")

EndIf

LoopUntil IsNumeric(strSize)

intClassSize = CInt(strSize)


Code for the example 4

'now create the Array.All elements in the array are initialized to zero

Dim dblGrades(intClassSize - 1) AsDouble

'Use a loop to get all of the grades

Dim dblGrade AsDouble

For intCounter = 0 To dblGrades.Length - 1

'ask the user for the grades and place them in the array

Try

dblGrade = CDbl(InputBox("Enter Grade"))

dblGrades(intCounter) = dblGrade

Catch

MessageBox.Show("enter a numeric grade")

'Decrement to use the same index value at the next iteration

intCounter = intCounter - 1

EndTry

Next

Code for the example (4)


Code for example 5

Code for example (5)

'now we have the array all populated with datawe can calculate the average

‘we are going to use a For Each Next Loop

Dim dblGrade AsDouble

Dim dblTotalSum AsDouble

Dim dblAverage AsDouble

ForEach dblGrade In dblGrades

dblTotalSum = dblTotalSum + dblGrade

Next dblGrade

dblAverage = CDbl(dblTotalSum / dblGrades.Length)

MessageBox.Show("Average: " & _ FormatNumber(dblAverage, 2))

'If you wanted to use a normal For Next Loop

For intCounter = 0 To _ dblGrades.Length - 1

dblTotalSum = _ dblTotalSum + _dblGrades(intCounter)

Next


Arrays 1

Pitfalls of Arrays

some constant

previously defined

But can do this on array elements

Write your own functions

Dim dblArray1(intSIZE) As Double

Dim dblArray2(intSIZE) As Double

Suppose dblArray1 has been initialized:

Cannot do: dblArray2 = dblArray1;

Cannot do:If dblArray1 = dblArray2 ...
