Presentation Transcript
Tetra in a mass rapid transit environment singapore l.jpg

TETRA IN A MASS RAPID TRANSIT ENVIRONMENT(Singapore)

Presented by:

Lee Thong Perng


Slide2 l.jpg

Singapore

23 km

42 km

  • Population: 4.2 m

  • Land Area: 685 km2

  • 707,000 vehicles

  • 3,100 km of roads

  • 140 km rail network

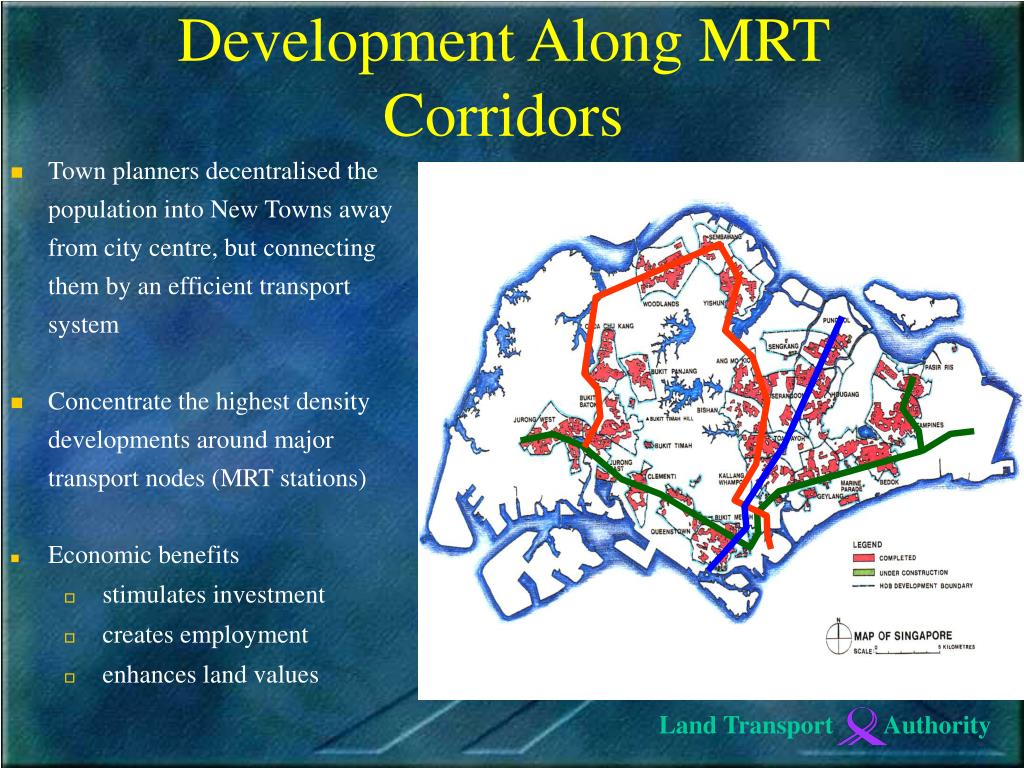

Slide3 l.jpg

Development Along MRT Corridors

  • Town planners decentralised the population into New Towns away from city centre, but connecting them by an efficient transport system

  • Concentrate the highest density developments around major transport nodes (MRT stations)

  • Economic benefits

    • stimulates investment

    • creates employment

    • enhances land values


The land transport authority l.jpg

The Land Transport Authority (LTA) is the provider and owner of all road and rail infrastructure.

Our Mission: “To provide an efficient and cost effective land transport system for different needs.”

The Land Transport Authority

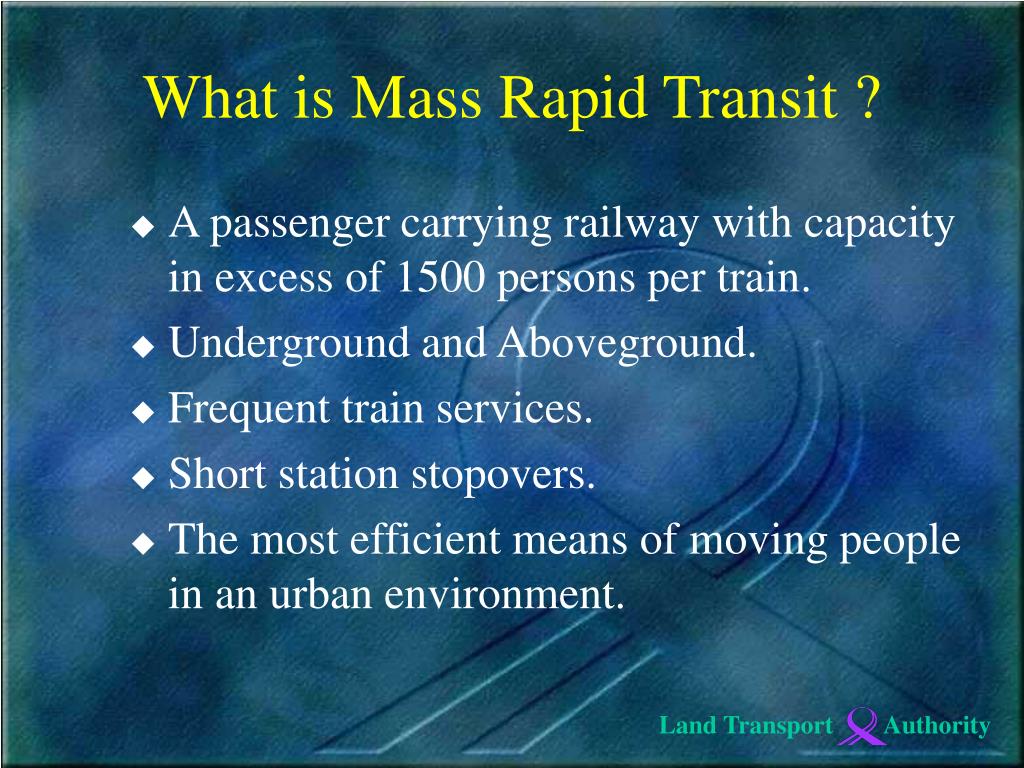

What is mass rapid transit l.jpg

A passenger carrying railway with capacity in excess of 1500 persons per train.

Underground and Aboveground.

Frequent train services.

Short station stopovers.

The most efficient means of moving people in an urban environment.

What is Mass Rapid Transit ?

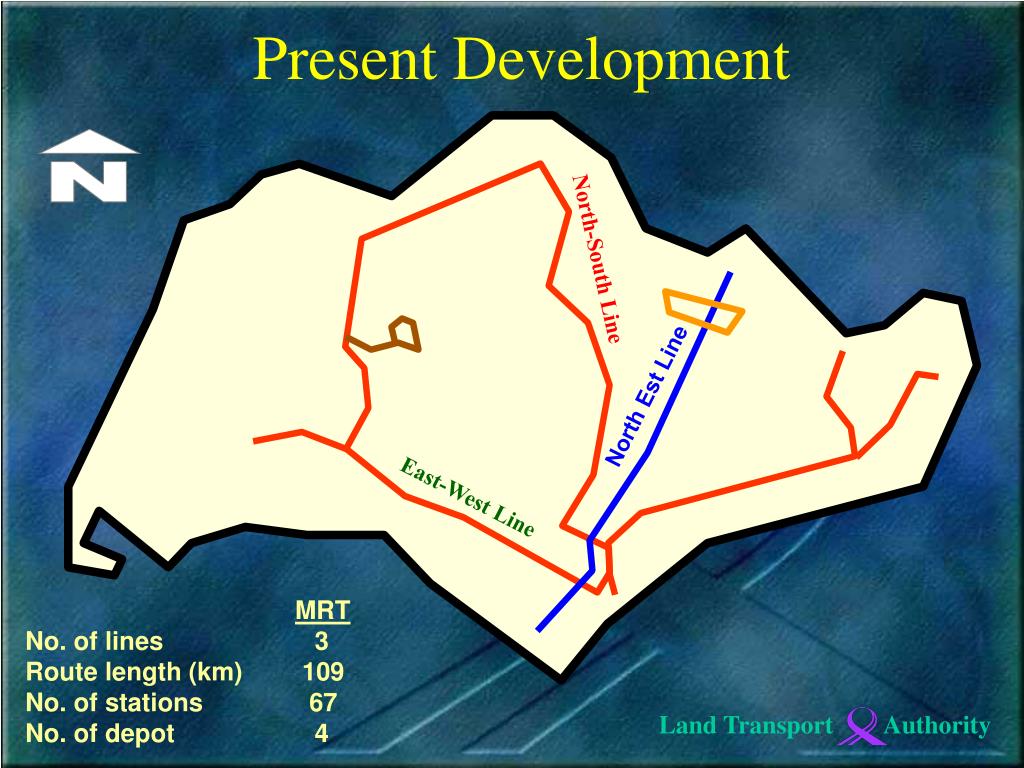

Slide6 l.jpg

N persons per train.

Present Development

North-South Line

North Est Line

East-West Line

MRT

No. of lines 3

Route length (km) 109

No. of stations 67

No. of depot 4


Slide7 l.jpg

Length: persons per train.

Stations:

172 km

139

N

Development Y2010

Circle Line

Completion:

(In 3 Phases)

2007/2008/2010

Circle

Line


Slide9 l.jpg

JRL persons per train.

ETL

BKL

N

Rail Transit Development Programme

(Under Study)

Rail Transit SystemBy Y2015


The singapore mrt l.jpg

The current MRT Network is operated by Singapore Mass Rapid Transit Ltd (SMRT) and Singapore Bus Service Transit Ltd (SBST).

The Singapore MRT


The modern mrt l.jpg

Highly Automated. Transit Ltd

Increasingly Reliant on Fail-Safe Computer Based Systems.

Decreased Staffing Levels demands more effective means of communication.

Highly Reliable and Flexible Radio Communication is required for effective command and control purposes.

The Modern MRT


Fully automated mrt l.jpg

Fully automatic operation requires that all functions of the driver be automated.

Operation Control Centre must become the driver’s eye.

Efficient data transmission plays a key role in rapid indication and diagnosis of train-borne system faults.

Consistently clear communication with passengers is essential at all times.

Fully Automated MRT

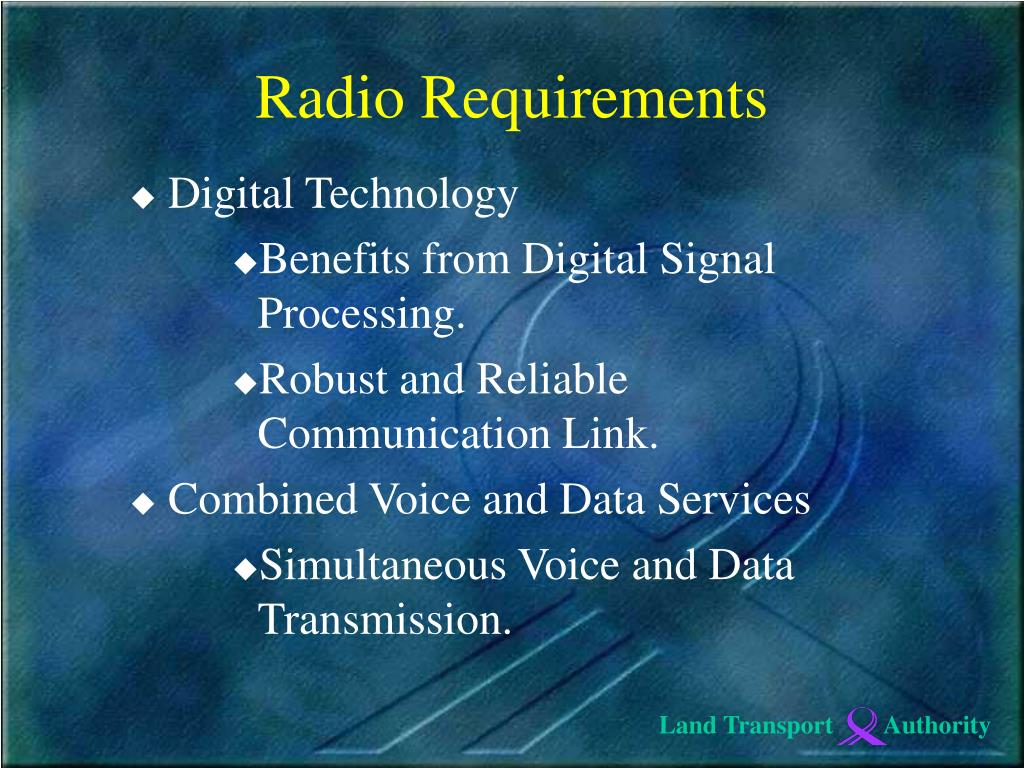

Radio requirements l.jpg

Digital Technology driver be automated.

Benefits from Digital Signal Processing.

Robust and Reliable Communication Link.

Combined Voice and Data Services

Simultaneous Voice and Data Transmission.

Radio Requirements


Radio requirements14 l.jpg

Automated Resource Management driver be automated.

Bandwidth Occupancy only when Needed.

Increased Capacity through Shared Resources and Trunking Schemes.

Radio Requirements


Radio requirements15 l.jpg

Ease of Expansion driver be automated.

Modular System.

Support Future Network and Channel Growth.

Advanced Networking Capabilities

Inter-working with Other Networks.

Radio Requirements


Radio technology l.jpg

Why TETRA ? driver be automated.

Radio Technology


Why tetra l.jpg

Frequency Economy driver be automated.

Interleaving 4 Channels in a single 25kHz Carrier via TDMA scheme.

Security for Critical Data

Data Integrity through Forward Error Correction.

Consistent Voice Quality

No Analogue Circuit Degradation Caused by Noise and Distortion.

Less User Frustration and Stress.

Why TETRA ?


Why tetra18 l.jpg

Flexible Communications driver be automated.

Supports both Voice and Data applications.

Efficient Command and Control (fast call set-up, subscriber identification, priority management, individual, group and broadcast calls).

Why TETRA ?


Why tetra19 l.jpg

Automated Voice/Data Traffic Routing and Network Flexibility driver be automated.

Software Based Configurable Architecture.

Trunked System Controller.

Roaming between Systems.

Why TETRA ?

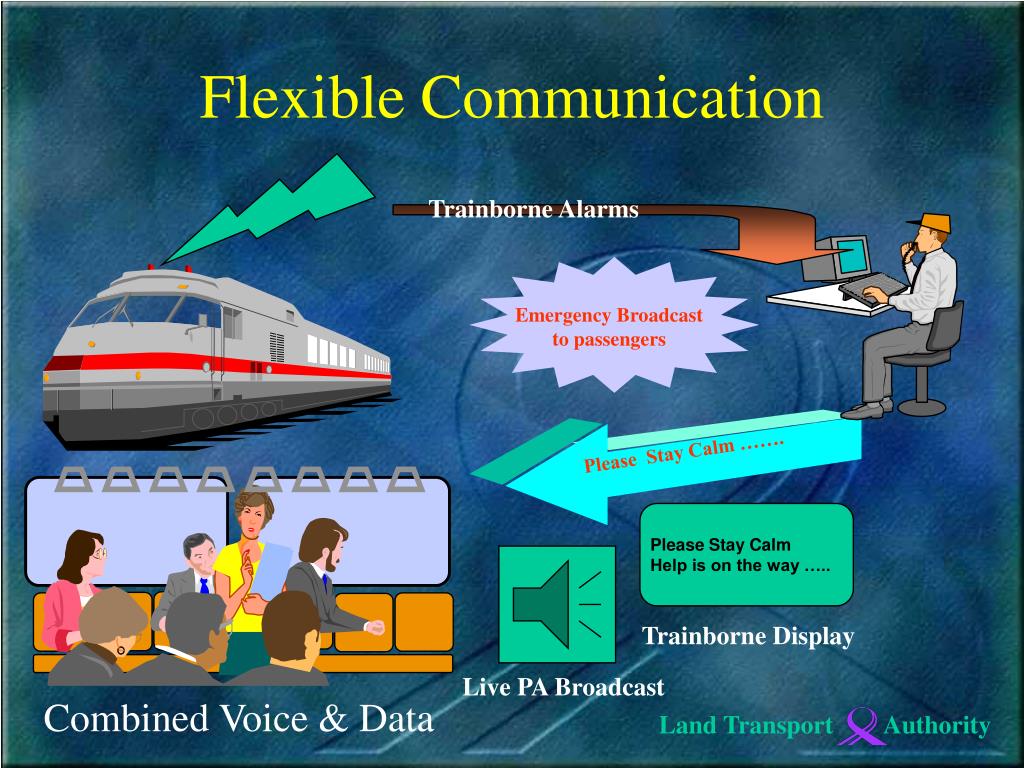

Flexible communication l.jpg

Please Stay Calm driver be automated.

Help is on the way …..

Flexible Communication

Trainborne Alarms

Emergency Broadcast

to passengers

Please Stay Calm …….

Trainborne Display

Live PA Broadcast

Combined Voice & Data


Why tetra21 l.jpg

Contributes to High Service Availability driver be automated.

Remote Monitoring and Diagnostics.

Efficient Incident Management.

Why TETRA ?


Incident management l.jpg

Dynamically driver be automated.

Grouped

Calls

Incident Management

Grouped

Data or Voice

Communications

for Incident Management

Base

Station

Incident Area


Incident management23 l.jpg

Dynamically driver be automated.

Grouped

Calls

Incident Management

Grouped

Data or Voice

Communications

for Incident Management

Base

Station

Incident Area


Voice traffic l.jpg

Public Address Announcement from Control Rooms to Trains. driver be automated.

Passenger Communication with Control Rooms During Emergencies.

Automatic Telephone Patch to PABX Subscribers.

Patch to Station PA Systems.

Communication amongst operation and maintenance staff.

Voice Traffic


Emergency communication pec passenger emergency communication l.jpg

Higher Priority driver be automated.

Emergency CommunicationPEC: Passenger Emergency Communication

Lower Priority

On Hold

Control Centre

PEC

Low priority

calls

Passenger


Data services l.jpg

Train-borne CCTV Selection from Control Rooms. driver be automated.

Remote Triggering of Train-borne Voice and Text Messages.

Updating of pre-stored Train-borne Text and Voice Message Libraries.

Data Services


Data services27 l.jpg

Trainborne Passenger Information Display Data from Control Rooms.

Trainborne PA Control from Control Rooms.

Train Fault and Diagnostic Data from the Trains to Control Room and Maintenance Centres.

Data Services


Remote data upload download l.jpg
Remote Data Upload/Download Rooms.

Voice

Comm.

Data Files Download

Crew

Member

Depot Control Centre

Train Fleet

Alarm Data

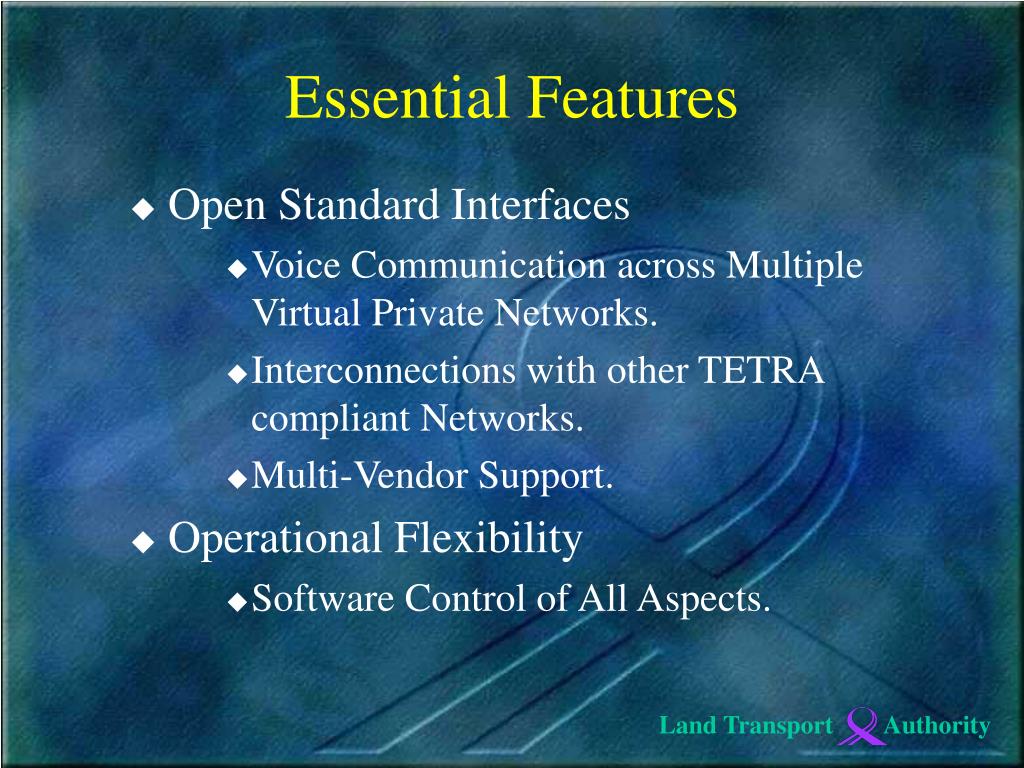

Essential features l.jpg

Open Standard Interfaces Rooms.

Voice Communication across Multiple Virtual Private Networks.

Interconnections with other TETRA compliant Networks.

Multi-Vendor Support.

Operational Flexibility

Software Control of All Aspects.

Essential Features


Typical radio system connectivity l.jpg
Typical Radio System Connectivity Rooms.

Train

Train

Train

Depot

PSTN

Station

Control Centre

Depot Control

Station

Portable

ISI

Other Networks

Portable

Portable

Portable

Station Boundary

Station Boundary

Train

Direct access

With Authorisation

Trunk Line

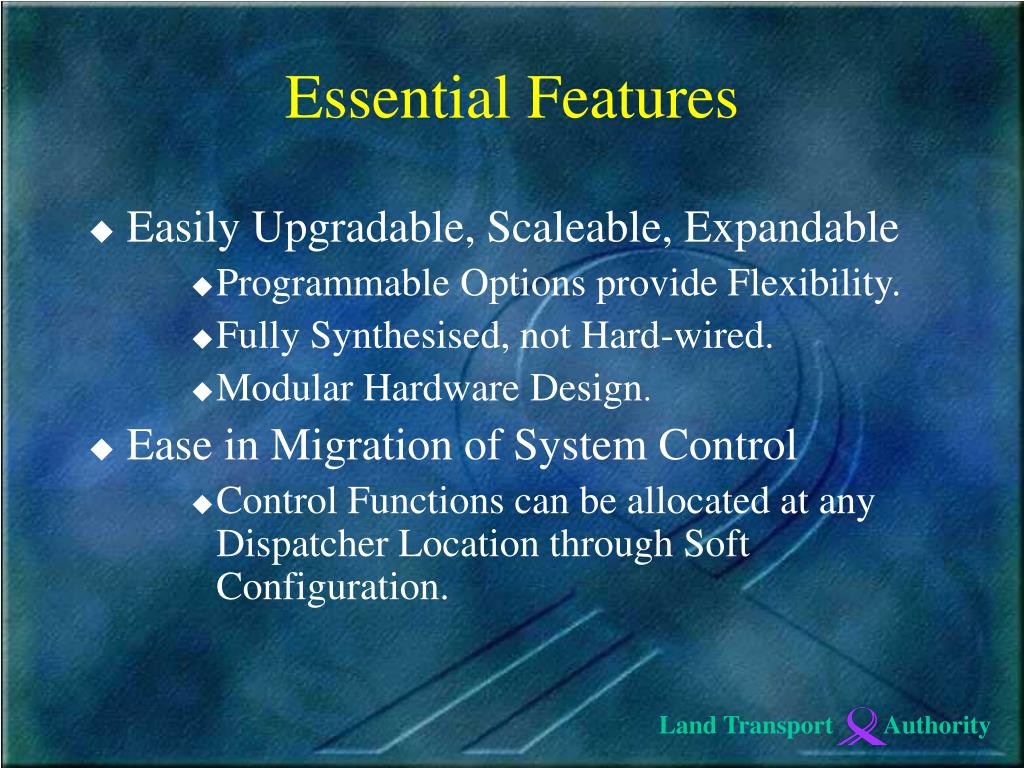

Essential features31 l.jpg

Easily Upgradable, Scaleable, Expandable Rooms.

Programmable Options provide Flexibility.

Fully Synthesised, not Hard-wired.

Modular Hardware Design.

Ease in Migration of System Control

Control Functions can be allocated at any Dispatcher Location through Soft Configuration.

Essential Features


Conclusion l.jpg

LTA has chosen TETRA for the following main reasons: Rooms.

Feature Rich Radio System.

Provides Secure and Highly Reliable Concurrent Voice and Data Communications.

Highly Flexible and Expandable Catering for Future Needs and Network Expansions.

Modular and Upgradable Software based System Protects the Investment.

Conclusion


Conclusion33 l.jpg

It is for these reasons that Singapore has chosen TETRA as the preferred technology to support the operation of the Singapore MRT operations.

TETRA is likely to be the choice for future MRT lines as the transit infrastructure in Singapore continues to grow rapidly.

Conclusion


Slide34 l.jpg

Thank You the preferred technology to support the operation of the Singapore MRT
