Presentation Transcript


Picoradio rf transmitter group update l.jpg

PicoRadio RF Transmitter& Group Update

Yuen Hui Chee

Prof. Jan Rabaey

University of California, Berkeley

BWRC Winter Retreat

13 Jan 2005


Picoradio rf quartet l.jpg

PicoRadio RF Quartet

Brian Otis

  • Ultra-low power receiver architectures

  • RF MEMS/CMOS co-design techniques

  • Yuen-Hui Chee

  • Ultra-low power transmitter architectures

  • Antenna techniques

  • Nathan Pletcher

  • Reactive Radio architectures

  • Low voltage RF design

  • Simone Gambini

  • Ultra-low power A/D converters


Wireless sensor networks wsn a new radio environment l.jpg

Sleeping nodes

Peer to Peer link

Multi-hops link

Broadcast

Wireless Sensor Networks (WSN) – A New Radio Environment

  • Dense network of nodes over an area

    • 100’s to 1000’s of nodes

    • Distance between nodes ≤ 10m1

  • Ad-hoc communication

    • Multi-hops

    • Peer to peer communications

  • Low data throughput

    • Small packet size

    • Low data rate

    • Bursty traffic

1 IEEE 802.15.4-2003 std


Challenges l.jpg

Available Power1

Power

Size

Cost

External Passives

CC2420 Radio2

Challenges

System Integration

1S. Roundy, Energy Scavenging for Wireless Sensor Networks, Kluwer Academic Publishers, 2003

2Chipcon datasheets


Current state of the art transmitter l.jpg

MICROS1 TX

Frequency Synthesizer

12mW (40%)

Modulator+DAC

0.54mW (2%)

Mixer

3.06mW (10%)

Power Amplifier

14.4mW (48%)

Total: 30mW

 = 3.3%

Current-State-of-the-Art Transmitter

MICROS1 Transmitter

Issues

  • Circuit power >> Radiated power

  • High overhead

  • Power hungry frequency synthesizer

  • Inefficient power amplification

Traditional transmitter architecture NOT suitable for PicoRadio because it has excessive energy overhead.

1P. Choi et. al, ISSCC 2003


Direct modulation transmitter l.jpg

Direct Modulation Transmitter

  • Direct Modulation

    • Eliminates I/Q channels  less overhead power

    • No power hungry mixers

  • RF MEMS based oscillator

    • Provides a low power frequency reference

    • Fast startup time

  • Simple modulation schemes

    • On-off keying

“Lean” transmitter is suitable for low power, low data rate applications


Sub 100 w ultra low power oscillator l.jpg

Sub-100W Ultra-Low Power Oscillator

Ultra-Low Power 1.9GHz FBAR Oscillator

  • Consumes a minimal power of 89W

  • Low Power Design Techniques

    • Use high Q FBAR resonator

    • Sub-threshold operation

    • Low supply voltage

    • Complementary devices to share bias current

  • Good phase noise performance

    • –120dBc/Hz at 100kHz offset

FBAR

CMOS


Transmitter implementation l.jpg

Transmitter Implementation

Transmitter Performance Summary

More details (including Rx) will be presented in ISSCC 2005


Perspective l.jpg

Radiated Power ~ Circuit Power

Wireless Sensor Networks (WSN)

Low Complexity Transmitter

Circuit Efficiency

Perspective

Radiated Power

1W

Radiated Power >> Circuit Power

Wireless LAN, Cellular

High Complexity Transmitter

PA Efficiency

100mW

10mW

1mW

100uW

Data Rate / Spectral Efficiency

Design Principles of Low Power Energy Efficient Transmitter:

Simplicity and Co-design

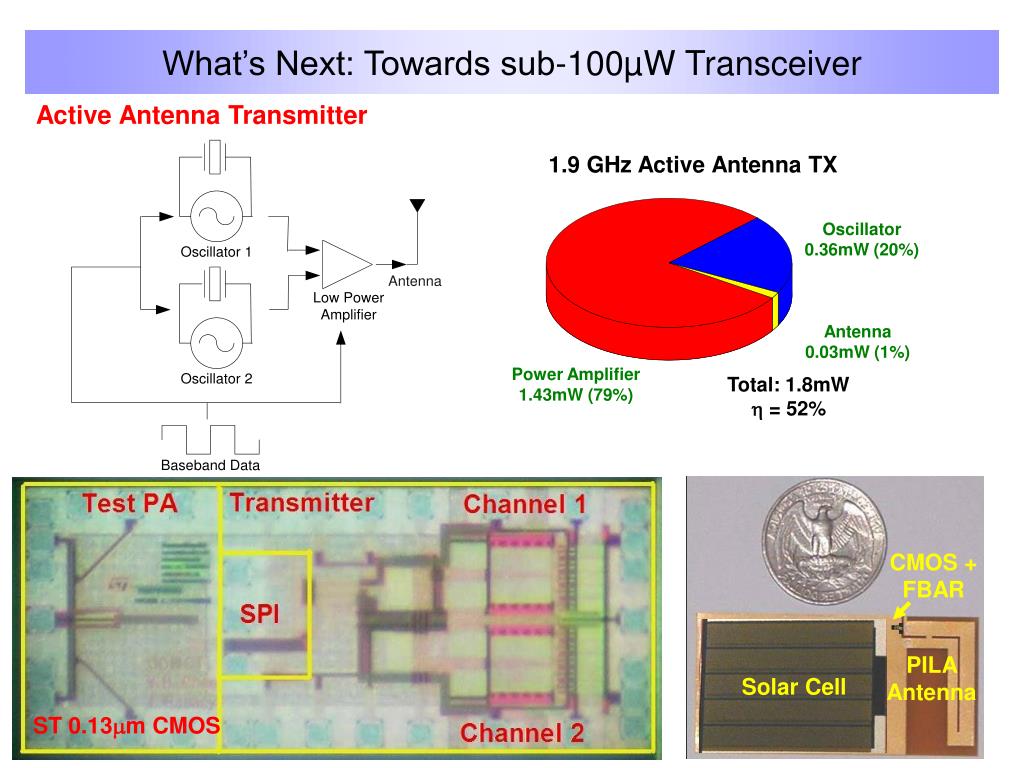

What s next towards sub 100 w transceiver l.jpg

1.9 GHz Active Antenna TX

Oscillator

0.36mW (20%)

Antenna

0.03mW (1%)

Power Amplifier

1.43mW (79%)

Total: 1.8mW

 = 52%

CMOS + FBAR

PILA Antenna

Solar Cell

What’s Next: Towards sub-100µW Transceiver

Active Antenna Transmitter

ST 0.13m CMOS


What s next towards sub 100 w transceiver11 l.jpg

What’s Next: Towards sub-100µW Transceiver

Ultra-low power digital controlled oscillator (DCO)

  • Nominal power ~ 100µW with 0.5V supply

  • Bondwire inductor or on-chip inductor

  • 200MHz tuning range @ 500kHz resolution using 9 bits capacitive bank

  • Utilize this low power DCO in a reactive radio receiver

N. Pletcher


What s next towards sub 100 w transceiver12 l.jpg

What’s Next: Towards sub-100µW Transceiver

  • 16MHz micromachined resonators – SiGe structural layer, low temp processing

Integrated Silicon Clocks

1µW Low Power Osc

100µW Low Phase Noise Osc

B. Otis, N. Pletcher, E. Quévy


Thank you l.jpg

Thank You
