First Level Response…

Complete Radiation Protection

  • Gamma/Neutron

  • Search

  • Dose Rate

  • Nuclide Identification

+

Combined In One Handheld!

PROVEN LEADERSHIP IN INNOVATIVE AND RELIABLE RADIATION DETECTION TECHNOLOGY


Slide2 l.jpg

Key Features THE IDENTIFIER

The Identifier — Key Features

GR-135

  • “3 Instruments-In-One”: Search, dose rate and nuclide identification

  • Fully automatic: 2-step operation

  • Highest operation usability, one hand, one button, “joystick” operation

  • Unsurpassed nuclide identification

  • Up to 4 detectors integrated into one instrument

  • Integrated Neutron detection capability

  • Developed based on the World’s leading gamma - ray spectrometer, the GR-130 miniSPEC


Slide3 l.jpg

Ease Of Use THE IDENTIFIER

Automatic Mode — 2 Step Operation

GR-135

“Click” >

Nuclide

Identification

Docking

Station >

System

Ready

Grab &

Go >

Search

and dose rate

The IDENTIFIER - Ease Of Use

The IDENTIFIER - Key Applications


Slide4 l.jpg

Ease Of Use THE IDENTIFIER

Highest Operator Usability

GR-135

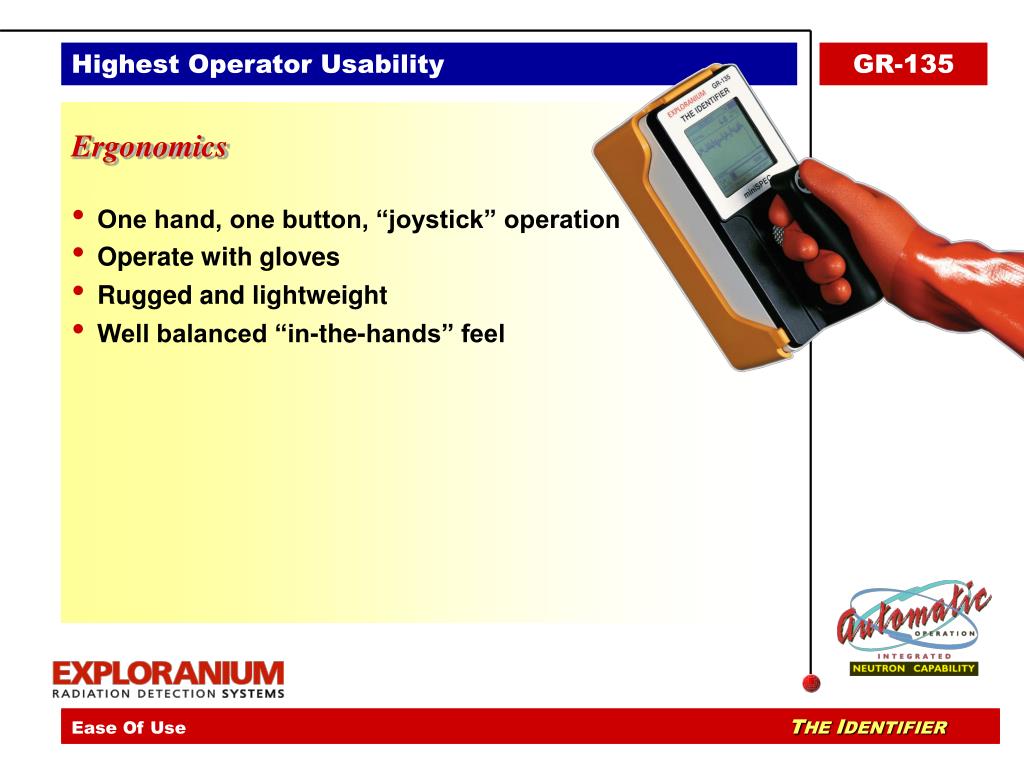

Ergonomics

  • One hand, one button, “joystick” operation

  • Operate with gloves

  • Rugged and lightweight

  • Well balanced “in-the-hands” feel

The IDENTIFIER - Ease Of Use

The IDENTIFIER - Key Applications


Slide5 l.jpg

Ease Of Use THE IDENTIFIER

Highest Operator Usability

GR-135

  • Easy To Use

  • Docking station: System ready, battery charged, gain stabilized

  • Fully automatic: 2 step operation

  • Large readable displays

  • Automated operator advisor

1. Grab & go - Search & Dose Rate

2. “Click” - Nuclide Identification

- Warning Messages

- Operator Instructions

  • “Eyes-Free” audio search and warning system

  • Selectable back-lit-display

  • Automated correction for display contrast

  • 8 to 12 hour battery life, with rechargeable batteries

  • Multi language support

The IDENTIFIER - Ease Of Use

The IDENTIFIER - Key Applications


Slide6 l.jpg

Ease Of Use THE IDENTIFIER

Highest Operator Usability

GR-135

  • Multiple On-Board Detectors

  • Up to 4 detectors can be integrated into one hand-held

  • Sodium Iodide - standard on all instruments

  • Geiger-Mueller - standard on all instruments

  • Solid State Neutron - optional

  • Cadium Zinc Telluride (CZT) - optional

  • Automatic detector data integration for optimal nuclide identification

  • Full text nuclide classification

  • Industrial / medical / special nuclear materials

  • Nuclide identification

The IDENTIFIER - Ease Of Use

The IDENTIFIER - Key Applications


Slide7 l.jpg

Ease Of Use THE IDENTIFIER

Automatic Operator Friendly “Advisor”

GR-135

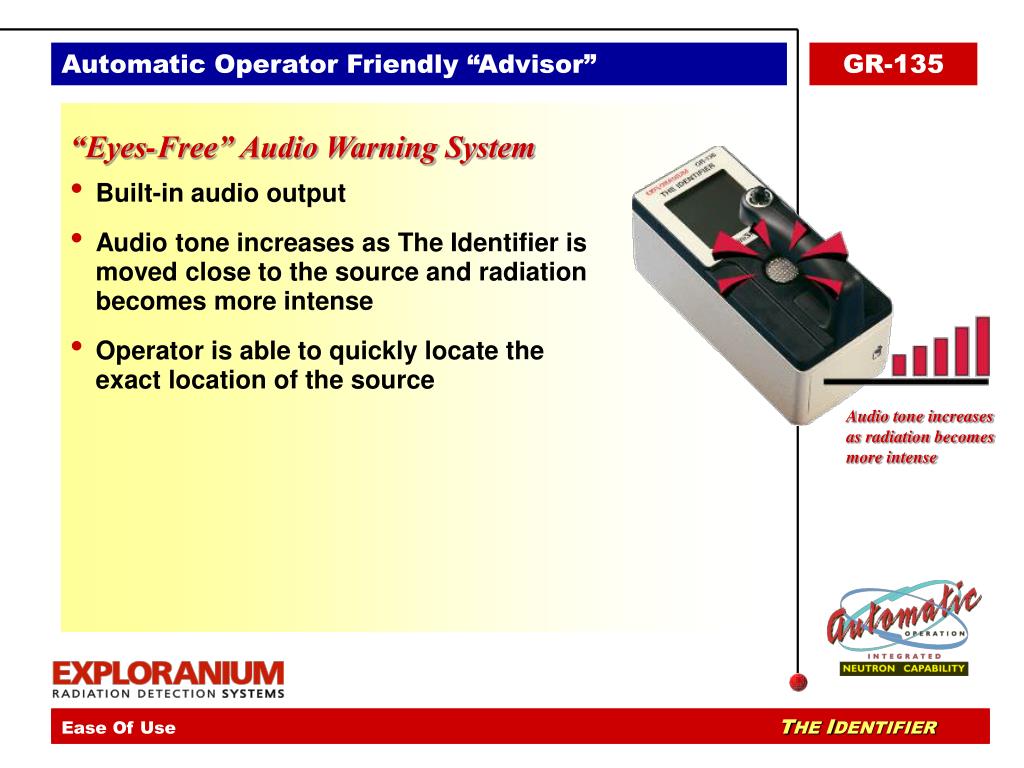

  • “Eyes-Free” Audio Warning System

  • Built-in audio output

  • Audio tone increases as The Identifier is moved close to the source and radiation becomes more intense

  • Operator is able to quickly locate the exact location of the source

Audio tone increases

as radiation becomes

more intense

The IDENTIFIER - Ease Of Use

The IDENTIFIER - Key Applications


Slide8 l.jpg

Ease Of Use THE IDENTIFIER

Automatic Operator Friendly “Advisor”

GR-135

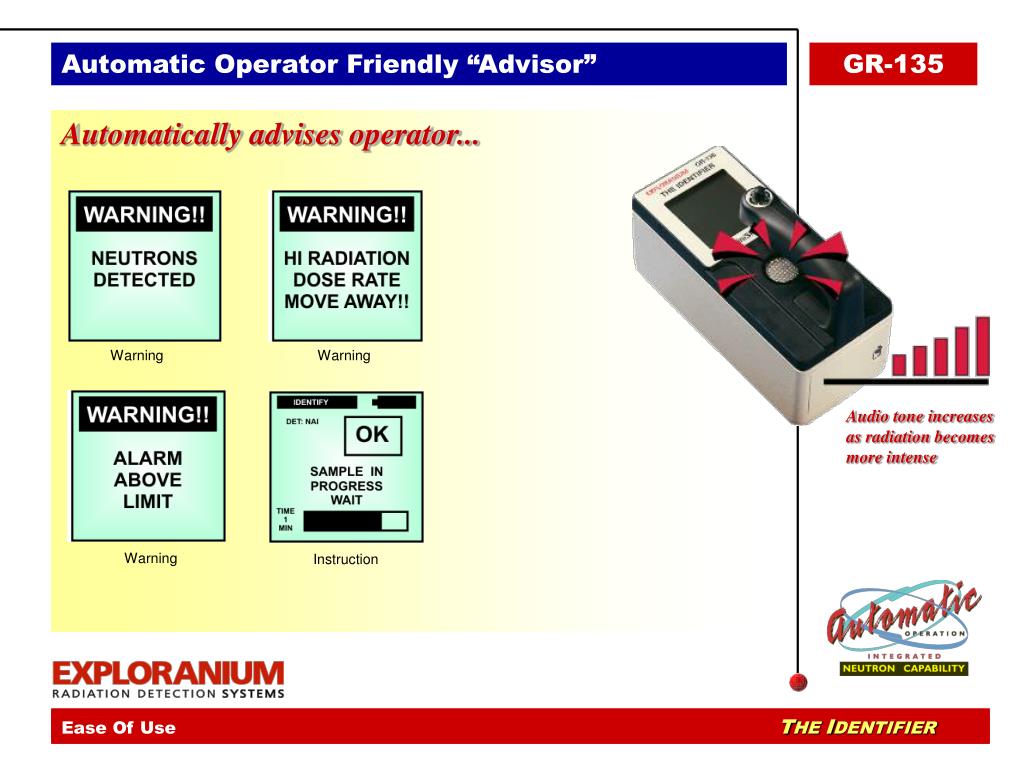

Automatically advises operator...

Warning

Warning

Audio tone increases

as radiation becomes

more intense

Warning

Instruction

The IDENTIFIER - Ease Of Use

The IDENTIFIER - Key Applications


Slide9 l.jpg

Ease Of Use THE IDENTIFIER

Automatic Mode: Search and Dose Rate

GR-135

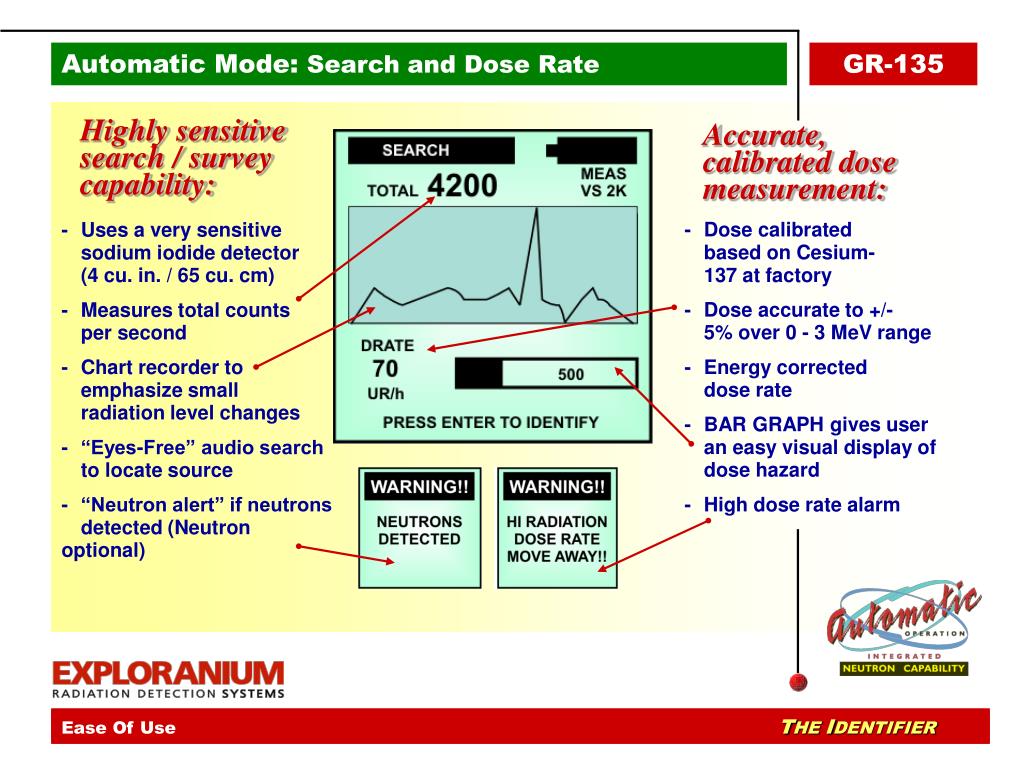

Highly sensitive search / survey capability:

Accurate, calibrated dose measurement:

- Dose calibrated based on Cesium- 137 at factory

- Dose accurate to +/- 5% over 0 - 3 MeV range

- Energy corrected dose rate

- BAR GRAPH gives user an easy visual display of dose hazard

- High dose rate alarm

- Uses a very sensitive sodium iodide detector (4 cu. in. / 65 cu. cm)

- Measures total counts per second

- Chart recorder to emphasize small radiation level changes

- “Eyes-Free” audio search to locate source

- “Neutron alert” if neutrons detected (Neutron optional)

The IDENTIFIER - Ease Of Use

The IDENTIFIER - Key Applications


Slide10 l.jpg

Ease Of Use THE IDENTIFIER

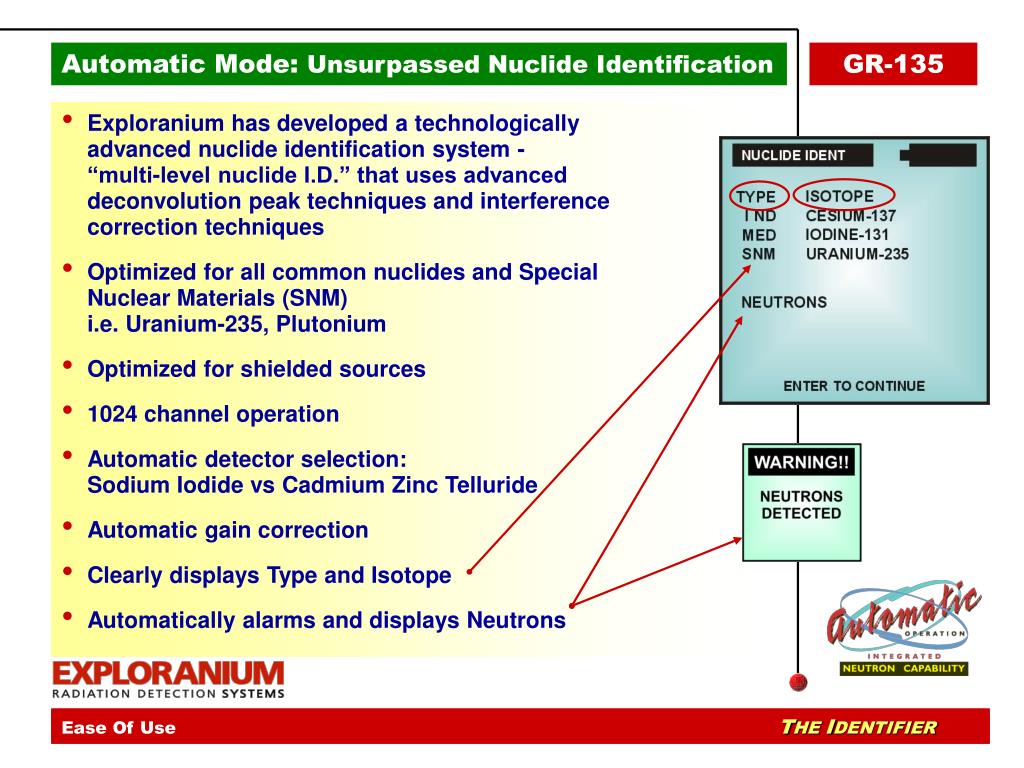

Automatic Mode: Unsurpassed Nuclide Identification

GR-135

  • Exploranium has developed a technologically advanced nuclide identification system - “multi-level nuclide I.D.” that uses advanced deconvolution peak techniques and interference correction techniques

  • Optimized for all common nuclides and Special Nuclear Materials (SNM) i.e. Uranium-235, Plutonium

  • Optimized for shielded sources

  • 1024 channel operation

  • Automatic detector selection: Sodium Iodide vs Cadmium Zinc Telluride

  • Automatic gain correction

  • Clearly displays Type and Isotope

  • Automatically alarms and displays Neutrons

The IDENTIFIER - Ease Of Use

The IDENTIFIER - Key Applications


Slide11 l.jpg

Nuclide Library THE IDENTIFIER

Nuclide Libraries

GR-135

  • Nuclide libraries target most common nuclides for Special Nuclear Materials, Industrial and Medical applications

  • 5 different pre-defined nuclide libraries are available. The desired library is activated through the manual menu selection:

    • STANDARD: Customs / Security / Police / Military...

    • Medical

    • Industrial

    • Waste Management

  • Special Customizable For maximum system performance, Exploranium will customize special libraries for the user (by e-mail) which can be downloaded using the indentiVIEW software provided via PC and docking station

The IDENTIFIER - Ease Of Use

The IDENTIFIER - Key Applications


Slide12 l.jpg

Nuclide Library THE IDENTIFIER

GR-135 Libraries

GR-135

  • Built-In Library for First Responders (Customs, Police, Fire, etc.), Medical, Industrial and Waste

BUILT-IN LIBRARIES

Standard (Customs)

Medical

The IDENTIFIER - Ease Of Use

The IDENTIFIER - Key Applications


Slide13 l.jpg

Nuclide Library THE IDENTIFIER

GR-135 Libraries

GR-135

  • Built-In Library for First Responders (Customs, Police, Fire, etc.), Medical, Industrial and Waste

BUILT-IN LIBRARIES

Waste

Industrial

The IDENTIFIER - Ease Of Use

The IDENTIFIER - Key Applications


Slide14 l.jpg

identiVIEW Software THE IDENTIFIER

identiVIEW Software

GR-135

  • “Dock to PC” > identiVIEW Software

  • The Identifier has a large data storage capability

  • IdentiVIEW software automatically downloads stored data and spectrum to your PC

  • Stored data can then be transmitted to an expert for review

The IDENTIFIER - Ease Of Use

The IDENTIFIER - Key Applications


Slide15 l.jpg

Ease Of Use THE IDENTIFIER

Manual Mode Features — Advanced User

GR-135

Manual Mode

The manual mode allows the qualified user the opportunity to change parameters, alarm levels, etc., for both the Automatic and Manual modes, as well as perform advanced spectrum analysis and other advanced functions.

Set-Up Mode

  • The menu-driven “Manual mode” allows the advanced user to easily define or modify system settings:

  • Survey settings

  • Dose corrections

  • Manual detector selection / override

  • Count termination settings

  • Alarm message / audio control settings

  • Display settings

  • Scan stored spectra / replay / download

  • Battery condition

  • Dose calibration / data averaging

  • Multiple language

The IDENTIFIER - Ease Of Use

The IDENTIFIER - Key Applications


Slide16 l.jpg

Ease Of Use THE IDENTIFIER

Manual Mode Features — Advanced User

GR-135

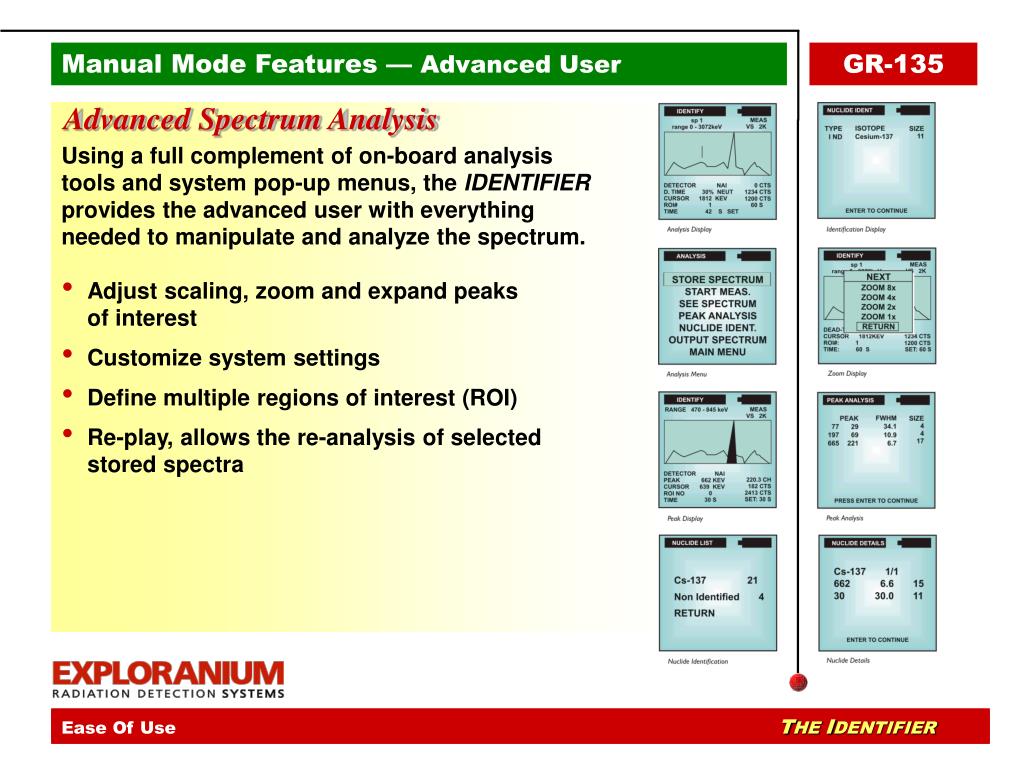

Advanced Spectrum Analysis

  • Using a full complement of on-board analysis tools and system pop-up menus, the IDENTIFIER provides the advanced user with everything needed to manipulate and analyze the spectrum.

  • Adjust scaling, zoom and expand peaks of interest

  • Customize system settings

  • Define multiple regions of interest (ROI)

  • Re-play, allows the re-analysis of selected stored spectra

The IDENTIFIER - Ease Of Use

The IDENTIFIER - Key Applications


Slide17 l.jpg

Key Applications THE IDENTIFIER

Training

GR-135

  • Exploranium is in the process of developing a number of training programs ranging from 2 hours to a full day.

  • These seminars include such topics as:

  • Basic Radiation Knowledge

  • GR-135 Operation

  • Search Techniques

  • Field-Based Role Exercises

  • Emergency Response

  • Standard Operating Procedures (SOP)

  • Seminar leaders include; in North America — Don Rickard previously with Canadian Nuclear Safety Commission and in Europe — Dr. Klaus Duftschmid, previously with the IAEA and currently involved in customs training

  • Exploranium is also working on an interactive training CD and can provide training for trainers

The IDENTIFIER - Key Applications


Slide18 l.jpg

The Complete Package THE IDENTIFIER

“The IDENTIFIER” - Complete Package

GR-135

  • The Complete Package Includes:

  • GR-135 “The Identifier” handheld unit

  • Operator’s manual

  • Rubber boot

  • Docking station + AC power cord

  • 2 - NiCd - batteries

  • Connection cable (docking station to PC)

  • IdentiVIEW software

  • Soft sided carrying case

  • Pelican shock proof travel/shipping case

  • Calibration certificate

  • ISO 9002

  • CE

The IDENTIFIER - identiVIEW Software

The IDENTIFIER - Ease Of Use

The IDENTIFIER - Key Applications


Slide19 l.jpg

Only Exploranium Provides… THE IDENTIFIER

Only Exploranium Provides...

GR-135

  • Automatic Mode - 2 step operation

    • “Grab and Go” = Search and Dose Rate

    • “Click” = Nuclide Identification

  • One hand, one button “joy stick” operation

  • Unsurpassed nuclide identification - optimized for shielded sources and special nuclear materials

  • Docking station - recharging, stabilization and downloading

  • Large, readable displays 65 x 65 mm (2.5” x 2.5”)

  • Eyes-free “loud” audio, warning messages

  • 4 integrated multiple detectors - NAI, GM, Neutron, CZT

  • Free software upgrades

  • Automatic detector selection - NAI versus CZT

  • Five nuclide libraries including acustomizable nuclide library

  • Rugged, durable design - drop tested at 0.75m, with detectors

  • Large NAI crystal 38 mm x 55 mm (1.5” dia x 2.2”) for extra sensitivity

  • Excellent battery life, 8 hrs to 12 hrs

  • Broad energy range 20 KeV to 3.0 MeV and selectable ROI’s

  • Multi language support

The IDENTIFIER - identiVIEW Software

The IDENTIFIER - Ease Of Use

The IDENTIFIER - Key Applications


Slide20 l.jpg

Independent Test Evaluations THE IDENTIFIER

Independent Test Evaluations - In Progress!

GR-135

  • The IDENTIFIER is a significant technical advance over the original Exploranium’s GR-130 miniSPEC which was successfully evaluated by a number of organizations:

    • ITRAP - IAEASeibersdorf, Austria

    • NRPB, U.K.

    • AECL, Canada

    • F.B.I. / D.O.E., USA

  • GR-135 IDENTIFIER - Tests In Progress...

    • Department of Energy (D.O.E.) - United States

    • I.T.R.A.P. - Austria

    • N.R.P.B. - United Kingdom

    • Customs - Europe

The IDENTIFIER - identiVIEW Software

The IDENTIFIER - Ease Of Use

The IDENTIFIER - Key Applications


Slide21 l.jpg

Independent Test Evaluations THE IDENTIFIER

User References:

GR-135

  • The GR-130 / 135 has sold over 1,500 units in 45 countries, with such notable customers as:

    • Customs:U.S. Customs (USA), CCRA (Canada),

    • Police:FBI (USA), RCMP (Canada), Police (Worldwide)

    • Military:D.O.D., U.S. Army, LLNL, Navy EOD, Navseacom, AWE (UK), DND (Canada)

    • National Research Facilities:DOE (USA), AECL (Canada), NRPB (UK), I.A.E.A. (Austria), ANSTO (Australia), Health Canada R.P.B.

    • Medical:Medical facilities worldwide, Hospitals...

    • Nuclear Power Plants: OPG, Bruce, NBP (Canada), USA, Europe

    • Steel/Scrap Metal:Nucor, Ameristeel (USA), Avesta, ELG (UK), Nippon Steel (Japan), most steel mini-mills worldwide...

The IDENTIFIER - identiVIEW Software

The IDENTIFIER - Ease Of Use

The IDENTIFIER - Key Applications


Slide22 l.jpg

The Complete Package THE IDENTIFIER

In Conclusion - The IDENTIFIER

GR-135

  • Evolved from the most popular gamma-ray spectrometer, the GR-130 miniSPEC

  • 3 instruments in one: search, dose rate and nuclide identification

  • Fully automatic: 2 step operation

  • Lightweight, rugged and versatile

  • Highest operator usability: Easy to use

  • Unsurpassed nuclide identification

  • Docking station for immediate readiness

  • Multiple integrated detectors: GM, Sodium Iodide, Neutron, CZT

  • Selectable nuclide libraries

  • Manual mode for advanced users

The IDENTIFIER - identiVIEW Software

The IDENTIFIER - Ease Of Use

The IDENTIFIER - Key Applications


Slide23 l.jpg

Where To Find Us...

For More Information

GR-135

USA Offices

Head Office

Contact: Mel Sauve

E-mail: [email protected]

6108 Edwards Blvd.,

Mississauga, Ontario CANADA L5T 2V7

Tel.: (+1) 905 670-7071 ext. 305

Fax: (+1) 905 670-7072

Europe, Middle East, Africa

Contact: D.J. Schooneveld

E-mail: [email protected]

Lagendijk 39, NL-1541 KB Koog aan de Zaan,

The Netherlands

Tel.: (+31) 75 670 4901

Fax: (+31) 75 670 4855

Nuclear - Asia, South America, Australia, South Africa

Contact: Roy Natherson

E-mail: [email protected]

6108 Edwards Blvd.

Mississauga, Ontario CANADA L5T 2V7

Tel.: (+1) 905 670-7071 ext. 304

Fax: (+1) 905 670-7072

Nuclear / Security

Contact: Stan DeFilippis E-mail: [email protected]

207 E. Ohio St., Suite 262

Chicago, IL 60611 USA

Tel.: (630) 922-6483 Fax: (630) 922-6482

Steel / Scrap Metal - North America,South America & Asia

Contact: John Bublitz

E-mail: [email protected]

237 South Peters Rd.

Knoxville, Tennessee USA 37923

Tel.: (865) 539-6099 Fax: (865) 539-1916

Nuclear Surveillance / Geophysical - International

Contact: Ed McGovern

E-mail: [email protected]

6108 Edwards Blvd.

Mississauga, Ontario

CANADA L5T 2V7

Tel.: (+1) 905 670-7071 ext. 303

Fax: (+1) 905 670-7072

European Office

The IDENTIFIER - identiVIEW Software

The IDENTIFIER - Ease Of Use

The IDENTIFIER - Key Applications


ad
