Habitat For Humanity


Hfh members l.jpg

Architectural Team

Bill Cox

Brian Vosberg

Rosann Magnifico

John Peugeot

Web Information Team

Asli Kumcu

Mike Monahan

Energy Efficiency

Brent Phillips

Adam Stanczak

Jeff Bryles

Drew Susott

HFH Members


Architectural team l.jpg

Architectural Team

  • Objectives

    • To create a floor plan selection guide to be used for future home owners

    • To create a 3-D video tour of a habitat house for prospective buyers

    • To create building materials lists for each home with price estimates

    • To create a standard construction timeline


Selection guide l.jpg

Selection Guide

  • Blueprints for 2, 3, & 4 bedroom homes

    • Floor plans

    • Elevations

    • 3-D views

    • Electrical plans

    • Wall sections


Floor plans l.jpg

Floor Plans


Elevations l.jpg

Elevations


Interior views l.jpg

Interior Views


Architectural team8 l.jpg

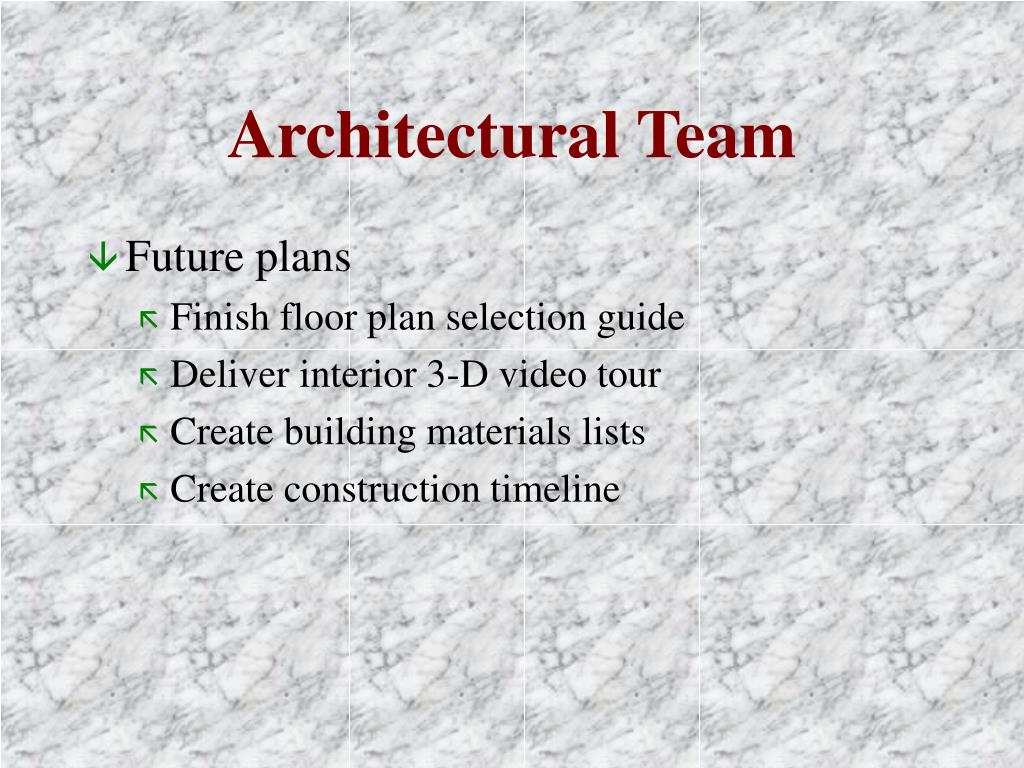

Architectural Team

  • Future plans

    • Finish floor plan selection guide

    • Deliver interior 3-D video tour

    • Create building materials lists

    • Create construction timeline


Energy team l.jpg

Energy Team

Brent Phillips

Jeff Bryles

Adam Stanczak

Asli Kumcu

Drew Susott


Objectives l.jpg

Objectives

  • To calculate energy profiles of home designs

  • To find cost effective ways to improve the energy efficiency of habitat homes


Approach l.jpg

Approach

  • Create models of multiple habitat houses within the Energy 10 software

  • Perform on-site energy testing and evaluation

  • Make modifications to the base model and compare to current design

  • Compare energy savings to cost of design changes


Energy 10 inputs l.jpg

Key Parameters

Floor plan

House orientation

Lighting profiles

Local utility costs

Insulation

Weather

Windows

Air infiltration model

OtherInputs

Wall construction

Ceiling area

Floor construction

Duct location

Thermostat settings

Daylight properties

Occupants

Energy 10 Inputs


Energy 10 numerical outputs l.jpg

Energy 10 Numerical Outputs


Energy 10 graphical output l.jpg

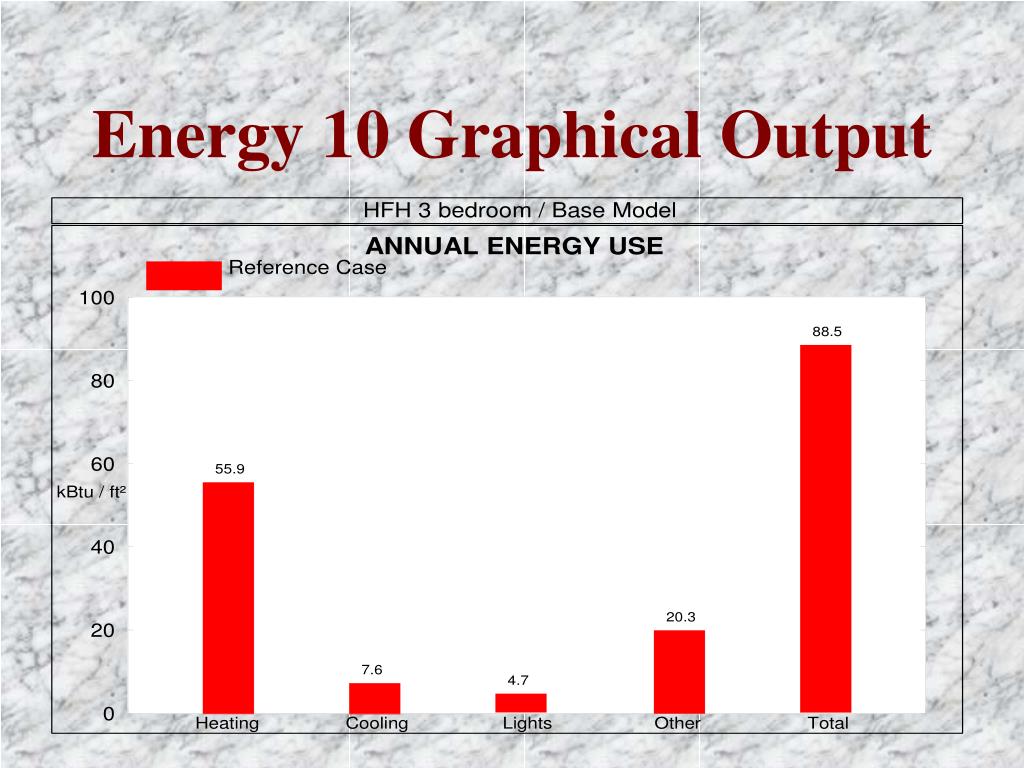

Energy 10 Graphical Output


Energy 10 graphical output15 l.jpg

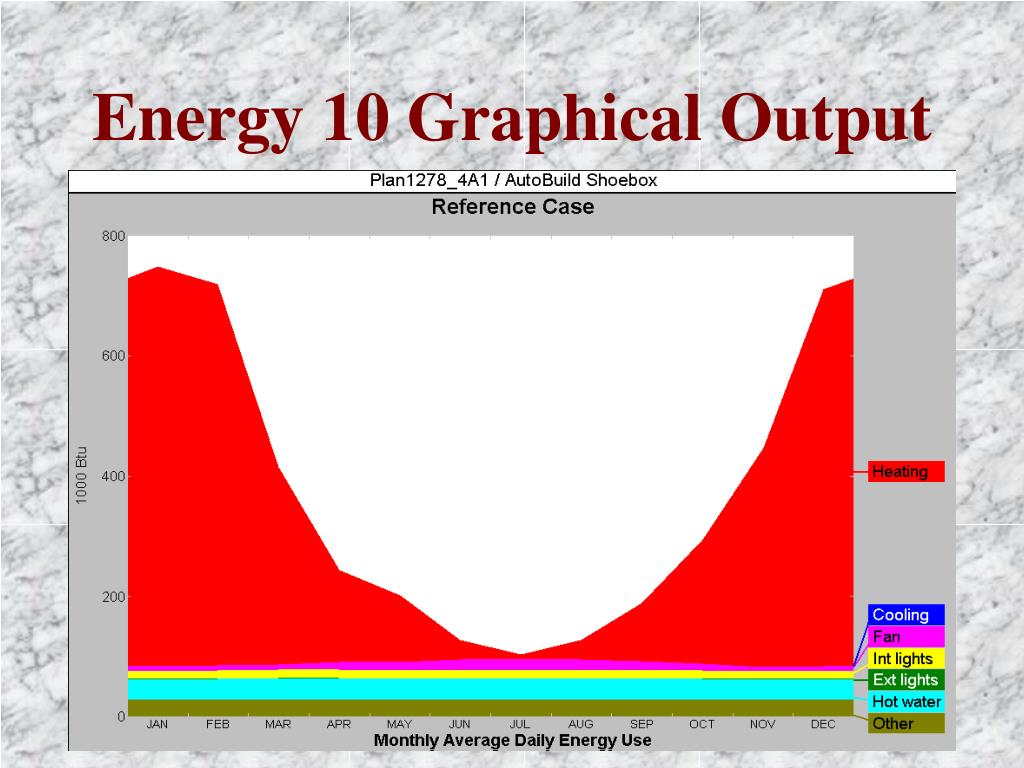

Energy 10 Graphical Output


Future tasks l.jpg

Tests

Blower door

Thermal imaging

Analyses

Reevaluate central vs. window air conditioning

House wrap

Automatic thermostat

Air infiltration

Window type

Shingle color

Future Tasks


Web information team l.jpg

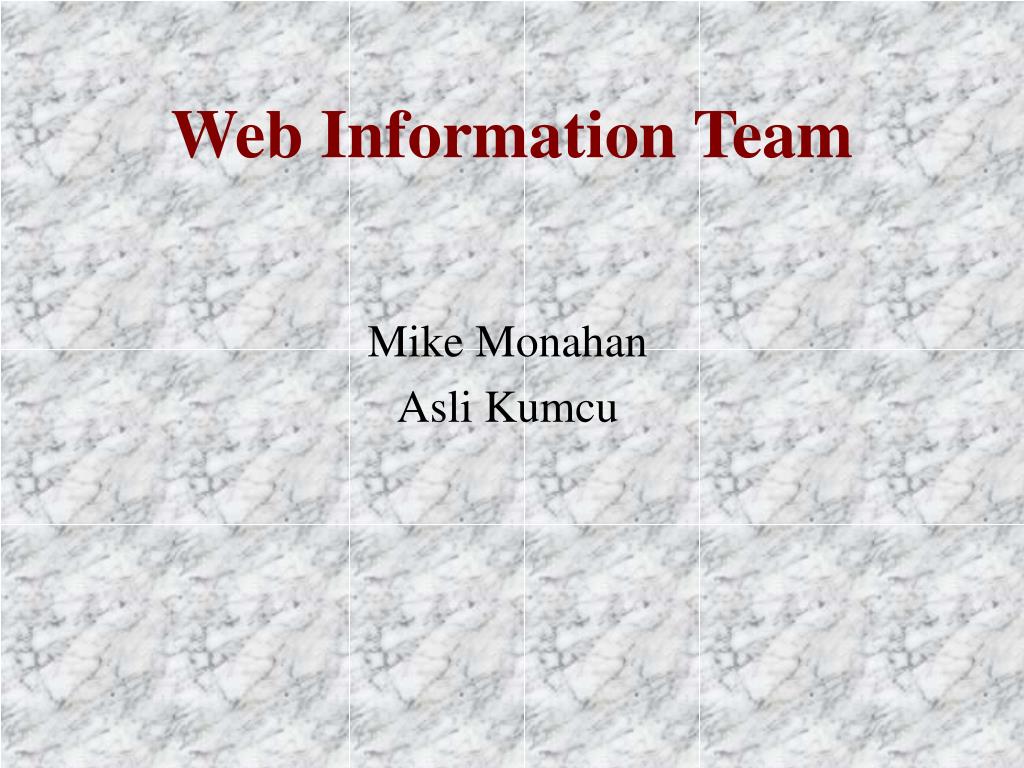

Web Information Team

Mike Monahan

Asli Kumcu


Objectives18 l.jpg

Objectives

  • Web interface for: Floor Plans, Elevations, and Energy Analysis

  • Web-based construction guide and tutorial: for use by construction managers and volunteers

  • Interesting and easy to navigate, understand, and follow: for people with all levels of computer literacy


Approach19 l.jpg

Approach

  • Modify the data created by the other two teams to make them Web compatible

  • Take pictures during different stages in the construction of a house - tutorial

  • Gather information on techniques used to build a house for tutorial

  • Create dynamic construction timeline

  • Create bill of materials for each house


Progress home selection guide l.jpg

Progress: Home Selection Guide

  • Complete Floor Plans, Elevation, and Energy Analysis for:

    • 1 - 2 Bedroom house

    • 4 - 3 Bedroom houses

    • 1 - 4 Bedroom house

Enter Guide


Progress construction guide l.jpg

Progress: Construction Guide

  • Construction timeline for a 10-week build

  • Construction Tips Brochures, Fall 1998 team


Future tasks22 l.jpg

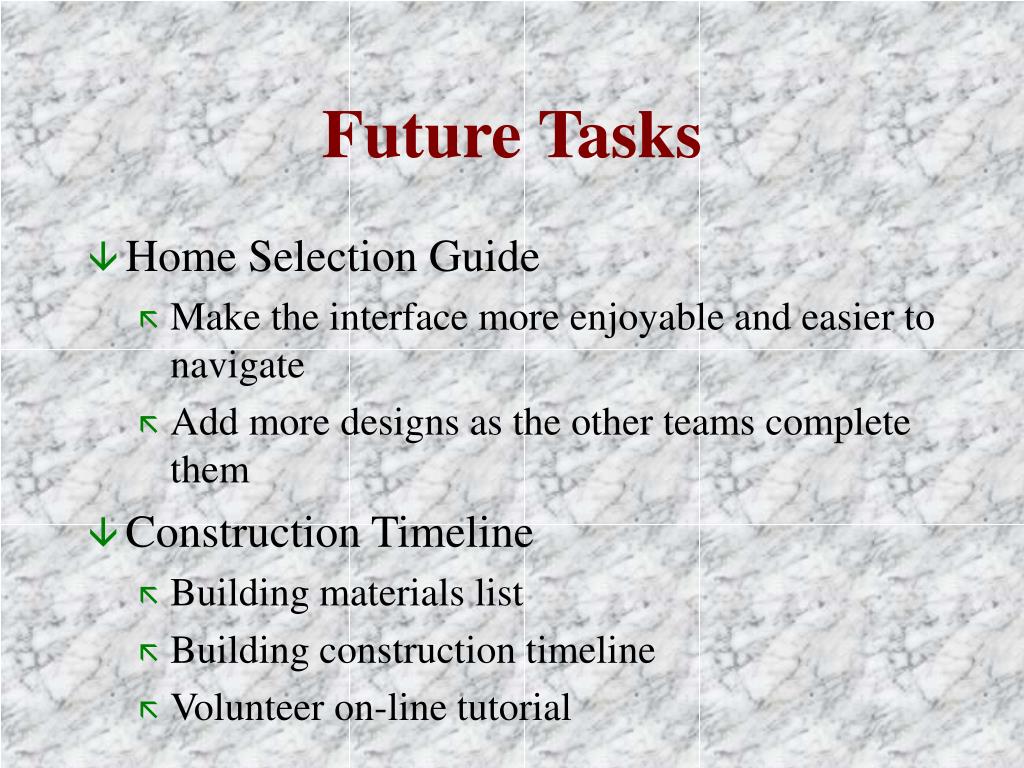

Future Tasks

  • Home Selection Guide

    • Make the interface more enjoyable and easier to navigate

    • Add more designs as the other teams complete them

  • Construction Timeline

    • Building materials list

    • Building construction timeline

    • Volunteer on-line tutorial


Habitat for humanity23 l.jpg

Habitat For Humanity
