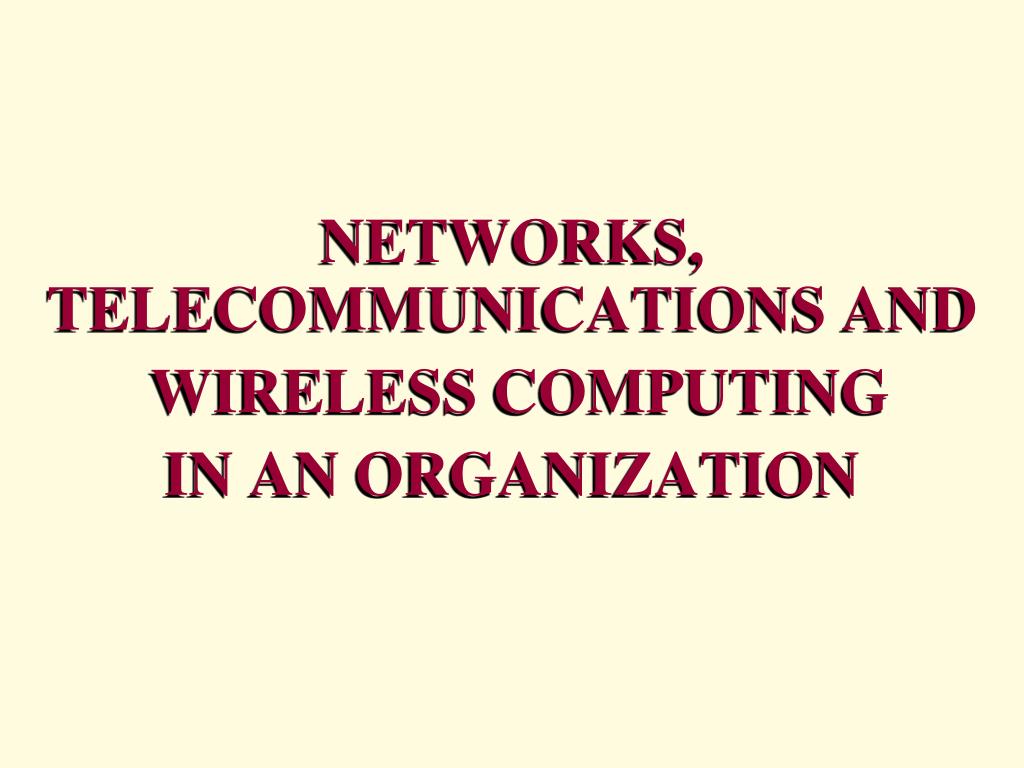

  1. NETWORKS, TELECOMMUNICATIONS AND WIRELESS COMPUTING IN AN ORGANIZATION

  2. NETWORK BASICS • The term telecommunication means communication at a distance. The word data refers to information presented in whatever form is agreed upon by the parties creating and using the data. Data communications are the exchange of data between two devices via some form of transmission medium such as a wire cable. • Telecommunication system -enable the transmission of data over public or private networks • Network-a communications, data exchange, and resource-sharing system created by linking two or more computers and establishing standards, or protocols, so that they can work together

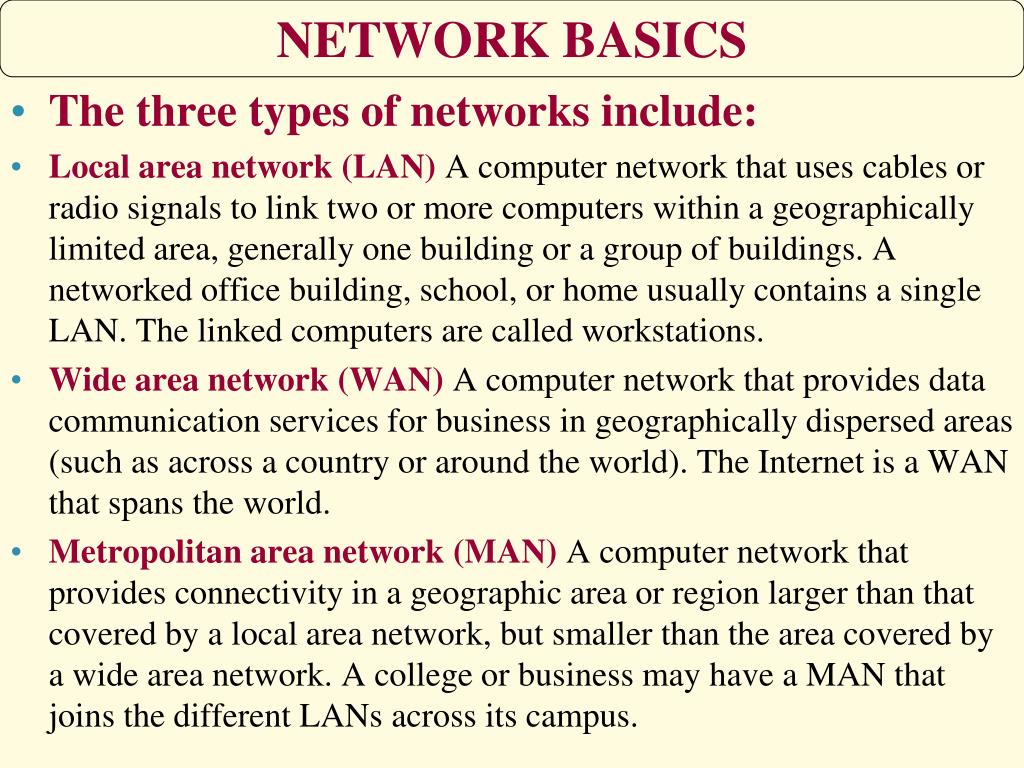

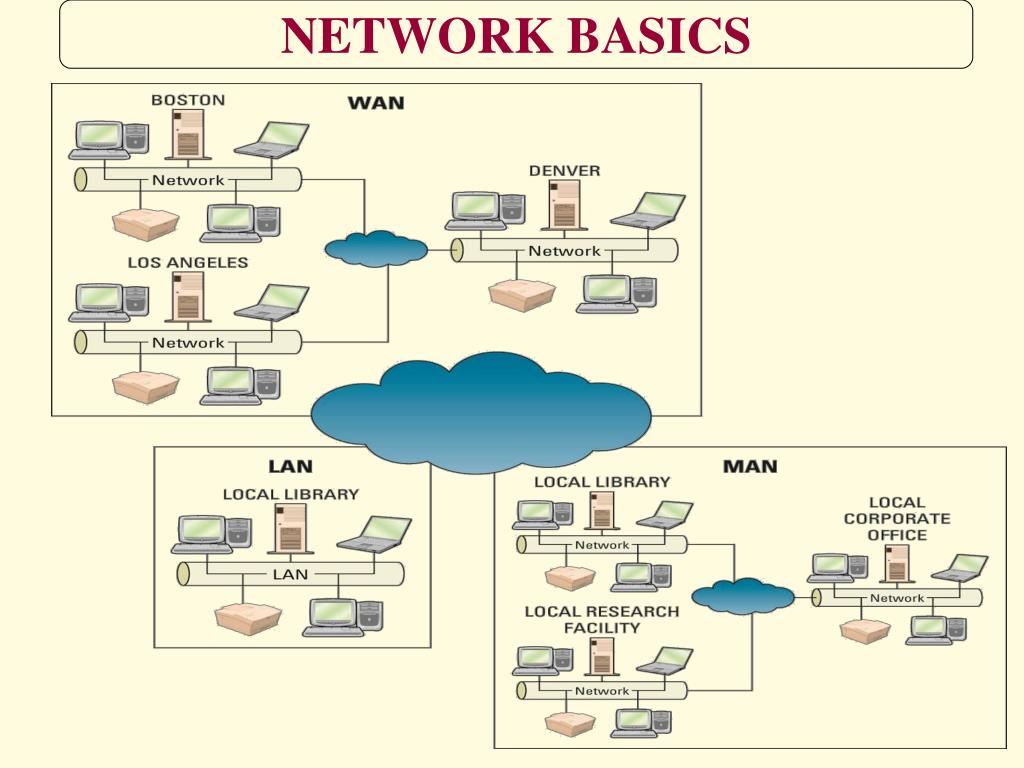

  3. NETWORK BASICS • The three types of networks include: • Local area network (LAN) A computer network that uses cables or radio signals to link two or more computers within a geographically limited area, generally one building or a group of buildings. A networked office building, school, or home usually contains a single LAN. The linked computers are called workstations. • Wide area network (WAN) A computer network that provides data communication services for business in geographically dispersed areas (such as across a country or around the world). The Internet is a WAN that spans the world. • Metropolitan area network (MAN) A computer network that provides connectivity in a geographic area or region larger than that covered by a local area network, but smaller than the area covered by a wide area network. A college or business may have a MAN that joins the different LANs across its campus.

  4. NETWORK BASICS

  5. NETWORK BASICS • Networks are differentiated by the following: • Architecture - peer-to-peer, client/server • Topology - bus, star, ring, hybrid, wireless • Protocols - Ethernet, Transmission Control Protocol/Internet Protocol (TCP/IP) • Media - coaxial, twisted-pair, fiber-optic

  6. ARCHITECTURE • There are two primary types of architectures • Peer-to-peer (P2P) network • Client/server network

  7. Peer-to-Peer Networks • Peer-to-peer (P2P) network - any network without a central file server and in which all computers in the network have access to the public files located on all other workstations

  8. Client/Server Networks • Client- a computer that is designed to request information from a server • Server- a computer that is dedicated to providing information in response to external requests • Client/server network -model for applications in which the bulk of the back-end processing takes place on a server, while the front-end processing is handled by the clients

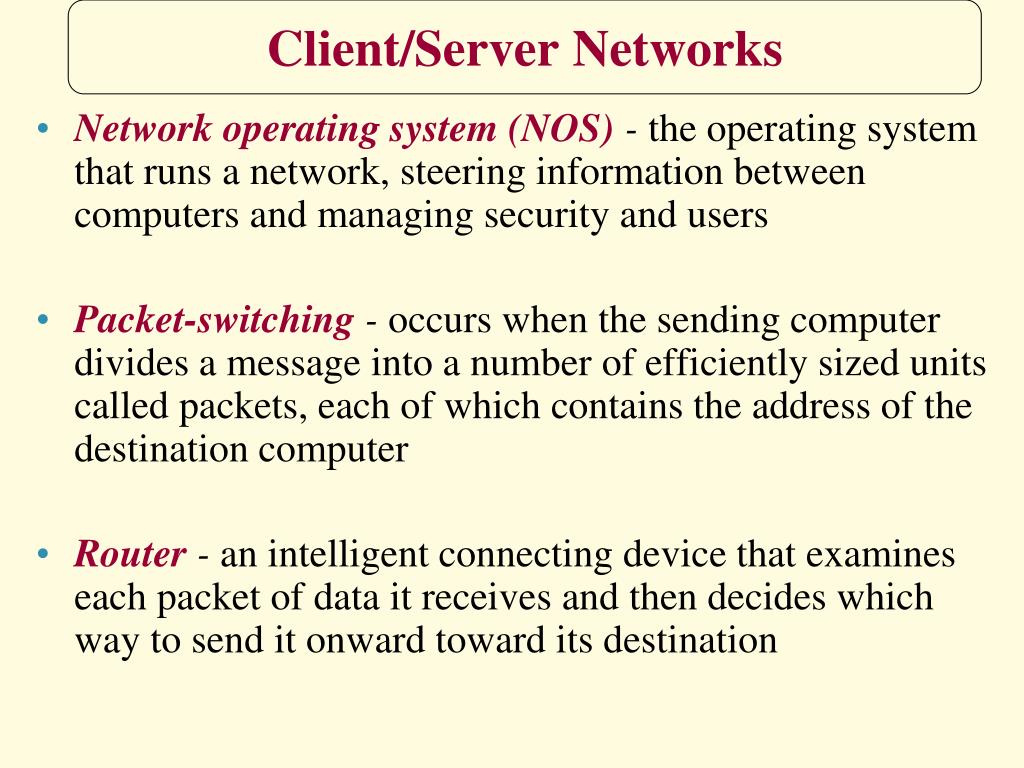

  9. Client/Server Networks • Network operating system (NOS) - the operating system that runs a network, steering information between computers and managing security and users • Packet-switching -occurs when the sending computer divides a message into a number of efficiently sized units called packets, each of which contains the address of the destination computer • Router - an intelligent connecting device that examines each packet of data it receives and then decides which way to send it onward toward its destination

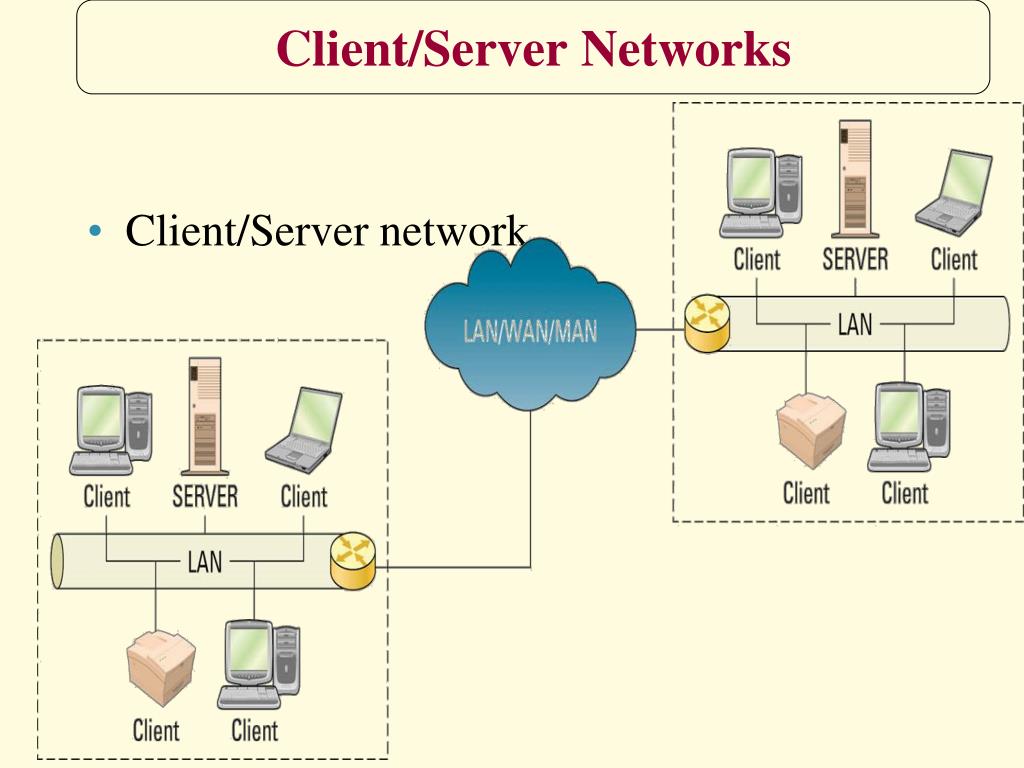

  10. Client/Server Networks • Client/Server network

  11. TOPOLOGY • Network topology - refers to the geometric arrangement of the actual physical organization of the computers and other network devices) in a network • Bus • Star • Ring • Hybrid • Wireless

  12. Bus Topology • Simple and low-cost • A single cable called a trunk (backbone, segment) • Only one computer can send messages at a time • Star Topology • Each computer has a cable connected to a single point • More cabling, hence higher cost • All signals transmission through the hub;if down, entire network down • Depending on the intelligence of hub, two or more computers may send message at the same time

  13. T T T T T T T Ack Ack data data data Ack data Ack data data T T T • Ring Topology • Every computer serves as • a repeater to boost signals • Typical way to send data: • Token passing • only the computer who • gets the token can send • data • Disadvantages • Difficult to add computers • More expensive • If one computer fails, whole network fails T T T

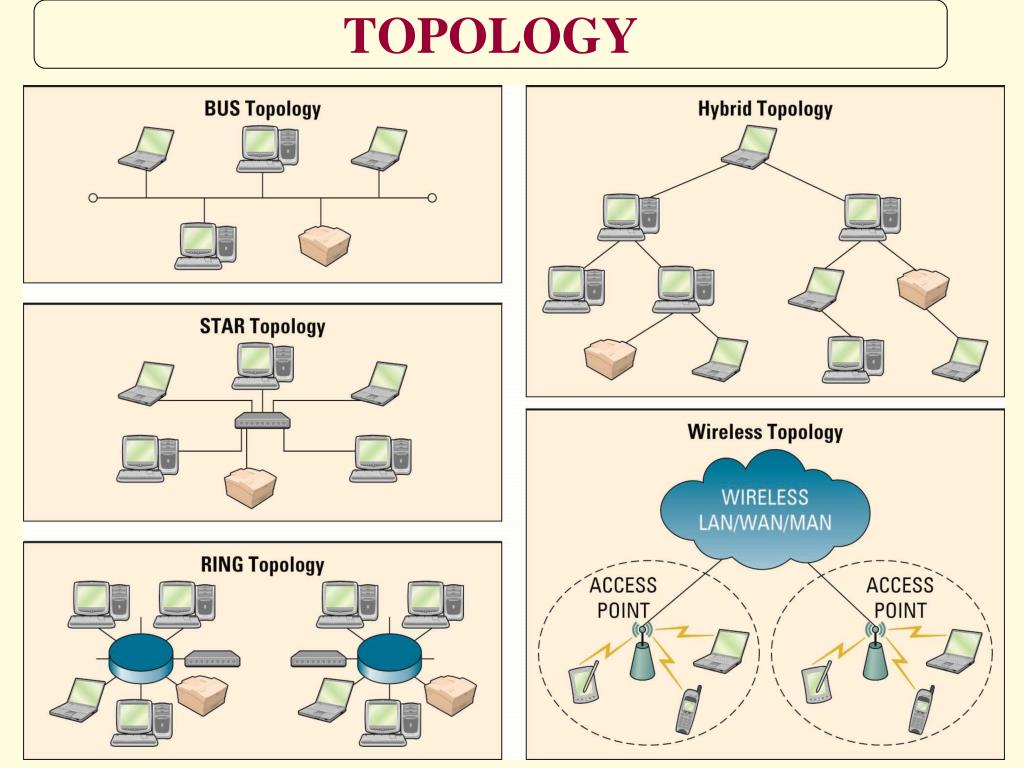

  14. TOPOLOGY

  15. The Physical Layer • Responsibility: • transmission of bits over a communication channel.

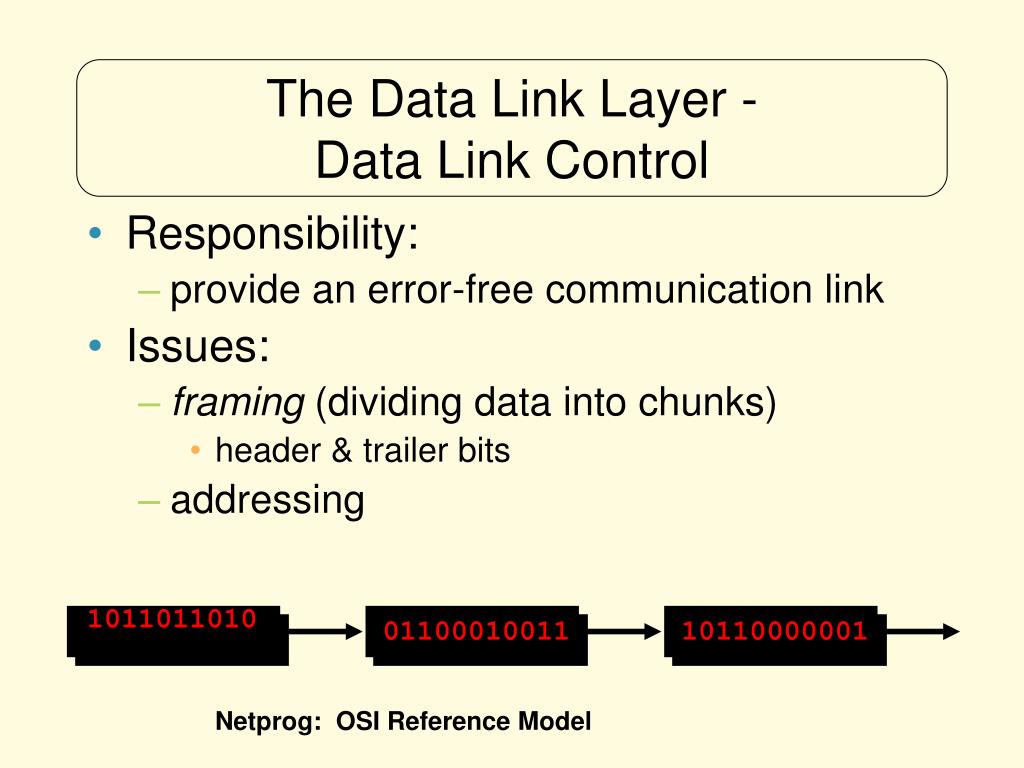

  16. Netprog: OSI Reference Model The Data Link Layer - Data Link Control • Responsibility: • provide an error-free communication link • Issues: • framing (dividing data into chunks) • header & trailer bits • addressing 1011011010 01100010011 10110000001

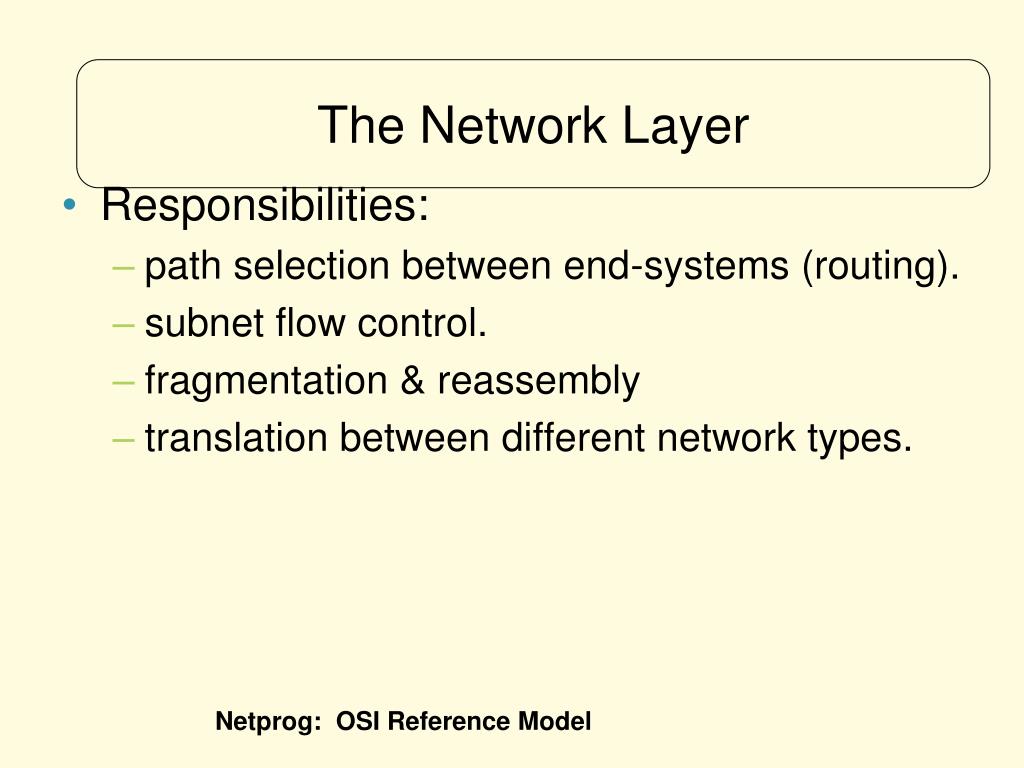

  17. Netprog: OSI Reference Model The Network Layer • Responsibilities: • path selection between end-systems (routing). • subnet flow control. • fragmentation & reassembly • translation between different network types.

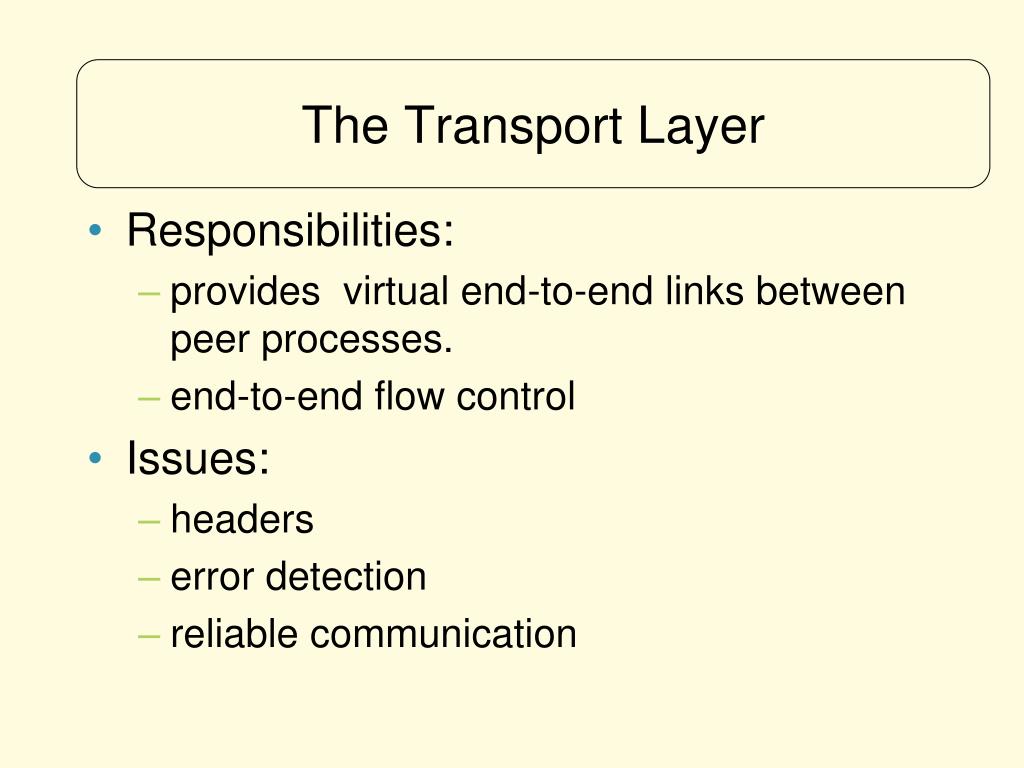

  18. The Transport Layer • Responsibilities: • provides virtual end-to-end links between peer processes. • end-to-end flow control • Issues: • headers • error detection • reliable communication

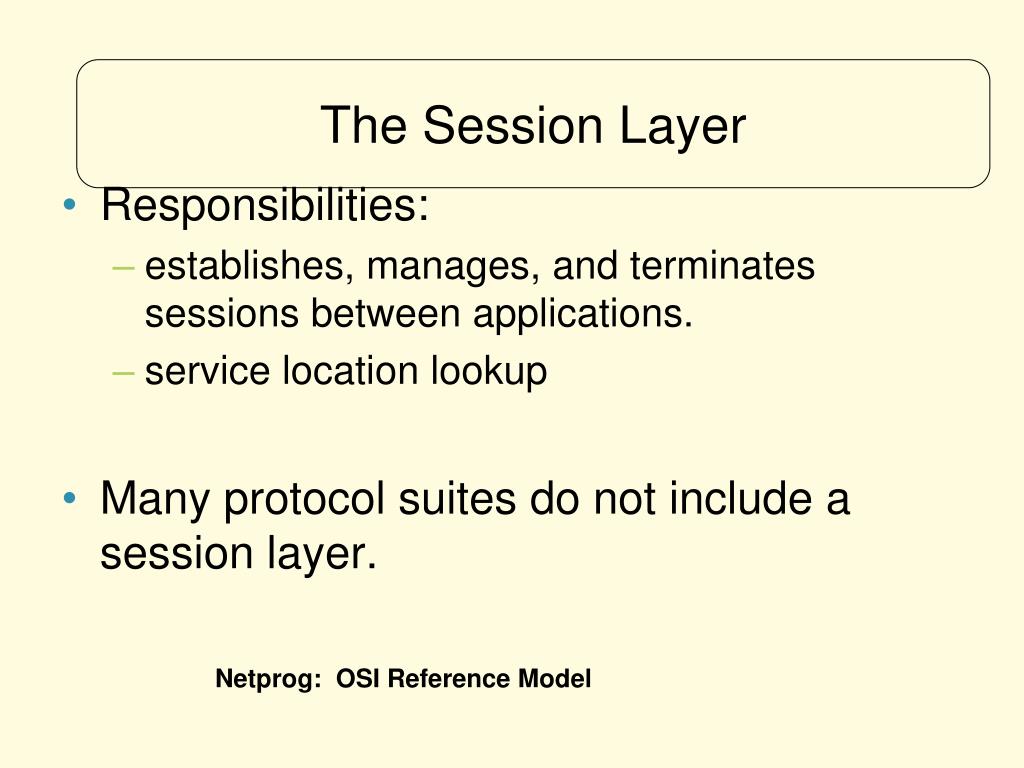

  19. Netprog: OSI Reference Model The Session Layer • Responsibilities: • establishes, manages, and terminates sessions between applications. • service location lookup • Many protocol suites do not include a session layer.

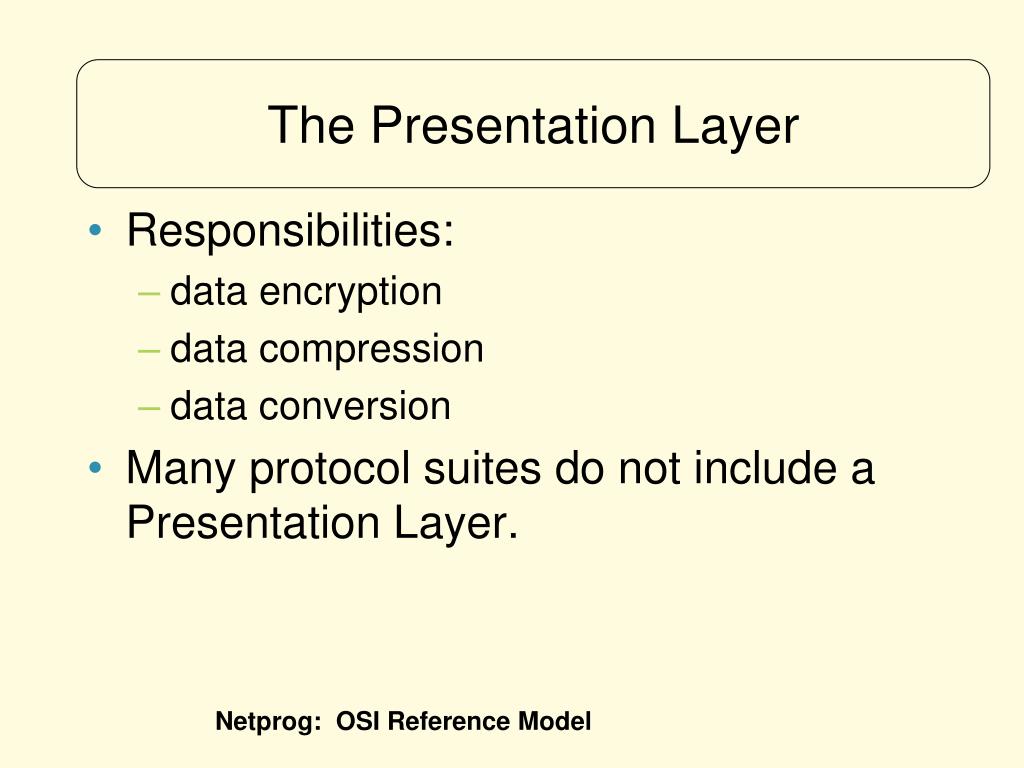

  20. Netprog: OSI Reference Model The Presentation Layer • Responsibilities: • data encryption • data compression • data conversion • Many protocol suites do not include a Presentation Layer.

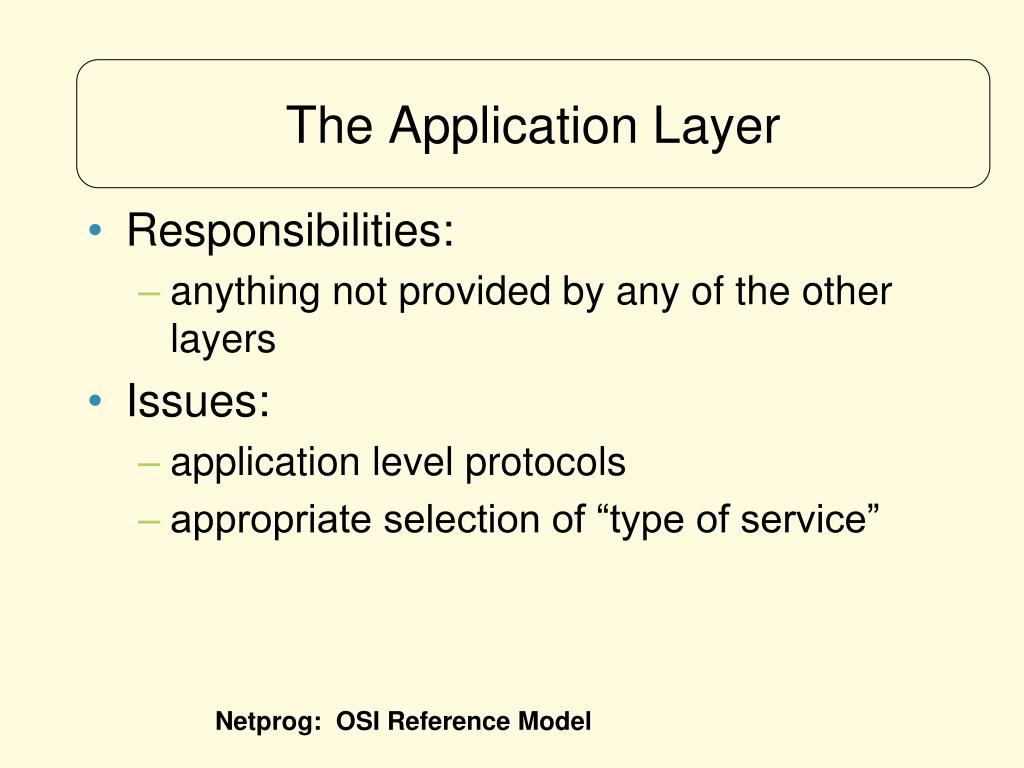

  21. Netprog: OSI Reference Model The Application Layer • Responsibilities: • anything not provided by any of the other layers • Issues: • application level protocols • appropriate selection of “type of service”

  22. PROTOCOLS • Protocol- a standard that specifies the format of data as well as the rules to be followed during transmission • Interoperability- the capability of two or more computer systems to share data and resources, even though they are made by different manufacturers

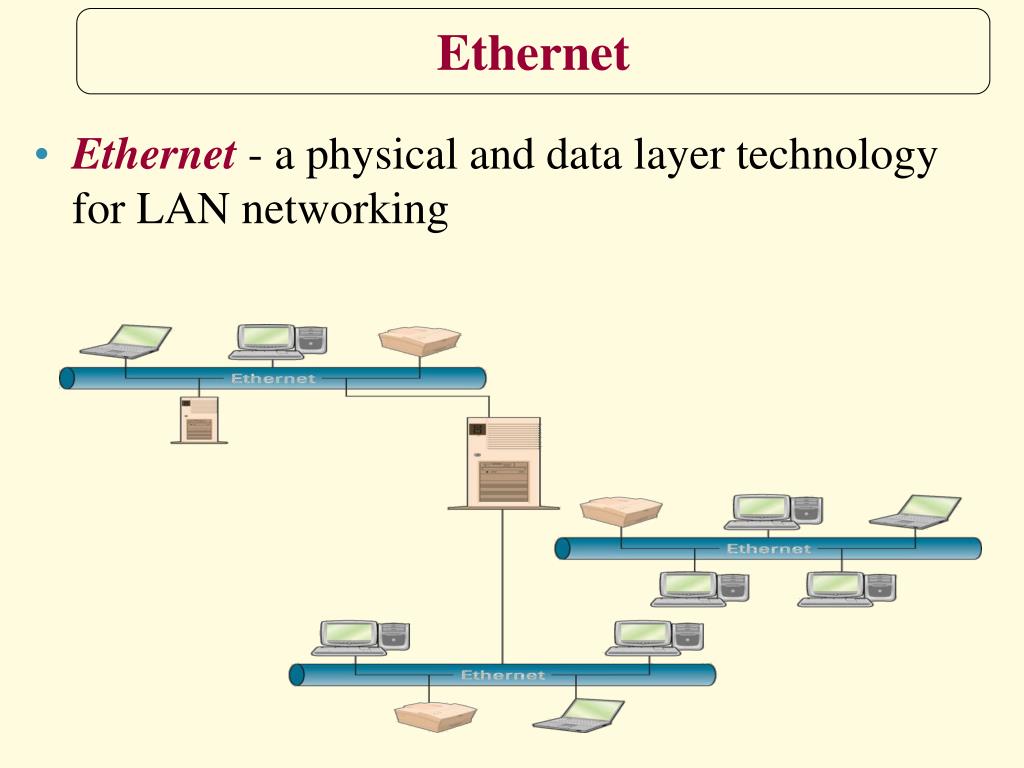

  23. Ethernet • Ethernet- a physical and data layer technology for LAN networking

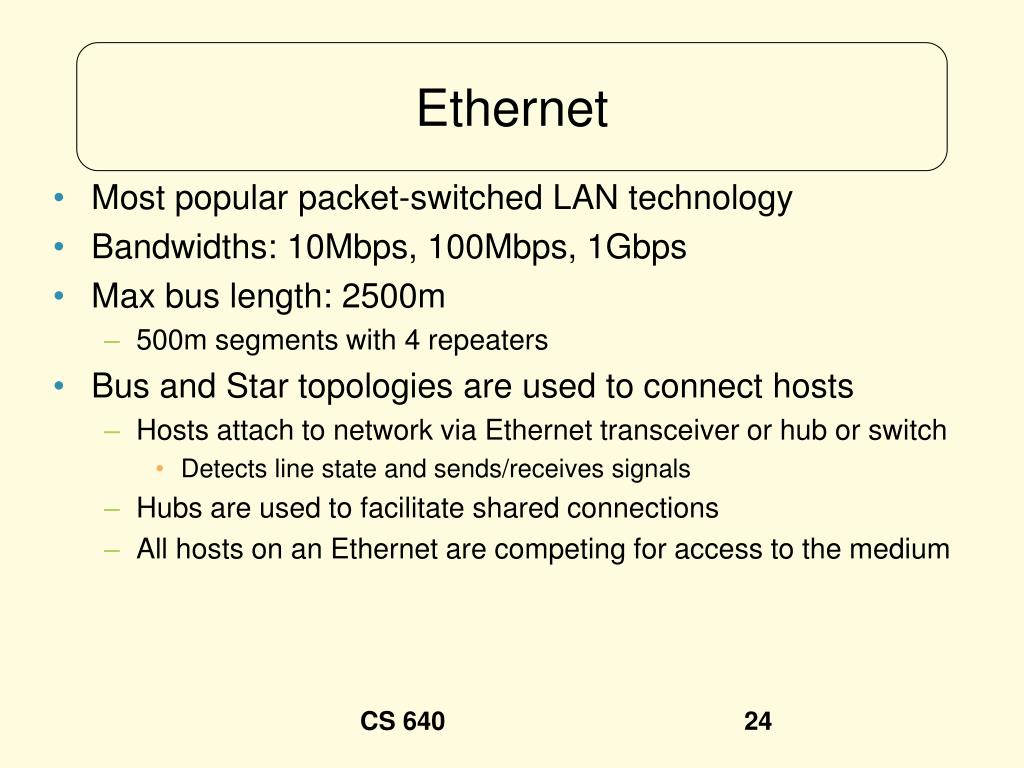

  24. CS 640 Ethernet • Most popular packet-switched LAN technology • Bandwidths: 10Mbps, 100Mbps, 1Gbps • Max bus length: 2500m • 500m segments with 4 repeaters • Bus and Star topologies are used to connect hosts • Hosts attach to network via Ethernet transceiver or hub or switch • Detects line state and sends/receives signals • Hubs are used to facilitate shared connections • All hosts on an Ethernet are competing for access to the medium

  25. Transmission Control Protocol/ Internet Protocol • Transmission Control Protocol/Internet Protocol (TCP/IP) - provides the technical foundation for the public Internet as well as for large numbers of private network

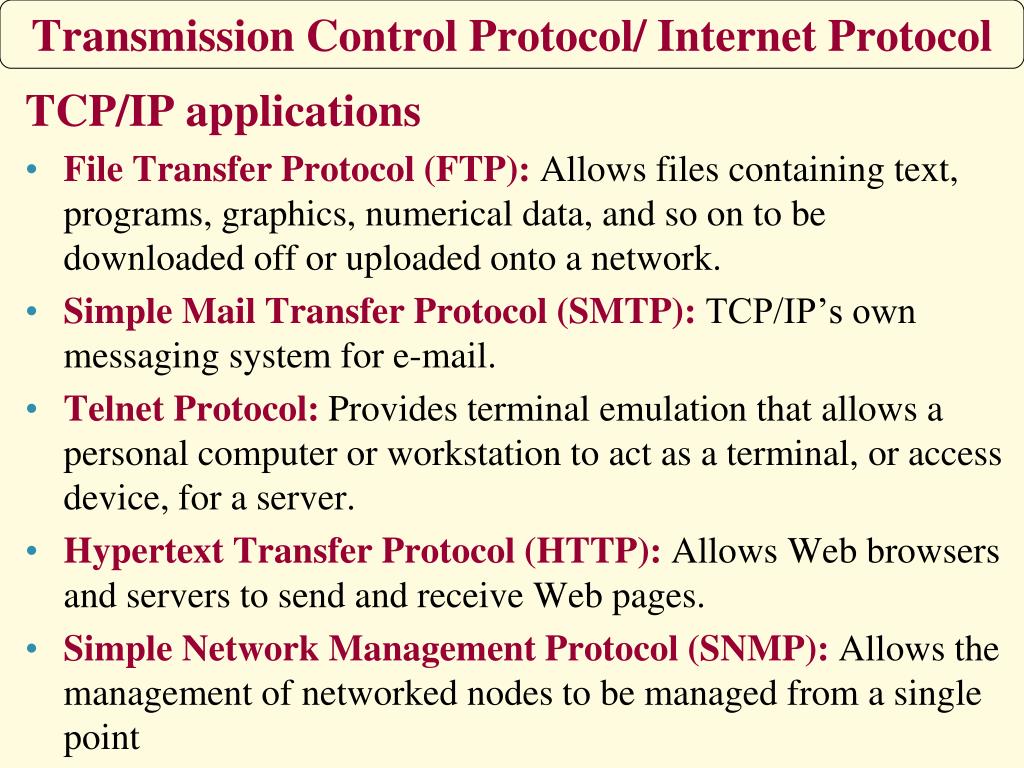

  26. Transmission Control Protocol/ Internet Protocol TCP/IP applications • File Transfer Protocol (FTP): Allows files containing text, programs, graphics, numerical data, and so on to be downloaded off or uploaded onto a network. • Simple Mail Transfer Protocol (SMTP): TCP/IP’s own messaging system for e-mail. • Telnet Protocol: Provides terminal emulation that allows a personal computer or workstation to act as a terminal, or access device, for a server. • Hypertext Transfer Protocol (HTTP): Allows Web browsers and servers to send and receive Web pages. • Simple Network Management Protocol (SNMP): Allows the management of networked nodes to be managed from a single point

  27. MEDIA • Network transmission media -refers to the various types of media used to carry the signal between computers • Wire media (guided) • Wireless media (unguided)

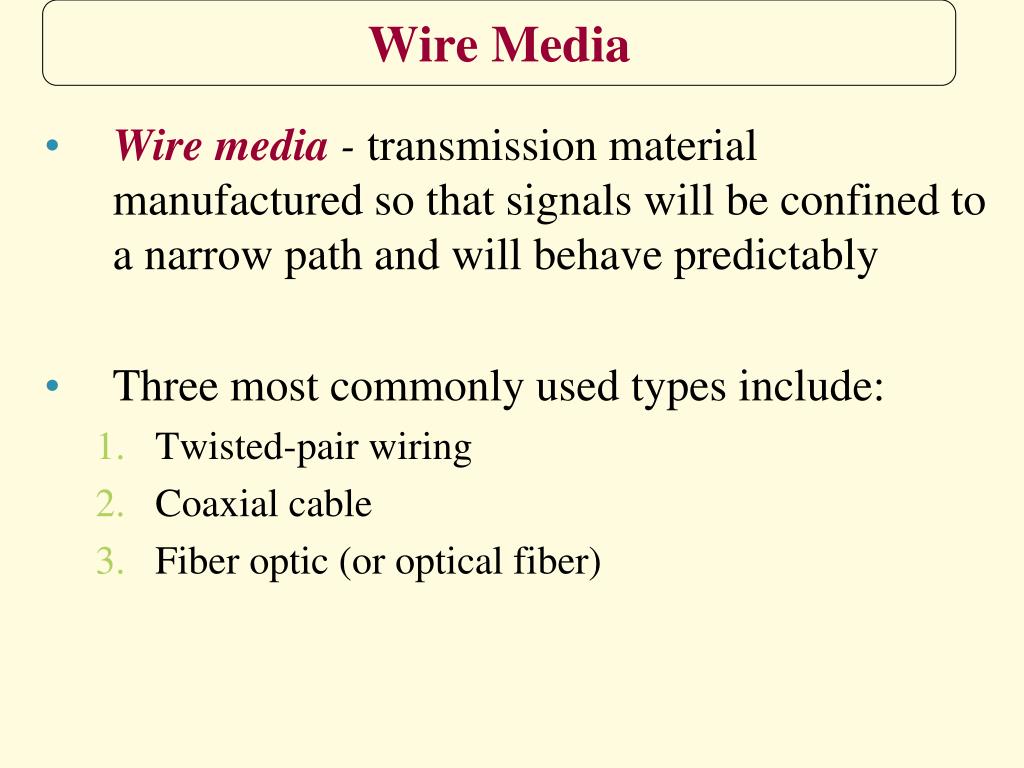

  28. Wire Media • Wire media - transmission material manufactured so that signals will be confined to a narrow path and will behave predictably • Three most commonly used types include: • Twisted-pair wiring • Coaxial cable • Fiber optic (or optical fiber)

  29. Wire Media

  30. Physical Media Twisted Pair • Twisted-pair is a type of cabling that is used for telephone communications and most modern Ethernet networks. • A pair of wires forms a circuit that can transmit data. The pairs are twisted to provide protection against crosstalk, the noise generated by adjacent pairs. • There are two basic types, shielded twisted-pair (STP) and unshielded twisted-pair (UTP).

  31. Physical Media Coaxial Cable • Coaxial cable is a copper-cored cable surrounded by a heavy shielding and is used to connect computers in a network. • Outer conductor shields the inner conductor from picking up stray signal from the air. • High bandwidth but lossy channel. • Repeater is used to regenerate the weakened signals.

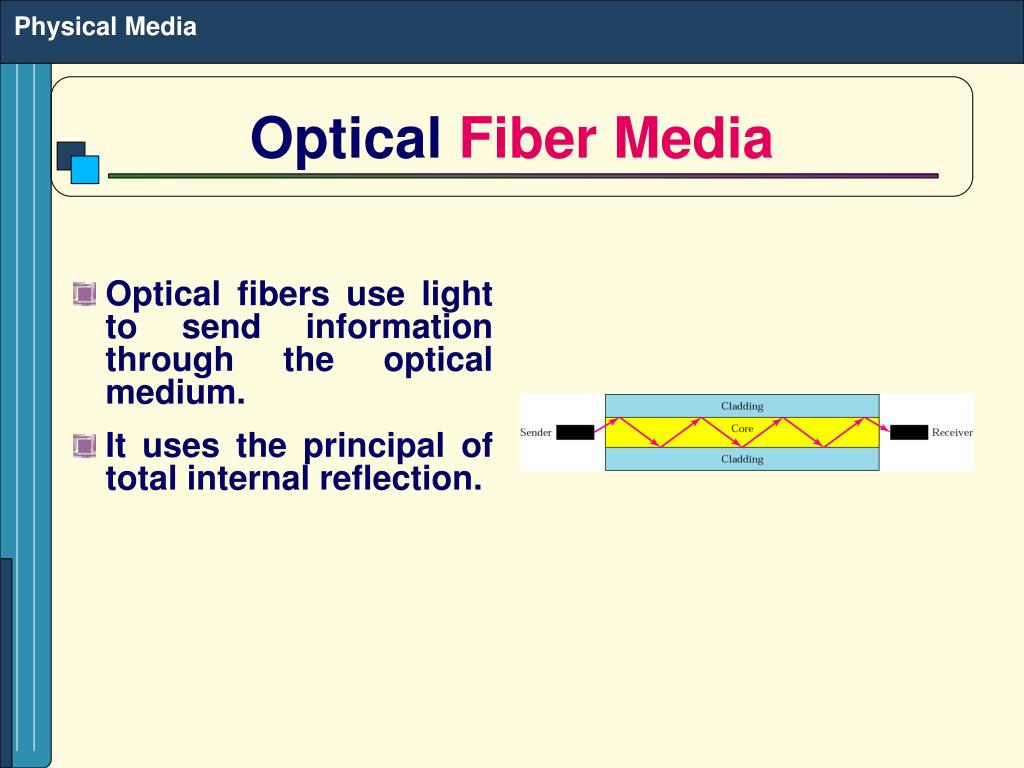

  32. Physical Media Optical Fiber Media • Optical fibers use light to send information through the optical medium. • It uses the principal of total internal reflection.

  33. E-BUSINESS NETWORKS • Virtual private network (VPN) - a way to use the public telecommunication infrastructure (e.g., Internet) to provide secure access to an organization’s network • Valued-added network (VAN) -a private network, provided by a third party, for exchanging information through a high capacity connection

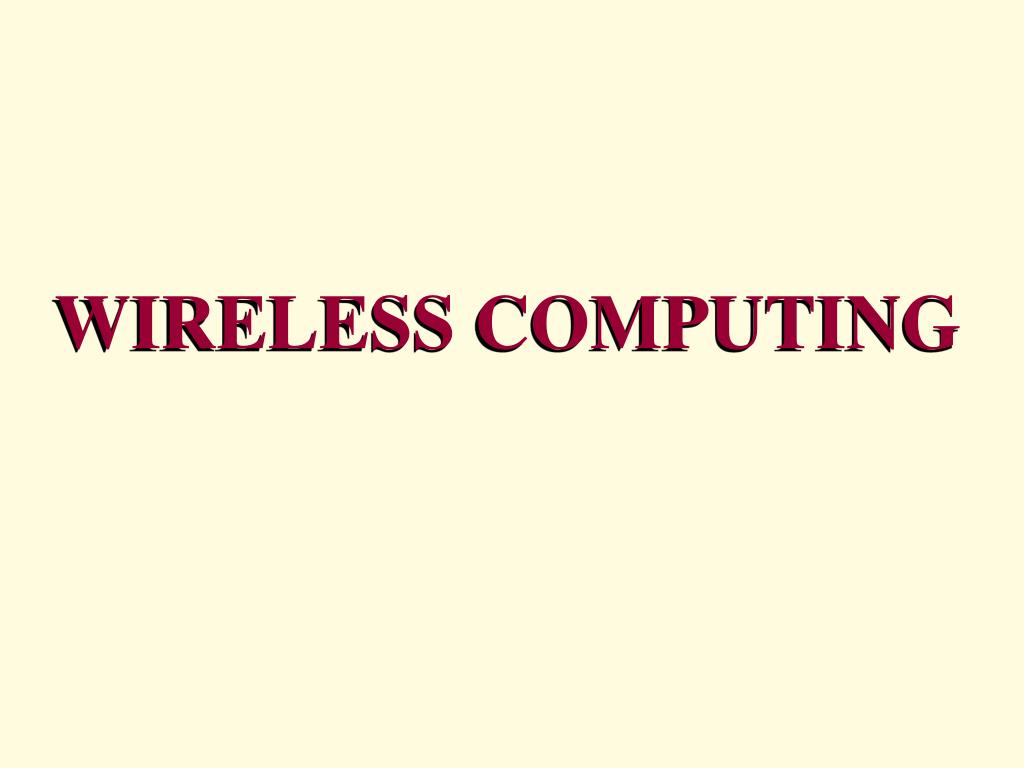

  34. WIRELESS COMPUTING

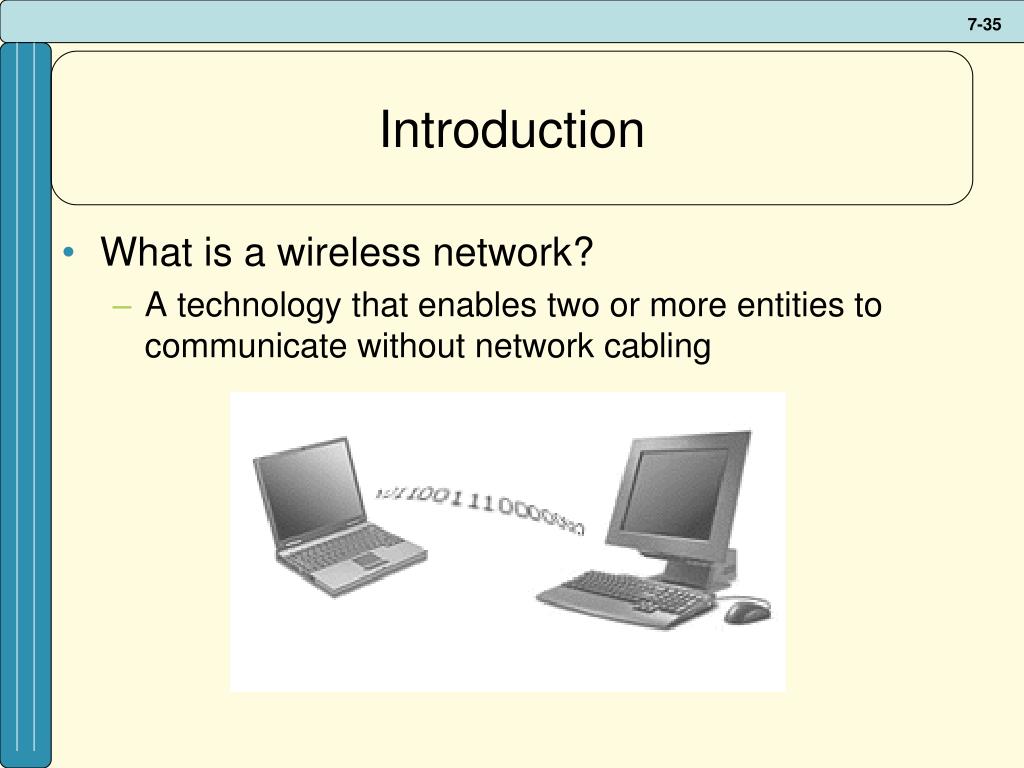

  35. Introduction • What is a wireless network? • A technology that enables two or more entities to communicate without network cabling

  36. Wireless Media • Wireless media - natural parts of the Earth’s environment that can be used as physical paths to carry electrical signals

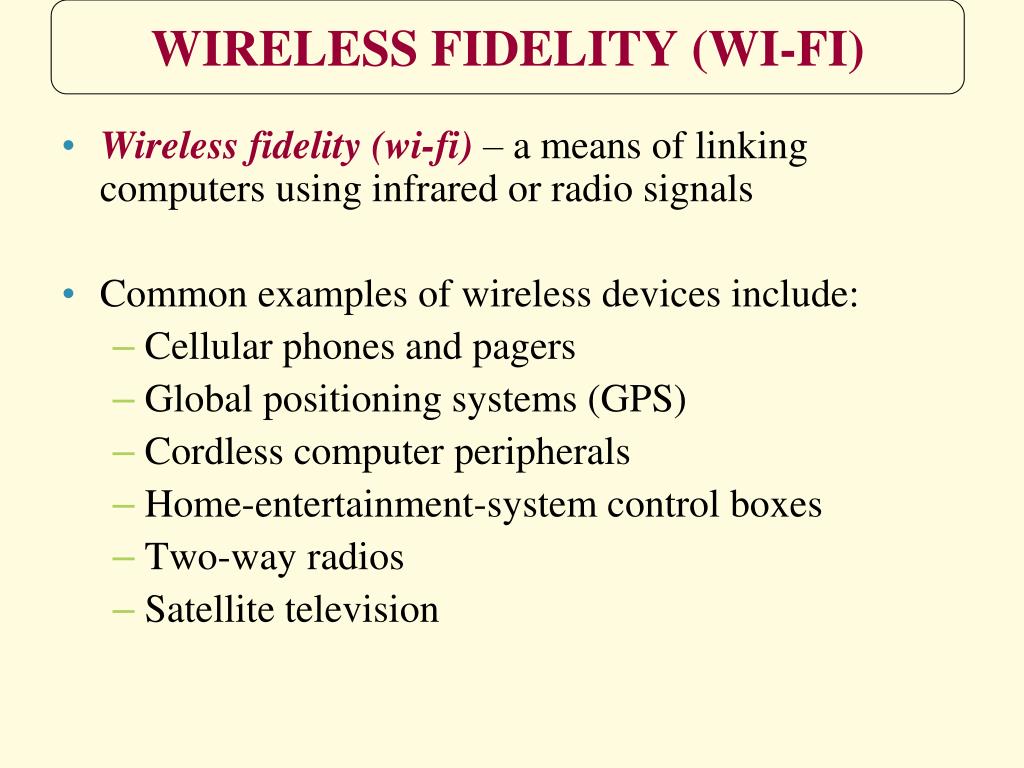

  37. WIRELESS FIDELITY (WI-FI) • Wireless fidelity (wi-fi)– a means of linking computers using infrared or radio signals • Common examples of wireless devices include: • Cellular phones and pagers • Global positioning systems (GPS) • Cordless computer peripherals • Home-entertainment-system control boxes • Two-way radios • Satellite television

  38. WIRELESS FIDELITY (WI-FI) • wireless technologies • WiMax wireless broadband – enables wireless networks to extend as far as 30 miles • Radio frequency identification tags (RFID) – potential to reinvent the supply chain • Micro hard drives – offer gigabyte-level storage capacity and rapid data-transfer rates into tiny, matchbook-size castings • Apple’s G5 and AMD’s Athlon 64 processors – handles 16 billion gigabytes of information at a time

  39. Wi-Fi • Advantages: • Fast (11 Mbps) • Reliable • Long Range (up to 1000 ft outdoors, 400 ft indoors) • Easy integration to wired networks • Compatible with original 802.11 DSSS standard • Disadvantages: • Speed may fluctuate

  40. Bluetooth • Bluetooth– an omnidirectional wireless technology that provides limited-range voice and data transmission over the unlicensed 2.4-GHz frequency band, allowing connections with a wide variety of fixed and portable devices that normally would have to be cabled together

  41. Satellite • Microware transmitter – commonly used to transmit network signals over great distances

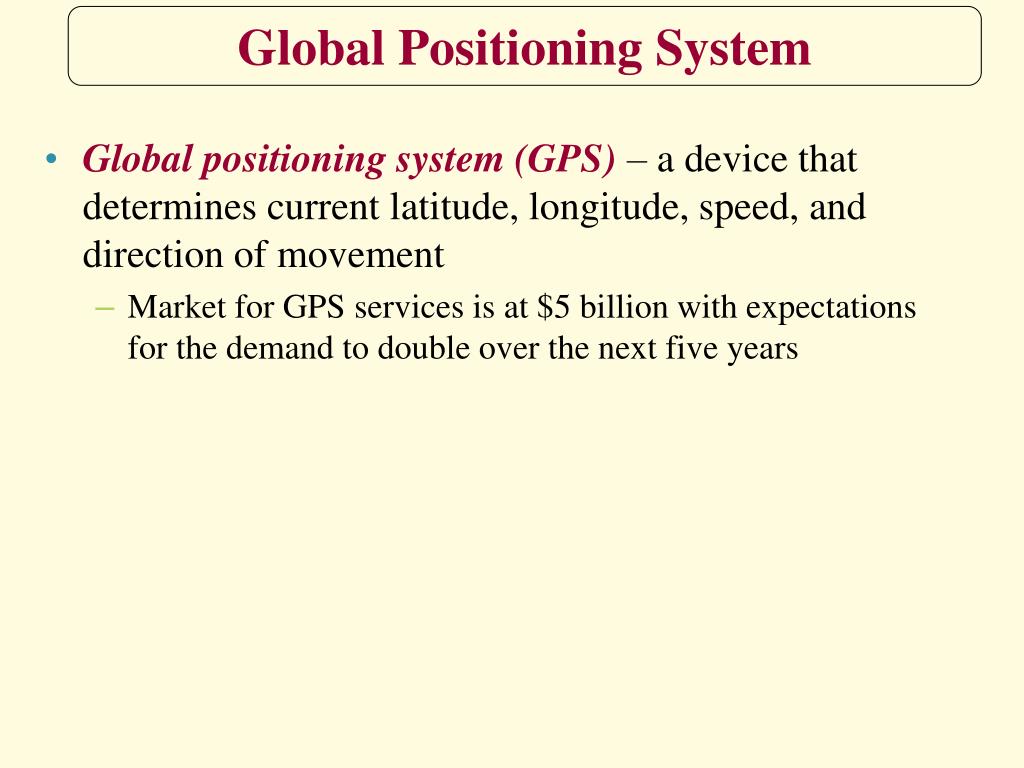

  42. Global Positioning System • Global positioning system (GPS) – a device that determines current latitude, longitude, speed, and direction of movement • Market for GPS services is at $5 billion with expectations for the demand to double over the next five years
