  1. ETFMS DDSTECHNICAL PRESENTATION Michel Wuestenberghs EDITION 16/01/2013

  2. ETFMS DDS - ARCHITECTURE

  3. ETFMS - REQUIREMENTS • Connectivity Upgrade • higher bandwidth (where required, min 1Mbit) • multicast enabled (through GRE tunnels over PENS network) • EN Configuration • Activation of DDS functionality • Connection to the local system(s) to forward EFD data

  4. EN – ATS system dialogue

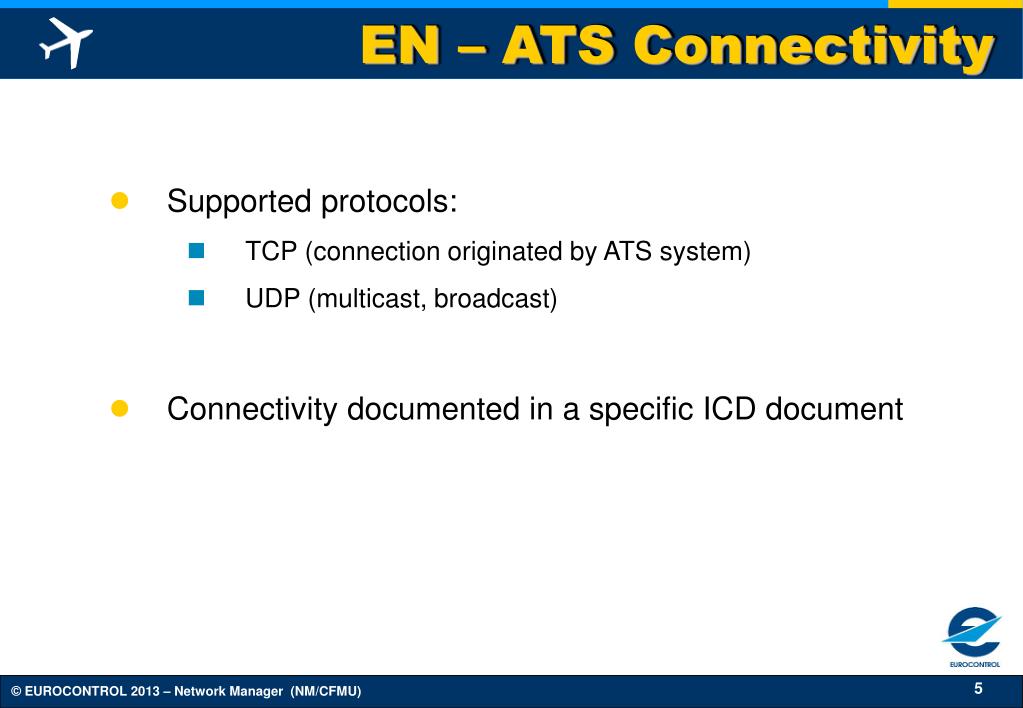

  5. EN – ATS Connectivity • Supported protocols: • TCP (connection originated by ATS system) • UDP (multicast, broadcast) • Connectivity documented in a specific ICD document

  6. Your questions are very welcome

  7. Thank you for your attention Michel Wuestenberghs michel.wuestenberghs@eurocontrol.int
