Kipa game engine seminars

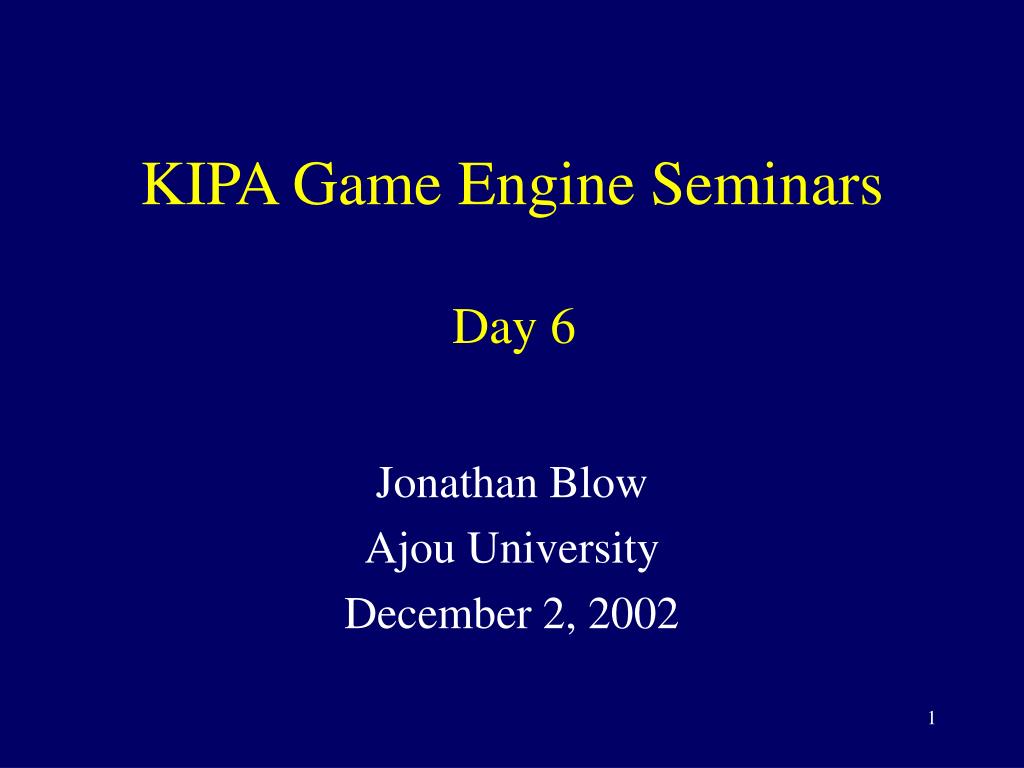

KIPA Game Engine Seminars

Day 6

Jonathan Blow

Ajou University

December 2, 2002


Level of detail method overview
Level-of-Detail MethodOverview

  • Traditional Purpose: Speed Boost

  • Ideal: Render a fixed number of triangles always

    • Doesn’t matter how far your view stretches into the distance

    • Diagram of pixel tesselation

  • Object detail / triangle count as a function of distance


Future purpose geometric antialiasing
Future Purpose:Geometric Antialiasing

  • Discussion of scenes with many small objects far away

  • In a rendering paradigm like MCRT we get a certain amount of antialiasing for free

  • When projecting geometry onto the screen, we do not; we need to implement something that provides antialiasing for us


Level of detail methods

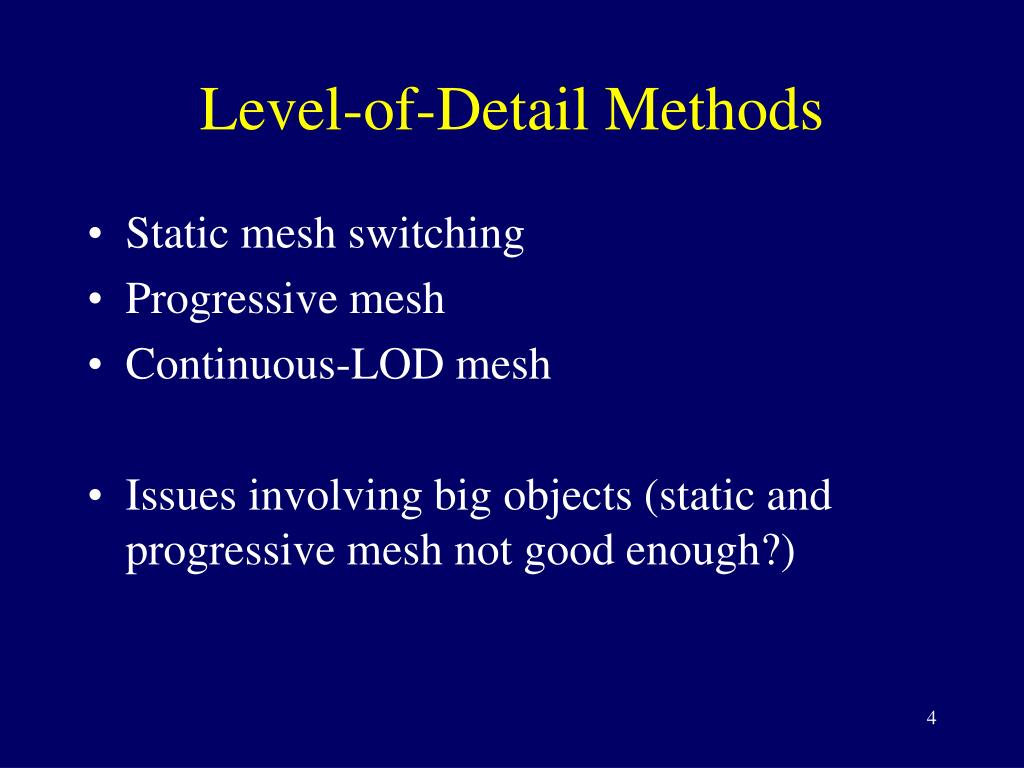

Level-of-Detail Methods

  • Static mesh switching

  • Progressive mesh

  • Continuous-LOD mesh

  • Issues involving big objects (static and progressive mesh not good enough?)


Static mesh switching

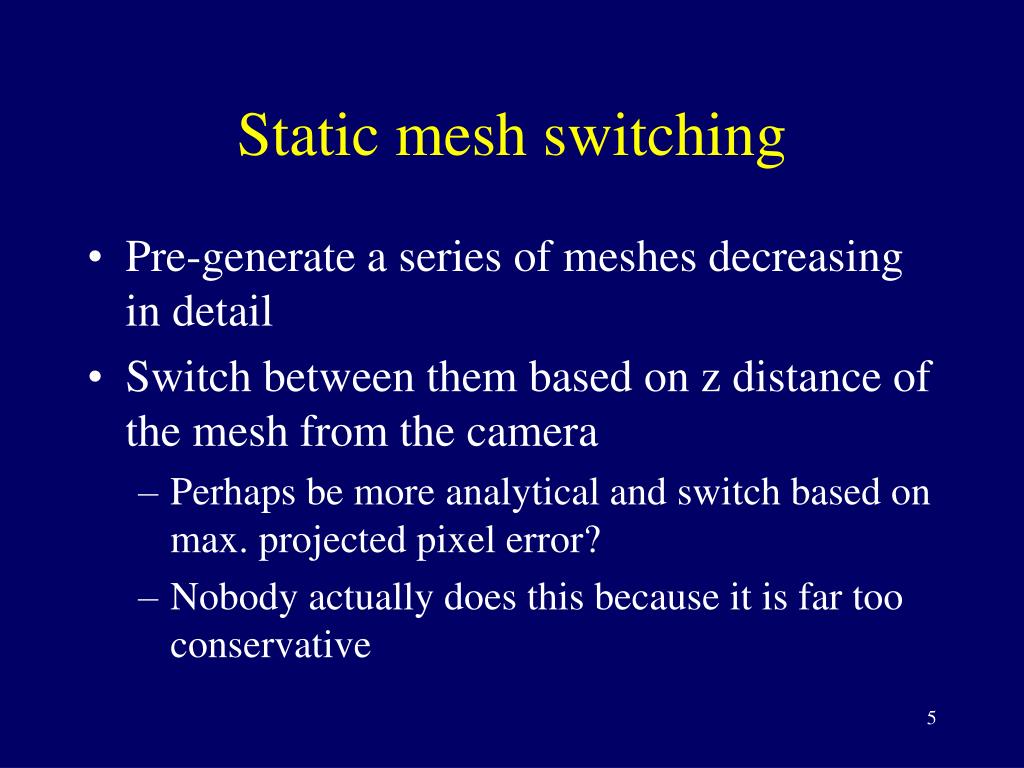

Static mesh switching

  • Pre-generate a series of meshes decreasing in detail

  • Switch between them based on z distance of the mesh from the camera

    • Perhaps be more analytical and switch based on max. projected pixel error?

    • Nobody actually does this because it is far too conservative


Progressive mesh
Progressive Mesh

  • Generate one sequence of collapses that takes you from high-res to 1 triangle

  • Dynamically select number of triangles at runtime

  • Works well with modern 3D hardware since you only modify a little bit of the index buffer at a time.


Progressive mesh disadvantages

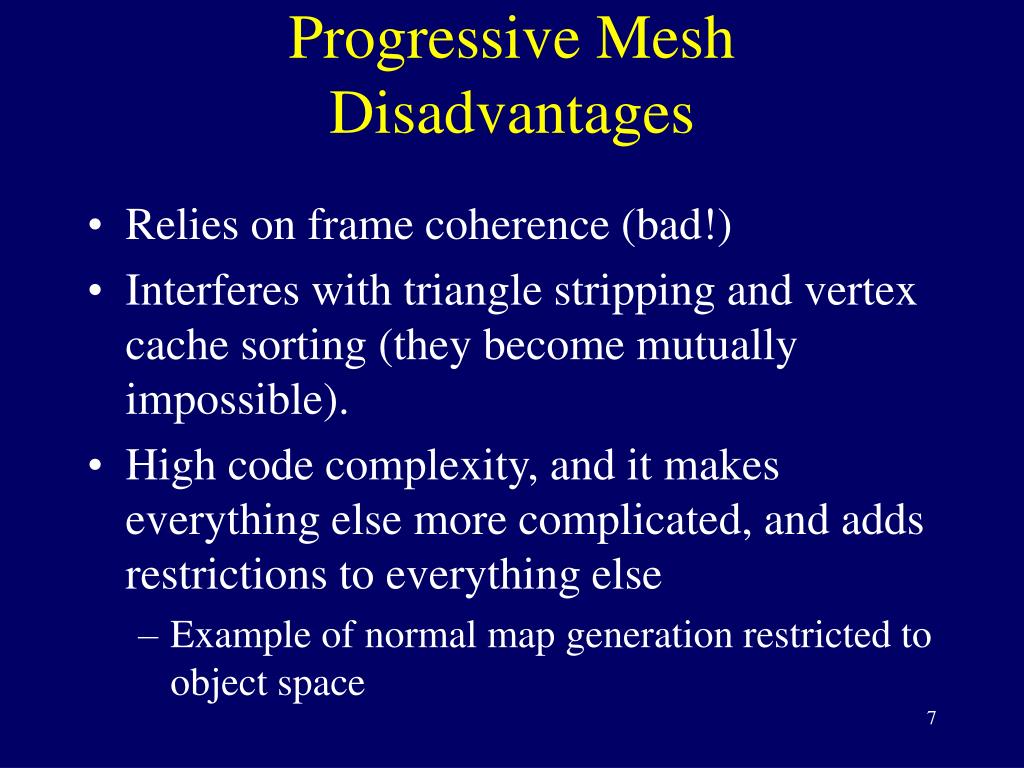

Progressive MeshDisadvantages

  • Relies on frame coherence (bad!)

  • Interferes with triangle stripping and vertex cache sorting (they become mutually impossible).

  • High code complexity, and it makes everything else more complicated, and adds restrictions to everything else

    • Example of normal map generation restricted to object space


Continuous level of detail algorithms
Continuous Level-of-DetailAlgorithms

  • Lindstrom-Koller, ROAM, Rottger quadtree algorithm

  • Dynamically update tessellation based on estimate of screen-space error

  • Crack fixing between adjacent blocks, etc


Continuous lod
Continuous LOD

  • Example of binary triangle trees

  • There are other formats (quadtree, diamond, etc) but the ideas are similar


Continuous lod disadvantages
Continuous LODDisadvantages

  • Extremely complicated implementations

  • Slow on modern hardware

  • Extreme reliance on frame coherence (bad!)

  • Not conducive to unified rendering (hard to make work on curved surfaces, arbitrary topologies)


Continuous lod1
Continuous LOD

  • Has a lot of hype in the amateur and academic communities

  • Is currently not competitive with other LOD approaches

  • This is not likely to change any time soon



Introduction
Introduction

  • We need an effective way to benchmark / judge LOD schemes

    • The academic world is not really doing this right now!

  • We need a standard set of data with comparable results

    • University of Waterloo Brag Zone for image compression


Lod metric

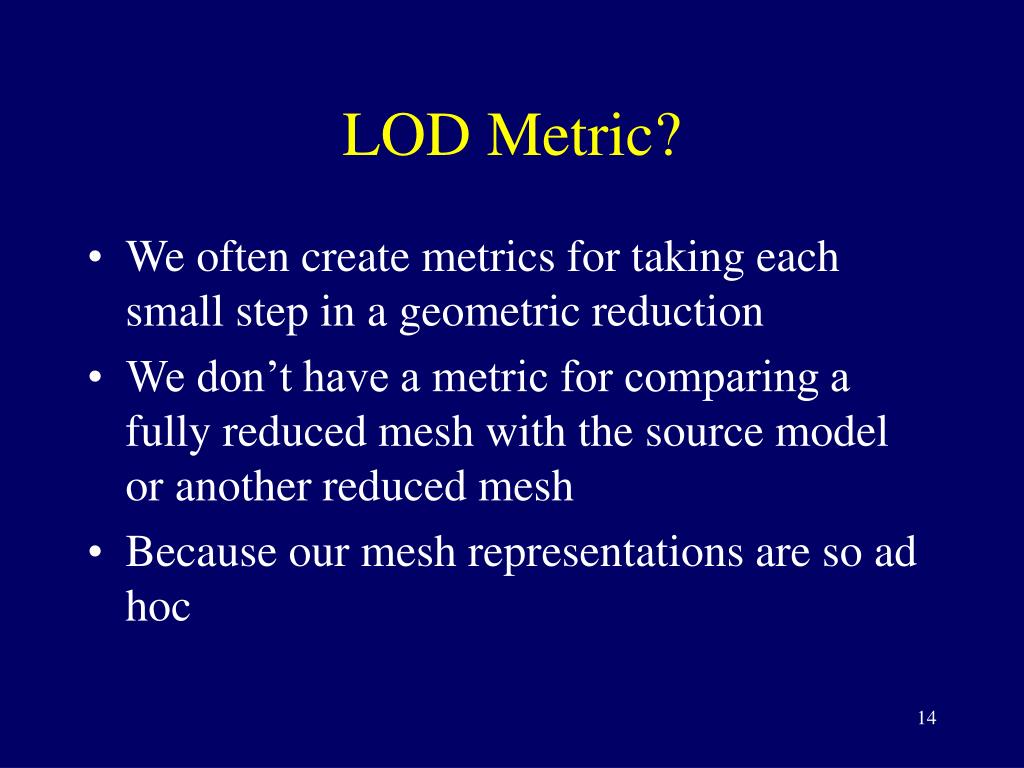

LOD Metric?

  • We often create metrics for taking each small step in a geometric reduction

  • We don’t have a metric for comparing a fully reduced mesh with the source model or another reduced mesh

  • Because our mesh representations are so ad hoc


Image compression guys have a metric

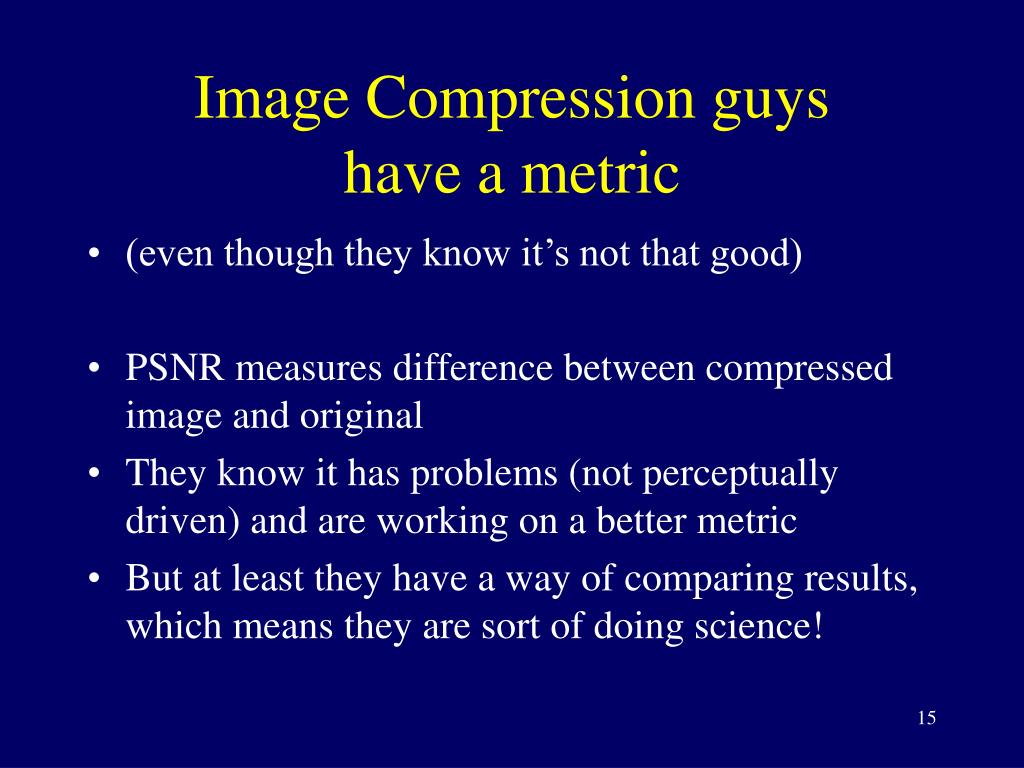

Image Compression guyshave a metric

  • (even though they know it’s not that good)

  • PSNR measures difference between compressed image and original

  • They know it has problems (not perceptually driven) and are working on a better metric

  • But at least they have a way of comparing results, which means they are sort of doing science!


Metric ideas

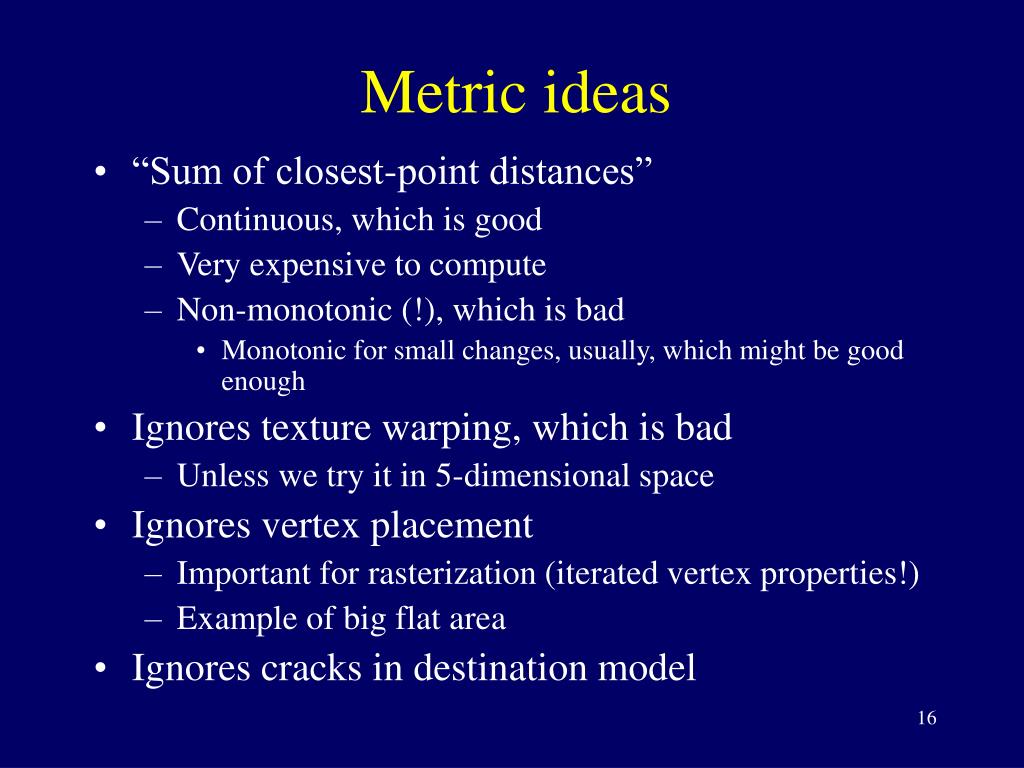

Metric ideas

  • “Sum of closest-point distances”

    • Continuous, which is good

    • Very expensive to compute

    • Non-monotonic (!), which is bad

      • Monotonic for small changes, usually, which might be good enough

  • Ignores texture warping, which is bad

    • Unless we try it in 5-dimensional space

  • Ignores vertex placement

    • Important for rasterization (iterated vertex properties!)

    • Example of big flat area

  • Ignores cracks in destination model


Lindstrom turk screenspace lod comparison

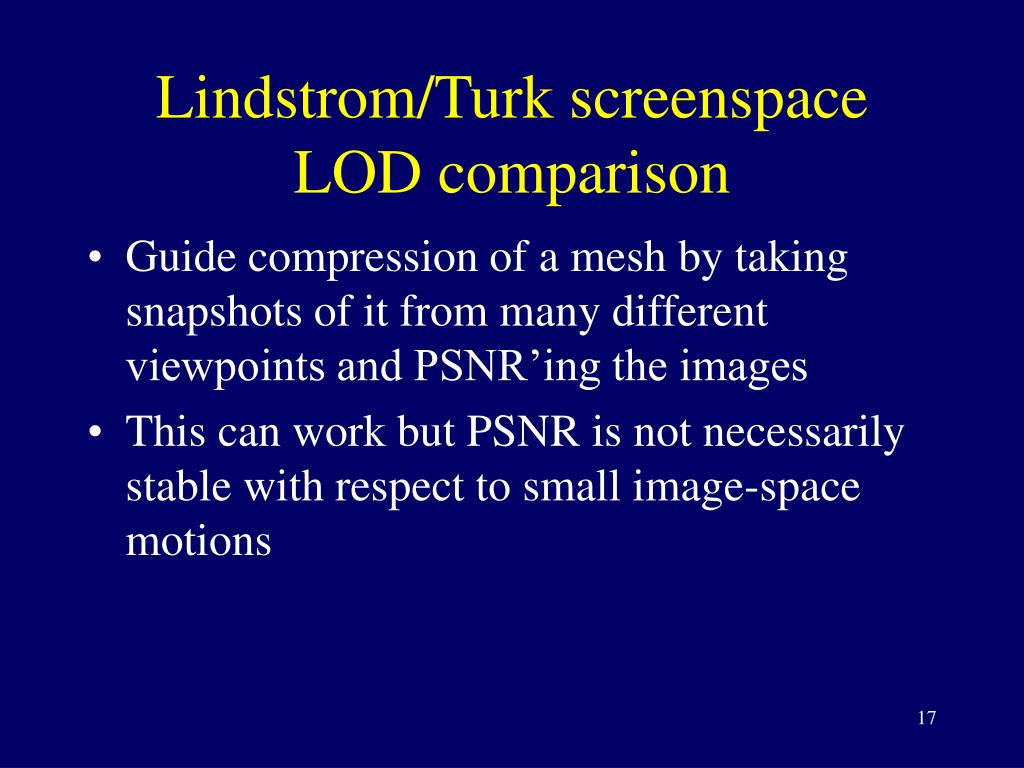

Lindstrom/Turk screenspaceLOD comparison

  • Guide compression of a mesh by taking snapshots of it from many different viewpoints and PSNR’ing the images

  • This can work but PSNR is not necessarily stable with respect to small image-space motions


Lindstrom turk screenspace lod comparison1

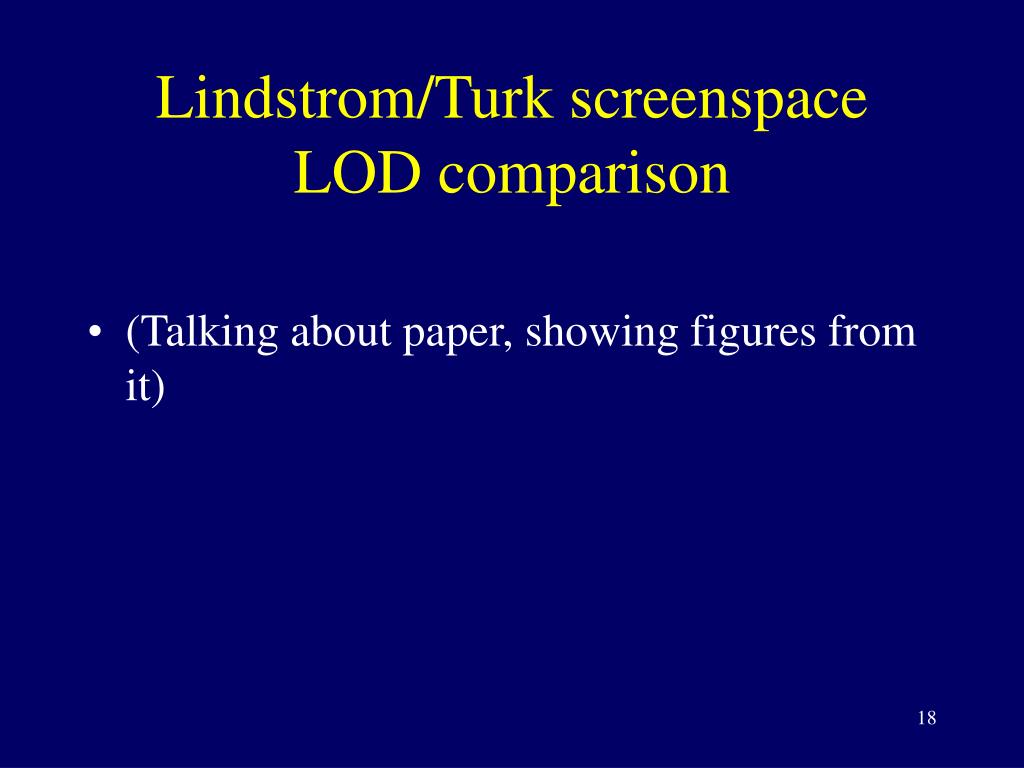

Lindstrom/Turk screenspaceLOD comparison

  • (Talking about paper, showing figures from it)


The fundamental problem
The Fundamental Problem

  • Our rendering methods are totally ad-hoc; we have 3 different things:

    • Vertices

    • Topology

    • Texture

  • A metric that uniformly integrates these things is very difficult.


Complexity of metric
Complexity of metric

  • The more complicated a metric is, the more difficult it is to program correctly, ensure we are using it correctly

  • That our simplest possible metric should be something so complicated … that is a bad sign.


Compare with voxels
Compare with Voxels

  • Voxel geometry representations can basically use something like PSNR directly; no need for complicated metrics

  • Lightfields can also (though it’s a little harder)


Digital geometry processing

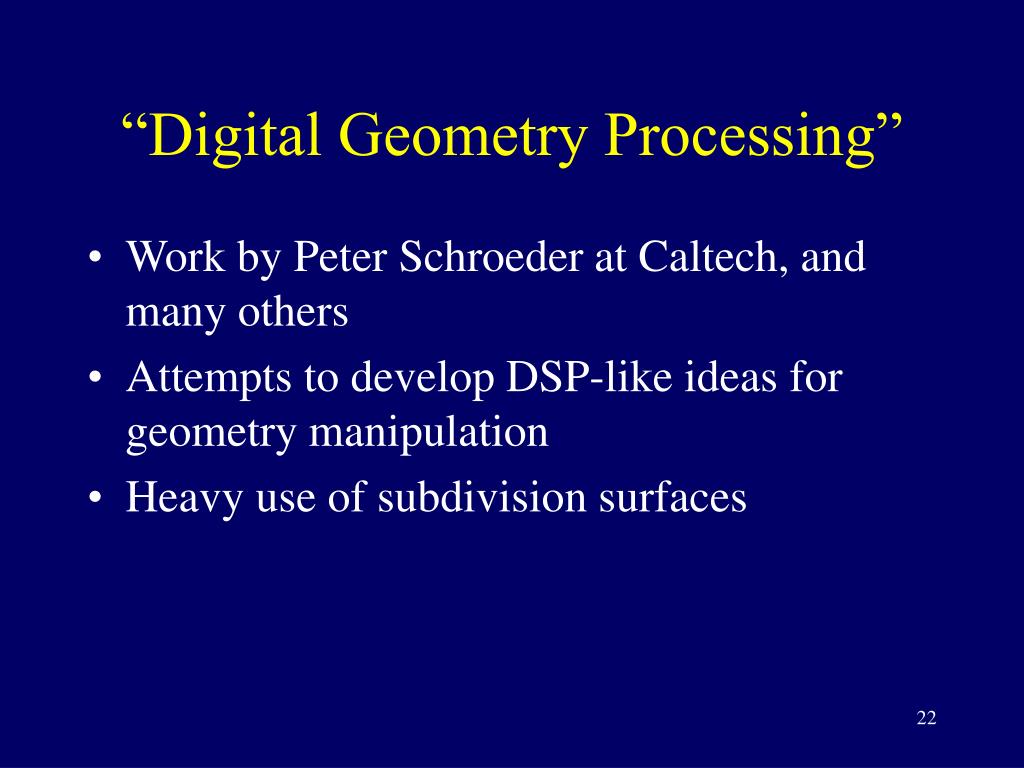

“Digital Geometry Processing”

  • Work by Peter Schroeder at Caltech, and many others

  • Attempts to develop DSP-like ideas for geometry manipulation

  • Heavy use of subdivision surfaces



How dgp works
How DGP works

  • Apply a scaled filter kernel to the neighborhood of a vertex

  • Like wavelet image analysis in its multiscale aspects

  • But unlike wavelets/DSP in that the inputs/outputs are not homogeneous

    • What exactly is the high-pass residual after a low-pass filter?

  • This is because of that whole topology-different-from-vertices thing


Actual effective dgp would be
Actual effective DGP would be …?

  • I don’t know. (It’s a hard problem!)

  • Spherical harmonics would work, for shapes representable as functions over the sphere



What i use
What I Use

  • Garland/Heckbert Error Quadric Simplification

  • Static Mesh Switching

  • I want to do a unified renderer this way (characters, terrain, big airplanes, whatever)

  • People seem to think crack fixing is hard but it is actually easy

    • Maybe that’s why people haven’t tried this yet?


Discussion of garland heckbert algorithm
Discussion ofGarland/Heckbert Algorithm

  • (whiteboard)


Garland heckbert references

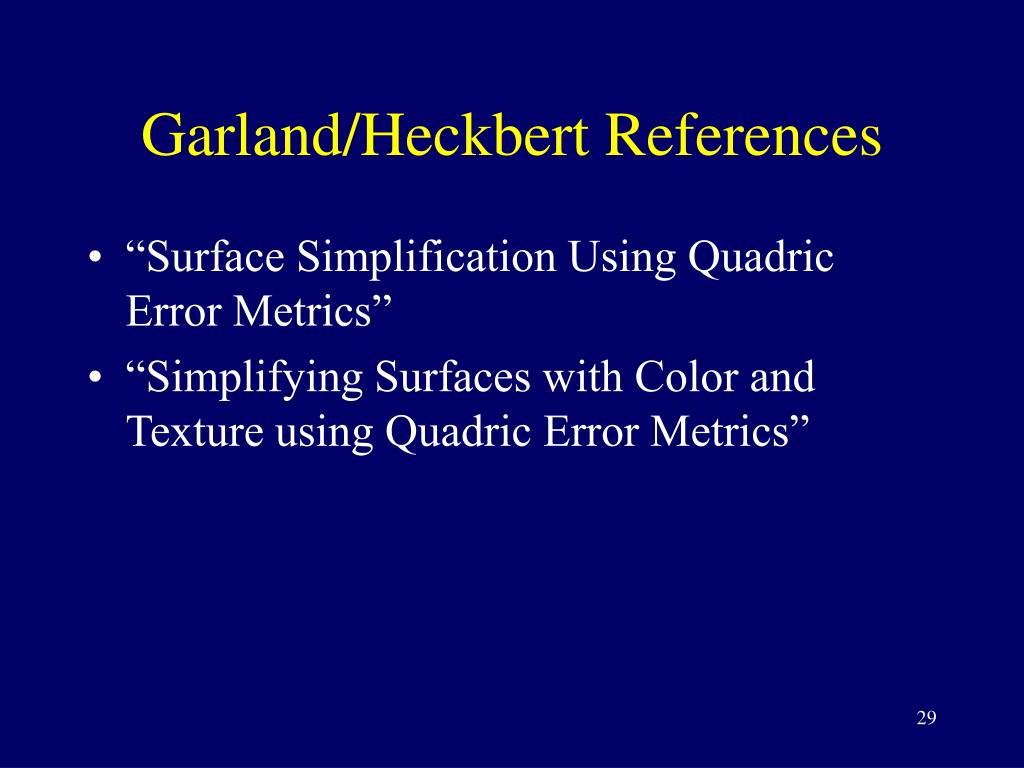

Garland/Heckbert References

  • “Surface Simplification Using Quadric Error Metrics”

  • “Simplifying Surfaces with Color and Texture using Quadric Error Metrics”


G h is useful also if you are making progressive meshes
G/H is useful also if you are making progressive meshes

  • It just tells you how to collapse the mesh; doesn’t dictate how you will use that information.


Review of gh algorithm in code
Review of GH AlgorithmIn code

  • (looking at the code)
