Datetime code regions and multiple form applications

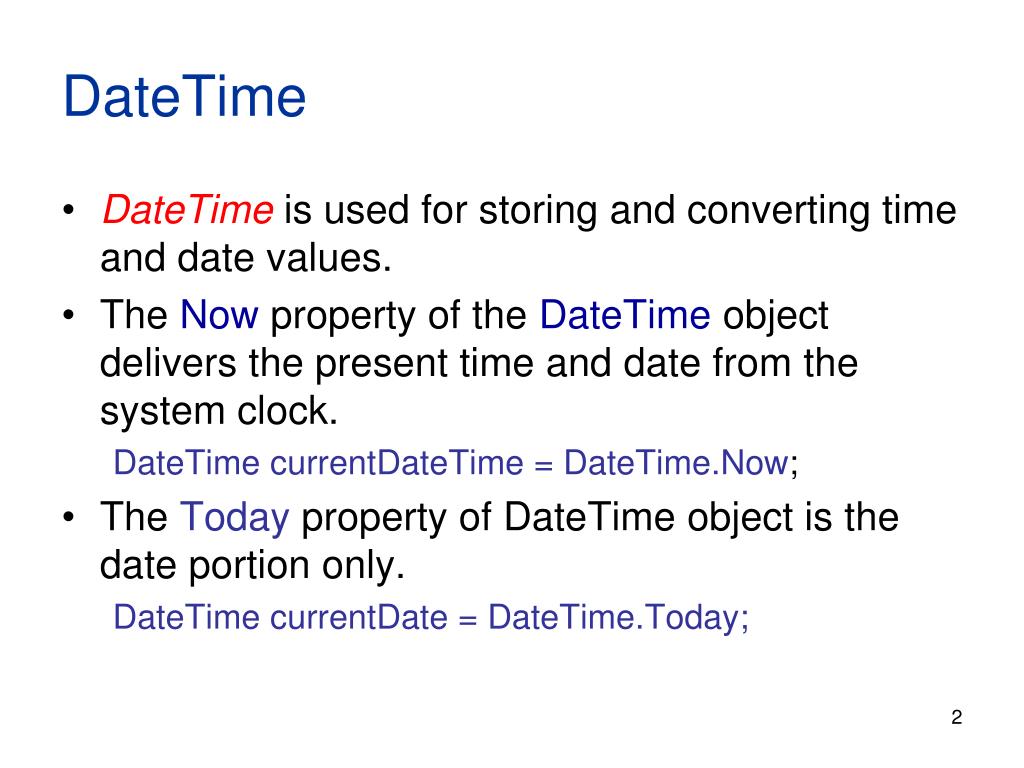

DateTime, Code Regions, and Multiple Form Applications




  • DateTime is used for storing and converting time and date values.

  • The Now property of the DateTime object delivers the present time and date from the system clock.

    DateTime currentDateTime = DateTime.Now;

  • The Today property of DateTime object is the date portion only.

    DateTime currentDate = DateTime.Today;

Working with datetime

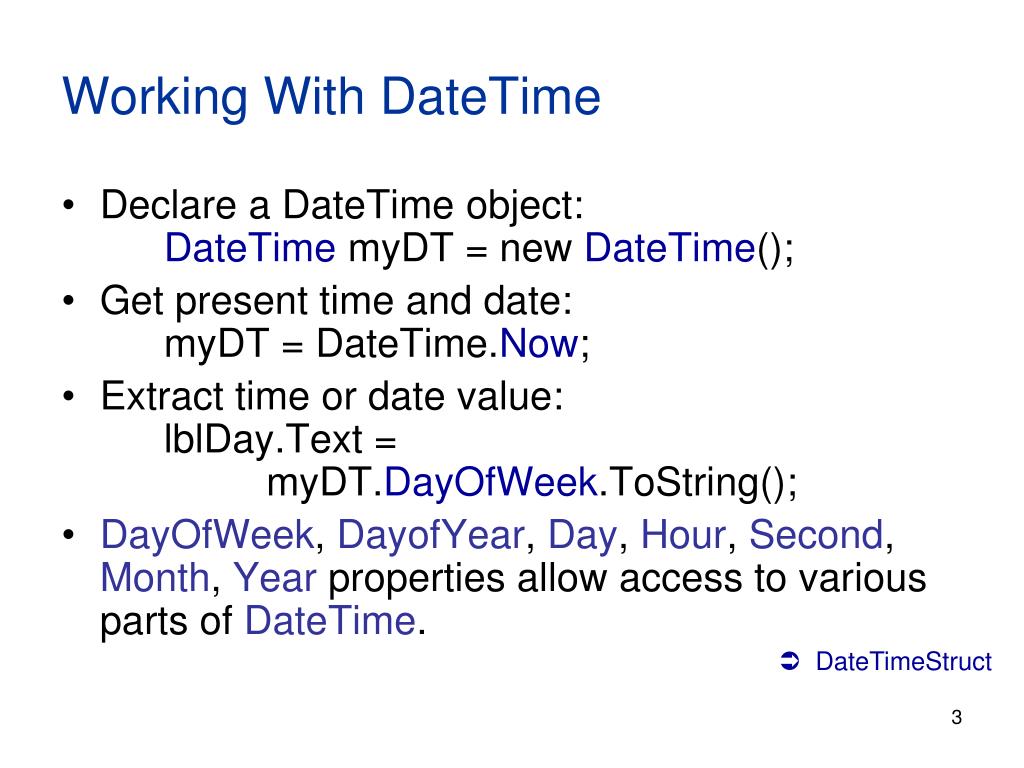

Working With DateTime

  • Declare a DateTime object:DateTime myDT = new DateTime();

  • Get present time and date:myDT = DateTime.Now;

  • Extract time or date value:lblDay.Text = myDT.DayOfWeek.ToString();

  • DayOfWeek, DayofYear, Day, Hour, Second, Month, Year properties allow access to various parts of DateTime.

 DateTimeStruct

Formatting datetime output

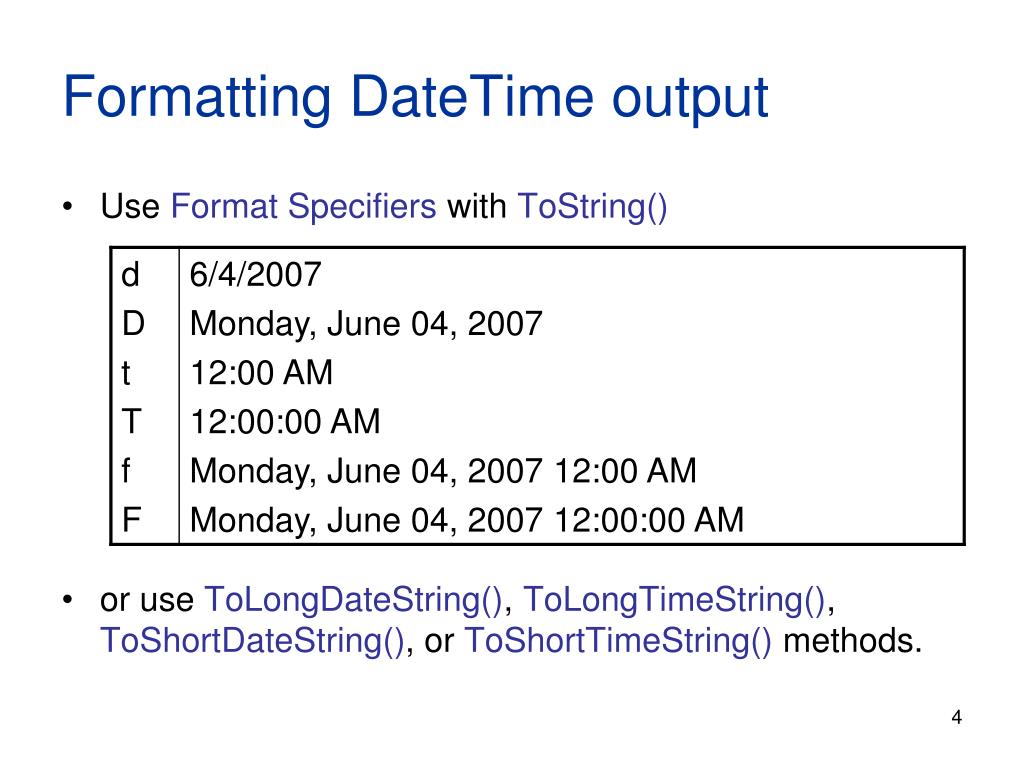

Formatting DateTime output

  • Use Format Specifiers with ToString()

  • or use ToLongDateString(), ToLongTimeString(), ToShortDateString(), or ToShortTimeString() methods.

Generate datetime values with datetimepicker control

Generate DateTime Values with DateTimePicker Control

  • The DateTimePicker control furnishes a visible interface for selecting DateTime values.

  • Dates are selected with a perpetual calendar display.

  • Times and dates may be displayed in several formats.

  • Use the TimeSpan class to manipulate and compare times and dates.

 DatePicker

Code regions

Code Regions

Showing/Hiding and Creating Code Regions

Regions in code

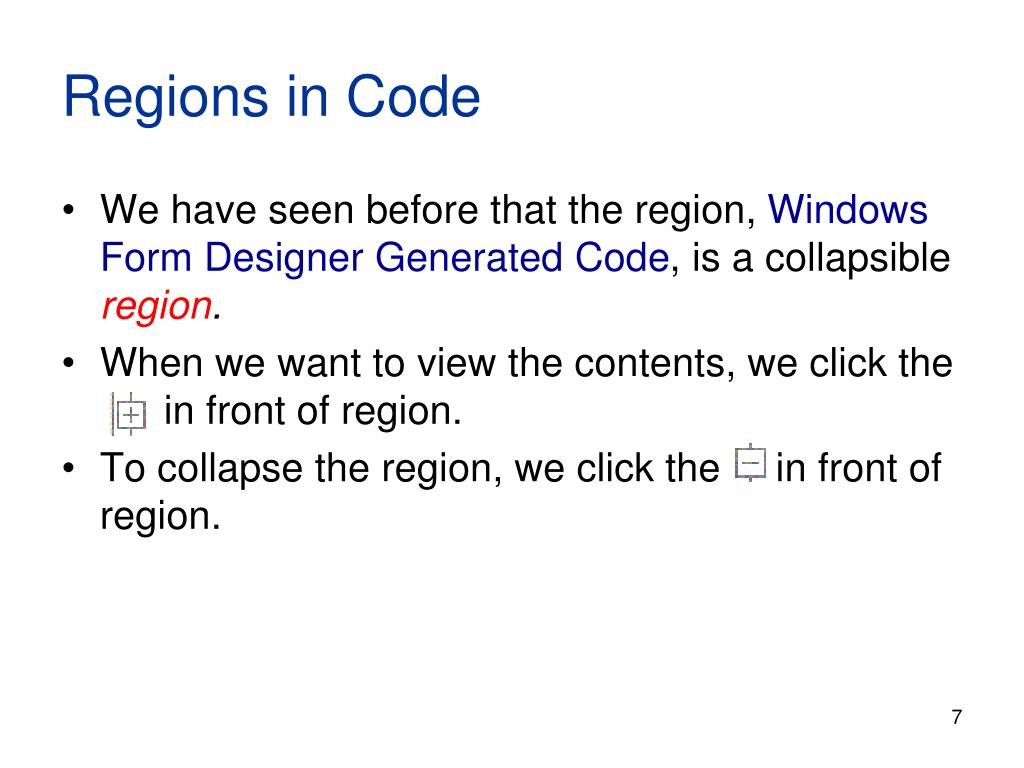

Regions in Code

  • We have seen before that the region, Windows Form Designer Generated Code,is a collapsible region.

  • When we want to view the contents, we click the in front of region.

  • Tocollapsethe region, we click thein front of region.

Making your own collapsible regions in code

Making Your Own Collapsible Regions in Code

  • You can make your own collapsible region in code, for example, a region for the class-level variables.

  • Type #region regionDescription above the class-level variable declarations.

  • Type #endregion after the last line of class-level variable declarations.

  • You will now have a user-defined region.

Multiple form applications

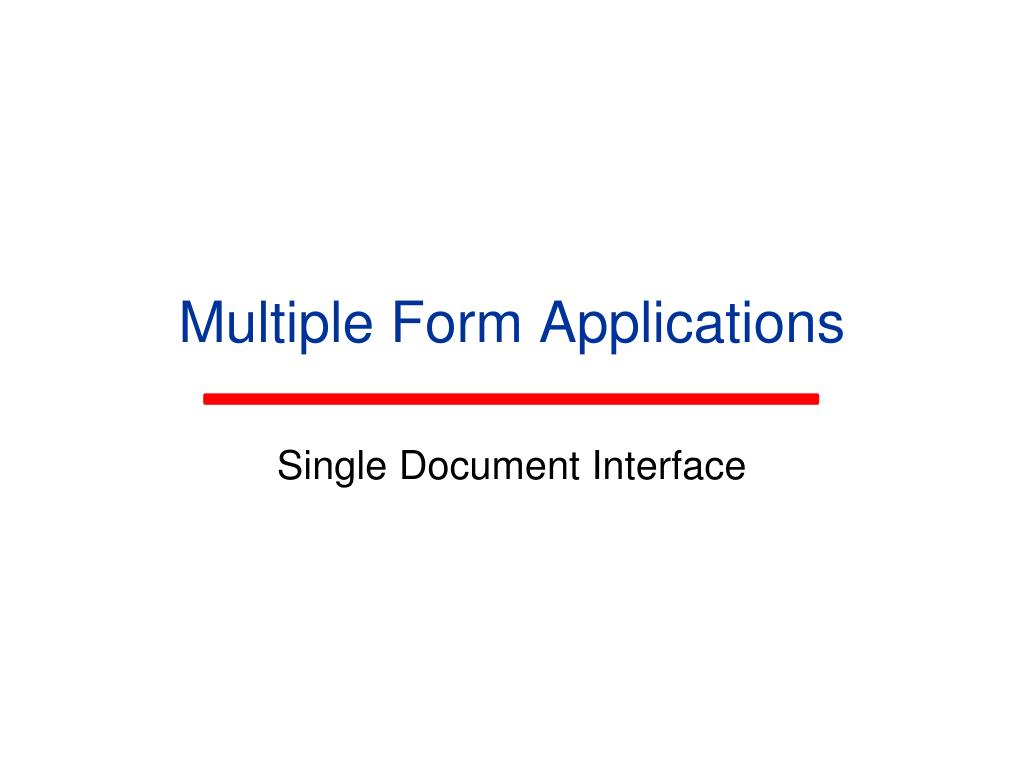

Multiple Form Applications

Single Document Interface

Launching a second form

Launching a Second Form

  • Use the Add Windows Form… selection from the Project menu.

  • A new form class is added to the project.

Launching a second form1

Launching a Second Form

  • An instance of the second form must be created within the original application form.

  • Once the form object is created, it may be displayed by running its Show() method.

  • Multiple instances of the second form can be created and displayed.

 SecondSDI

Startup form as parent

Startup Form as “Parent”

  • Launching a second form in this way causes the second form to depend upon the first for survival.

  • Closing the first form causes the second form to close as well.

Hiding a form

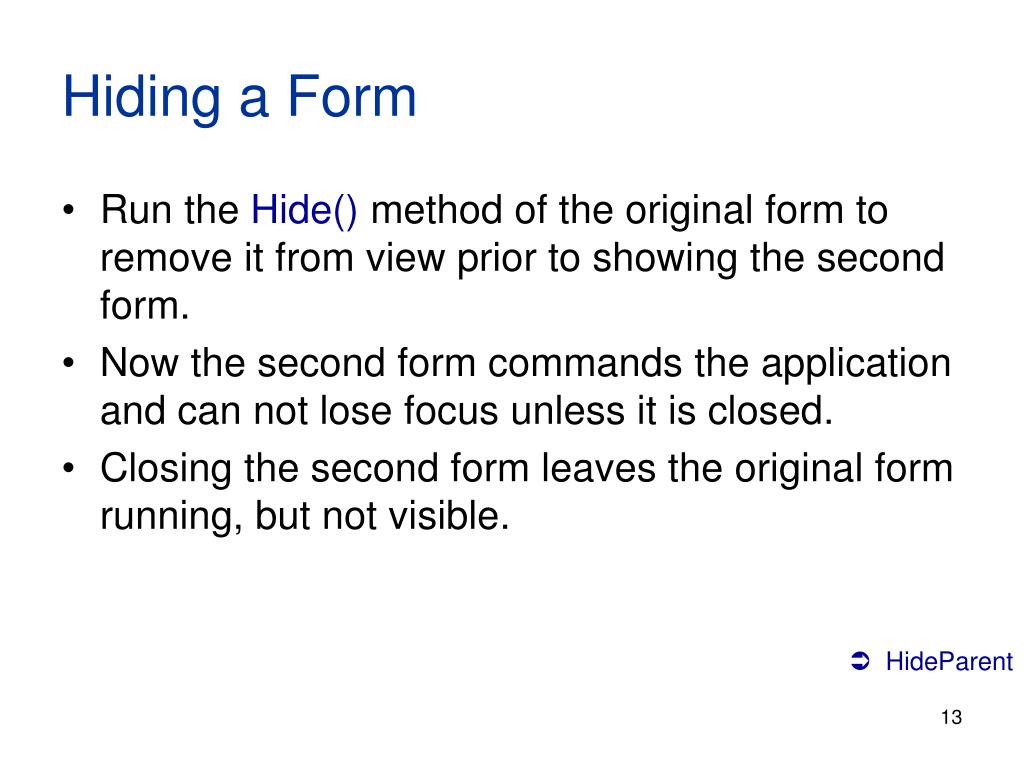

Hiding a Form

  • Run the Hide() method of the original form to remove it from view prior to showing the second form.

  • Now the second form commands the application and can not lose focus unless it is closed.

  • Closing the second form leaves the original form running, but not visible.

 HideParent

Showing a hidden form

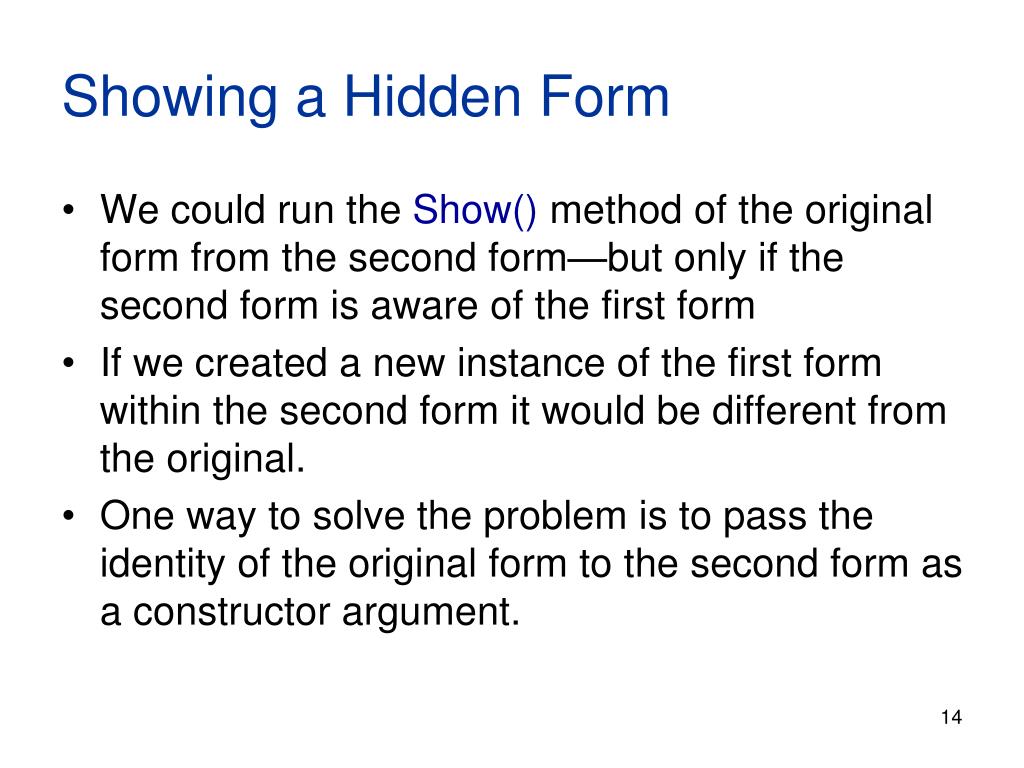

Showing a Hidden Form

  • We could run the Show() method of the original form from the second form—but only if the second form is aware of the first form

  • If we created a new instance of the first form within the second form it would be different from the original.

  • One way to solve the problem is to pass the identity of the original form to the second form as a constructor argument.

Identifying the parent form

Identifying the Parent Form

  • If the second form has a class scope variable of type Form, the constructor can use its argument to assign the identity of the “parent” form.

  • This then allows the second form to run the Show() method of the “parent”.

 FormConstructor

Multiple form applications1

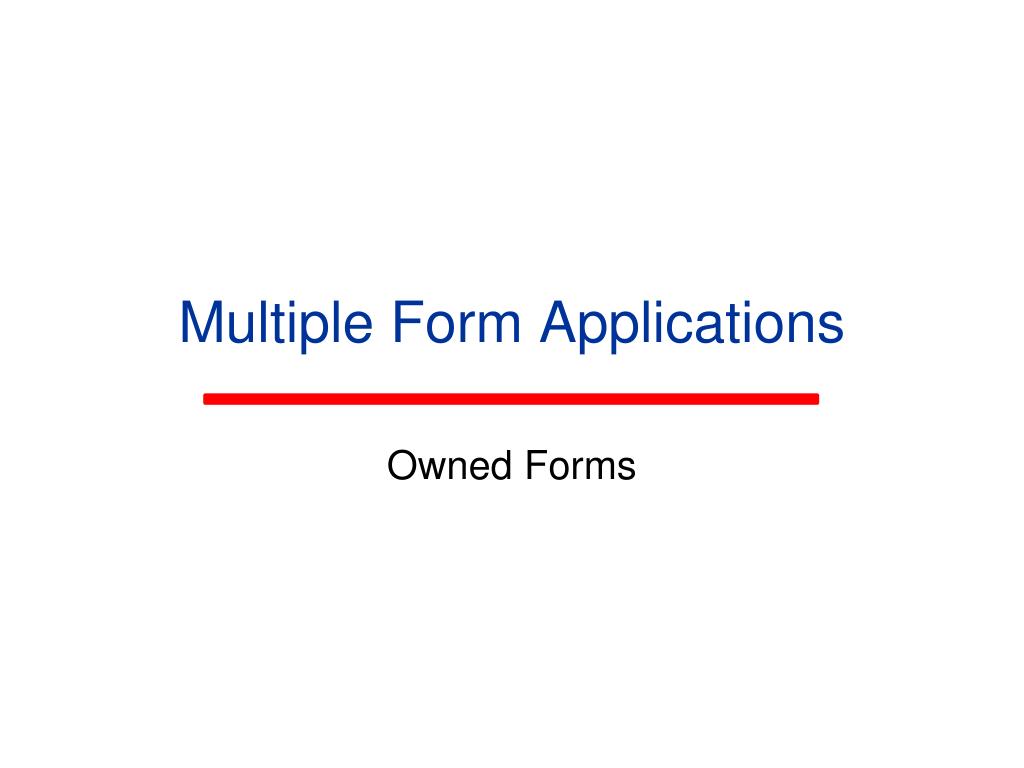

Multiple Form Applications

Owned Forms

Owned forms

Owned Forms

  • Subsequent SDI forms can be launched from a startup form as Owned Forms.

  • Although these forms can transfer focus back to the startup form they remain on top of the startup form at all times.

  • Add a new form to the Owned Forms collection of the startup form by setting its Owner property to the startup form.

 OwnedForms

Owned forms1

Owned Forms

  • Potential uses for owned forms are as specialized help forms, customized “toolboxes” or overview maps.

  • Use an owned form when you don’t want to lose sight of a form in a multiple SDI application, even if it loses focus.

Multiple form applications2

Multiple Form Applications

Multiple Document Interface

Mdi forms

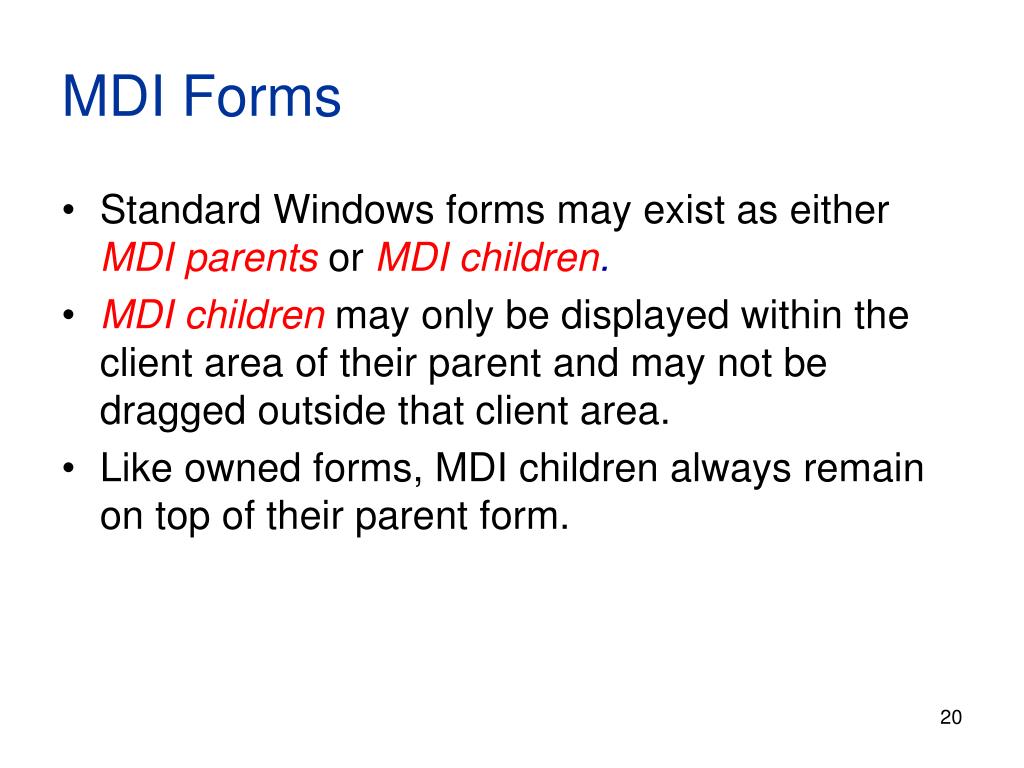

MDI Forms

  • Standard Windows forms may exist as either MDI parents or MDI children.

  • MDI children may only be displayed within the client area of their parent and may not be dragged outside that client area.

  • Like owned forms, MDI children always remain on top of their parent form.

Mdi parent forms

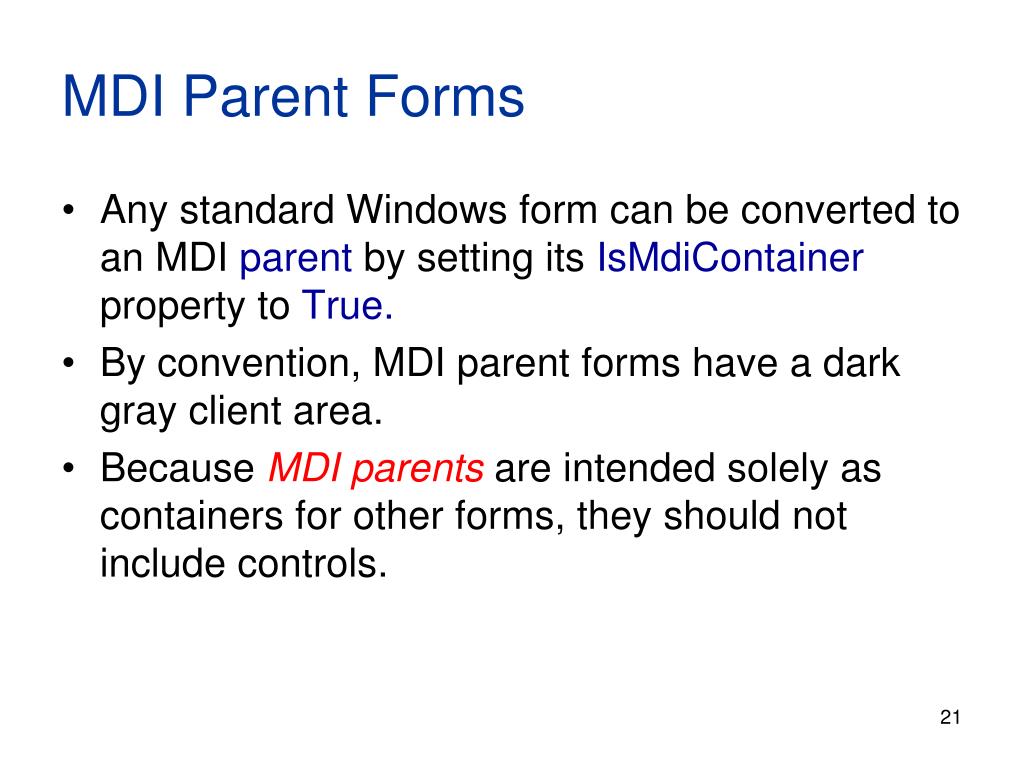

MDI Parent Forms

  • Any standard Windows form can be converted to an MDI parent by setting its IsMdiContainer property to True.

  • By convention, MDI parent forms have a dark gray client area.

  • Because MDI parents are intended solely as containers for other forms, they should not include controls.

Mdi parent forms1

MDI Parent Forms

  • Use menu items in the MenuStrip control of the MDI parent to control activities associated with displaying MDI child forms.

 MDIParent

Mdi child forms

MDI Child Forms

  • Forms destined to become children of an MDI parent should be instantiated within the MDI parent class.

  • Any standard Windows form can become an MDI child.

  • Set the MdiParent property of the child instance to the parent.

  • Show the child form.

 MDIChildren

Mdi child form menus

MDI Child Form Menus

  • When an MDI Child has focus within an MDI parent form, the menustrips of the Parent and Child are merged and menuitems from both are displayed.

  • The merging of the menus to present a sensible display is coordinated by adjusting the MergeAction and MergeIndex properties of each menuitem.

  • The Visible property of the child menustrip must be set to false if you do not wish to see both parent and child menustrips.

The windows menu

The Windows Menu

  • By design convention the Menustrip of an MDI parent form has a Window menu item that lists the displayed child forms and indicates which has focus.

  • The contents of this menuitem (mnuWindow) are automatically generated by simply setting the MdiWindowListItem property of the parentmenustrip to the appropriate menuitem (mnuWindow).

The window menu

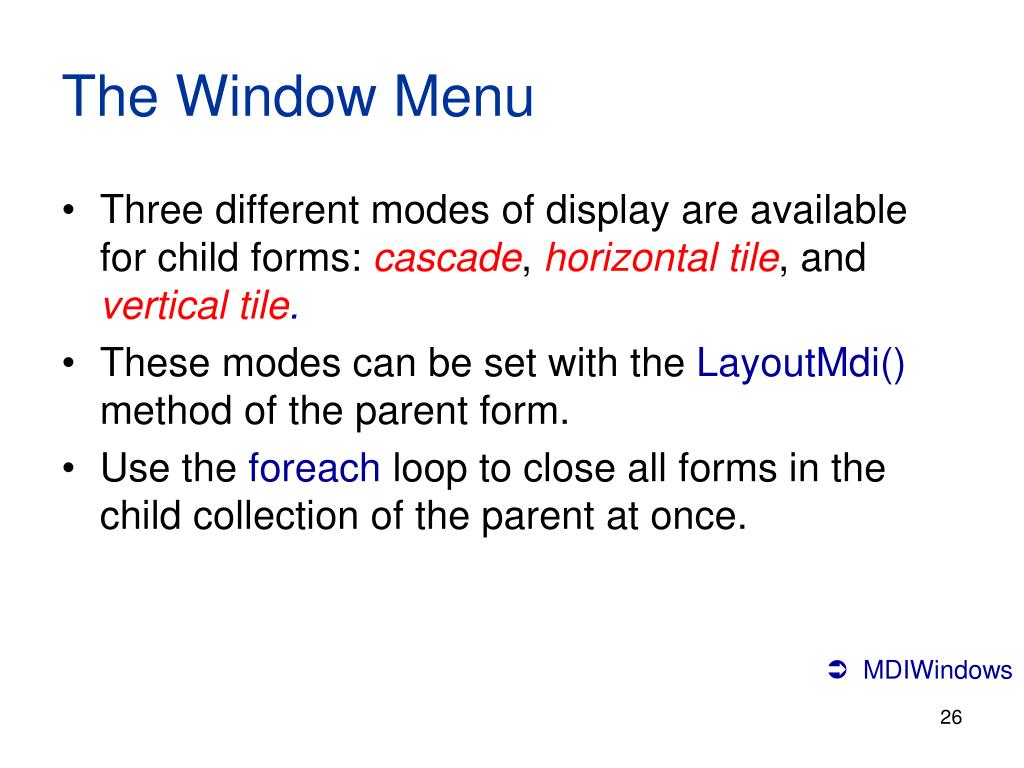

The Window Menu

  • Three different modes of display are available for child forms: cascade, horizontal tile, and vertical tile.

  • These modes can be set with the LayoutMdi() method of the parent form.

  • Use the foreach loop to close all forms in the child collection of the parent at once.

 MDIWindows
