Presentation Transcript
Two boat umpiring l.jpg

Two-Boat Umpiring

Devised by

Bruce Hebbert

June 2007


Background l.jpg
Background

  • At most TR events, we do not have the luxury of 3 boats umpiring – rather, we often have only one and sometimes two umpire boats on a race

  • The following has been developed to provide a method for handling this


There are generally 2 variations l.jpg
There are generally 2 variations:

  • 2 umpire boats throughout

  • 2 umpire boats at the start, with the second leaving at the windward mark


Terminology l.jpg
Terminology

  • Driver of Lead Umpire Boat – LU

  • Second Umpire in Lead Umpire boat- LUA

  • Driver of Second Umpire Boat – 2U

  • Second Umpire in Second Umpire Boat- 2UA

  • (Sorry about this…but if you have a better acronyme, shout now)


General principles l.jpg
General Principles:

  • All Umpires follow a single team, usually those with the lower numbers are selected by the Lead Umpire (eg. the Red team)

  • The Lead Umpire (UL) for the race will take the committee boat end of the line. The other Umpire boat (2U) will take the pin end

  • The driver of the Lead Umpire boat (UL) is the controller


Dialogue l.jpg
Dialogue

  • When an Umpire boat is following a single ‘target’ boat, dialogue between LU/LUA and 2U/2UA is essential – the driver taking the ‘target’ boat, and the second Umpire taking the opposing boats that are nearby

  • When an Umpire boat is following two boats, each Umpire should clearly select to follow one of the two boats


Slide8 l.jpg

Pre-Start

2U

LU


Slide9 l.jpg

2U

LU

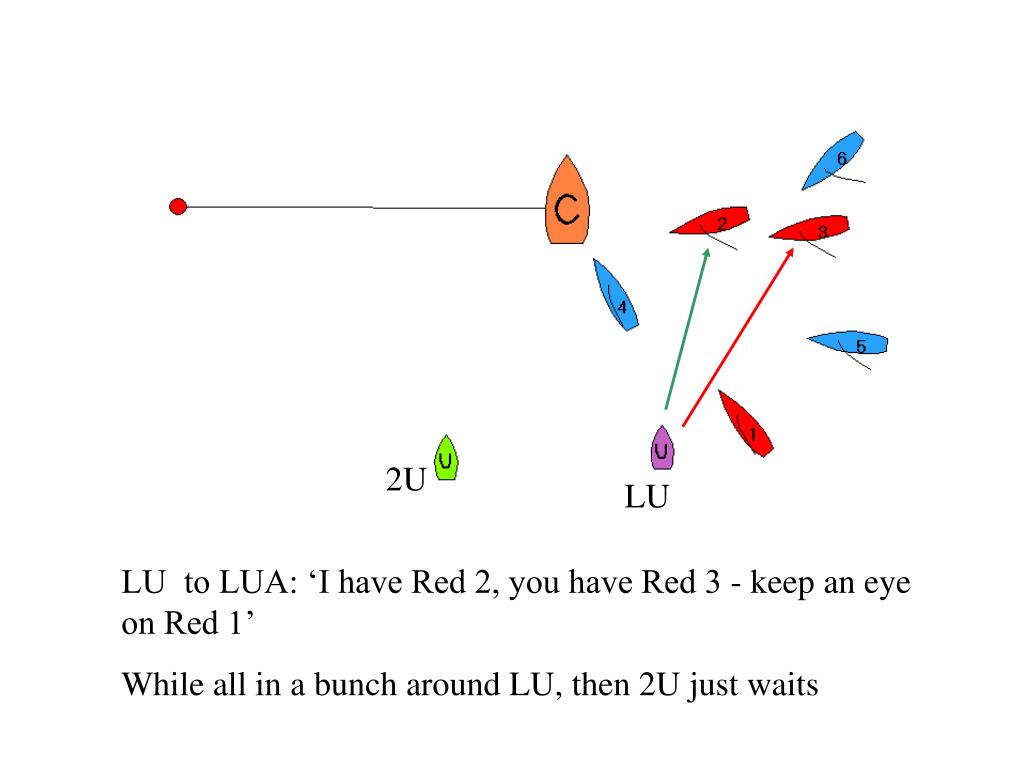

LU to LUA: ‘I have Red 2, you have Red 3 - keep an eye on Red 1’

While all in a bunch around LU, then 2U just waits


Slide10 l.jpg

2U

Here, when it is clear that Red 1 is moving to leeward, 2U starts to take responsibility


Slide11 l.jpg

2U

If this happens, 2U should take both Red 1 and Red 2


Slide12 l.jpg

LU

2U

As the boats approach the line to start, (generally) one of the Red boats will move down the line. 2U takes this one (Red 1)

LU may hail or radio to confirm that 2U takes Red 1


Slide13 l.jpg

LU

2U

In the final approaches, LU should take the boat starting closest to the committee boat and position to see any incident. LUA should follow the other Red boat at the committee boat end


Slide14 l.jpg

If as here… 2 Red boats go to start at the pin end, then 2U and 2UA each take one and LU keeps the committee boat end

A hail or radio call to this effect from LU is helpful to ensure this happens


Slide15 l.jpg

In the last 15-20 seconds, Umpires must keep to 2U and 2UA each take one and LU keeps the committee boat end their boats ensuring they know how overlaps were established


Slide16 l.jpg

Just before and after the starting signal, an eye should also be kept on the Blue boats - especially if Rule 42 conditions exist or if one is OCS and may turn to return


Slide17 l.jpg

After the start, Umpires should keep with also be kept on the Blue boats - especially if Rule 42 conditions exist or if one is OCS and may turn to returntheir boats for the first 30 meters or so to ensure all ‘accidental’ incidents are covered


Slide19 l.jpg

2U also be kept on the Blue boats - especially if Rule 42 conditions exist or if one is OCS and may turn to return

LU

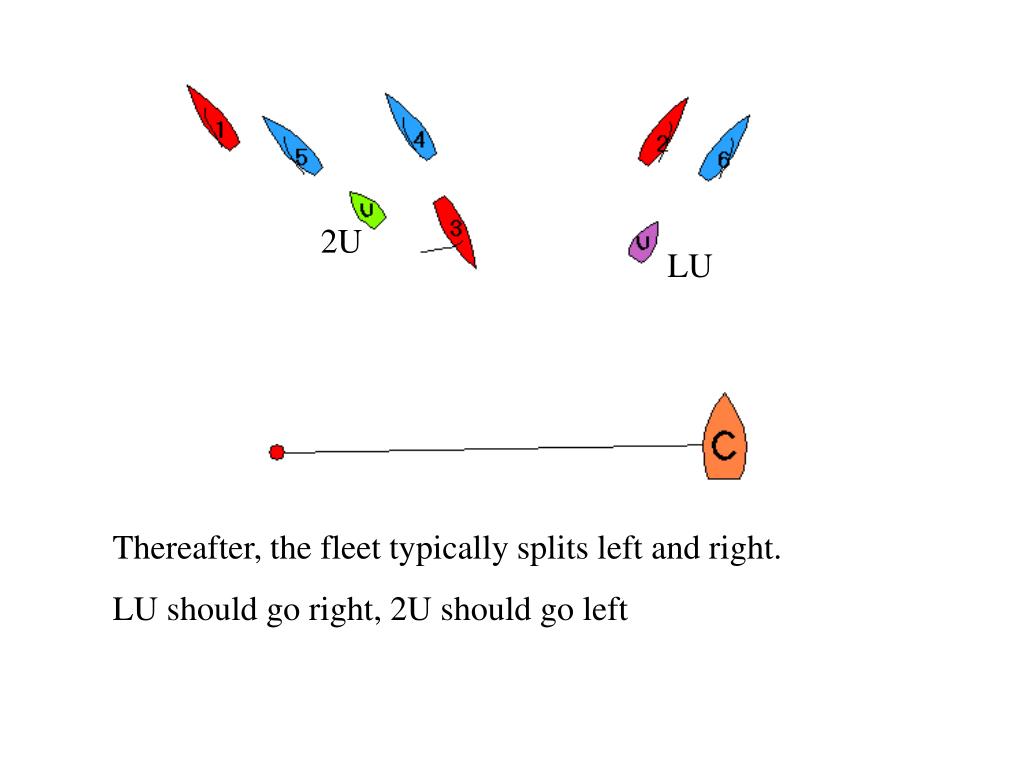

Thereafter, the fleet typically splits left and right.

LU should go right, 2U should go left


Slide20 l.jpg

Despite the left-right ‘rule’, the over-riding requirement is to be positioned to cover ‘engaging pairs’


Slide21 l.jpg

As the fleet approaches the laylines, the Umpire boats should move to be outside the laylines


Slide22 l.jpg

On the approach to the mark, the Umpire boats must be positioned to see overlaps as boats reach the zone


Slide23 l.jpg

LU positioned to see overlaps as boats reach the zone

2U

The Umpire of the leading pair must aim to get to windward of the first mark, and hold position to see any action before turning towards Mark 2

Illustrated for LU – easier when 2U is on the leading pair


Slide24 l.jpg

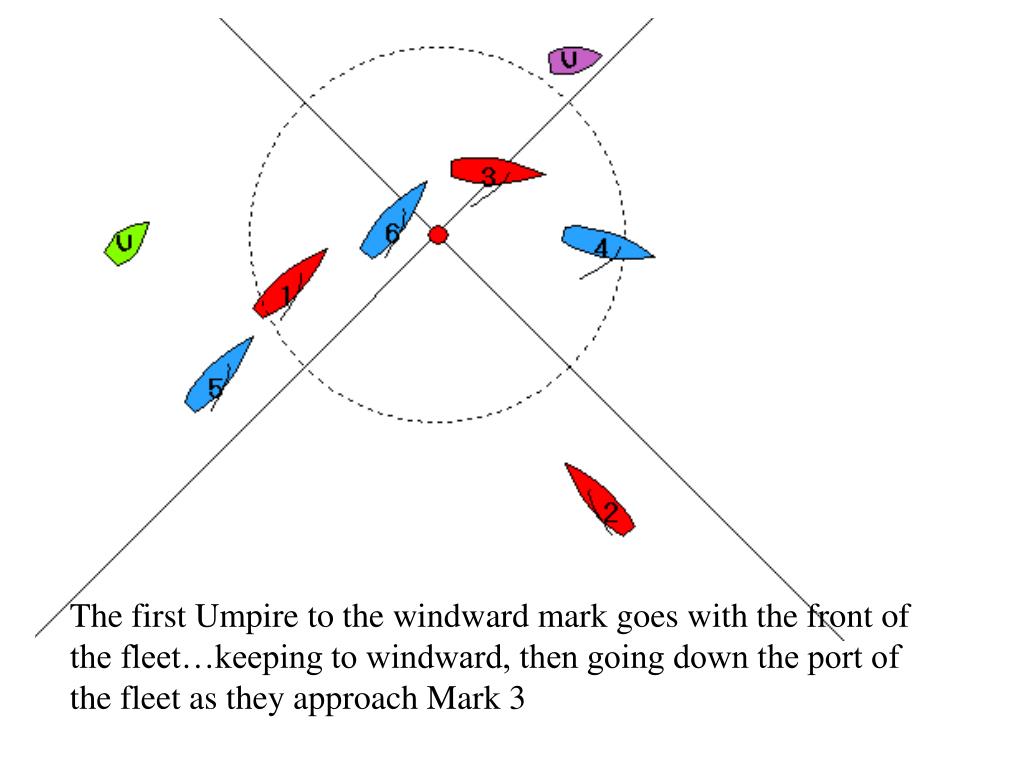

The first Umpire to the windward mark goes with the front of the fleet…keeping to windward, then going down the port of the fleet as they approach Mark 3


Slide25 l.jpg

The second Umpire to reach the windward mark goes either high or low on the first reach, depending on the spread



Slide27 l.jpg

The Umpires need to keep sufficiently to windward to avoid luffs… but avoid the Red shaded area


Slide28 l.jpg

On the run, the Umpires have kept to the port side of the fleet..though the green Umpire may go either side at first


Slide29 l.jpg

If there is any attempt at a passback at Mark 3, the Red area is a ‘no go zone’ for the umpires


Slide30 l.jpg

The front Umpire boat moves below Mark 3 to see the action…then turns and keeps to leeward of the rhumb line 2-3


Slide32 l.jpg

Approaching Mark 4, both Umpire boats are ideally positioned below the rhumb line…and both avoid ‘Hell Corner’ indicated in Red


Slide33 l.jpg

On the final beat, the Umpires need again to go left and right, taking the two most in contention pairs. Whatever happens, the key ‘Gap’ must be covered. LU should hail or radio as necessary

It is often (but not always!) easier for the Umpire leading along the reach to go right up the beat, and the trailing Umpire to go left


Slide34 l.jpg

Approaching the finish, seeing overlaps at the zones are key for E9 calls, so Umpires need to be outside the laylines…and should never cross the finish line
