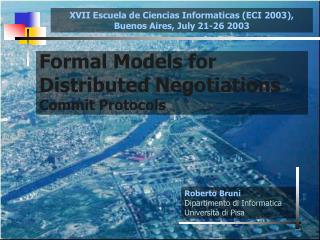

Formal Models forDistributed NegotiationsCommit Protocols

Roberto Bruni

Dipartimento di Informatica

Università di Pisa


Distributed databases l.jpg
Distributed DataBases Aires, July 21-26 2003

  • Data can be inherently distributed

    • e.g. customers accounts in different branches of the same bank

  • Data are distributed to achieve failure independence

    • e.g. replicated file systems

  • Partial failures can lead to inconsistent results

    • Commits have to be coordinated among participants to preserve data consistency

Formal Models for Distributed Negotiations


Distributed databases3 l.jpg
Distributed DataBases Aires, July 21-26 2003

user

user

DB

user

user

user

Centralized

Distributed

Formal Models for Distributed Negotiations


Atomic commitment problem l.jpg
Atomic Commitment Problem Aires, July 21-26 2003

  • Reach a globally consistent state despite failures

    • Each participant has two possible decision values

      • commit

        • All participants will make the transaction’s updates permanent

      • abort

        • All will roll-back

    • Individual decisions are irreversible

    • A commit decision requires unanimity of YES votes

Formal Models for Distributed Negotiations


Atomic commitment properties l.jpg
Atomic Commitment Properties Aires, July 21-26 2003

  • Consensus

    • All participants that decide reach the same decision

  • If any participant decides commit, then all participants must have voted YES

  • If all participants have voted YES and no failures occur, then commit is decided

  • Irreversibility

    • Each participant decides at most once

Formal Models for Distributed Negotiations


Commitment protocols l.jpg

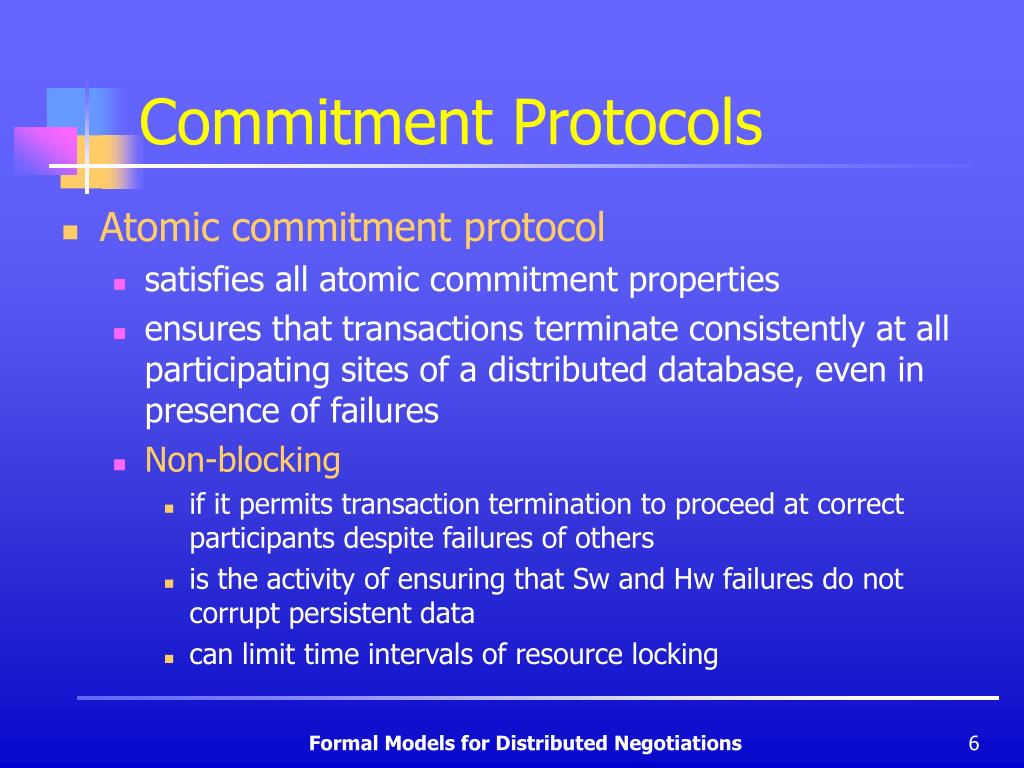

Commitment Protocols Aires, July 21-26 2003

  • Atomic commitment protocol

    • satisfies all atomic commitment properties

    • ensures that transactions terminate consistently at all participating sites of a distributed database, even in presence of failures

    • Non-blocking

      • if it permits transaction termination to proceed at correct participants despite failures of others

      • is the activity of ensuring that Sw and Hw failures do not corrupt persistent data

      • can limit time intervals of resource locking

Formal Models for Distributed Negotiations


Some assumptions l.jpg
Some Assumptions Aires, July 21-26 2003

  • One of the participants acts as unique coordinator (centralized version)

    • At most one (if no failures, then there is one coordinator)

    • A participant assumes the role of coordinator within a fixed time interval from the beginning of the transaction

  • The transaction begins at a single participant called the invoker

    • sends start messages to other participants

  • Only undeliverable messages are dropped

  • All participants can communicate (useful later)

Formal Models for Distributed Negotiations


Generic acp coordinator l.jpg
Generic ACP: Coordinator Aires, July 21-26 2003

  • send VOTE-REQ[Tid] to all participants

  • set-timeout

  • wait-for vote[Tid] from all participants

    • if (all votes are YES) then

      • broadcast(commit[Tid], participants)

    • else// at least one vote is NO

      • broadcast(abort[Tid], participants)

  • on-timeout: // escape blocking wait-for

    • broadcast(abort[Tid], participants)

Phase 1

Phase 2

Formal Models for Distributed Negotiations


Generic acp participants l.jpg
Generic ACP: Participants Aires, July 21-26 2003

  • set-timeout

  • wait-for VOTE-REQ[Tid] from coordinator // 1

    • send vote[Tid] to coordinator

    • if (vote==NO) then // unilateral abort

      • decide abort

    • else

      • set-timeout

      • wait-for decision from coordinator // 2

        • if (decision==abort) thendecide abort

        • else decide commit

      • on-timeout: termination-protocol // escape 2

  • on-timeout: decide abort //escape 1

Formal Models for Distributed Negotiations


Simple broadcast l.jpg
Simple Broadcast Aires, July 21-26 2003

  • broadcast(m,S)

  • // Broadcaster

    • send m to all processes in S

    • deliver m

  • // other processes in S

    • upon-receipt m // non-blocking

      • deliver m

  • This corresponds to the 2PC Protocol

Formal Models for Distributed Negotiations


Timeout actions l.jpg
Timeout Actions Aires, July 21-26 2003

  • Participants must wait

    • VOTE_REQ from coordinator

      • If this takes too long can just decide abort

    • Coordinator collects votes

      • No global decision is yet made

      • Coordinator can decide abort

    • commit / abort from coordinator

      • The participants already took a decision (YES)

      • It is now uncertain

      • It must consult other participants according to the termination protocol

Formal Models for Distributed Negotiations


Termination protocol tp l.jpg

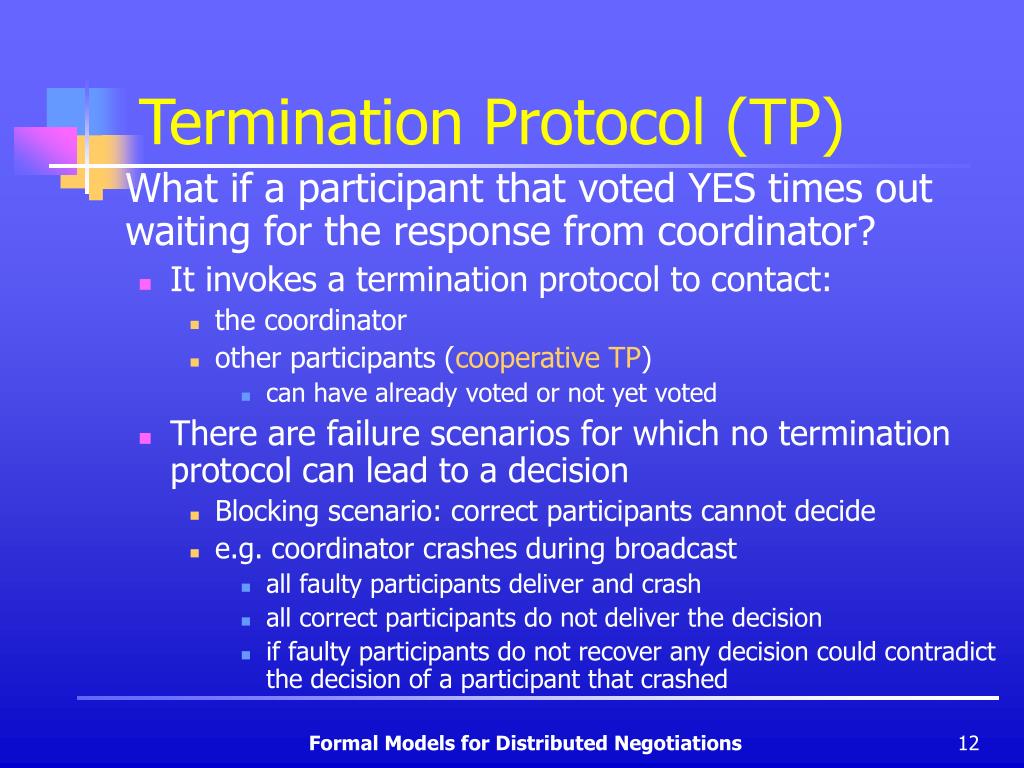

Termination Protocol (TP) Aires, July 21-26 2003

  • What if a participant that voted YES times out waiting for the response from coordinator?

    • It invokes a termination protocol to contact:

      • the coordinator

      • other participants (cooperative TP)

        • can have already voted or not yet voted

    • There are failure scenarios for which no termination protocol can lead to a decision

      • Blocking scenario: correct participants cannot decide

      • e.g. coordinator crashes during broadcast

        • all faulty participants deliver and crash

        • all correct participants do not deliver the decision

        • if faulty participants do not recover any decision could contradict the decision of a participant that crashed

Formal Models for Distributed Negotiations


Non blocking acp i l.jpg
Non-Blocking ACP I Aires, July 21-26 2003

  • set-timeout

  • wait-for VOTE-REQ[Tid] from coordinator // 1

    • send vote[Tid] to coordinator

    • if (vote==NO) then // unilateral abort

      • decide abort

    • else

      • set-timeout

      • wait-for decision from coordinator // 2

        • if (decision==abort) thendecide abort

        • else decide commit

      • on-timeout:decide abort// escape 2

  • on-timeout: decide abort //escape 1

Formal Models for Distributed Negotiations


Non blocking acp ii l.jpg
Non-Blocking ACP II Aires, July 21-26 2003

  • broadcast(m,S)

  • // Broadcaster as before

  • // other processes in S

    • upon-first-receipt m

      • send m to all processes in S // S can be sent along VOTE_REQ

      • deliver m

    • any process receiving m relays m to all others (if any correct process receives m, all correct process receive m, even if broadcaster crashes)

    • m is delivered only after relaying

Formal Models for Distributed Negotiations


Recovery l.jpg
Recovery Aires, July 21-26 2003

  • Participant p is recovering from a failure

    • Must reach a consistent decision

  • Suppose p remembers its state at the time it failed

    • Before voting

      • it can unilaterally abort

    • After deciding abort

      • it can unilaterally abort

    • After receiving commit / abort from coordinator

      • it had already decided and must behave accordingly

    • During the uncertainty period (voted YES)

      • Independent recovery is not possible!

      • Termination protocol is needed

Formal Models for Distributed Negotiations


Distributed transaction log l.jpg
Distributed Transaction Log Aires, July 21-26 2003

  • DTL is kept in stable storage at each site

    • Its content must survive failures

  • Coordinators and participants at that site can record information about transactions

    • Before/after sending VOTE_REQ, the coordinator C writes start2PC(S,Tid)

    • Before voting YES, a participant writes yes(C,S,Tid)

    • Before/after voting NO, a participant writes abort(Tid)

    • Before C sends commit, it writes commit(Tid)

    • Before/after C sends abort, it writes abort(Tid)

    • After receiving the decision, participant writes commit/abort

Formal Models for Distributed Negotiations


Recovery from dtl l.jpg
Recovery From DTL Aires, July 21-26 2003

  • If DTL contains start2PC (the site hosted the coordinator)

    • If it also contains commit/abort

      • The coordinator decided before failure

    • Otherwise

      • The coordinator can decide abort (and record it in DTL)

  • Otherwise

    • It contains commit/abort

      • The participant has reached decision before the failure

    • Does not contain yes

      • Either failed before voting or voted no

      • The participant can unilaterally abort

    • Otherwise (it contains yes but not commit/abort)

      • The participant failed in its uncertainty period

      • Must use the termination protocol

Formal Models for Distributed Negotiations


Cooperative tp initiator l.jpg
Cooperative TP: Initiator Aires, July 21-26 2003

  • send DECISION_REQ[Tid] to all processes in S

  • wait-for decision[Tid] from any process

    • if (decision==commit) then

      • write commit in DTL

    • else // decision==abort

      • write abort in DTL

Formal Models for Distributed Negotiations


Cooperative tp responder l.jpg
Cooperative TP: Responder Aires, July 21-26 2003

  • wait-for decision[Tid] from any process p

    • if (abort(Tid) in DTL) then

      • send abort to p

    • else if (commit(Tid) in DTL)then

      • send commit to p

Formal Models for Distributed Negotiations


Evaluation of 2pc l.jpg
Evaluation of 2PC Aires, July 21-26 2003

  • Criteria: Reliability vs Efficiency

    • Resiliency

      • What failures can be tolerated?

    • Blocking

      • Can processes be blocked?

      • Under which conditions?

    • Time Complexity

      • How long does it take to reach a decision?

    • Message Complexity

      • How many messages are exchanged to reach a decision?

      • What are their dimensions?

Formal Models for Distributed Negotiations


Balancing l.jpg

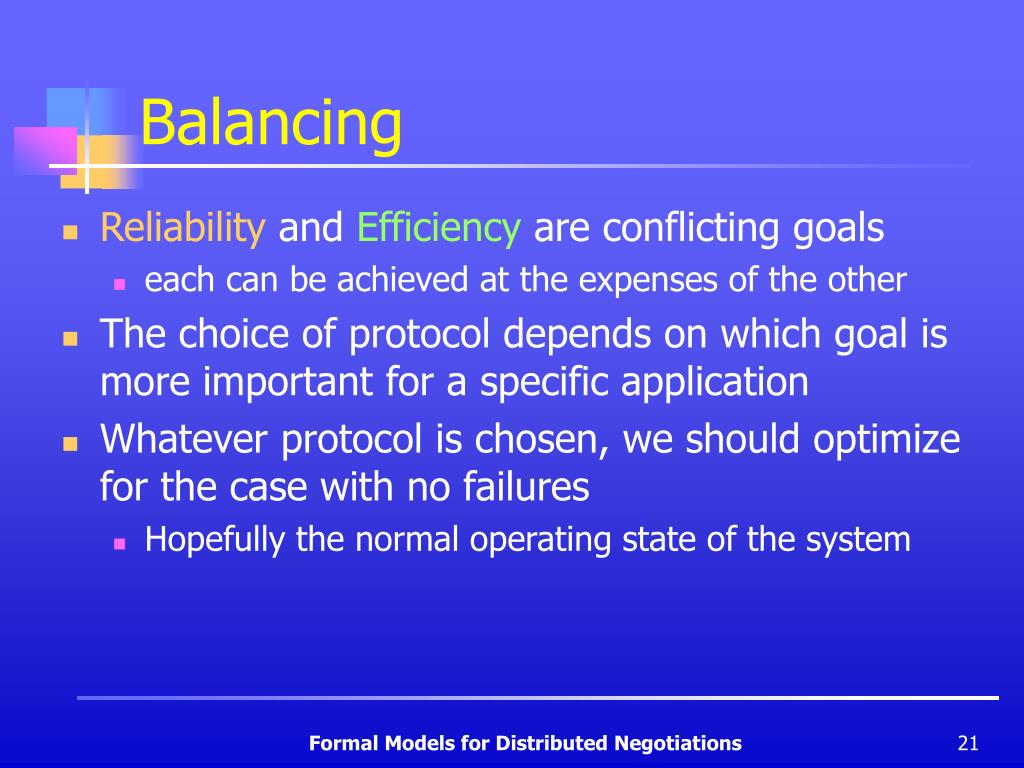

Balancing Aires, July 21-26 2003

  • Reliability and Efficiency are conflicting goals

    • each can be achieved at the expenses of the other

  • The choice of protocol depends on which goal is more important for a specific application

  • Whatever protocol is chosen, we should optimize for the case with no failures

    • Hopefully the normal operating state of the system

Formal Models for Distributed Negotiations


Measuring time complexity l.jpg
Measuring Time Complexity Aires, July 21-26 2003

  • A round is the max time for a message to reach its destination

    • Timeouts are based on the assumption that such a delay is known

  • Note that many messages can be sent in a single round

    • Two messages must belong to different rounds iff one cannot be sent before the other is received

  • Rounds are taken as time units

    • We count the number of rounds needed for unblocked sites to reach a decision, in the worst case

    • This neglects the time needed to process messages

      • Reasonable: messages delays usually exceed processing delays

    • Other two factors can be relevant:

      • DTL management (on stable storage)

      • Broadcasting preparation (to a large number of processes)

Formal Models for Distributed Negotiations


Measuring message complexity l.jpg

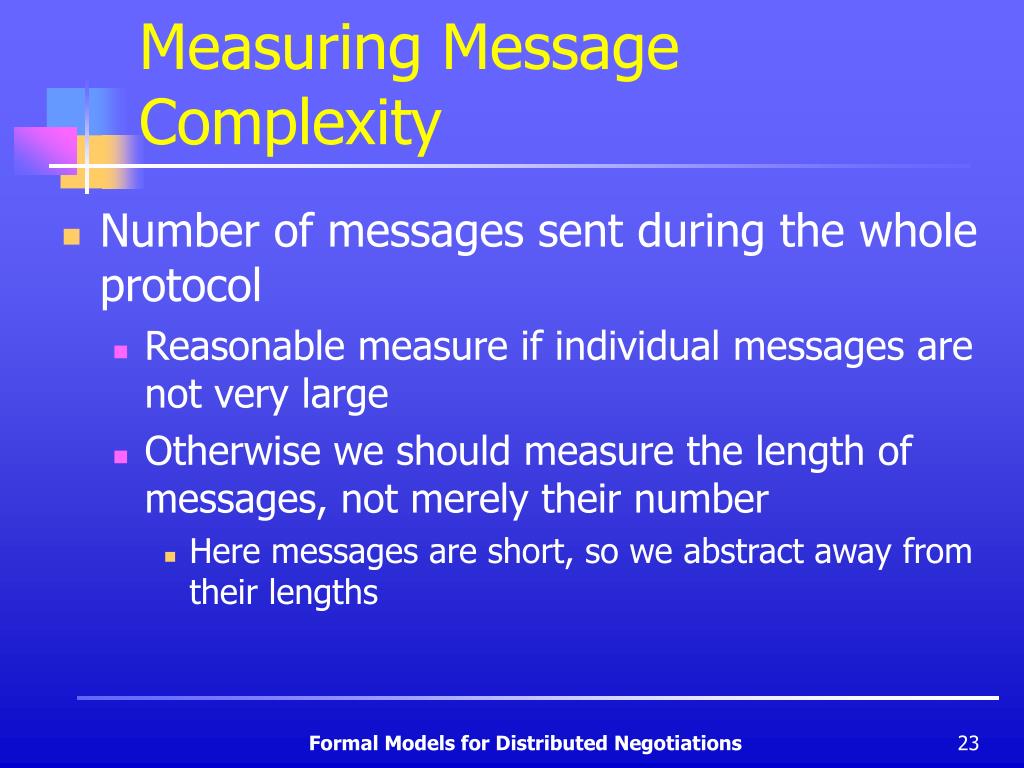

Measuring Message Complexity Aires, July 21-26 2003

  • Number of messages sent during the whole protocol

    • Reasonable measure if individual messages are not very large

    • Otherwise we should measure the length of messages, not merely their number

      • Here messages are short, so we abstract away from their lengths

Formal Models for Distributed Negotiations


Reliability of 2pc l.jpg
Reliability of 2PC Aires, July 21-26 2003

  • Resiliency

    • 2PC is resilient to

      • site failures

      • communication failures

    • In fact, the cause of timeouts is not important

  • Blocking

    • 2PC is subject to blocking

      • Probabilistic analysis can be performed depending on the probabilistic distribution of failures

Formal Models for Distributed Negotiations


Time complexity of 2pc l.jpg
Time Complexity of 2PC Aires, July 21-26 2003

  • In absence of failure, 2PC requires 3 rounds

    • Broadcast VOTE-REQ

    • Collect votes

    • Broadcast global decision

  • If failures happen, The TP may need 2 additional rounds

    • Broadcast DECISION_REQ

    • Reply from a process outside its uncertainty period

  • Note that several TPs can be initiated separately in the same round

  • Up to 5 rounds, independently from the number of failures!

    • But processes may remain blocked for an unbounded period of time

Formal Models for Distributed Negotiations


Message complexity of 2pc l.jpg
Message Complexity of 2PC Aires, July 21-26 2003

  • Let N+1 be the number of participants, including the coordinator

  • In each round of 2PC, there are N messages sent

  • Hence, in absence of failures 2PC uses 3N messages

  • Cooperative TP is invoked by all participants that voted YES but did not receive commit / abort

    • Let there be M such participants

    • M initiators, each sending N DECISION_REQ (MN messages)

    • At most N-M+1 processes will respond to the first request

      • In the worst case only one process abandons its uncertainty and will respond to another initiator: (N-M+1)+(N-M+2)+…+N

Formal Models for Distributed Negotiations


Calculating the message complexity of 2pc l.jpg
Calculating the Message Complexity of 2PC Aires, July 21-26 2003

  • In the worst case the total number of TP messages will be:

  • NM + i=1 (N-M+i) = NM + NM – M2 + M(M+1)/2

  • = 2NM – M2/2 + M/2 messages

  • This quantity is maximum when M=N

    • N(3N+1)/2 messages

  • The 2PC together with worst-case TP amount to

    • 3N + N(3N+1)/2 = N(3N+7)/2 messages

M

Formal Models for Distributed Negotiations


Communication topology l.jpg
Communication Topology Aires, July 21-26 2003

  • The communication topology of a protocol is the specification of who sends messages to whom

    • e.g. in 2PC without TP, the coordinator sends messages to participants and vice versa

      • Participants do not send messages directly to each other

      • The topology is described as a tree of height 1

Coordinator

Participant

Participant

Participant

Participant

Formal Models for Distributed Negotiations


Alternative 2pcs l.jpg
Alternative 2PCs Aires, July 21-26 2003

  • To reduce time and message complexity of centralized 2PC, two variations have been proposed, based on different communication topologies

    • Decentralized 2PC

      • Communication topology is a complete graph

      • Improve time complexity

    • Linear 2PC (aka Nested 2PC)

      • Linearly ordered processes

      • Reduce the number of messages

Formal Models for Distributed Negotiations


Decentralized 2pc l.jpg
Decentralized 2PC Aires, July 21-26 2003

  • Depending on its own vote, the coordinator sends YES or NO to all participants

    • Informs that it is time to vote

    • Tells the coordinator’s vote

  • If the message is NO

    • Each participant decides abort and stops

  • Otherwise, each participant sends back its vote to ALL OTHER PARTICIPANTS

  • After receiving all votes each process can decide autonomously

    • If all are YES and its own vote is YES, decide commit

    • Otherwise it decides abort

  • Timeouts can be employed as in the centralized 2PC

Formal Models for Distributed Negotiations


Evaluation of decentralized 2pc l.jpg
Evaluation of Decentralized 2PC Aires, July 21-26 2003

  • In the absence of failures, only 2 rounds are necessary

    • Coordinator voting YES / NO

    • Each participant voting YES / NO

  • More messages are needed: N2+N messages

    • N messages in the first round

    • N2 messages in the second round

    • (and this is just in absence of failures)

Formal Models for Distributed Negotiations


Linear 2pc l.jpg
Linear 2PC Aires, July 21-26 2003

  • Each participant can communicate only with its left / right neighbors

  • The coordinator is the leftmost process

    • It sends its vote YES / NO to its right neighbor

      • This message has a dual meaning as in decentralized 2PC

    • Each participant p waits for the vote from its left neighbor

      • If it is YES, and p votes YES, then p tells YES to its right neighbor

      • Otherwise, p tells NO to its right neighbor

    • When the rightmost participant receives the vote, it makes the final decision commit / abort

      • The decision is propagated from right to left

      • When the coordinator receives it, the protocol ends

  • Timeout periods are influenced by positions

Formal Models for Distributed Negotiations


Evaluation of linear 2pc l.jpg
Evaluation of Linear 2PC Aires, July 21-26 2003

  • Only 2N messages needed

    • N votes from left to right

    • N decisions from right to left

    • (and this is just in absence of failures)

  • Unfortunately the same amount of rounds is needed: 2N rounds

    • No two messages are sent concurrently

Formal Models for Distributed Negotiations


Comparison of 2pc variants l.jpg
Comparison of 2PC Variants Aires, July 21-26 2003

  • Hybrid communication topologies are also possible

    • e.g. Linear for voting, complete for conveying decision

      • 2N messages, N+1 rounds

  • The choice of the protocol might be influenced by the available communication topology

Formal Models for Distributed Negotiations


From 2pc to 3pc l.jpg
From 2PC to 3PC Aires, July 21-26 2003

  • In 2PC, if all operational participants are uncertain, they are blocked

    • They cannot decide abort even if aware that processes they cannot communicate with have failed, because some of them could have decided commit before failure

    • The 3CP is an ACP designed to rule out this situation

      • It guarantees that if any operational process is uncertain, then no (operational / failed) process can have decided commit

      • Thus, if p realizes that any operational site is uncertain, then p can decide abort

    • Why does 2PC violate this property?

      • A participant p can receive commit while q is still uncertain

Formal Models for Distributed Negotiations


Sketch of 3pc the idea l.jpg
Sketch of 3PC: The Idea Aires, July 21-26 2003

  • After the coordinator has found that all votes were YES, it sends pre-commit messages to all participants

  • When a participant p receives pre-commit, it knows that all participants voted YES

    • p is no longer uncertain, but does not decide commit yet

    • p knows that it will decide commit unless it fails

    • p acknowledges the receipt of pre-commit

  • When the coordinator collects all acks it knows that no participant is uncertain

    • The coordinator sends commit to all participants

  • When a participant receives commit, it decides commit

  • If a participant voted NO, then 3PC behaves as 2PC

Formal Models for Distributed Negotiations


Sketch of 3pc some notes l.jpg
Sketch of 3PC: Some Notes Aires, July 21-26 2003

  • In absence of failures, 3PC involves 5 rounds and up to 5N messages

  • Participants have four possible states

    • Aborted, Uncertain, Committable, Committed

    • For p and q any two participants, only certain combinations of their states are possible

  • Timeouts can occur in five situations

    • 3 are trivially handled

    • 2 require a complex termination protocol

      • Election protocol (for a new coordinator) based on a linear ordering of participants

      • The new coordinator checks the states of all operational participants

      • Timeouts are again necessary

Formal Models for Distributed Negotiations


Recap l.jpg
Recap Aires, July 21-26 2003

  • We have seen

    • Atomic Commitment Problem

    • Several ACP protocols

      • Generic ACP

      • Centralized 2PC (Good middle ground)

      • Non-Blocking ACP

      • Decentralized 2PC (OK if end-to-end delays must be minimized)

      • Linear 2PC (OK if messages are expensive)

      • 3PC (sketched)

    • Learned some criteria to evaluate and compare protocols

      • Usually also dependent on the communication topology

Formal Models for Distributed Negotiations


References l.jpg
References Aires, July 21-26 2003

  • Concurrency control and recovery in database systems (Chapter 7, Addison-Wesley 1987)

    • P. Bernstein, N. Goodman, V. Hadzilacos

  • Non-blocking atomic commitment (Chapter 6 of Distributed Systems, Addison-Wesley 1995)

    • O. Babaoglu, S. Toueg

Formal Models for Distributed Negotiations


ad
