Presentation Transcript
Lead by a morrie craig and anita holman l.jpg

Service ~ Endophyte

Testing Laboratory

Lead by A. Morrie Craig

and Anita Holman


History of the oregon seed straw industries l.jpg
History of the Oregon Seed & Straw Industries

  • 1987-1991: Field burning of grass straw phase-out completed

    • 250,000 acres down to 40,000 acres


History of the oregon seed straw industries3 l.jpg
History of the Oregon Seed & Straw Industries

  • Exportation of straw begins to increase

    • Pollution control tax credit from OR legislature

    • Export of grass straw to Japan grows to 250,000 tons/year in 1991

    • Seed companies intensify use of endophyte since it lessens the need for pesticides, fertilizers and water

      • Pushes up concentration of ergot alkaloids in straw, creating the need for clinical-related research and testing and research for a long term, proactive solution


History of the oregon seed straw industries4 l.jpg
History of the Oregon Seed & Straw Industries

  • 1991-1999

    • Grass seed export increases over 200% (250,000 to 500,000 tons/year)

      • Represents 250,000 acres/year that are no longer burned

    • 1996: Oregon Legislature votes on money to be directed towards endophyte research at OSU


Crisis in japan l.jpg
Crisis in Japan

  • 1998: shipments to Japan were shut down by Japanese gov’t d.t. fear of high level of endophyte toxins

  • Dr. Craig, seed industry and National Hay Association established the endophyte testing program and reaffirmed commitment to finding a long term solution

    • Reopened export to Japan

  • 1999-present: funding from the OR Ag Fiber Assn, state of Oregon and USDA was granted to study practical and clinical aspects of endophyte-infected forages and their effects on livestock

  • 2002: export increases to over 600,000 tons/year



Slide7 l.jpg

Tall fescue ~ Ergovaline HPLC Analysis

Perennial ryegrass ~Lolitrem B HPLC Analysis

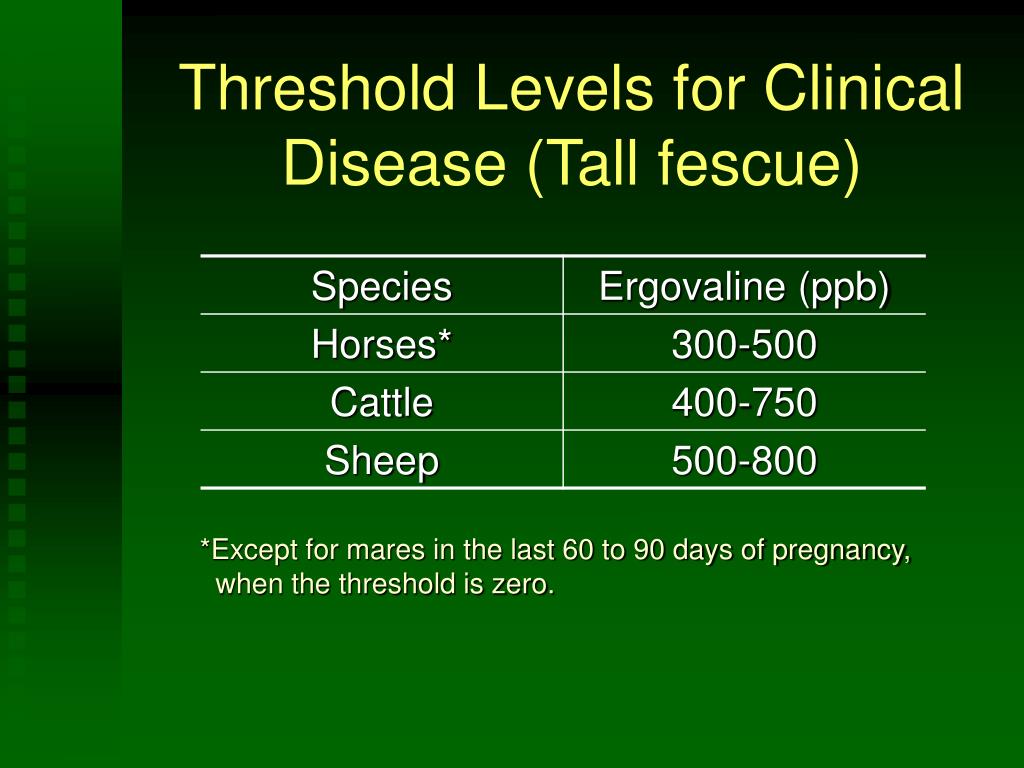

Threshold levels for clinical disease tall fescue l.jpg
Threshold Levels for Clinical Disease (Tall fescue)

*Except for mares in the last 60 to 90 days of pregnancy,

when the threshold is zero.

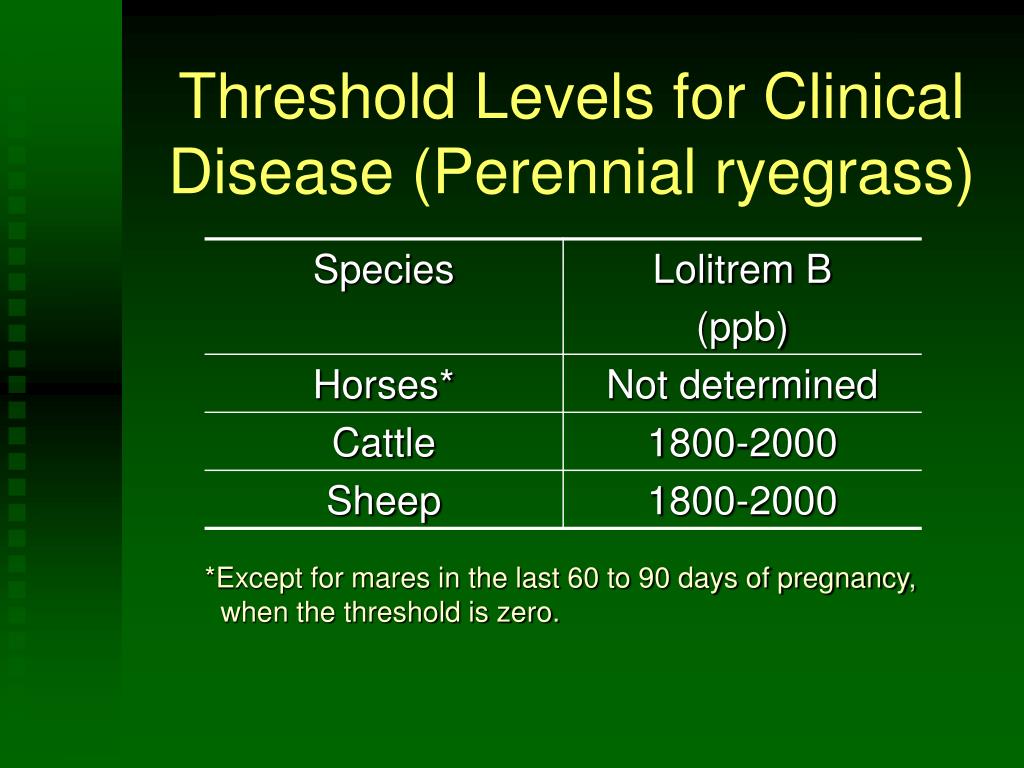

Threshold levels for clinical disease perennial ryegrass l.jpg
Threshold Levels for Clinical Disease (Perennial ryegrass)

*Except for mares in the last 60 to 90 days of pregnancy,

when the threshold is zero.


Sample analysis l.jpg
Sample Analysis

Grind → Extract → Sample Prep

HPLC → Chromatogram → Analysis and Data Reduction


Analysis of endophyte toxins l.jpg
Analysis of Endophyte Toxins

  • Log in samples

    • Accession number and submission form

    • Enter into computer log and case records


Analysis of endophyte toxins12 l.jpg
Analysis of Endophyte Toxins

  • Grind Samples

    • Use a grinding mill with 0.5 mm screen

    • Clean between each sample

    • Store in freezer until analysis


Analysis of endophyte toxins13 l.jpg
Analysis of Endophyte Toxins

  • Schedule run

    • Priority

  • Label glassware

  • Weigh out run

    • Duplicate

      • Samples

      • Controls

      • Reference material

    • 1.00g ergovaline, 0.200g lolitrem B


Analysis of endophyte toxins14 l.jpg
Analysis of Endophyte Toxins

  • Add mixing solutions

    • Ergovaline: 10 ml CHCl3, 1 ml internal standard (ergotamine tartrate) and 1 ml 0.001 N NaOH

    • Lolitrem B: CHCl3:MeOH (2:1 v/v)

  • Cap


Analysis of endophyte toxins15 l.jpg
Analysis of Endophyte Toxins

  • Turn in rotorack for 18-24 hours


Analysis of endophyte toxins16 l.jpg
Analysis of Endophyte Toxins

  • Centrifuge samples

  • Pull out supernatant


Analysis of endophyte toxins17 l.jpg
Analysis of Endophyte Toxins

  • Extraction

    • Ergovaline: manifold with SPE (1.0g silica and 0.5g sodium sulfate)

      • Condition with CHCl3

      • Add 5 ml supernatant

      • Wash twice with 1 ml

        75% CHCl3/25% acetone

      • Wash with 1.5 ml MeOH

      • Elute with 2.5 ml MeOH


Analysis of endophyte toxins18 l.jpg
Analysis of Endophyte Toxins

  • Concentrate

    • Ergovaline: dry eluent in N2 evaporator at 50°C

    • Lolitrem B: dry 1.8 ml supernatant in N2 evaporator

  • Reconstitute

    • Ergovaline: 0.5 ml MeOH

    • Lolitrem B: 0.5 ml CHCl3:ACN (4:1 v/v)

  • Vortex and sonicate

  • Final “filter”

    • Ergovaline: centrifuge

    • Lolitrem B: centrifuge in Nanosep

      microcentrifuge tubes

    • Add this solution to

      amber HPLC vials


Analysis of endophyte toxins19 l.jpg
Analysis of Endophyte Toxins

  • Run samples on HPLC system

    • Program computer and auto sampler

      • Create sequence and load method

    • Make mobile phase

    • Warm up system and prime pump

    • Load vials into auto sampler

    • Start injections


Analysis of endophyte toxins20 l.jpg
Analysis of Endophyte Toxins

  • Evaluate chromatograms

    • Draw baselines

    • Look for ‘abnormal’ fingerprint

    • Quantify


Analysis of endophyte toxins21 l.jpg
Analysis of Endophyte Toxins

  • Enter results into log file

  • Generate client summary and certificates

    • Fax of phone results

    • Send results and billing information

  • File lab copy of results

  • Transfer completed samples to long term storage freezer

Sample


Quality control program for the tall fescue and perennial ryegrass toxins ergovaline and lolitrem b l.jpg
Quality Control Program for the Tall Fescue and Perennial Ryegrass Toxins, Ergovaline and Lolitrem B

Oregon State University

College of Veterinary Medicine

Dr. Craig’s Laboratory


Slide23 l.jpg

GOAL Ryegrass Toxins, Ergovaline and Lolitrem B

Accurate and consistent results from the analysis of samples for ergovaline and lolitrem B between laboratories in Oregon, Missouri and Japan


Make the perfect standard l.jpg
Make the Perfect Standard Ryegrass Toxins, Ergovaline and Lolitrem B

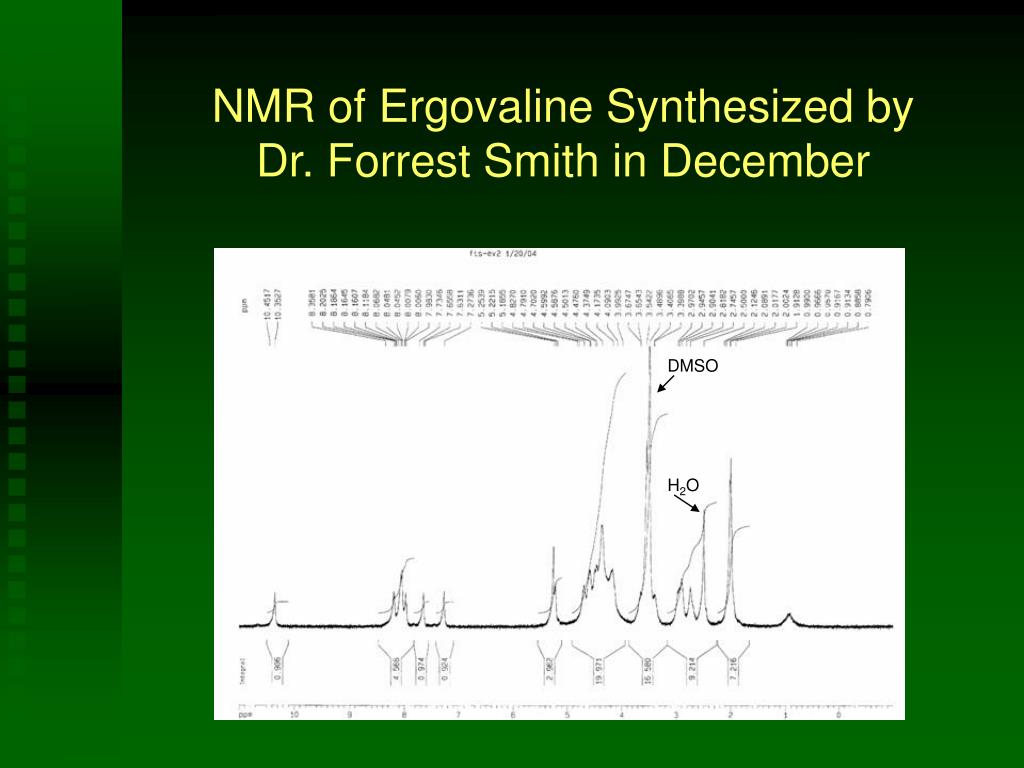

Nmr of ergovaline synthesized by dr forrest smith in december l.jpg
NMR of Ergovaline Synthesized by Ryegrass Toxins, Ergovaline and Lolitrem B Dr. Forrest Smith in December

DMSO

H2O


Chn analysis of december sample l.jpg
CHN Analysis of December Sample Ryegrass Toxins, Ergovaline and Lolitrem B

Expected Found

C 57.22% 57.02%

H 6.11% 6.33%

N 10.11% 10.04%

2 Ergovaline + 2 Tartaric acid + H2O


Ergovaline crystalline standard osu method l.jpg
Ergovaline Crystalline Standard Ryegrass Toxins, Ergovaline and Lolitrem B OSU Method

Ergovaline

5.6 µg/ml

Ergotamine

Ergotamine epimer

Ergovaline epimer

2.8 µg/ml

1.12 µg/ml

0.28 µg/ml


New quality control reference material for interlaboratory analysis l.jpg
New Quality Control Reference Material for Interlaboratory Analysis

  • Zero Seed

  • 300 ppb seed

  • 3300 ppb seed


Chuck estill shanna ivey anita holman jennifer duringer a morrie craig l.jpg

Dairy Case Studies Analysis

Winter 2003-2004

Chuck Estill, Shanna Ivey, Anita Holman, Jennifer Duringer, A. Morrie Craig


The problem l.jpg
The Problem Analysis

  • Reproductive problems at four dairies in the Willamette Valley in fall-winter 2003

    • cows not coming into heat as frequently

    • silent heats

    • decreased conception rates


Causes l.jpg
Causes Analysis

  • Viral or bacterial

    • Dr’s Estill and Holcheck involved → exams showed no sign of pathogen involvement

  • Mycotoxin

    • screened for two dairies → negative

  • Something else

    • same innoculum used for ensiling process by all four dairies

    • “new” toxin…


Causes con t l.jpg
Causes con’t Analysis

  • Endophyte

    • prolactin: no obvious trend

    • ergovaline and lolitrem B: low levels in hay and silage

    • new peak: RT = 5 minutes in EV assay

      • only in silage, not hay from same field

      • another ergot alkaloid?





Ms ms m z 593 of 5 minute peak l.jpg

mw = 60 Analysis

C=12, O=16, H=1

Ergovaline

mw = 533.63

Molecular formula = C29H35N5O5

MS/MS (m/z 593) of 5 Minute Peak


Taking it one step further ms 7 of 5 minute peak m z 533 l.jpg
Taking it one step further…MS Analysis7 of 5-minute peak m/z 533

5-minute peak m/z 533


Where do we go from here l.jpg
Where do we go from here? Analysis

  • Identify the molecule

    • Nuclear Magnetic Resonance Spectroscopy

      • How many C and H?

    • C,H, & N Analysis

      • What percent is the molecule composed of C,H, & N?

  • Post-incident (2004…)

    • Reproduction problems abated

    • 5 minute peak has decreased in some cases, others it is still there


Slide39 l.jpg

Questions? Analysis
