Etching of High

Aspect Ratio Trenches

Abstract authors: S. Panda, R. Ranade, and G. Mathad

IBM/Infineon DRAM Development Alliance

2070 Route 52, Zip 33A

Hopewell Jct., NY12533

Presented by Yu-Chun Chen

October 4, 2002

ELEC 7730 02’


Introduction
Introduction

  • High aspect ratio (AR) trenches:

    1. MEMS, non-DRAM applications (deep

    trench isolation, power transistor, etc.)

    2. Electronic components, e.g. DRAM

    (trench capacitor, necessary to achieve

    large values of capacitance in the

    fabrication of charge storage capacitors)

ELEC 7730 02'


Outline

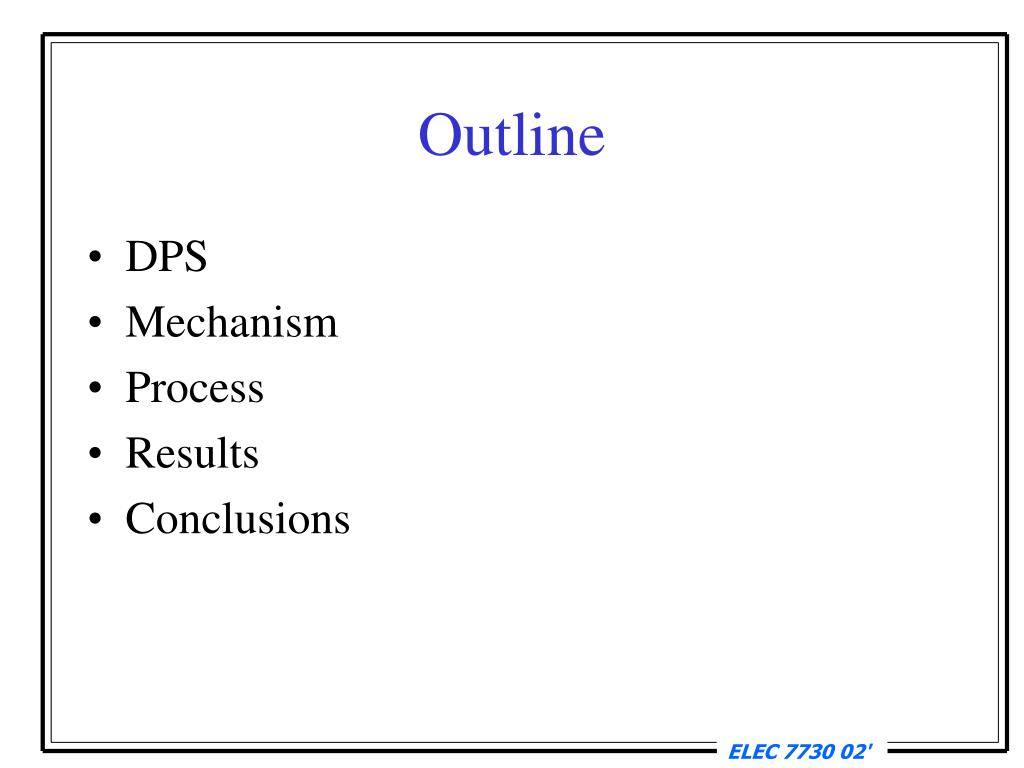

Outline

  • DPS

  • Mechanism

  • Process

  • Results

  • Conclusions

ELEC 7730 02'


Dps decoupled plasma system

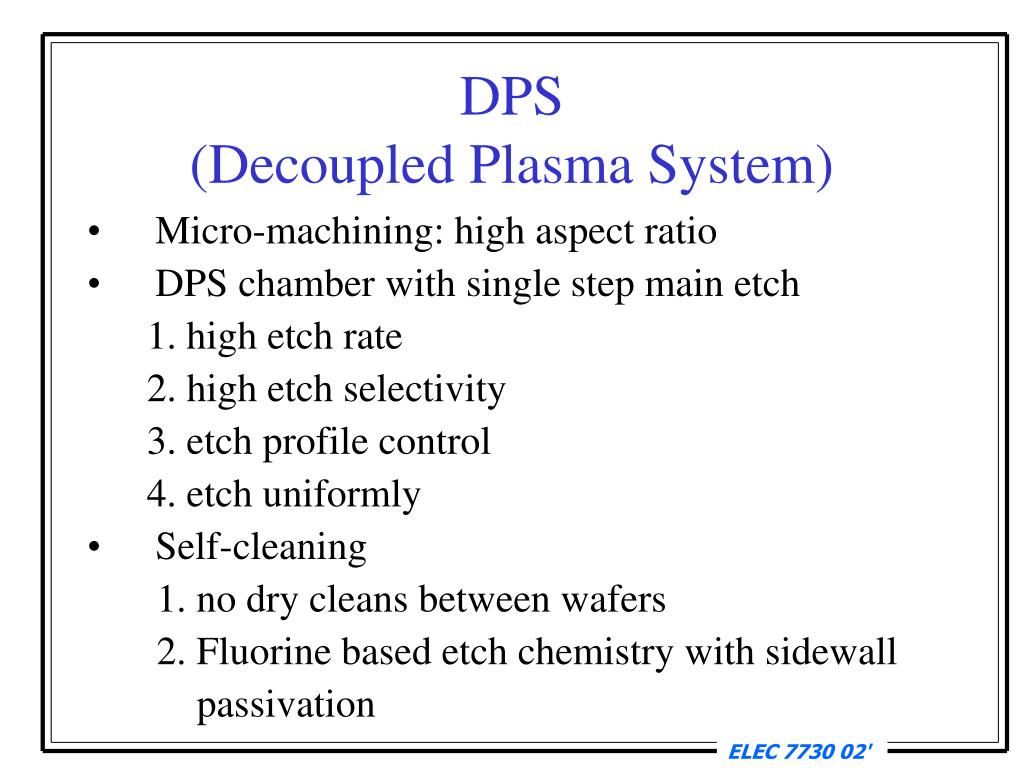

DPS (Decoupled Plasma System)

  • Micro-machining: high aspect ratio

  • DPS chamber with single step main etch

    1. high etch rate

    2. high etch selectivity

    3. etch profile control

    4. etch uniformly

  • Self-cleaning

    1. no dry cleans between wafers

    2. Fluorine based etch chemistry with sidewall

    passivation

ELEC 7730 02'


Dps chamber

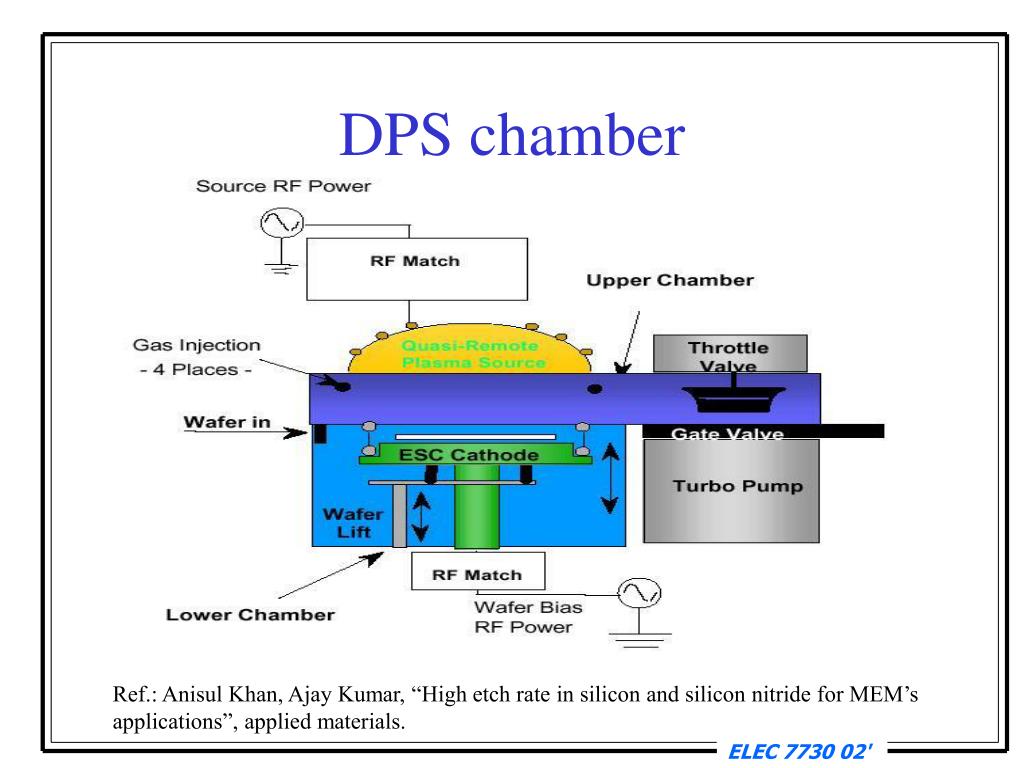

DPS chamber

Ref.: Anisul Khan, Ajay Kumar, “High etch rate in silicon and silicon nitride for MEM’s

applications”, applied materials.

ELEC 7730 02'

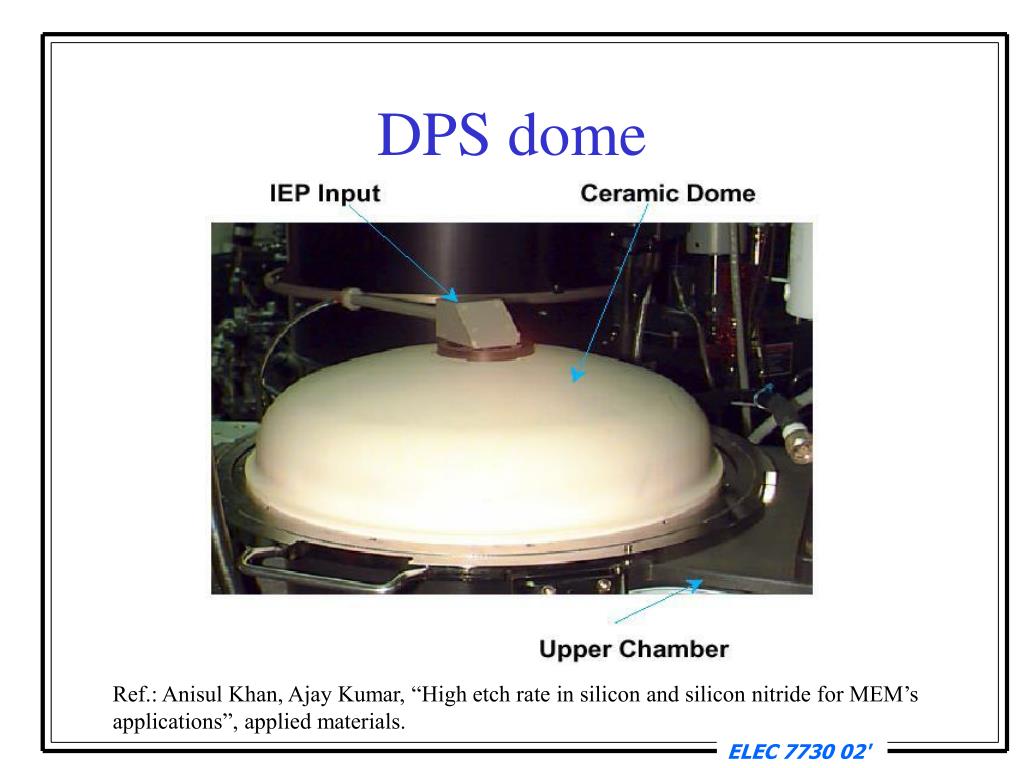

Dps dome
DPS dome

Ref.: Anisul Khan, Ajay Kumar, “High etch rate in silicon and silicon nitride for MEM’s

applications”, applied materials.

ELEC 7730 02'


Process parameters

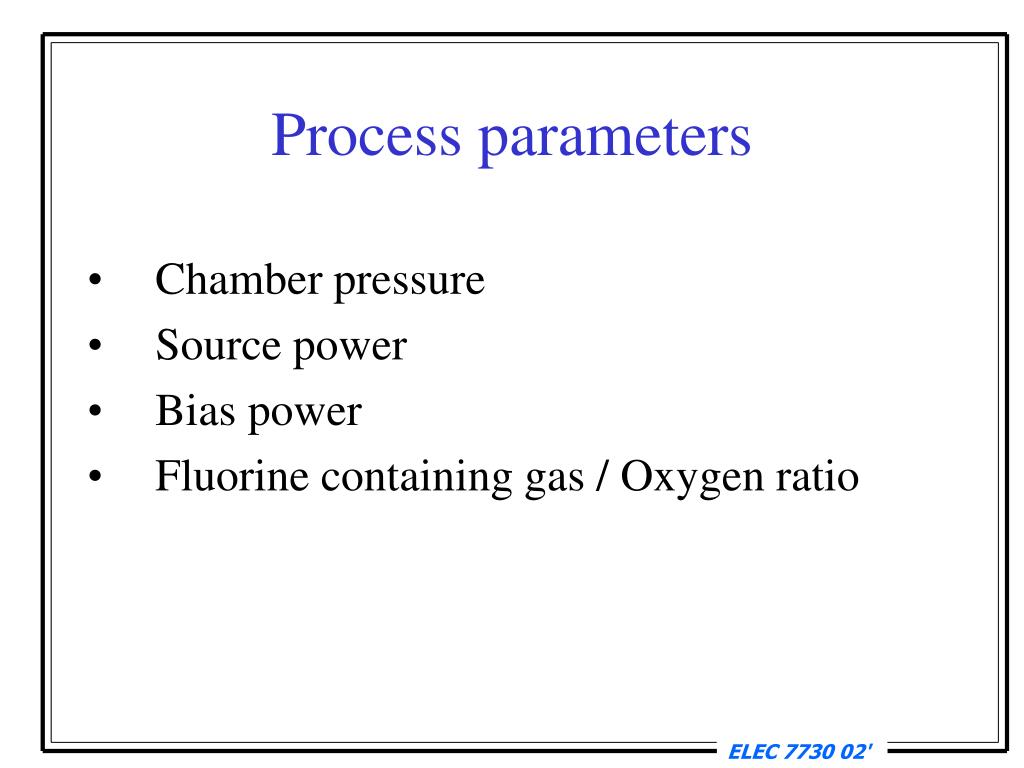

Process parameters

  • Chamber pressure

  • Source power

  • Bias power

  • Fluorine containing gas / Oxygen ratio

ELEC 7730 02'


Mechanism
Mechanism

  • The challenge: to perfectly control the trench profiles during the etching process, which means a perfect knowledge and control of passivation and etching mechanisms

  • High aspect ratio deep silicon beams are formed by a process of deep trench etch and silicon undercut release etch by using oxide spacer to protect the silicon beam sidewalls during release etch.

  • In this paper: to achieve significantly higher silicon etch rates and deeper trenches

ELEC 7730 02'


Process
Process

  • The gas mixture used: HBr + NF3 + O2 (in this paper)

  • The etching process has a deposition component built in, which builds up an passivation film on trench surfaces.

  • A thin passivation film is deposited on the sidewalls continuously as the trench is being etched

  • The oxide-like film prevents the trench sidewalls from being etched.

ELEC 7730 02'


Process1

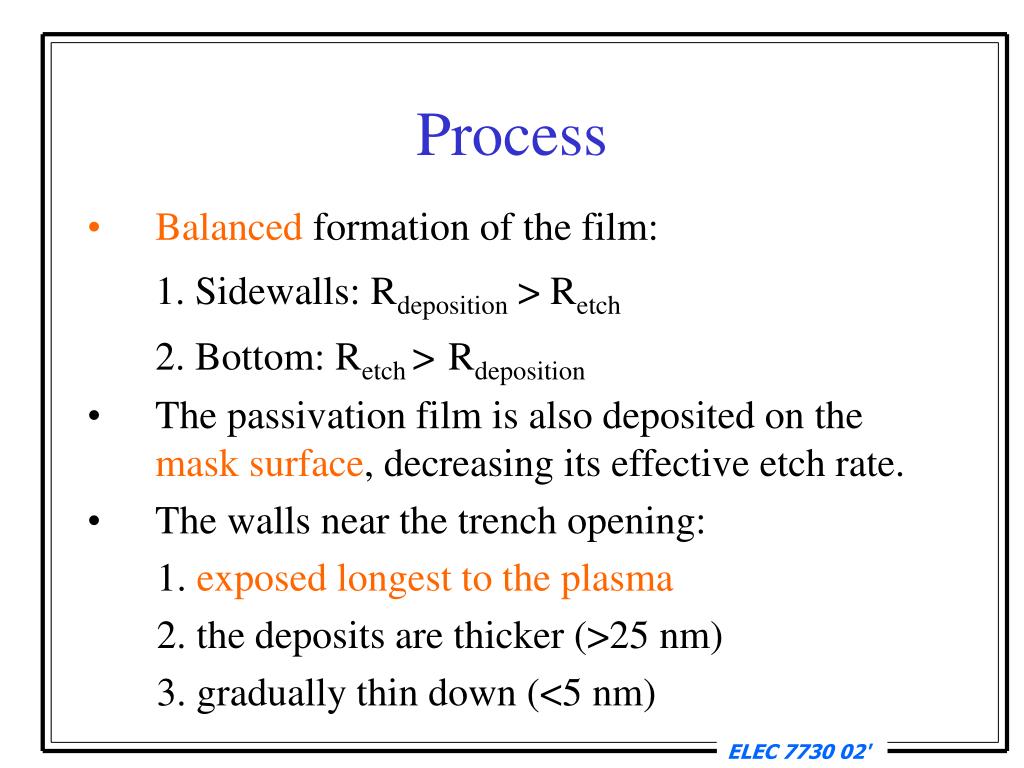

Process

  • Balanced formation of the film:

    1. Sidewalls: Rdeposition > Retch

    2. Bottom: Retch >Rdeposition

  • The passivation film is also deposited on the mask surface, decreasing its effective etch rate.

  • The walls near the trench opening:

    1. exposed longest to the plasma

    2. the deposits are thicker (>25 nm)

    3. gradually thin down (<5 nm)

ELEC 7730 02'

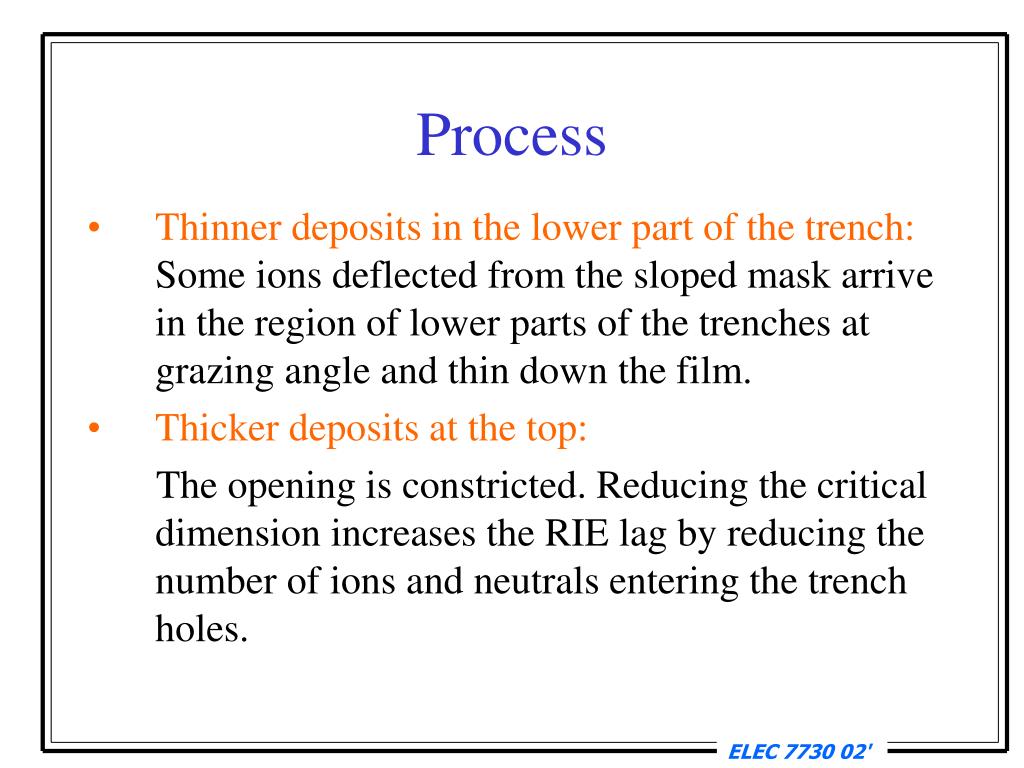

Process2
Process

  • Thinner deposits in the lower part of the trench: Some ions deflected from the sloped mask arrive in the region of lower parts of the trenches at grazing angle and thin down the film.

  • Thicker deposits at the top:

    The opening is constricted. Reducing the critical dimension increases the RIE lag by reducing the number of ions and neutrals entering the trench holes.

ELEC 7730 02'

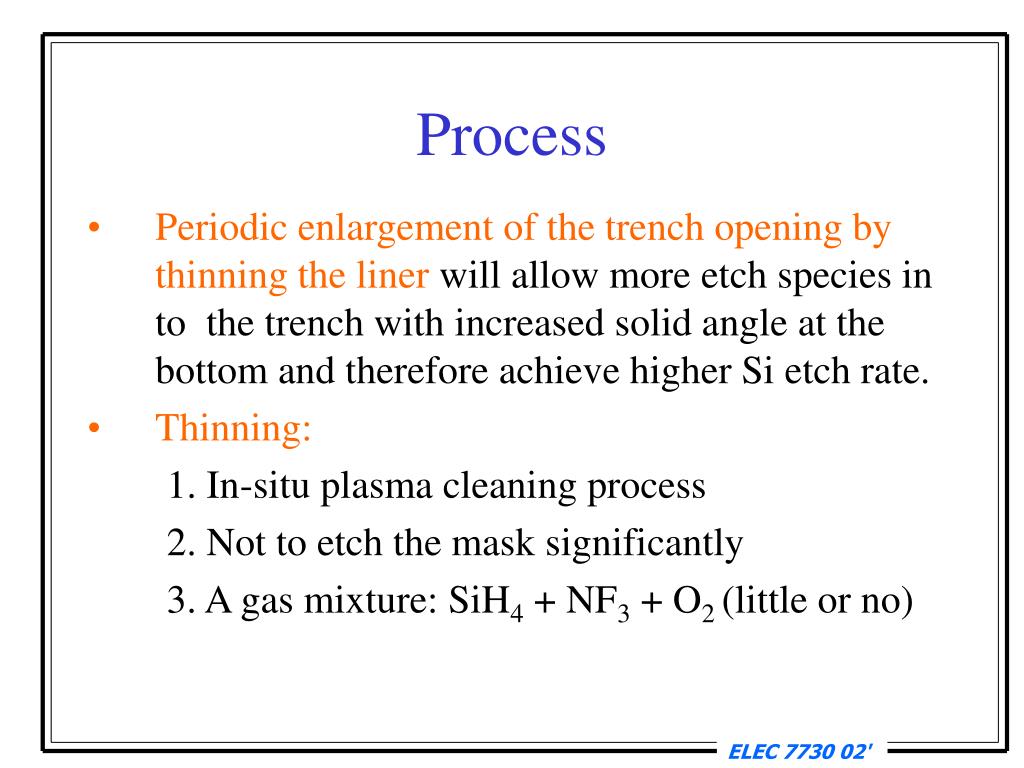

Process3
Process

  • Periodic enlargement of the trench opening by thinning the liner will allow more etch species in to the trench with increased solid angle at the bottom and therefore achieve higher Si etch rate.

  • Thinning:

    1. In-situ plasma cleaning process

    2. Not to etch the mask significantly

    3. A gas mixture: SiH4 + NF3 + O2 (little or no)

ELEC 7730 02'


Gas pressure effect
Gas pressure effect

Ref.: Anisul Khan, Ajay Kumar, “High etch rate in silicon and silicon nitride for MEM’s

applications”, applied materials.

ELEC 7730 02'

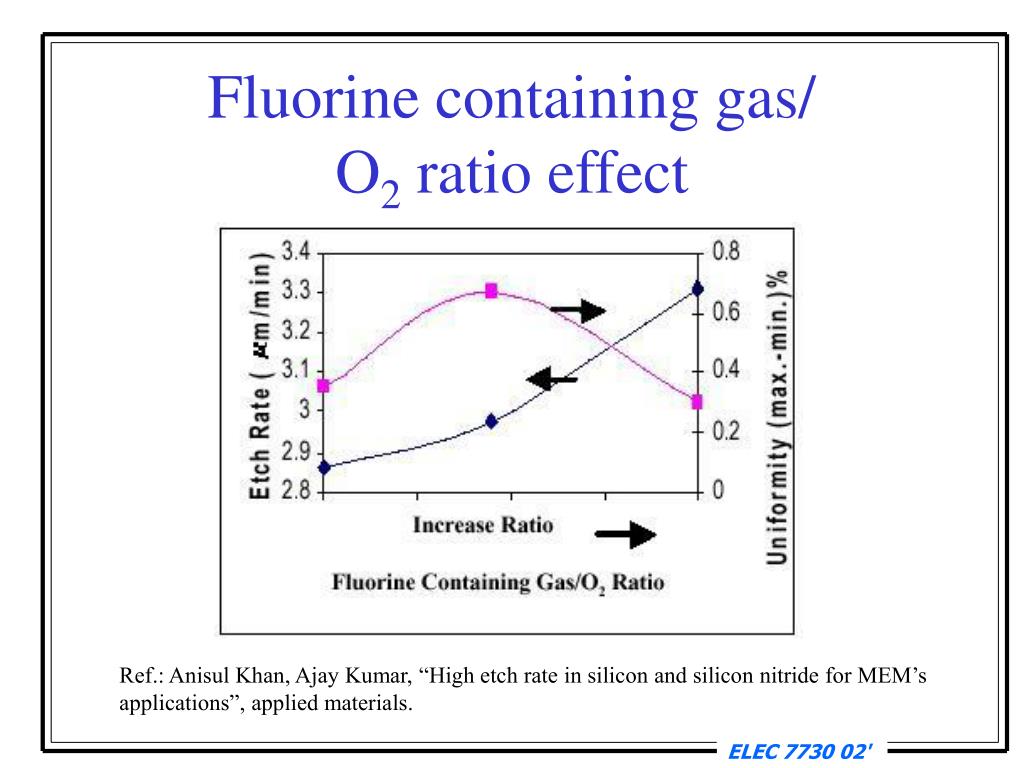

Fluorine containing gas o 2 ratio effect
Fluorine containing gas/O2 ratio effect

Ref.: Anisul Khan, Ajay Kumar, “High etch rate in silicon and silicon nitride for MEM’s

applications”, applied materials.

ELEC 7730 02'


Source power effect
Source power effect

Ref.: Anisul Khan, Ajay Kumar, “High etch rate in silicon and silicon nitride for MEM’s

applications”, applied materials.

ELEC 7730 02'


Bias power effect

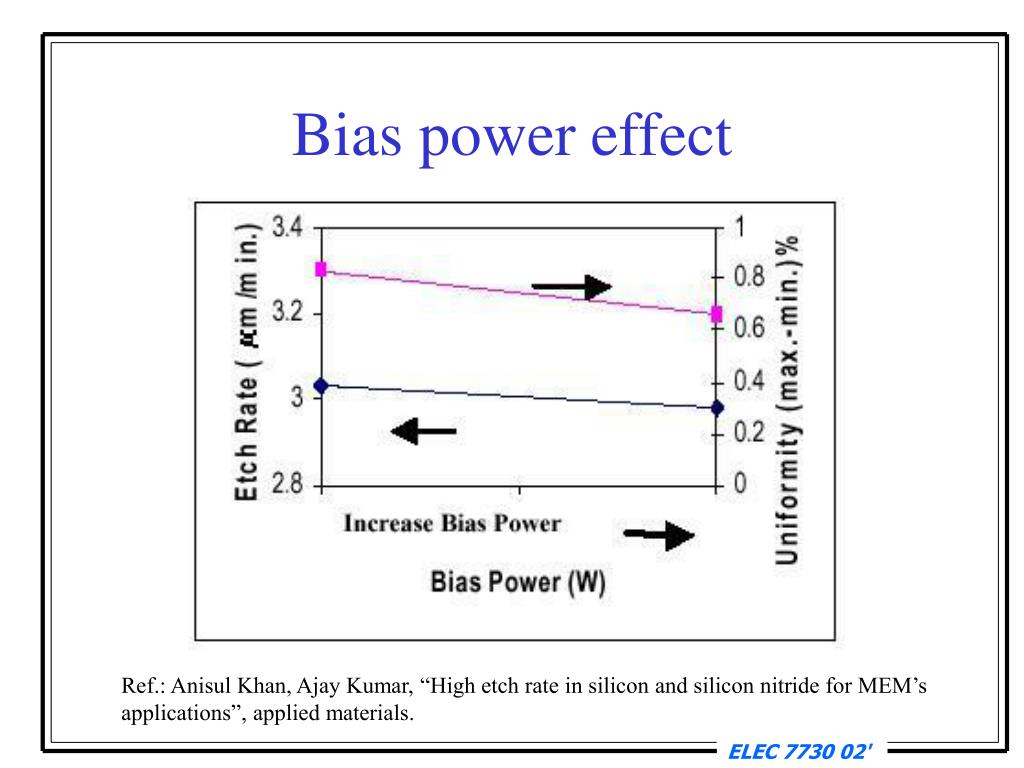

Bias power effect

Ref.: Anisul Khan, Ajay Kumar, “High etch rate in silicon and silicon nitride for MEM’s

applications”, applied materials.

ELEC 7730 02'


Bias power temperature effect

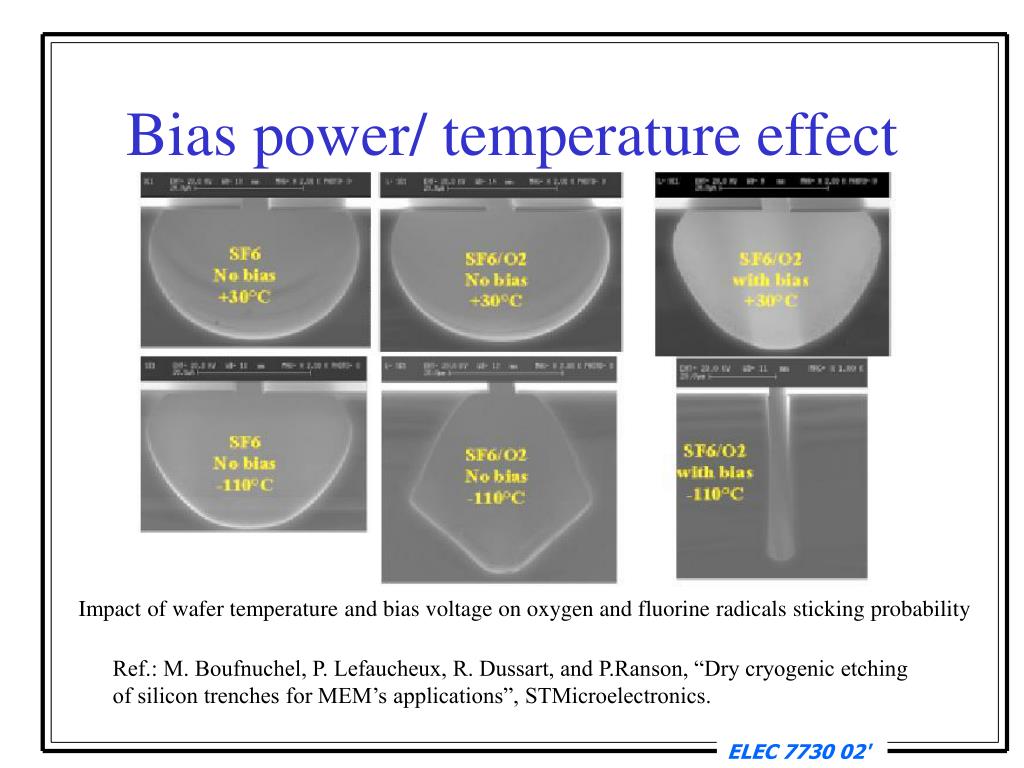

Bias power/ temperature effect

Ref.: M. Boufnuchel, P. Lefaucheux, R. Dussart, and P.Ranson, “Dry cryogenic etching

of silicon trenches for MEM’s applications”, STMicroelectronics.

Impact of wafer temperature and bias voltage on oxygen and fluorine radicals sticking probability

ELEC 7730 02'


Etch rate dependence mask opening size

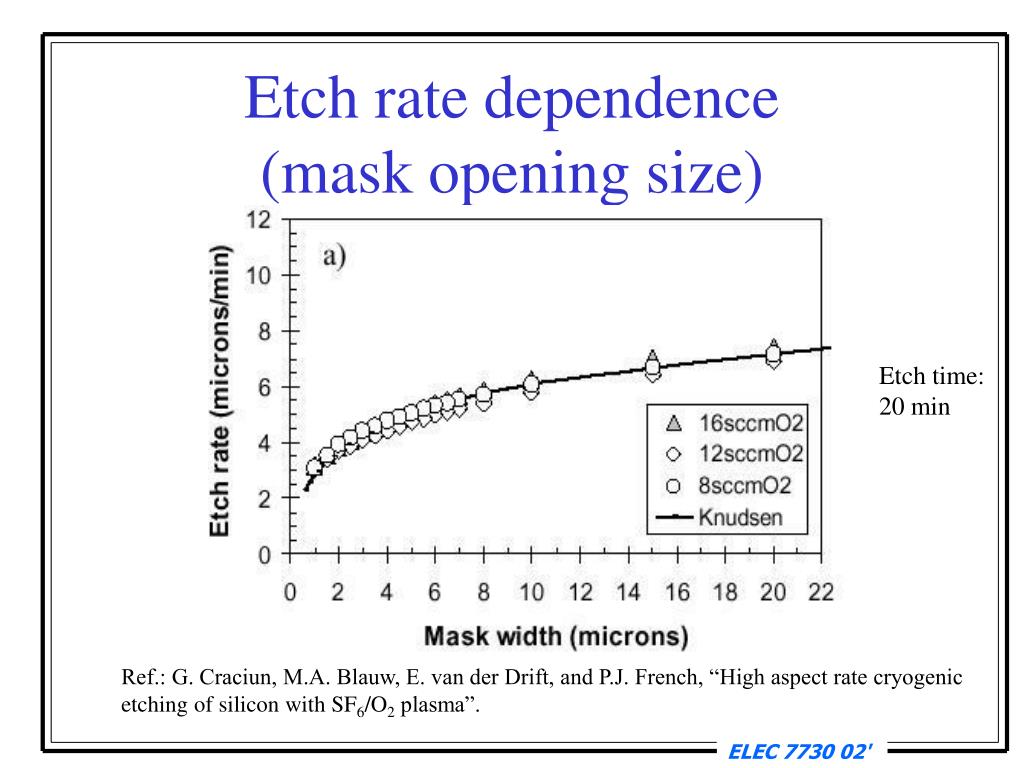

Etch rate dependence(mask opening size)

Etch time:

20 min

Ref.: G. Craciun, M.A. Blauw, E. van der Drift, and P.J. French, “High aspect rate cryogenic

etching of silicon with SF6/O2 plasma”.

ELEC 7730 02'

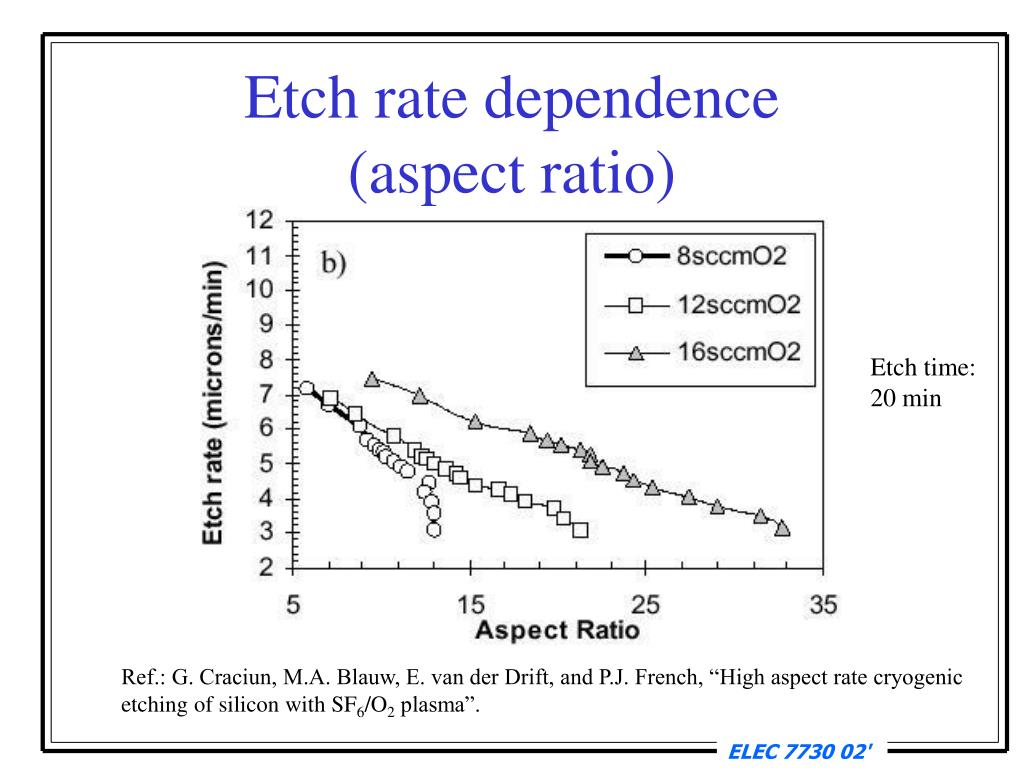

Etch rate dependence aspect ratio
Etch rate dependence(aspect ratio)

Etch time:

20 min

Ref.: G. Craciun, M.A. Blauw, E. van der Drift, and P.J. French, “High aspect rate cryogenic

etching of silicon with SF6/O2 plasma”.

ELEC 7730 02'


Trench etched

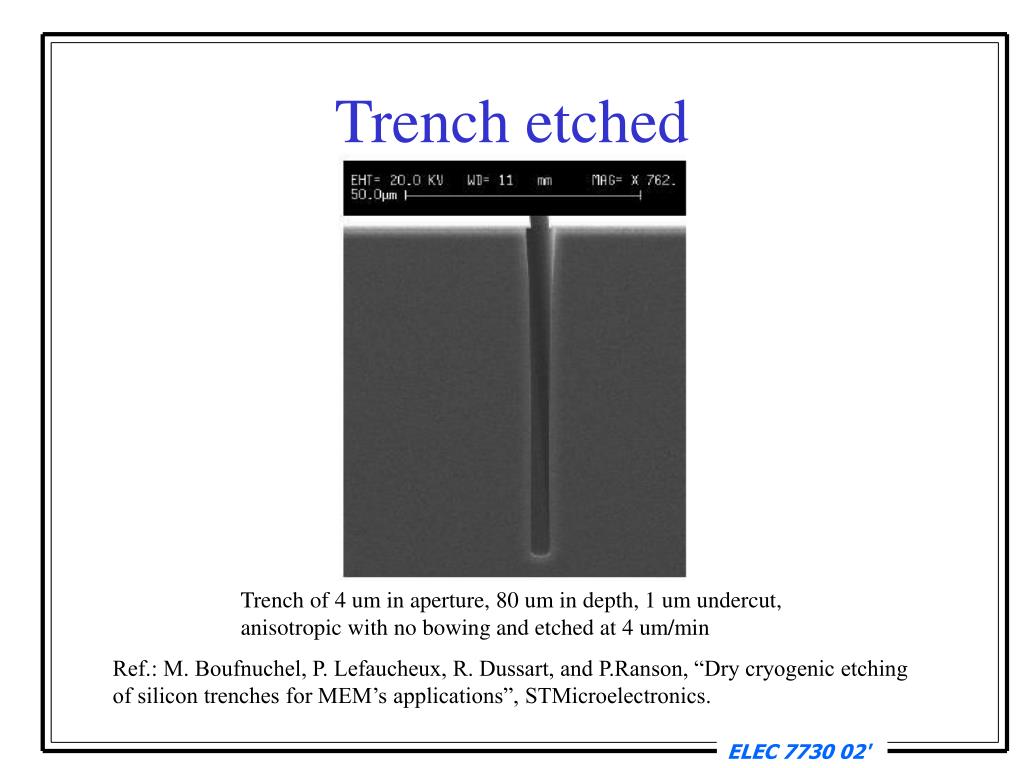

Trench etched

Ref.: M. Boufnuchel, P. Lefaucheux, R. Dussart, and P.Ranson, “Dry cryogenic etching

of silicon trenches for MEM’s applications”, STMicroelectronics.

Trench of 4 um in aperture, 80 um in depth, 1 um undercut,

anisotropic with no bowing and etched at 4 um/min

ELEC 7730 02'


High aspect ratio line pattern etch

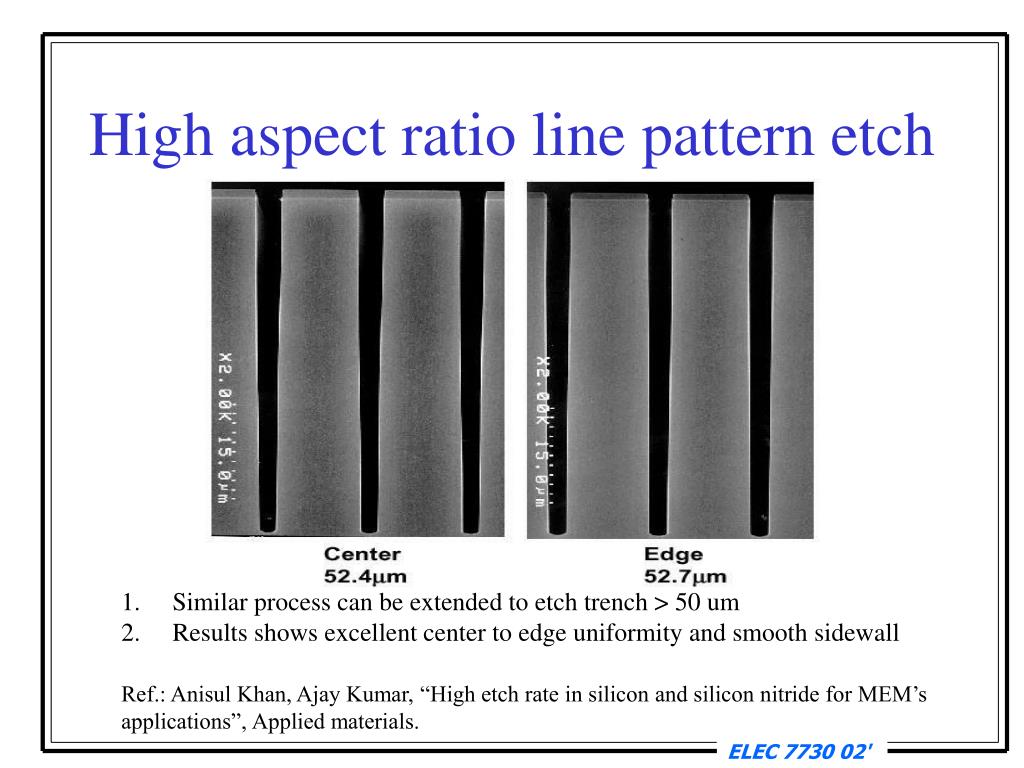

High aspect ratio line pattern etch

  • Similar process can be extended to etch trench > 50 um

  • Results shows excellent center to edge uniformity and smooth sidewall

Ref.: Anisul Khan, Ajay Kumar, “High etch rate in silicon and silicon nitride for MEM’s

applications”, Applied materials.

ELEC 7730 02'

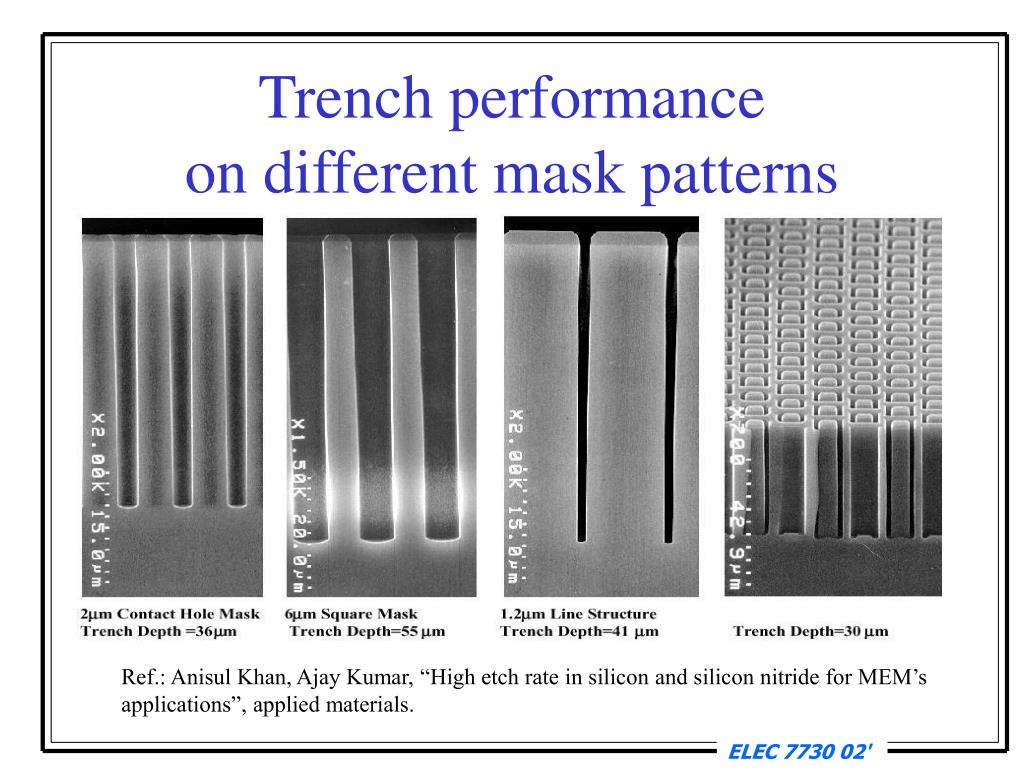

Trench performance on different mask patterns
Trench performance on different mask patterns

Ref.: Anisul Khan, Ajay Kumar, “High etch rate in silicon and silicon nitride for MEM’s

applications”, applied materials.

ELEC 7730 02'

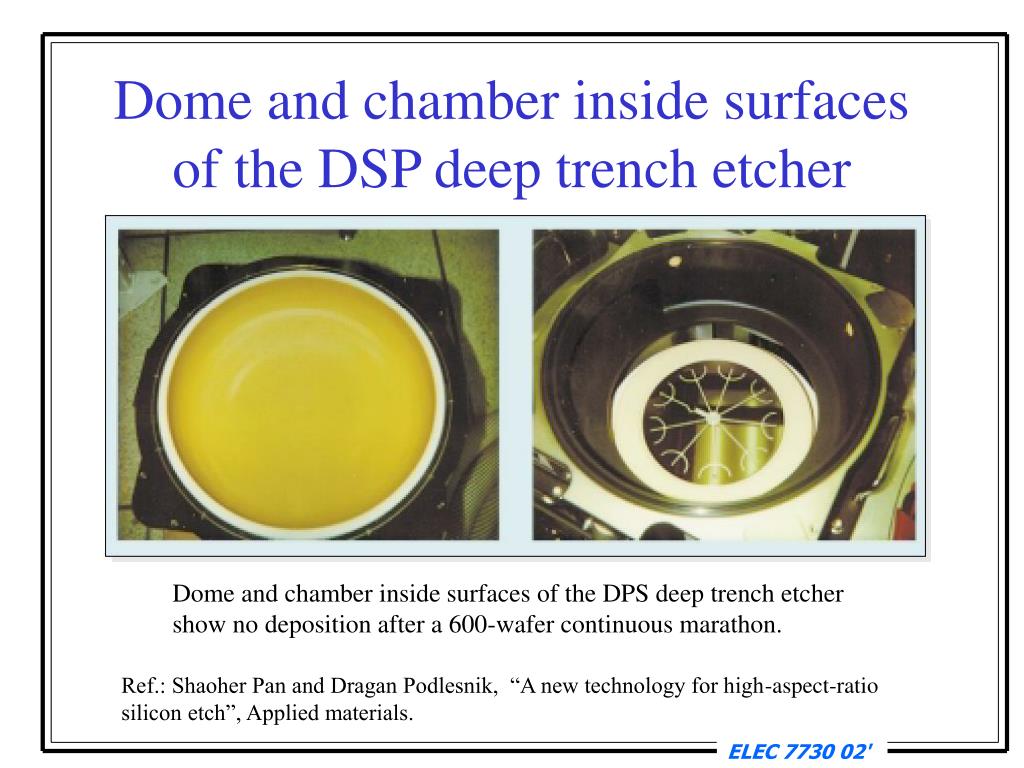

Dome and chamber inside surfaces of the dsp deep trench etcher
Dome and chamber inside surfaces of the DSP deep trench etcher

Dome and chamber inside surfaces of the DPS deep trench etcher

show no deposition after a 600-wafer continuous marathon.

Ref.: Shaoher Pan and Dragan Podlesnik, “A new technology for high-aspect-ratio

silicon etch”, Applied materials.

ELEC 7730 02'

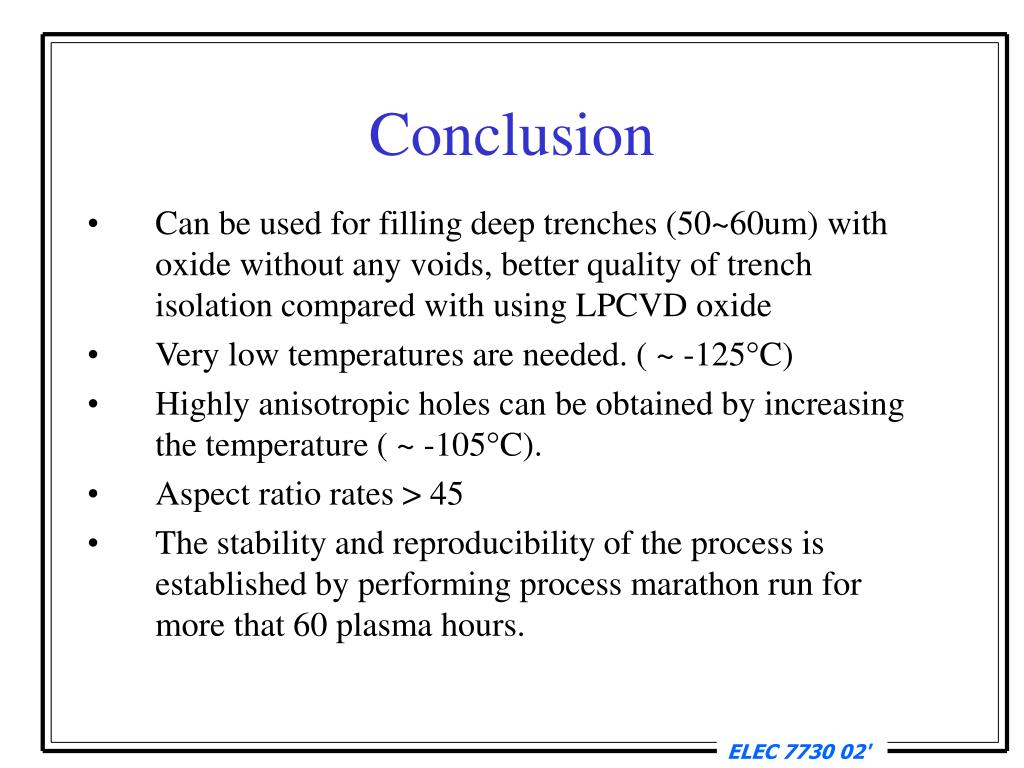

Conclusion
Conclusion etcher

  • Can be used for filling deep trenches (50~60um) with oxide without any voids, better quality of trench isolation compared with using LPCVD oxide

  • Very low temperatures are needed. ( ~ -125°C)

  • Highly anisotropic holes can be obtained by increasing the temperature ( ~ -105°C).

  • Aspect ratio rates > 45

  • The stability and reproducibility of the process is established by performing process marathon run for more that 60 plasma hours.

ELEC 7730 02'


Iep interferometric endpoint
IEP etcher(Interferometric Endpoint)

1. Interferometry is a powerful technique that can be used for

endpoint detection of planar layer and trench etching, or

deposition. The technique involves illuminating the surface of a sample (typically a wafer) and measuring the reflected

intensity.

2. The system may be used as a simple reflectometer, in which

case interfaces between materials with different refractive

indices can be detected by the resultant step change in the

reflectivity signal.

Ref.: http://www.jyhoriba.co.uk/jy/tfilms/digilem.htm.

ELEC 7730 02'
