Presentation Transcript
Graphics and java2d l.jpg

Graphics and Java2D

Joe Komar

Komar Associates


Overview l.jpg
Overview

  • Graphics contexts and graphics objects

  • Color control

  • Font control

  • Drawing lines, rectangles, ovals, arcs, polygons, and polylines

  • Java2D API

  • Java2D Shapes

Komar Associates

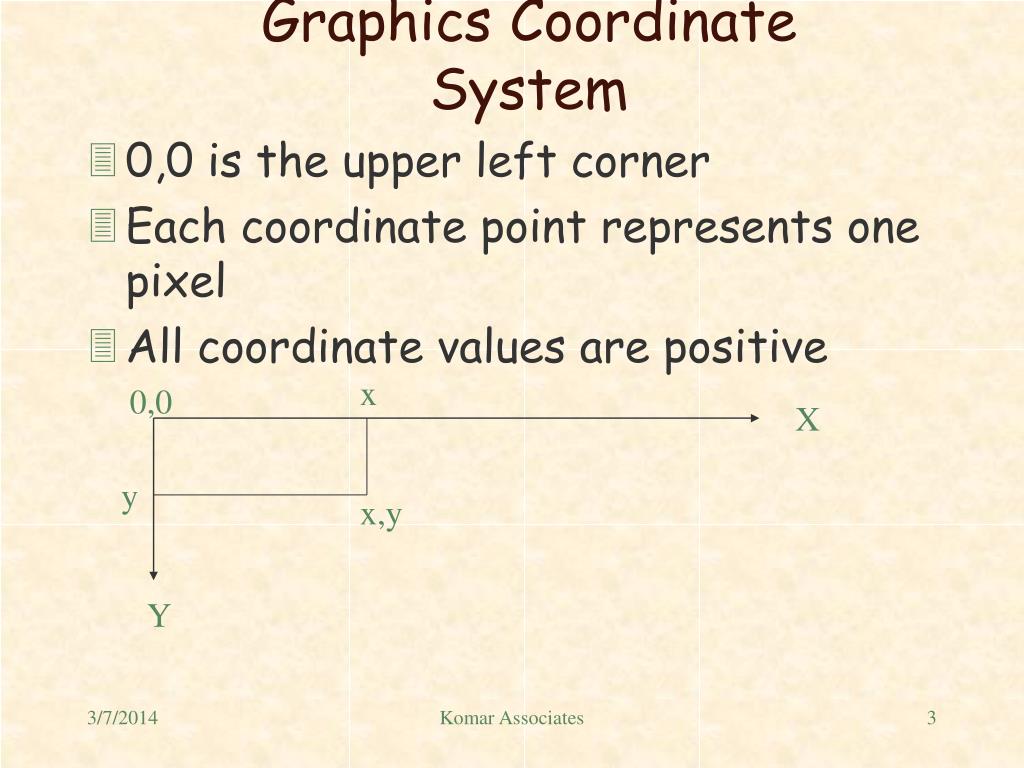

Graphics coordinate system l.jpg
Graphics Coordinate System

  • 0,0 is the upper left corner

  • Each coordinate point represents one pixel

  • All coordinate values are positive

x

0,0

X

y

x,y

Y

Komar Associates


Coordinates applet l.jpg
Coordinates Applet

import java.awt.*;

import java.applet.*;

public class Coordinates extends Applet {

public void paint (Graphics page){

setSize (300,200);

page.drawRect (0, 0, 299, 199);

page.drawLine (50, 50, 250, 100);

page.drawString ("<50, 50>", 25, 45);

page.drawString ("<250, 100>", 225, 115);

}// method paint

}// class Coordinates

Komar Associates

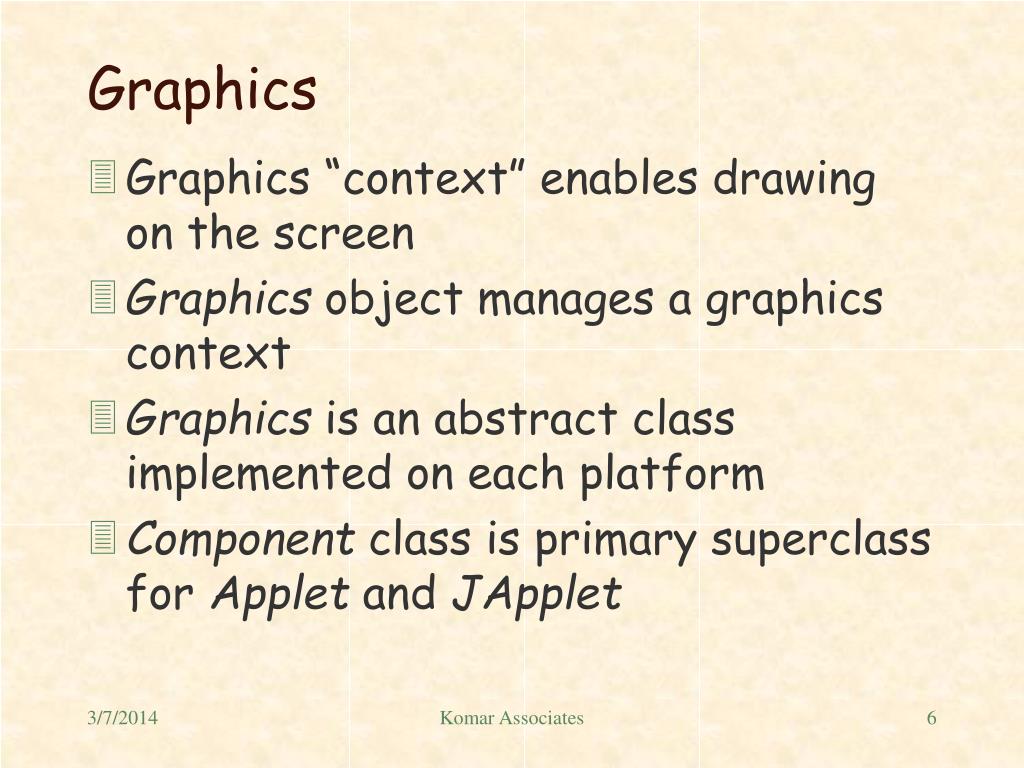

Graphics l.jpg
Graphics

  • Graphics “context” enables drawing on the screen

  • Graphics object manages a graphics context

  • Graphics is an abstract class implemented on each platform

  • Component class is primary superclass for Applet and JApplet

Komar Associates


Paint method of component l.jpg
paint method of Component

  • Accepts a Graphics object

  • Must be overridden

  • When Applet runs, calls init, start, then paint methods

  • repaint method called by programmer, which calls the Component’s update then paint method

Komar Associates


Colors l.jpg
Colors

  • Color class is part of java.awt

  • Colors are defined by a mixture of Red, Blue, and Green

    • RGB

    • defined by three numbers ranging from (0,0,0) for black to (255,255,255) for white

    • over 16 million colors available

    • many systems cannot distinguish among so many colors

  • Predefined colors (final static Color objects)

    • e.g., Color.blue, Color.green, Color.cyan

Komar Associates


Defining colors l.jpg
Defining Colors

  • Color (int red, int green, int blue)

    • Integer values between 0 and 255

  • Color (float red, float green, float blue)

    • Decimal values between 0.0 and 1.0

  • Color (int rgb)

    • bits 0-7 represent blue, 8-15 represent green, 16-23 represent red

Komar Associates


Defining colors10 l.jpg
Defining Colors

  • Color brown = new Color (107, 69, 38);

  • brown.getBlue() returns 38 (getRed and getGreen)

  • brown.brighter()

    • returns a bit brighter Color

  • brown.darker()

    • returns a bit darker Color

Komar Associates


Nature applet l.jpg
Nature Applet

import java.awt.*;

import java.applet.*;

public class Nature extends Applet {

public void paint (Graphics page) {

setBackground (Color.darkGray);

page.setColor (Color.red);

page.drawRect (10, 15, 125, 85);

page.setColor (Color.green);

page.drawString ("Nature's first green", 25,45);

page.setColor (Color.yellow);

page.drawString ("is gold", 50, 75);

}// method paint

}// class Nature

Komar Associates


Nature applet results l.jpg
Nature Applet Results

Komar Associates


Showcolors example l.jpg
ShowColors Example

// Fig. 11.5: ShowColors.java

// Demonstrating Colors

import java.awt.*;

import javax.swing.*;

import java.awt.event.*;

public class ShowColors extends JFrame {

public ShowColors()

{

super( "Using colors" );

setSize( 400, 130 );

show();

}

Komar Associates


Showcolors example14 l.jpg
ShowColors Example

public void paint( Graphics g )

{

// set new drawing color using integers

g.setColor( new Color( 255, 0, 0 ) );

g.fillRect( 25, 25, 100, 20 );

g.drawString( "Current RGB: " + g.getColor(), 130, 40 );

// set new drawing color using floats

g.setColor( new Color( 0.0f, 1.0f, 0.0f ) );

g.fillRect( 25, 50, 100, 20 );

g.drawString( "Current RGB: " + g.getColor(), 130, 65 );

// set new drawing color using static Color objects

g.setColor( Color.blue );

g.fillRect( 25, 75, 100, 20 );

g.drawString( "Current RGB: " + g.getColor(), 130, 90 );

Komar Associates


Showcolors example15 l.jpg
ShowColors Example

// display individual RGB values

Color c = Color.magenta;

g.setColor( c );

g.fillRect( 25, 100, 100, 20 );

g.drawString( "RGB values: " + c.getRed() + ", " +

c.getGreen() + ", " + c.getBlue(), 130, 115 );

}

Komar Associates


Showcolors example16 l.jpg
ShowColors Example

public static void main( String args[] )

{

ShowColors app = new ShowColors();

app.addWindowListener(

new WindowAdapter() {

public void windowClosing( WindowEvent e )

{

System.exit( 0 );

}

}

);

}

}

Komar Associates


Showcolors example17 l.jpg
ShowColors Example

Komar Associates


Jcolorchooser dialog box l.jpg
JColorChooser Dialog Box

  • static method showDialog of class JColorChooser presents dialog

  • Can choose by color swatch; hue, saturation and brightness (HSB); or by red, green, blue (RGB)

  • Returns the Color object chosen

  • See example run...

Komar Associates


Fonts l.jpg
Fonts

  • Uses currently supported fonts on the system

  • Constructor takes String font-name, int style, int size

  • Styles - Font.PLAIN, Font.BOLD, Font.ITALIC

  • Size is number of points (1/72nd of an inch)

Komar Associates


Fonts example l.jpg
Fonts Example

// Fig. 11.9: Fonts.java

// Using fonts

import java.awt.*;

import javax.swing.*;

import java.awt.event.*;

public class Fonts extends JFrame {

public Fonts()

{

super( "Using fonts" );

setSize( 420, 125 );

show();

}

Komar Associates


Fonts example21 l.jpg
Fonts Example

public void paint( Graphics g )

{

// set current font to Serif (Times), bold, 12pt

// and draw a string

g.setFont( new Font( "Serif", Font.BOLD, 12 ) );

g.drawString( "Serif 12 point bold.", 20, 50 );

// set current font to Monospaced (Courier),

// italic, 24pt and draw a string

g.setFont( new Font( "Monospaced", Font.ITALIC, 24 ) );

g.drawString( "Monospaced 24 point italic.", 20, 70 );

// set current font to SansSerif (Helvetica),

// plain, 14pt and draw a string

g.setFont( new Font( "SansSerif", Font.PLAIN, 14 ) );

g.drawString( "SansSerif 14 point plain.", 20, 90 );

Komar Associates


Fonts example22 l.jpg
Fonts Example

// set current font to Serif (times), bold/italic,

// 18pt and draw a string

g.setColor( Color.red );

g.setFont(

new Font( "Serif", Font.BOLD + Font.ITALIC, 18 ) );

g.drawString( g.getFont().getName() + " " +

g.getFont().getSize() +

" point bold italic.", 20, 110 );

}

Komar Associates


Fonts example23 l.jpg
Fonts Example

public static void main( String args[] )

{

Fonts app = new Fonts();

app.addWindowListener(

new WindowAdapter() {

public void windowClosing( WindowEvent e )

{

System.exit( 0 );

}

}

);

}

}

Komar Associates


Fonts example24 l.jpg
Fonts Example

Komar Associates


Font metrics l.jpg
Font Metrics

  • Height -- total size

  • Ascent -- basic character size

  • Leading -- above character

  • Descent -- below character

  • Methods to get these as well as getFontMetrics to return a FontMetrics object

Komar Associates


Drawing shapes l.jpg
Drawing Shapes

  • Lines, ovals, rectangles, arcs, polygons, and polylines

    • circle is a specific kind of oval

    • square is a specific kind of rectangle

    • polygons include any many-sided shapes

    • polylines are lines connected end-to-end

  • Most shapes can be drawn filled or unfilled

    • e.g. drawOval versus fillOval

Komar Associates


Ovals l.jpg
Ovals

  • drawOval (int x, int y, int width, int height)

  • fillOval (int x, int y, int width, int height)

width

height

Komar Associates


Ovals as spinning disk l.jpg
Ovals as Spinning Disk

import java.awt.*;

import java.applet.*;

public class Rotating_Disk extends Applet {

public void paint (Graphics page) {

int width = 0, height = 40;

int x = 100, y = 100, warp = 1;

page.setXORMode (getBackground());

for (int change = 1; change < 1000; change++) {

width += warp * 2;

x -= warp;

if (width == 0 || width == 40)

warp *= -1;

page.fillOval (x, y, width, height);

for (int pause = 1; pause <= 500000; pause++);

page.fillOval (x, y, width, height);

}// for loop

}// method paint

}// class Rotating_Disk

Komar Associates


Spinning disk in action l.jpg
Spinning Disk In Action

Rotating Disk Applet

Komar Associates


Rectangles l.jpg
Rectangles

  • drawRect (int x, int y, int width, int height)

  • fillRect (int x, int y, int width, int height)

  • clearRect (int x, int y, int width, int height)

  • drawRoundRect (int x, int y, int width, int height, int arc_width, int arc_height)

  • fillRoundRect (int x, int y, int width, int height, int arc_width, int arc_height)

  • draw3DRect (int x, int y, int width, int height, boolean raised)

  • draw3DRect (int x, int y, int width, int height, boolean raised)

Komar Associates


Rounded and 3d rectangles l.jpg
Rounded and 3D Rectangles

import java.awt.*;

import java.applet.*;

public class Rectangles extends Applet {

public void paint (Graphics page) {

page.drawRoundRect (10,10,50,50,25,25);

page.setColor (Color.red);

page.fillRoundRect (90,10,40,40,10,30);

page.setColor (Color.blue);

page.fillRoundRect (150,30,50,20,15,15);

page.setColor (Color.orange);

page.fill3DRect (10,70,50,50,true);

page.draw3DRect (70,70,50,50,false);

}// method paint

}// class Rectangles

Komar Associates


Rectangle results l.jpg
Rectangle Results

Komar Associates


Slide33 l.jpg

Arc Angle

Start Angle

height

Width

Arcs

  • drawArc (int x, int y, int width, int height, int start_angle, int arc_angle)

  • fillArc (int x, int y, int width, int height, int start_angle, int arc_angle)

Komar Associates


Arcs applet l.jpg
Arcs Applet

import java.awt.*;

import java.applet.*;

public class Arcs extends Applet {

public void paint (Graphics page) {

page.drawArc (10,10,50,50,45,225);

page.drawArc (70,10,30,70,-180,180);

page.setColor (Color.red);

page.fillArc (130,10,60,60,-180,-90);

page.setColor (Color.blue);

page.fillArc (190,10,50,50,45,270);

page.setColor (Color.green);

page.fillArc (250,10,80,40,-225,180);

}// method paint

}// Class Arcs

Komar Associates


Arcs applet results l.jpg
Arcs Applet Results

Komar Associates


Polygons l.jpg
Polygons

  • Polygon class can be used to define a polygon

    • addPoint method adds points to the polygon

  • Graphics class contains methods to draw a polygon

    • drawPolygon(int[ ] xpoints, int[ ] ypoints, int numpoints)

    • drawPolygon(Polygon poly)

    • fillPolygon(int[ ] xpoints, int[ ] ypoints, int numpoints)

    • fillPolygon(Polygon poly)

  • Polygons are always closed shapes -- if the last point specified does not close the shape, it is automatically closed

Komar Associates


Polygons applet l.jpg
Polygons Applet

import java.awt.*;

import java.applet.*;

public class Polygons extends Applet {

private int[] xset1 = {110,110,115,120,150,135};

private int[] yset1 = {10,40,30,50,15,7};

private int[] xset2 = {195,170,170,195,220,220};

private int[] yset2 = {10,20,40,50,40,20};

private int[] xset3 = {110,150,110,150,110};

private int[] yset3 = {70,70,110,110,70};

private Polygon poly = new Polygon();

Komar Associates


Polygons applet38 l.jpg
Polygons Applet

public void paint (Graphics page) {

page.drawPolygon (xset1, yset1, 6);

page.drawPolygon (xset2, yset2, 6);

page.setColor (Color.red);

page.fillPolygon (xset3, yset3, 5);

poly.addPoint (170, 70);

poly.addPoint (170, 90);

poly.addPoint (190, 110);

poly.addPoint (220, 90);

page.setColor (Color.blue);

page.fillPolygon (poly);

}// method paint

}// class Polygons

Komar Associates


Polygons applet results l.jpg
Polygons Applet Results

Komar Associates


Polylines l.jpg
Polylines

  • drawPolyline (int[ ] xpoints, int[ ] ypoints, int numpoints)

  • Similar to polygon except a polyline is not a closed shape

Komar Associates


Java2d api l.jpg
Java2D API

  • Additional drawing capabilities beyond first java.awt release

  • Use Graphics2D objects

  • Graphics2D is a subclass of Graphics

  • Downcast Graphics object to Graphics2D object

    • Graphics2D g2 = (Graphics2D) g;

  • Use setPaint, draw, fill methods of Graphics2D

Komar Associates


Graphics2d example l.jpg
Graphics2D Example

// Fig. 11.22: Shapes.java

// Demonstrating some Java2D shapes

import javax.swing.*;

import java.awt.event.*;

import java.awt.*;

import java.awt.geom.*;

import java.awt.image.*;

public class Shapes extends JFrame {

public Shapes()

{

super( "Drawing 2D shapes" );

setSize( 425, 160 );

show();

}

Komar Associates


Graphics2d example43 l.jpg
Graphics2D Example

public void paint( Graphics g )

{

// create 2D by casting g to Graphics2D

Graphics2D g2d = ( Graphics2D ) g;

// draw 2D ellipse filled with a blue-yellow gradient

g2d.setPaint(

new GradientPaint( 5, 30, // x1, y1

Color.blue, // initial Color

35, 100, // x2, y2

Color.yellow, // end Color

true ) ); // cyclic

g2d.fill( new Ellipse2D.Double( 5, 30, 65, 100 ) );

Komar Associates

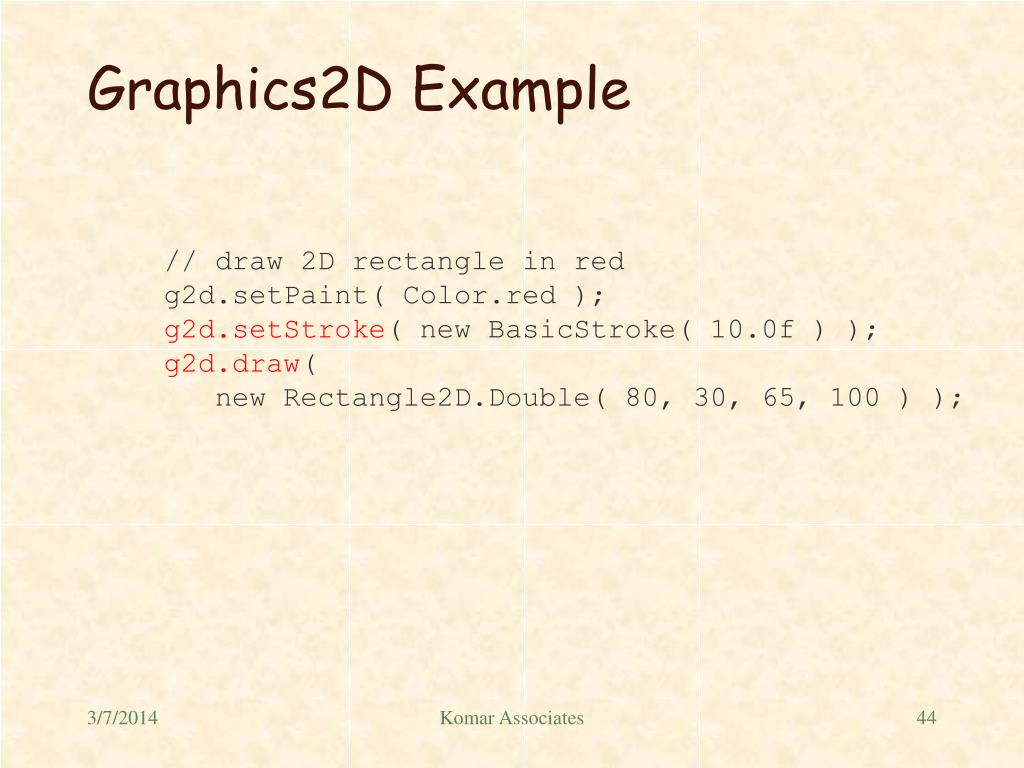

Graphics2d example44 l.jpg
Graphics2D Example

// draw 2D rectangle in red

g2d.setPaint( Color.red );

g2d.setStroke( new BasicStroke( 10.0f ) );

g2d.draw(

new Rectangle2D.Double( 80, 30, 65, 100 ) );

Komar Associates


Graphics2d example45 l.jpg
Graphics2D Example

// draw 2D rounded rectangle with a buffered background

BufferedImage buffImage =

new BufferedImage(

10, 10, BufferedImage.TYPE_INT_RGB );

Graphics2D gg = buffImage.createGraphics();

gg.setColor( Color.yellow ); // draw in yellow

gg.fillRect( 0, 0, 10, 10 ); // draw a filled rectangle

gg.setColor( Color.black ); // draw in black

gg.drawRect( 1, 1, 6, 6 ); // draw a rectangle

gg.setColor( Color.blue ); // draw in blue

gg.fillRect( 1, 1, 3, 3 ); // draw a filled rectangle

gg.setColor( Color.red ); // draw in red

gg.fillRect( 4, 4, 3, 3 ); // draw a filled rectangle

Komar Associates


Graphics2d example46 l.jpg
Graphics2D Example

// paint buffImage onto the JFrame

g2d.setPaint(

new TexturePaint(

buffImage, new Rectangle( 10, 10 ) ) );

g2d.fill(

new RoundRectangle2D.Double(

155, 30, 75, 100, 50, 50 ) );

Komar Associates


Graphics2d example47 l.jpg
Graphics2D Example

// draw 2D pie-shaped arc in white

g2d.setPaint( Color.white );

g2d.setStroke( new BasicStroke( 6.0f ) );

g2d.draw(

new Arc2D.Double(

240, 30, 75, 100, 0, 270, Arc2D.PIE ) );

Komar Associates


Graphics2d example48 l.jpg
Graphics2D Example

// draw 2D lines in green and yellow

g2d.setPaint( Color.green );

g2d.draw( new Line2D.Double( 395, 30, 320, 150 ) );

float dashes[] = { 10 };

g2d.setPaint( Color.yellow );

g2d.setStroke(

new BasicStroke( 4,

BasicStroke.CAP_ROUND,

BasicStroke.JOIN_ROUND,

10, dashes, 0 ) );

g2d.draw( new Line2D.Double( 320, 30, 395, 150 ) );

}

Komar Associates


Graphics2d example49 l.jpg
Graphics2D Example

public static void main( String args[] )

{

Shapes app = new Shapes();

app.addWindowListener(

new WindowAdapter() {

public void windowClosing( WindowEvent e )

{

System.exit( 0 );

}

}

);

}

}

Komar Associates


Graphics2d example50 l.jpg
Graphics2D Example

Komar Associates


Other java2d stuff l.jpg
Other Java2D Stuff

  • GeneralPath class

    • shape constructed from lines and complex curves

    • part of java.awt.geom

  • translate method of the Graphics2D class to move the drawing origin to a different location, other than 0, 0

  • rotate method to move (rotate) the drawing origin

Komar Associates


Shapes2 l.jpg
Shapes2

// Fig. 11.23: Shapes2.java

// Demonstrating a general path

import javax.swing.*;

import java.awt.event.*;

import java.awt.*;

import java.awt.geom.*;

public class Shapes2 extends JFrame {

public Shapes2()

{

super( "Drawing 2D Shapes" );

setBackground( Color.yellow );

setSize( 400, 400 );

show();

}

Komar Associates


Shapes253 l.jpg
Shapes2

public void paint( Graphics g )

{

int xPoints[] =

{ 55, 67, 109, 73, 83, 55, 27, 37, 1, 43 };

int yPoints[] =

{ 0, 36, 36, 54, 96, 72, 96, 54, 36, 36 };

Graphics2D g2d = ( Graphics2D ) g;

// create a star from a series of points

GeneralPath star = new GeneralPath();

// set the initial coordinate of the General Path

star.moveTo( xPoints[ 0 ], yPoints[ 0 ] );

Komar Associates


Shapes254 l.jpg
Shapes2

// create the star--this does not draw the star

for ( int k = 1; k < xPoints.length; k++ )

star.lineTo( xPoints[ k ], yPoints[ k ] );

// close the shape

star.closePath();

Komar Associates


Shapes255 l.jpg
Shapes2

// translate the origin to (200, 200)

g2d.translate( 200, 200 );

// rotate around origin and draw stars in random colors

for ( int j = 1; j <= 20; j++ ) {

g2d.rotate( Math.PI / 10.0 );

g2d.setColor(

new Color( ( int ) ( Math.random() * 256 ),

( int ) ( Math.random() * 256 ),

( int ) ( Math.random() * 256 ) ) );

g2d.fill( star ); // draw a filled star

}

}

Komar Associates


Shapes256 l.jpg
Shapes2

public static void main( String args[] )

{

Shapes2 app = new Shapes2();

app.addWindowListener(

new WindowAdapter() {

public void windowClosing( WindowEvent e )

{

System.exit( 0 );

}

}

);

}

}

Komar Associates


Shapes257 l.jpg
Shapes2

Komar Associates


Summary l.jpg
Summary

  • Graphics contexts and graphics objects

  • Color control

  • Font control

  • Drawing lines, rectangles, ovals, arcs, polygons, and polylines

  • Java2D API

  • Java2D Shapes

Komar Associates


ad
